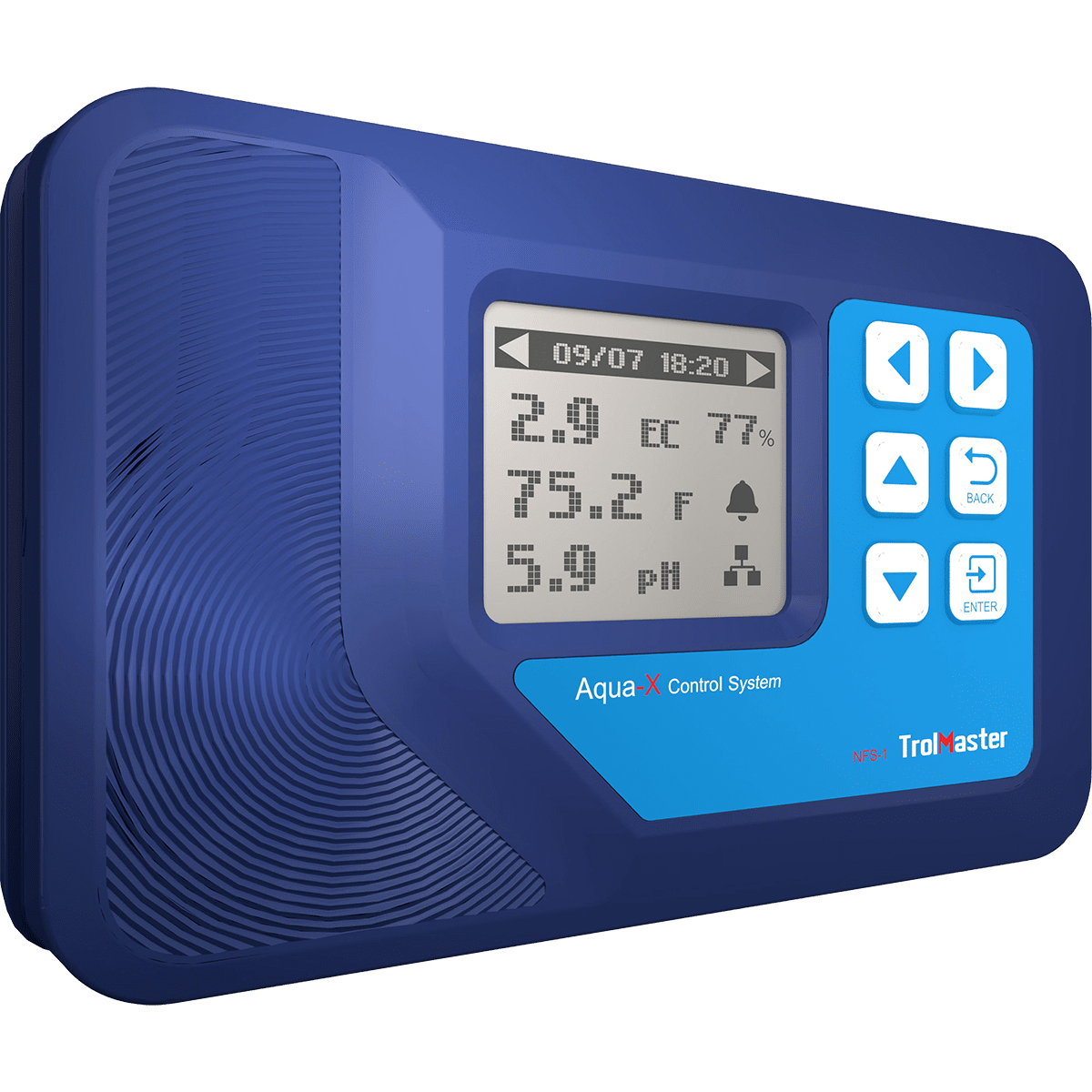

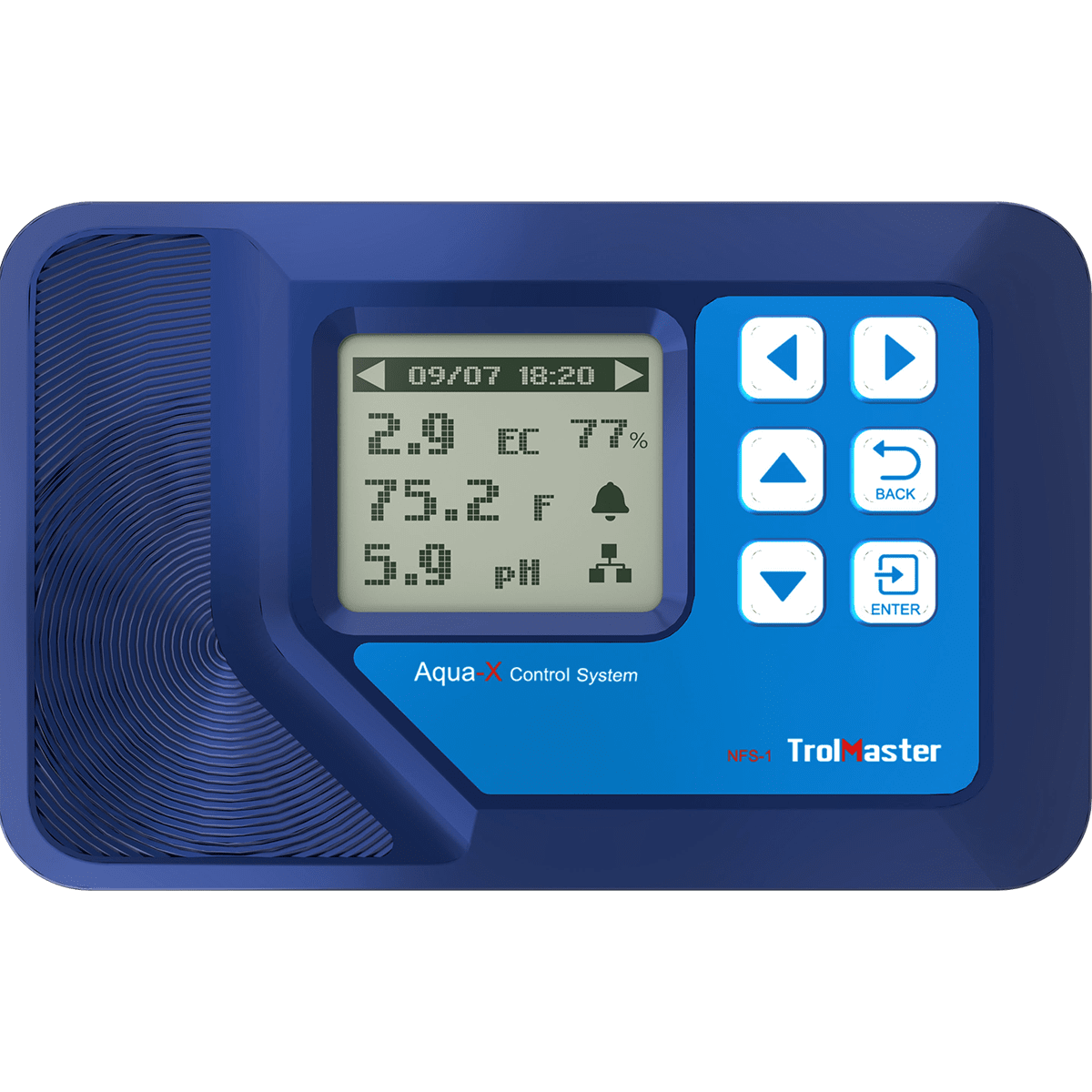

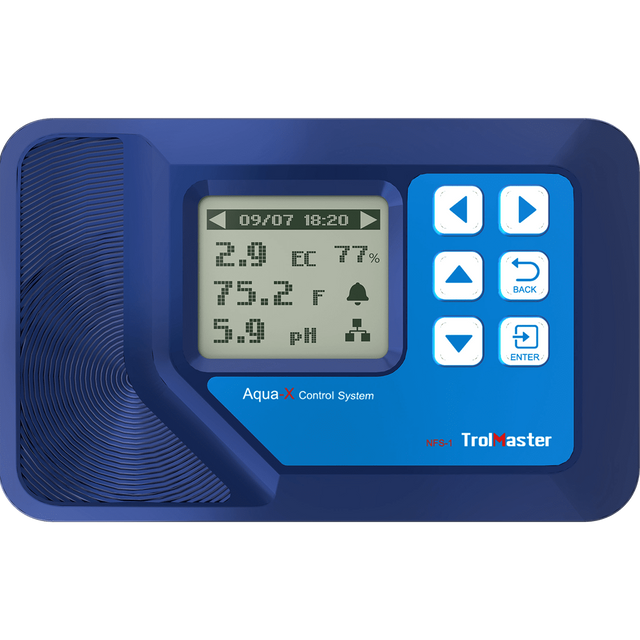

TrolMaster Aqua-X Controller with Water Detector Set

Name: TrolMaster Aqua-X Controller with Water Detector Set
Brand: TrolMaster
Price: 331.17 USD
Availability: InStock

SKU: tm12787 | Model: NFS-1

$331¹⁷

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

3-Year Warranty

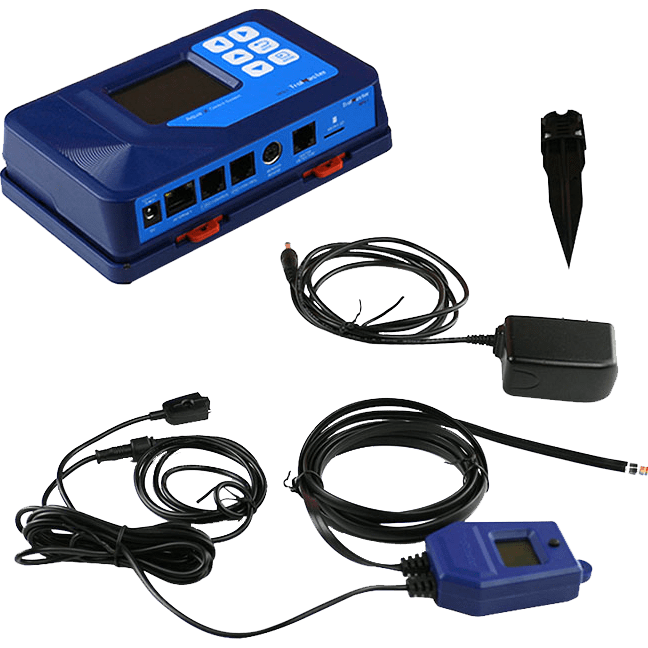

What's In The Box?

TrolMaster Aqua-X Irrigation Controller
1 Water Detector

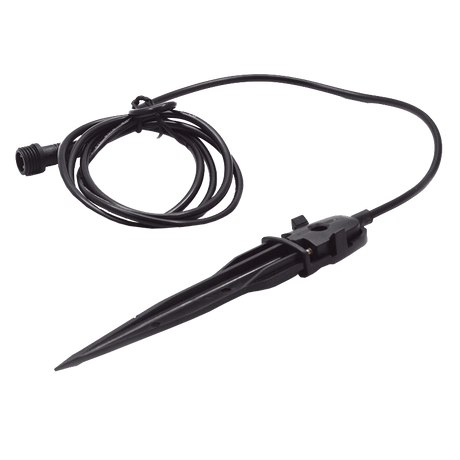

1 Touch Spot
1 12V Power Adapter
Owner's Manual

Info & Guides

Description

A missed irrigation cycle can cost you a crop before anyone notices. The TrolMaster Aqua-X Controller with Water Detector Set closes that gap by pairing scheduled pump and valve control with a WD-1 water detector that confirms water actually flows when a zone turns on. You get an alert as soon as something goes wrong instead of finding out at the next walkthrough.

If you run several rooms, the Aqua-X coordinates delivery schedules for multiple nutrients, so each room can follow its own feeding program from the same controller. The LCD display and touch buttons let you change set points or reschedule timers right at the controller.

Key Features and Benefits of the TrolMaster Aqua-X Controller with Water Detector Set

Zone Capacity: Manage up to 30 outputs at 110 volts or 24 volts, so one controller can run irrigation across several rooms and zones.
Water Detector Included: The WD-1 water detector works as a leak detector or a water verification monitor, and it alerts you when an active zone fails to deliver water.
Custom Schedules: Program up to 12 irrigation schedules by time of day and duration, or set recycling timers, so each zone gets the watering pattern it needs.

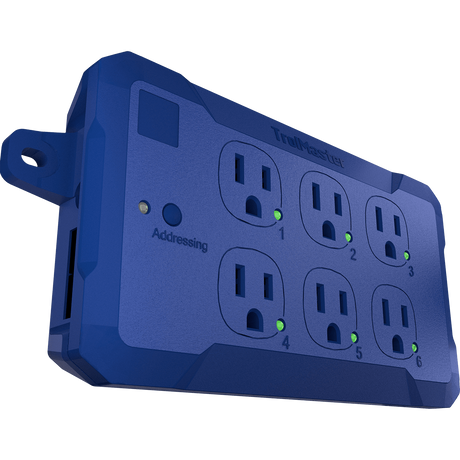

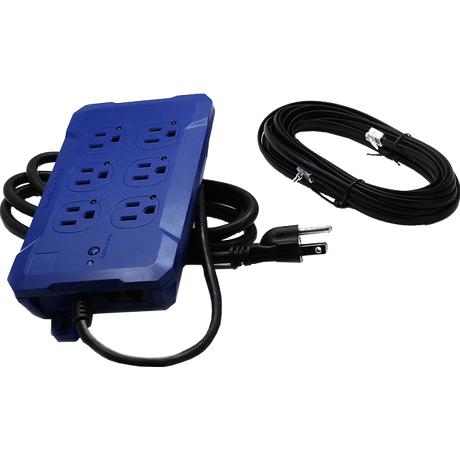

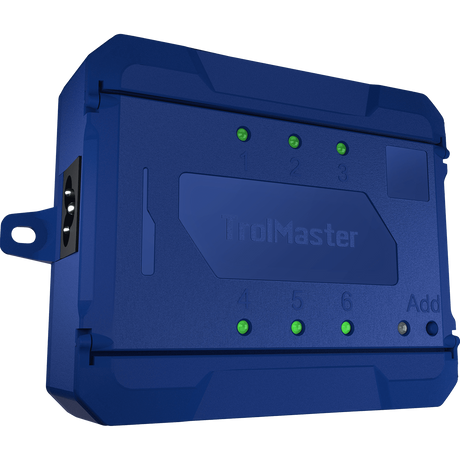

Dual Control Boards: A 110-volt board drives your pumps and a 24-volt board handles solenoid valves, so you can run both from a single system.

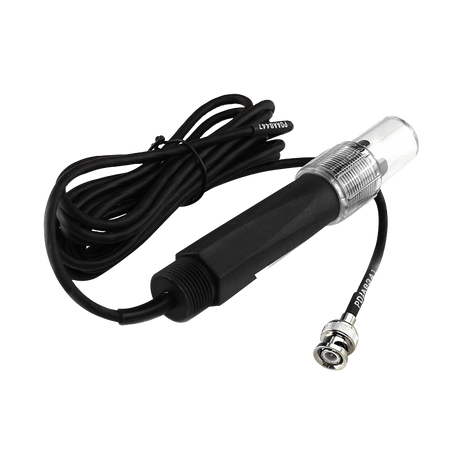

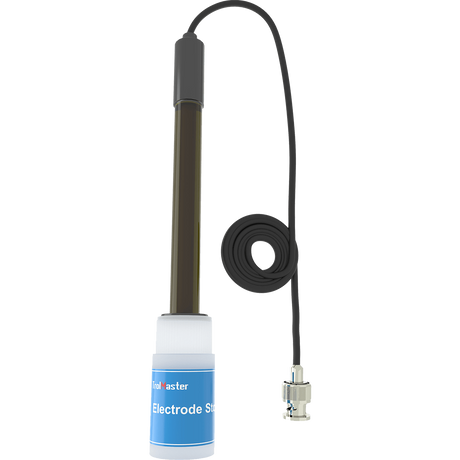

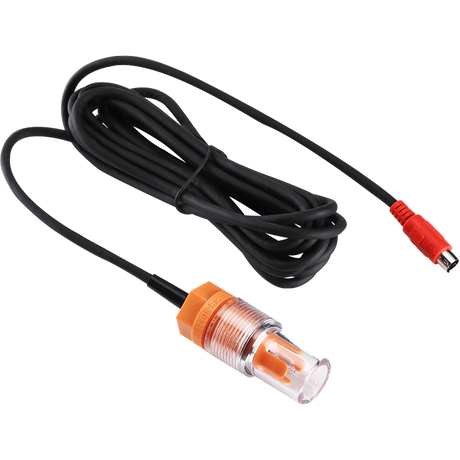

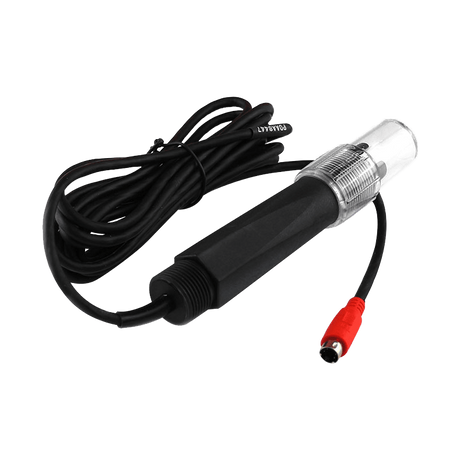

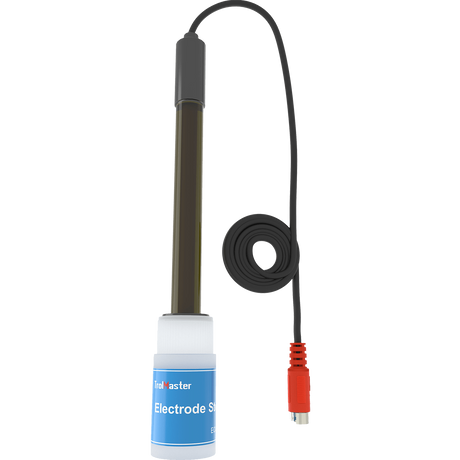

Nutrient Monitoring: Track pH, EC, and water temperature in your nutrient solution, with minimum and maximum limits that send you an alert when readings drift.
Wi-Fi App Access: Wi-Fi connects the controller to the free TrolMaster App, so you can change settings, view data, and get push notifications from anywhere.
RJ12 Daisy-Chain: Aqua-X modules connect in series with RJ12 cables, which keeps your wiring simple during installation and expansion.
Emergency Stop: Use this function when the control boards show an abnormal condition to halt all functions for 30 minutes while you investigate.
Compact Footprint: At 10.83 x 6.46 x 2.44-Inches (L x W x H) and 1.72 pounds, the controller fits in tight equipment spaces near your pumps.
Operating Range: The controller works in temperatures from 32 to 122 degrees F, so it can handle both cool and warm equipment areas.

Planning Your Zone Layout Around 30 Outputs

Before you wire the Aqua-X, decide which outputs will drive pumps and which will drive solenoid valves. Pumps run from the 110-volt side and valves from the 24-volt side, and you can control up to 30 outputs in total. You have 12 schedules to assign, so grouping zones that share a watering pattern under one schedule leaves schedules free for rooms that need their own timing. Place the WD-1 where you need to confirm an irrigation zone is working when it activates.

Sylvane's Expert Take

If you run commercial irrigation across several rooms and can't afford a silent pump failure or a stuck valve, the Aqua-X fits your operation. It works best where pumps and valves are spread across many zones.

The included water detector checks that water actually arrived, not just that a timer fired. Focus on the failure alerts and the 12 programmable schedules. Set it up once, and you'll know about a problem long before your crops show it.
