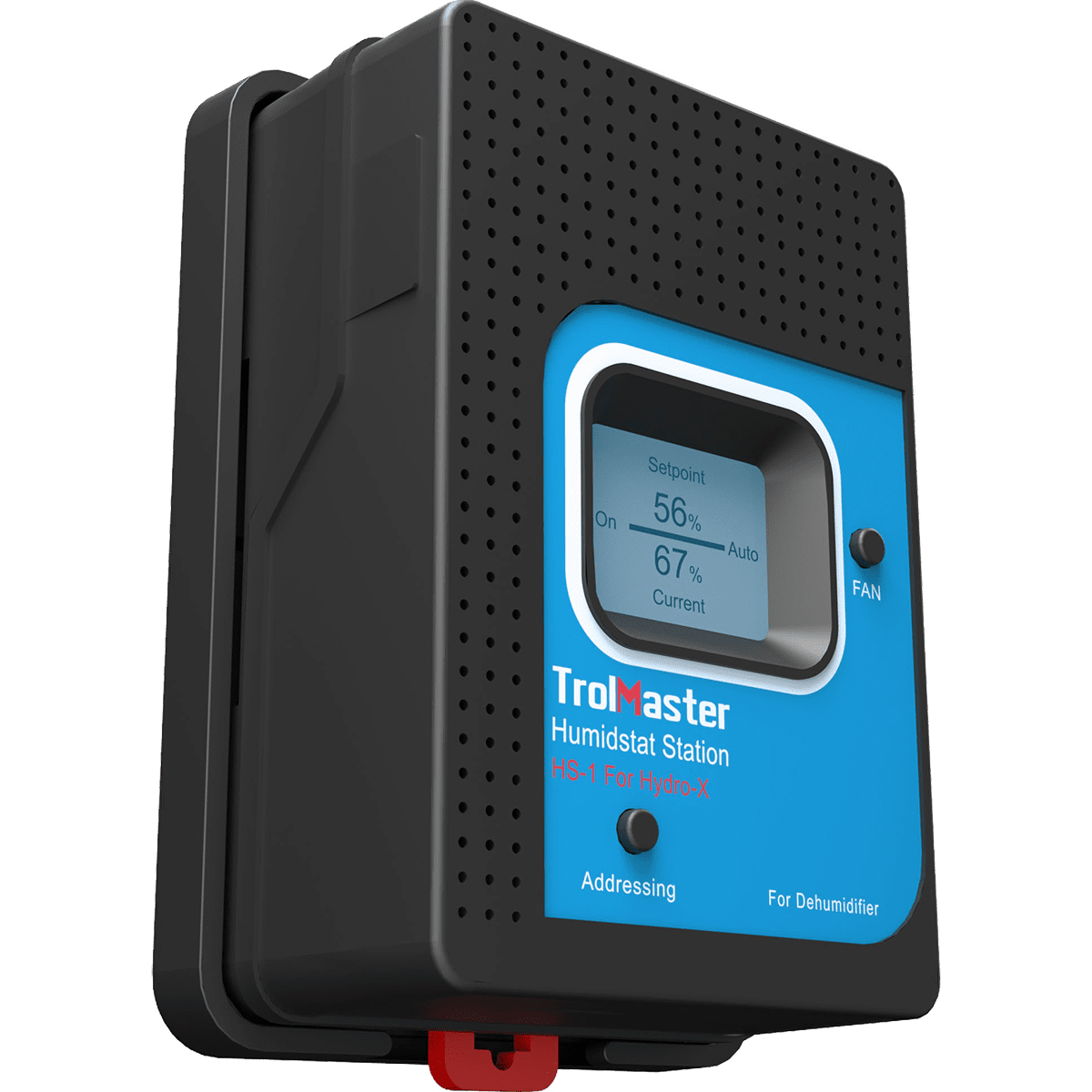

TrolMaster Hydro-X Humidistat Station

SKU: tm12760  |  Model: HS-1
$14999

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

What's In The Box?
  • TrolMaster Hydro-X Humidistat Station w/ 24V Terminal (HS-1)
  • 16-ft. RJ12 Cable
  • 4-ft. RJ12 Cable
  • RJ12 T-Splitter
  • Owner's Manual

Info & Guides

Description

The TrolMaster Hydro-X HS-1 Humidistat Station is specially designed to control commercial dehumidifiers with a 24V terminal to eliminate the need for to control high-amperate / inrush current.

Four data lines through four ports on the back panel allows the user to control any commercial dehumidifier based on preselected set points.

Simple Set-Up

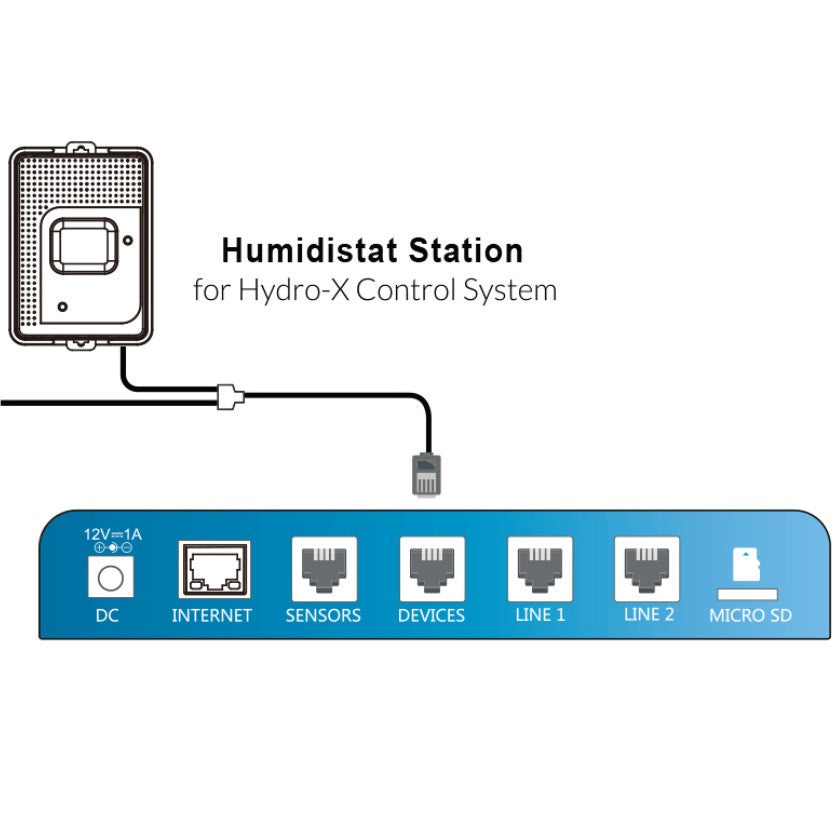

Connect the HS-1 Humidistat Station to the Hydro-X controller with the included RJ12 cable and the signal wires to the back panel. Then, press the addressing button to assign and address to the HS-1 unit. Then you can select fan setting and humidity set-points.

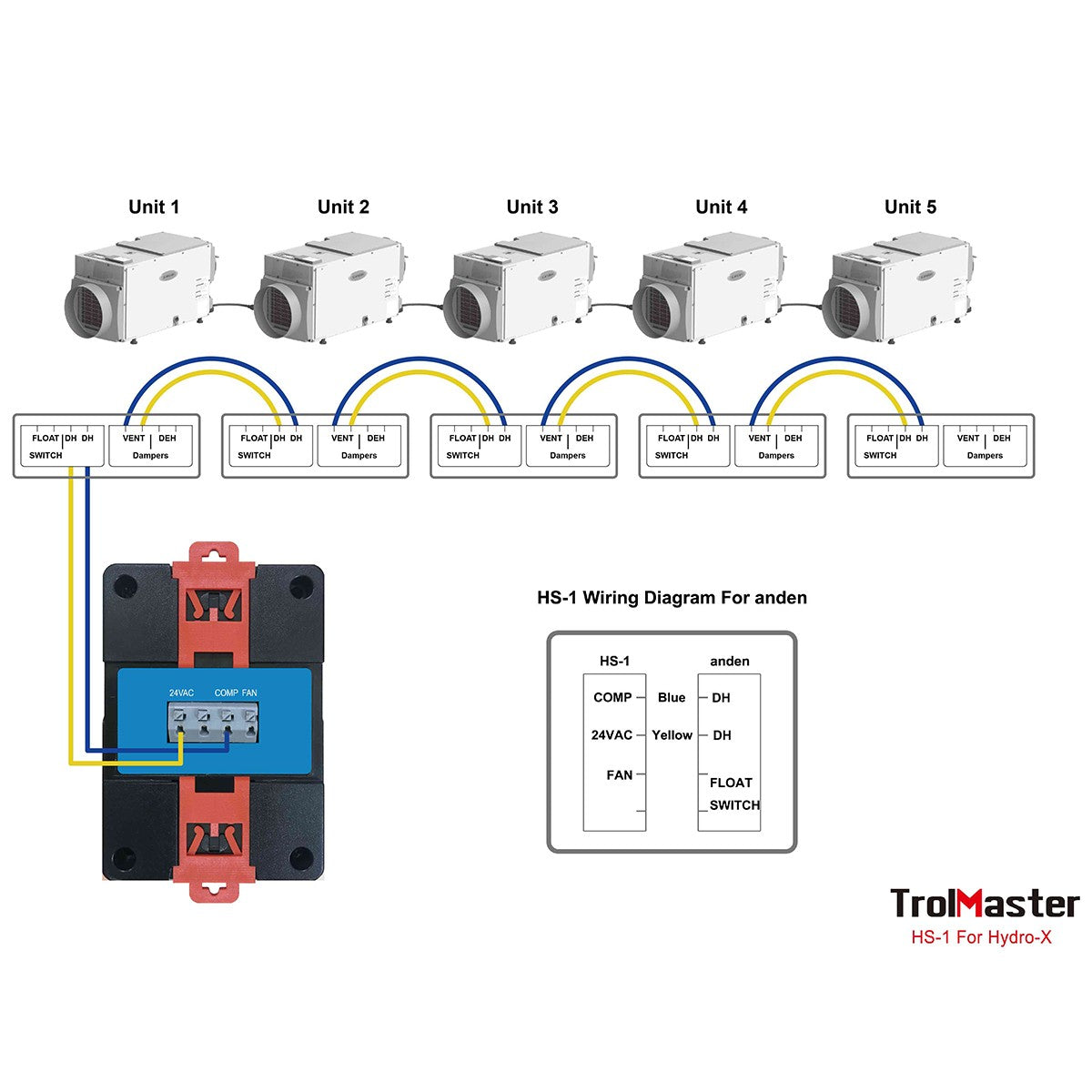

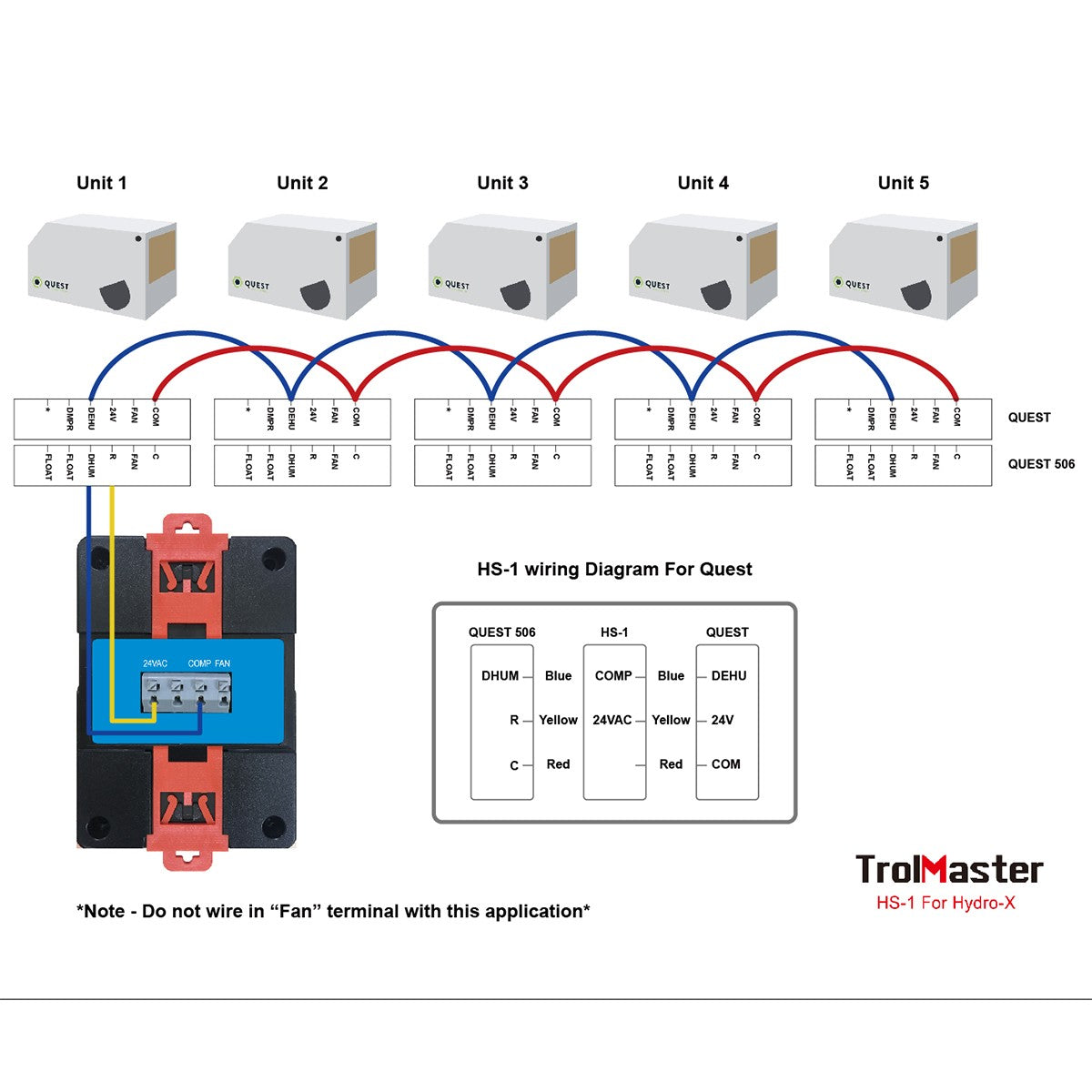

The HS-1 can accommodate up to 5 commercial dehumidifier units such as Quest or Anden models.

Additional Features

  • Ambient Temperature for Operation: 32 - 122 degrees Fahrenheit
  • Ambient Humidity for Operation: Less than or equal to 90% RH
  • ETL Certified
  • LCD Display
  • Micro-SD for Firmware Upgrade
  • Plug & Play Functionality

Specifications

    Key Specifications

    • Growing Product Type
      Controller
    • System Controls
      Humidity

    General

    • Maximum Operating Temperature (degrees F)
      122
    • Minimum Operating Temperature (degrees F)
      32

    Power

    • Maximum Amperage (Amps)
      0.1

    Dimensions

    • Depth (in.)
      6.3
    • Height (in.)
      3.39
    • Weight (lbs.)
      0.88
    • Width (in.)
      3.39

    Additional Features

    • Additional Features
      Applicable for Indoor Growing
