TrolMaster Hydro-X Temperature & Humidity Station
TrolMaster Hydro-X Temperature & Humidity Station is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
What's In The Box?
What's In The Box?
- TrolMaster Temperature/Humidity Station TSH-1
- 16-ft. RJ12 Cable
- 4-ft. RJ12 Cable
- RJ12 T-Splitter
- Owner's Manual
Info & Guides
Info & Guides
Description
Description

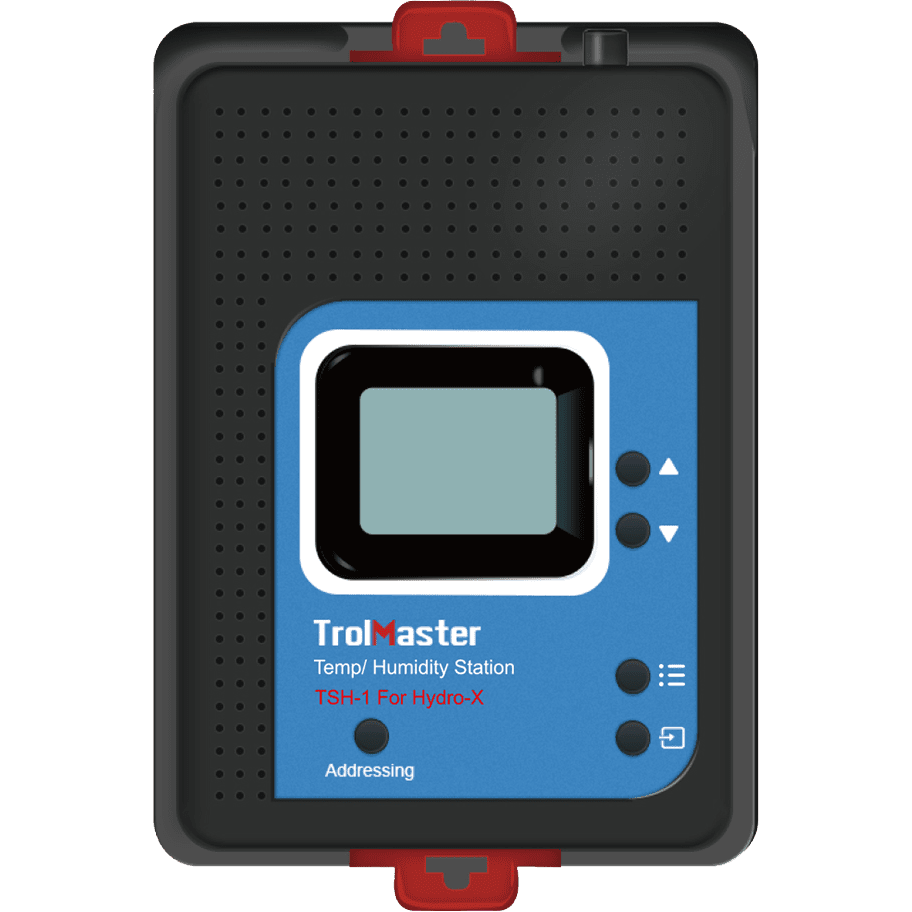

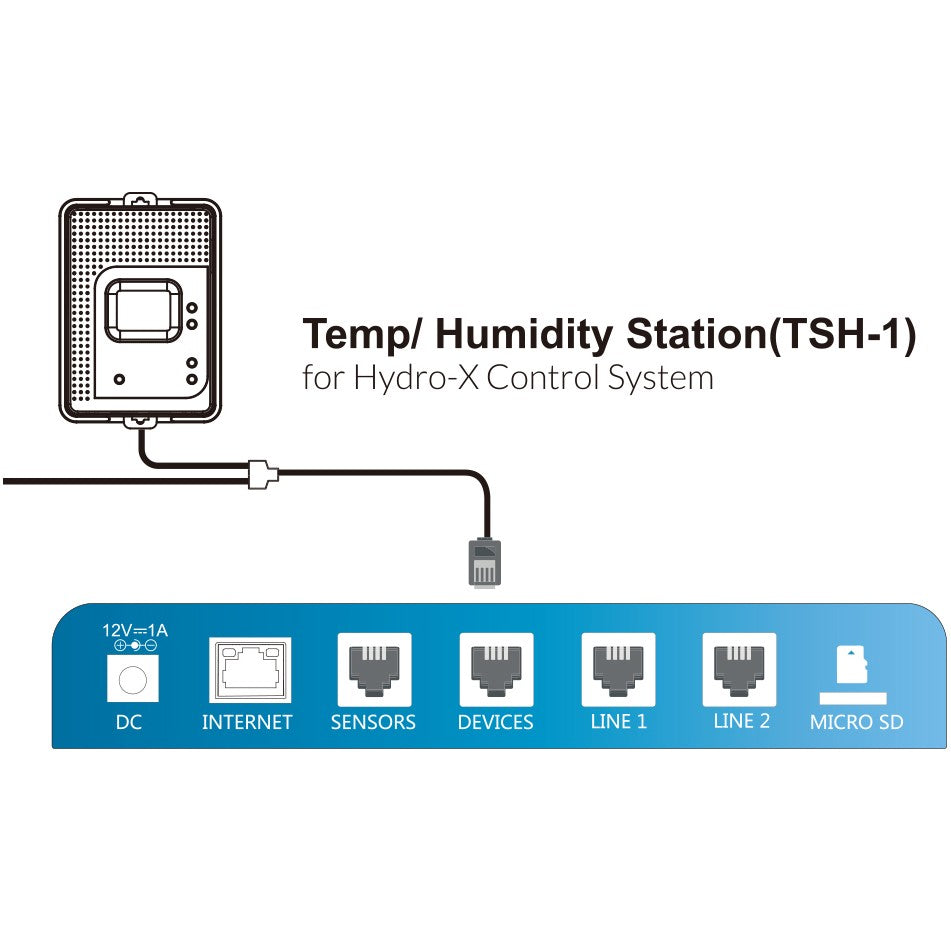

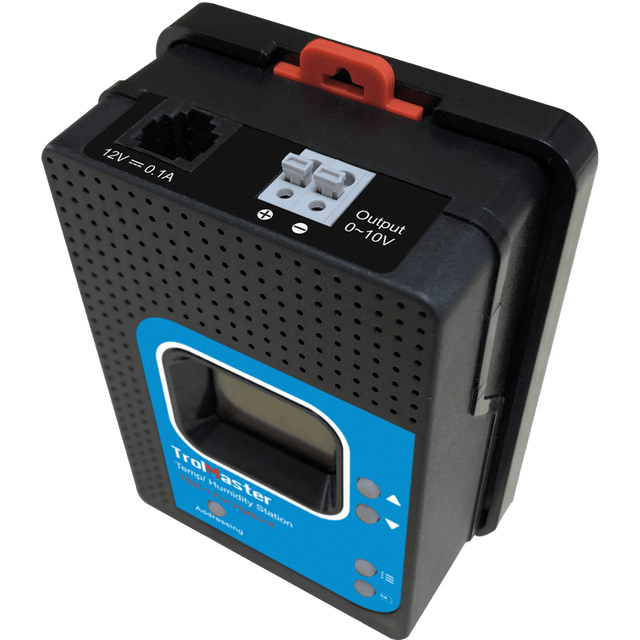

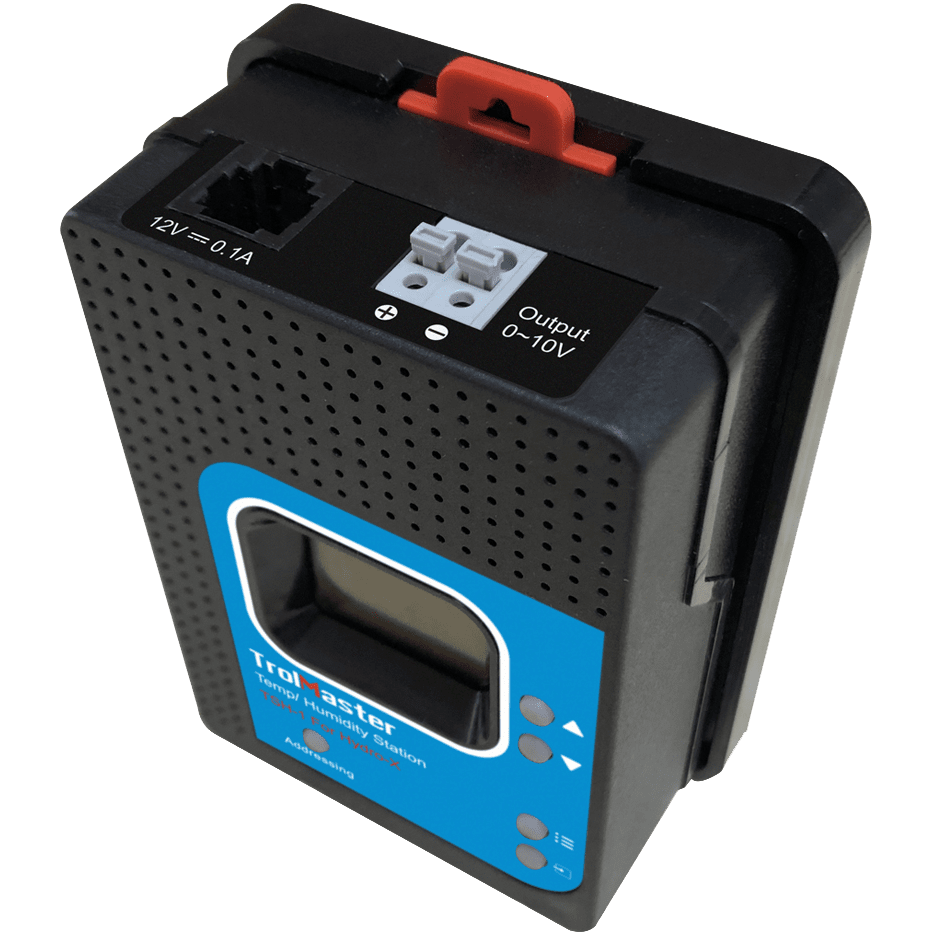

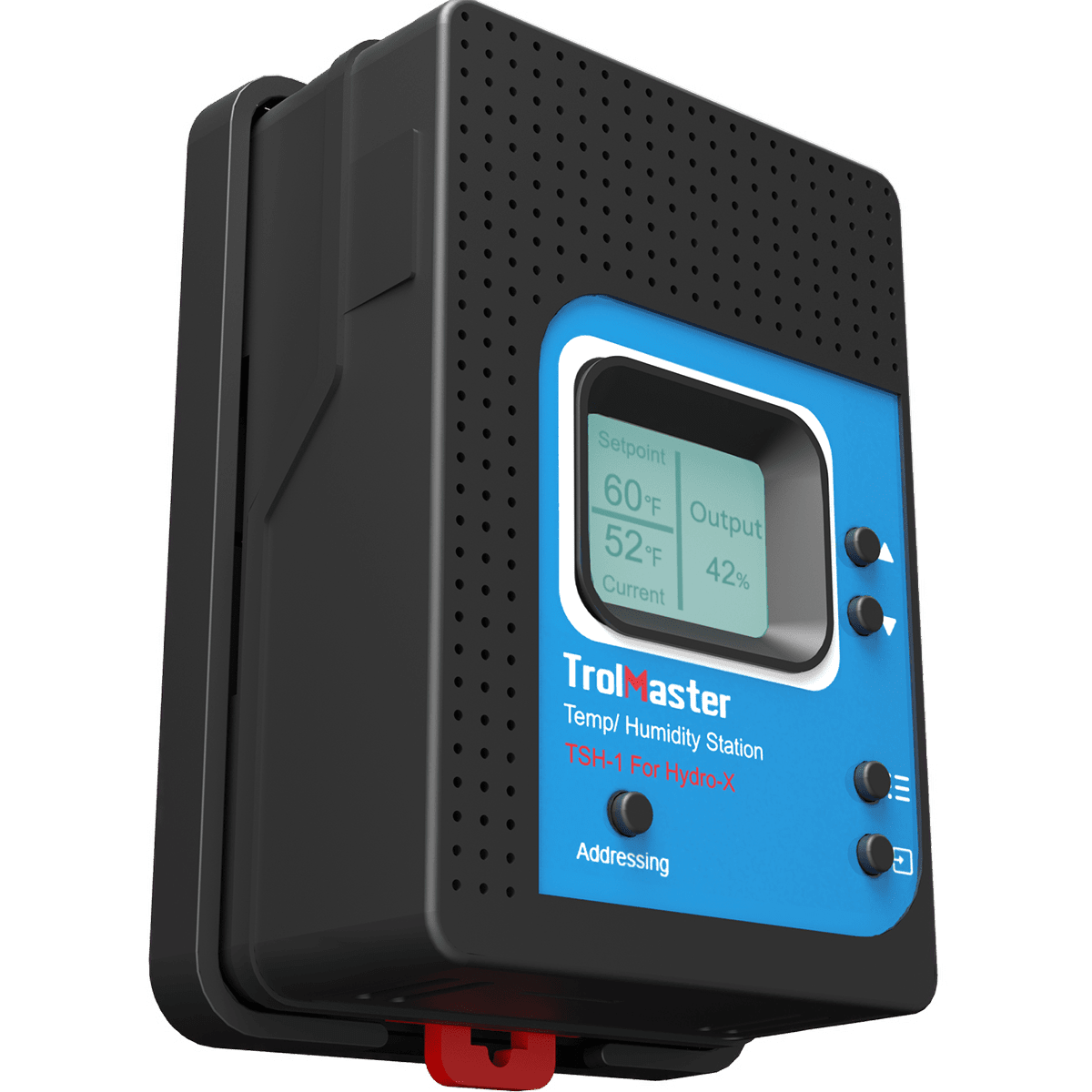

The TrolMaster TSH-1 Temperature/Humidity Station is a 0-10 volt analog output control station that works with the Hydro-X (HCS-1) and Hydro-X Pro (HCS-2) controllers. It can be configured to control either a temperature or a humidity device that requires a variable 0-10 volt input signal.
Capable of controlling variable speed fans, vents or any other device that accepts a 0-10 volt input, the TSH-1 features separate day and night “idle” speed settings, as well as separate Day/Night set points accessed through either one of the HCS controller.
Additional Features
- Analog 0-10v Control of Temperature/ Relative Humidity
- LCD Display, Easy Operation
- Seamless Connection with Hydro-X and Hydro-X Pro
- Micro-SD Slot for Firmware Upgrade
- Assignable control of Humidity or Temperature
- Plug & Play Functionality
- ETL-Certified
Specifications
Specifications
-
Growing Product TypeDevice Station
-
System ControlsHumidity, Temperature
-
Environment Temperature (degrees F)32-122
-
Maximum Operating Temperature (degrees F)122
-
Minimum Operating Temperature (degrees F)32
-
Maximum Amperage (Amps)1
-
Depth (in.)6.3
-
Depth (with front cover) (in.)6.3
-
Height (in.)3.39
-
Height (with front cover) (in.)3.39
-
Weight (lbs.).78
-
Width (in.)3.39
-
Width (with front cover) (in.)3.39
-
Additional FeaturesApplicable for Indoor Growing
