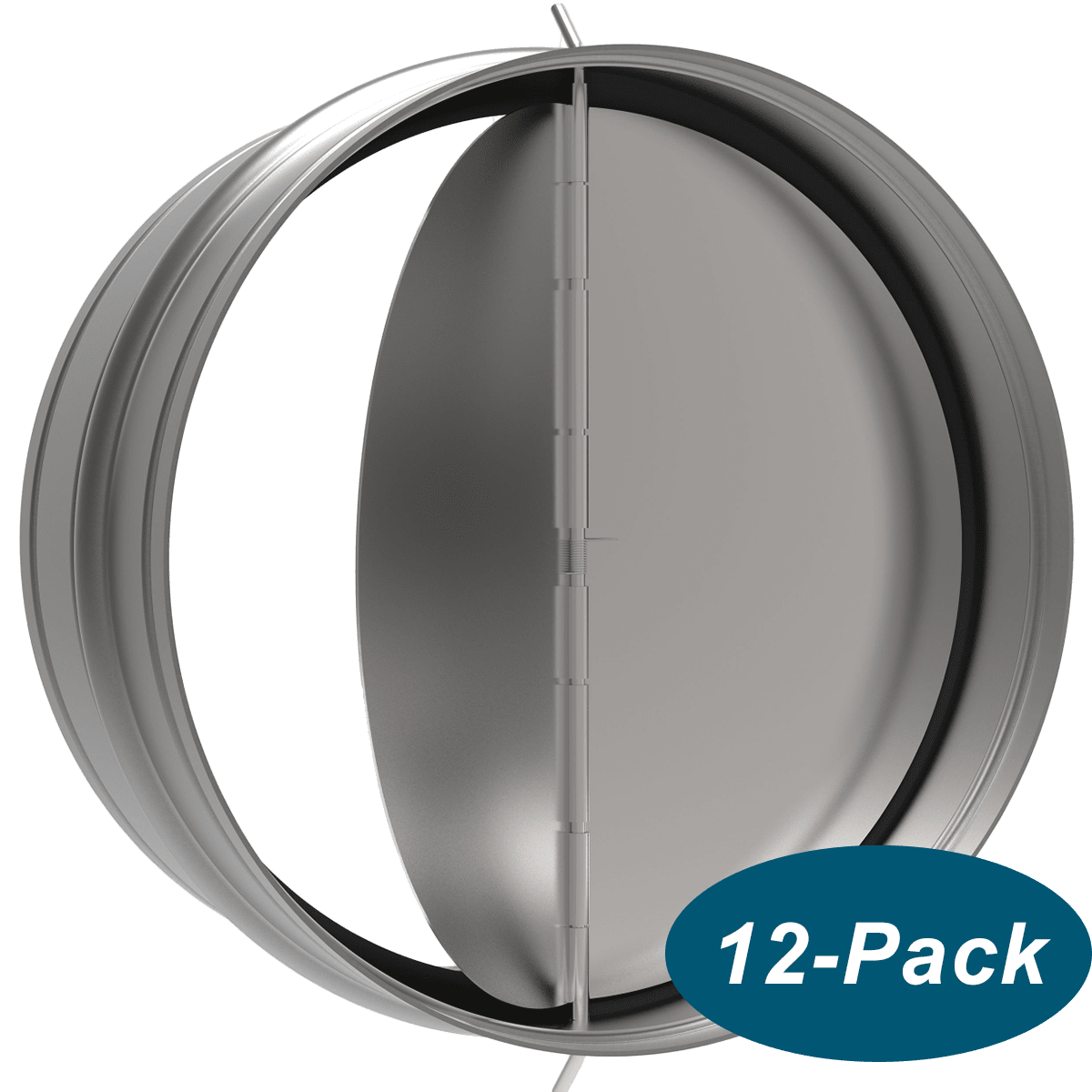

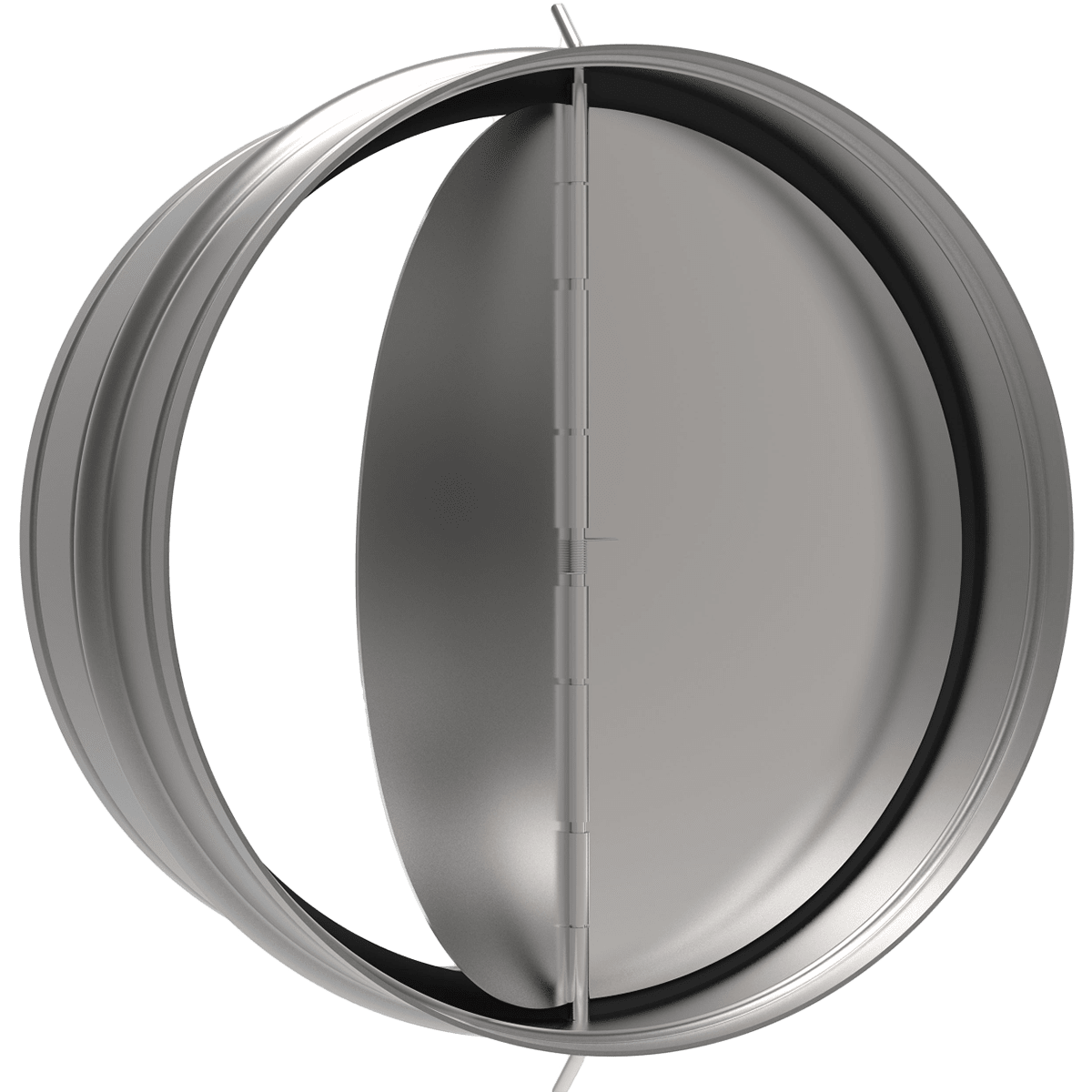

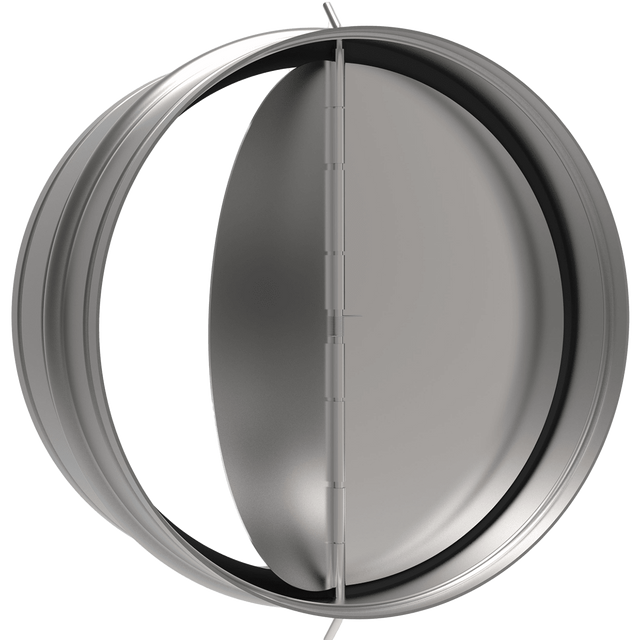

Fantech RSK6 6-Inch Duct Backdraft Damper
Fantech RSK6 6-Inch Duct Backdraft Damper - 12-Pack is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech RSK6 6-Inch Duct Backdraft Damper
- Owner's Manual
Info & Guides
Info & Guides
Fantech RSK6 6-Inch Duct Backdraft Damper
Description
Description
Backdraft dampers (also known as gravity dampers) are used in exhaust and intake HVAC systems to allow airflow in one direction while preventing reverse flow. Galvanized sheet metal is used to make the Fantech RSK6 6-Inch Duct Backdraft Damper for circular ducts. Every Fantech Backdraft Damper is designed for maximum performance.
Top Features Of The Fantech RSK6
- Positioning options: Horizontal mount or vertical mount—your choice.
- Zinc Coating: The 24 GA, G90 galvanized steel casing is coated with a thin layer of zinc, which protects the steel beneath it from rust.
- Damper blades formed from aluminum H14: 20 percent stronger than 1100 series aluminum.
- Stainless Steel Blades: Features two stainless steel blades that are torsion spring-loaded.
- Built to Last Has a 3/32" diameter brass central rod and EPBM synthetic rubber gasket.
Two Quantities Available
Available in single and multi-packs, the RSK6 from Fantech lets you choose the right quantity for you.
- RSK 6 Backdraft Damper: Single 6-inch damper
- Carton: 12-piece carton of 6” Back-draft dampers.
Summary
Built with performance in mind, Fantech RSK6 is manufactured from galvanized sheet metal. This Fantech 6-Inch Damper allows airflow in one direction and prevent reverse airflow.
Specifications
Specifications
-
TypeDamper
-
ColorGray
-
Housing MaterialGalvanized Steel
-
Amperage (Amps)0
-
Watts (W)0
-
Depth (in.)3.125
-
Depth (with front cover) (in.)3.125
-
Duct Diameter (in.)6.0
-
Height (in.)6.0
-
Height (with front cover) (in.)6.0
-
Weight (lbs.)6.50.8
-
Width (in.)6.0
-
Width (with front cover) (in.)6.0
-
Manufacturer's Warranty5-Year Limited Warranty
Key Specifications
General
Power
Dimensions
Warranty
- SDStephen D.Verified BuyerReviewingFantech RSK6 6-Inch Duct Backdraft DamperRated 3 out of 5 stars12 hours agoRSK6 Damper.
It works, but you have to be super careful to ensure it is vertically positioned because if it's not, the spring is not strong enough to close the dampers. For such a design, I would have expected either a stronger spring, or have the product be labeled in some way to warn consumers about the needed orientation to ensure operability.
