S&P MD Series 24V Normally Closed Motorized Damper
SKU:
sp15713
| Model:
MD12
Regular price
$138.00
Unit price
/
Unavailable
S&P MD Series 24V Normally Closed Motorized Damper - 12-Inch is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- S&P MD 24V Normally Closed Motorized Damper
- Owner’s Manual
Info & Guides
Info & Guides
S&P MD Series 24V Normally Closed Motorized Damper
Regular price
From
$97.00
Unit price
/
Unavailable

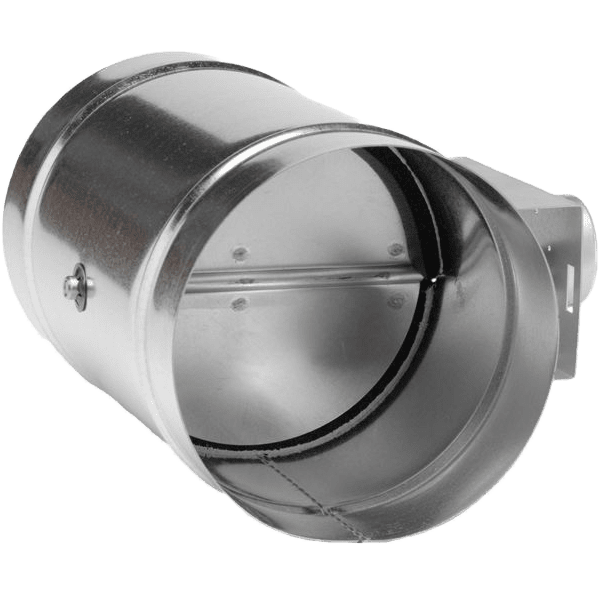

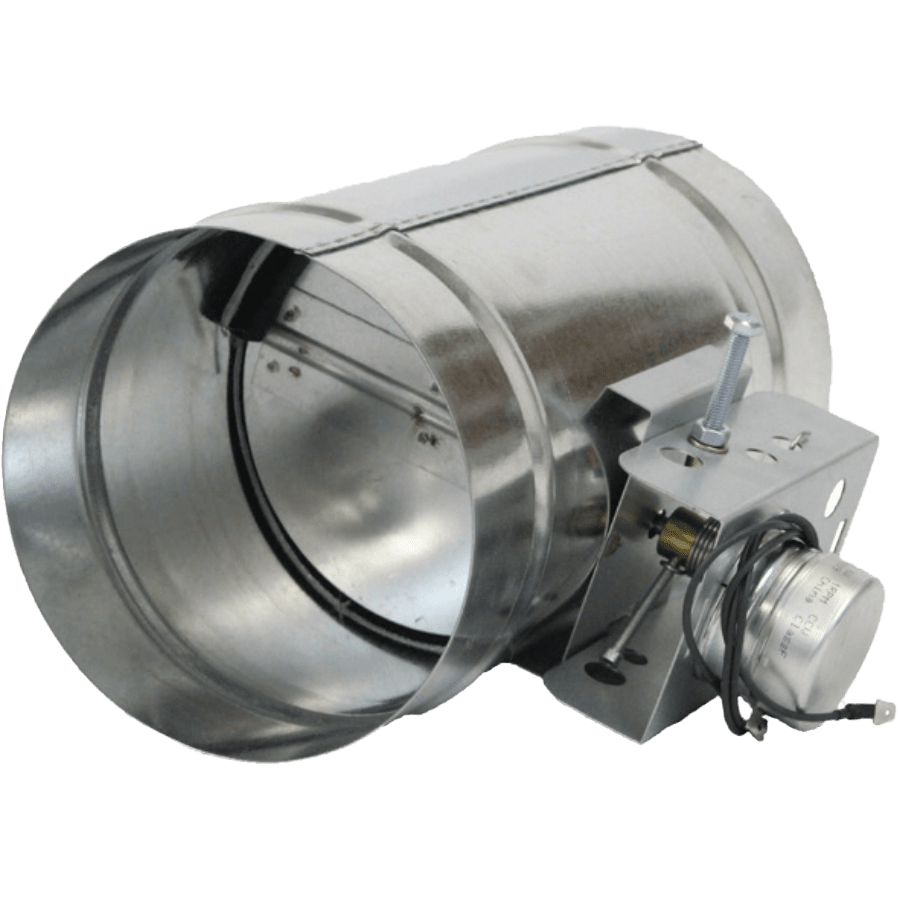

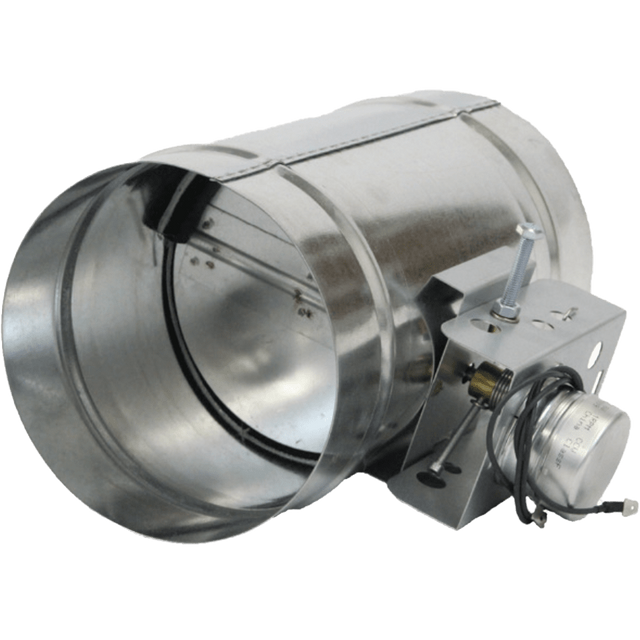

The S&P MD Series 24V Normally Closed Motorized Damper is a power open damper for round ducts. In forced-air systems, it can regulate the sequencing of outside air. Add a 120V to 24V transformer to power this S&P motorized damper with standard 120V. The Dampers are available in sizes from 4 to 14 inches.
Note: Professional installation is recommended for all models.
Key Features
- Voltage: 24V
- Frequency: 60 HZ
- Current: 0.3 Amps
- Power: 6 W
- Insulation Class: A
- Rated Ambient: 104 degrees F
- Noise: ≤ 50 dB
- Compatible With: RF-reFresh, TD-MIXVENT, TD-SILENT, SWF-SIDEWALL, PRF-Radon Mitigation, and PV-POWERVENT Series
Sylvane’s Expert Take
This S&P motorized damper provides additional control in sequencing outside air in forced air systems.
- Add a Controller: Fresh air kits with an ES24V Envirosense ventilation control and 4, 5, 6, or 8-inch damper are available for purchase separately. The ES24V is also available for purchase separately.
-
TypeDamper
-
CertificationsUL
-
ColorGray
-
ControlsElectronic
-
Housing MaterialGalvanized Steel
-
Amperage (Amps)0.3
-
Power SupplyHardwired
-
Voltage (V)24V
-
Watts (W)6
-
Depth (in.)11.889.889.889.889.889.8814.0
-
Depth (with front cover) (in.)11.889.889.889.889.889.8814.0
-
Duct Diameter (in.)12.010.08.06.05.04.014.0
-
Manufacturer's Warranty5-Year Limited Warranty
