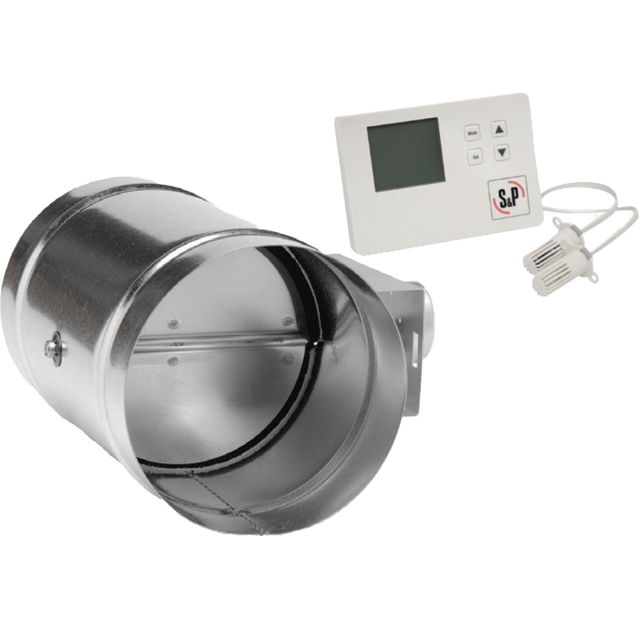

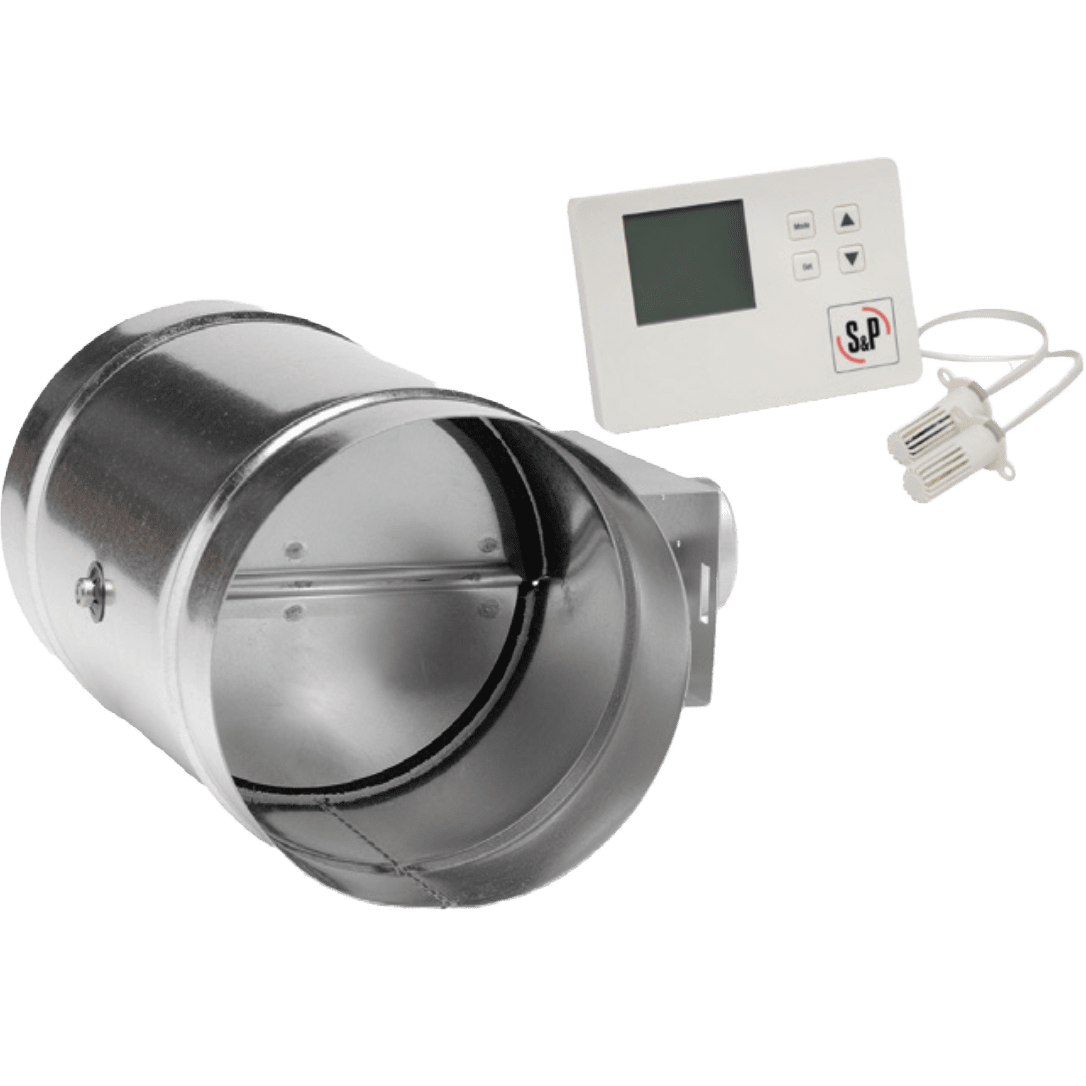

S&P MDX-ES24VK Outside Air Motorized Damper Kit

Name: S&P MDX-ES24VK Outside Air Motorized Damper Kit
Brand: S&P
Price: 196.0 USD
Availability: InStock

SKU: sp15718 | Model: MD8-ES24VK

$196.00

FREE shipping on orders over $45!

In Stock Usually ships in 3 business days.

Option

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

S&P MD 24V Normally Closed Motorized Damper
ES24V Envirosense Ventilation Control (24V)
Owner’s Manual

Info & Guides

Description

This S&P MDX-ES24VK Outside Air Motorized Damper Kit includes an MD series normally closed motorized damper and ES24V ventilation control to allow fresh air into residences while meeting ventilation standards requirements and building codes.

The power open, normally closed, 24V motorized damper for round ducts is controlled by the 24V temperature/humidity monitoring control. In forced-air systems, it can regulate the sequencing of outside air and the ES24V control can command the HVAC blower to help distribute the fresh air through existing ductwork. Add a 120V to 24V transformer to power this S&P motorized damper with standard 120V. It is available in 4, 5, 6, and 8-inch sizes.

Note: Professional installation is recommended for all models.

Key Features

Voltage: 24V
Frequency: 60 HZ
Current: 0.3 Amps
Power: 6 W
Insulation Class: A
Rated Ambient: 104 degrees F
Noise: ≤ 50 dB
Codes and Standards: ASHRAE 62.2-2010 and 2013, IRC 2012 and 2015
Compatible With: RF-reFresh, TD-MIXVENT, TD-SILENT, and PV-POWERVENT Series

ES24V Envirosense Ventilation Control

Display: Easy to read, back-lit LCD screen with a 4-button interface.
Eco Mode: Turns fan off when set temperature and humidity is reached.
Monitors: Measures outdoor temperature and humidity to stop ventilation at adjustable low and high outdoor temperature and humidity lockouts.
Building Codes: Control programming maintains ASHRAE 62.2-2010 even during low and high temperature limit lockouts.
Dimensions: 5.5 W x 3.875 H x 1.1875 D inches

Sylvane’s Expert Take

This S&P controller and motorized damper kit delivers customized control in distributing fresh outside air inside a residence while complying with building codes and regulations.

Damper Only: The S&P MD series normally closed motorized dampers in sizes 4- to 14-inches are available to purchase separately. The ES24V is also available for purchase separately.

Specifications

Key Specifications

Type

Damper

General

Certifications

UL
Color

Gray
Controls

Electronic
Housing Material

Galvanized Steel

Power

Amperage (Amps)

0.3
Power Supply

Hardwired
Voltage (V)

24V
Watts (W)

6

Dimensions

Depth (in.)

9.88
Depth (with front cover) (in.)

9.88
Duct Diameter (in.)

8-Inch: 8.0

6-Inch: 6.0

5-Inch: 5.0

4-Inch: 4.0

Warranty

Manufacturer's Warranty

5-Year Limited Warranty
