Senville 36,000 BTU 3 Ton Central Split Inverter Ducted System Heat Pump

SKU: sv15024  |  Model: SENDC-36HF-16
$3,09999
Auxiliary Heat
Included Line Length

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

10-Year Compressor Warranty
5-Year Parts Warranty

What's In The Box?
  • Senville Indoor Air Handler
  • Senville Outdoor Unit
  • Owner’s Manual
  • Installation Kit
  • Line set
  • Remote Control
  • Wired Controller

Info & Guides

Description

Cold snaps push many heat pumps past their limits. The Senville 36,000 BTU Central Split Ducted System handles them with a variable-speed inverter compressor and Arctic Inverter Heat Pump technology, so one ducted system covers both heating and cooling through a hard winter and a hot summer. You can set it up with or without auxiliary heat, and with a shorter or longer included line set.

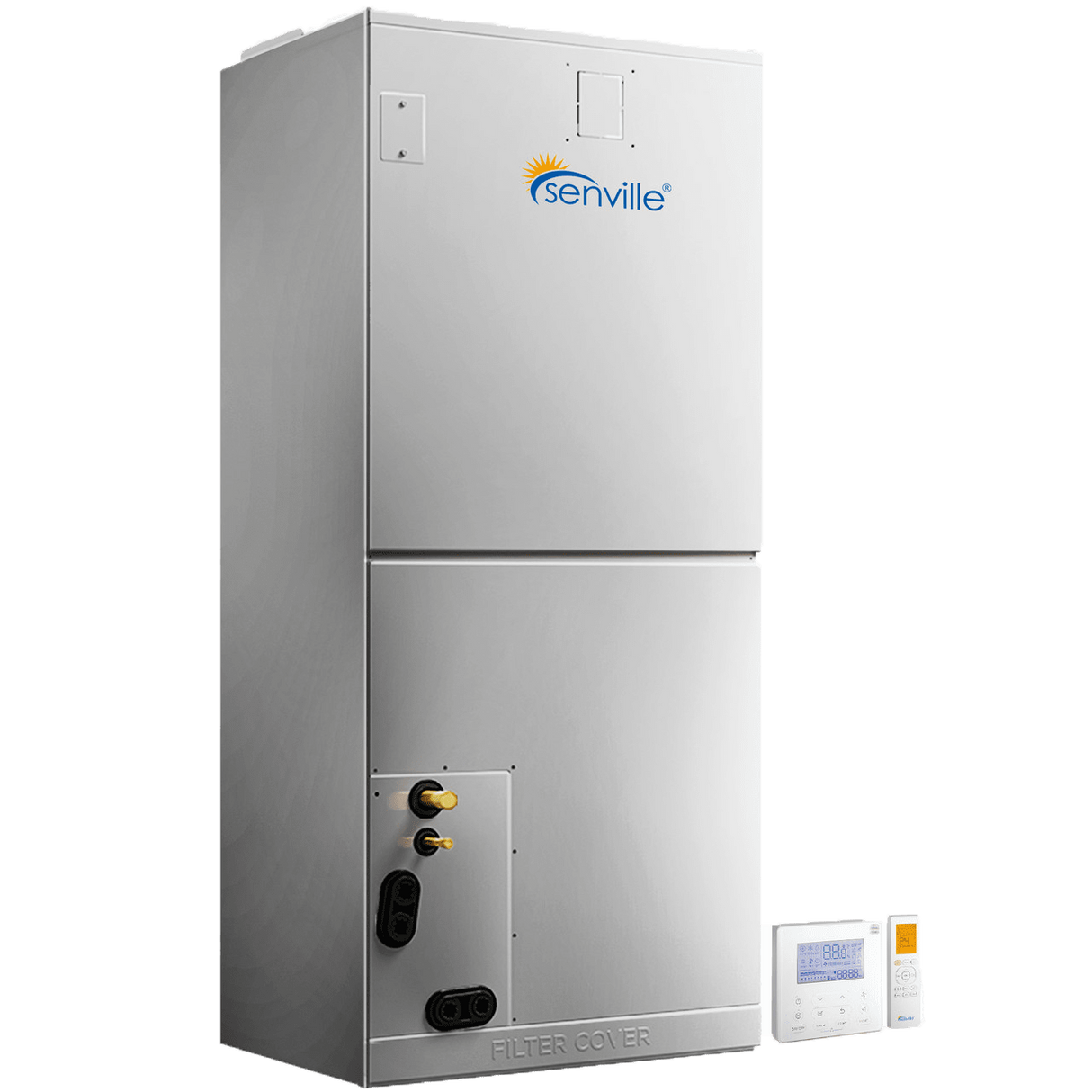

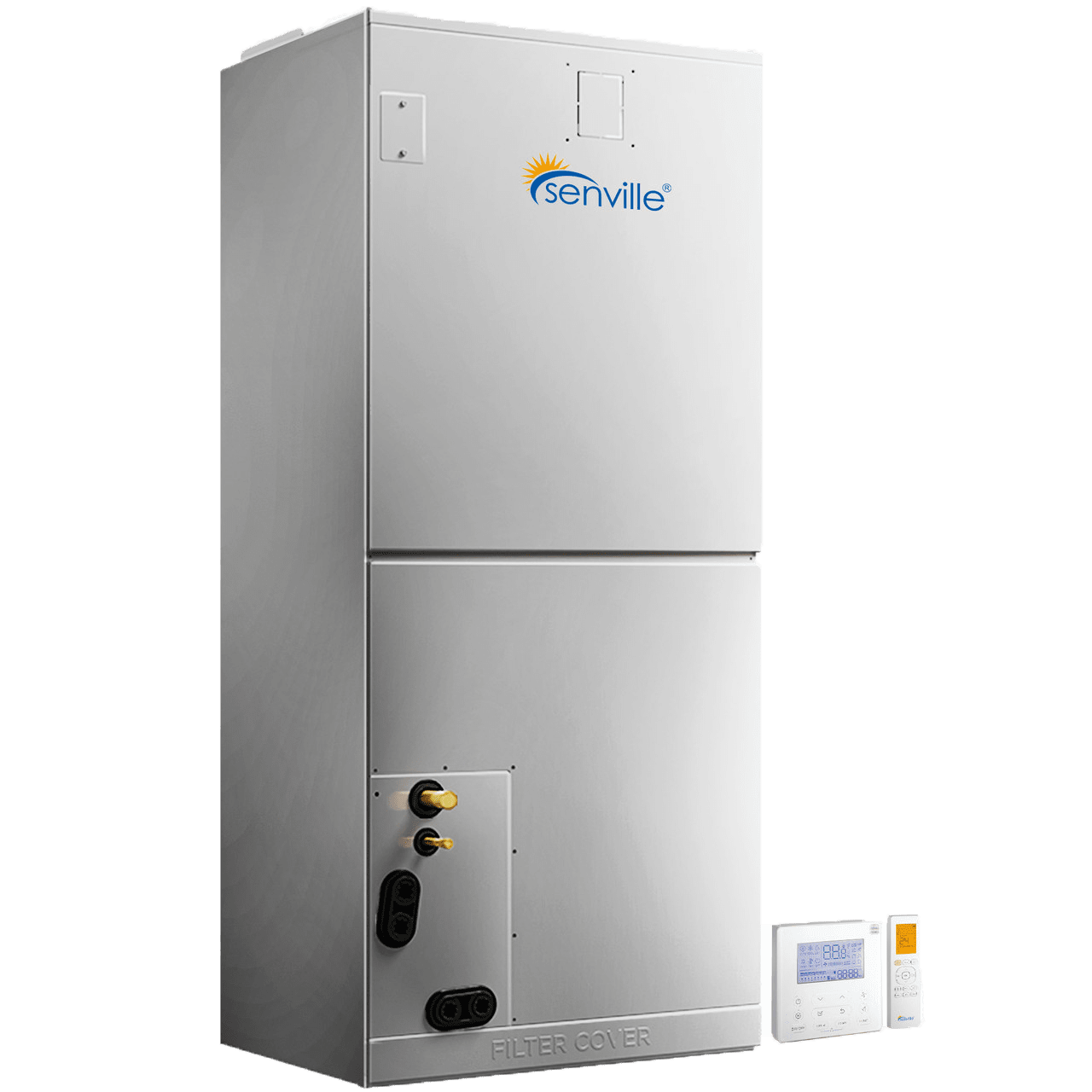

The indoor air handler measures 21.0 x 21.0 x 49.0-Inches (L x W x H) and weighs 129 pounds, so it fits tight mechanical spaces. Outside, the gray compressor covers just 37.5 x 16-Inches (W x D) and weighs 227 pounds, which helps on a narrow side yard. Its side airflow discharge cuts down on buildup from snow and debris, and the air handler comes apart into easily separated pieces when your technician needs to service it.

Key Features and Benefits of the Senville 36,000 BTU 3 Ton Central Split Inverter Ducted System Heat Pump

  • Cold-Climate Heating: Heating works in outdoor temperatures from -22 to 86 degrees F, so you can count on it through long northern winters.
  • Wide Cooling Range: Cooling runs in outdoor temperatures from 5 to 122 degrees F, keeping your ducted rooms comfortable through extreme summer heat.
  • Rated Efficiency: A 17.4 SEER2 cooling rating and 9.5 HSPF2 heating rating, plus 11.7 EER2 at peak load, help keep your year-round energy bills in check.
  • Total Capacity: Total capacity reaches 47,400 BTU cooling and 57,200 BTU heating, giving you headroom above the 36,000 BTU nominal rating on the hottest and coldest days.
  • Strong Airflow: Up to 1,188 CFM across 3 fan speeds pushes air to every ducted room and lets you turn airflow down when demand drops.
  • Quiet Indoors: The indoor air handler tops out at 45 dB, so it stays in the background in your living spaces.
  • Refrigerant Type: Uses R-454B refrigerant, so installation must be handled by a professional.
  • Certified Performance: It carries UL and AHRI certifications plus NEEP and Energy Star recognition, so its safety and efficiency ratings have been checked by independent bodies.
  • Flexible Mounting: The air handler installs vertically or horizontally, so you can place it in an attic or basement and connect it to new or existing ductwork.
  • Long Line Runs: Line lengths up to 213 feet let you put the outdoor compressor well away from the air handler when your layout calls for it.
  • Power and Controls: It runs on 208-230-volt power so confirm your supply falls within that range before installation, and it works with the included remote control.

Choose Your Auxiliary Heat and Line Set Length

You can pair any of 3 auxiliary heat options (none, 10 kW, or 15 kW) with a 16-foot or 50-foot included line set, for 6 configurations in total.

  • No Auxiliary Heat, 16-Foot Line Set: Heats with the heat pump alone and suits installs where the compressor sits close to the air handler.
  • No Auxiliary Heat, 50-Foot Line Set: Also relies on the heat pump alone, and suits runs where the outdoor compressor must sit farther from the air handler.
  • 10 kW Auxiliary Heat, 16-Foot Line Set: Adds backup heat for extra warmth on the coldest days, with a shorter line set for close placement.
  • 10 kW Auxiliary Heat, 50-Foot Line Set: Adds the same backup heat for extra warmth on cold days, with room for longer runs between the indoor and outdoor equipment.
  • 15 kW Auxiliary Heat, 16-Foot Line Set: Provides the most backup heat in the lineup, paired with a shorter line set for close placement.
  • 15 kW Auxiliary Heat, 50-Foot Line Set: Delivers the highest backup output in the lineup, with room for a longer run between the indoor and outdoor equipment.

Note: Professional installation is required for every configuration.

Sylvane's Expert Take

If you're replacing central heating and air in a cold-climate home of up to 2,000 square feet, this Senville system connects to your existing ducts and keeps heating at -22 degrees F. Choose 10 kW or 15 kW backup if your winters often drop toward that operating limit, and go without it if the heat pump alone covers your needs. Pick the 50-foot line set when the compressor can't sit close to the air handler. Its cold-weather heating is the main reason to choose it.

Specifications

    Key Specifications

    • Energy Efficiency Ratio 2 (EER2)
      11.7
    • Number of Speeds
      3
    • Seasonal Energy Efficiency Ratio 2 (SEER2)
      17.4
    • Total Cooling Capacity (BTUs)
      47400
    • Total Heating Capacity (BTUs)
      57200
    • Type
      Central Split

    General

    • Auxiliary Heat
      None / 16': None
      None / 50': None
      10 kW / 16': 10
      10 kW / 50': 10
      15 kW / 16': 15
      15 kW / 50': 15
    • Certifications
      UL, AHRI
    • Color
      Gray
    • Compressor Type
      Inverter
    • Heat Mode
      Yes
    • Heating Seasonal Performance Factor 2 (HSPF2)
      9.5
    • Installation Type
      Professional Installation
    • Line Length Option
      None / 16': 16 ft
      None / 50': 50 ft
      10 kW / 16': 16 ft
      10 kW / 50': 50 ft
      15 kW / 16': 16 ft
      15 kW / 50': 50 ft
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      1188.0
    • Maximum Indoor Noise Level (dB)
      45
    • Maximum Noise Level (dB)
      45
    • Maximum Operating Temperature - Cooling (degrees F)
      122
    • Maximum Operating Temperature - Heating (degrees F)
      86
    • Minimum Operating Temperature - Cooling (degrees F)
      5
    • Minimum Operating Temperature - Heating (degrees F)
      -22
    • Number of Tons
      3
    • Refrigerant Type
      R-454B
    • California Residents
      ⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Voltage (V)
      208-230

    Dimensions

    • Included Line Length (ft.)
      None / 16': 16
      None / 50': 50
      10 kW / 16': 16
      10 kW / 50': 50
      15 kW / 16': 16
      15 kW / 50': 50
    • Indoor Unit Depth (in.)
      21
    • Indoor Unit Height (in.)
      49
    • Indoor Unit Weight (lbs.)
      129
    • Indoor Unit Width (in.)
      21
    • Maximum Line Length (ft.)
      213
    • Outdoor Unit Depth (in.)
      16
    • Outdoor Unit Height (in.)
      None / 16': 38.4
      None / 50': 52
      10 kW / 16': 52
      10 kW / 50': 52
      15 kW / 16': 52
      15 kW / 50': 52
    • Outdoor Unit Weight (lbs.)
      227
    • Outdoor Unit Width (in.)
      37.5

    Additional Features

    • Additional Features
      Remote Control, Energy Star, Line Set Included

    Warranty

    • Manufacturer's Warranty
      10-Year Compressor Warranty 5-Year Parts Warranty
