Senville Aura 48,000 BTU Quad Zone Mini Split Heat Pump 12k+12k+12k+12k

SKU: sv11840  |  Model: SENA-48HF-Q12121212
5.0
Rated 5.0 out of 5 stars
1 Review
$4,39999
Line Set Length:

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

10-Year Compressor Warranty; 5-Year Parts Warranty

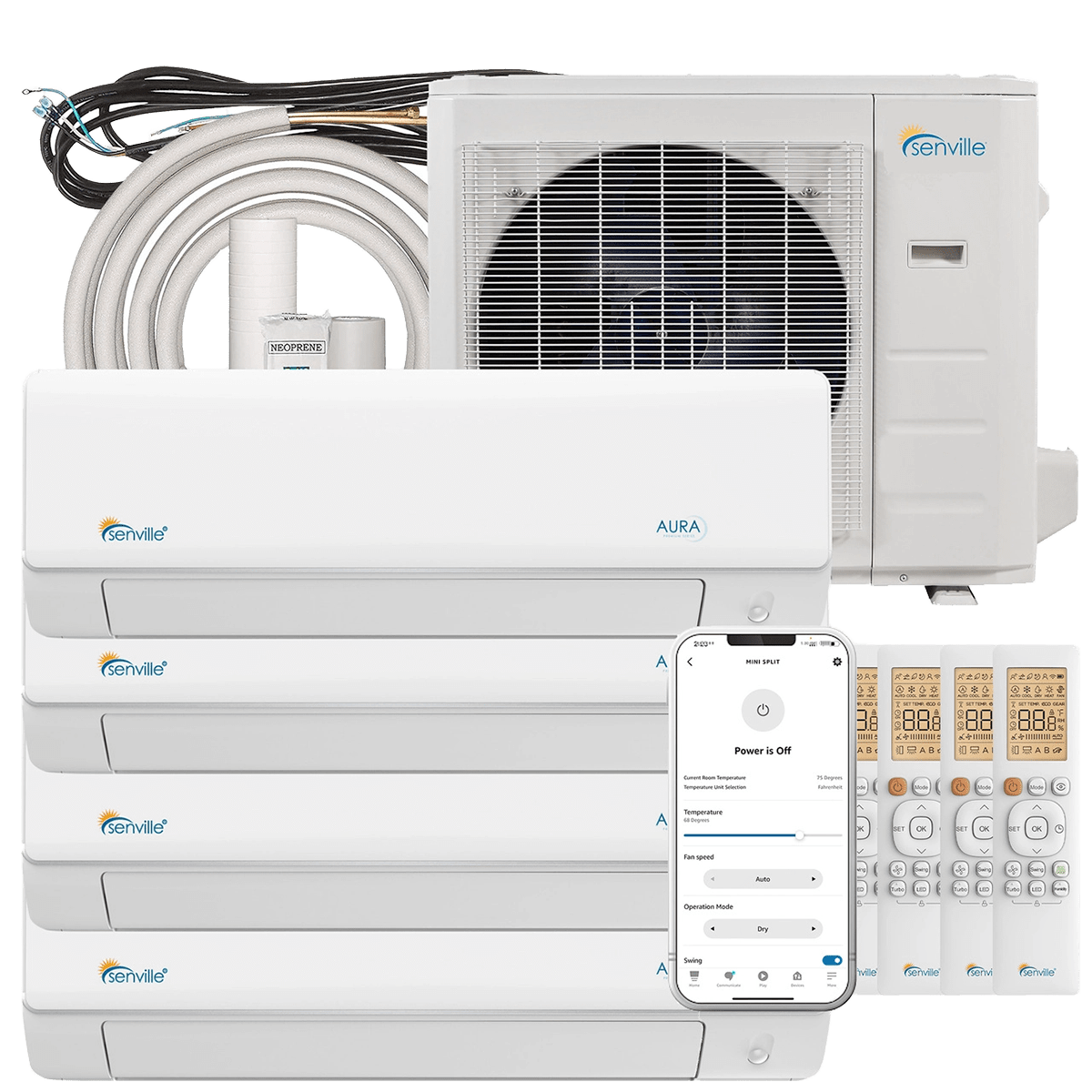

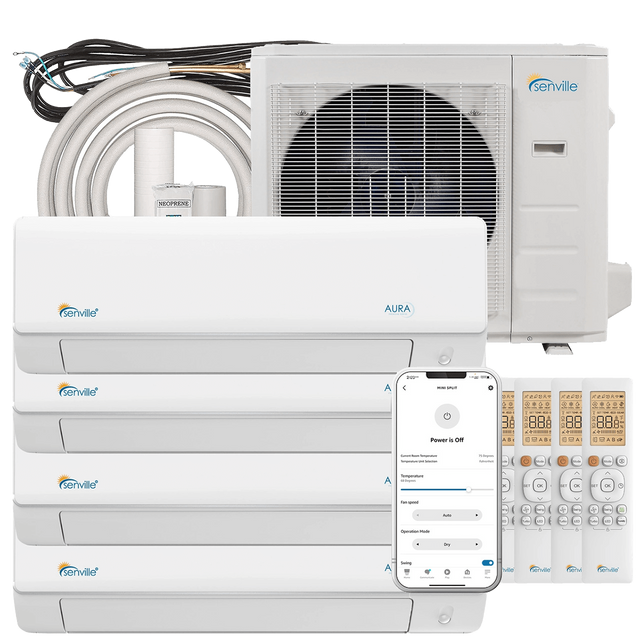

What's In The Box?

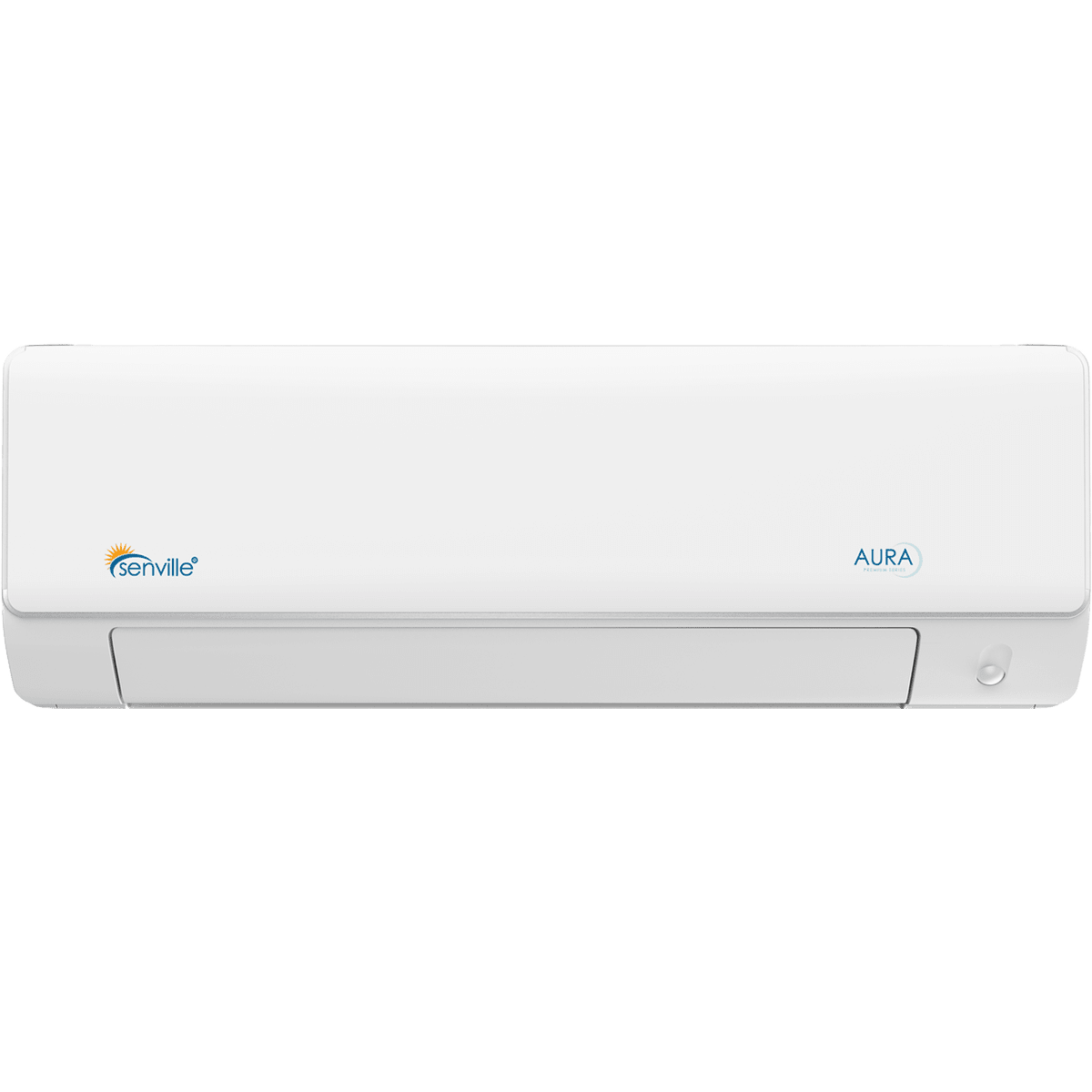

  • Senville 12,000 BTU Wall-Mounted Air Handler SENA-12HFMO-IZ (4)

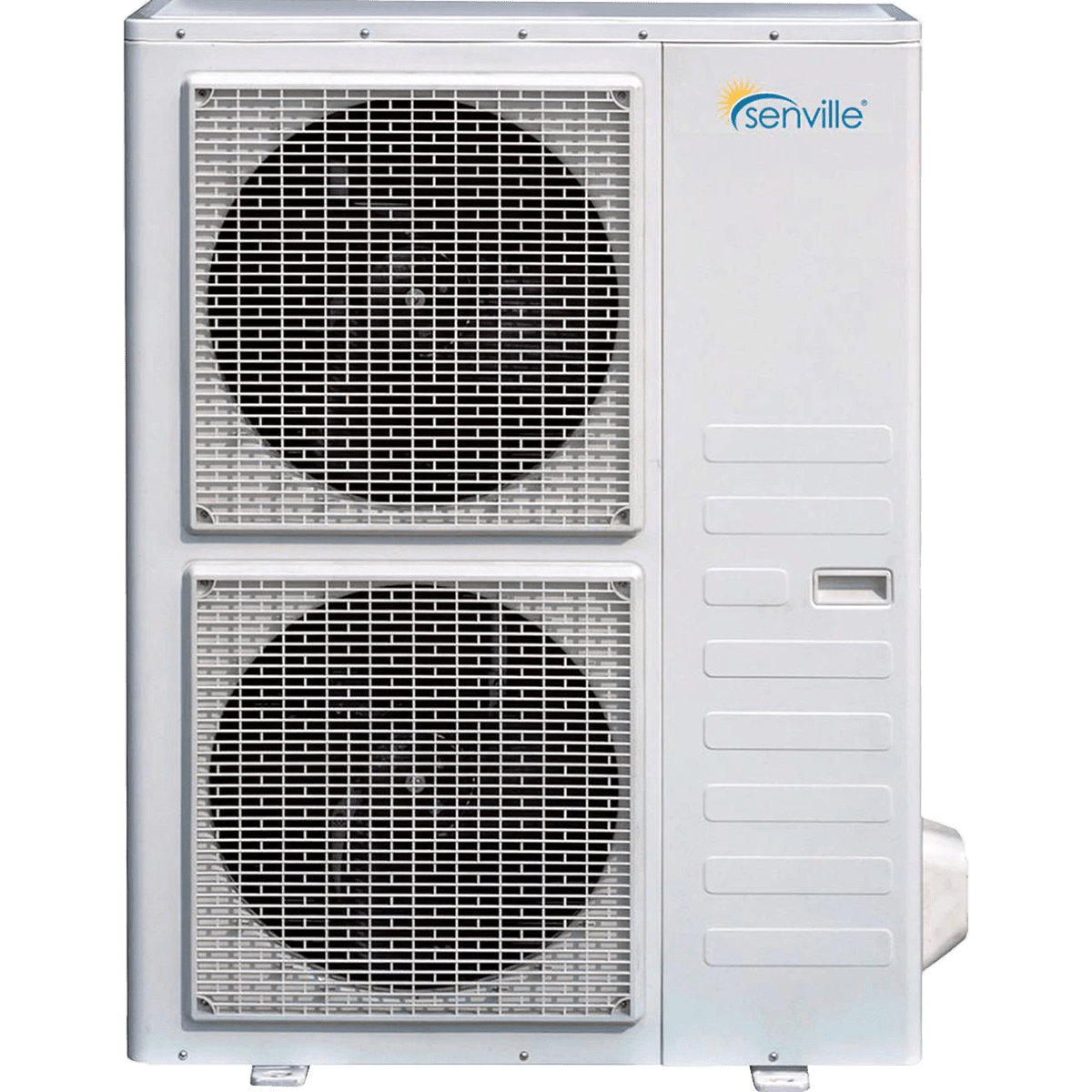

  • Senville 48,000 BTU Outdoor Condenser SENA-48HF-MOA
  • 16 to 50-Foot Line Set (4)
  • Remote Control (4)
  • Installation Hardware
  • Owner's Manual, Guides, and Other Documents

Info & Guides

Description

Central systems often leave some rooms too warm and some too cold, and adding ductwork to fix that is rarely simple. The Senville Aura 48,000 BTU Quad Zone Mini Split Heat Pump skips the ducts entirely. It gives 4 rooms their own wall-mounted air handler and temperature setting, while a single condenser outside does the work for every room.



This system calls for professional installation, so plan your layout with your installer before work begins. Each indoor air handler measures 48.69 x 10.16 x 13.39-Inches (L x W x H), so each room needs a wide, clear stretch of wall. The outdoor condenser measures 37.24 x 16.14 x 31.89-Inches (L x W x H), which helps you choose a pad or bracket location ahead of time.

Key Features and Benefits of the Senville Aura 48,000 BTU Quad Zone Mini Split Heat Pump 12k+12k+12k+12k

  • Quad Zone Capacity: Each of the 4 air handlers delivers 12,000 BTU, so every zone gets its own output rather than competing for air.
  • Energy Star Efficiency: A 21.8 SEER2 rating and Energy Star recognition mean you spend less to keep 4 rooms comfortable through both seasons.
  • AHRI Cost Estimates: AHRI estimates annual operating costs of $283 for cooling and $994 for heating, giving you a realistic baseline for your energy budget.
  • Inverter Compressor: The variable-speed inverter compressor matches output to demand instead of cycling on and off, keeping indoor sound to a maximum of 48.5 dB.
  • Alexa Smart Control: Built-in Wi-Fi lets you run and monitor the system through the Alexa app on your phone or tablet, or by voice with an Alexa-enabled device.

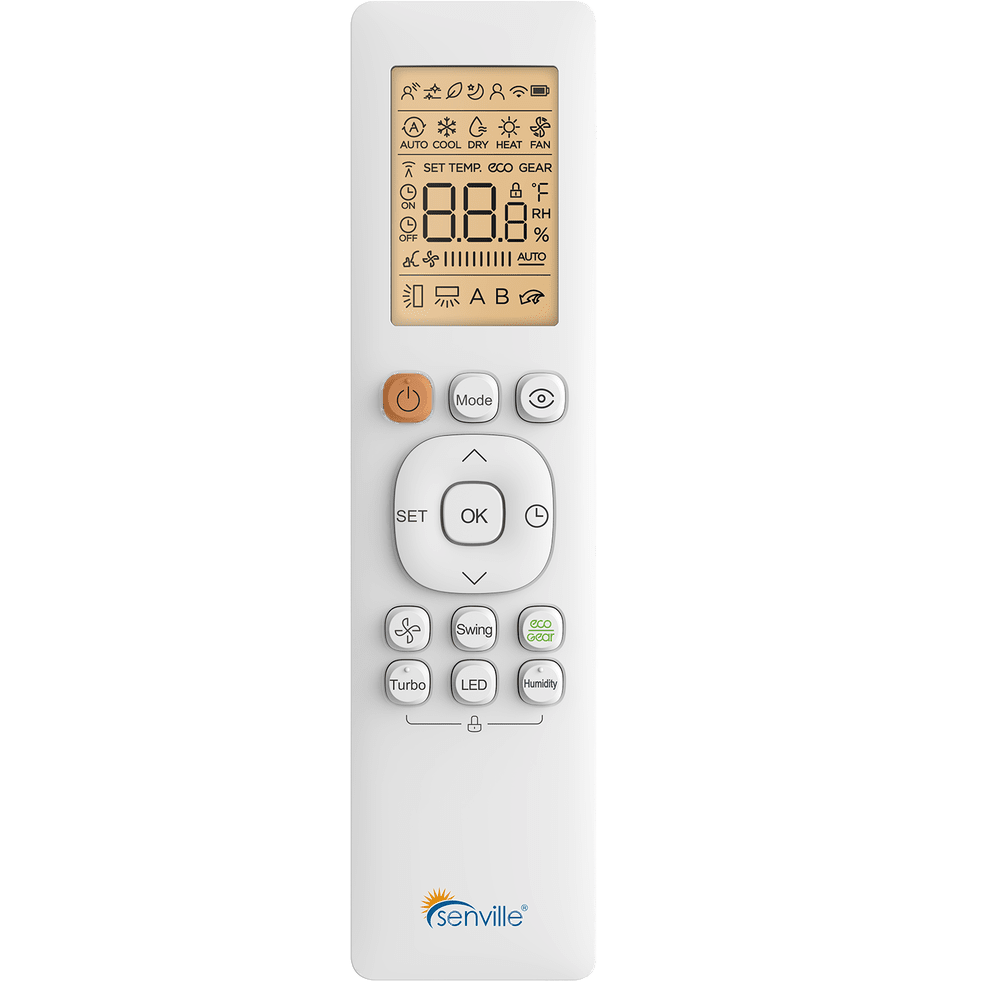

  • Follow Me: The Follow Me feature turns the included remote control into a thermostat, so the system reads the temperature right where you are sitting.
  • Sleep and Turbo: Sleep mode gradually shifts the setpoint overnight to save energy, while Turbo mode cools a hot room quickly when you need fast relief.
  • Airflow Control: Up to 677 CFM of airflow, plus 3 manual fan speeds and an automatic setting, lets you balance quiet operation against faster temperature recovery.
  • Automatic Restart: After a power outage, the system resumes its previous settings on its own, so you never have to reset 4 zones by hand.
  • Pre-Charged Refrigerant: The system ships already filled with R-454B, so your installer starts with a system ready for connection.
  • ETL and UL: ETL and UL certifications confirm the system has been tested against recognized electrical safety standards for your home.
  • Electrical Requirements: The system runs on 208-230 volt power with a maximum cooling draw of 18.5 amps, which helps your electrician size the dedicated circuit correctly.

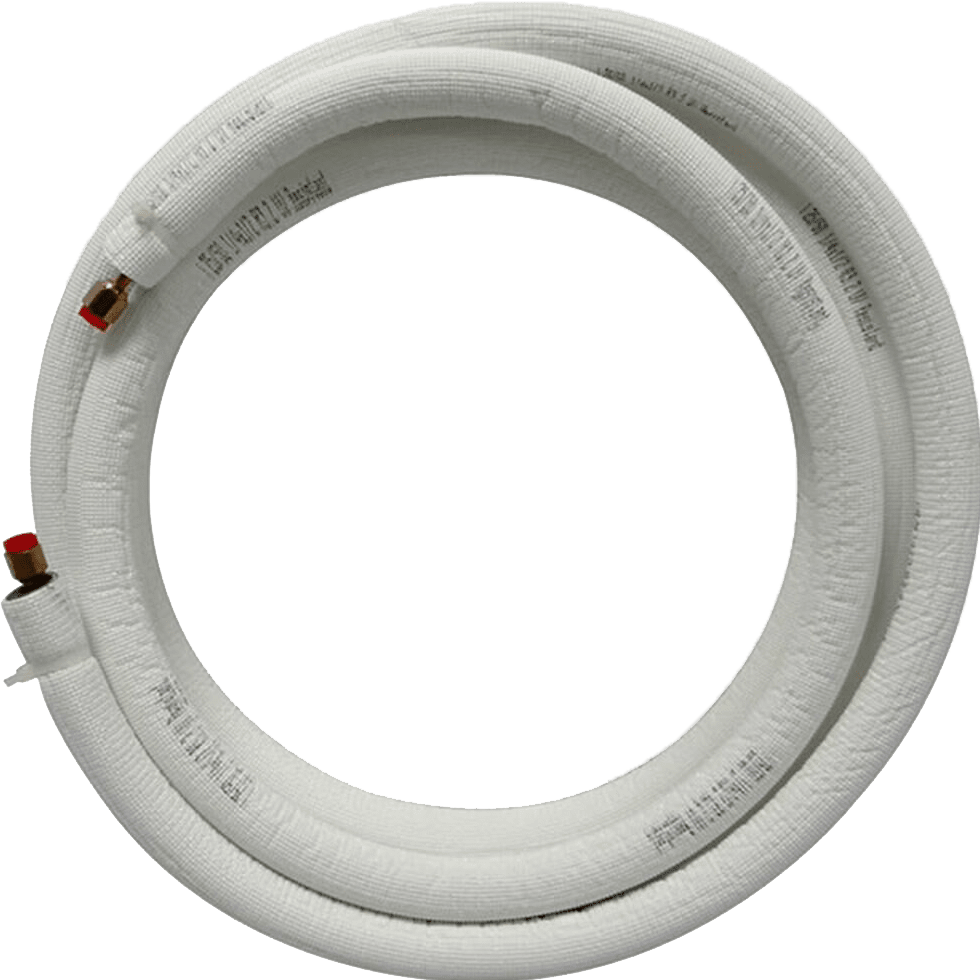

Choose Your Line Set Length

Every Aura quad zone package includes a 1/4 x 3/8-inch line set kit, and you choose a 16-foot, 25-foot, or 50-foot length based on how far your air handlers sit from the condenser.

The 16-Foot Line Set suits installations where the indoor air handlers mount on an exterior wall close to the condenser, keeping excess tubing to a minimum. With the 25-Foot Line Set, your installer has extra reach to route around a corner or across a room. The 50-Foot Line Set covers zones on the far side of your home and still stays well within the system's 80-foot maximum line length.

Sylvane's Expert Take

If you're heating and cooling a home of around 3,000 square feet with 4 rooms that need their own temperatures, and running ductwork isn't practical, the Aura quad zone is a strong match. The 12,000 BTU output per zone and the inverter compressor matter most, because every room gets dedicated capacity without the system running flat out. Measure the route from your farthest air handler to the condenser before you pick a line set length, since that is the only choice you need to make. After that, one Alexa app can manage every zone.

Specifications

    Key Specifications

    • AHRI Estimated Annual Cooling Cost
      283
    • AHRI Estimated Annual Heating Cost
      994
    • Energy Efficiency Ratio (EER)
      12.5
    • Energy Efficiency Ratio 2 (EER2)
      11.7
    • Mounting Type
      Wall
    • Number of Speeds
      3
    • Seasonal Energy Efficiency Ratio 2 (SEER2)
      21.8
    • Total Cooling Capacity (BTUs)
      48000
    • Total Heating Capacity (BTUs)
      48000

    General

    • Certifications
      16': ETL
      25': ETL
      50': UL
    • Color
      White
    • Compressor Type
      Inverter
    • Heat Mode
      Yes
    • Installation Type
      Professional Installation
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      677.0
    • Maximum Indoor Noise Level (dB)
      48.5
    • Maximum Operating Temperature - Cooling (degrees F)
      90
    • Maximum Operating Temperature - Heating (degrees F)
      86
    • Minimum Operating Temperature - Cooling (degrees F)
      62
    • Minimum Operating Temperature - Heating (degrees F)
      32
    • Number of Zones
      4
    • Recommended Coverage Area (sq. ft.)
      3000
    • Refrigerant Type
      R-454B
    • Zone Cooling Capacity (BTUs)
      12000
    • Zone Heating Capacity (BTUs)
      12000
    • California Residents
      ⚠ WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Cooling Amperage (Amps)
      18.5
    • Maximum Cooling Wattage (W)
      4185
    • Maximum Heating Amperage (Amps)
      2.55
    • Maximum Heating Wattage (W)
      4135
    • Voltage (V)
      208-230

    Dimensions

    • Included Line Length (ft.)
      16': 16
      25': 25
      50': 50
    • Indoor Unit Depth (in.)
      10.16
    • Indoor Unit Height (in.)
      13.39
    • Indoor Unit Width (in.)
      48.69
    • Maximum Line Length (ft.)
      80
    • Outdoor Unit Depth (in.)
      16.14
    • Outdoor Unit Height (in.)
      31.89
    • Outdoor Unit Width (in.)
      37.24

    Additional Features

    • Additional Features
      Remote Control, Energy Star, Automatic Oscillation, Air Filter, Wi-Fi Capable, Line Set Included, Applicable for Indoor Growing, Pre-charged Refrigerant

    Warranty

    • Manufacturer's Warranty
      10-Year Compressor Warranty; 5-Year Parts Warranty
