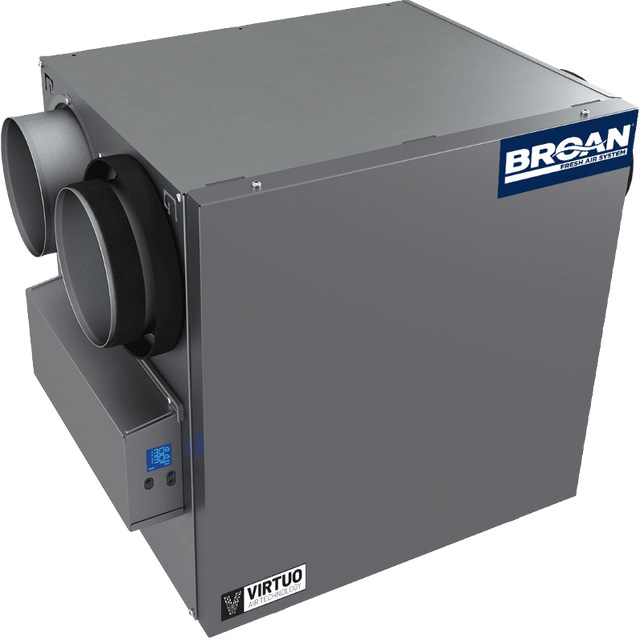

Broan B160E75R AI Series 160 CFM Energy Recovery Ventilator
Broan B160E75R AI Series 160 CFM Energy Recovery Ventilator - Side Ports is backordered and will ship as soon as it is back in stock.
Save! Shop this product Open-Box & Used
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Broan B160E75R AI Series 160 CFM Energy Recovery Ventilator
- Owner's Manual
- MERV-8 Filter
- Suspension Chains
- Wall-Mount Brackets
Info & Guides
Info & Guides
Broan B160E75R AI Series 160 CFM Energy Recovery Ventilator
Description
Description
Continuously monitoring changing indoor and outdoor conditions, the Broan AI Series 160 CFM Energy Recovery Ventilator and its unique VIRTUO Air Technology provide fresh, filtered air throughout your home. Recovering up to 75 percent of energy and with an airflow of up to 160 CFM, it's an efficient solution for any size residential space. Vent vertically or horizontally, this unit is available in side port and top port models.
Fresh, Healthy Air Every Day
With features not found on other energy recovery ventilators, this Broan AI Series model is designed to deliver healthy and comfortable air in any season.
- VIRTUO Air Technology: Broan's AI Series ventilator provides fresh, filtered, and healthy air throughout your home by continuously monitoring changing indoor and outdoor conditions.
- MERV-8 Filtration: Traps lint, dust, pollen, dust mites, debris and spores for superior air quality.
- Automatic Airflow: Select your desired airflow from 35 to 110 CFM.
Reduced Set Up Time
The Broan AI Series is designed to reduce install time since it uses a compact universal platform and is available in two port options:

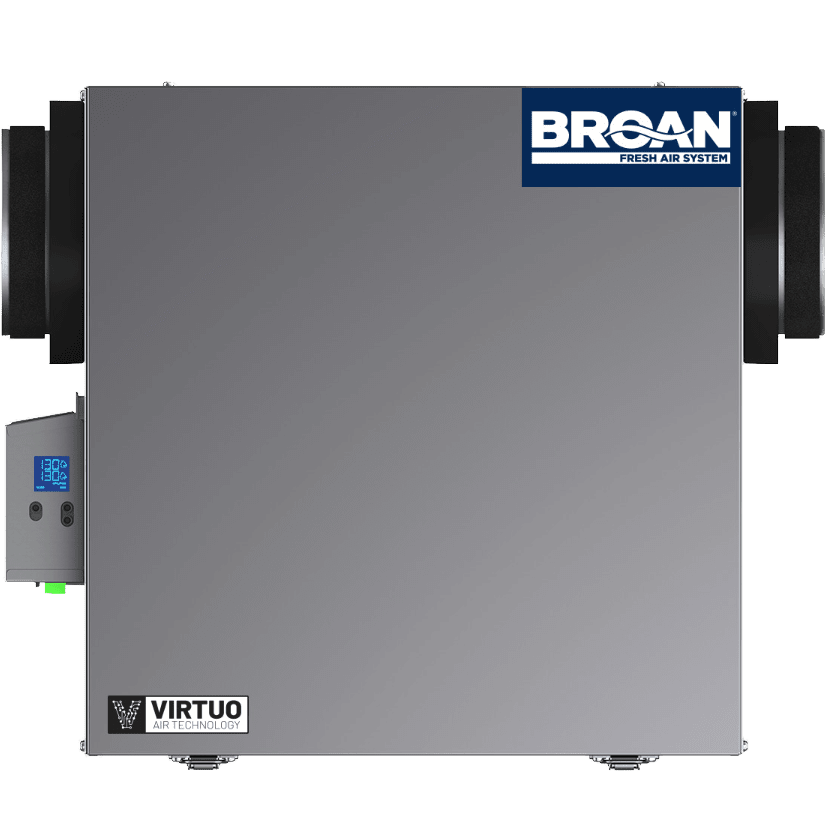

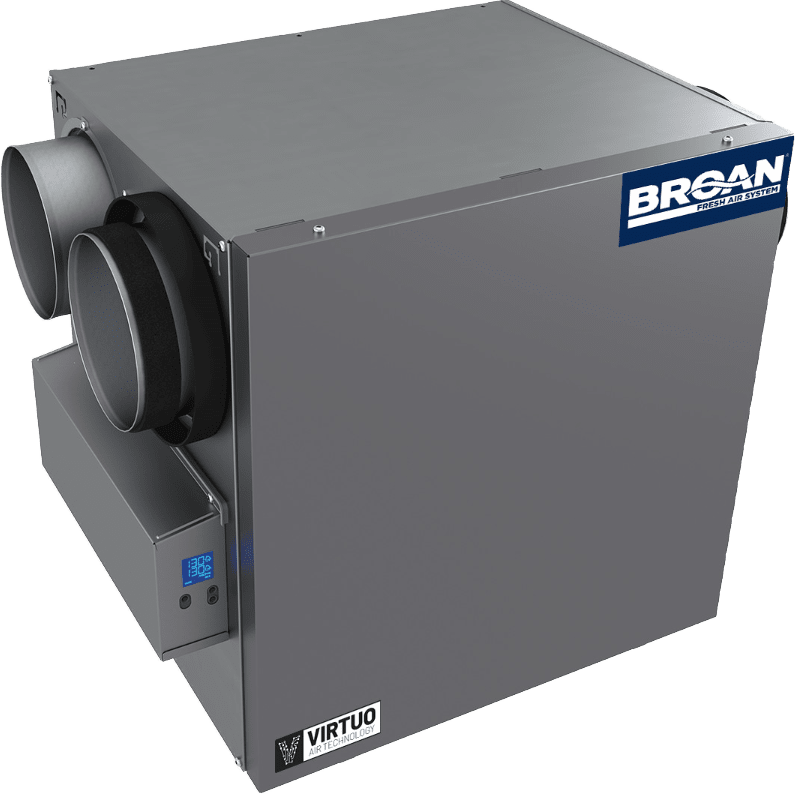

- Broan B160E75RS: Side Ports

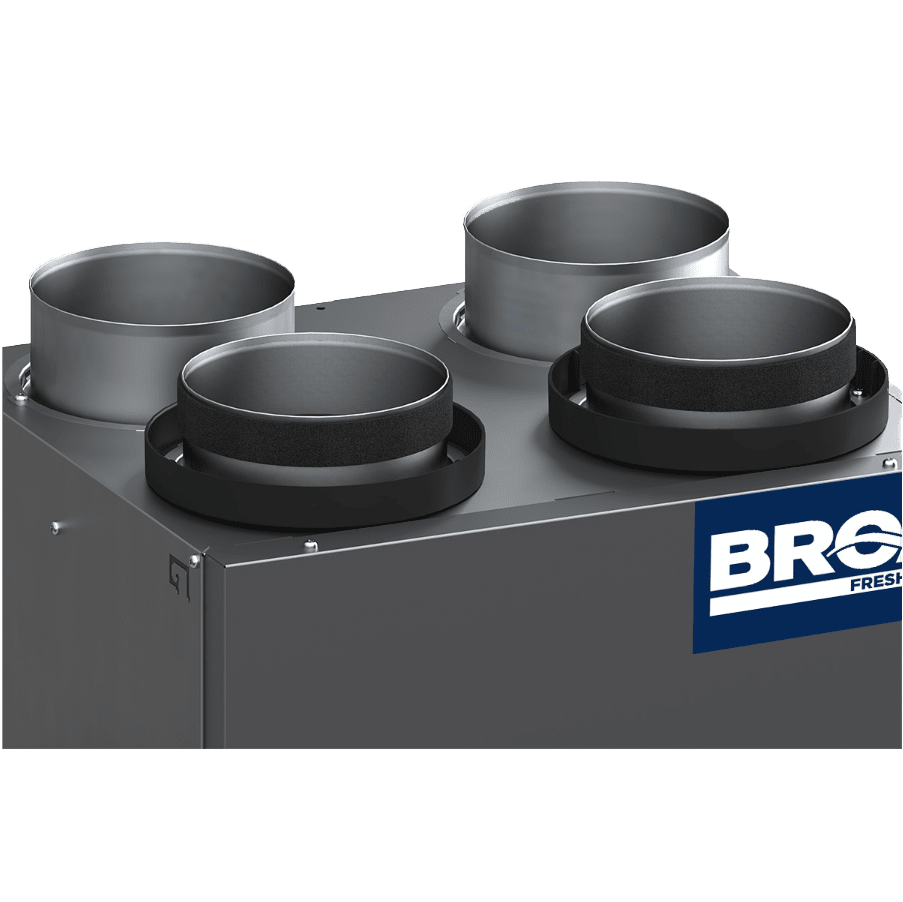

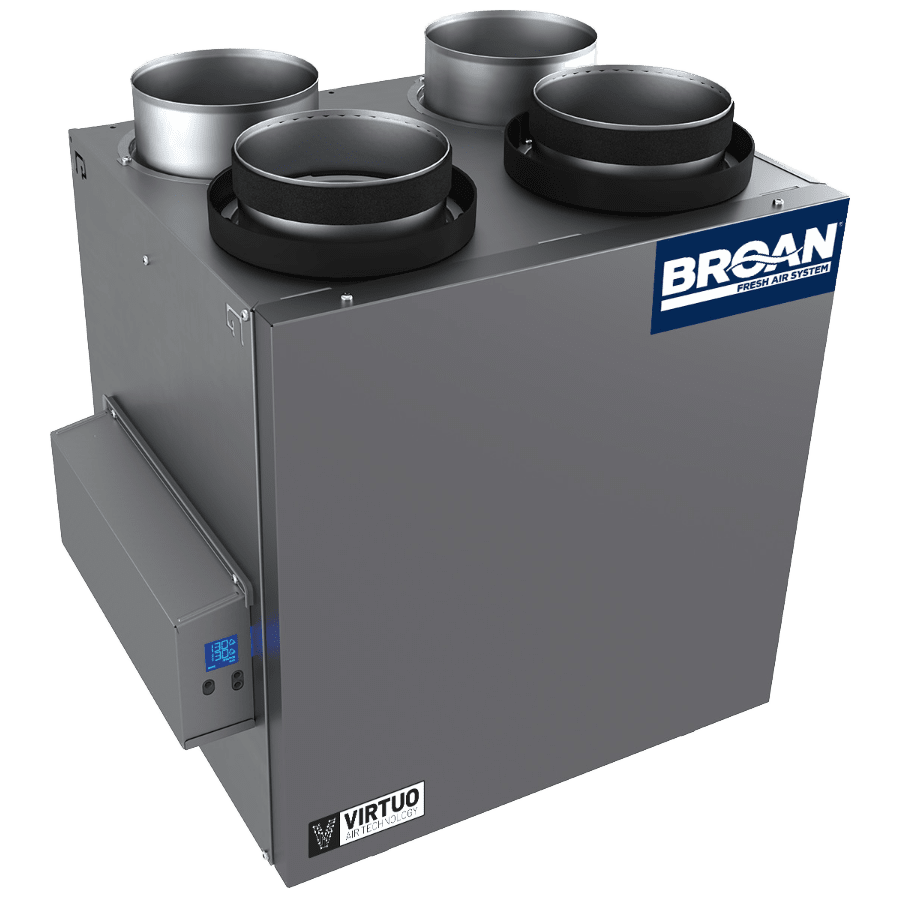

- Broan B160E75RT: Top Ports
Installation Made Easy
Designed to make contractors' and homeowners' lives easier, the Broan B160E75R offers a universal platform and multiple installation options.

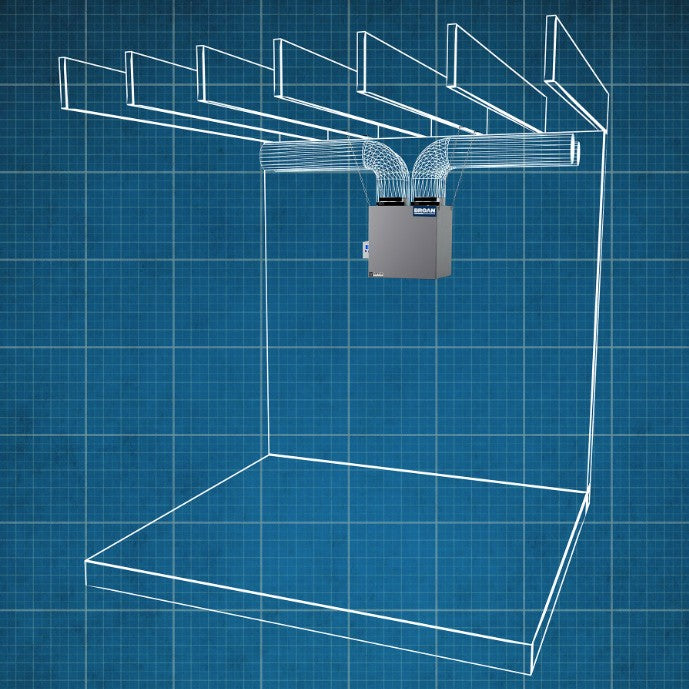

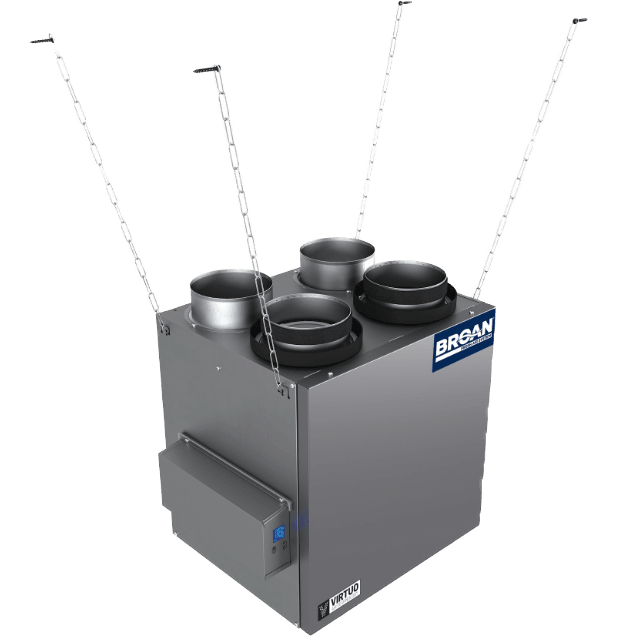

- Suspended Installation: Use the included chains to suspend the unit.
- Wall-Mount Installation: Provided universal brackets allow for installation with two or four brackets.
Additional Features

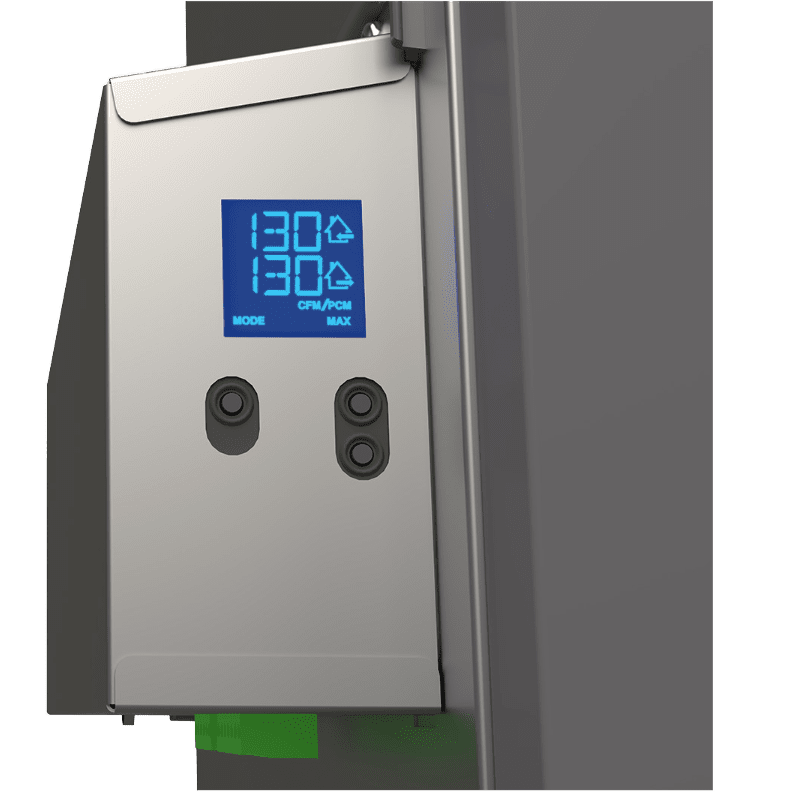

- Integrated LCD Screen: Provides real-time airflow measurements, automatic system balancing and simple diagnostic codes.
- Efficient Design: Equipped with PMSM ECM motors for a very low power consumption.

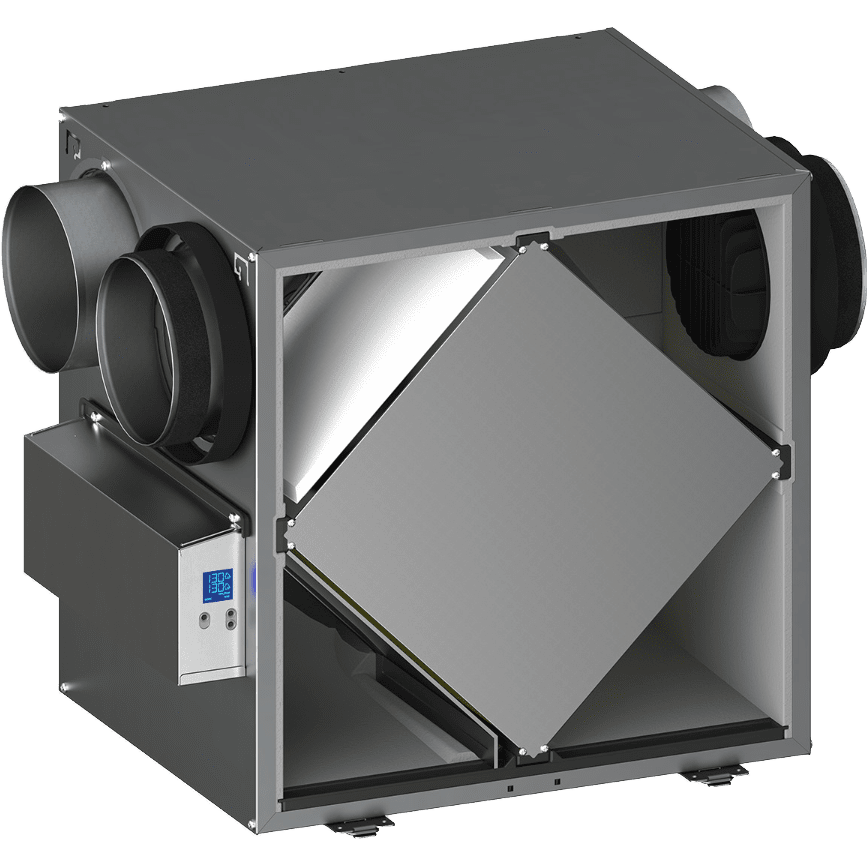

- No Air Leakage: Doesn't leak air thanks to a one-piece molded insulation shell.
- Motorized Dampers: No backdraft dampers are required.
- Long Warranty: Features a 5-year limited parts and labor warranty.
- Cabinet and Door: Manufactured of a corrosion-resistant galvanized steel for durability
Sylvane's Expert Take
Provide fresh and healthy air to residential applications with this energy recovery ventilator from Broan.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)35.0
-
Mounting TypeSuspended, Wall
-
Number of SpeedsVariable
-
Port LocationSideTop
-
TypeERV-Air Supply Fan
-
ApplicationResidential
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL, cUL, HVI-Certified, California Title 24
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)160.0
-
Amperage (Amps)2.5
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)163
-
Depth (in.)16.14
-
Depth (with front cover) (in.)16.14
-
Duct Diameter (in.)6.0
-
Height (in.)19.1221.58
-
Height (with front cover) (in.)19.1221.58
-
Weight (lbs.)37
-
Width (in.)23.7821.07
-
Width (with front cover) (in.)23.7821.07
-
Manufacturer's Warranty5-Year Limited Parts, Motor, and ERV Core Warranty
Key Specifications
General
Power
Dimensions
Warranty
Recommended Accessories
-
-
-
-
-
Broan
V24285 MERV 13 Replacement Filter for B110 -B160 AI Fresh Air Systems
$69.00Unit price /Unavailable -
Broan
MERV 8 Replacement Filter for B110-B160 AI Fresh Air Systems (SV66133)
$81.00Unit price /Unavailable -
-
- DDavidVerified BuyerReviewingBroan B160E75R AI Series 160 CFM Energy Recovery VentilatorI recommend this productRated 5 out of 5 stars1 year agoGreat product to reduce dehumidifier loads and cooling loads
This is an awesome product. It brings dehumidifier and heat loads way down on fresh air. It's wild feeling the exhaust side air hot! Next time, I'll have adapters ready because I really needed 8 inch ducts on there and a couple 90 degree bends off the unit. Next time, I'll just have those ready to go. It is compact and light. Easy to hang. Easy to commission.
