Broan B210E75R AI Series 210 CFM Energy Recovery Ventilator
Broan B210E75R AI Series 210 CFM Energy Recovery Ventilator - Side Ports is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Broan B210E75R AI Series 210 CFM Energy Recovery Ventilator
- Owner's Manual
- MERV-8 Filter
- Suspension Chain
- Wall-Mount Brackets

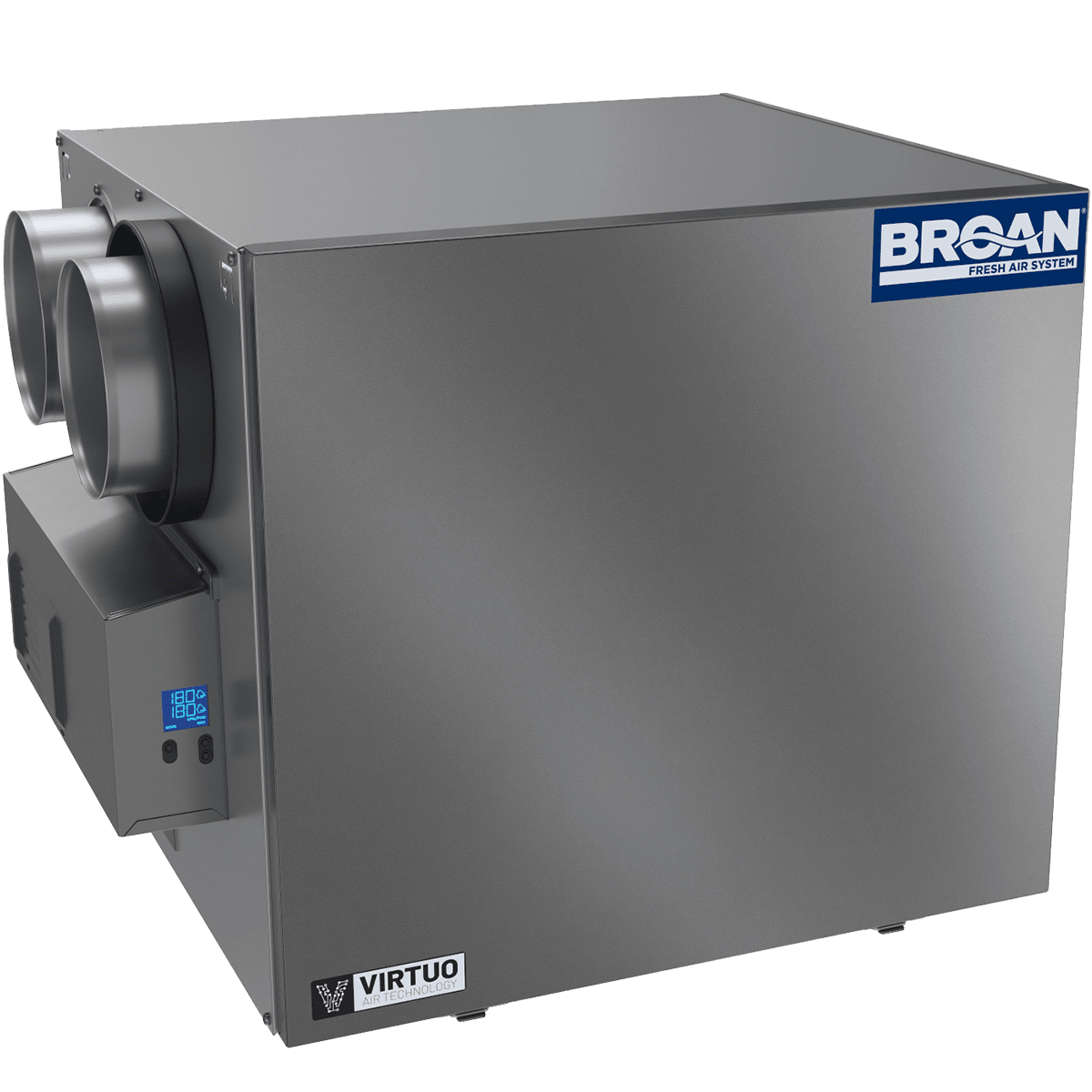

Broan B210E75R AI Series 210 CFM Energy Recovery Ventilator
Description
Description
Experience the benefits of fresh, filtered, and clean air in your home with the Broan AI Series 210 CFM Energy Recovery Ventilator. This advanced ventilation system efficiently recovers up to 65% of energy, making it perfect for homes of any size. Featuring Broan's innovative VIRTUO™ Air Technology, the Broan B210E75R continuously monitors indoor and outdoor conditions. With the flexibility to vent vertically or horizontally, this unit is available in side port and top port models.
Quick and Easy Setup
Designed for easy and efficient installation, the Broan B210E75R incorporates Broan's cutting-edge VIRTUO™ technology. With VIRTUO™, the verification and balancing of airflow are seamlessly handled, simplifying the installation process. This ERV model is equipped with advanced features like airflow verification, auto-balancing, and self-adjustment technology, guaranteeing effortless maintenance of your initial settings. Furthermore, it is available in two port options for added versatility.

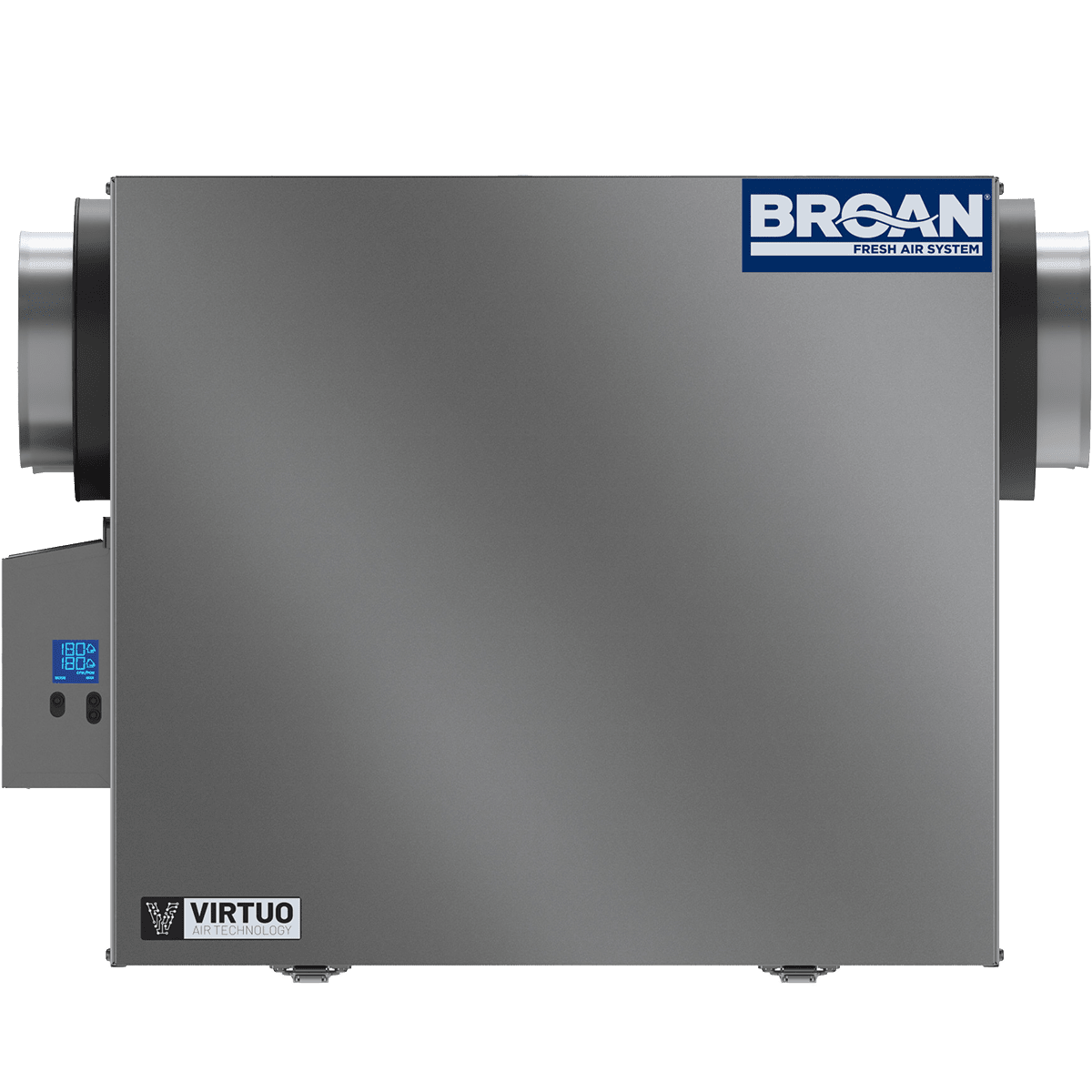

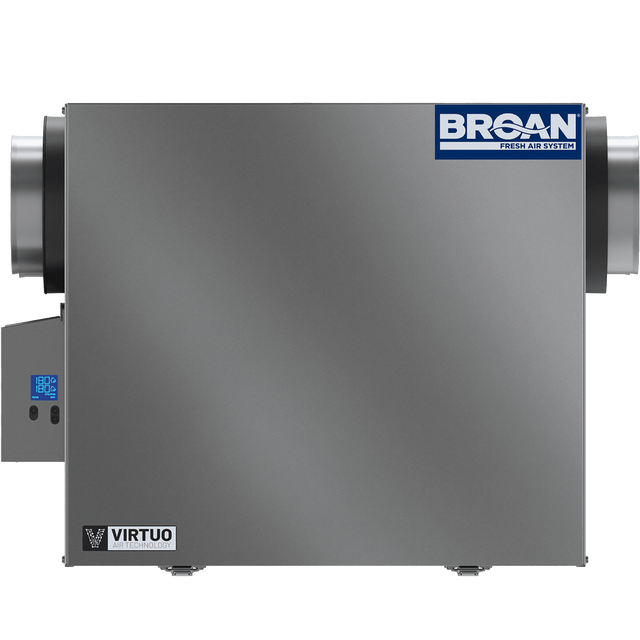

- Broan B210E75RS: Side Ports

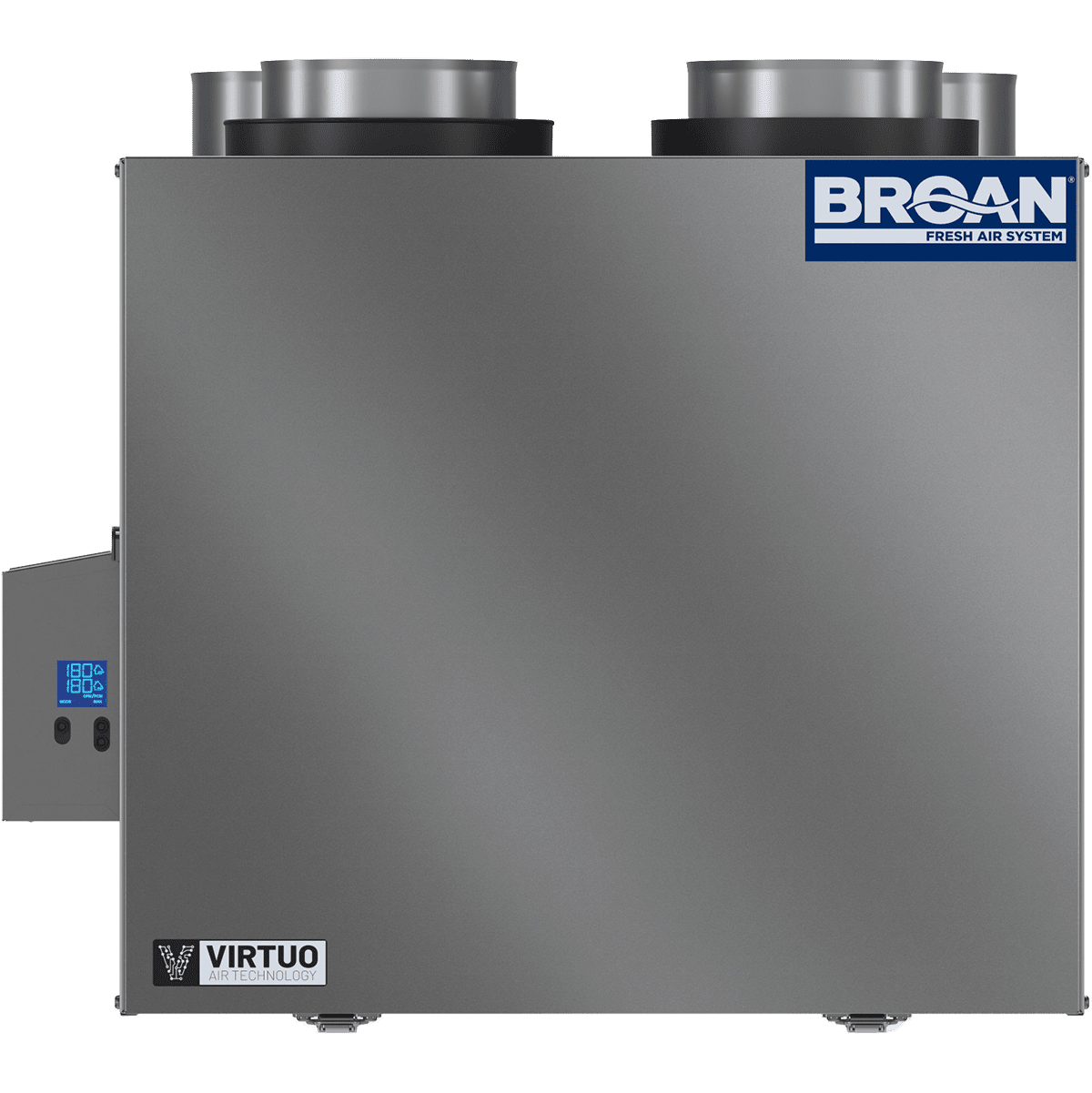

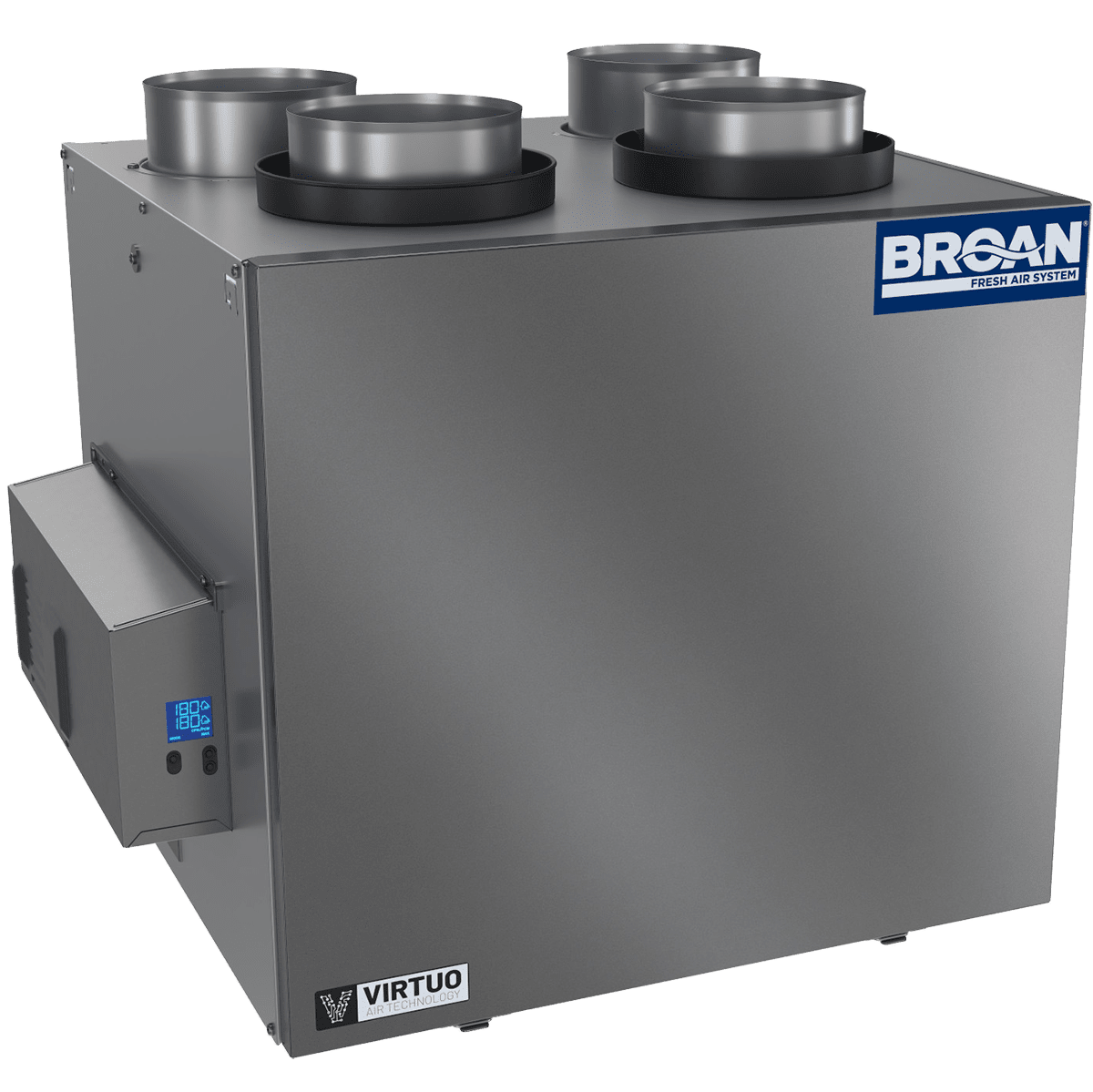

- Broan B210E75RT: Top Ports
Top Features Of The Broan B210E75R
Experience the exceptional capabilities of the Broan ERV as it supplies filtered outdoor fresh air while efficiently exhausting stale and polluted air from your home.

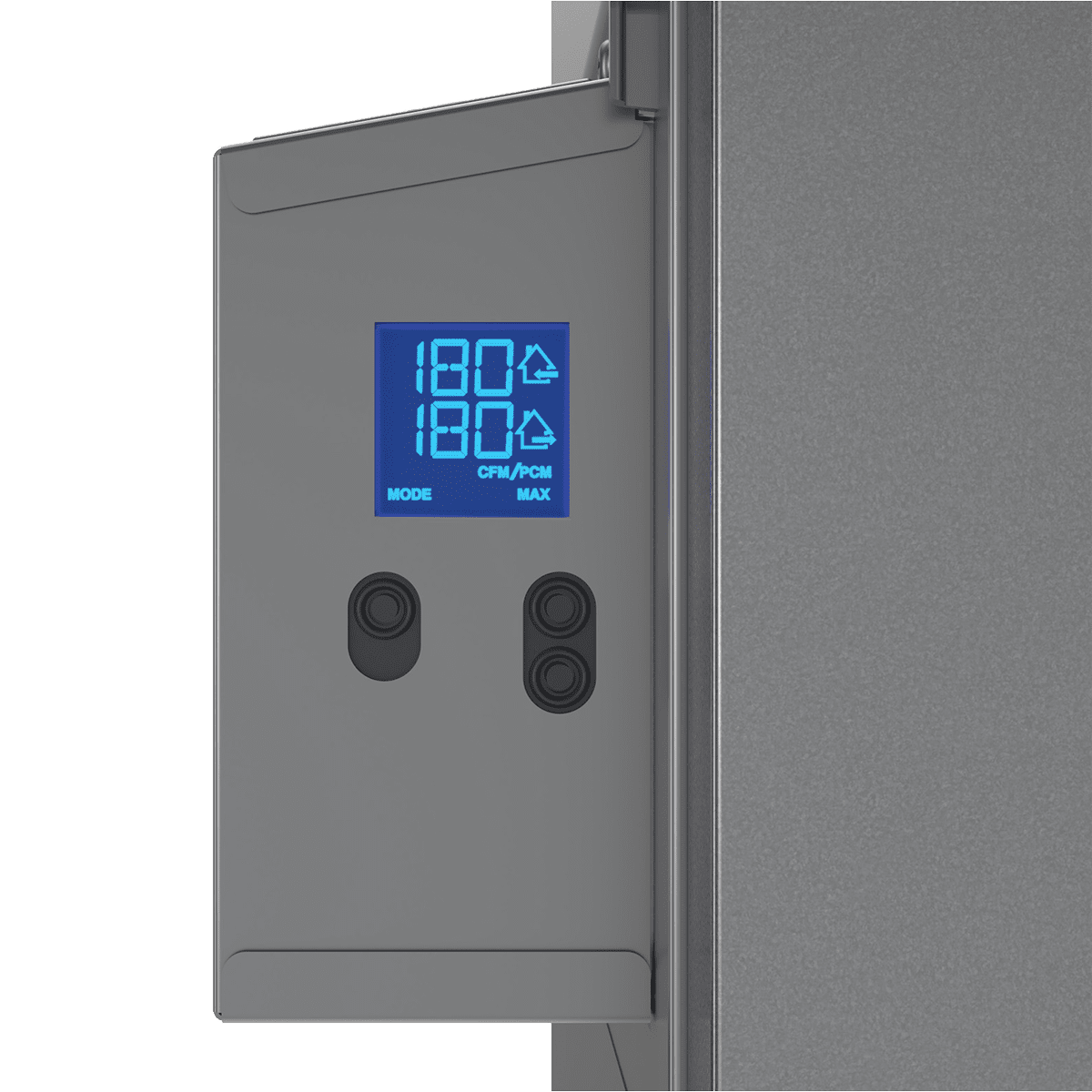

- LCD Display: The integrated LCD screen provides real-time updates on airflow and power consumption and acts as a diagnostic tool for identifying errors.
- Perfect for Spacious Homes: With an impressive airflow of 210 CFM, this solution is an ideal choice for larger homes.
- Washable MERV-8 Filter: The included MERV-8 filter effectively captures and eliminates airborne allergens like pollen, dust, and lint and can be easily cleaned.

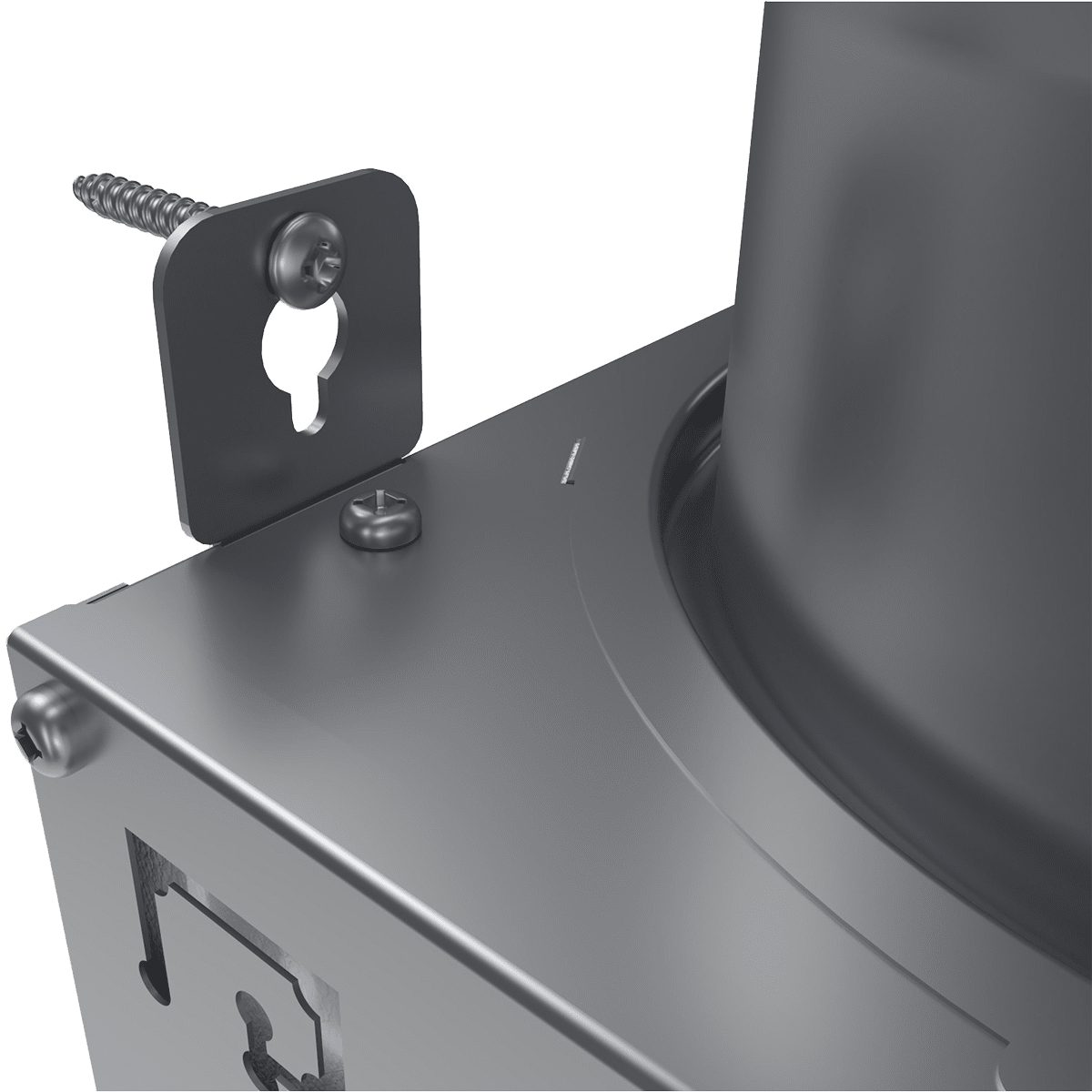

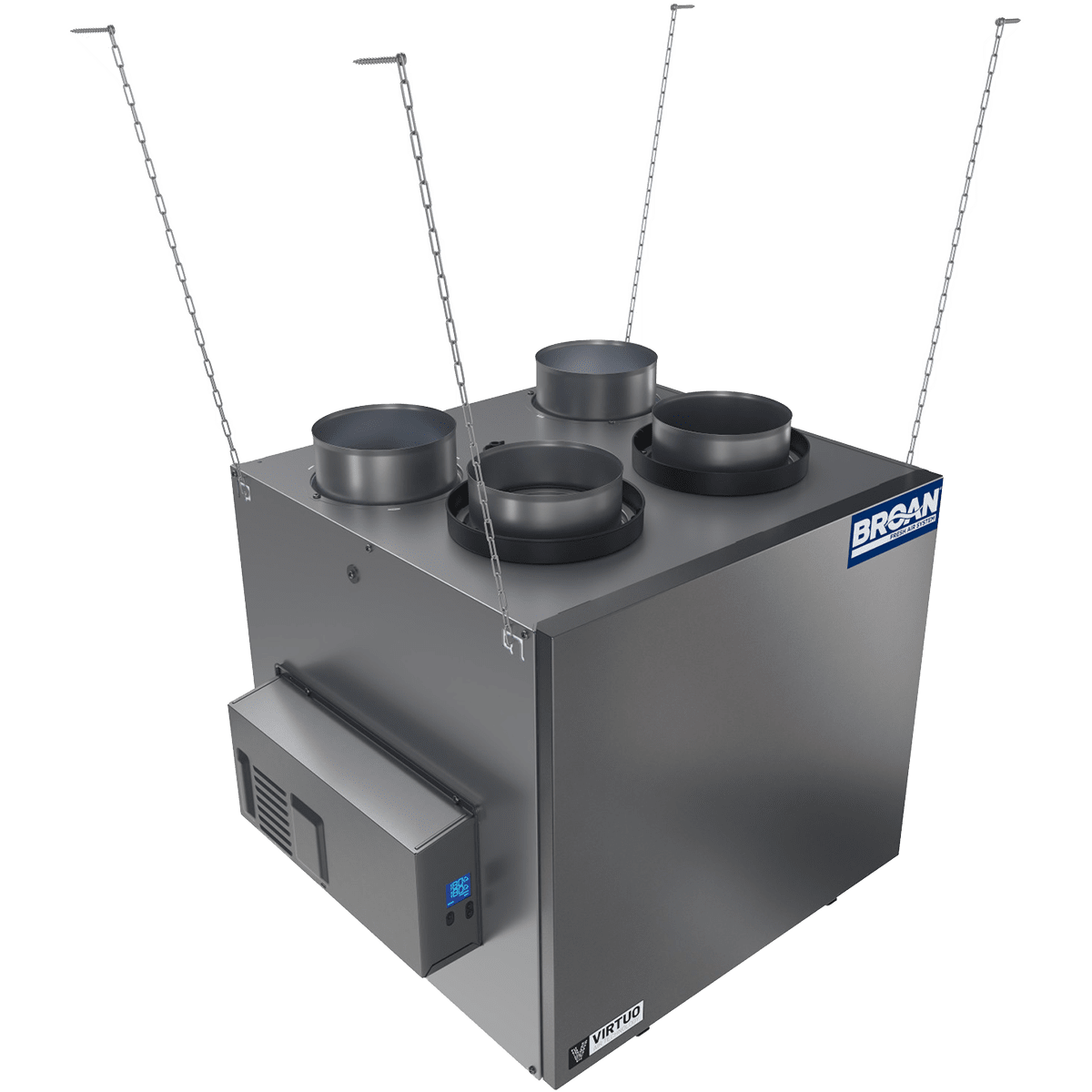

- Versatile Installation Options: Install the ERV with ease by choosing between suspended installation using the provided chains or wall-mount installation with 2 or 4 brackets (universal brackets included).

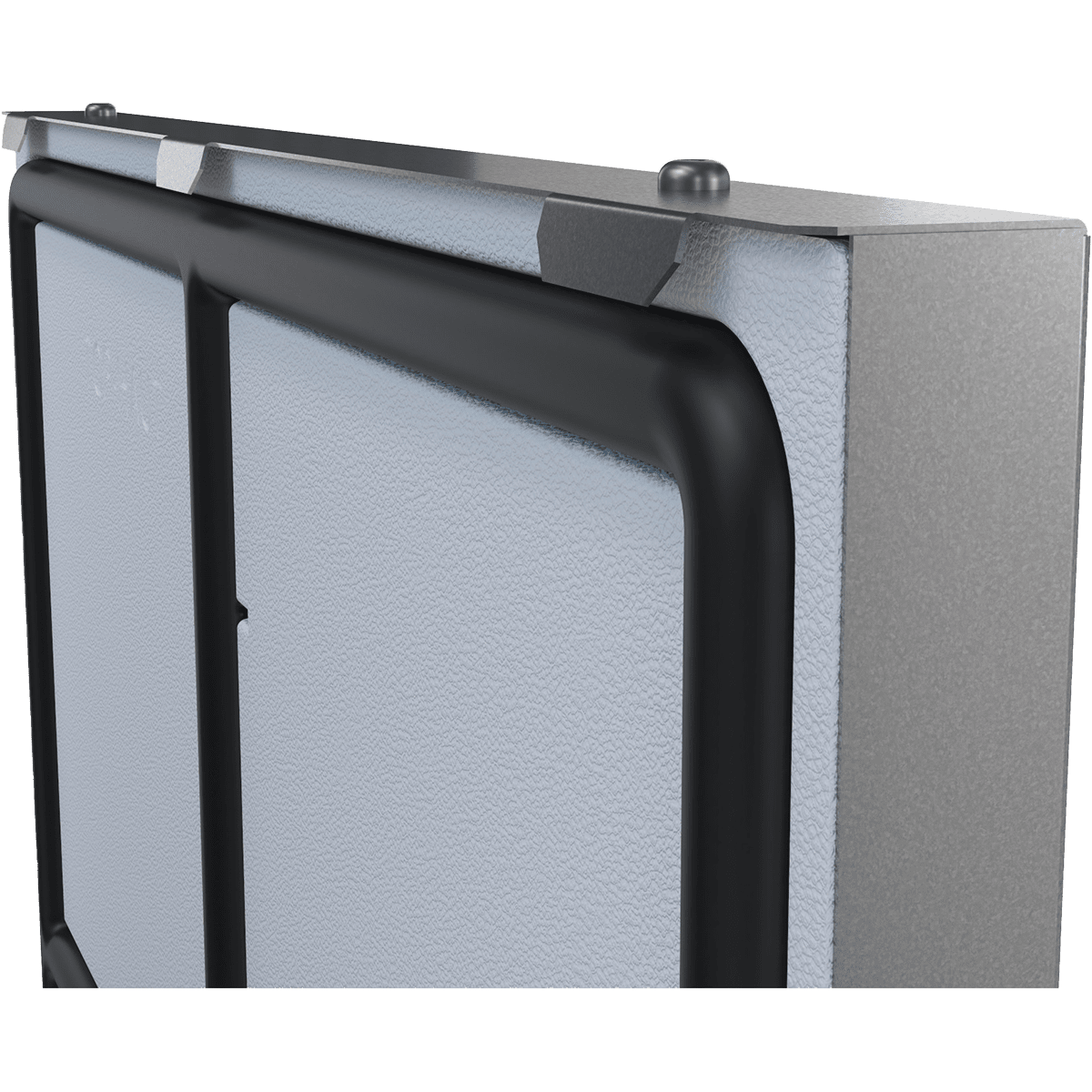

- Cabinet and Door: are manufactured of a corrosion resistant galvanized steel for durability
Additional Features
- Efficient Energy Design: By incorporating PMSM ECM motors, this system ensures minimal power consumption.

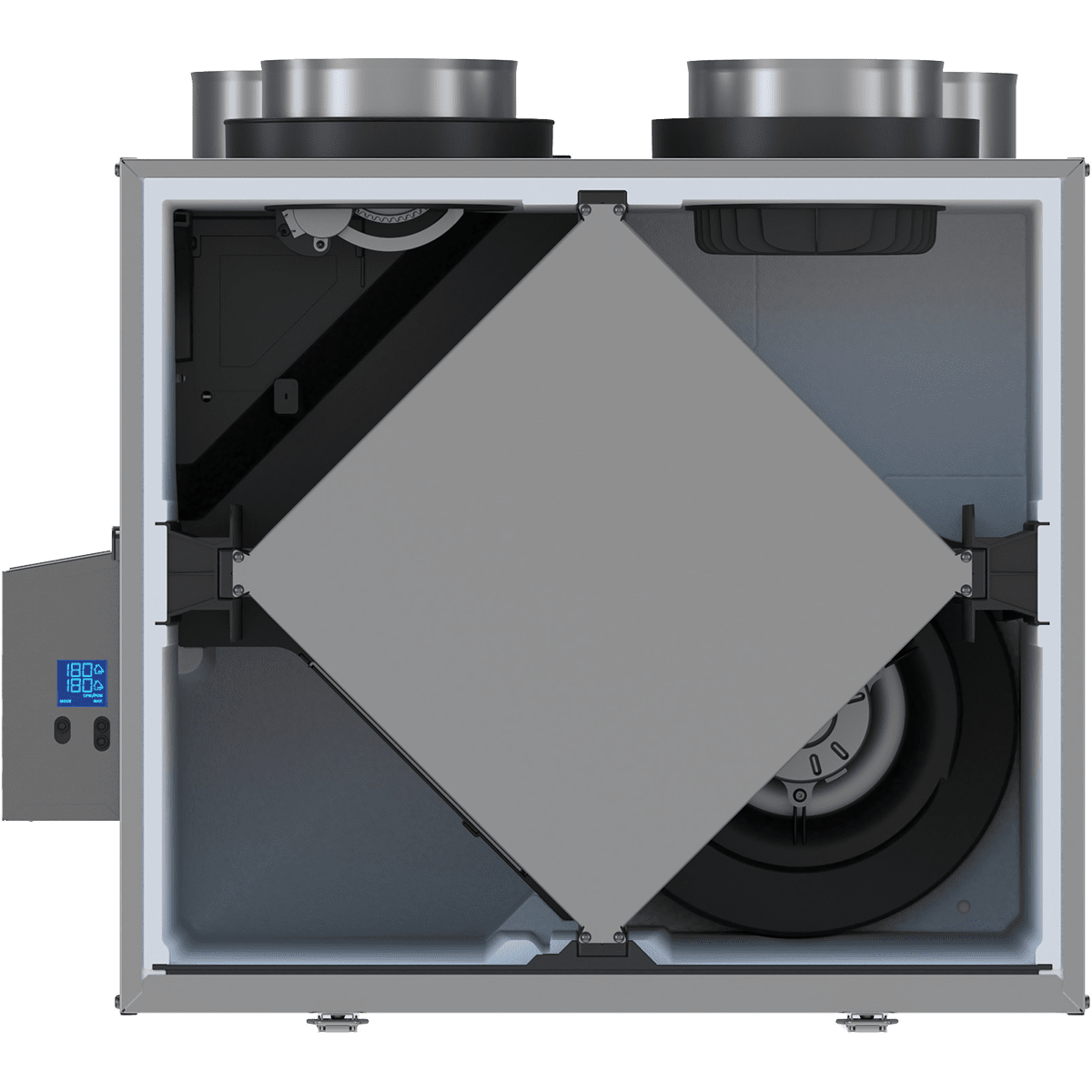

- Air-Tight Build: Its one-piece molded insulation shell guarantees airtight construction, eliminating any air leakage.
- Built-In Motorized Dampers: Integrated motorized dampers eliminate the need for additional backdraft dampers.
- Comprehensive Warranty: Benefit from worry-free ownership with a generous 5-year limited warranty that covers both parts and labor.
Sylvane's Expert Take
Enjoy fresh, filtered air in your home with the efficient Broan AI Series 210 CFM Energy Recovery Ventilator, which recovers up to 65% of energy and features innovative VIRTUO™ Air Technology for continuous monitoring of indoor and outdoor conditions, offering versatile installation options.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)65.0
-
Mounting TypeSuspended, Wall
-
Number of SpeedsVariable
-
Port LocationSideTop
-
TypeERV-Air Supply Fan
-
ApplicationResidential
-
CertificationsUL, cUL
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)210.0
-
Amperage (Amps)3.6
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)270
-
Depth (in.)21.0
-
Depth (with front cover) (in.)21.0
-
Duct Diameter (in.)6.0
-
Height (in.)20.8
-
Height (with front cover) (in.)20.8
-
Weight (lbs.)47
-
Width (in.)24.8
-
Width (with front cover) (in.)24.8
-
Manufacturer's Warranty5-Year Limited Parts, Motor, and ERV Core Warranty
Key Specifications
General
Power
Dimensions
Warranty
Recommended Accessories
-
-
-
-
Broan
SV68020 MERV 8 Replacement Filter for B180-B230 AI Fresh Air Systems
$119.00Unit price /Unavailable -
Broan
V24300 Optional MERV 13 Replacement Filter for B180-B230 AI Series Fresh Air Systems
$97.99Unit price /Unavailable -
-
- MMohitVerified BuyerReviewingBroan B210E75R AI Series 210 CFM Energy Recovery VentilatorI recommend this productRated 5 out of 5 stars7 months agoSmall, quiet, easy to install, does the job well
This replaces my old broan GSHH3K. This is a great replacement. Smaller, quieter, easy to install, setup took seconds. Used the existing ductwork that was set up for GSHH3K so saved me monty on installation. ERV works better for my use-case (iowa, extremely dry winters) than HRV. So quiet that I need to put my ear to the unit to tell whether it is working when on low setting (~85 CFM). Max CFM measured at about 190 CFM which is below 210 advertised but well above what I need for my 2500 sqft home. Efficiency (on paper) was great compared to some alternatives I looked at - no way for me to test that but all the certifications give me confidence. Can't comment on product long term reliability yet. Will update comment if that falls short. Purchase and delivery experience was also positive. Online pricing visibility helped me make an informed decision. Unit came quickly in excellent condition.
- BBillReviewingBroan B210E75R AI Series 210 CFM Energy Recovery VentilatorI recommend this productRated 5 out of 5 stars1 year agoQuality was as advertised, easy to install
When I spoke with a sales representative to purchase a spare filter for the air exchanger, they did not carry that item. I had to purchase from the manufacture.
- MMichaelVerified BuyerReviewingBroan B210E75R AI Series 210 CFM Energy Recovery VentilatorI recommend this productRated 5 out of 5 stars4 months agoPlan on buying more of these for my Hvac business
Everything was as described super fast shipping
- RRuslanVerified BuyerReviewingBroan B210E75R AI Series 210 CFM Energy Recovery VentilatorI recommend this productRated 5 out of 5 stars9 months agoA game changer in my house
Broan AI 210 CFM turned out really great. I wanted to buy the most powerful ERV from Broan because I have 5 people in my household so I need a lot of fresh air coming to my house. I've used to have an old HRV installed in my house that wasn't efficient and it was drying air in the winter pretty bad. Broan ERV is exceeding my expectations. The house is not dry anymore, my skin loves it. As per the efficiency it's much better than the old HRV. Installed temperature sensors in the ERV and track its efficiency. So take a look at these numbers: fresh supply from outside: 53F, supply to house: 64F, return from house: 66F, exhaust to outside: 58F. So it warmed the outside air from 53 to 64 degrees, very impressive.
- MMichaelVerified BuyerReviewingBroan B210E75R AI Series 210 CFM Energy Recovery VentilatorI recommend this productRated 5 out of 5 stars1 year agoAmazing ERV!
Works great! What an amazing product. I did a DIY install where I took return air for the exhaust and then I reintroduced the air into the supply with a 90 degree elbow looking down the trunk line. My CFM MAX ended up being 170 which does show some performance decrease vs 210 CFM, but it allows me to get the air quality CO2 down really quickly still for a 2200 sqft house 2-story. Get the touch pad to make use of all the special features this unit offers. I caution using an ERV to reduce radon I found that it did not reduce the levels at all, we were only around 4 or so, in the living space, and radon fluctuates daily, the unit did not bring down radon to any discernable level. Only after getting a radon mitigation system did we see levels under 1 consistently. Wiring to the furnace was easy and the Broan AI team helped with reading the diagram! Also, not having to balance the unit with special HVAC tools made the install so easy!
