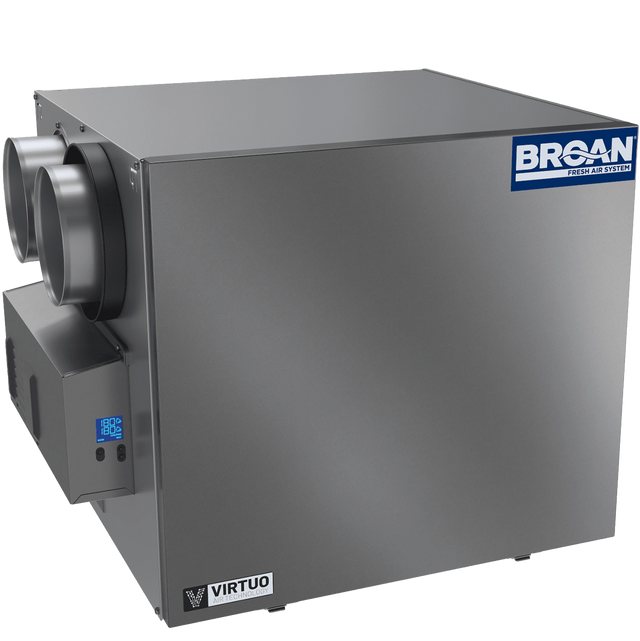

Broan B230H75R AI Series 230 CFM Heat Recovery Ventilator
Broan B230H75R AI Series 230 CFM Heat Recovery Ventilator - Side Ports is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Broan B230H75R AI Series 230 CFM Heat Recovery Ventilator
- Owner's Manual
- MERV-8 Filter
- Suspension Chains
- Universal Wall-Mount Brackets
Broan B230H75R AI Series 230 CFM Heat Recovery Ventilator
With an impressive energy recovery rate of up to 67 percent, the Broan AI Series 230 CFM Heat Recovery Ventilator stands out as a leading choice among residential mechanical ventilation systems. Its straightforward installation process and user-friendly design ensure the delivery of fresh, filtered, and healthy air throughout the entire home. Powered by Broan's advanced VIRTUO Air Technology, this unit constantly monitors and adapts to evolving indoor and outdoor conditions. Additionally, it offers the flexibility of side and top port options.
Fastest Setup Possible
The Broan B230H75R is specifically engineered for a hassle-free and efficient installation, integrating the innovative VIRTUO technology by Broan. With VIRTUO, the verification and balancing of airflow are seamlessly managed, making the installation process easier. This HRV model comes equipped with advanced functionalities such as airflow verification, automatic balancing, and self-adjustment technology, ensuring effortless upkeep of your initial configurations. Additionally, it offers two port options for enhanced versatility.

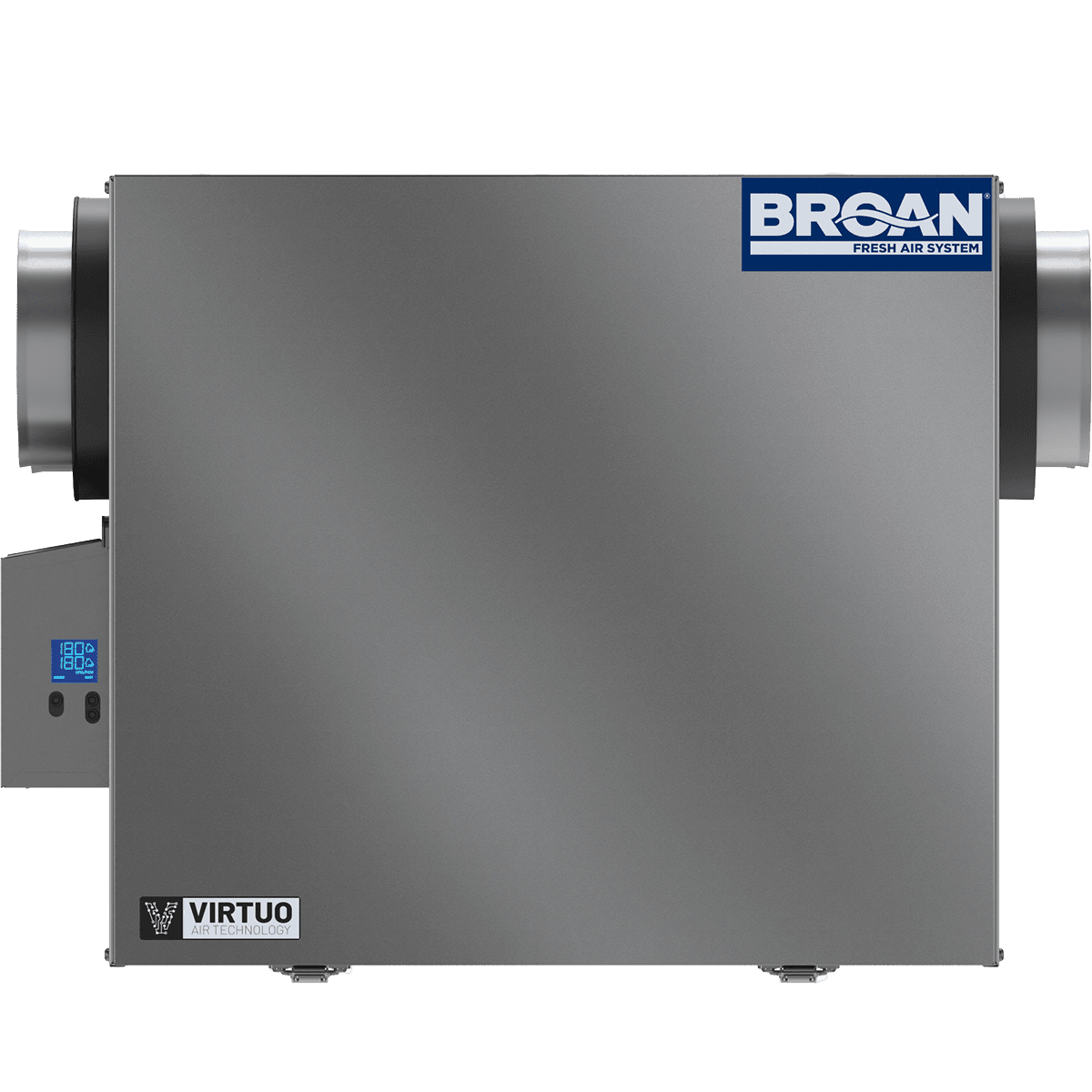

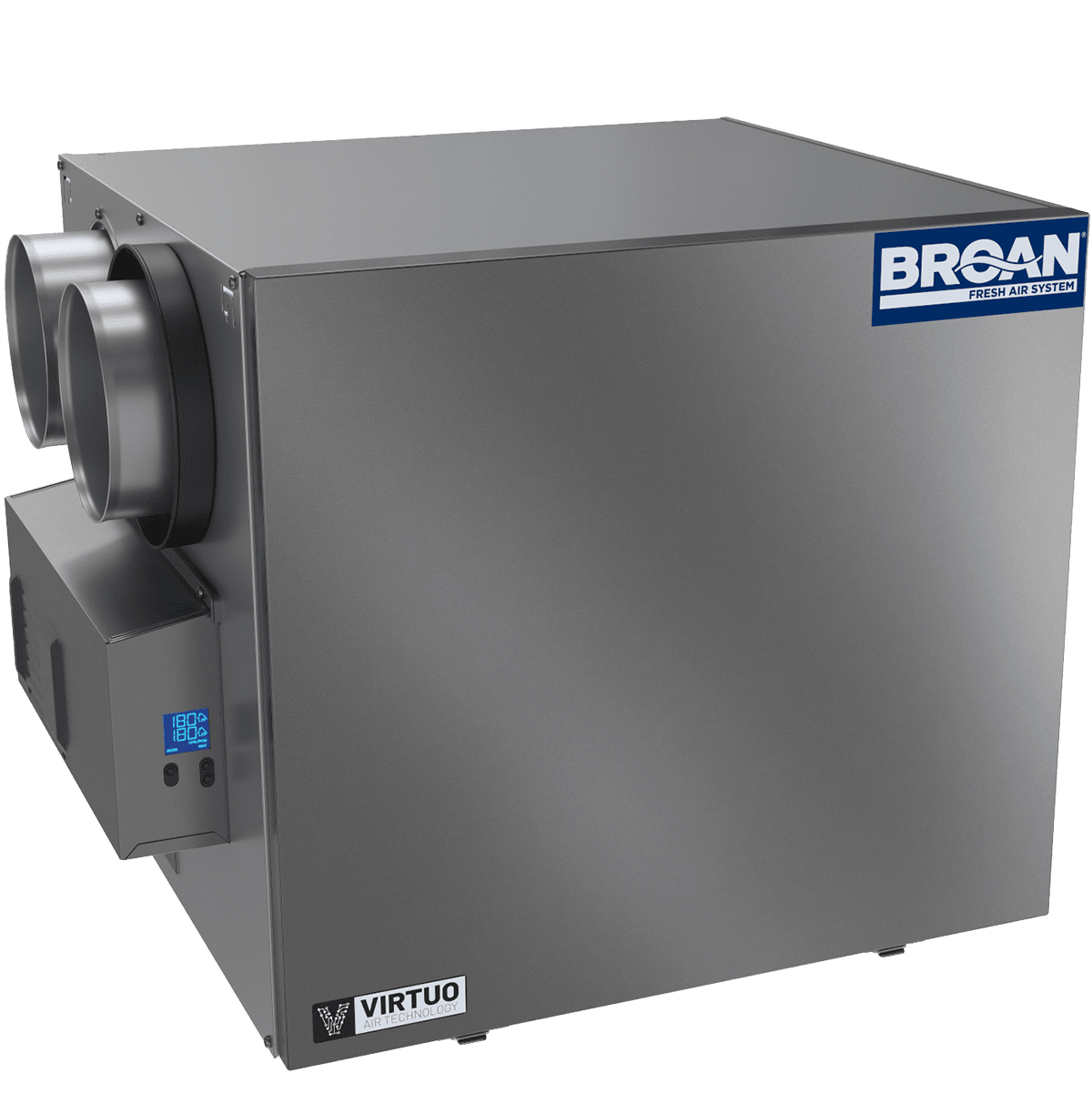

- Broan B230H75RS: Side Ports

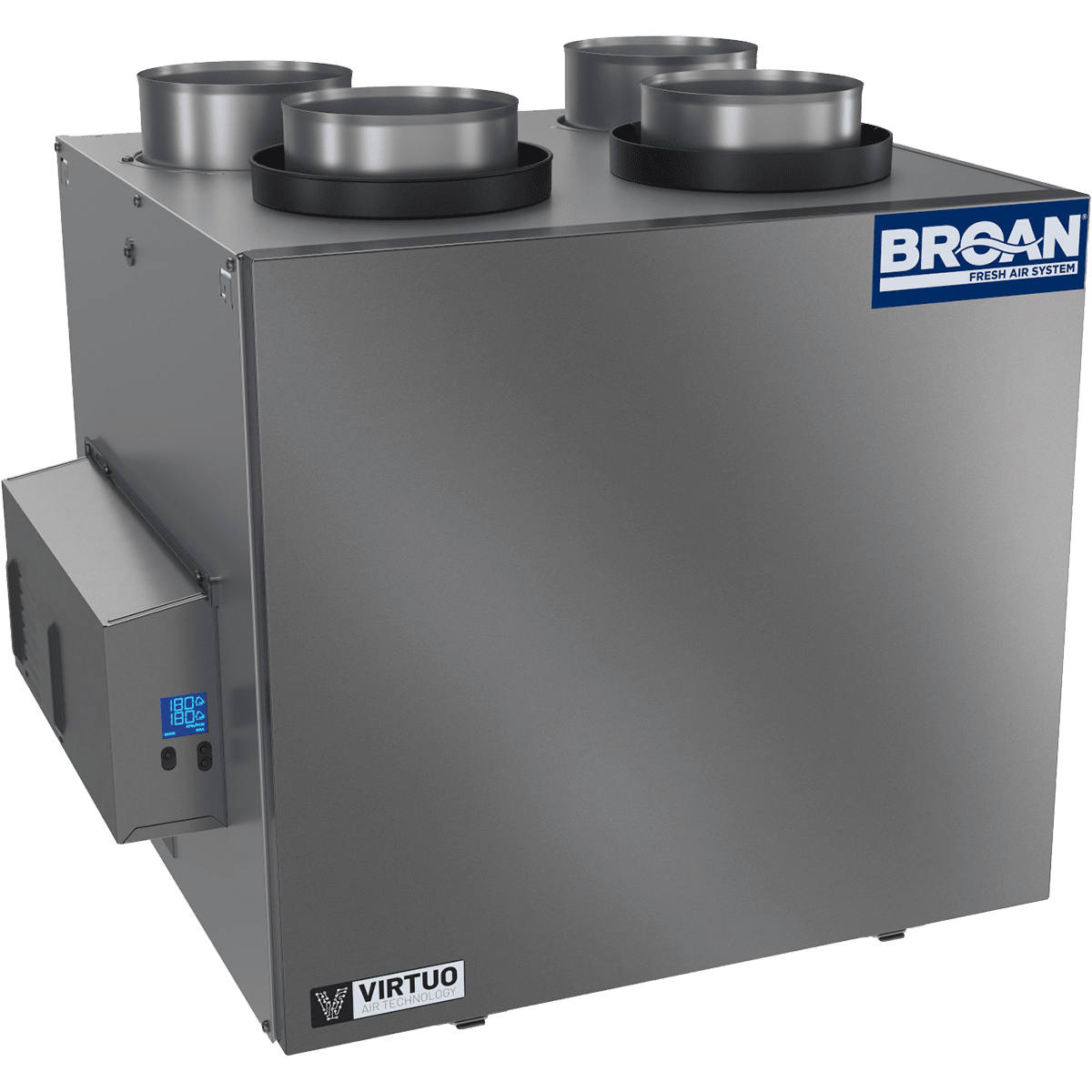

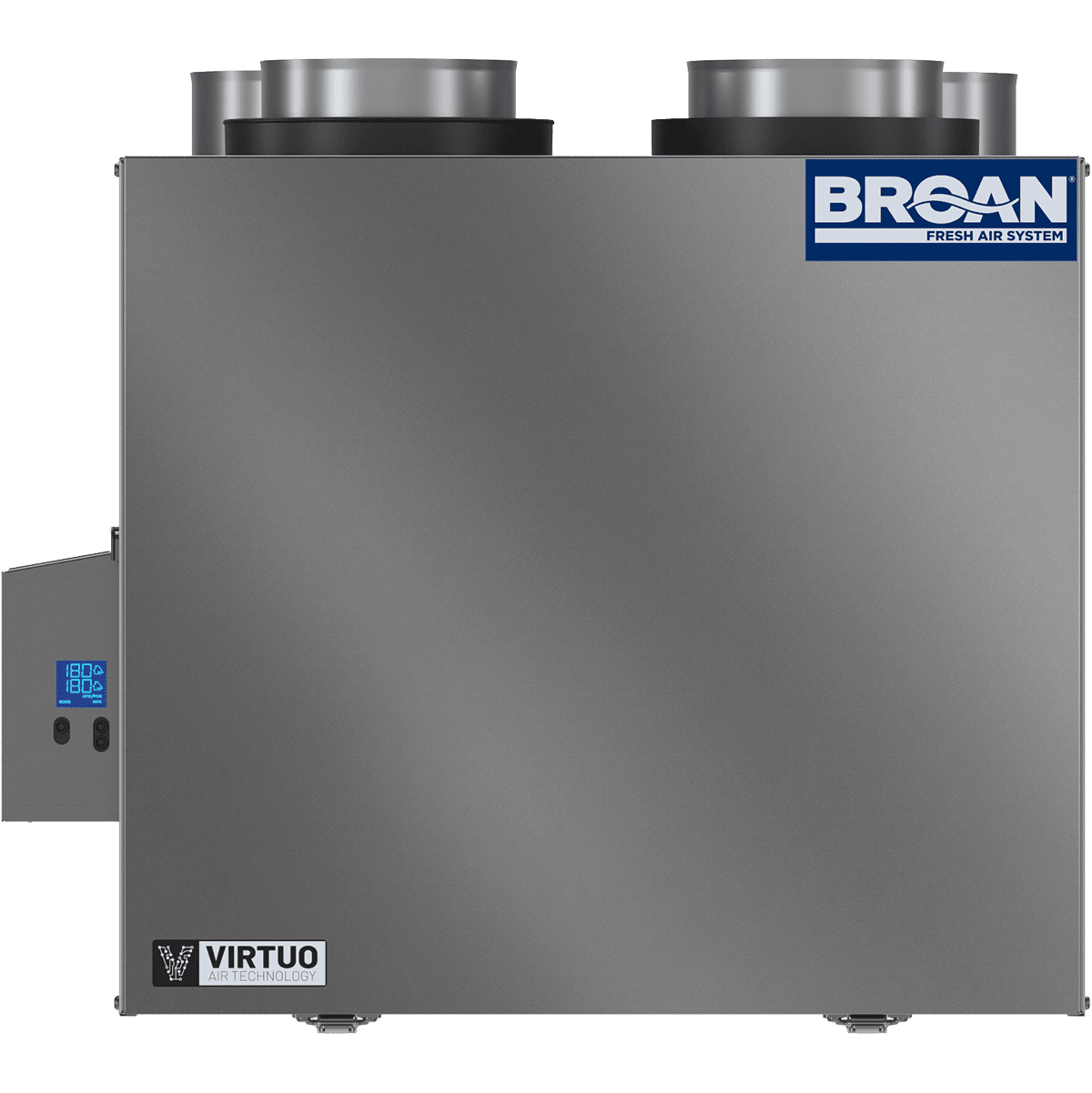

- Broan Broan B230H75RT: Top Ports
Key Features Of The Broan B230H75R
Improve your home's well-being with the fresh air provided by the Broan Heat Recovery Ventilator, equipped with remarkable features.
- Improved Air Quality through MERV-8 Filtration: Efficiently traps lint, dust, pollen, dust mites, debris, and spores, ensuring outstanding air quality.
- Personalized Airflow: Customize the airflow to your liking with a selection of options up to 230 CFM.

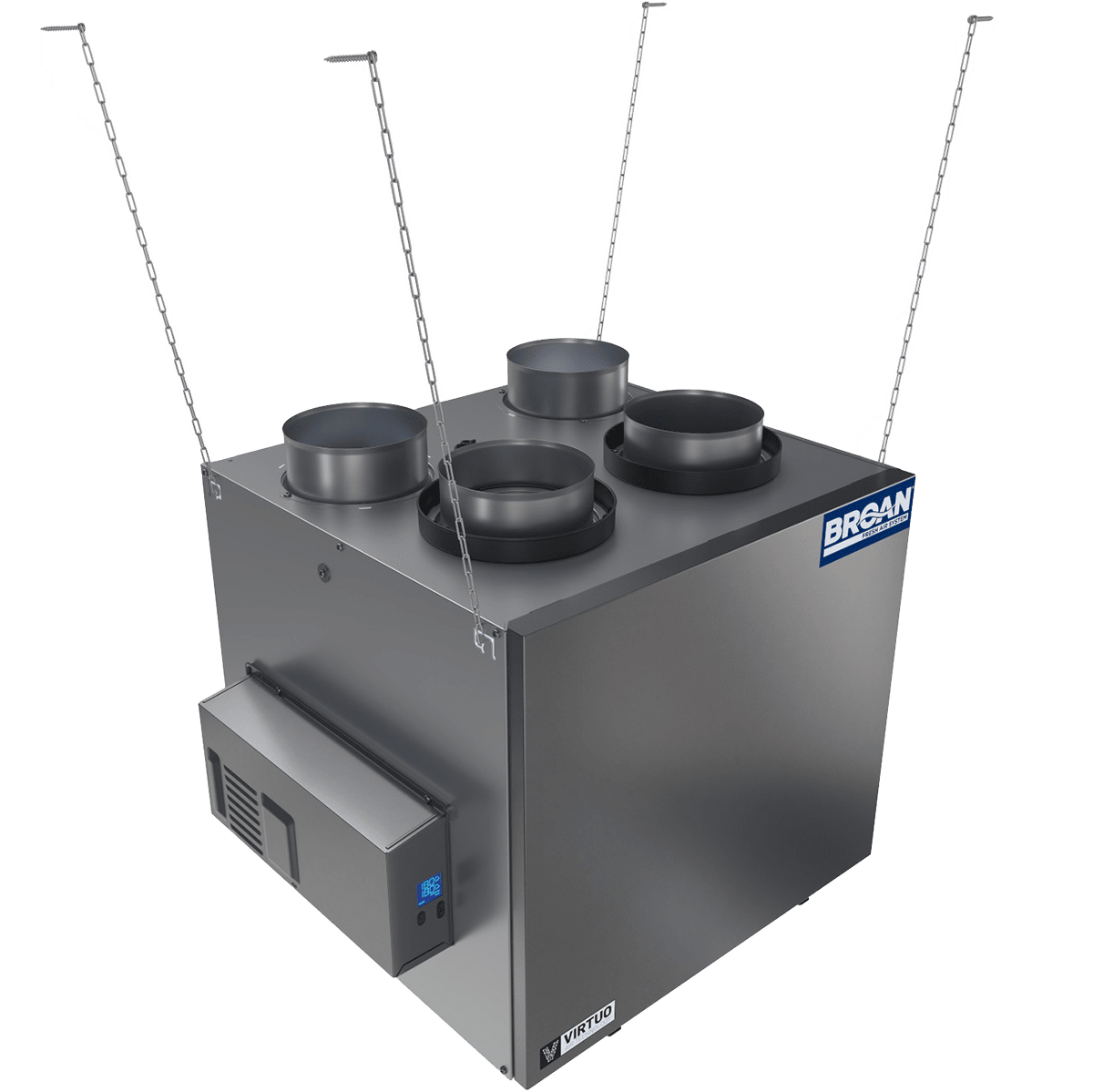

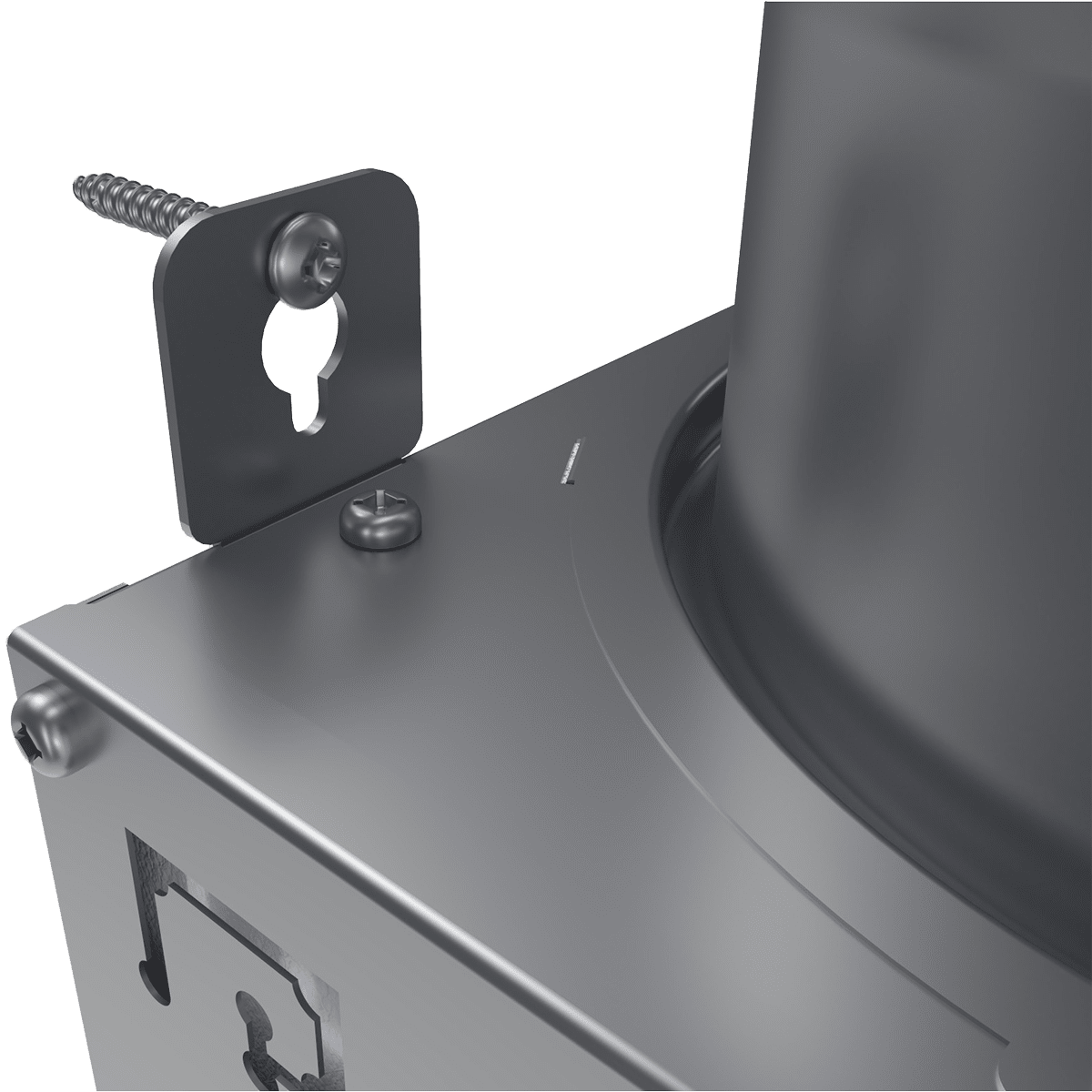

- Versatile Installation Options: Opt for suspended installation (with included chains) or wall-mount installation using 2 or 4 universal brackets, offering flexibility in setup.

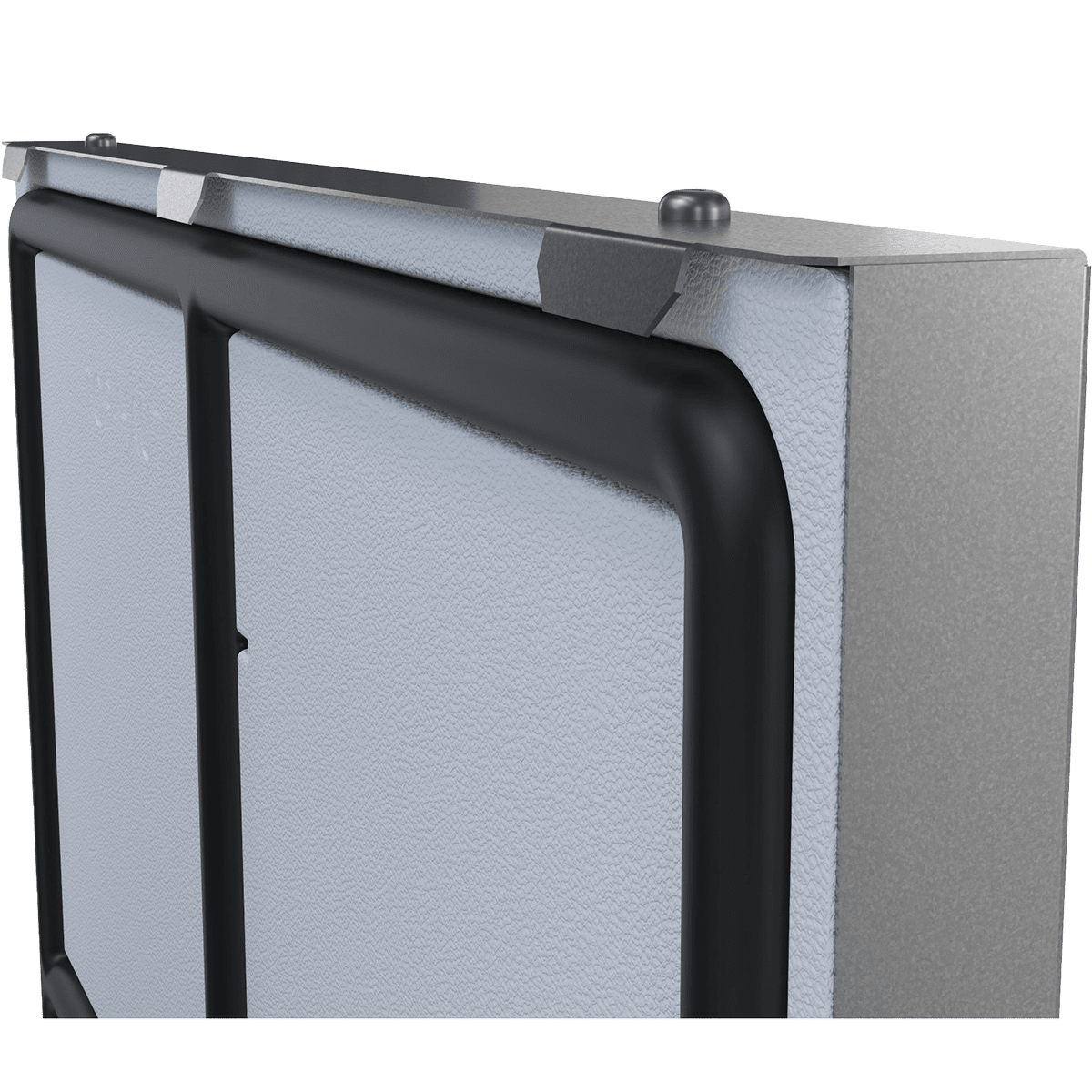

- Cabinet and Door: are manufactured of a corrosion-resistant galvanized steel for durability
Additional Features

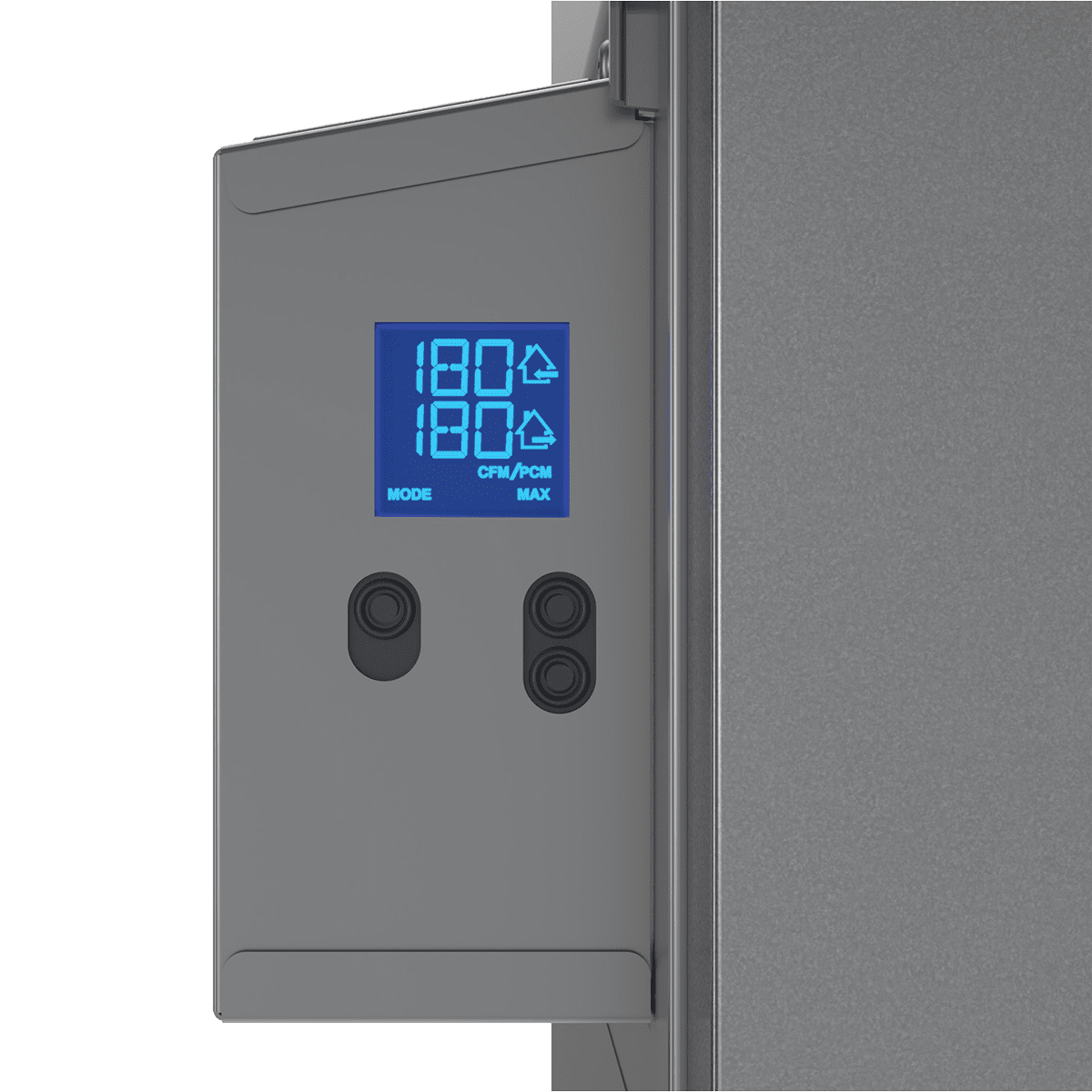

- Integrated LCD Display: The LCD screen integrated into the unit shows real-time airflow measurements, simplifies automatic system balancing, and provides clear diagnostic codes.
- Energy-Efficient Design: With PMSM ECM motors, the unit consumes minimal power, ensuring exceptional energy efficiency.

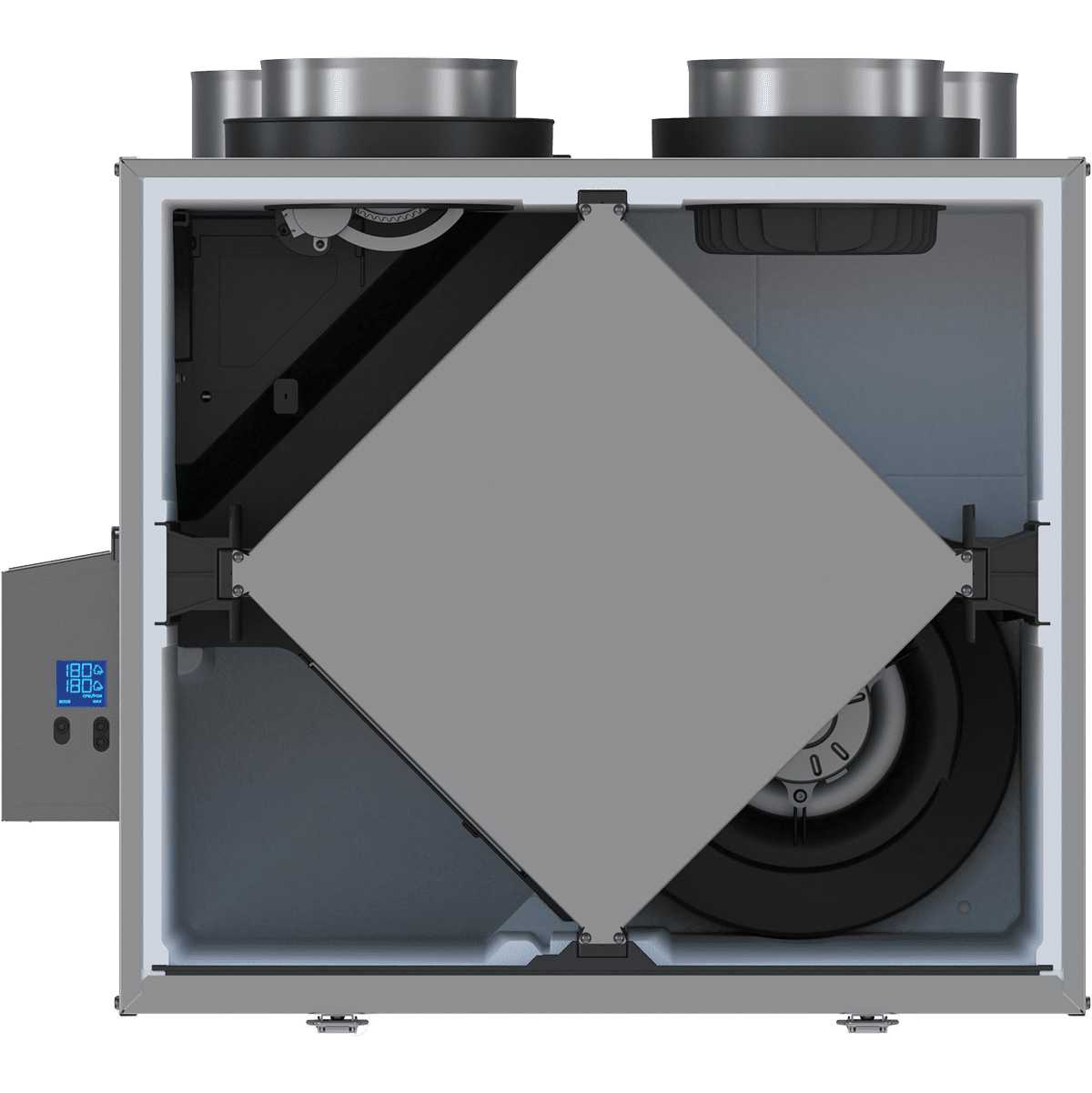

- Air-Tight Construction: The one-piece molded insulation shell guarantees no air leakage, delivering a highly effective sealing solution.
- Motorized Dampers: The inclusion of motorized dampers eliminates the need for backdraft dampers, streamlining the installation process.
- Extensive Warranty: Benefit from a comprehensive 5-year limited warranty that covers both parts and labor, offering peace of mind.
Sylvane's Expert Take
The Broan AI Series 230 CFM Heat Recovery Ventilator is a top choice for residential ventilation, boasting an impressive energy recovery rate of up to 67 percent and providing fresh, filtered air throughout the home with its user-friendly design.
-
Minimum Cubic Feet per Minute (CFM) (CFM)65.0
-
Mounting TypeSuspended, Wall
-
Number of SpeedsVariable
-
Port LocationSideTop
-
TypeHRV-Air Supply Fan
-
ApplicationResidential
-
CertificationsUL, cUL
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)230.0
-
Amperage (Amps)3.6
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)270
-
Depth (in.)21.0
-
Depth (with front cover) (in.)21.0
-
Duct Diameter (in.)6.0
-
Height (in.)20.8
-
Height (with front cover) (in.)20.8
-
Weight (lbs.)47
-
Width (in.)24.8
-
Width (with front cover) (in.)24.8
-
Manufacturer's Warranty5-Year Limited Parts and Motor Warranty, Limited Lifetime HRV Core Warranty
Key Specifications
General
Power
Dimensions
Warranty
Recommended Accessories
Shop All Broan ERV & HRV Fresh Air Systems Accessories-
Broan
VBATHW 20/40/60 Minute Wall Control for AI Series ERV/HRV
Regular price $34.00Unit price /Unavailable -
-
-
Broan
SV68020 MERV 8 Replacement Filter for B180-B230 AI Fresh Air Systems
Regular price $119.00Unit price /Unavailable -
Broan
V24300 Optional MERV 13 Replacement Filter for B180-B230 AI Series Fresh Air Systems
Regular price $97.99Unit price /Unavailable -
Broan
Automatic Wall Control for AI Series Fresh Air Systems
Regular price $79.00Unit price /Unavailable -
Broan
Speed Selector Wall Control for AI Series Fresh Air Systems
Regular price $82.00Unit price /Unavailable
- SWStephen W.Verified BuyerReviewingBroan B230H75R AI Series 230 CFM Heat Recovery VentilatorI recommend this productRated 5 out of 5 stars12 hours agoVenmar Replacement
After 20 yrs, my HE 2.6 needed to be replaced.
I installed this B230. Install and startup were very smooth. This B230 is well built.
Balancing is auto and worked well.
Most importantly, I got a lot of good info and guidance from the Sylvane team on the front end.
Price is very fair.
- SCScott C.Verified BuyerReviewingBroan B230H75R AI Series 230 CFM Heat Recovery VentilatorI recommend this productRated 5 out of 5 stars2 weeks agoGreat Unit!
I had to replace a Venmar 2.6 HE model that was about 25 years old. Even though this unit doesn't have the cfm's my old unit had. It seems much more efficient and should be able to work fine in my house.
