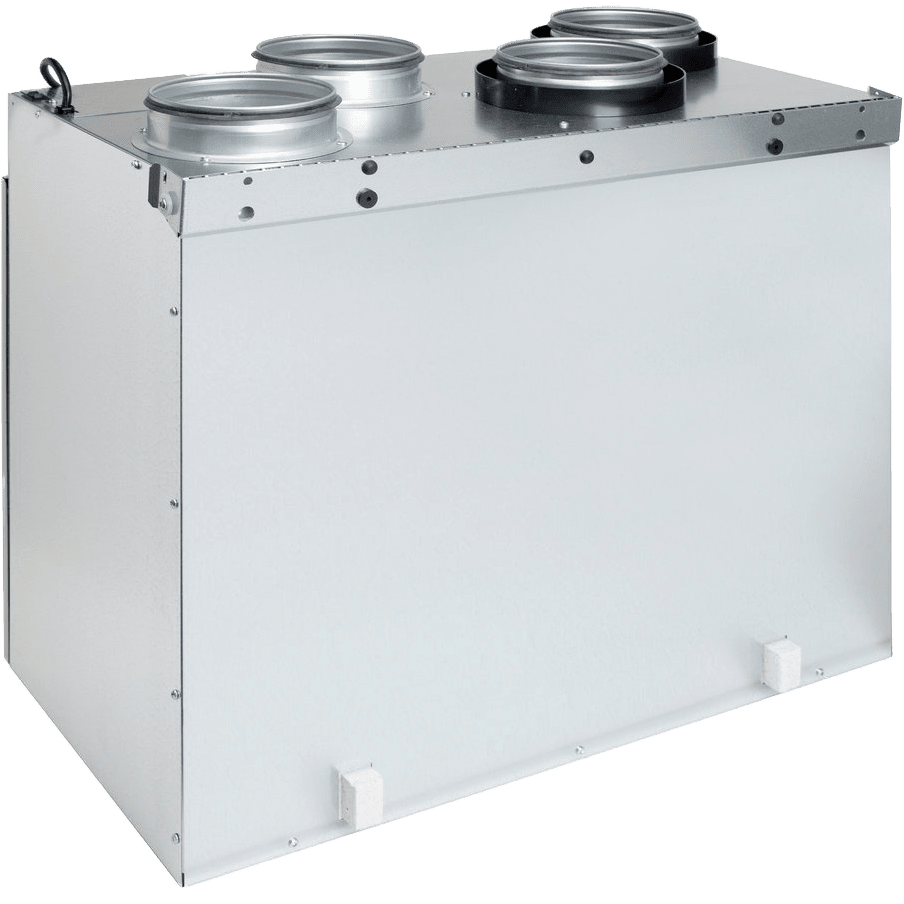

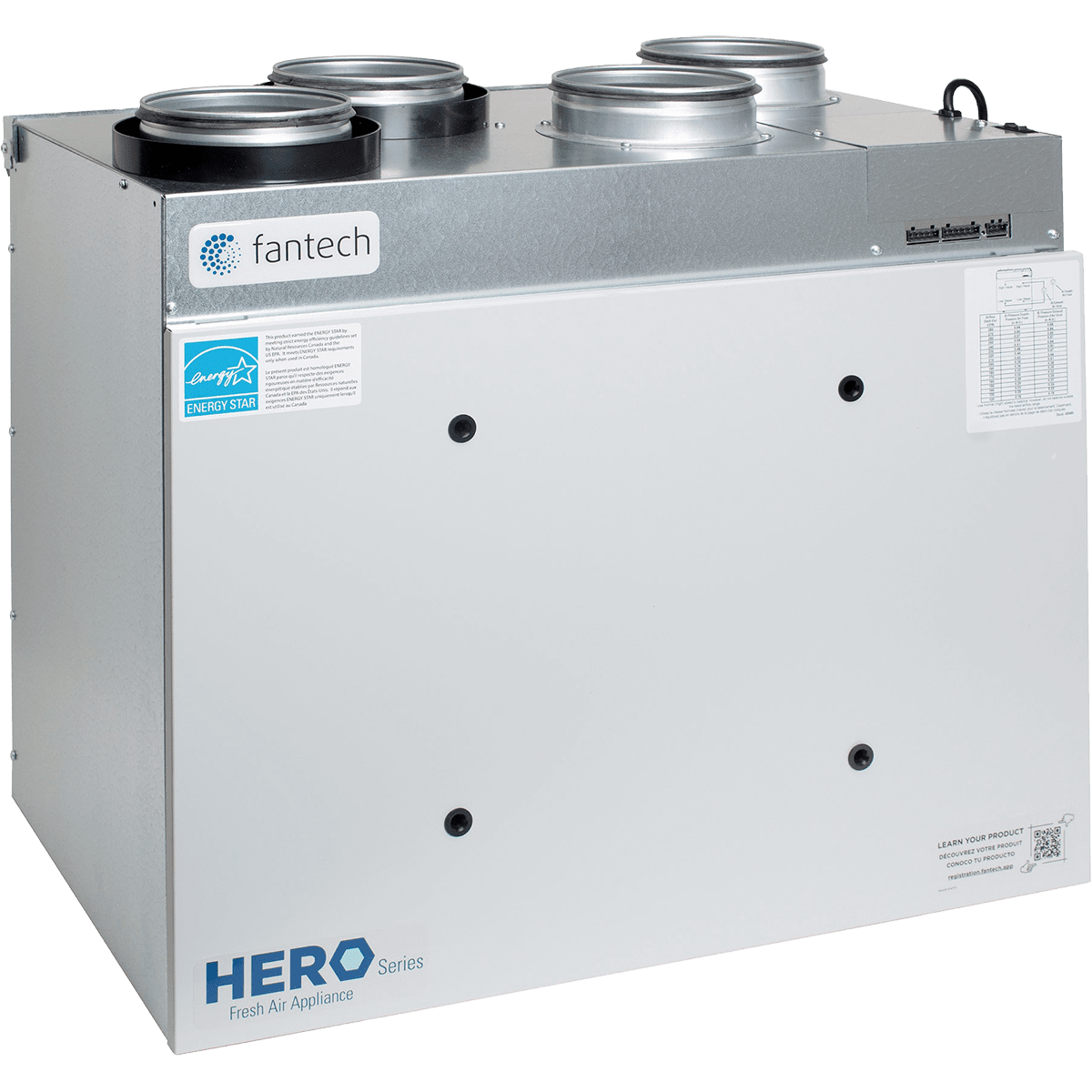

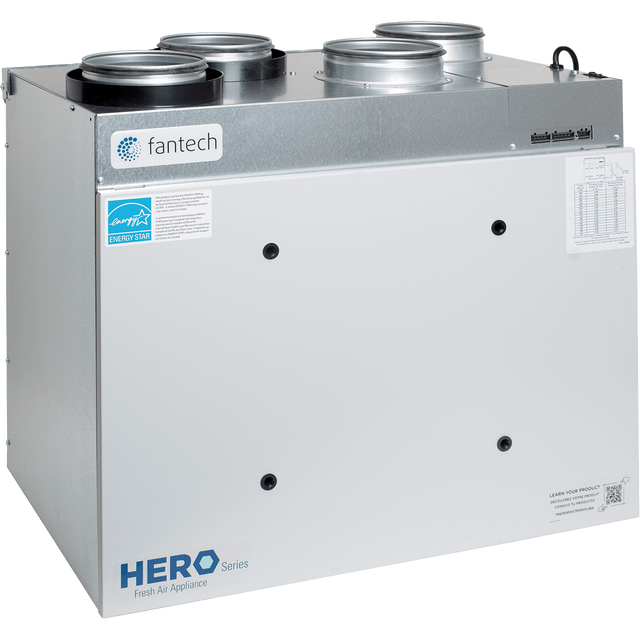

Fantech HERO 200H 218 CFM Heat Recovery Ventilator
SKU:
fn13372
| Model:
99402
$1,164.00
Unit price
/
Unavailable
Fantech HERO 200H 218 CFM Heat Recovery Ventilator is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech HERO 200H Heat Recovery Ventilator (6-Inch Top Ports)
- Owner's Manual
- Wall Mount
- External Electrical Box With Easy Connect Ports
- Integrated In-Door Manometer Ports
Info & Guides
Info & Guides
Description
Description
Ventilate your air without losing heat when you turn to the Fantech HERO 200H Heat Recovery Ventilator. Providing up to 218 CFM of supply air, this HRV is designed to deliver up to 80% heat recovery for tempering the incoming fresh air. Easy to operate, it features a multi-speed operation while delivering an Energy Star-rated performance.
What Makes The HERO 200H So Effective?
- Duct Size: Utilizes 6-inch top-mounted duct connections.
- Heat Recovery: Recovers up to 80% of heat to temper incoming air.
- Designed For Larger Homes: With its 218 CFM airflow, the Hero 200H HRV is perfect for 3 to 5-bedroom homes.
- Multiple Speeds: Multi-speed operation to provide exact airflow.

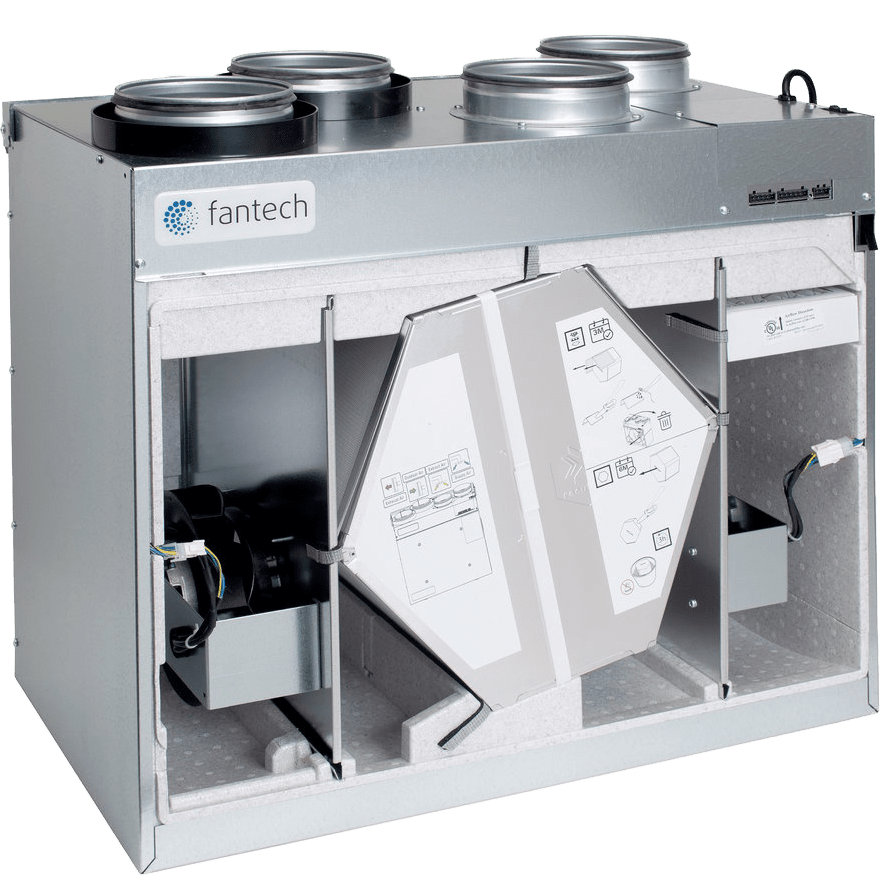

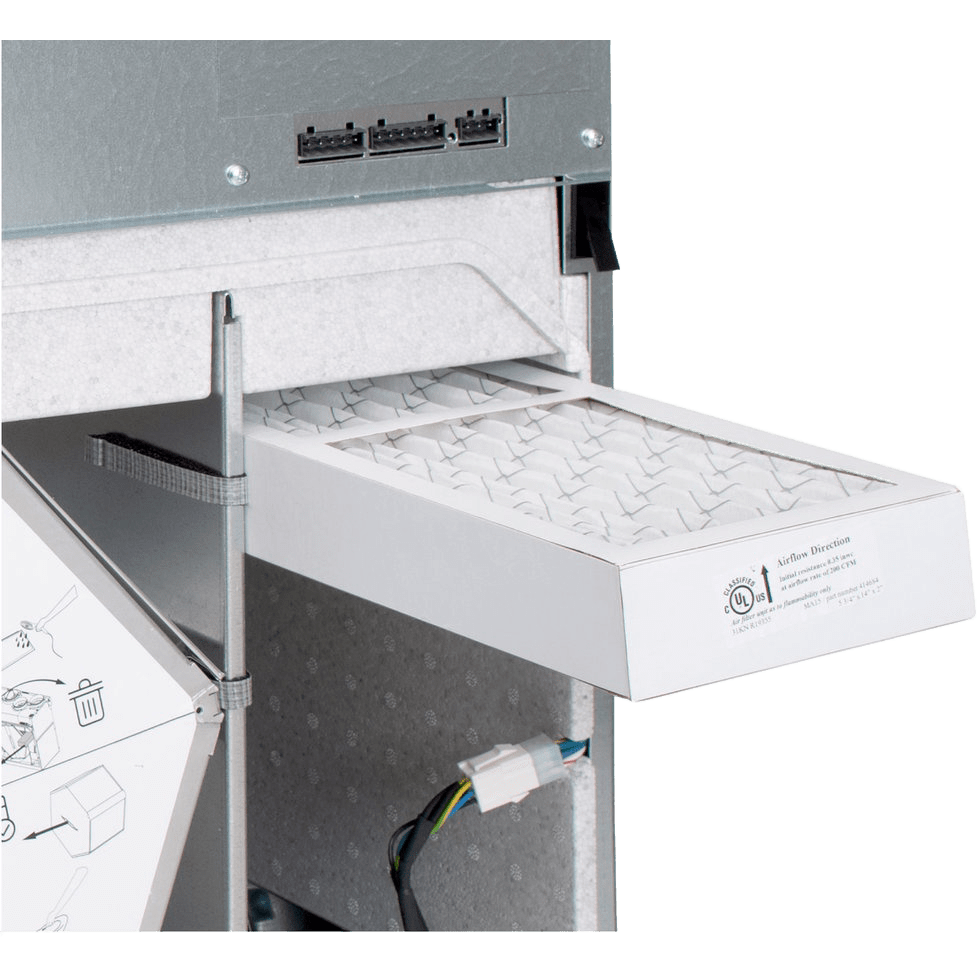

- Easy to Maintain: Unobstructed front access for fast and easy maintenance.
- Use In High Static Pressure: This ventilator is designed to exhaust contaminated indoor air while replacing it with fresh air.
- Easy Connection: This ventilator is equipped with a removable screw terminal for easy connection.

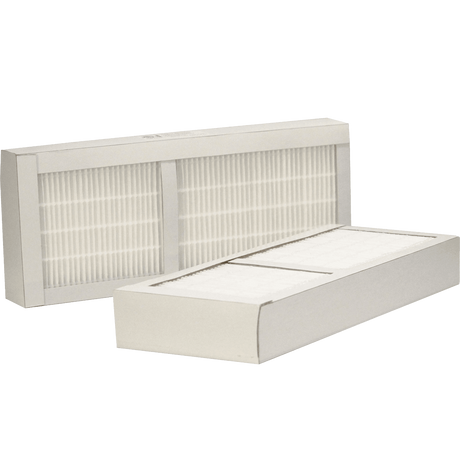

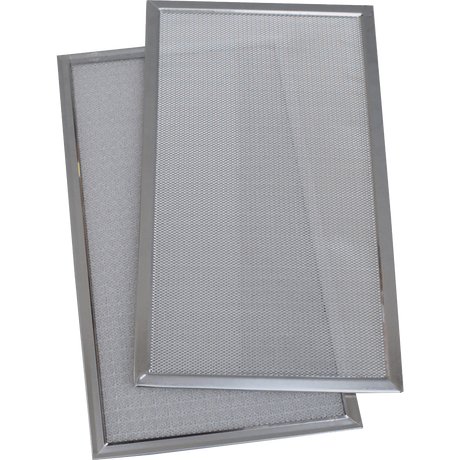

- Cleaner Air: Equipped with MERV3 filters to trap airborne particles and irritants as air passes through the unit.
Summary

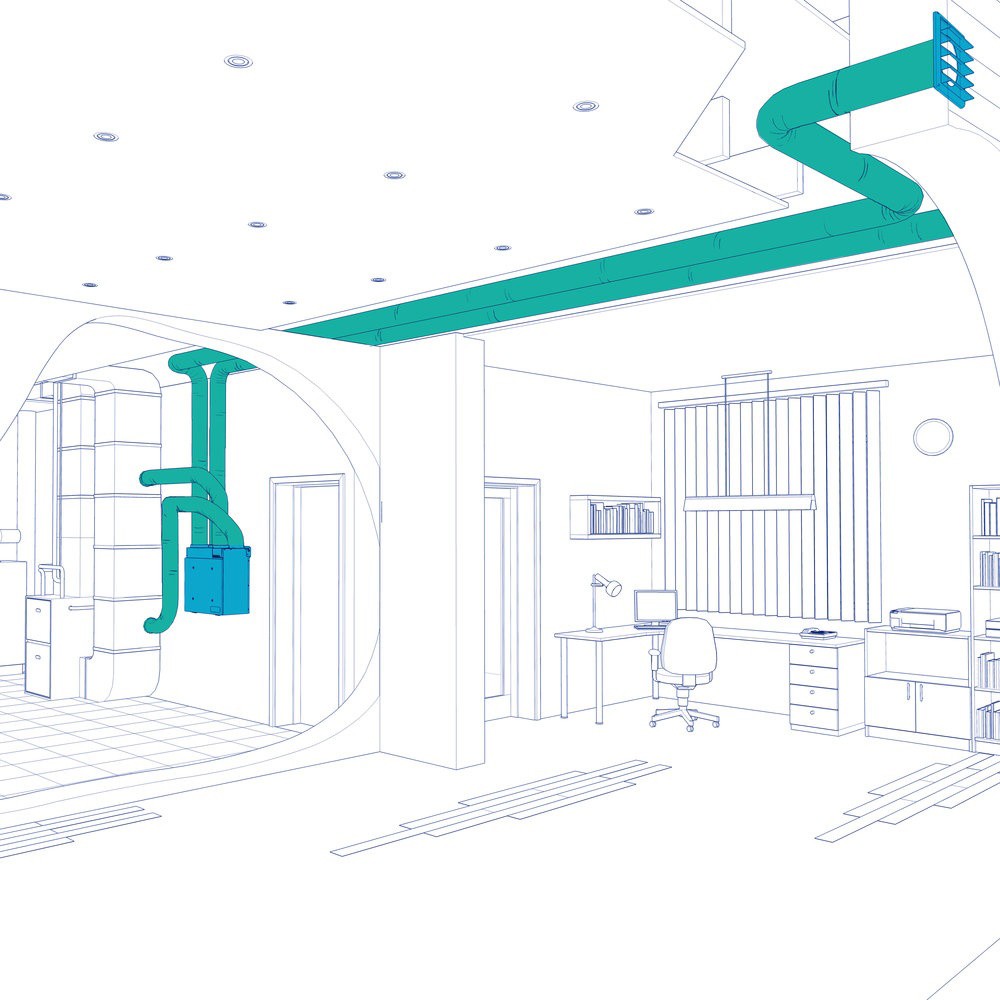

This powerful HRV from Fantech provides a controlled way of ventilating a home without excessive heat losses.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)76.0
-
Mounting TypeSuspended, Wall
-
Number of SpeedsVariable
-
Port LocationTop
-
TypeHRV-Air Supply Fan
-
ApplicationResidential
-
CertificationsCSA, HVI-Certified
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)218.0
-
Amperage (Amps)2
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)210
-
Depth (in.)27.9
-
Depth (with front cover) (in.)27.9
-
Duct Diameter (in.)6.0
-
Height (in.)24.9
-
Height (with front cover) (in.)24.9
-
Weight (lbs.)58.5
-
Width (in.)15.4
-
Width (with front cover) (in.)15.4
-
Additional FeaturesEnergy Star
-
Manufacturer's WarrantyLimited Lifetime Counterflow Core Warranty, 7-Year Limited Motor Warranty, 5-Year Limited Parts Warranty
