Fantech VHR 70 57 CFM Heat Recovery Ventilator
Fantech VHR 70 57 CFM Heat Recovery Ventilator is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech VHR 70 Heat Recovery Ventilator w/ 4-Inch Top Ports
- Owner's Manual
- Mounting Bracket
Info & Guides
Info & Guides

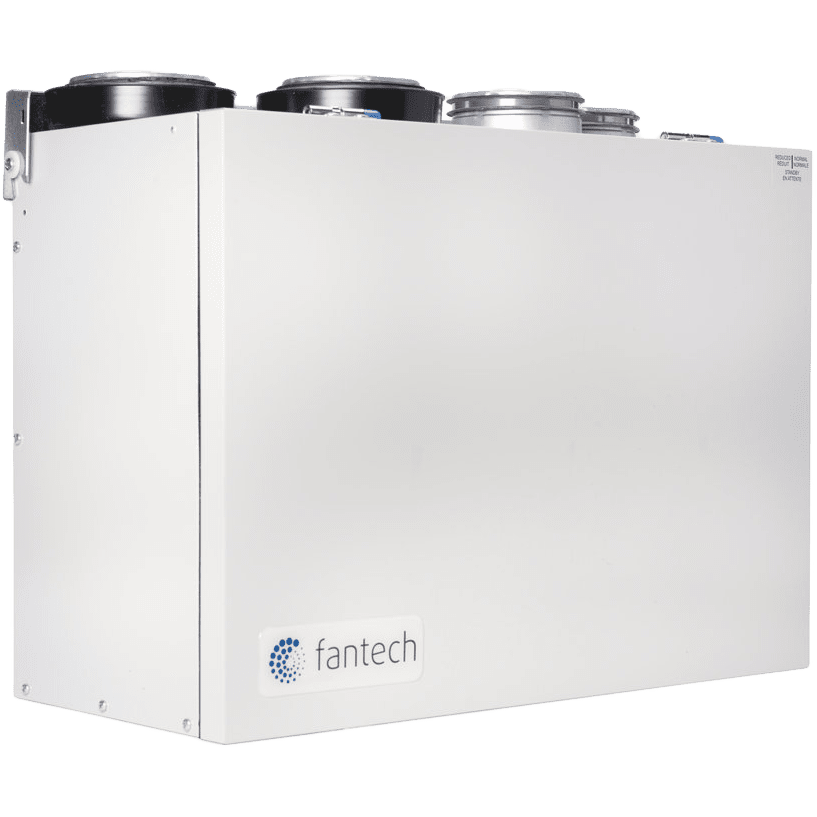

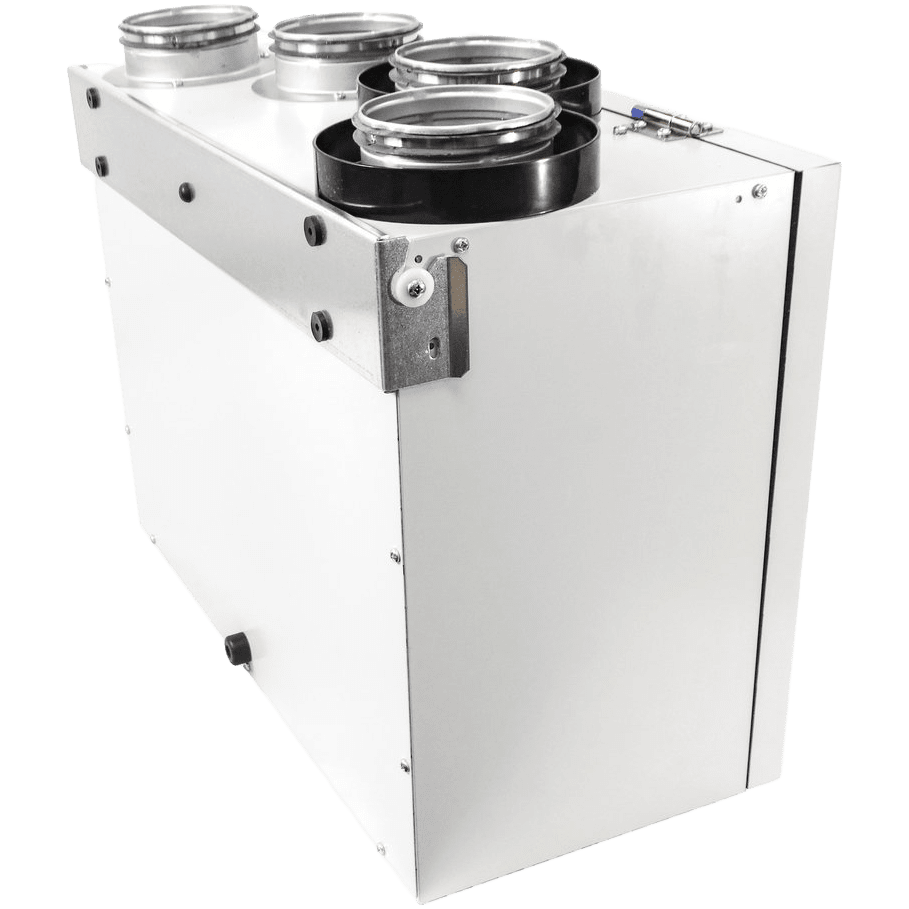

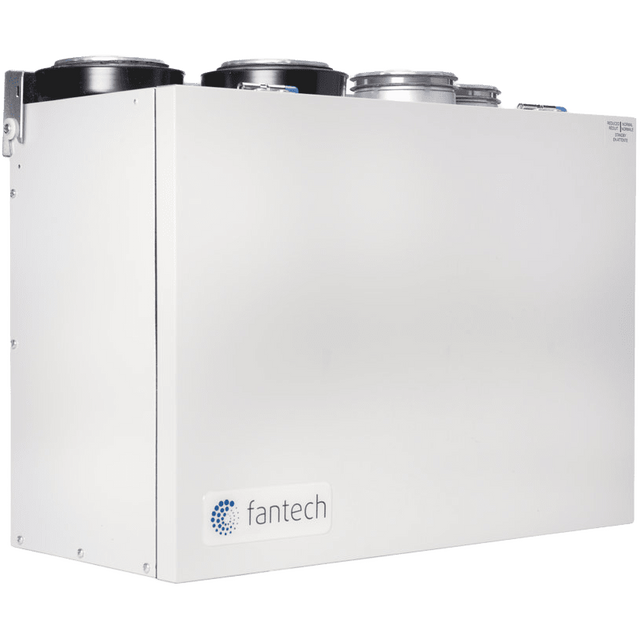

Fantech VHR 70 57 CFM Heat Recovery Ventilator
Make your building's heating and cooling systems more efficient with the Fantech VHR 70 Heat Recovery Ventilator (HRV). This 57 CFM ventilator features four top ports with defrost capabilities and 4-inch ducts. Compact, the Fantech VHR 70 HRV is easy to mount. It features an aluminum core, washable electrostatic filters, and internal recirculation defrost.
Top Features Of The Fantech VHR 70

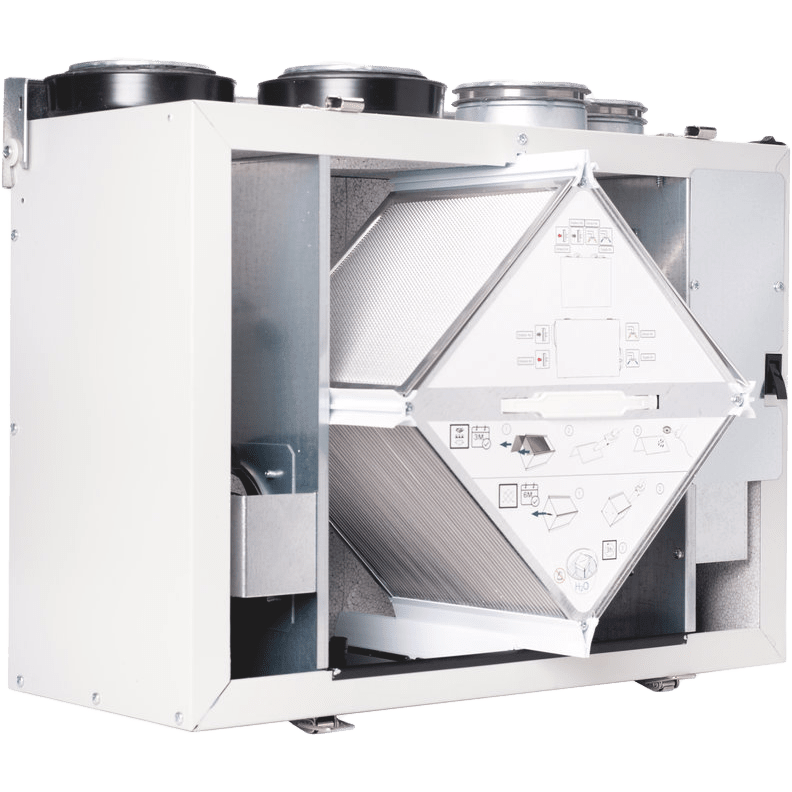

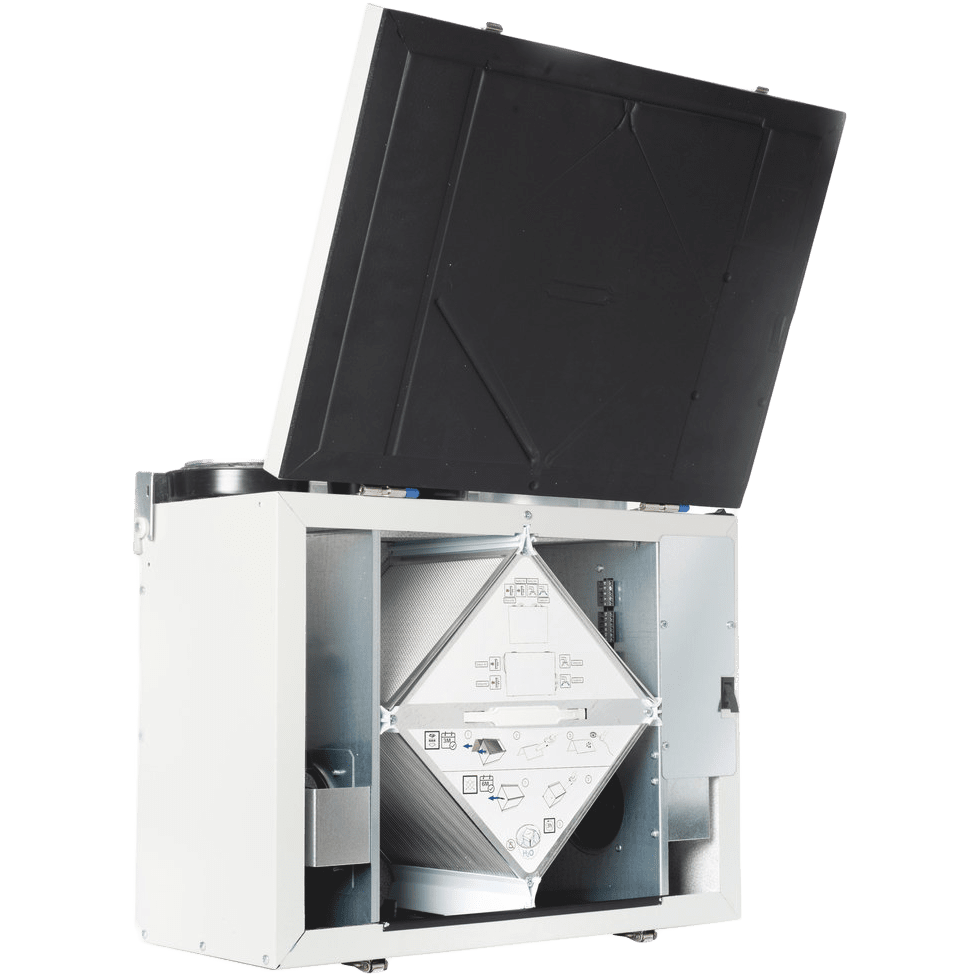

- Heat Recovery Core: Its aluminum heat recovery core improves heat transfer capacity and takes up less space than traditional cores.
- Winter Core: A built-in exhaust defrost system provides a consistent and reliable performance during the winter months.
- User-Friendly Controls: Features a rocker switch with three airflow controls - low, standby, and medium.

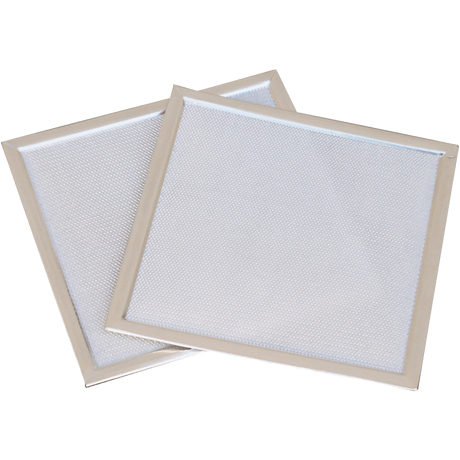

- Electrostatic Filters: Washable electrostatic filters capture airborne particles as they travel through the ventilator.
- Mounting Bracket: An included mounting bracket makes installation easy.
Summary
The Fantech VHR 70 Heat Recovery Ventilator makes your heating and cooling systems more efficient by transferring heat between fresh and stale air during ventilation.
-
Minimum Cubic Feet per Minute (CFM) (CFM)40.0
-
Mounting TypeSuspended, Wall
-
Number of Speeds3
-
Port LocationTop
-
TypeHRV-Air Supply Fan
-
ApplicationResidential
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsCSA, HVI-Certified
-
ColorWhite
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)57.0
-
Amperage (Amps)0.4
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)156
-
Depth (in.)20.5
-
Depth (with front cover) (in.)20.5
-
Duct Diameter (in.)4.0
-
Height (in.)17.2
-
Height (with front cover) (in.)17.2
-
Weight (lbs.)31.3
-
Width (in.)10.25
-
Width (with front cover) (in.)10.25
-
Manufacturer's Warranty7-Year Limited Motor Warranty, 5-Year Limited Parts Warranty
Key Specifications
General
Power
Dimensions
Warranty
Recommended Accessories
Shop All Fantech ERV & HRV Systems Accessories-
AC Infinity
Flexible 4-in. 4-Layer Heavy Duty Aluminum Ducting
Regular price From $21.99Unit price /Unavailable -
Fantech
ECO-Feel IAQ TVOC Sensing Controller (414729)
Regular price $128.00Unit price /Unavailable -
Fantech
ECO-Touch IAQ Multi-Function Dehumidistat (414727)
Regular price $148.00Unit price /Unavailable -
-
-
Fantech

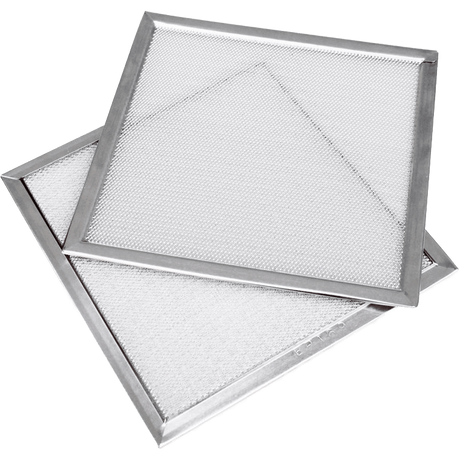

MERV 3 Electrostatic Crossflow 70 CFM Filter Kit (2-Pack)
