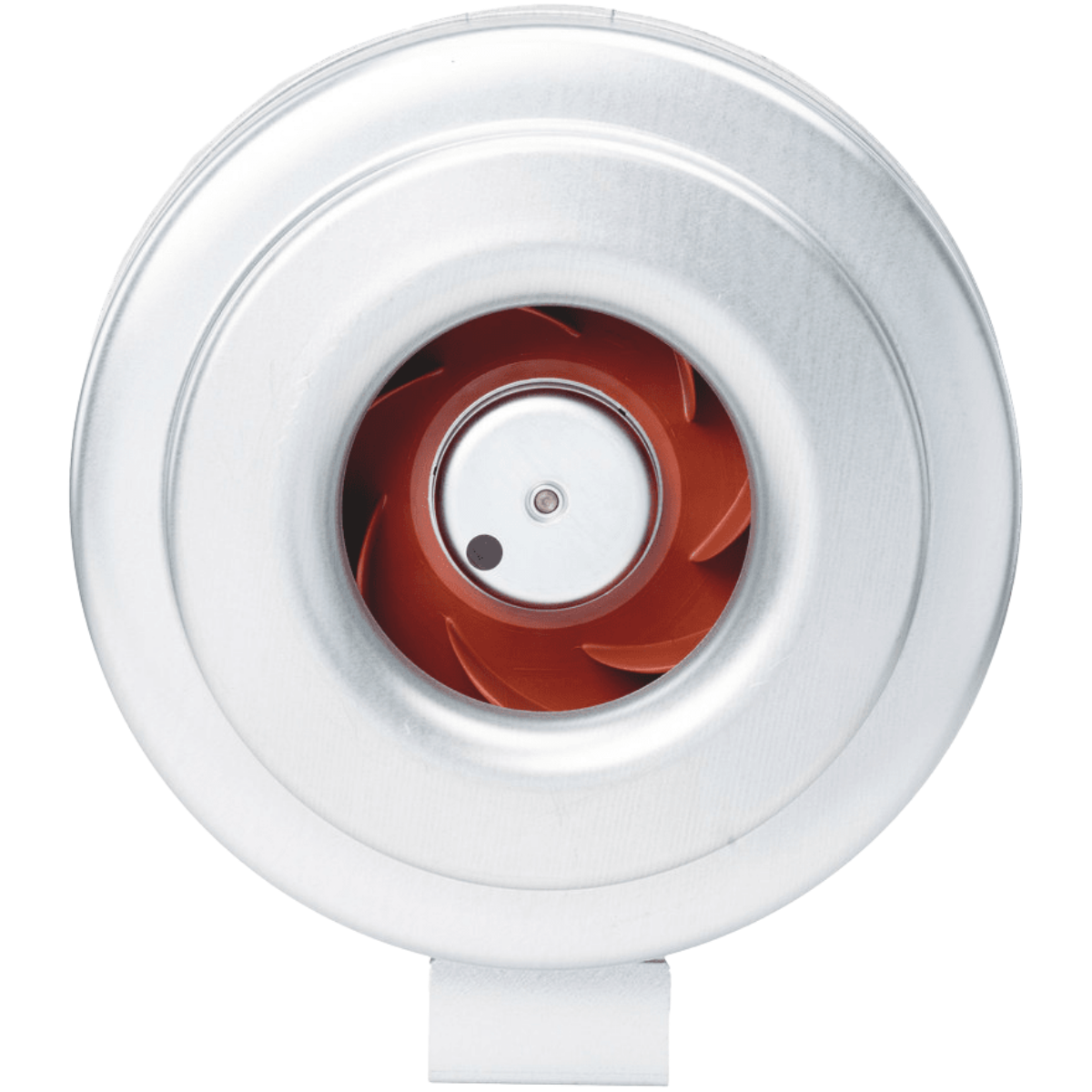

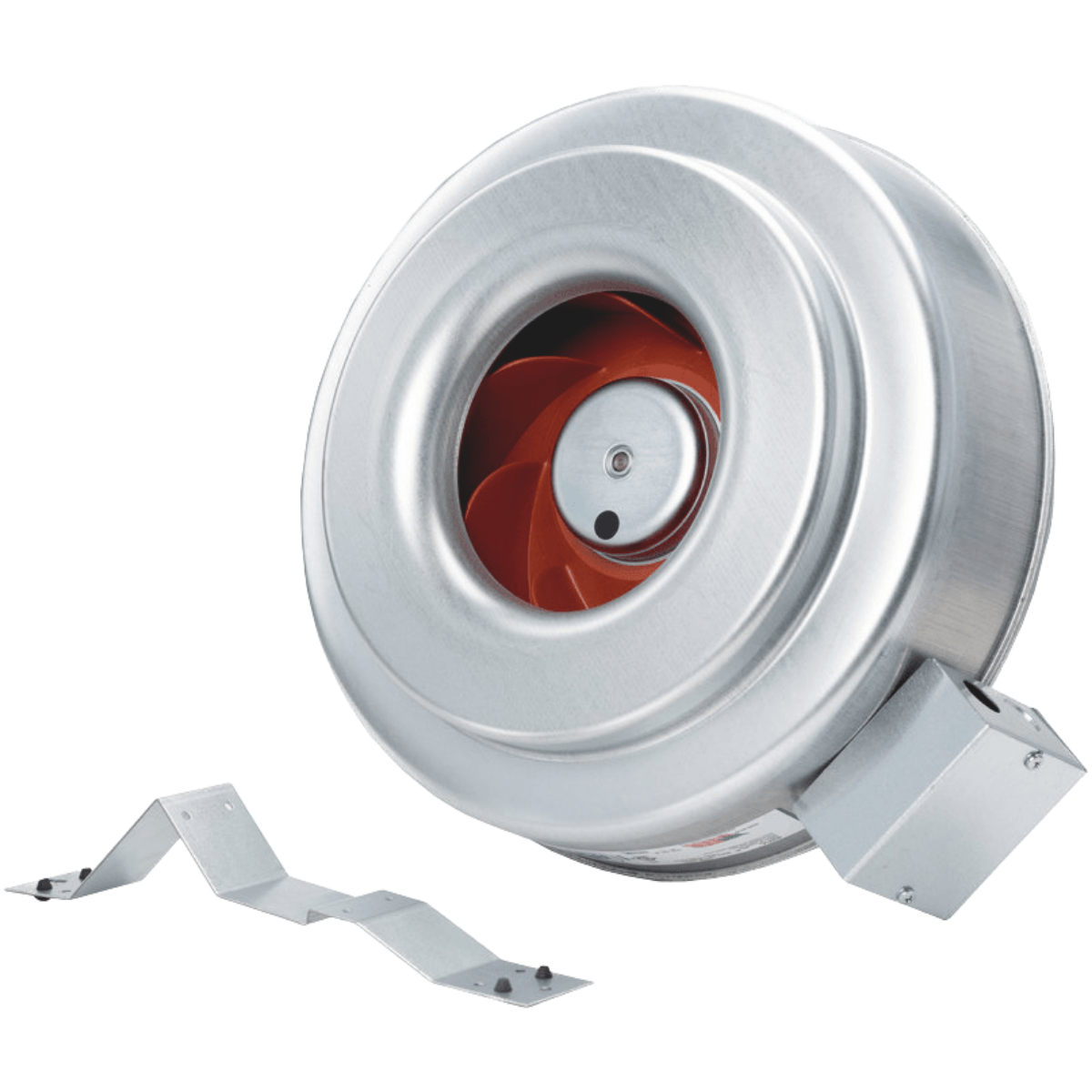

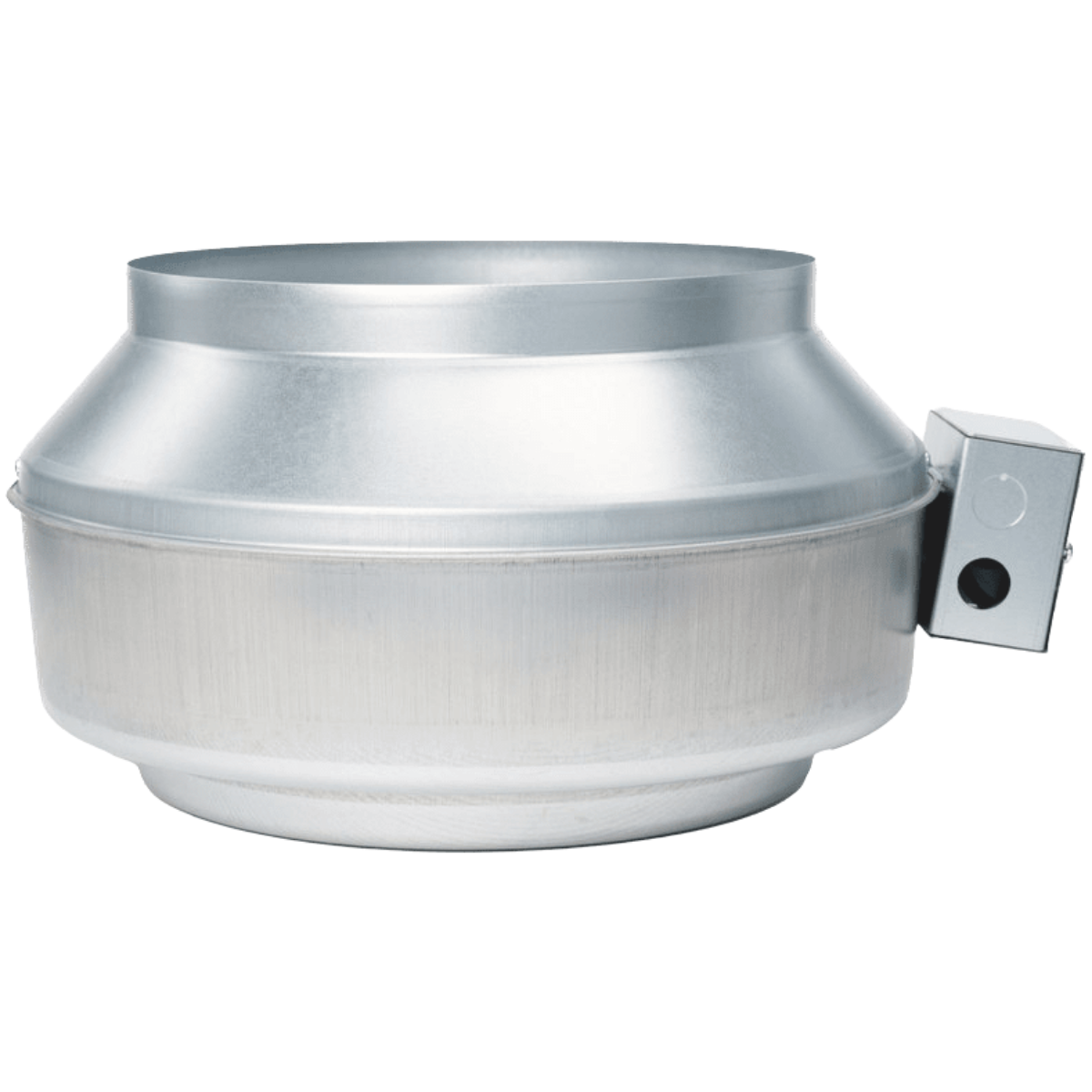

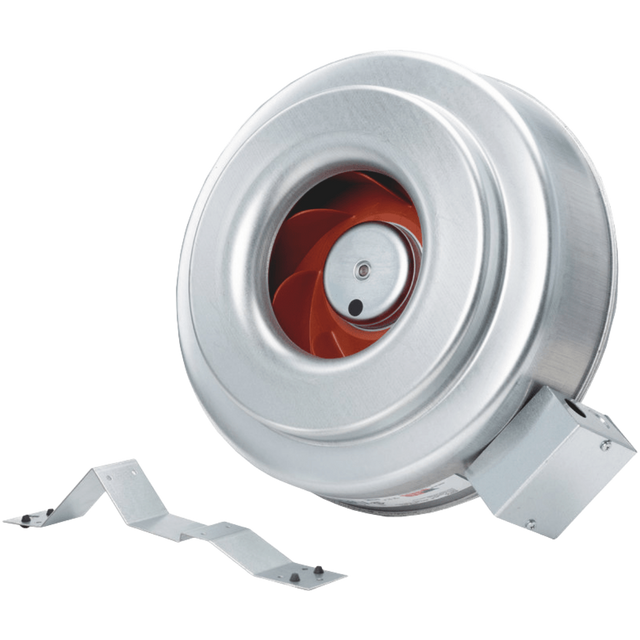

Fantech FG 12XL EC 12in. Inline Centrifugal Duct Fan w/ EC Motor

SKU: fn12452  |  Model: 49905
$72800

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?
  • Fantech FG 12XL EC 12-Inch Inline Centrifugal Duct Fan w/ EC Motor
  • Owner's Manual
  • Mounting Bracket and Hardware

Info & Guides

Description

Designed with an electronically commutated (EC) motor, the Fantech FG 12XL EC 12-Inch Inline Centrifugal Duct Fan is an efficient ventilation solution for commercial and residential facilities. More efficient than standard AC, this fan and its motor uses integrated electronic controls to deliver maximum energy savings. With an airtight galvanized steel housing, it meets code requirements for commercial use.

It's available in two airflow options.

High Air Flow

This 12-inch centrifugal duct fan from Fantech provides strong airflow:

  • Fantech FG 12XL EC: 806 CFM

Additional Features

  • Included Installation Materials: A provided mounting bracket and hardware make it easy to install this fan on ceilings and walls.

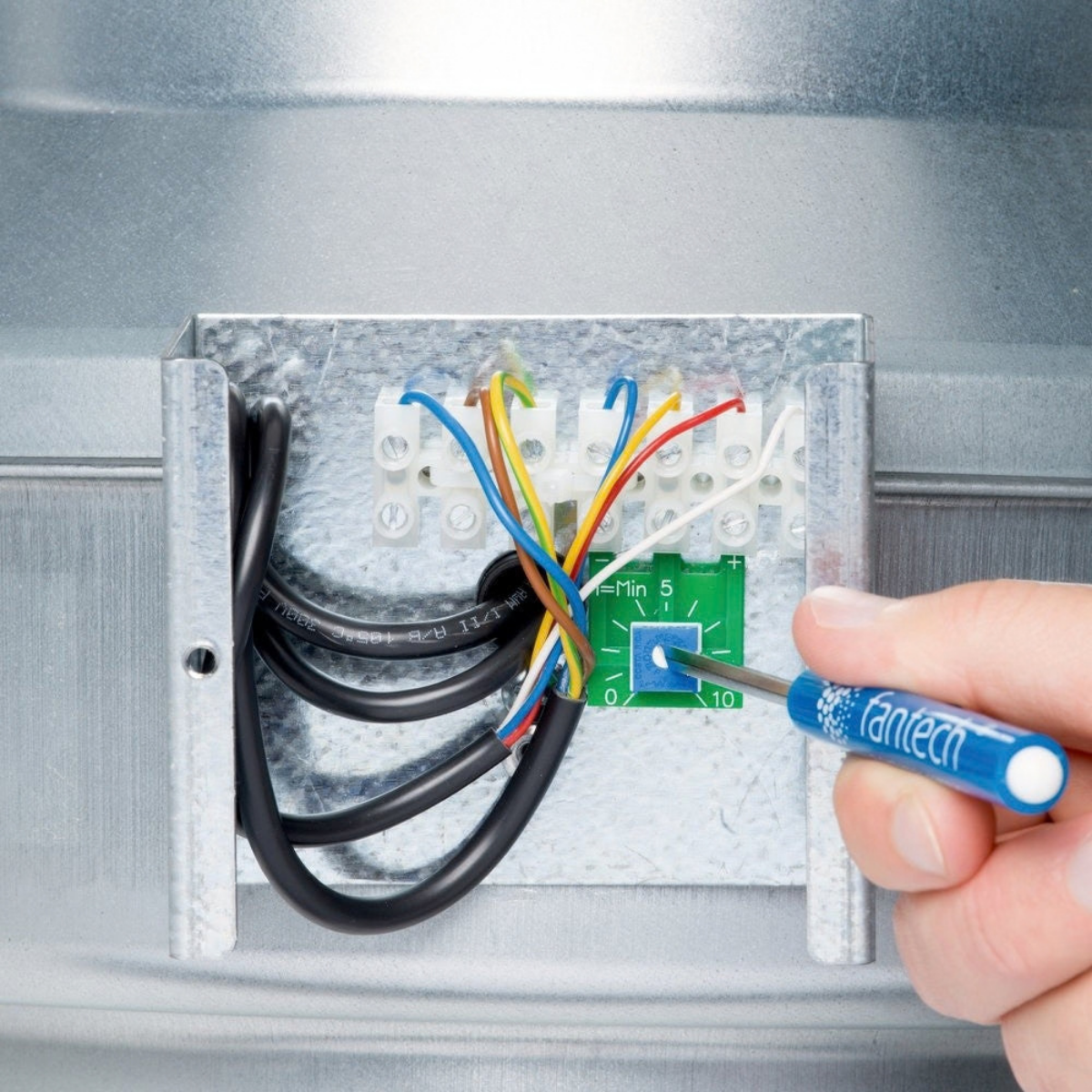

  • Complete Speed Control: This fan from Fantech is 100% speed controllable.
  • Airtight Design: Galvanized steel housing make it virtually airtight.
  • An Energy Saver: The Fantech FG 12XL EC has earned an Energy Star rating.
  • Low Maintenance: Permanently-sealed, self-lubricated motor bearings means this fan is a zero-maintenance ventilation solution.
  • Long Warranty: It's backed by a 5-year limited warranty.

Summary

Available in two speed options, the Fantech FG 12XL EC 12-Inch Inline Centrifugal Duct Fan is a must-have ventilation solution for commercial and residential facilities.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      0.0
    • Type
      Classic Inline Duct Booster Fan

    General

    • Application
      Ducting
    • Certifications
      UL
    • Color
      Gray
    • Controls
      Manual
    • Maximum Air Temperature (degrees F)
      140
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      807.0
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      1.16
    • Power Supply
      Hardwired
    • Voltage (V)
      110-120
    • Watts (W)
      166

    Dimensions

    • Depth (in.)
      6.6875
    • Duct Diameter (in.)
      12.0
    • Height (in.)
      16.0
    • Weight (lbs.)
      16
    • Width (in.)
      12.0

    Additional Features

    • Additional Features
      Energy Star, Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      5-Year Limited Warranty
