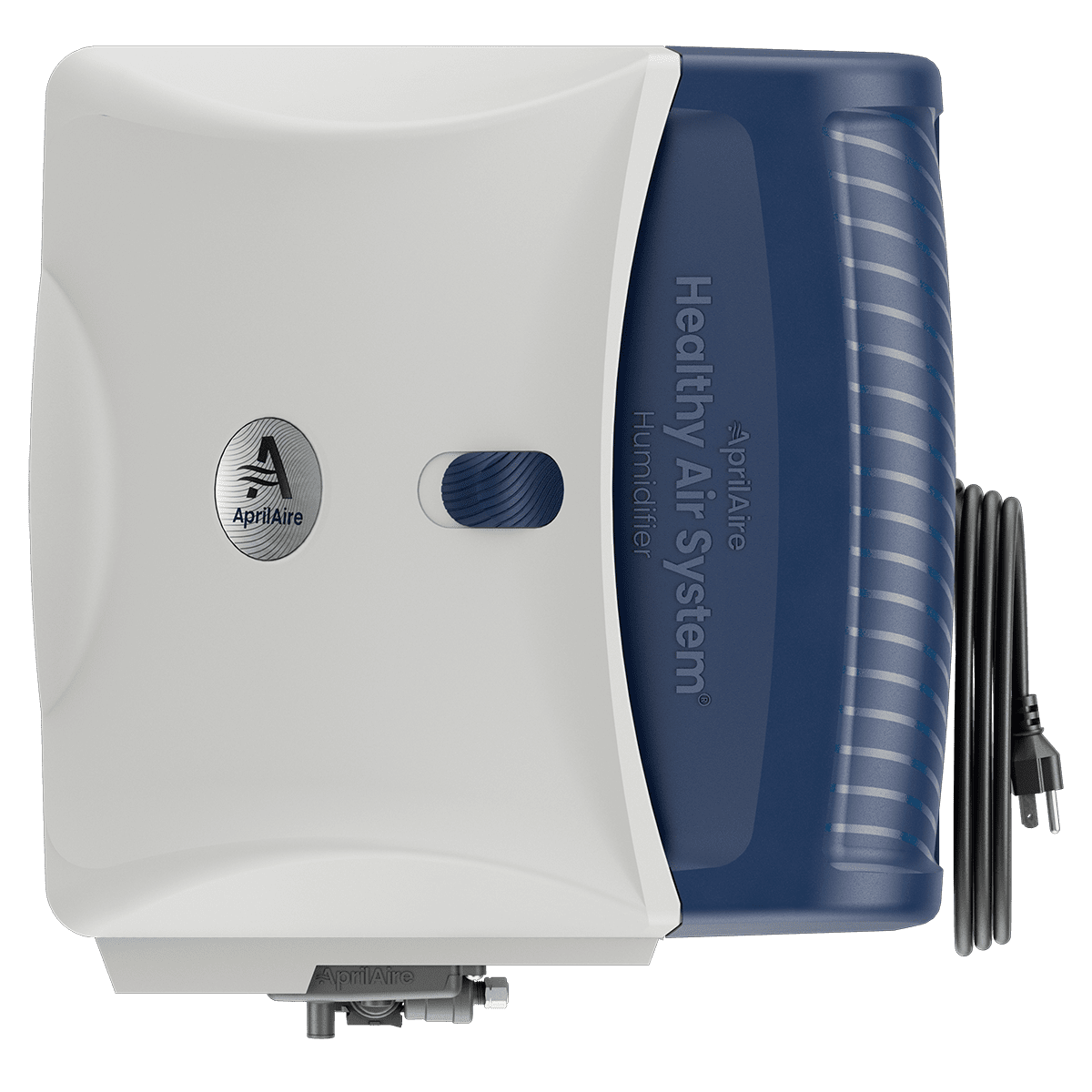

Aprilaire Model 720 Fan Powered Evaporative Humidifier w/ HydroCore
Aprilaire Model 720 Fan Powered Evaporative Humidifier w/ HydroCore - Manual Humidistat is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty

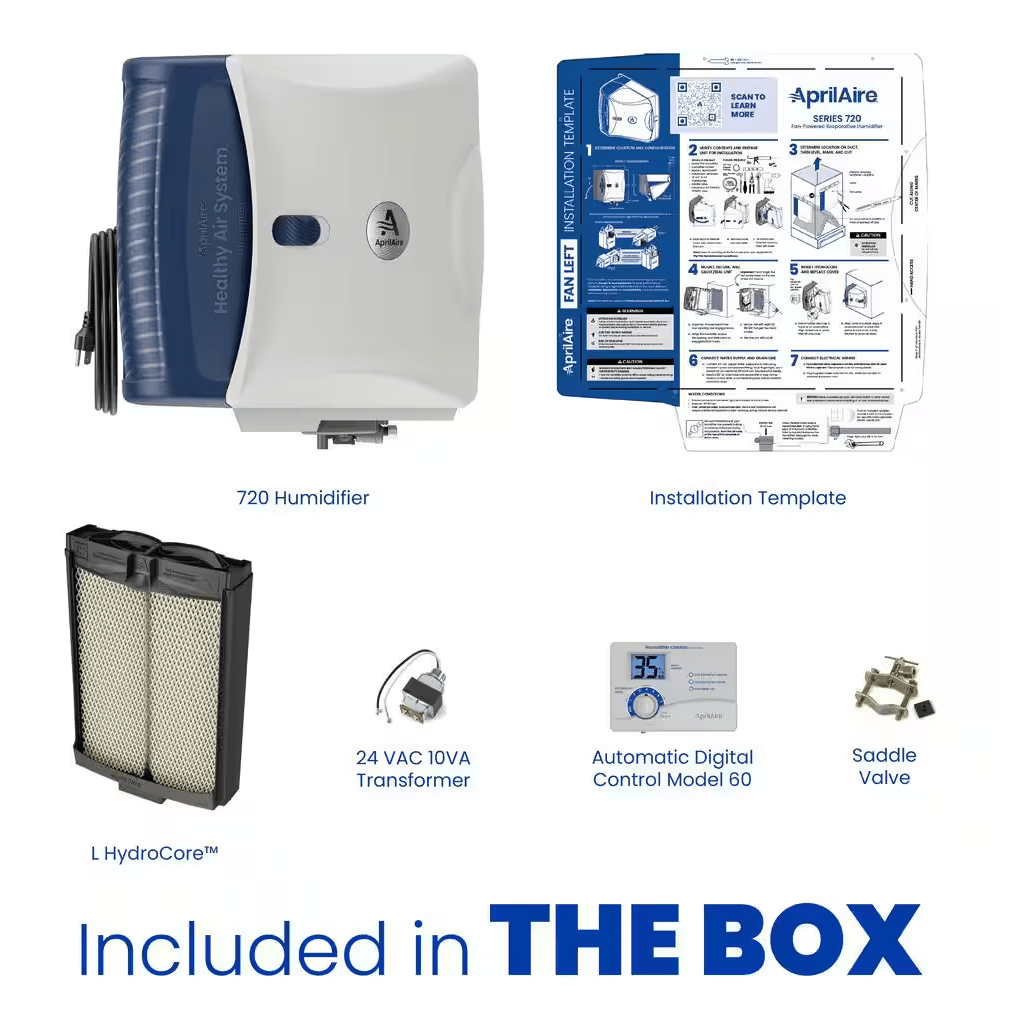

What's In The Box?
What's In The Box?
- Aprilaire 720 Series Fan-Powered Evaporative Humidifier with HydroCore
- AprilAire HydroCore Model L (1)
- 24 VAC 10VA Transformer
- Saddle Valve
- Automatic (720A Only) or Manual Humidistat (720M Only)
- Owner’s Manual
Info & Guides
Info & Guides

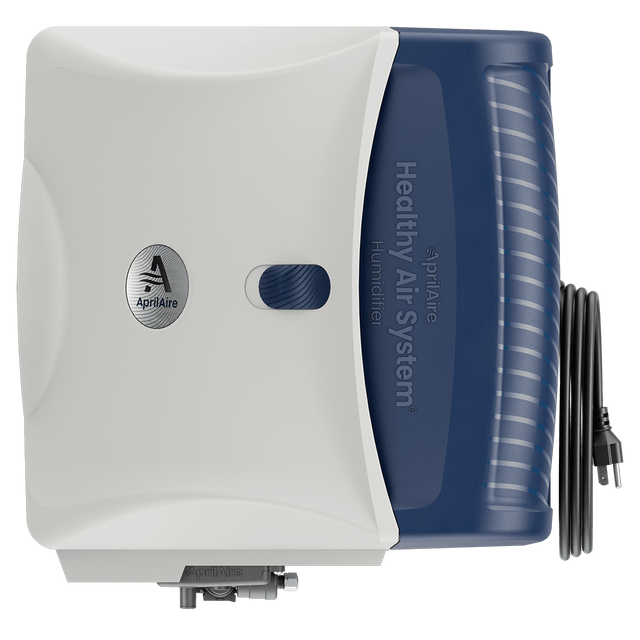

Aprilaire Model 720 Fan Powered Evaporative Humidifier w/ HydroCore
Description
Description
Install the Aprilaire 720 Evaporative Humidifier with HydroCore in your furnace or HVAC system to eliminate dry air in your home once and for all. Its innovative design delivers up to 21 gallons daily with 60 percent less wasted water, saving you money. The distribution tray maintains an even water flow with plus or minus three degrees of level tolerance in case of an imperfect installation. It is ideal for systems with low or variable-speed air handlers and works best with soft water or with an additional inline scale-reducing filter.
- Home Coverage: This Aprilaire whole-house humidifier covers up to 6,250 square feet of a tightly constructed home.

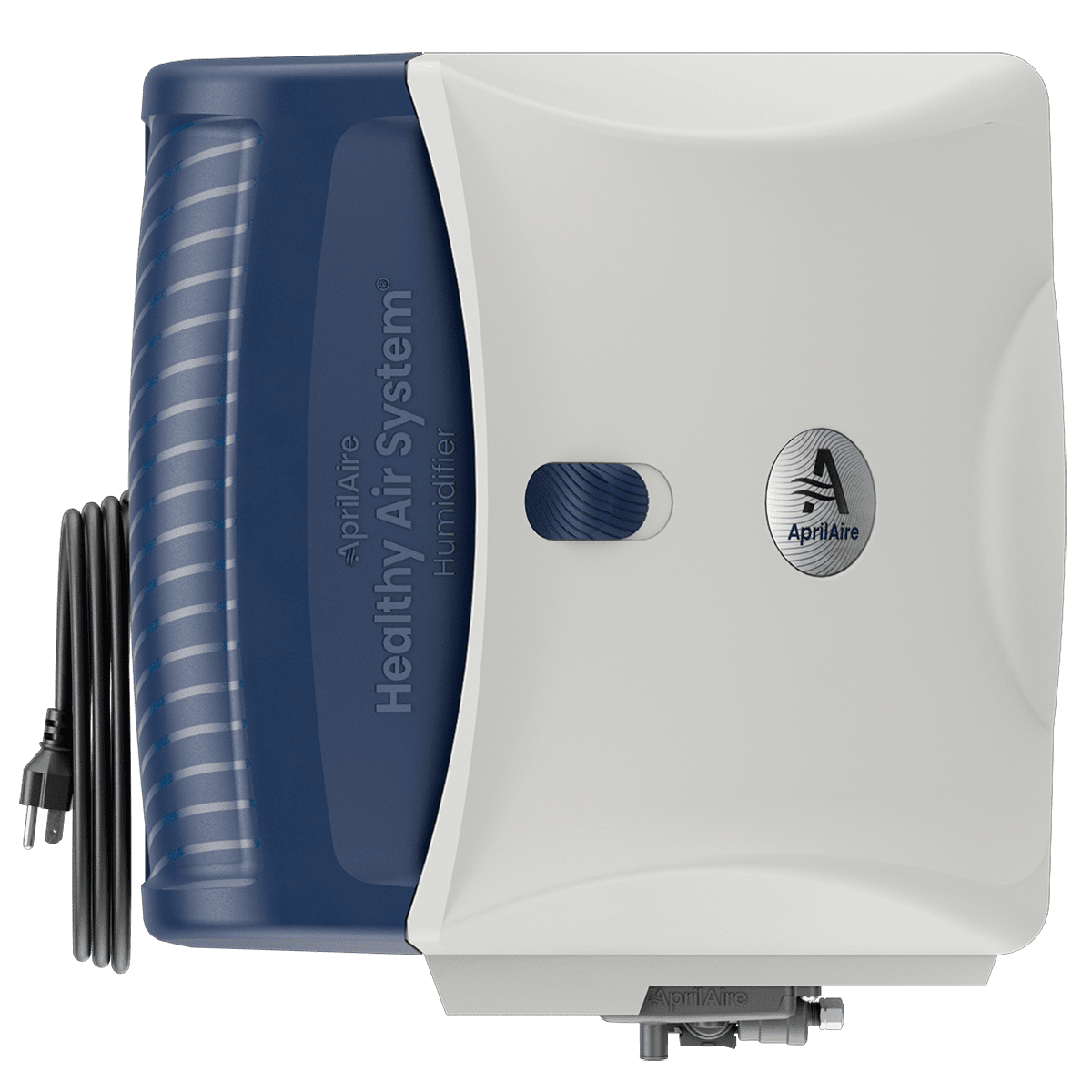

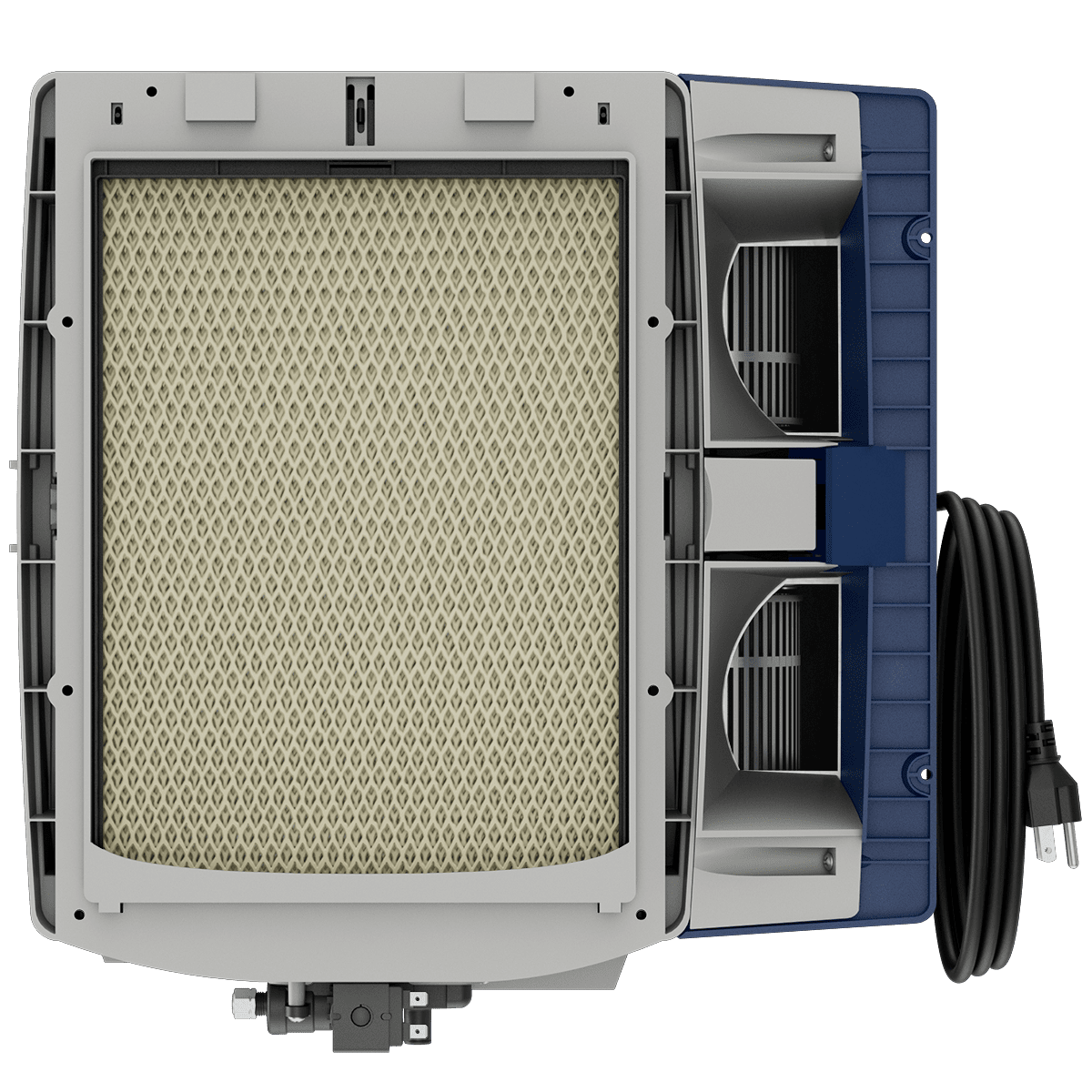

- Reversible Design: This humidifier's reversible design makes it easy to install. The fan can be installed on either the right or left side to accommodate challenging placements, including vertical locations.

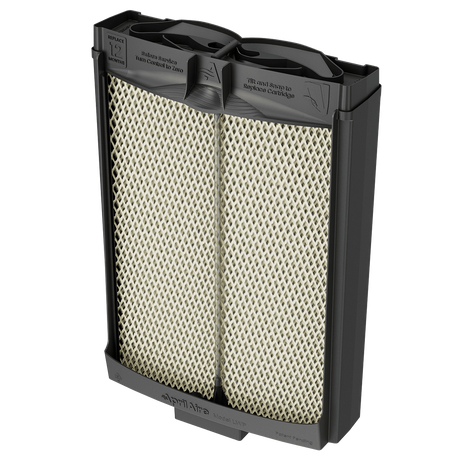

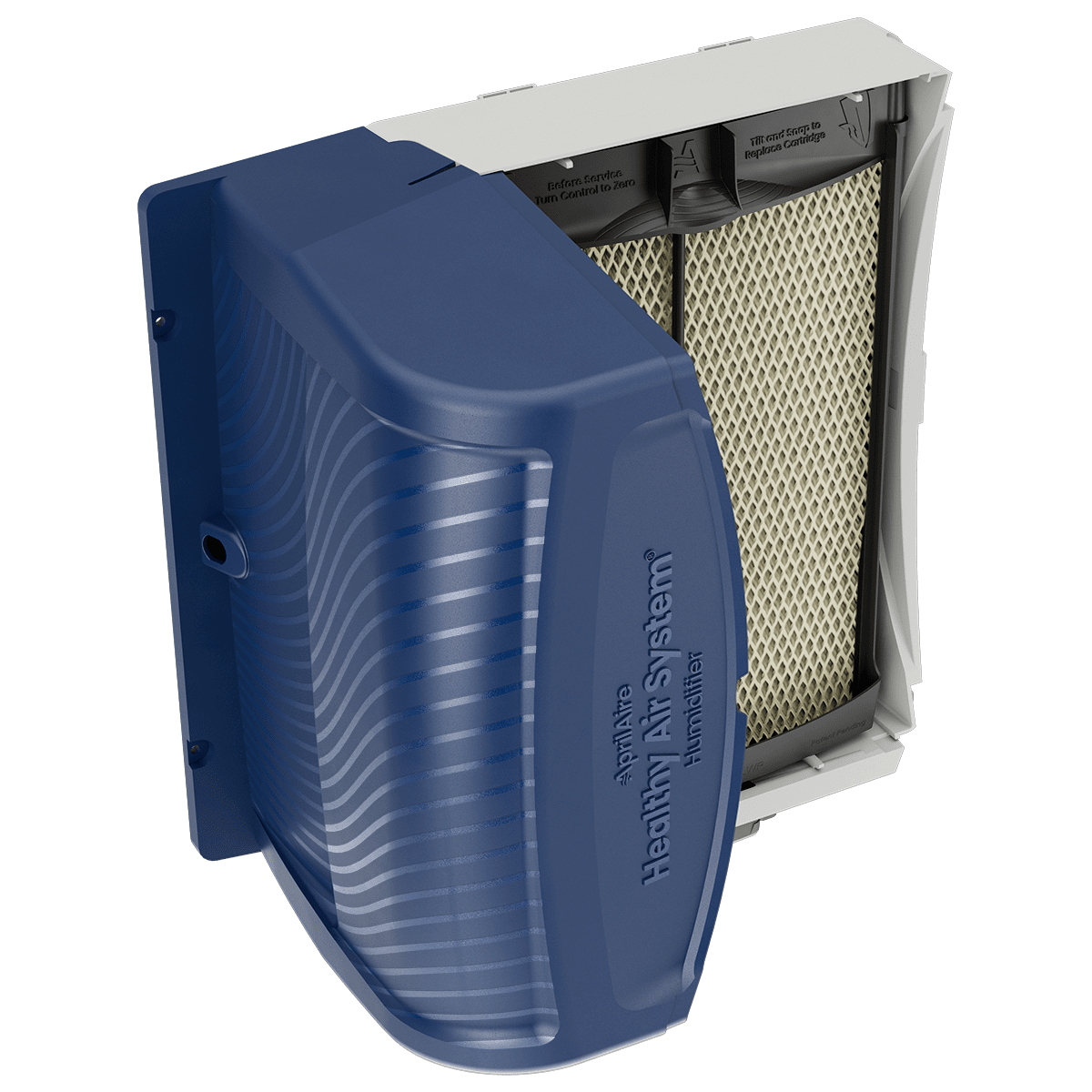

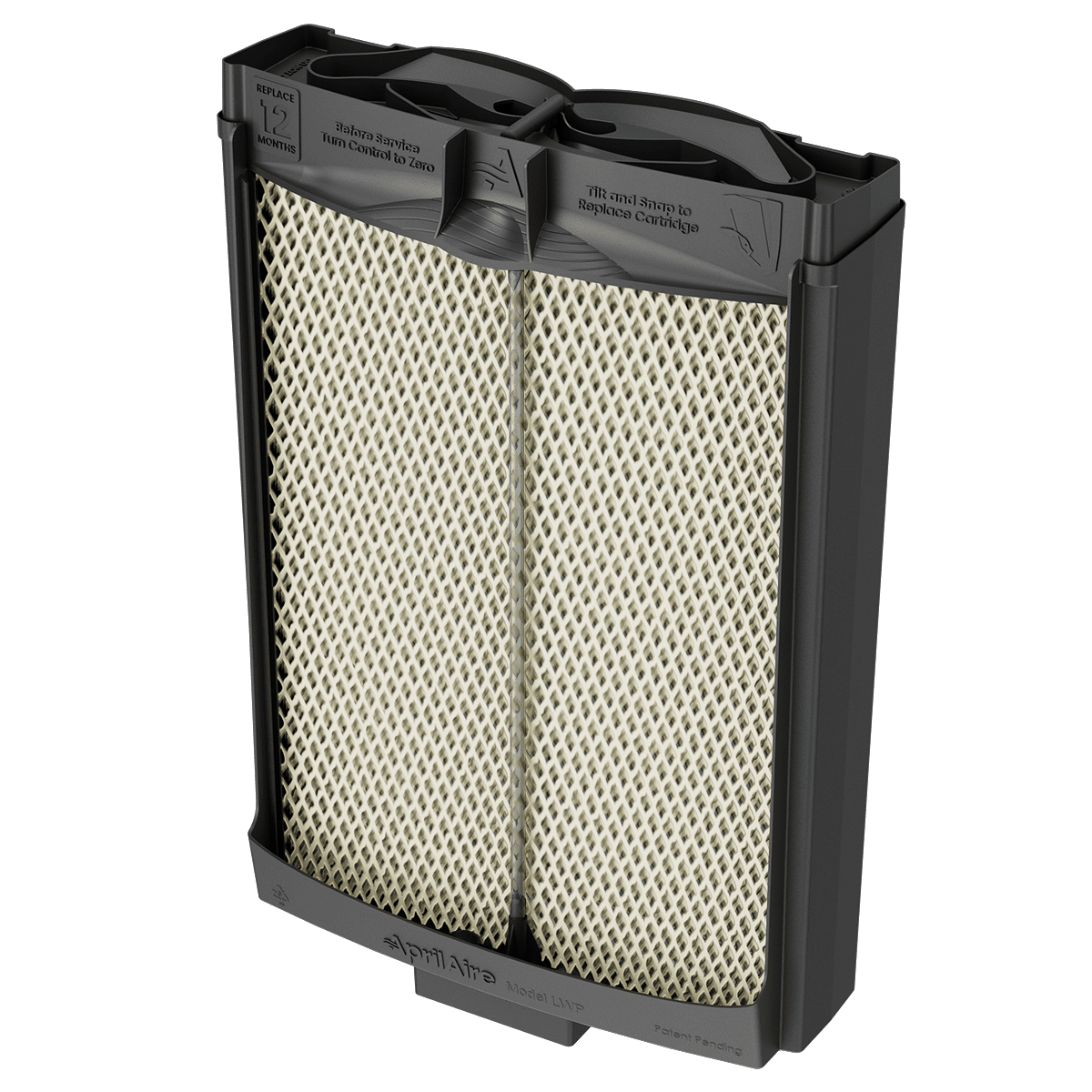

- HydroCore Cartridge: Annual maintenance is simplified thanks to the cartridge's one-piece design, which includes the water pane, feed tube, and distribution tray in one neat package. The frame is recyclable and constructed with recycled materials.
- Hybrid Fan: Select the low setting for reduced noise or the high setting for maximized output. The hybrid fan delivers an even airflow for reliable comfort.
Control Options
This Aprilaire humidifier includes one of two controller options:

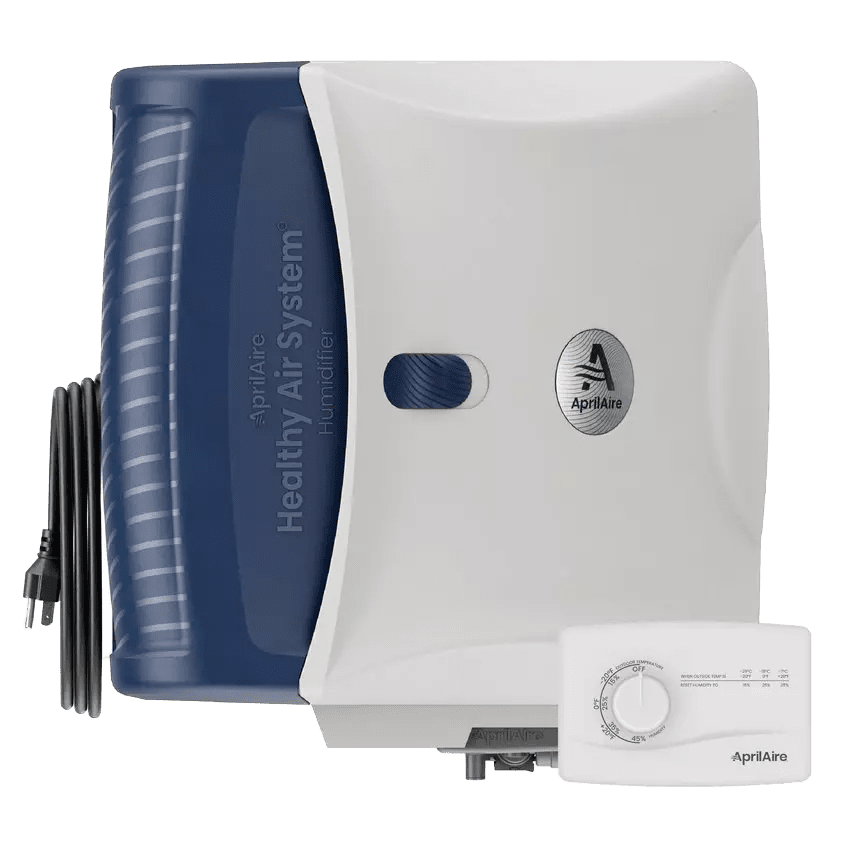

- Manual: The model 4655 manual humidistat features a dial to set the desired humidity level and a helpful chart for the ideal RH levels compared to the outside temperature.

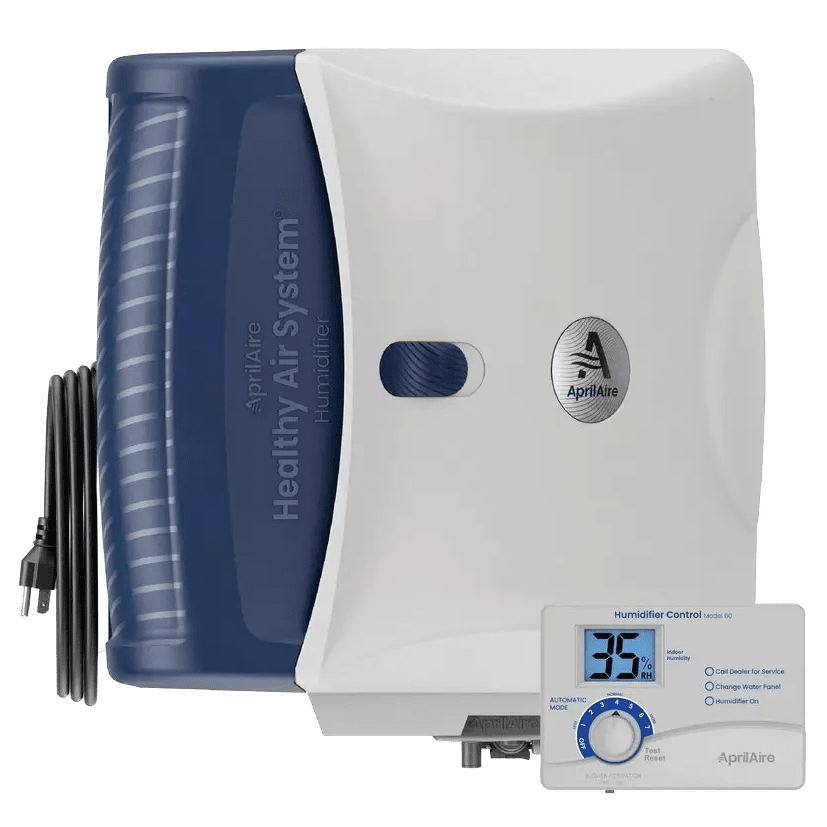

- Auto Digital: The model 60 automatic humidistat has a backlit LCD that displays the relative humidity (RH) and setting when adjusted. Indicator lights also alert you to current status settings. The automatic mode adjusts the RH setting based on outdoor temperature to prevent excess condensation.
Sylvane’s Expert Take
Maintaining optimal humidity levels in your home keeps your family safe and comfortable in dry weather, and this Aprilaire evaporative humidifier makes that easy. Its HydroCore Technology recirculates water, reducing wastewater by up to 60 percent compared to previous models.
- Included Humidistat: This humidifier includes either a manual or digital humidistat, so you won’t have to worry about installing a compatible controller.

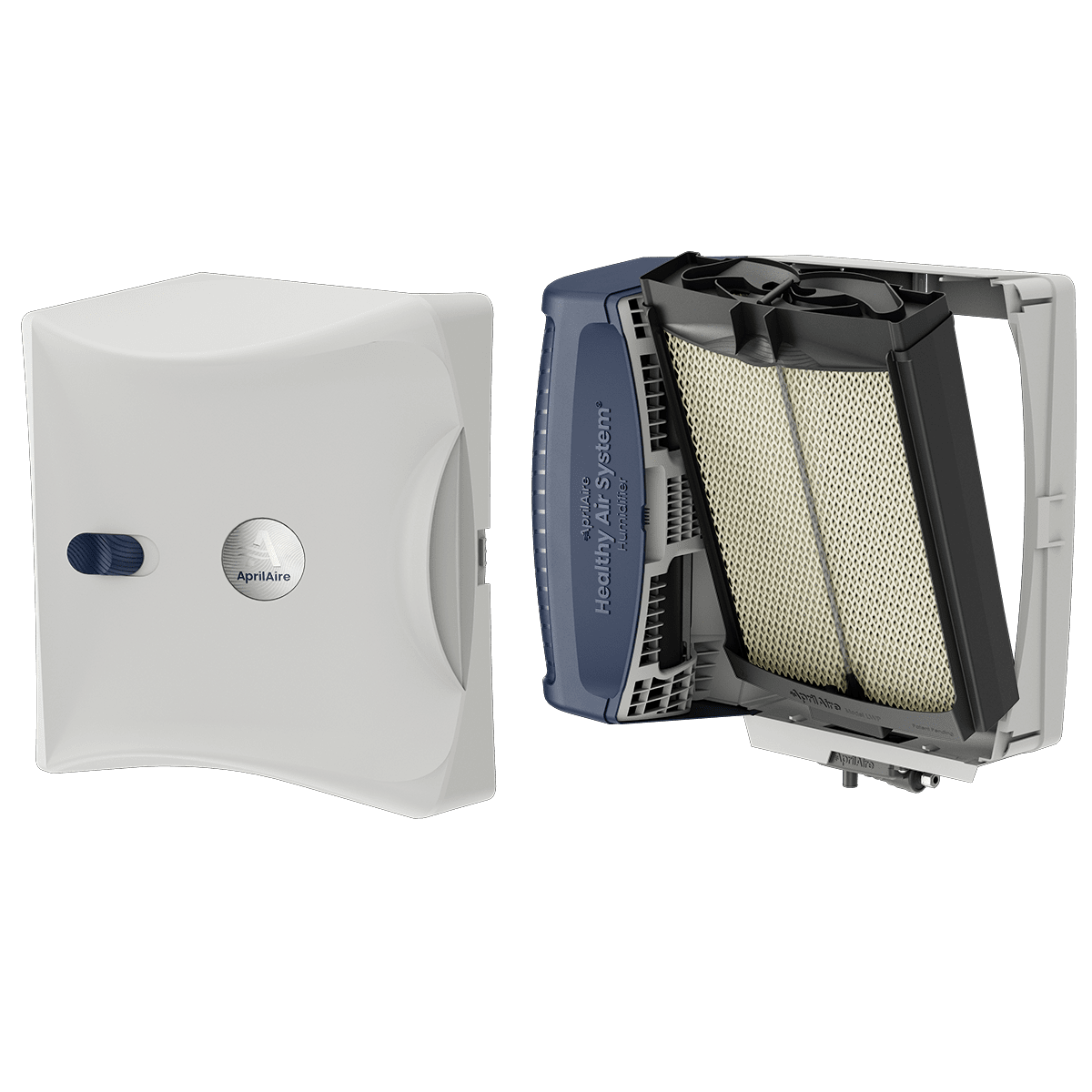

- Maintenance: Replacing the HydroCore filter once per season is recommended and easy. The filter is available for separate purchase.
Specifications
Specifications
-
HVAC TypeFan-Powered
-
Moisture Output Per Day (gallons)21.0
-
TypeEvaporative
-
ColorGray
-
ControlsManualElectronic
-
Fill TypeDirect Water Line
-
Humidifier StyleHVAC/Duct
-
Humidity Range35% - 45%
-
Recommended Coverage Area (sq. ft.)6250
-
Recommended ForWhole House
-
Voltage (V)110-120
-
Depth (in.)10.5
-
Depth (with front cover) (in.)10.5
-
Height (in.)18.0
-
Height (with front cover) (in.)18.0
-
Weight (lbs.)13.75
-
Width (in.)16.5
-
Width (with front cover) (in.)16.5
-
Additional FeaturesHumidistatHumidistat, Humidity Display
-
Manufacturer's Warranty5-Year Limited Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
-
Aprilaire

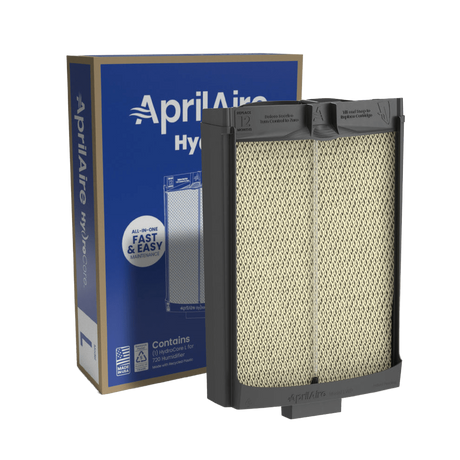

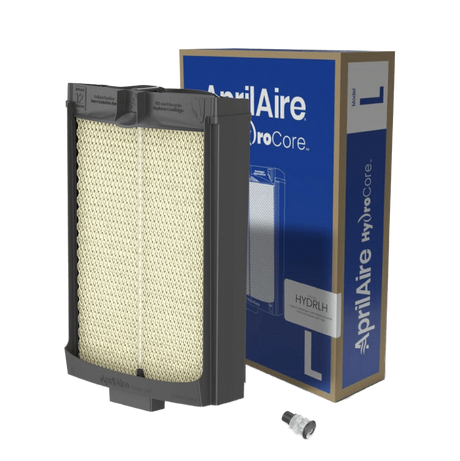

HydroCore Water Panel Cartridge for 720 Series Humidifiers
From $34.99Unit price /Unavailable
- CChuckReviewingAprilaire Model 720 Fan Powered Evaporative Humidifier w/ HydroCoreI recommend this productRated 5 out of 5 stars9 months agoReplaced 500 bypass with the 720m
Using the 720m to control humidity in the entire house. Controlling it with a ecobee4. Very pleased with the humidifier and am able to view data off the Ecobee app to see running time and humidity levels for each day.
- AAnthonyVerified BuyerReviewingAprilaire Model 720 Fan Powered Evaporative Humidifier w/ HydroCoreRated 3 out of 5 stars6 months agoSatisfied, but some limitations.
I bought this to replace a free standing humidifier that I was pouring 8 gallons a day into, and it still couldn't get my home above 35% in the winter. I needed about 50 to 55% because of my musical instruments. This seemed like a better method. Installation into the ductwork and water supply was not complicated but the wiring instructions were NOT helpful and could be more clear. I'm guess they're assuming it will be installed by an AC expert, which many of us are not. Tech support was fairly helpful, but again, a few simple sentences on the instruction would have been helpful. The one real problem I have is that they do NOT make clear that this system will not go above about 45% humidity. I assumed that being rated at 21 gpd capacity it would. It doesn't. So, yes it works, and it's definitely better than having to fill daily. Yes, it's much quieter, I can't hear it from the attic. But no, it will not produce as much as expected.
- SSimonVerified BuyerReviewingAprilaire Model 720 Fan Powered Evaporative Humidifier w/ HydroCoreI recommend this productRated 5 out of 5 stars7 months agoWe like our Aprilaire 720A humidifier!
We really like our Aprilaire 720A humidifier. Shipping by Sylvane was fast and without hassle. We received everything exactly as described. The installation instructions were pretty clear (only needed to call customer service for two small clarifications). It works as advertised. Quality unit.
