Fantech FKD 16 16in. Mixed Flow Inline Duct Fan

SKU: fn12470  |  Model: 498343
5.0
Rated 5.0 out of 5 stars
1 Review
$2,79800
Option

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

3-Year Limited Warranty

What's In The Box?
  • Fantech FKD 16 16-Inch Mixed Flow Inline Duct Fan
  • Owner's Manual

Info & Guides

Description

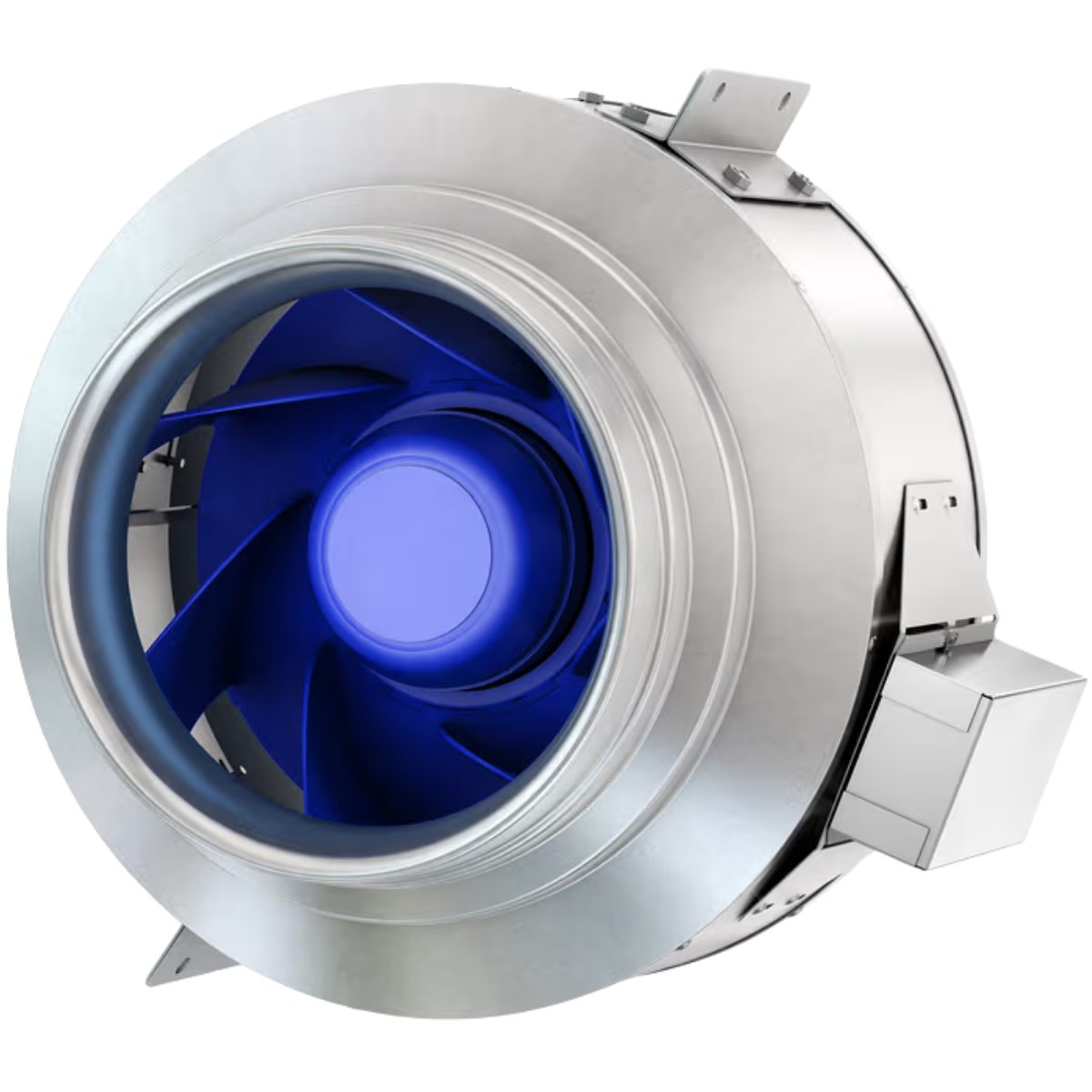

A salon or hospital corridor needs steady airflow, but nobody there wants to hear the fan over every conversation. The Fantech FKD 16 line handles exhaust or supply duty with a mixed-flow impeller that blends the straight-through path of an axial fan with the pressure handling of a backward-curved wheel.

Key Features and Benefits of the Fantech FKD 16 16in. Mixed Flow Inline Duct Fan

  • Mixed-Flow Design: The mixed-flow impeller keeps airflow strong against duct resistance and runs quieter, which suits occupied offices and treatment rooms.
  • 16-Inch Duct Connection: The fan connects directly to round ductwork, so you can install it inline on existing exhaust or supply runs.
  • Variable Speed Control: Manual control makes the fan 100 percent speed controllable, so you can match airflow to occupancy instead of running at full output all day.
  • External Rotor Motor: The external rotor motor has built-in thermal overload protection, and the fan offers maximum heat dissipation even at low RPM.
  • Sealed Ball Bearings: Permanently lubricated sealed ball bearings make the fan maintenance-free, so you never need to oil it after installation.
  • Galvanized Steel Housing: The galvanized steel housing is virtually airtight, so less of the air you move escapes along the duct run.
  • Prewired Terminal Box: A terminal box with a prewired electrical strip simplifies the hardwired connection.
  • 140-Degree Airstream Rating: The fan works in airstream temperatures up to 140 degrees F, so it stays within its rating on warm exhaust air.
  • UL Certified: UL certification confirms the fan meets recognized safety standards.
  • Dimensions: FKD 16 models measure 18.75 x 15.625 x 22.375-Inches (L x W x H), XL models 21.75 x 16 x 24.5-Inches (L x W x H).

Choose Your Airflow Tier and Voltage

The FKD 16 line comes in standard and XL airflow tiers, and each tier is offered in 2 voltage versions.

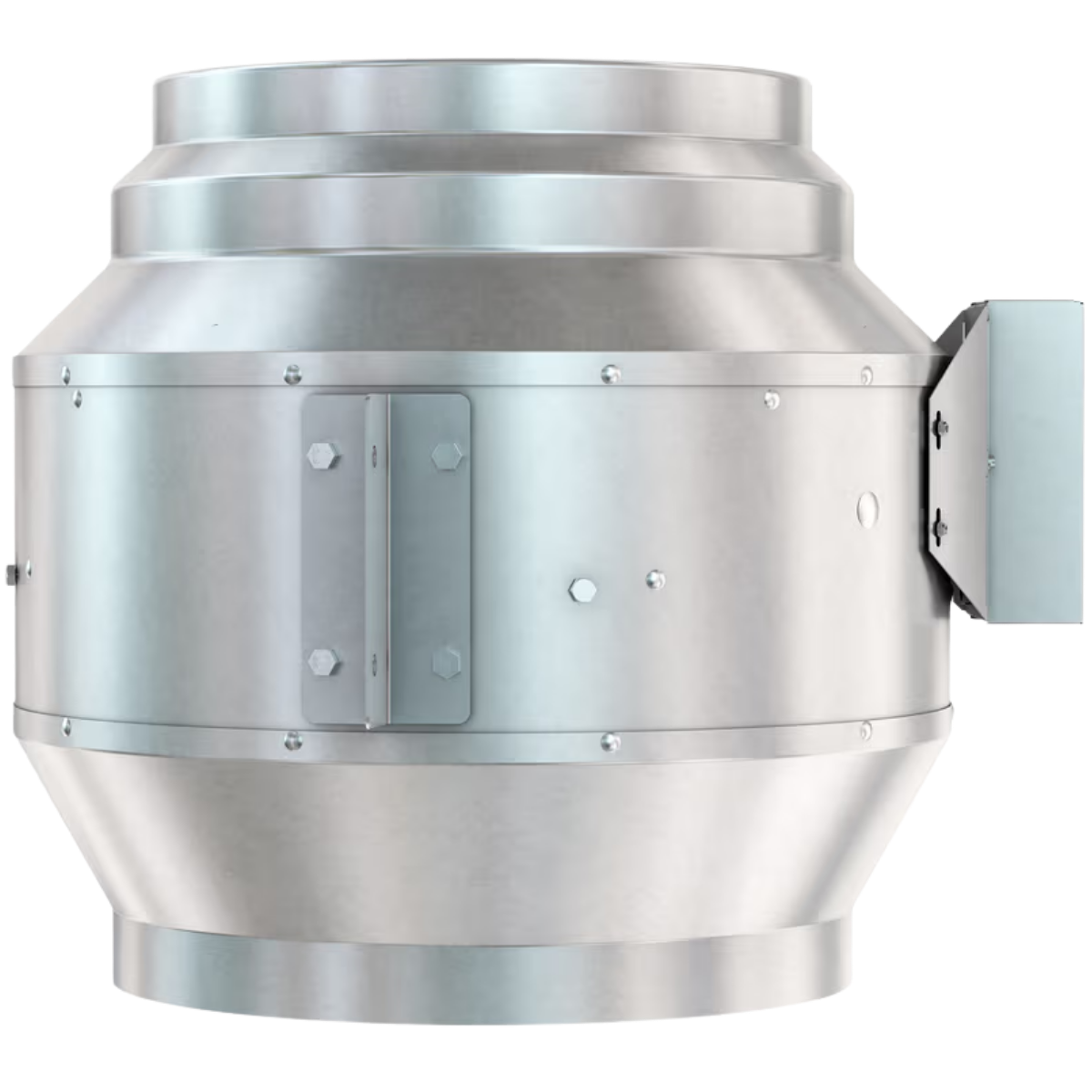

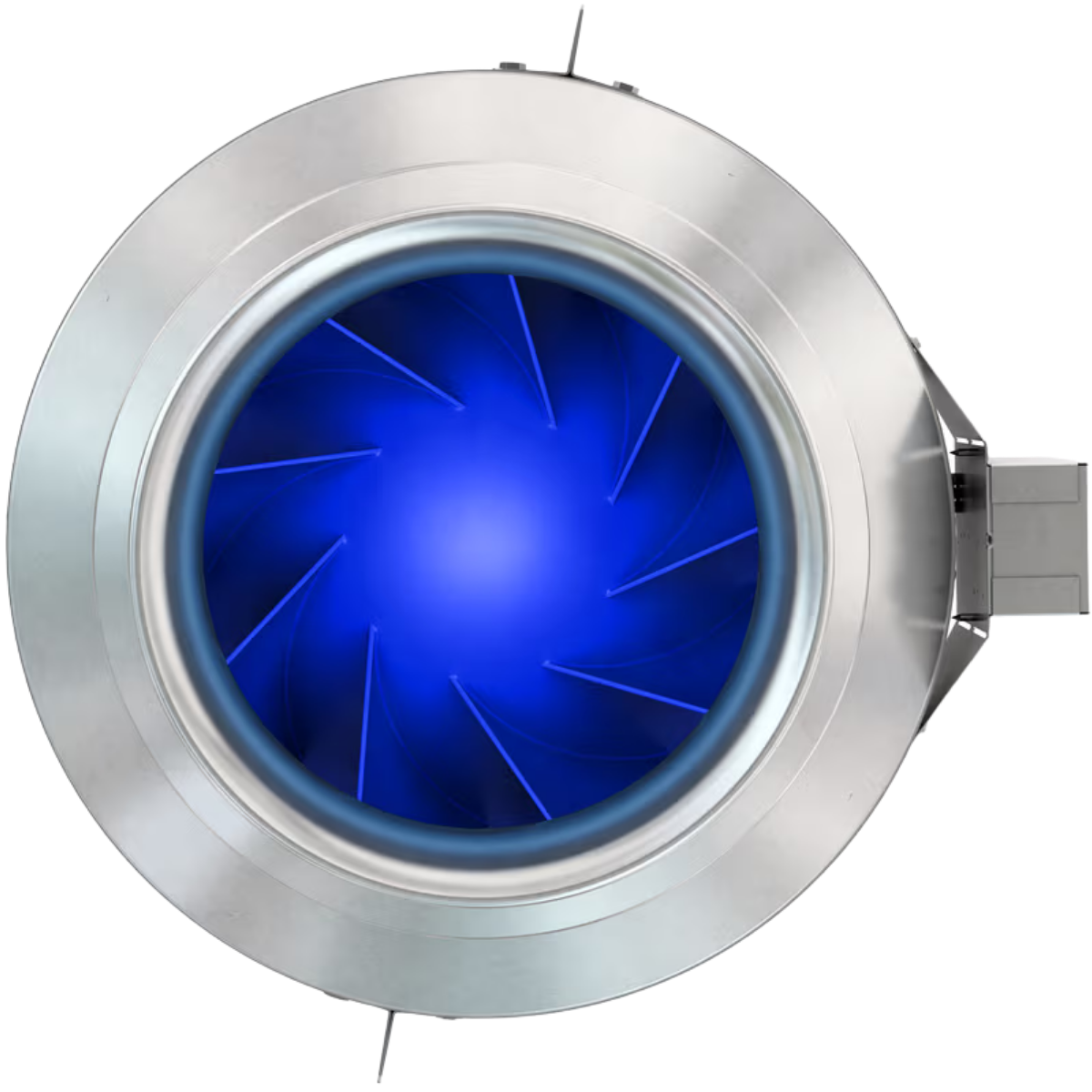

  • FKD 16 - 120V: The base model weighs 49.9 pounds and moves up to 2,952 CFM at 18.5 sones, the quietest rating in the line.
  • FKD 16 - 230V: This standard-tier model moves up to 2,916 CFM at 19.9 sones and weighs 44.1 pounds, the lighter of the 2 standard models.

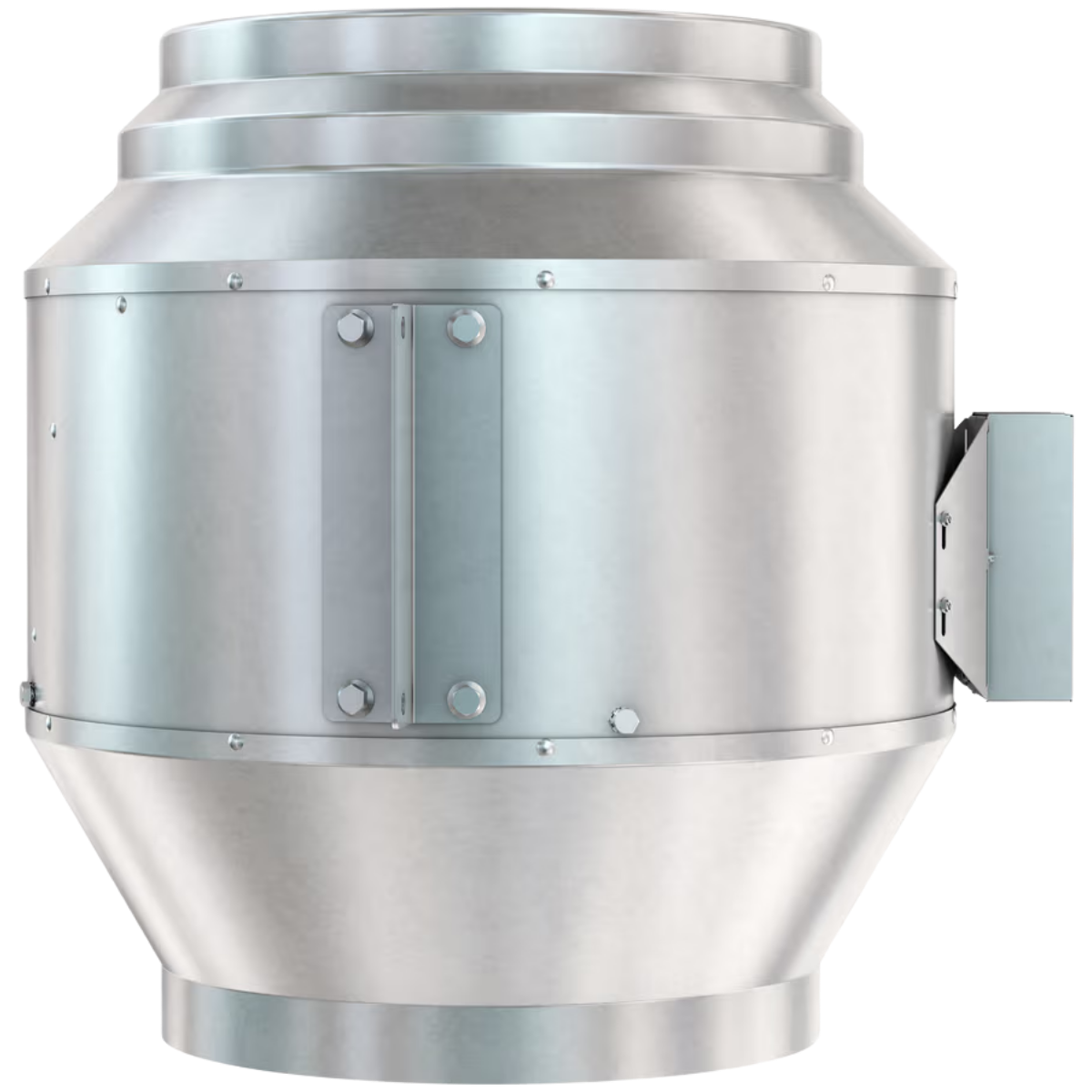

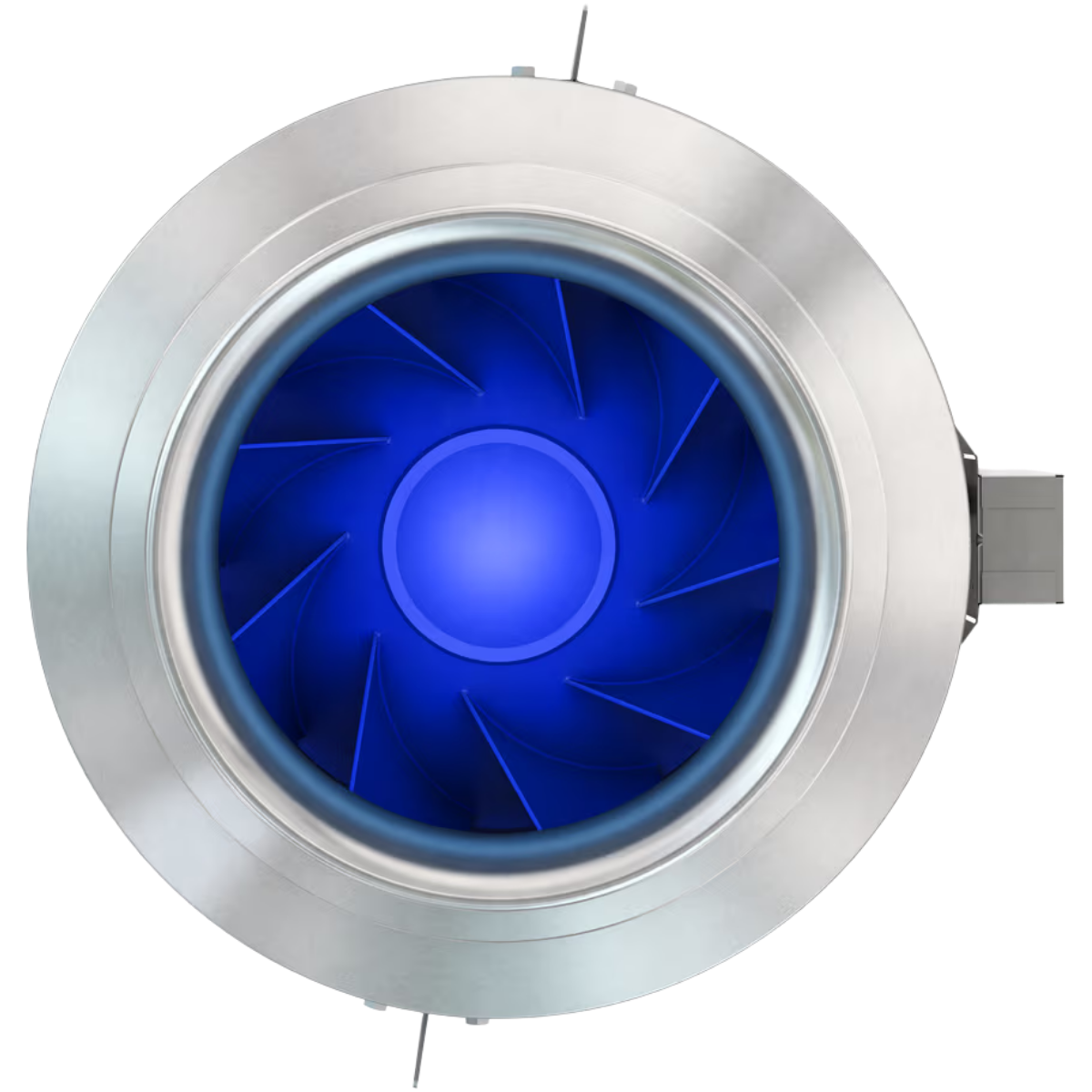

  • FKD 16XL - 120V: Compared with its standard counterpart, this XL model adds over 1,200 CFM for a total of 4,153 CFM at 25 sones, and it weighs 134 pounds, so plan for sturdy mounting.
  • FKD 16XL - 230-460V: The XL counterpart to the FKD 16 - 230V raises airflow to 4,206 CFM, the highest in the line, at 24.3 sones, and it weighs 75 pounds, the lightest of the XL models.

Sylvane's Expert Take

If you're ventilating an occupied space like a salon, hospital wing, or office floor, the FKD 16 line moves high airflow through a single duct run. Pick the airflow tier first, then the voltage that matches your circuit. The standard models run 4.4 to 6.5 sones quieter than the XL models, so step up only when you need the extra airflow. Variable speed control lets either tier run below full output when quiet matters.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      FKD 16XL - 230-460V: 24.3
      FKD 16XL - 120V: 25.0
      FKD 16 - 230V: 19.9
      FKD 16 - 120V: 18.5
    • Type
      Mixed Flow Inline Duct Fan

    General

    • Application
      Ducting
    • Certifications
      UL
    • Color
      Gray
    • Controls
      Manual
    • Maximum Air Temperature (degrees F)
      140
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      FKD 16XL - 230-460V: 4206.0
      FKD 16XL - 120V: 4153.0
      FKD 16 - 230V: 2916.0
      FKD 16 - 120V: 2952.0
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      FKD 16XL - 230-460V: 4.5
      FKD 16XL - 120V: 11.8
      FKD 16 - 230V: 3.7
      FKD 16 - 120V: 6.5
    • Power Supply
      Hardwired
    • Voltage (V)
      FKD 16XL - 230-460V: 220-240
      FKD 16XL - 120V: 110-120
      FKD 16 - 230V: 220-240
      FKD 16 - 120V: 110-120
    • Watts (W)
      FKD 16XL - 230-460V: 1450
      FKD 16XL - 120V: 1357
      FKD 16 - 230V: 636
      FKD 16 - 120V: 678

    Dimensions

    • Depth (in.)
      FKD 16XL - 230-460V: 21.75
      FKD 16XL - 120V: 21.75
      FKD 16 - 230V: 18.75
      FKD 16 - 120V: 18.75
    • Duct Diameter (in.)
      16.0
    • Height (in.)
      FKD 16XL - 230-460V: 24.5
      FKD 16XL - 120V: 24.5
      FKD 16 - 230V: 22.375
      FKD 16 - 120V: 22.375
    • Weight (lbs.)
      FKD 16XL - 230-460V: 75
      FKD 16XL - 120V: 134
      FKD 16 - 230V: 44.1
      FKD 16 - 120V: 49.9
    • Width (in.)
      FKD 16XL - 230-460V: 16.0
      FKD 16XL - 120V: 16.0
      FKD 16 - 230V: 15.625
      FKD 16 - 120V: 15.625

    Additional Features

    • Additional Features
      Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      3-Year Limited Warranty
