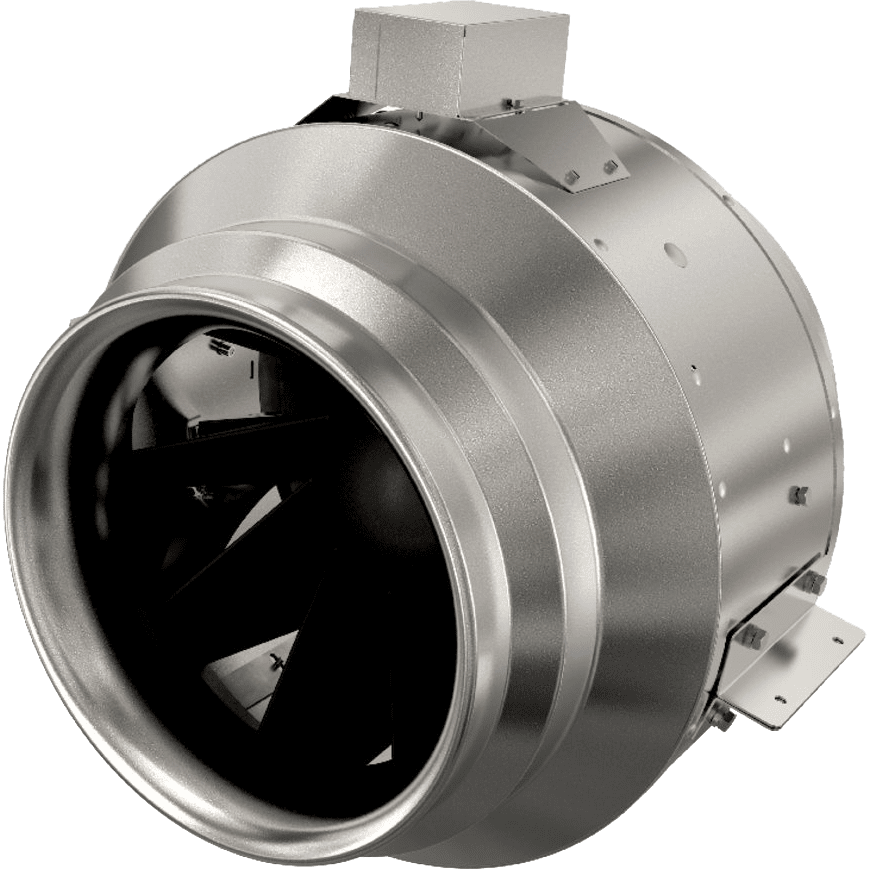

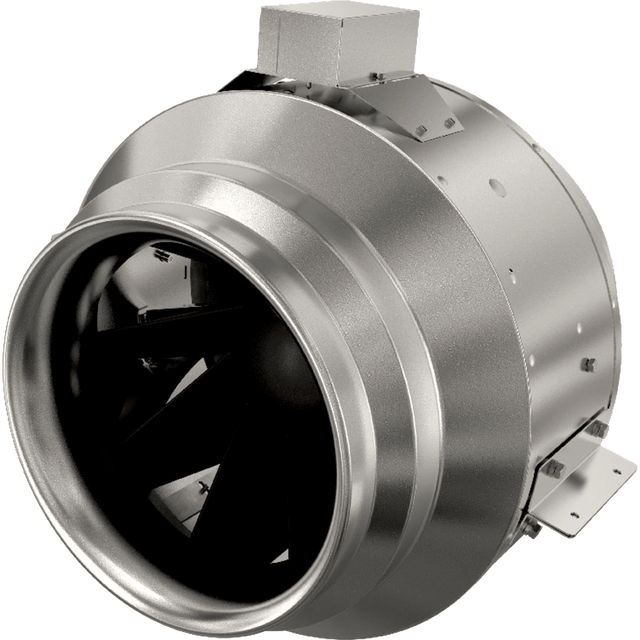

Fantech FKD 16 16in. Mixed Flow Inline Duct Fan
Fantech FKD 16 16in. Mixed Flow Inline Duct Fan - FKD 16XL - 230-460V is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech FKD 16 16-Inch Mixed Flow Inline Duct Fan
- Owner's Manual
Info & Guides
Info & Guides
Fantech FKD 16 16in. Mixed Flow Inline Duct Fan
Description
Description
When a quieter performance and simple installation is needed for exhaust or supply applications like in offices, salons, hospitals, and more, choose the Fantech FKD 16 16-Inch Mixed Flow Inline Duct Fan. Its mixed-flow design combines the best of axial fans and backward curved impellers. Easy to set up and use, it's a must-have.
This inline duct fan is available in four options.
Available Fan Options
Choose the right FKD 16 Series model for your specific needs:
- Fantech FKD 16 120V: 2,952 CFM Airflow
- Fantech FKD 16 230V: 2,916 CFM Airflow
- Fantech FKD 16 XL 120V: 4,153 CFM Airflow
- Fantech FKD 16 XL 230-460V: 4,206 CFM Airflow
Key Features
- Galvanized Steel Housing: Its galvanized steel housing makes this fan virtually airtight.
- External Motor: Featuring an external rotor motor with built-in thermal overload protection.
- Low Maintenance: Permanently lubricated sealed ball bearings allow it to be maintenance-free.
- Maximum Heat Dissipation: This fan offers maximum heat dissipation even at low RPM.
- Speed Controllable: It's 100% speed controllable.
- Prewired: Has a terminal box with a prewired electrical strip.
- Air Stream Temperature: Works in air stream temperatures up to 140 degrees Fahrenheit.
Summary
This Fantech fan's mixed-flow design combines the best of axial fans and backward curved impellers. Easy to set up and use, it's a must-have.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)24.325.019.918.5
-
TypeMixed Flow Inline Duct Fan
-
ApplicationDucting
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)4206.04153.02916.02952.0
-
Amperage (Amps)4.511.83.76.5
-
Power SupplyHardwired
-
Voltage (V)220-240110-120220-240110-120
-
Watts (W)14501357636678
-
Depth (in.)21.7521.7518.7518.75
-
Depth (with front cover) (in.)21.7521.7518.7518.75
-
Duct Diameter (in.)16.0
-
Height (in.)24.524.522.37522.375
-
Height (with front cover) (in.)24.524.522.37522.375
-
Weight (lbs.)7513444.149.9
-
Width (in.)16.016.015.62515.625
-
Width (with front cover) (in.)16.016.015.62515.625
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty
3-Year Limited Warranty
Key Specifications
