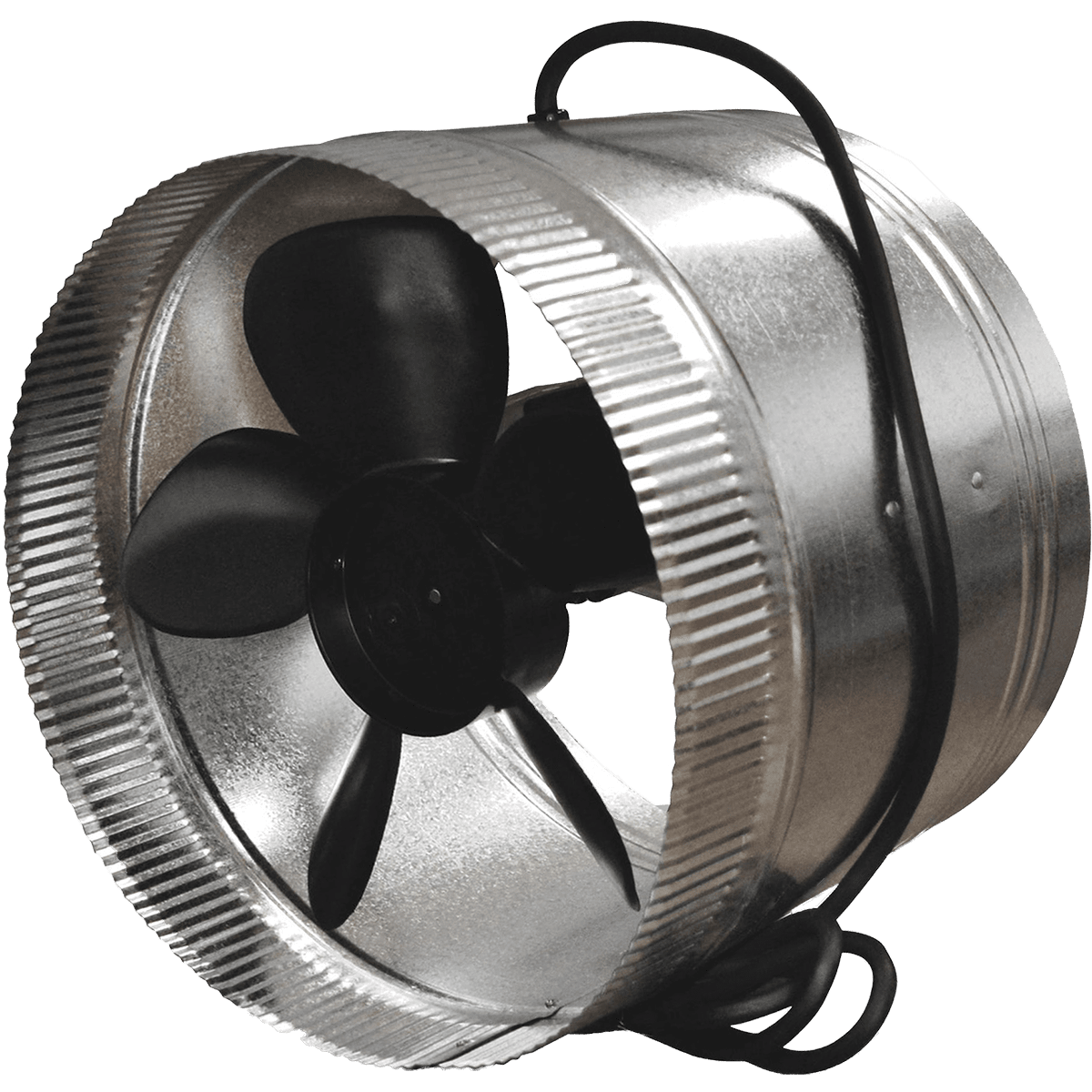

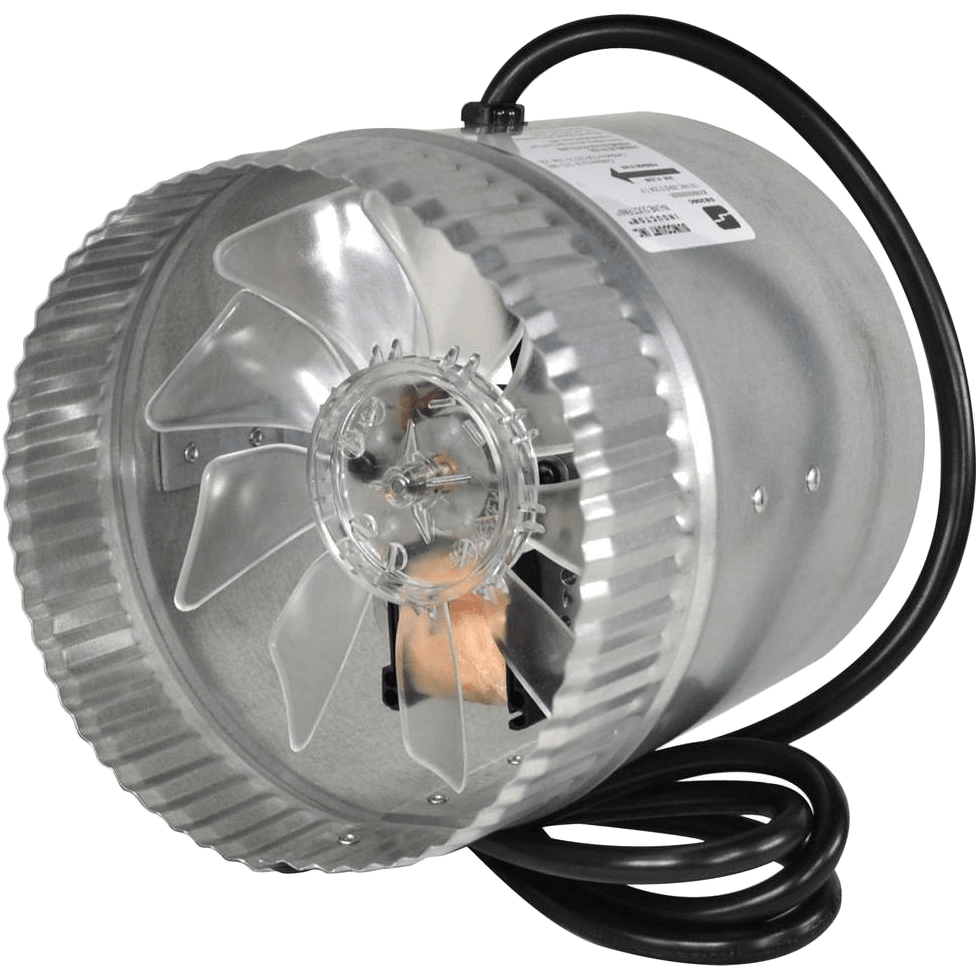

Suncourt Inductor Corded In-Line Duct Fans
Suncourt Inductor Corded In-Line Duct Fans - 12" Diameter is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Suncourt Inductor Corded In-Line Duct Fans
- Sheet Metal Screws (x 4)
- Owner’s Manual
Info & Guides
Info & Guides
Suncourt Inductor Corded In-Line Duct Fans
Description
Description
Circulate air-conditioned and heated air with the in-line Suncourt Duct Fans. Available in 6 to 12-inches in diameter, these steel duct fans offer year-round comfort. They plug into any standard 110-120 outlet and install at any angle onto flex or metal ductwork.
Easy integration onto ductwork and low wattage offer easy, quick airflow solutions to older HVAC systems, indoor grow areas, and bathrooms.
How Do They Work?
Boost cooling and heating from room supply registers with the Suncourt In-Line Duct Fans. Made in the USA, these galvanized steel fans propel air through extended ductwork or where static pressure decreases.
Great for use in old homes with extended ductwork or old HVAC systems, these fans help with rooms that stay too cold or warm.
Easy Operation
The six-foot plug and play power cord plugs into any standard 110/120 outlet with continuous operation. Integrate with the Ductstat Temperature Sensitive Switch to operate when the HVAC system kicks on.
Simple Installation + Sizing

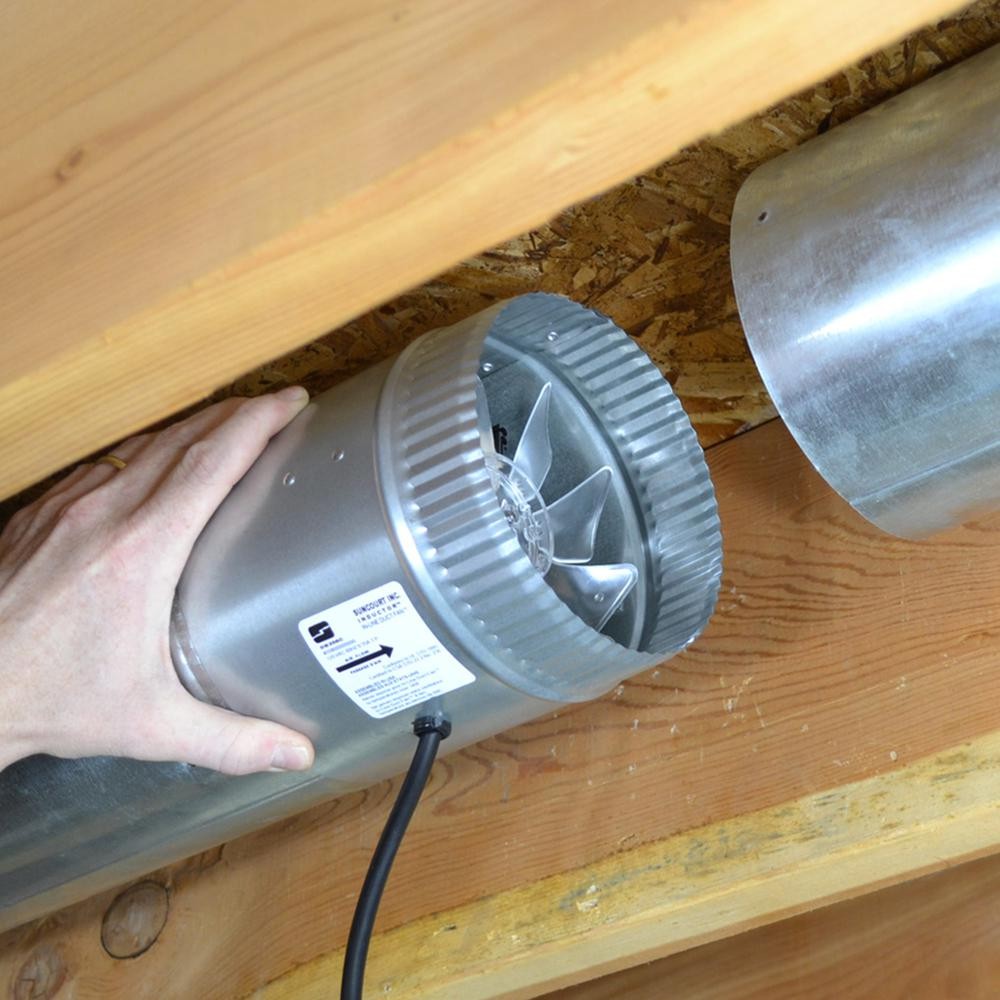

Effortlessly mount and install the booster fans at any angle in the ductwork. Branch into any existing flex or metal ductwork. Slip the duct ends over the crimped ends of the unit for quick and effortless installation.
The fans come in varying diameter sizes with specific cubic feet per minute of airflow (CFM).

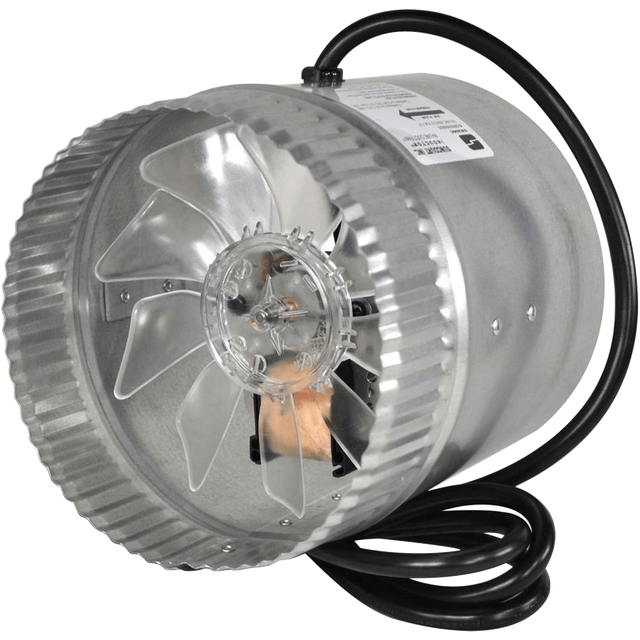

- Six-Inch: 160 CFM

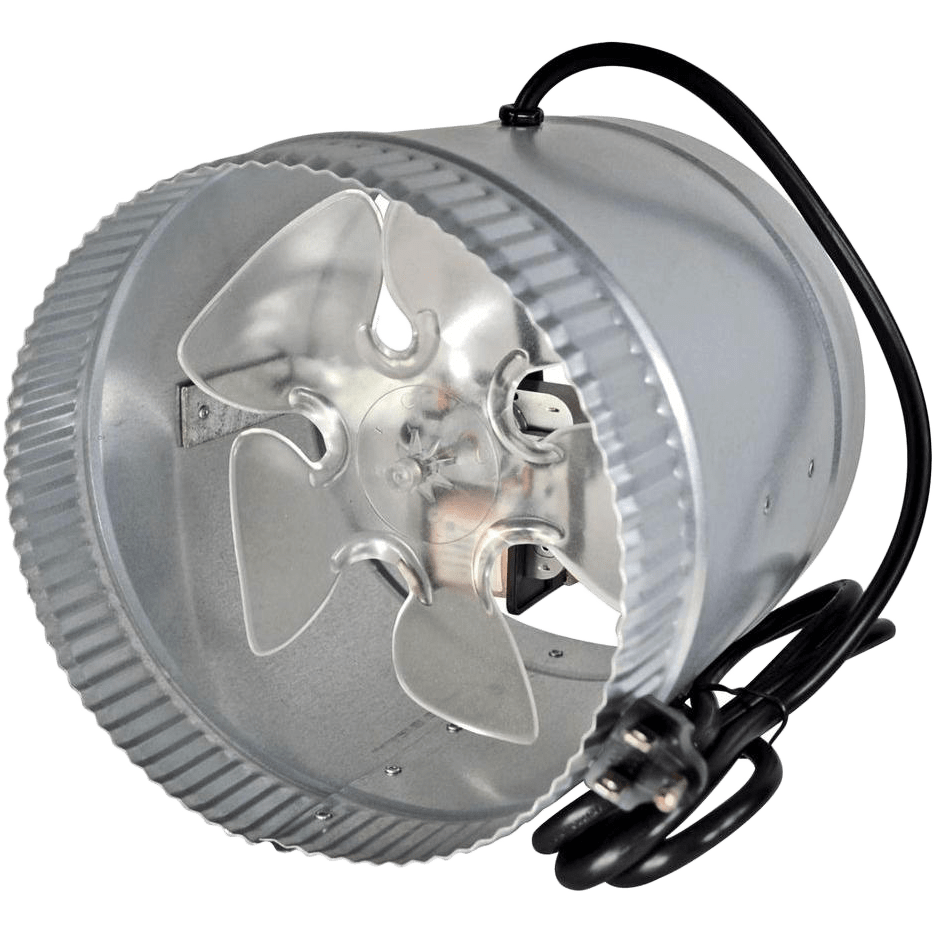

- Eight-Inch: 210 CFM

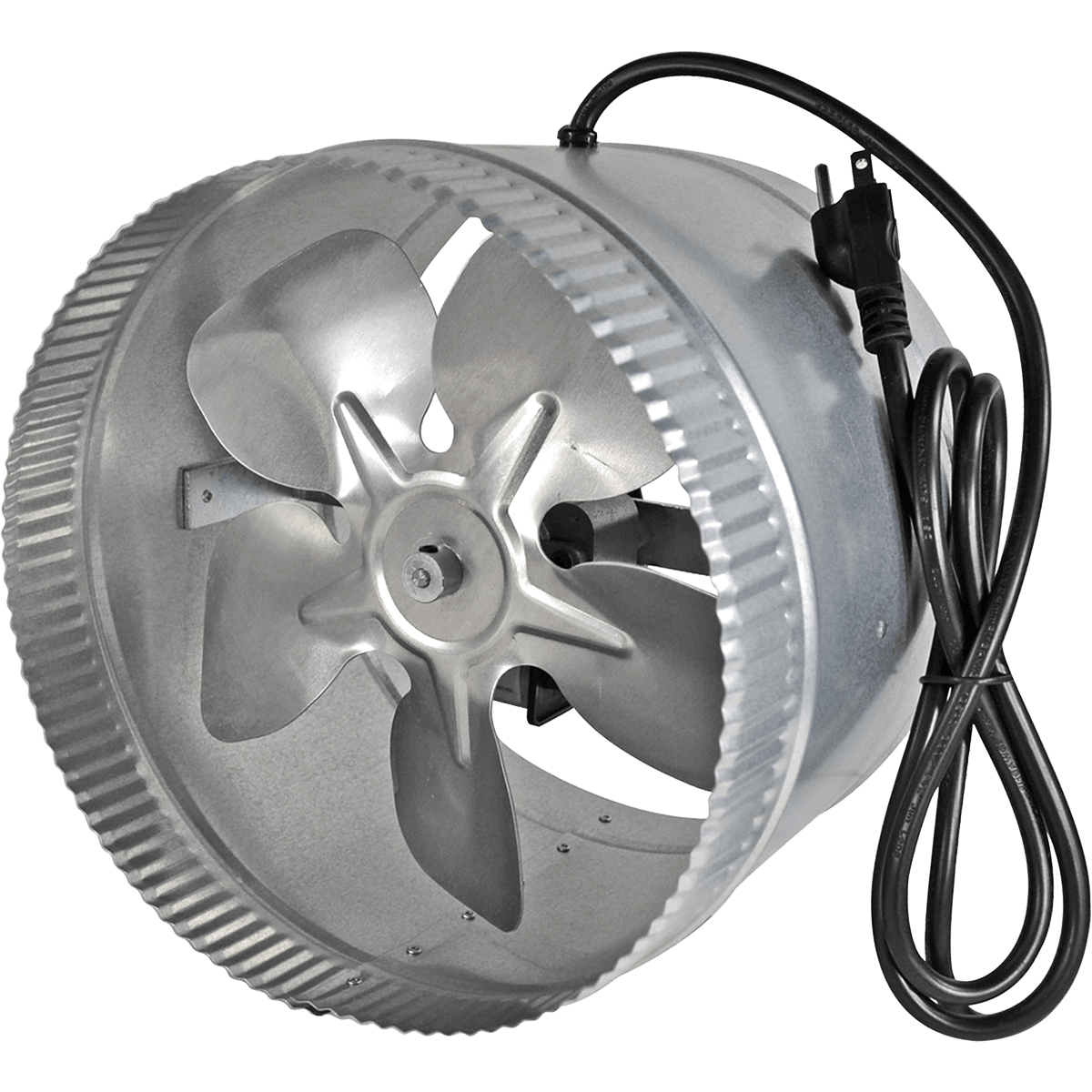

- Ten-Inch: 300 CFM
- Twelve-Inch: 650 CFM
**If you need a higher CFM than what is rated for your ductwork size, a coupling reducer can be used for a custom fit.
Additional Features
- UL Certified: Suncourt booster fans feature the UL safety certification for safe operation and performance.
- Energy-Efficient: Designed for efficiency, the in-line fans operate at an economically low wattage.
- ETL-Listed: Tested for safety, these fans carry the ETL-Intertek rating.
- Thermal Protection: In the event the motor locks or fails to start, the fan motor will automatically kick off to prevent overheating.

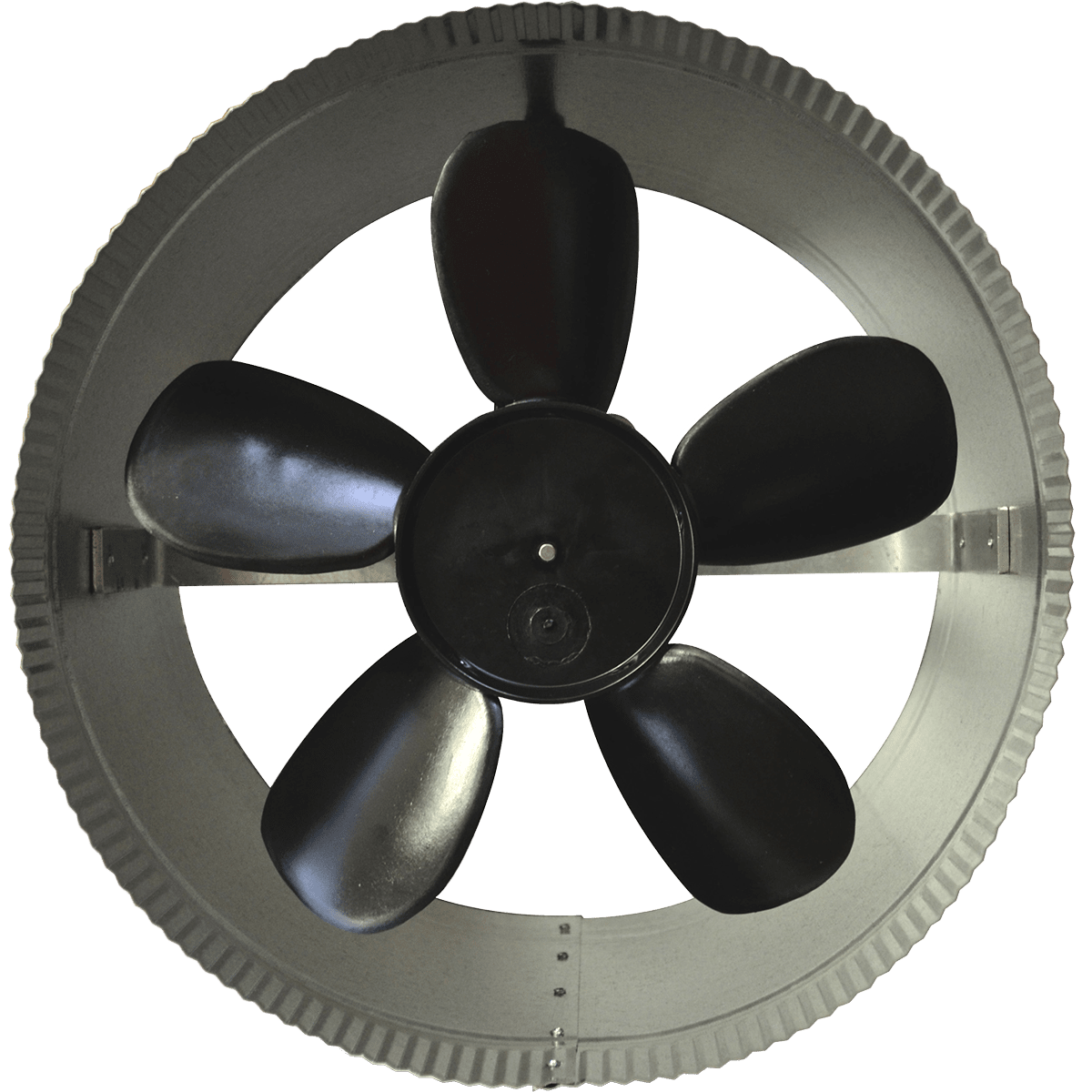

- Quiet Operation: Polycarbonate blades operate with quiet operation with a decibel level between 50 – 60 dB.

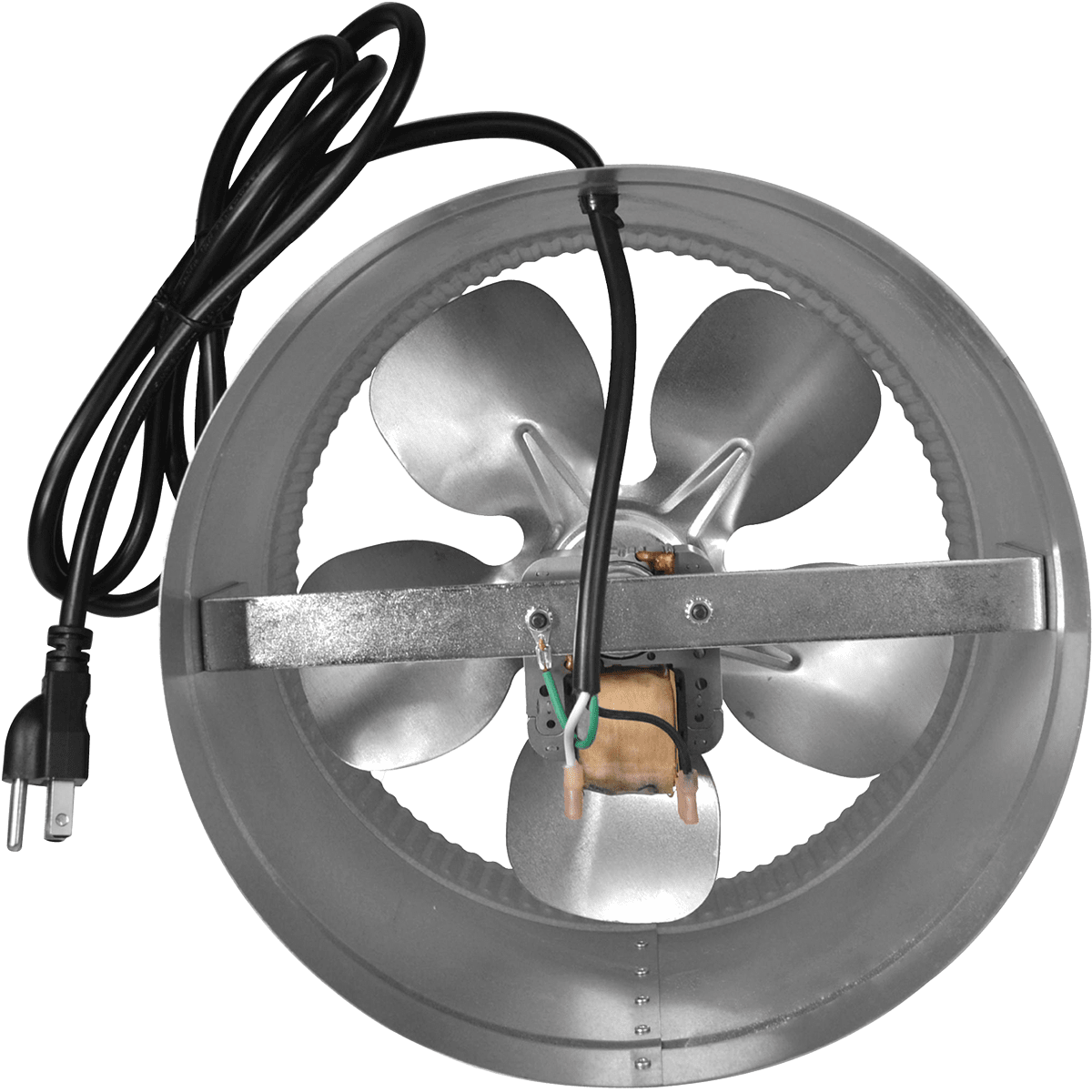

- Power Cord: An included six-foot plug and play power cord plugs into any standard NEMA 5-15, grounded three-prong outlet.
Summary
Sufficiently move air into single living areas or usher air back through return ducts with the Suncourt duct booster fans.
What Customers Love
- Easy Integration: The Suncourt in-line fans integrate onto any closed-loop HVAC system, fit to any ductwork size, and offer varying operating modes for easy installation.
Things to Consider
- Automatic Operation: Without the additional Suncourt DuctStat, the fan will operate continuously.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)2.4
-
TypeClassic Inline Duct Booster Fan
-
ApplicationDucting
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)650.0650.0210.0160.0
-
Amperage (Amps)1.51.50.70.35
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)1201205530
-
Depth (in.)8.0
-
Depth (with front cover) (in.)8.0
-
Duct Diameter (in.)12.010.08.06.0
-
Height (in.)12.010.08.06.0
-
Height (with front cover) (in.)12.010.08.06.0
-
Weight (lbs.)5.654.33.12.05
-
Width (in.)12.010.08.06.0
-
Width (with front cover) (in.)12.010.08.06.0
-
Additional FeaturesThermal Cutoff Protection, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Warranty
