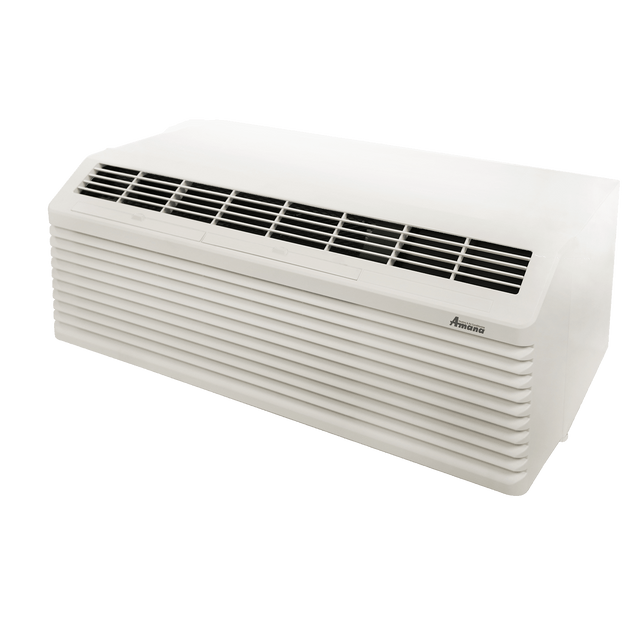

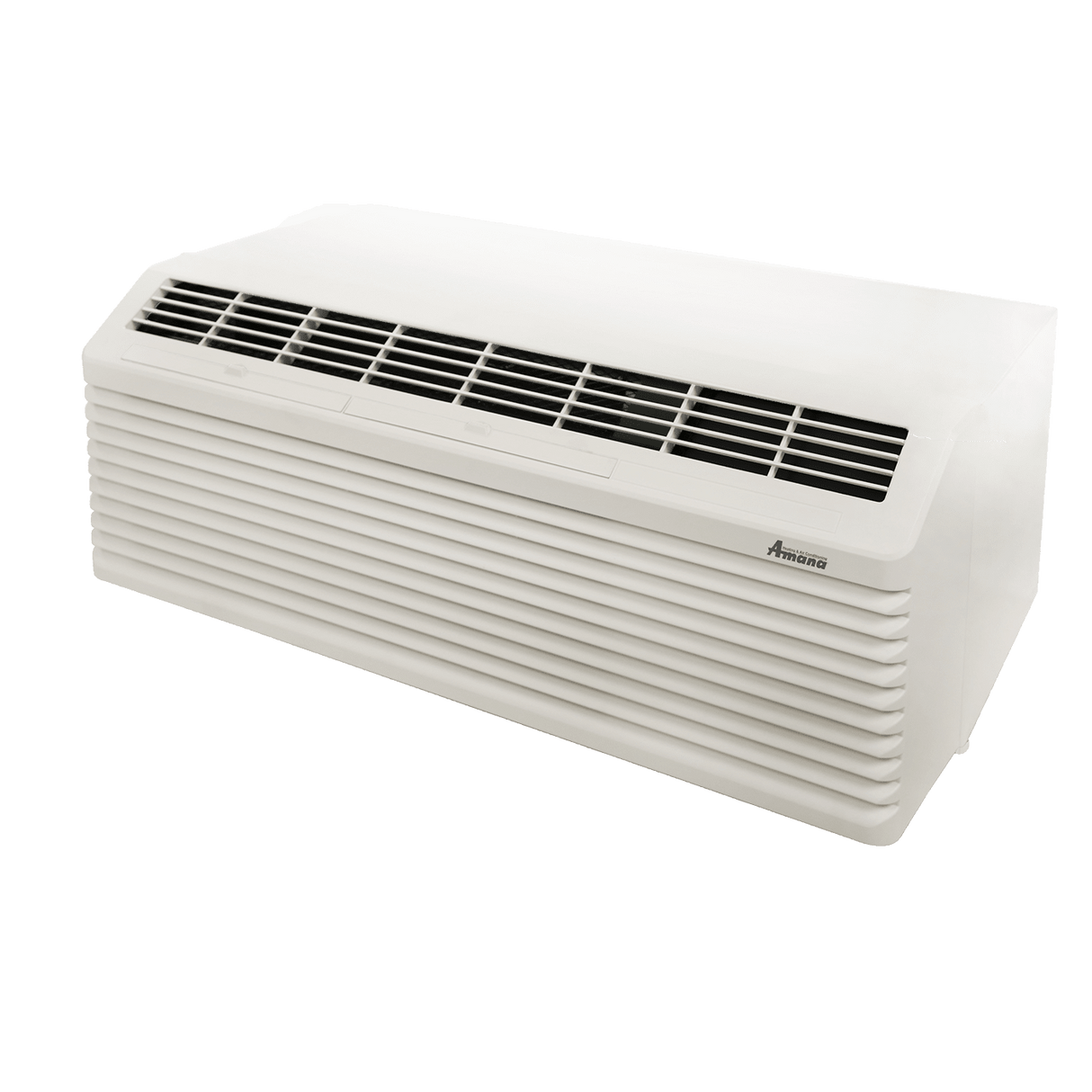

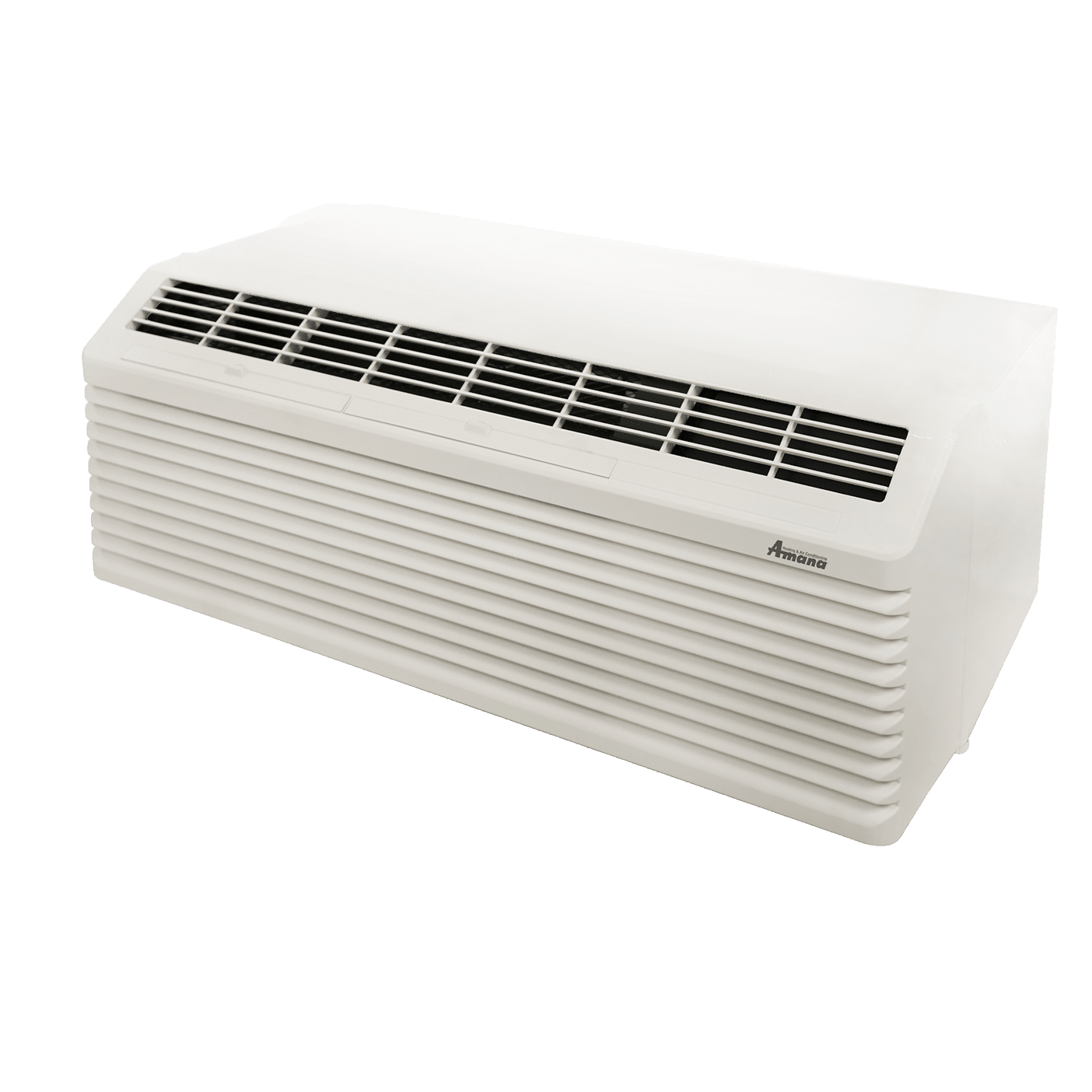

Amana 11,600 BTU J Series Ptac w/Heat Pump
Amana 11,600 BTU J Series Ptac w/Heat Pump is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Amana 11,600 BTU J Series PTAC w/Heat Pump
- Owner's Manual
- Installation Instructions
Info & Guides
Info & Guides
Amana 11,600 BTU J Series Ptac w/Heat Pump
Description
Description
Choose the Amana 11,600 BTU J Series PTAC with Heat Pump for year-round comfort in rooms of up to 500 square feet. This versatile unit is perfect for hotels, dorms, assisted living facilities, and other spaces, as it can cool, heat, and dehumidify with ease.
Note: While this PTAC is equipped with Bluetooth and RF capabilities, a wall thermostat is required to operate the unit.
Year-Round Comfort Made Easy
This Amana PTAC with Heat Pump provides year-round comfort with its versatile features that make it easy to find the perfect settings in any season.
- Cooling: Stay cool during hot summer days with 11,600 BTUs of cooling power available at the press of a button.
- Heating: When winter comes, enjoy 10,600 BTUs of supplemental heat to keep you warm and toasty.
- Dehumidification: In cool mode, this unit effectively removes up to 1.7 pints of excess moisture from the air per hour, helping to control humidity levels.
- Fan Options: Choose from three fan speeds (low, high, and auto) in cooling and heating modes, or run the fan alone to circulate fresh air and improve indoor air quality.
Required Wall Sleeve
The wall sleeve required for installation isn’t included with the unit and must be purchased separately.
Wi-Fi Control
You can easily manage your PTAC with the Amana Home app, available on iTunes and Google Play. The app simplifies the setup and configuration process, and it seamlessly integrates with Eden™ for added convenience.
Additional Features
- Whisper-Quiet Performance: Enjoy uninterrupted sleep with its ultra-silent indoor fan and 2-speed motor.
- Automatic Freeze Prevention: When temperatures drop below 40 degrees Fahrenheit, the fan motor and heater activate to prevent freezing.
- Optimal Air Circulation: Experience maximum comfort with up to 330 cubic feet per minute (CFM) of airflow.
- Convenient Air Filtration: Maintain clean indoor air with the easy-to-access air filter.
Summary
Experience year-round comfort in rooms up to 500 square feet with the Amana PTH123K25AXXX, capable of cooling, heating, dehumidifying, and more.
Specifications
Specifications
-
Energy Efficiency Ratio (EER)11.5
-
Number of Speeds2
-
California Residents⚠ WARNING: Cancer and Reproductive Harm www.p65warnings.ca.gov.
-
CertificationsETL
-
ColorWhite
-
ControlsElectronic
-
Heater TypeHeat Pump
-
Heating BTUs (BTUs)10800
-
Maximum Cubic Feet per Minute (CFM) (CFM)330.0
-
Maximum Operating Temperature (degrees F)115
-
Minimum Operating Temperature (degrees F)40
-
Moisture Removal per Hour (pints)1.7
-
Recommended Coverage Area (sq. ft.)500
-
Refrigerant TypeR-32
-
Branch Circuit Fuse (amps)15
-
Electric Heat Max Amps (Amps)5.6
-
Electric Heat Max Wattage (W)955
-
Maximum Cooling Amperage (Amps)5.6
-
Maximum Cooling Wattage (W)1125
-
Maximum Heating Amperage (Amps)6.1
-
Maximum Heating Wattage (W)970
-
Plug Face Type6-20P
-
Power Cord Length (ft.)4.83
-
Voltage (V)208-230
-
Cut Out Dimensions (H x W) (in.)42.25X16.25
-
Depth (in.)14.125
-
Depth (with front cover) (in.)14.125
-
Height (in.)16.17
-
Height (with front cover) (in.)16.17
-
Weight (lbs.)108
-
Width (in.)42.0
-
Width (with front cover) (in.)42.0
-
Additional FeaturesFan-Only Mode
-
Manufacturer's Warranty1-Year Limited Unit Replacement Warranty, 5-Year Limited Parts Warranty
