Amana 11,500 BTU Through-Wall Air Conditioner Heat Pump
Amana 11,500 BTU Through-Wall Air Conditioner Heat Pump is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Amana 11,500 BTU Through-Wall Air Conditioner Heat Pump
- Owner's Manual
- Remote Control
Info & Guides
Info & Guides

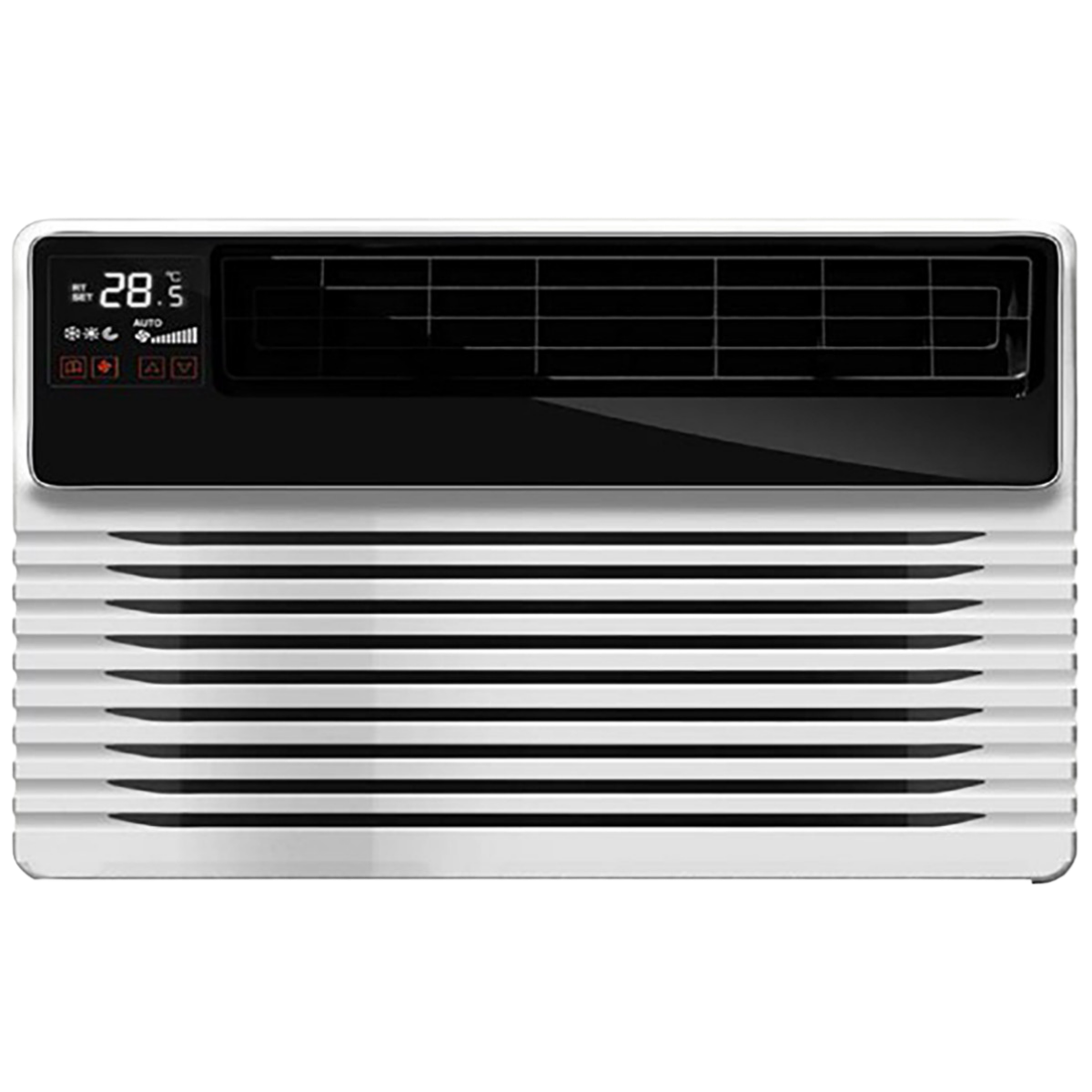

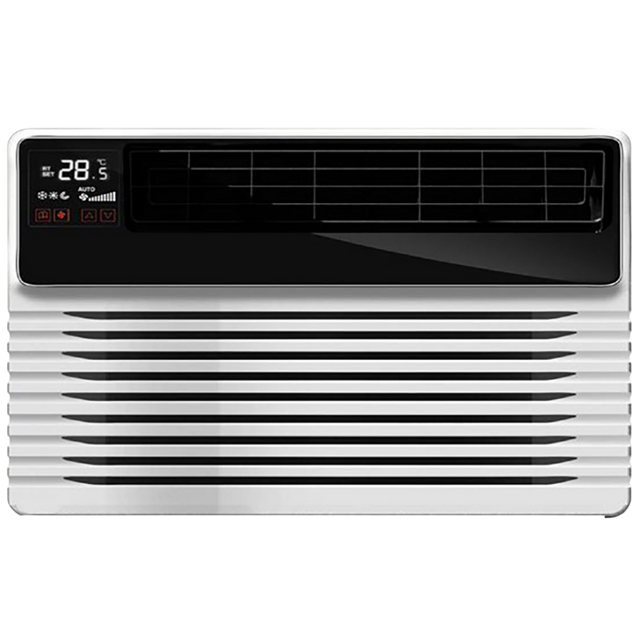

Amana 11,500 BTU Through-Wall Air Conditioner Heat Pump
Description
Description
Engineered for use in some of your largest rooms, the Amana 11,500 BTU Through-Wall AC with Heat Pump effectively cools and warms spaces up to 600 square feet. Ideal for use in bedrooms, offices, and hotel rooms, this versatile unit delivers year-round comfort. Efficient too, its heat pump allows it to use less electricity than electric heater options. Easily install and maintain this unit thanks to its slide-out chassis design.
Note: This model requires a 26-inch through-the-wall sleeve found here.
Multiple Operating Modes
With its versatile design, the Amana PBH113G35CC is designed to be an effective comfort solution any day of the year.
- Cooling Performance: Uses 11,500 BTUs of cooling power to keep you comfortable all summer long.
- Dehumidification: Leave your room feeling fresher and less muggy by removing up to 3.2 pints of excess moisture every hour.
- Multi-Speed Fan: Choose your desired airflow level thanks to this unit’s two fan speeds.
Energy-Saving Winter Heating
Keep rooms even in the depths of winter with this thru-the-wall air conditioner. Equipped with a heat pump that produces 12,600 BTUs of warmth, it's a more efficient option than traditional electric heaters.
Efficient Indoor Comfort
Staying comfortable indoors doesn’t have to break the bank. With its impressive efficiency ratios, this unit is designed to keep you comfortable without wasting energy.
- Energy Efficiency Ratio (EER): 9.6
- Combined Energy Efficiency Ratio (CEER): 9.5
Additional Features

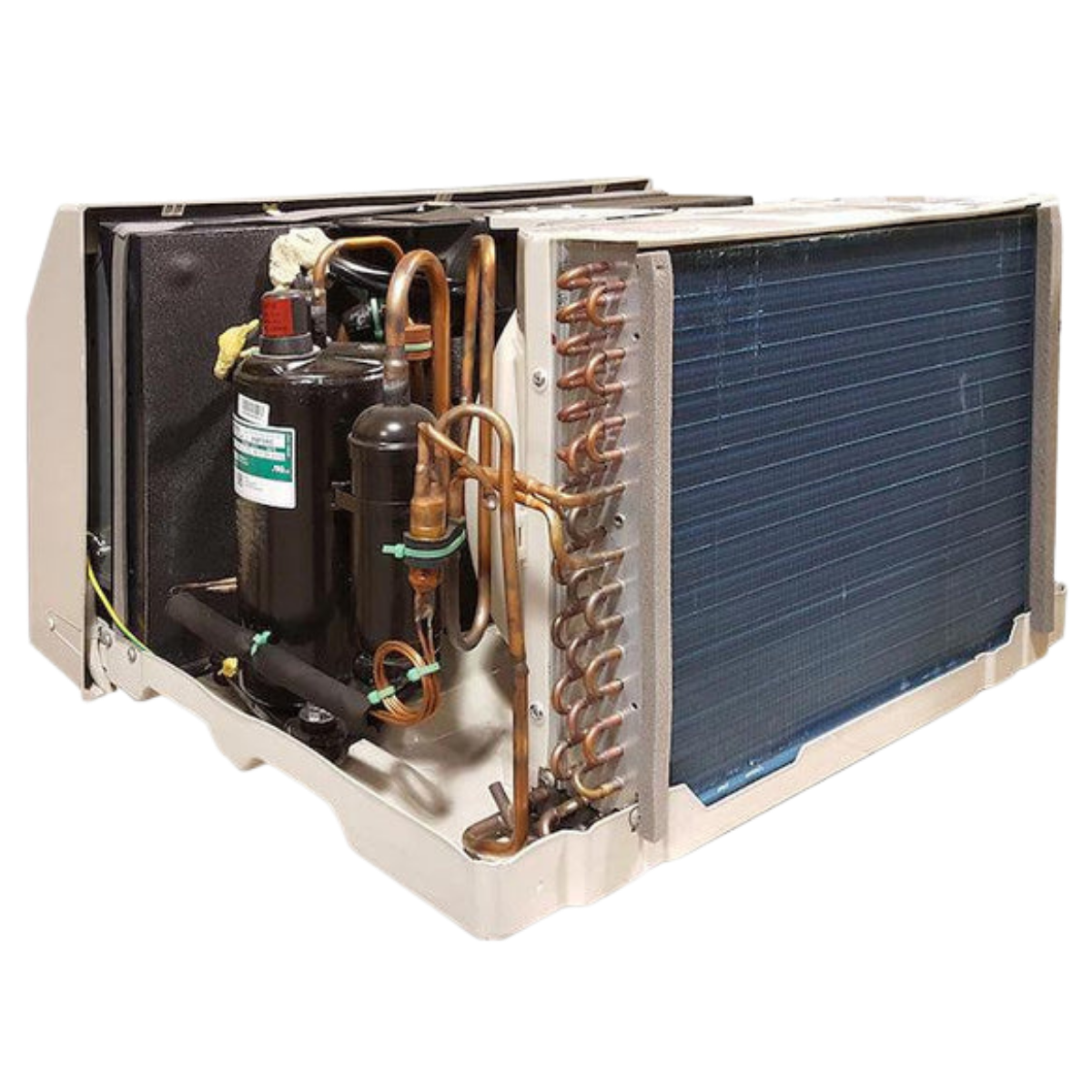

- Slide-Out Chassis: Allows for easier installation and even easier access for routine maintenance tasks.
- Quick Cooling: Select its high fan speed setting to cool your space as quickly as possible.
- Adjustable Airflow Direction: Its 4-way adjustable airflow direction makes it easy to focus the air to the areas of your room that need it the most.
- Removable Condenser Top: Allows for easy access to the outside condenser coils for complete cleaning.
- Mesh Filter: A removable mesh filter prevents allergens and impurities from entering your indoor air.
- Filter Reminder: An onboard indicator light lets you know when it's time to clean the air filter.
- Set Temperature Limits: Program temperature limits to prevent guests from going outside your desired settings.

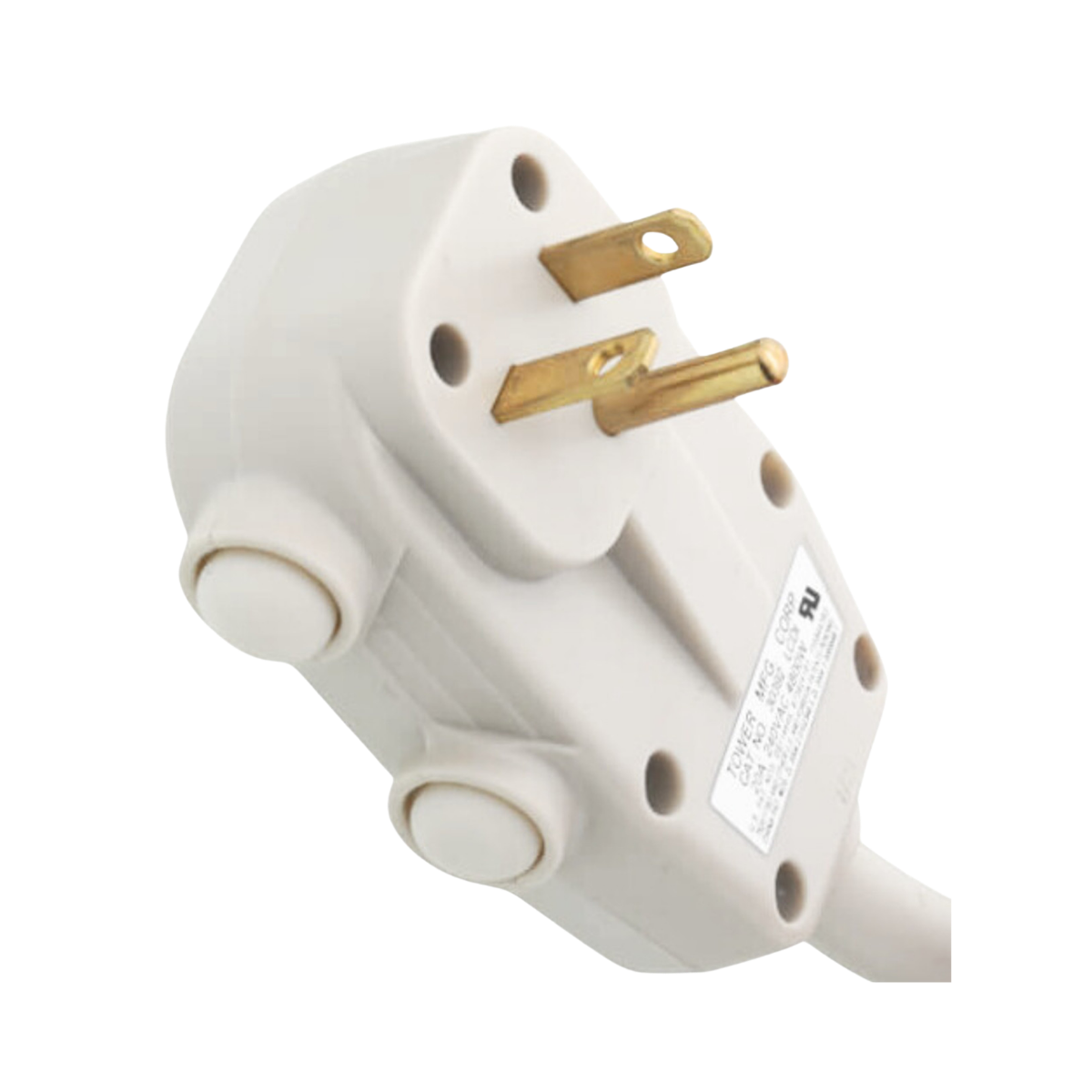

- Power Cord: This unit is equipped with a 6-foot power cord featuring a NEMA 6-20P plug.
Summary
Keep large rooms up to 600 square feet at the perfect temperature all year long with the multiple operating modes of this thru-the-wall AC from Amana.
What Customers Love
- Easy to Install: A slide-out chassis design helps to make set-up quick and easy.
- Efficient Design: With impressive efficiency ratios, this is an energy-saving unit.
Specifications
Specifications
-
ASHRAE Cooling Power (BTUs)[11700]
-
Energy Efficiency Ratio (EER)9.6
-
Number of Speeds2
-
Total Cooling Capacity (BTUs)11500
-
Total Heating Capacity (BTUs)12600
-
California Residents⚠ WARNING: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationsUL
-
Chassis TypeSlide-Out
-
Circuit Breaker Rating250V-20A
-
ColorWhite
-
Heat ModeYes
-
Heating BTUs (BTUs)10300
-
Maximum Cubic Feet per Minute (CFM) (CFM)265.0
-
Maximum Noise Level (dB)61.2
-
Moisture Removal per Hour (pints)3.4
-
Recommended Coverage Area (sq. ft.)600
-
Refrigerant TypeR-32
-
Maximum Cooling Amperage (Amps)5.6
-
Maximum Cooling Wattage (W)1220
-
Maximum Heating Amperage (Amps)5.4
-
Maximum Heating Wattage (W)1160
-
Plug Face Type6-20P
-
Power Cord Length (ft.)6
-
Voltage (V)208-230
-
Depth (in.)16.875
-
Depth (with front cover) (in.)16.875
-
Height (in.)15.625
-
Height (with front cover) (in.)15.625
-
Through-Wall Finished Depth (in)16.9
-
Through-Wall Finished Height (in)15.81
-
Through-Wall Finished Width (in)26.2
-
Weight (lbs.)86
-
Width (in.)26.0
-
Width (with front cover) (in.)26.0
-
Additional FeaturesProgrammable Timer, Remote Control, Fan-Only Mode, Dehumidifier Mode, Sleep Mode
-
Manufacturer's Warranty5-Year Limited Warranty
