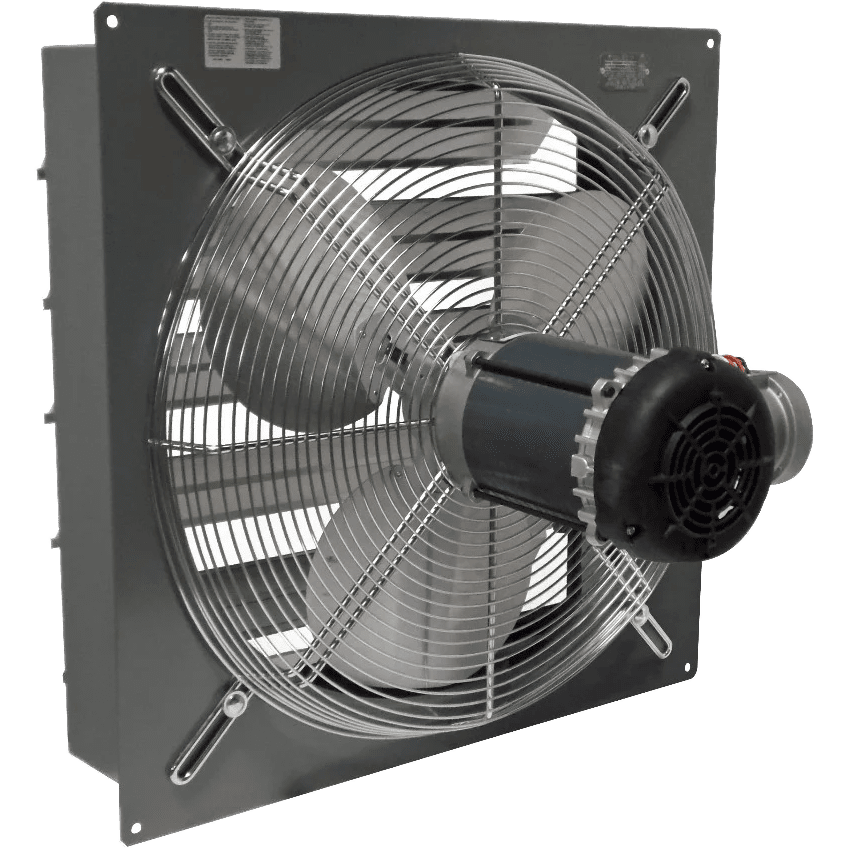

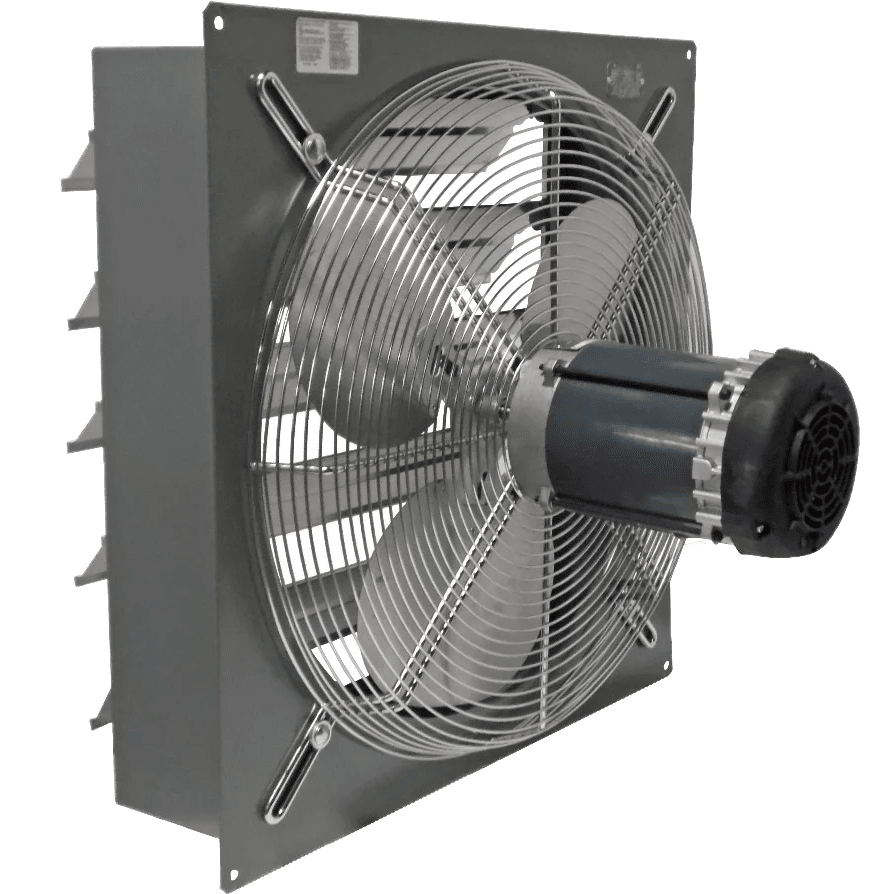

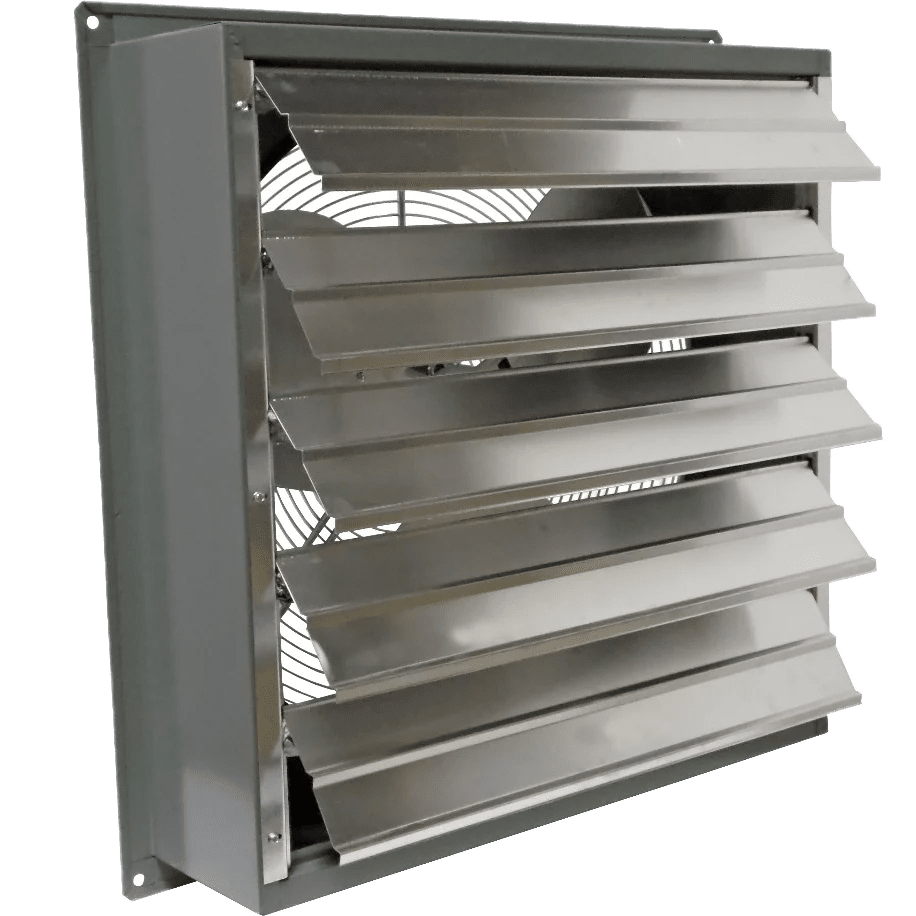

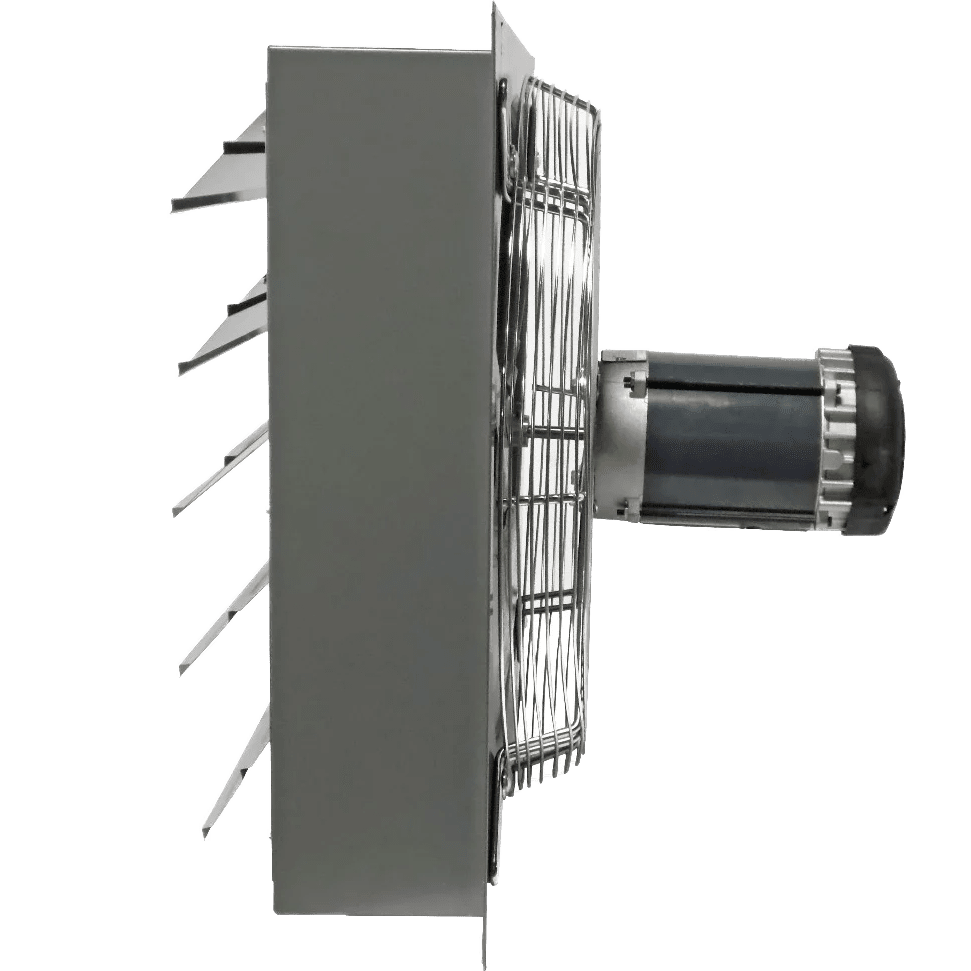

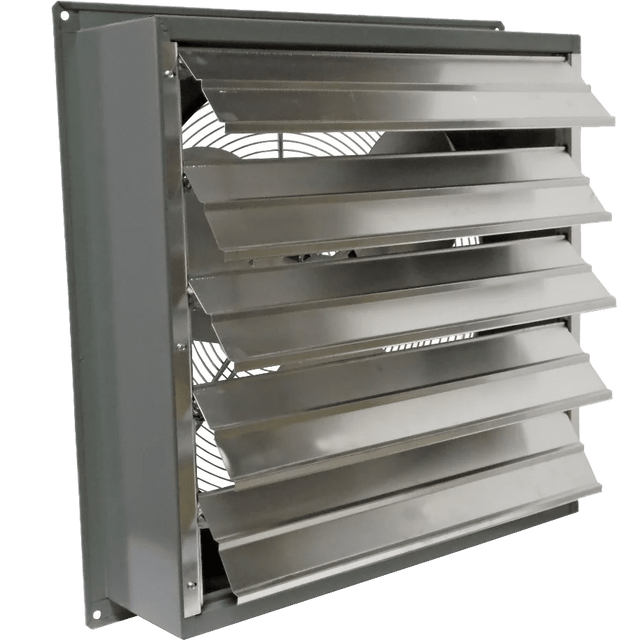

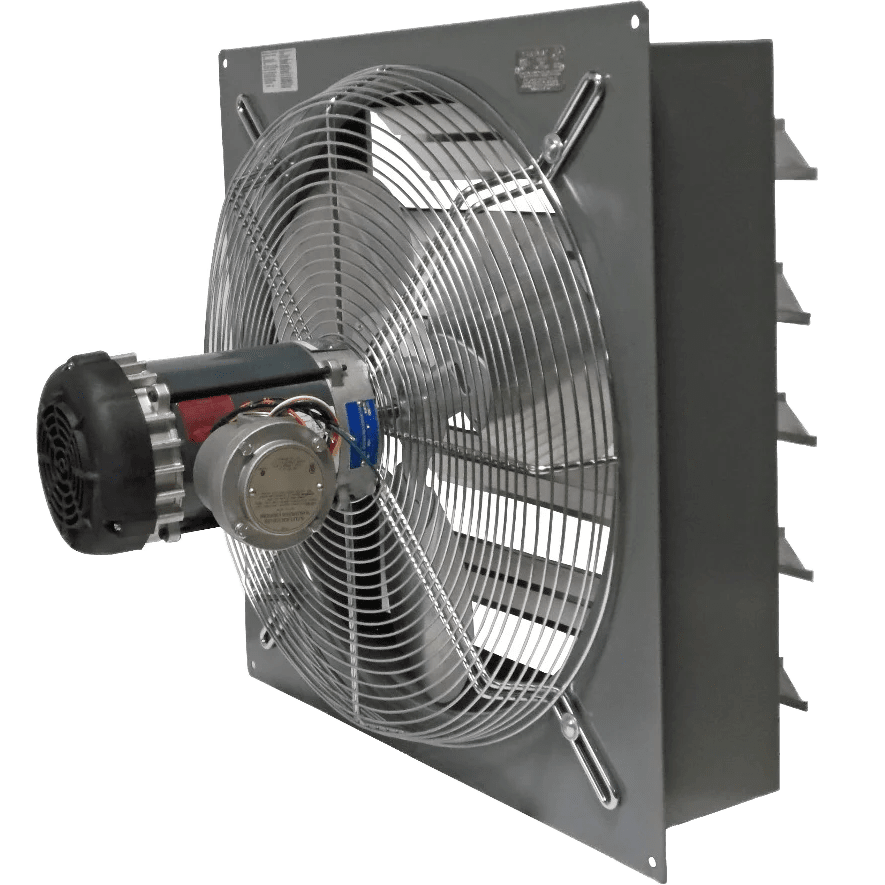

Canarm SD12-XPF 12-In. Explosion Proof Wall Mount Shutter Exhaust Fan
Designed for safe operation in a variety of applications, including those containing combustible materials, the Canarm SD 12-In. Explosion Proof Wall Mount Shutter Exhaust Fan is a must-have for commercial facilities. Featuring a rugged design and reliable performance, it provides up to 1,640 CFM of ventilation.
Explosion Proof Motor
The Canarm SD12-XPF is an explosion proof fan that meets and conforms to the following standards:
- Class I, Group C: Atmospheres containing ethyl ether, ethylene, gases or vapors of equivalent hazard.
- Class I, Group D: Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane, or gasses or vapors of equivalent hazard.
- Class II, Group F: Atmospheres containing carbonaceous dust, including carbon black, charcoal, coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts that have been sensitized by other materials so that they present an explosion hazard.
- Class II, Group G: G Atmospheres containing combustible dusts not included in group E or F, including flour, grain, wood, plastic and chemicals.
Key Features Of The Canarm SD 12-In. Explosion Proof Fan
- Powerful Airflow: This Canarm shutter exhaust fan is capable of an airflow of up to 1,640 CFM.
- Enclosed Motor: Designed with a totally enclosed, ball bearing motor with thermal overload protection.
- Durable Fan Blades: Its 12-inch fan blades are constructed of heavy-gauge aluminum.
- Steel Housing: The steel welded box housing has a durable powder coated finish.
- OSHA Guards: Equipped with heavy wire chrome plated OSHA guards on intake side of fan.
- Ships Assembled: This fan ships completely assembled.
- Framing Dimensions: 15" x 15"
Summary
The Canarm SD12-XPF is the perfect ventilation solution for facilities containing combustible materials.
-
Number of Speeds1
-
TypeShutter Exhaust Fan
-
ApplicationCommercial/Industrial
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationscETLus
-
ColorGray
-
ControlsToggle Switch
-
Housing MaterialPowder-Coated Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)1640.0
-
Maximum RPM1725
-
Amperage (Amps)3.3 to 6.6
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Ceiling or Wall Cutout Length (in.)14.75
-
Ceiling or Wall Cutout Width (in.)14.75
-
Depth (in.)20.5
-
Depth (with front cover) (in.)20.5
-
Height (in.)16.0
-
Height (with front cover) (in.)16.0
-
Shutter Fan Size (in.)12
-
Weight (lbs.)42
-
Width (in.)17.25
-
Width (with front cover) (in.)17.25
-
Additional FeaturesMeets OSHA Standards, Explosion Proof
-
Manufacturer's Warranty1-Year Limited Warranty
