| Series Name |

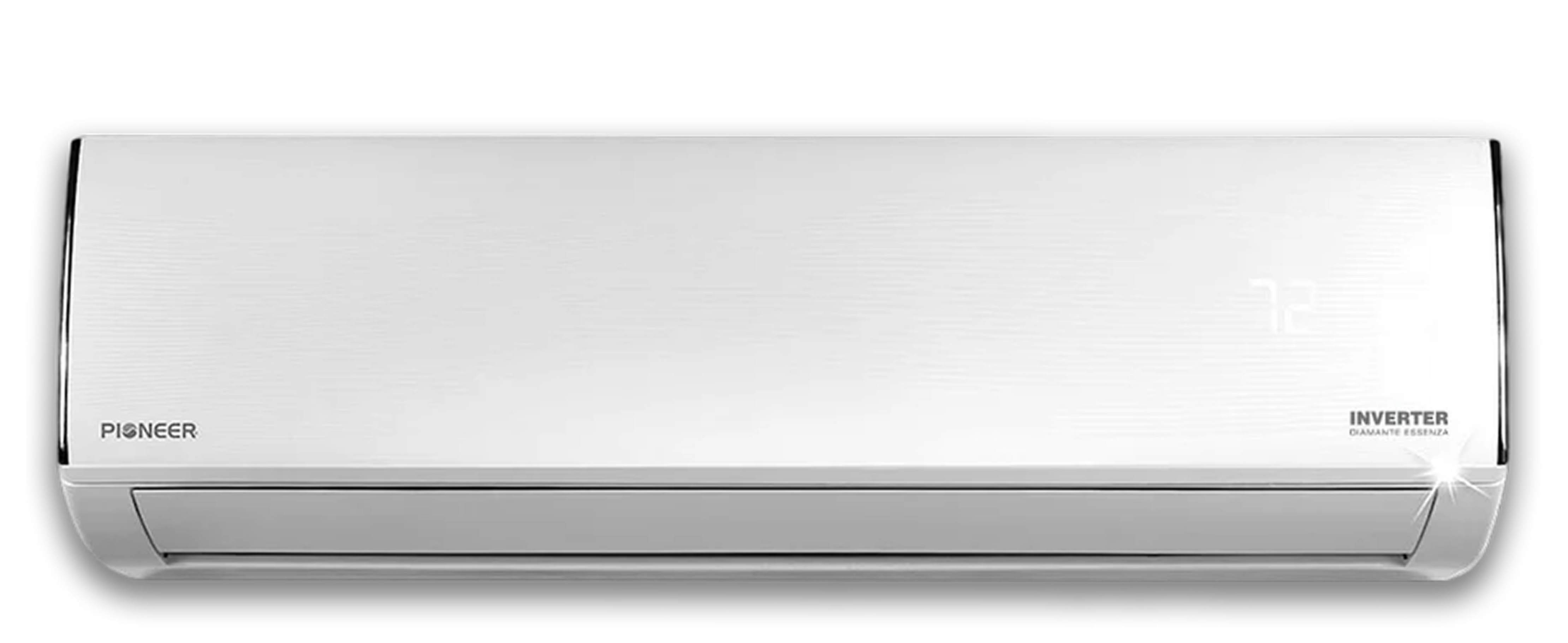

PioneerDiamante Essenza |

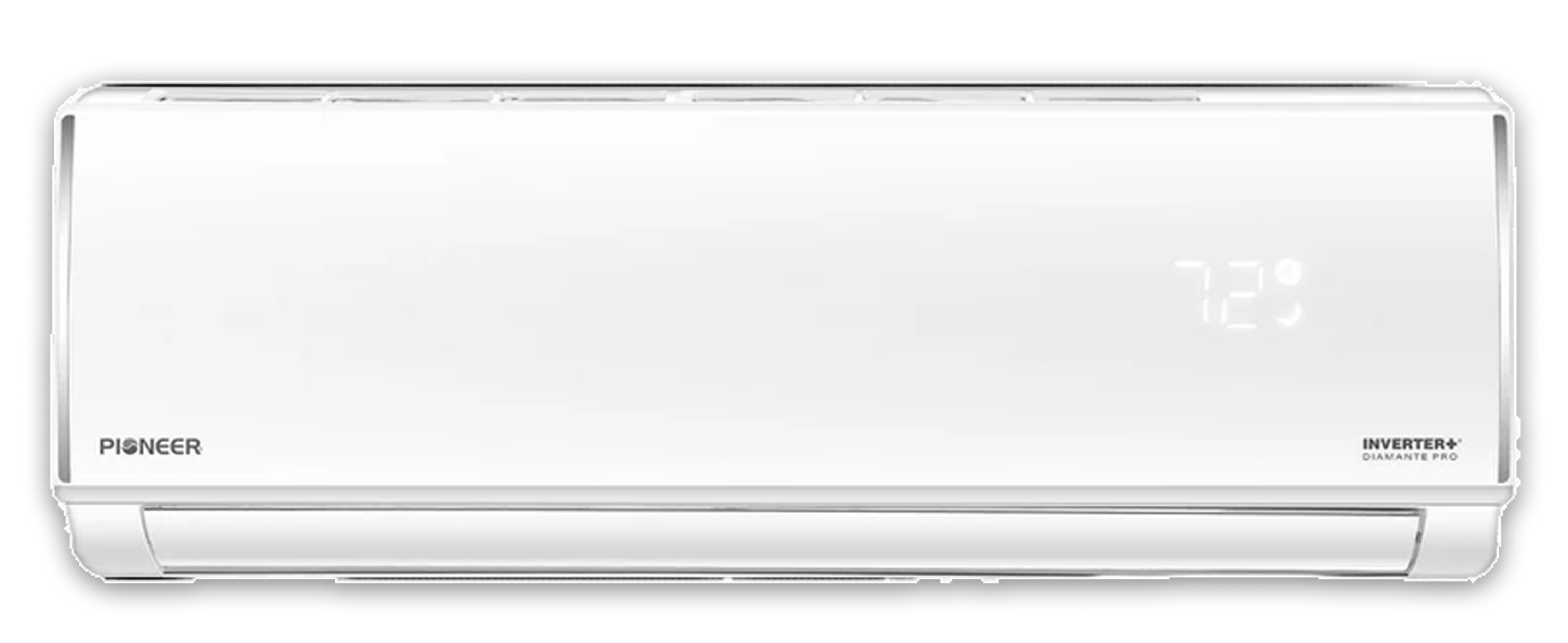

PioneerDiamante Pro |

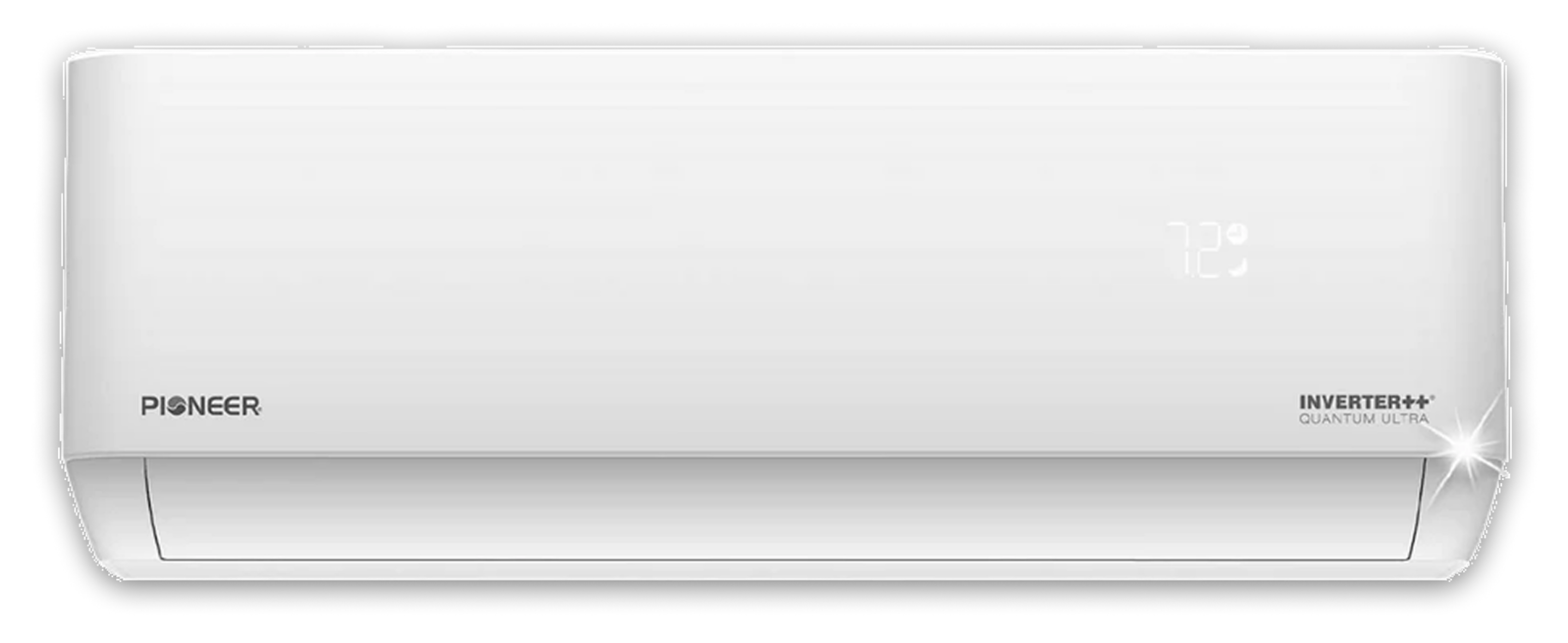

PioneerQuantum Ultra |

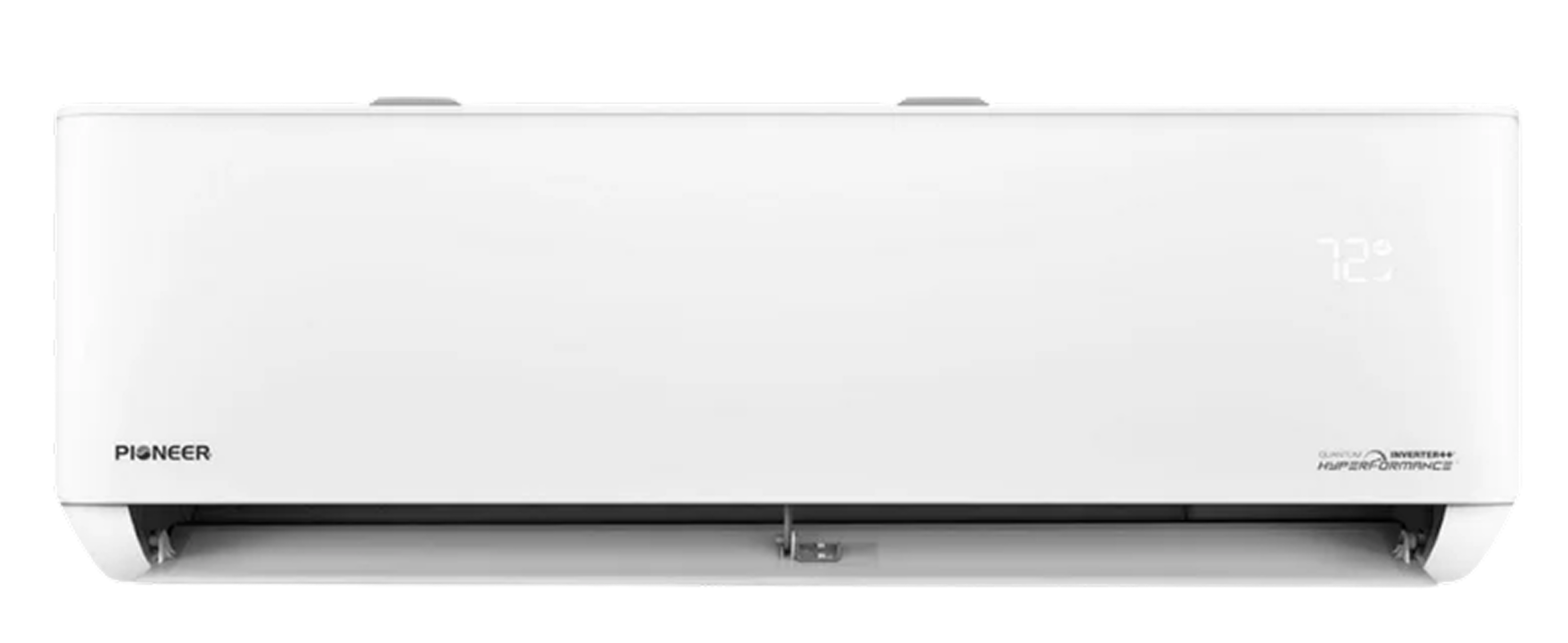

PioneerQuantum Hyperformance |

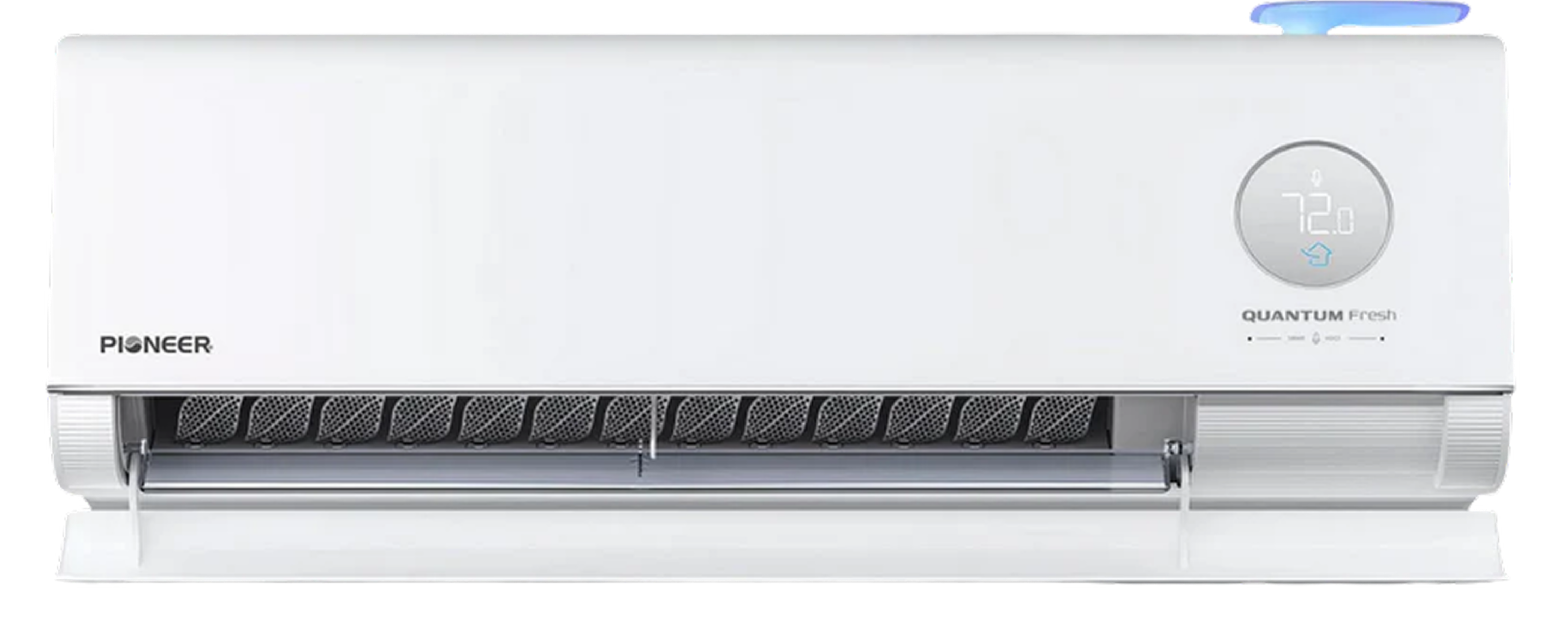

PioneerQuantum Fresh |
|---|---|---|---|---|---|
 Best Use |
Budget-Friendly
|
Balanced
|
Advanced
|
Top-Tier
|
High Tech
|
 BTU range |
11,500 to 35,000 | 9,000 to 36,000 | 9,000 to 51,000 | 9,000 to 24,000 | 12,000 |
 Sizing sq. ft. |
Single-Zone500–1,400 |
Single-Zone350–1,400 |
Single or Multi-Zone, up to 5350–1,000 |
Single-Zone500–1,000 |
Single-Zone500 |
| Noise Level |
Quiet39–55 dB |
Quiet36–52 dB |
Quieter34–50 dB |
Quieter32–49 dB |
Quietest30–44 dB |
 Efficiency |
17 SEER29.5 HSPF2 |
★ Energy Star Rated23 SEER29.5 HSPF2 |
★ Energy Star Rated24 SEER210 HSPF2 |
★ Energy Star Rated25 SEER210.5 HSPF2 |
★ Energy Star Rated24 SEER29.5 HSPF2 |
 Temp. Range |
5 to 122°F | −4 to 122°F | −13 to 131°F | −22 to 131°F | −4 to 122°F |
 Voltage |
115 V, 230 V | 115 V, 230 V | 115 V, 230 V | 115 V, 230 V | 230 V |
| Shop Diamante Essenza | Shop Diamante Pro | Shop Quantum Ultra | Shop Quantum Hyperformance | Shop Quantum Fresh |
