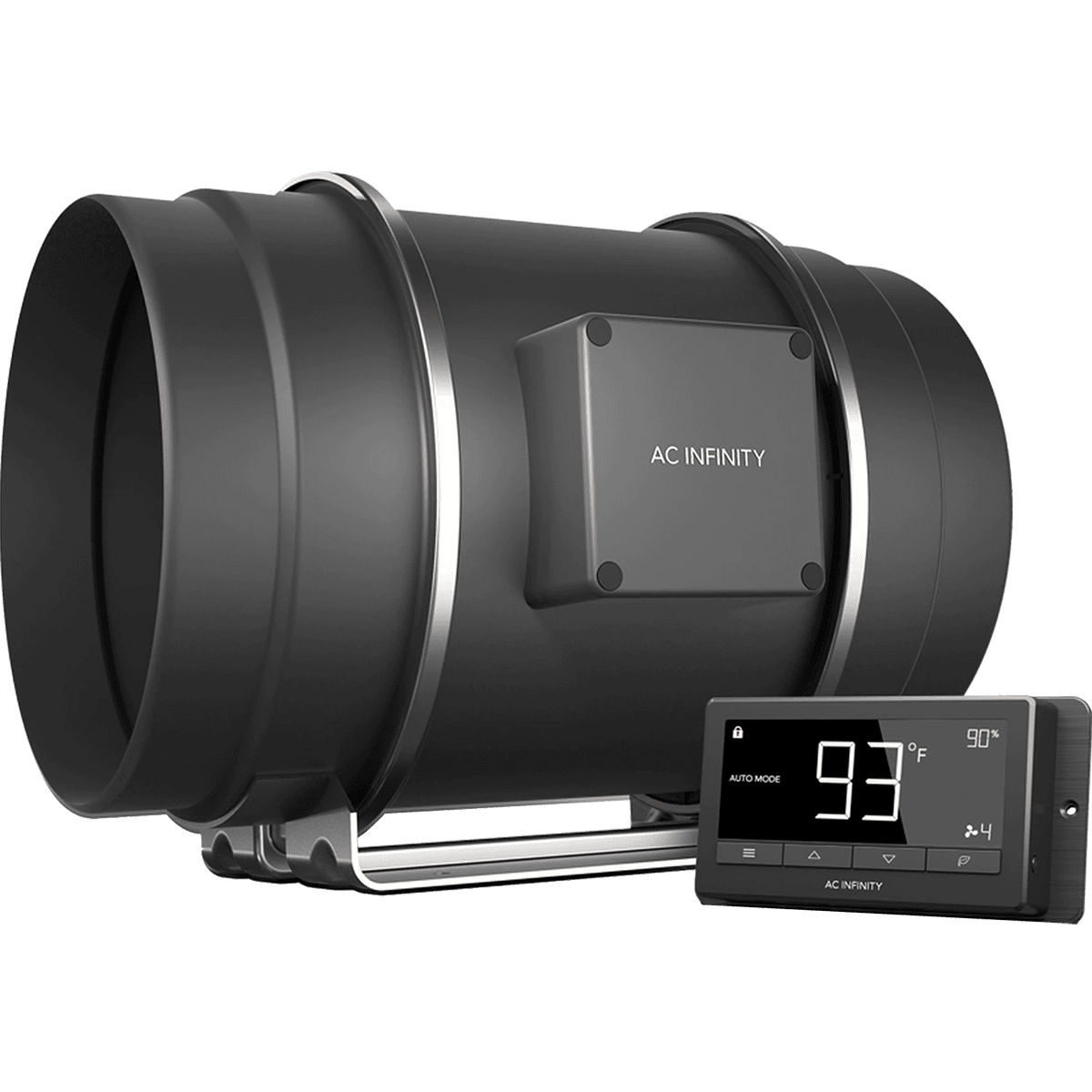

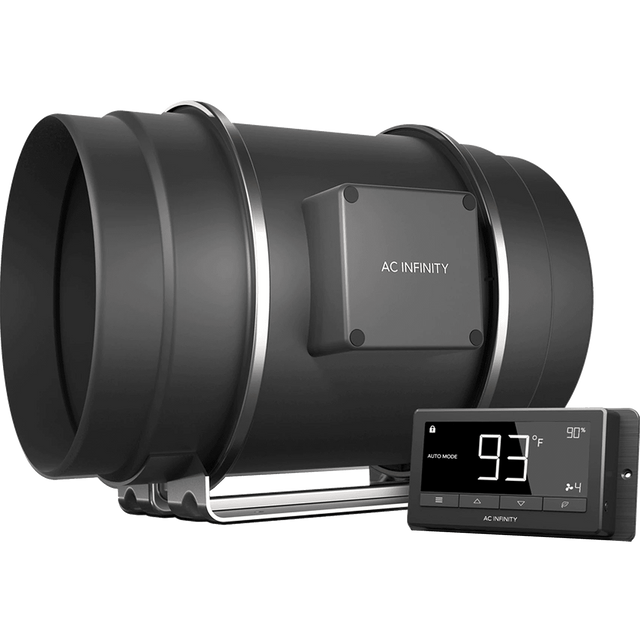

AC Infinity CLOUDLINE T12 12-In Inline Duct Fan w/ LCD Thermal Controller
AC Infinity CLOUDLINE T12 12-In Inline Duct Fan w/ LCD Thermal Controller is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- AC Infinity CLOUDLINE T12 12-In Inline Duct Fan w/ LCD Thermal Controller
- Owner's Manual
- LCD Smart Controller
- Corded Sensor Probe
- AC Power Plug
- Duct Clamps (2)
- Mounting Hardware
Info & Guides
Info & Guides
AC Infinity CLOUDLINE T12 12-In Inline Duct Fan w/ LCD Thermal Cont...
Description
Description
Delivering user-friendly control of cooling, ventilation, and exhausting, the AC Infinity CLOUDLINE T12 12" Inline Duct Fan with LCD Thermal Controller is a must-have for any building owner or facility manager. With its 12-inch duct size, this is the largest fan of the CLOUDLINE T Series. Perfect for ventilating grow rooms, exhausting bathrooms and attics, room to room air transfers, and more, it delivers a smart airflow performance that manually controlled duct fans can’t match.

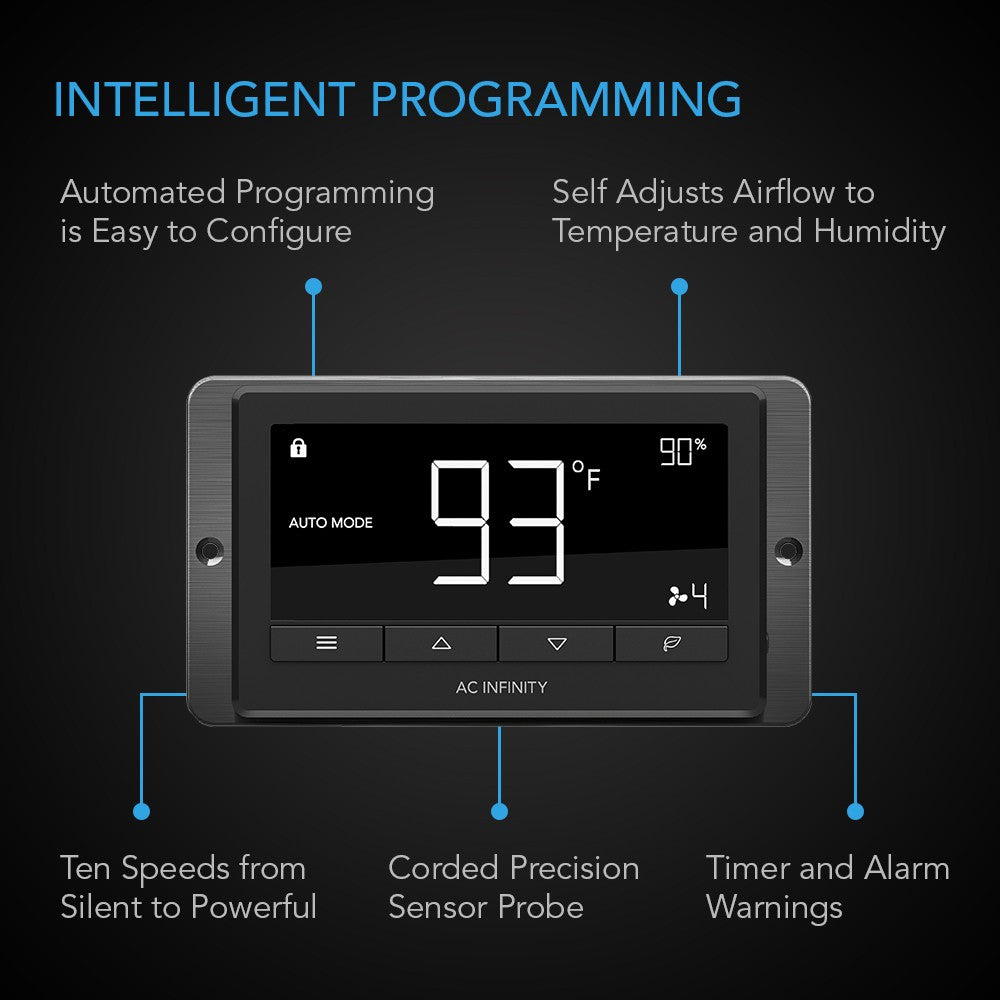

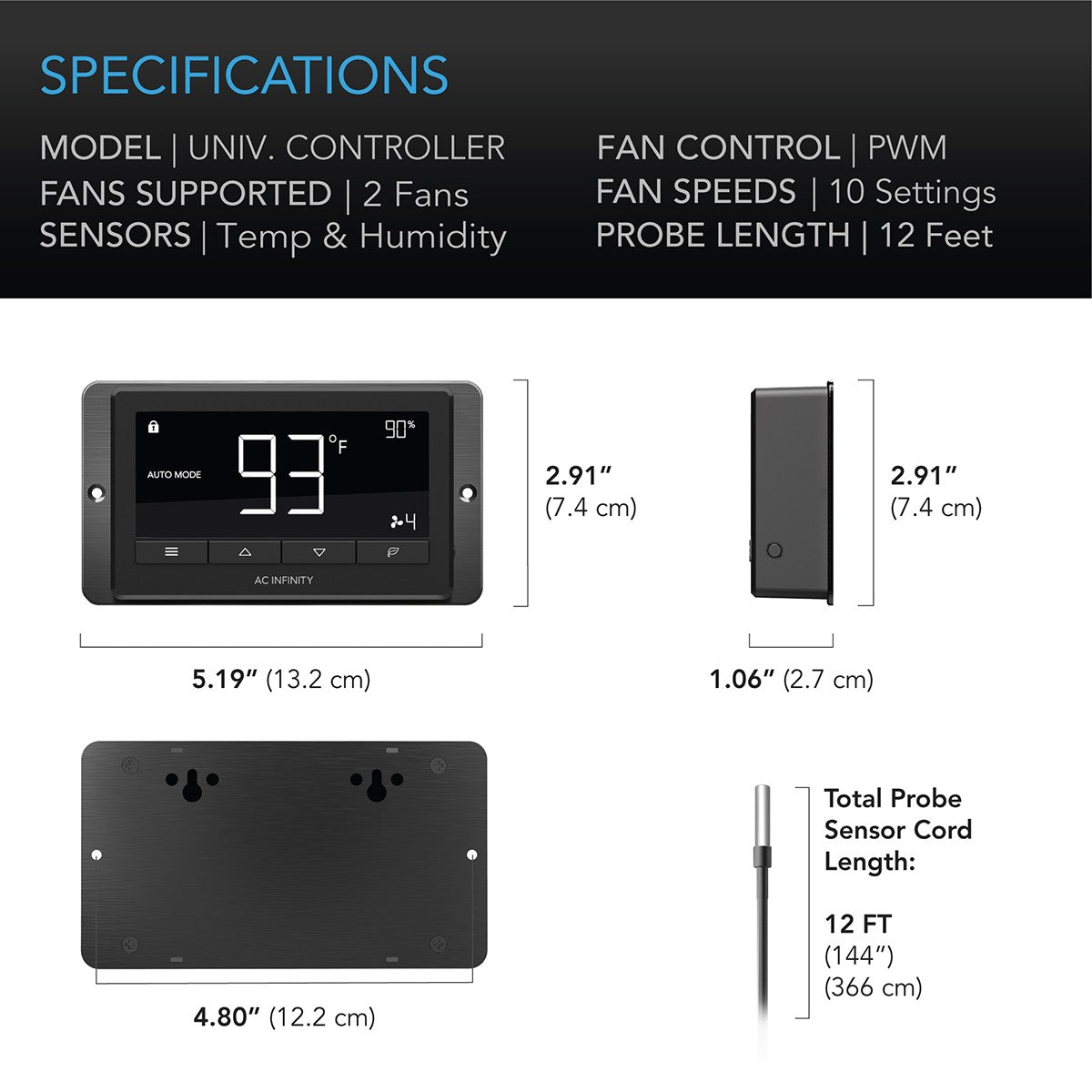

Smart Thermal Controller
Featuring an LCD thermal controller, this is a smart operating duct fan. Programmable it can be set to react to a variety of situations such as:
- Fan Speed Adjustments: Program the fan to automatically adjust the fan speed in response to fluctuations in humidity levels.
- Backup Memory: The AC Infinity AI-CLT12 can run continuously or be set to run at specific speeds when powered.

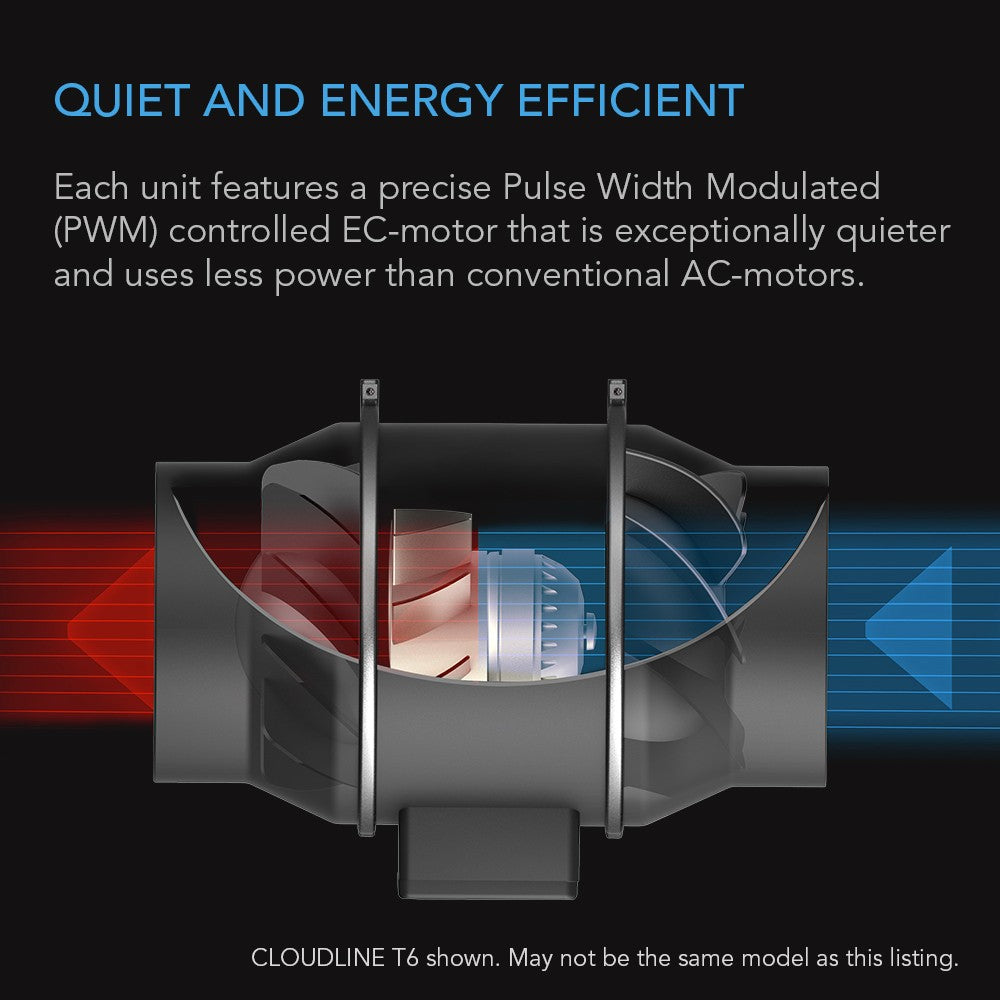

Featuring An Efficient EC-Motor
Its EC-motor design is what separates the AC Infinity CLOUDLINE from other duct fans that utilize AC-motors. Where an AC-motor suppresses voltage to control fan speeds, causing an uneven performance, this fan's EC-motor pulse width modulation (PWM) to deliver a smoother performance. EC-motors also eliminate heat creation and higher noise levels.
Built For Tough Environments
Effective in residential applications, this duct fan from AC Infinity is ideal for commercial/industrial settings too. It’s recommended for use in:

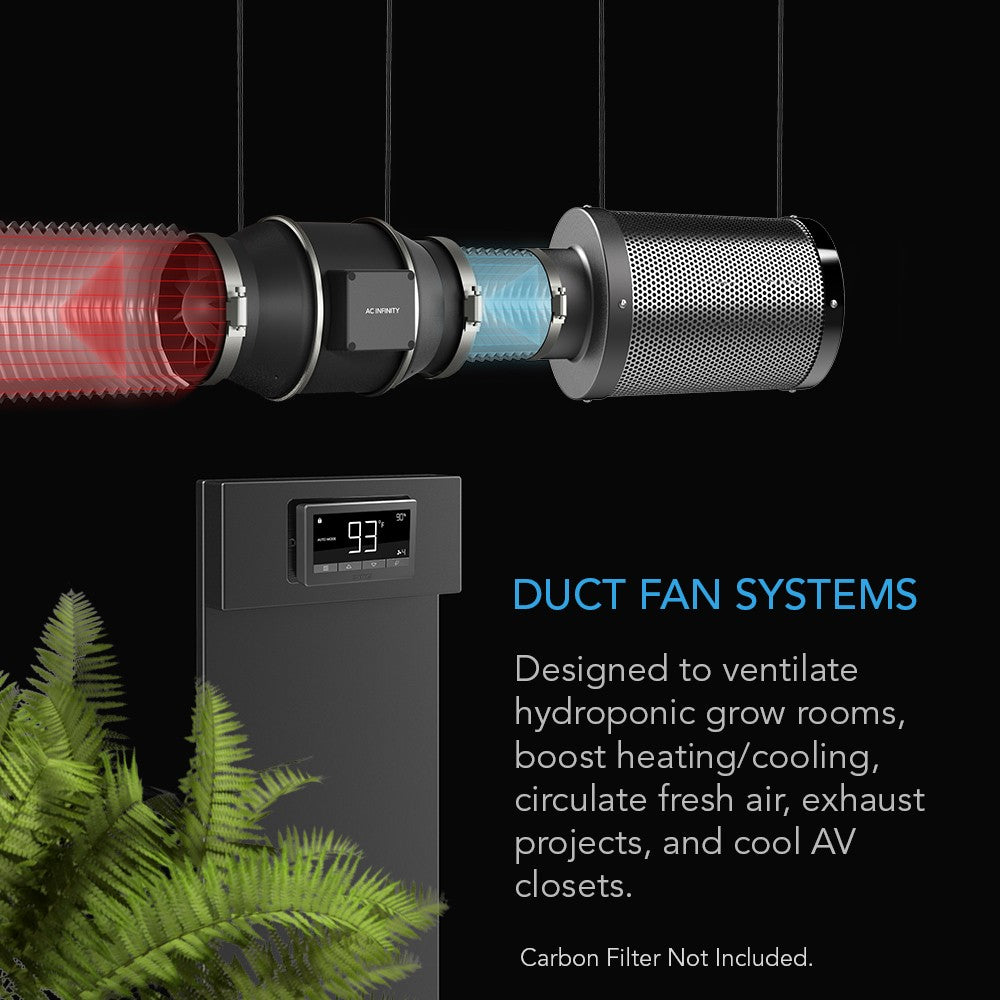

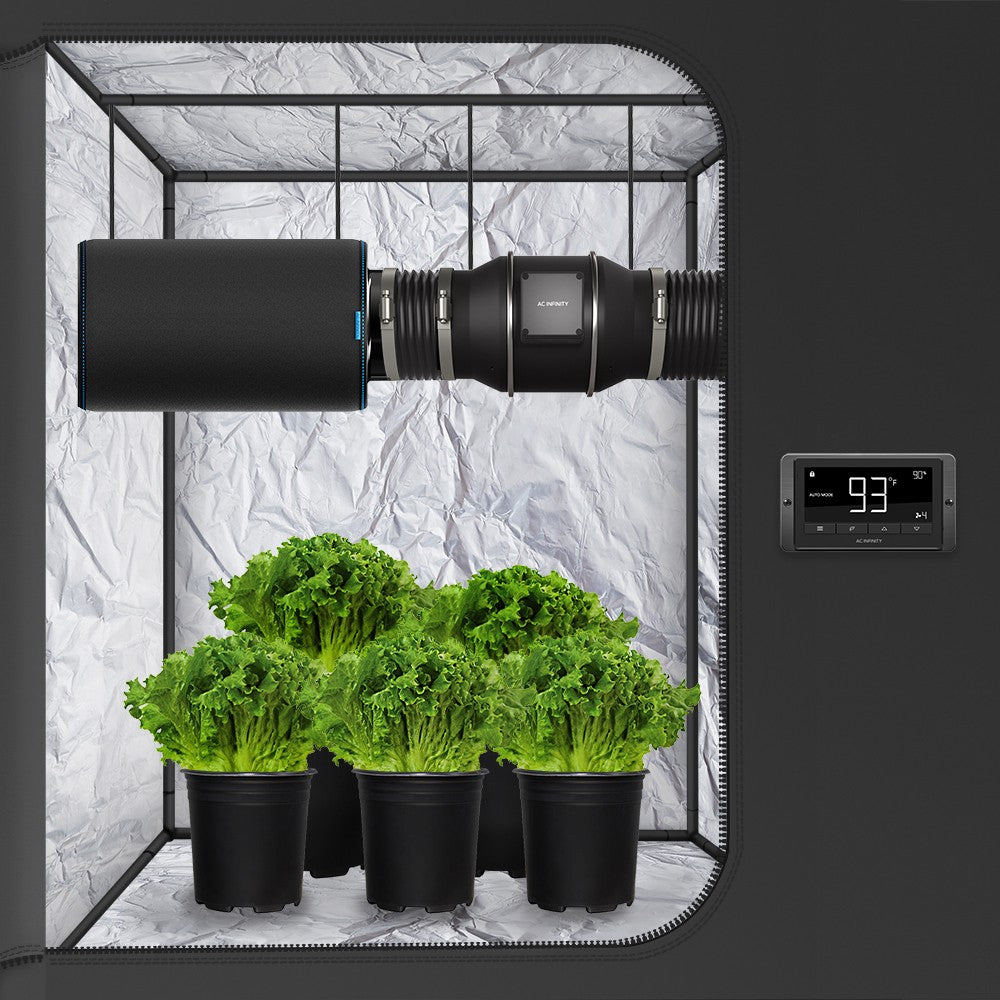

- Ventilating Hydroponic Grow Rooms/Tents

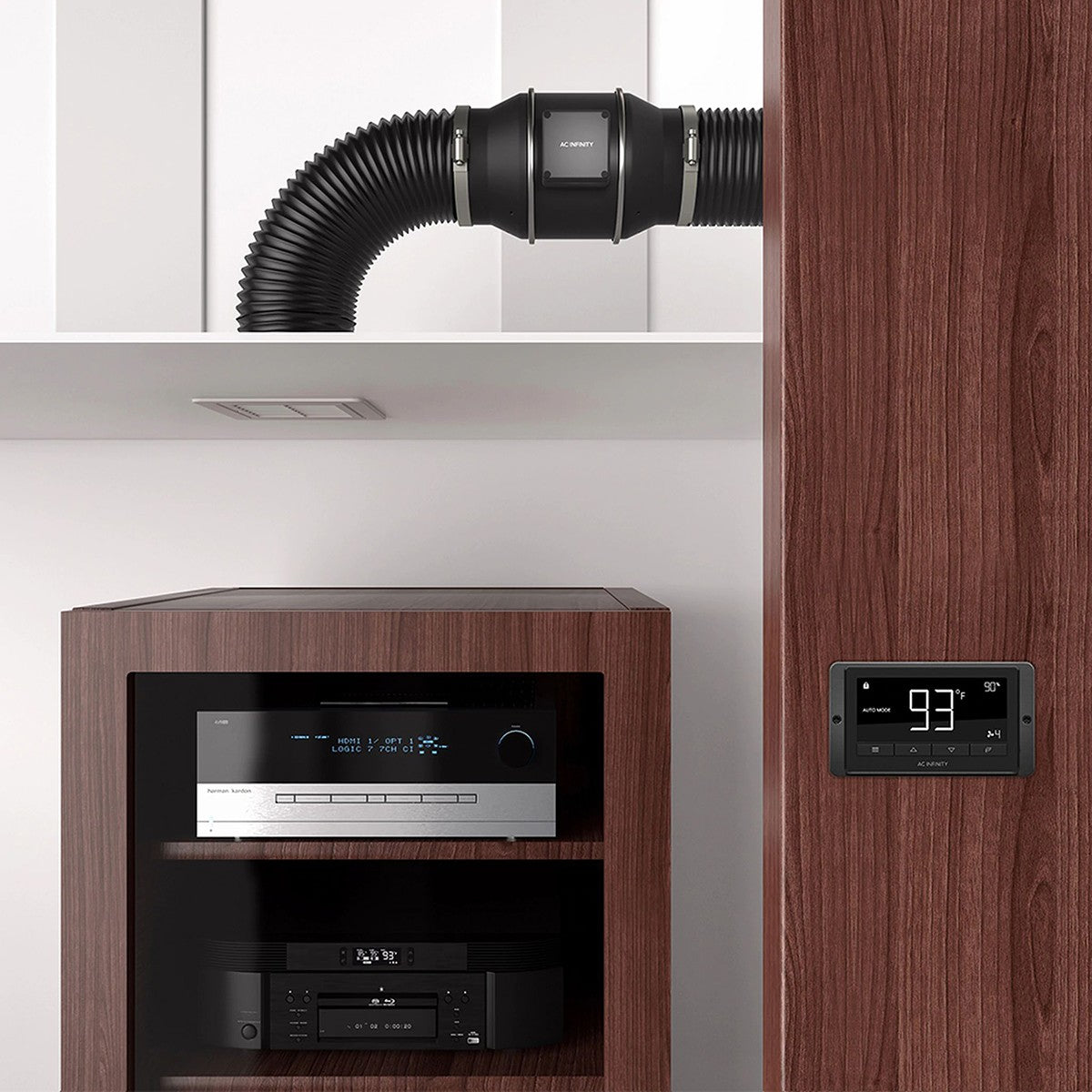

- Cooling AV Equipment Rooms

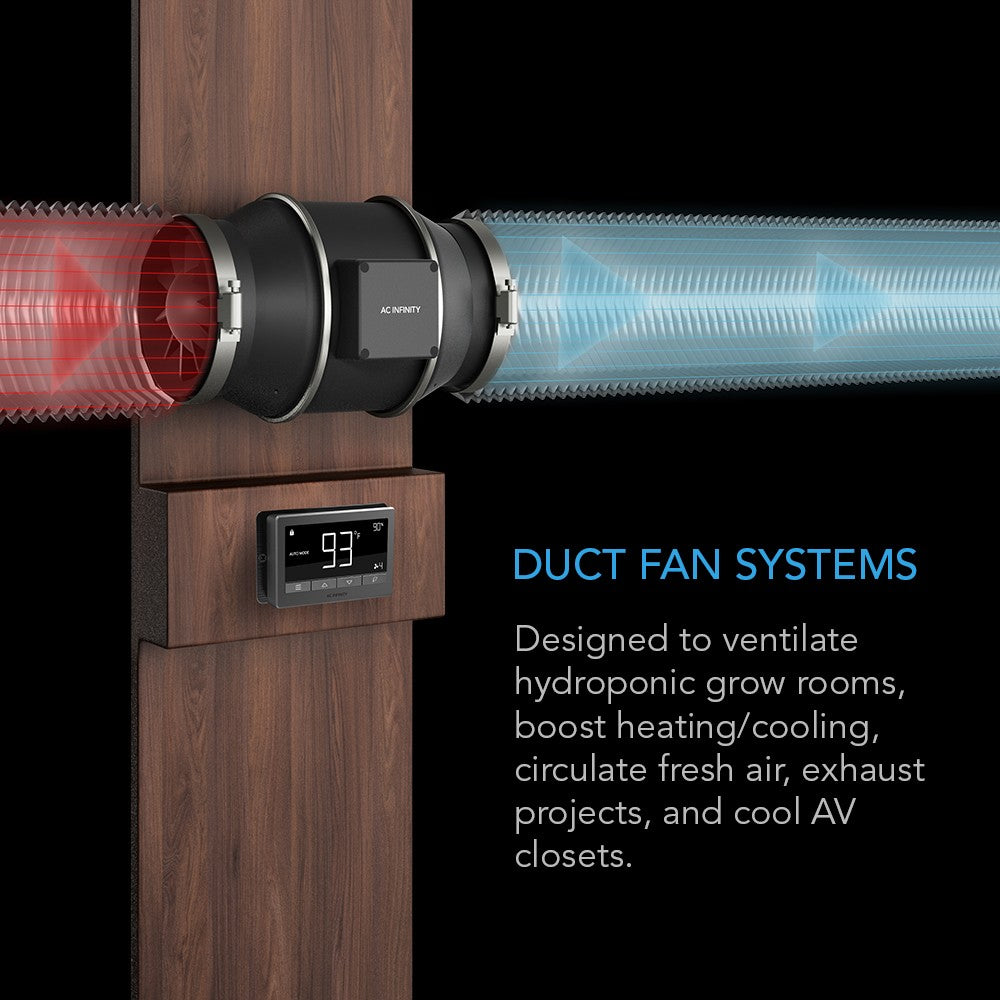

- Room to Room Cooled/Heated Air Transfers
- Exhausting Bathrooms or Attics
Additional Features
- Duct Size: 12-inches
- Maximum Airflow: 1,604 cubic feet per minute (CFM)
- Noise Level: 62 decibels
- High Static Pressure Rated: Creating hydrodynamic wind circles and featuring a stator blade, this unit’s mixed airflow design makes it effective in rooms where airflow is restricted.
- Programmable Timer: Set when the fan runs and when it turns off ahead of time.
- Alarm System: Alerts you to when there are issues with the system or the settings are outside of your set parameters.

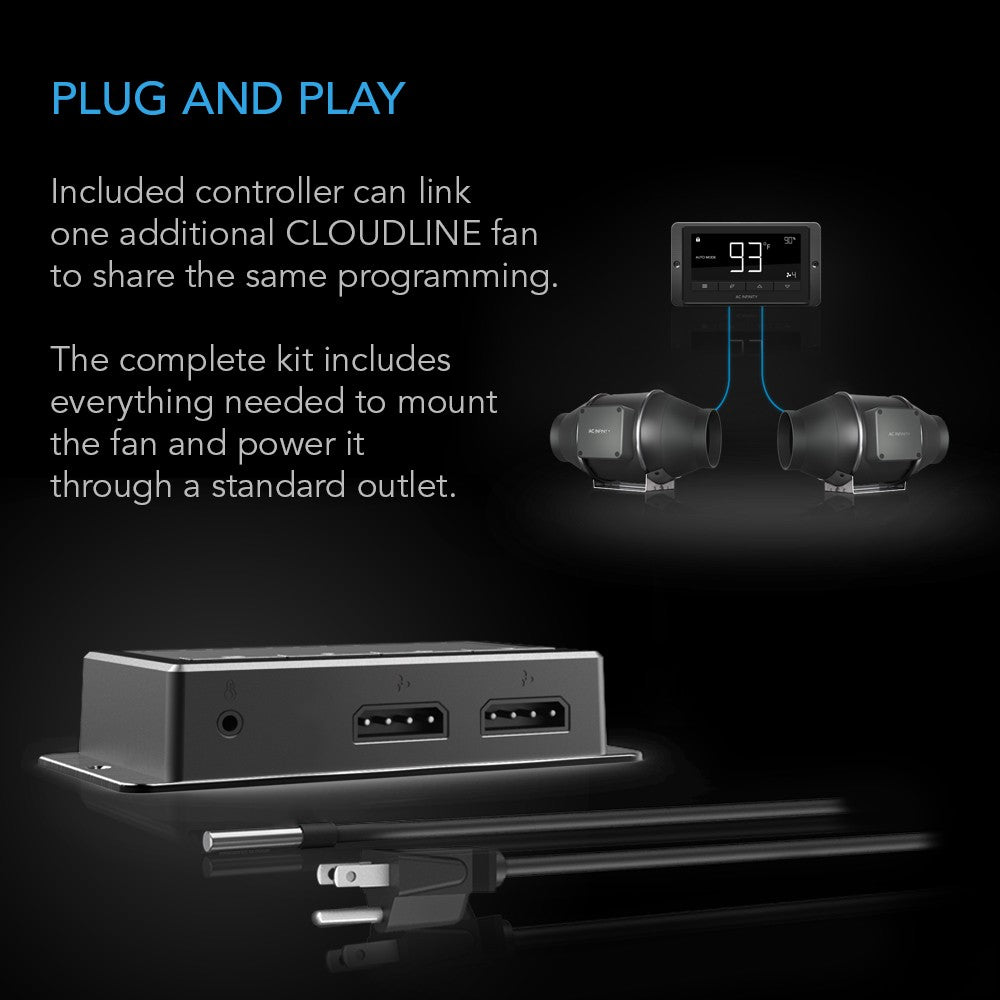

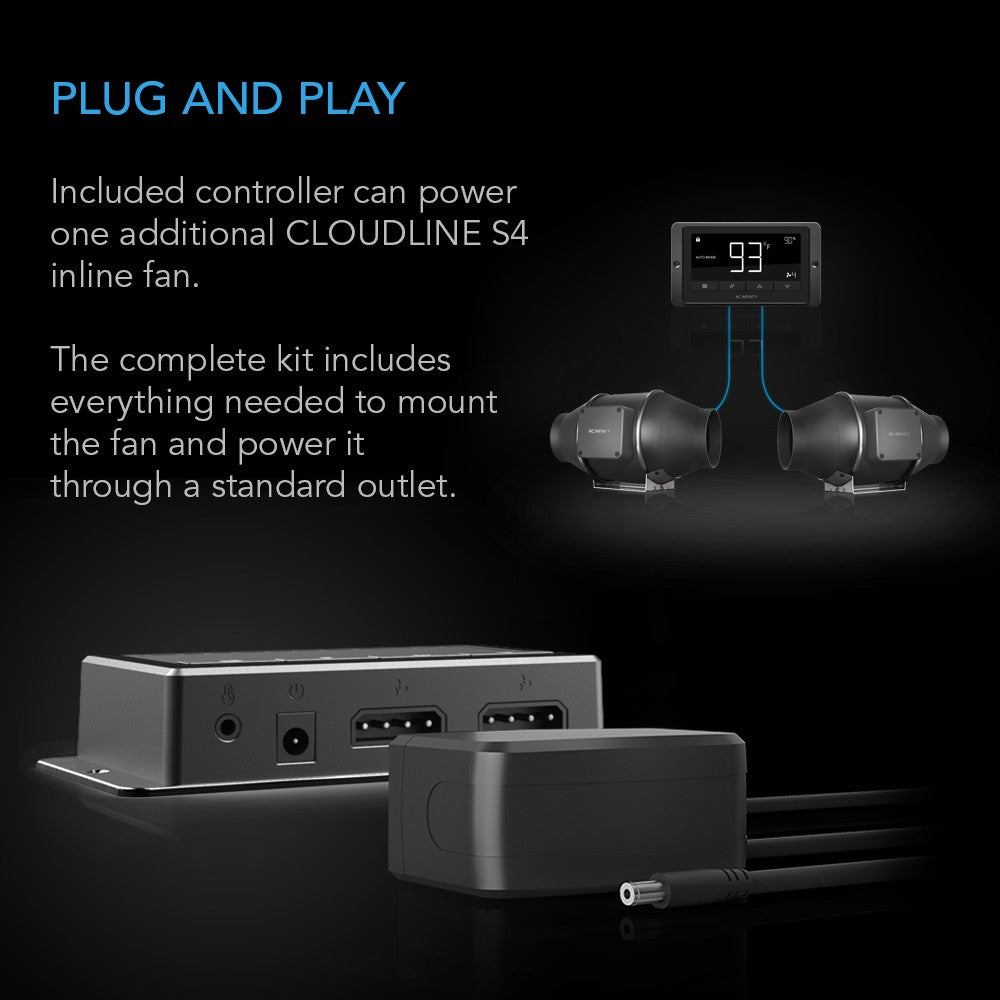

- Installation Made Easy: Its included materials feature a corded sensor probe, AC power cord, duct clamps, and necessary mounting hardware.
- Built For Tough Environments: IP44 rated, it’s resistant to dust and liquids.
- Life Expectancy: Its ball bearings are rated for up to 67,000 hours of use.
Summary
The largest fan of the AC Infinity T Series line, the AC Infinity AI-CLT12 ventilates and exhausts air in grow rooms, AV equipment rooms, bathrooms, attics, and more.
What Customers Love
- Smart Controller: It can be programmed to automatically adjust fan speed based on increases or decreases in humidity levels.
- Efficient Performance: Its EC-motor allows this unit to run more smoothly and quietly than AC-motor fans.

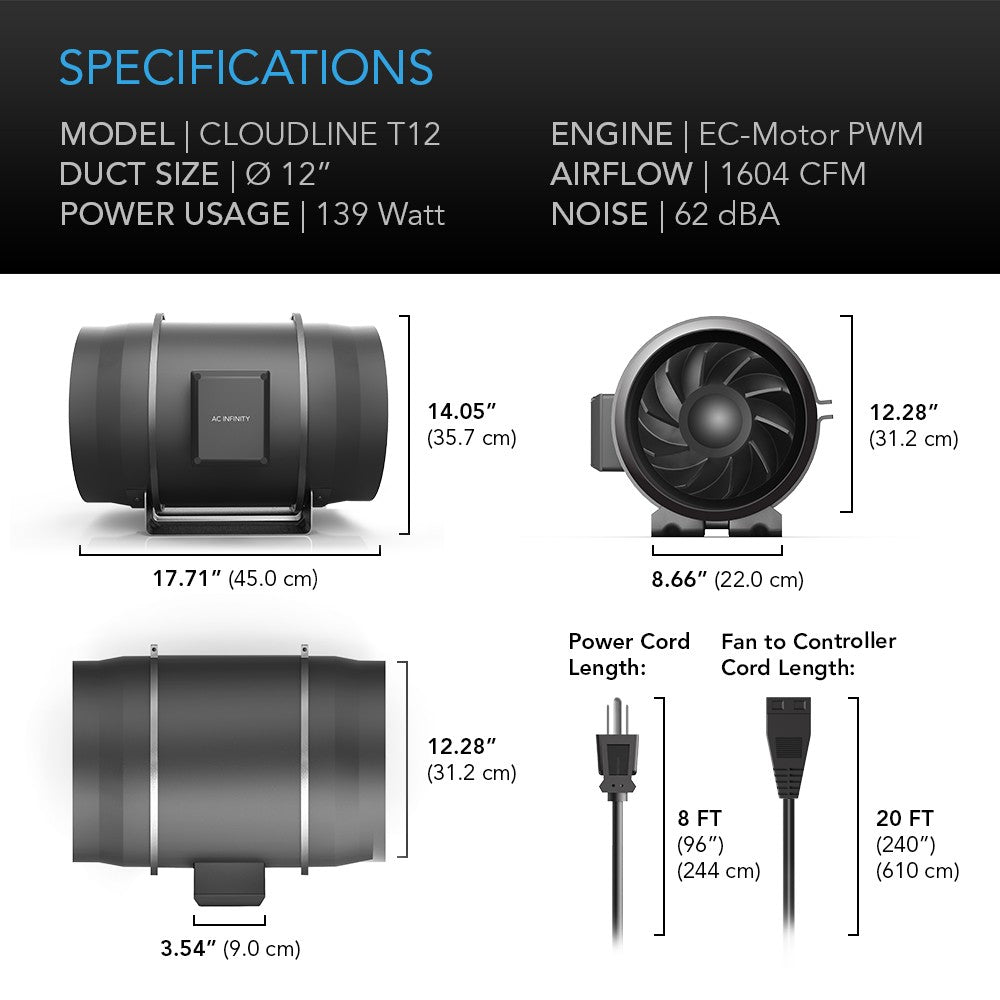

Specifications
Specifications
-
Number of Speeds8
-
Sound Level (Sones) (sones)2.5
-
TypeClassic Inline Duct Booster Fan
-
ApplicationDucting
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsCE
-
ColorBlack
-
ControlsElectronic
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)1604.0
-
Amperage (Amps)2.5
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)250
-
Depth (in.)14.05
-
Depth (with front cover) (in.)14.05
-
Duct Diameter (in.)12.0
-
Height (in.)12.28
-
Height (with front cover) (in.)12.28
-
Weight (lbs.)24.7
-
Width (in.)17.71
-
Width (with front cover) (in.)17.71
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty2-Year Limited Warranty
