AC Infinity AIRLIFT 12-Inch Shutter Exhaust Fan
AC Infinity AIRLIFT 12-Inch Shutter Exhaust Fan - w/ Speed Controller is backordered and will ship as soon as it is back in stock.

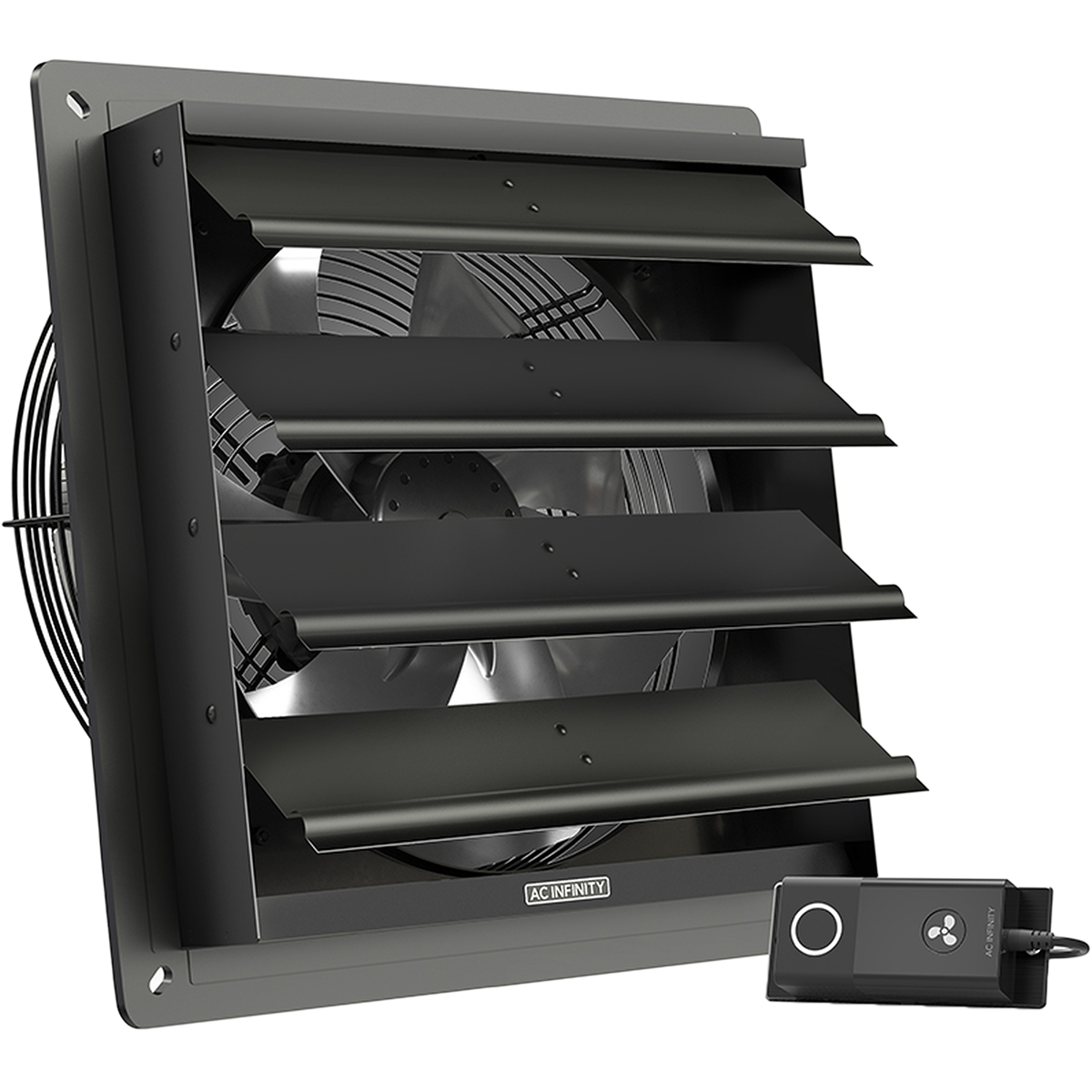

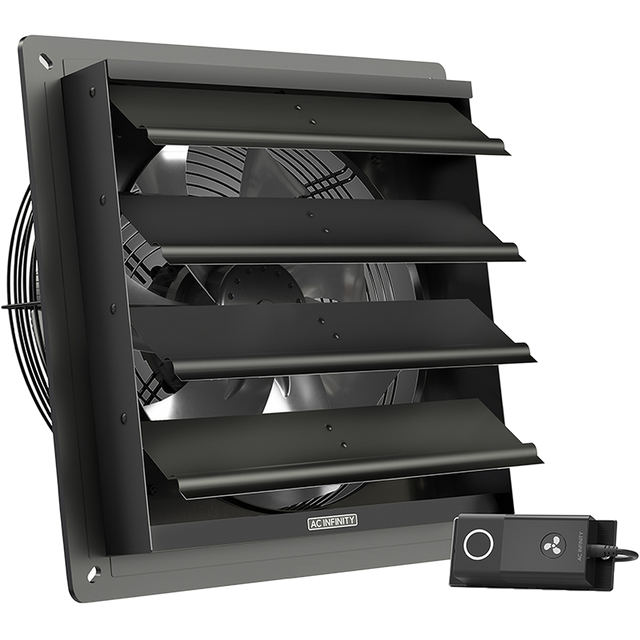

AC Infinity AIRLIFT 12-inch Shutter Exhaust Fans deliver high-airflow ventilation designed to exhaust heat, moisture, odor, and dust from a variety of spaces.
With an EC-motor that reduces vibration and noise, this weather resistant fan is durable and reliable. Available with an 8-speed controller, or with a temperature and humidity controller.
Durable Design

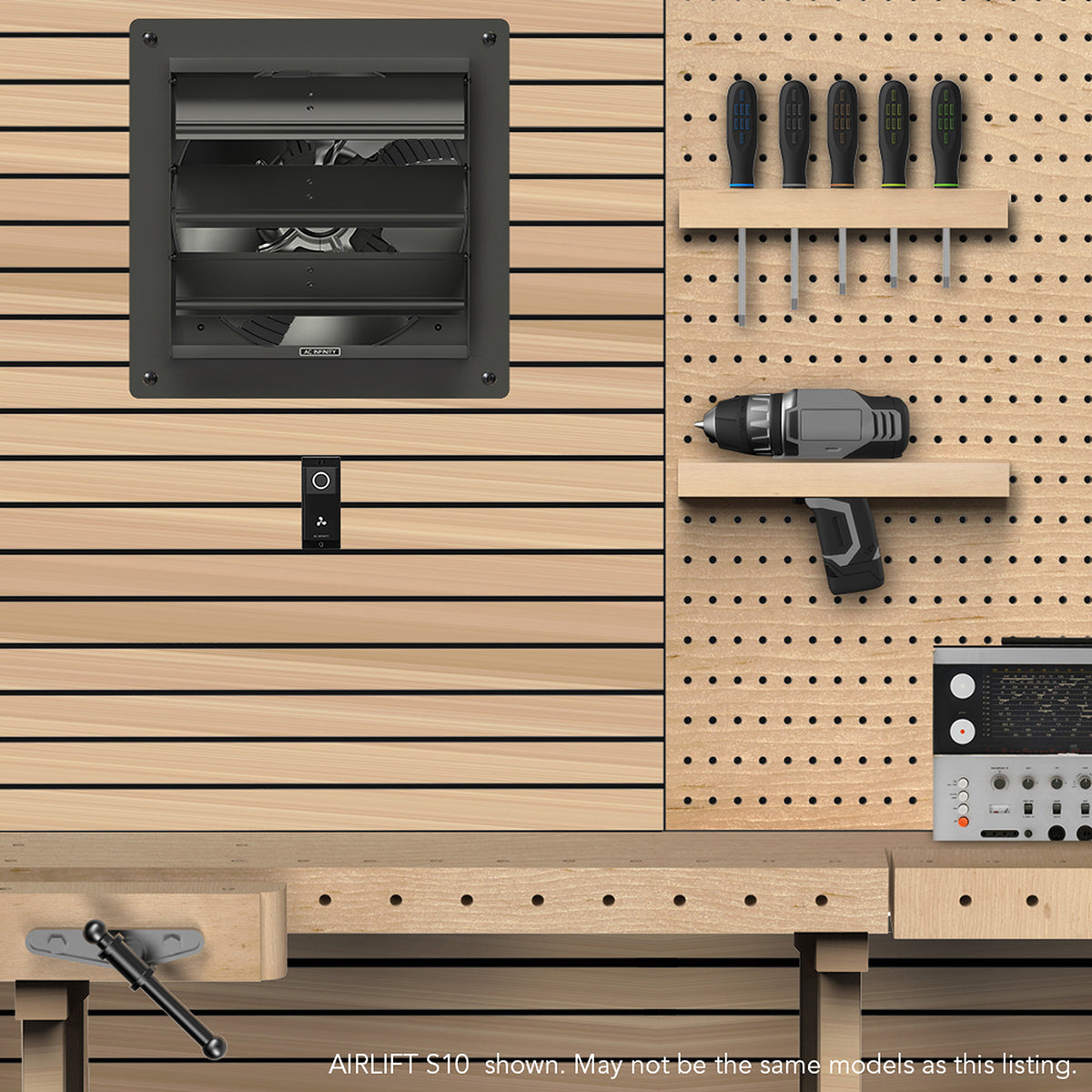

These ventilation fans are designed with durability in mind for year-round use in a variety of applications. Use them in a workshop or shed, garage, attic, and even greenhouses and livestock housing. Weather resistant, they’re IP-44 rated for liquid and dust
- EC Motor: This innovative motor is controlled electronically using Pulse Width Modulation (PWM) so fans maximize airflow while reducing power consumption as well as noise.
- Steel Shutters: Corrosive resistant, they withstand rough weather and automatically close when not in use.
- Aluminum Blades & Impeller: Constructed of lightweight aluminum and weight-balanced, vibration is reduced so noise level is only 62 dB.
Control Fan Speed

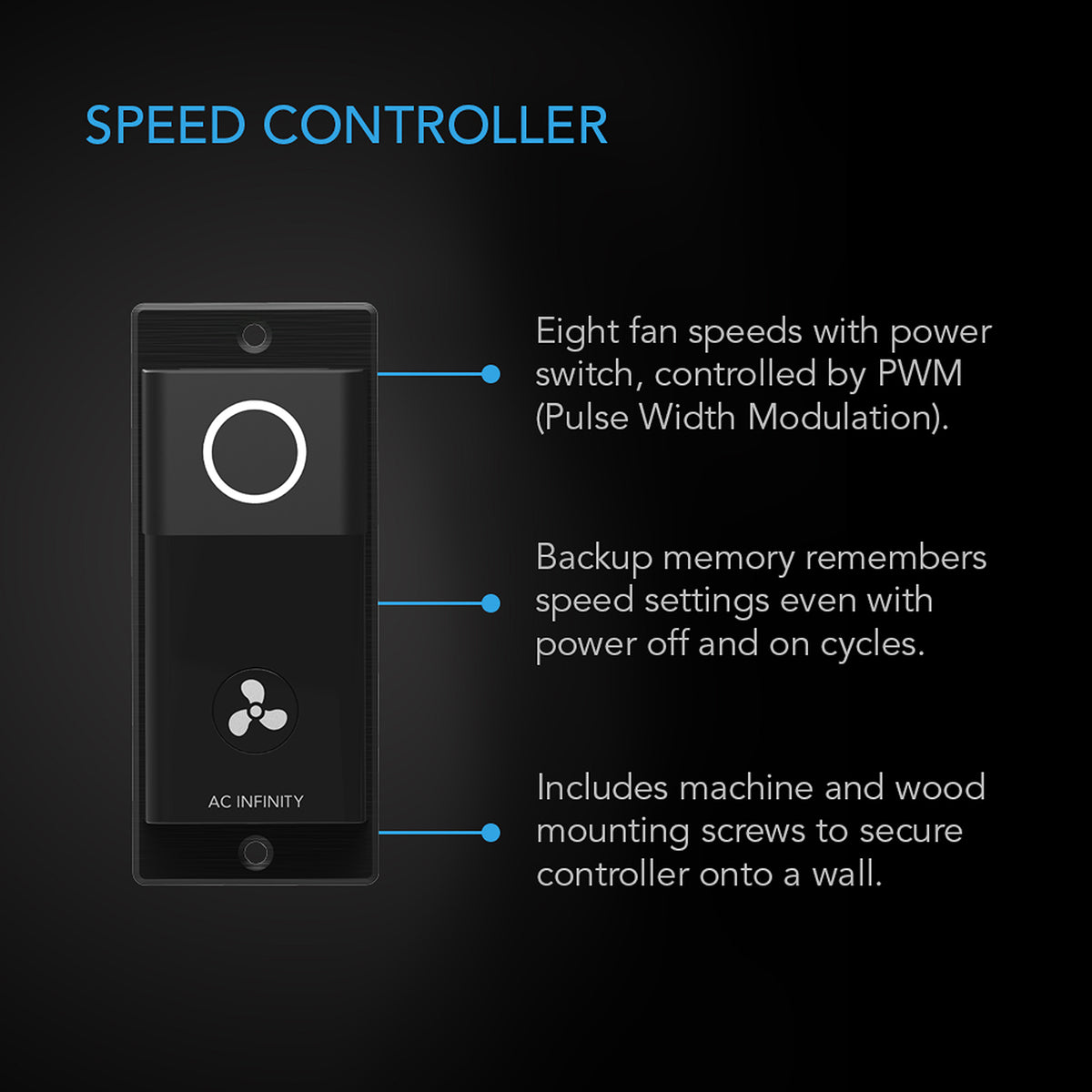

Select the ALS12 model if you need precise speed control. It comes with an inline 8-speed controller with power switch and backup memory, which allows you to set the shutter’s fan speed to the perfect noise and airflow levels for your environment. The fan’s motor with PWM enables it to run smoothly at low RPM speeds without generating heat or motor noises.
Program Temperature & Humidity
The ALT12 model features an active temperature and humidity monitor, so you can program the fan speed to automatically adjust for set temperature and humidity levels. Program to run continuously or on a timer at custom speeds.
Additional features include alarm warnings, fan failure alerts, eco-mode, and backup memory. The included 12-foot sensor probe plugs into the controller providing temp & humidity readings and can control up to two AIRLIFT series fans.
Additional Features

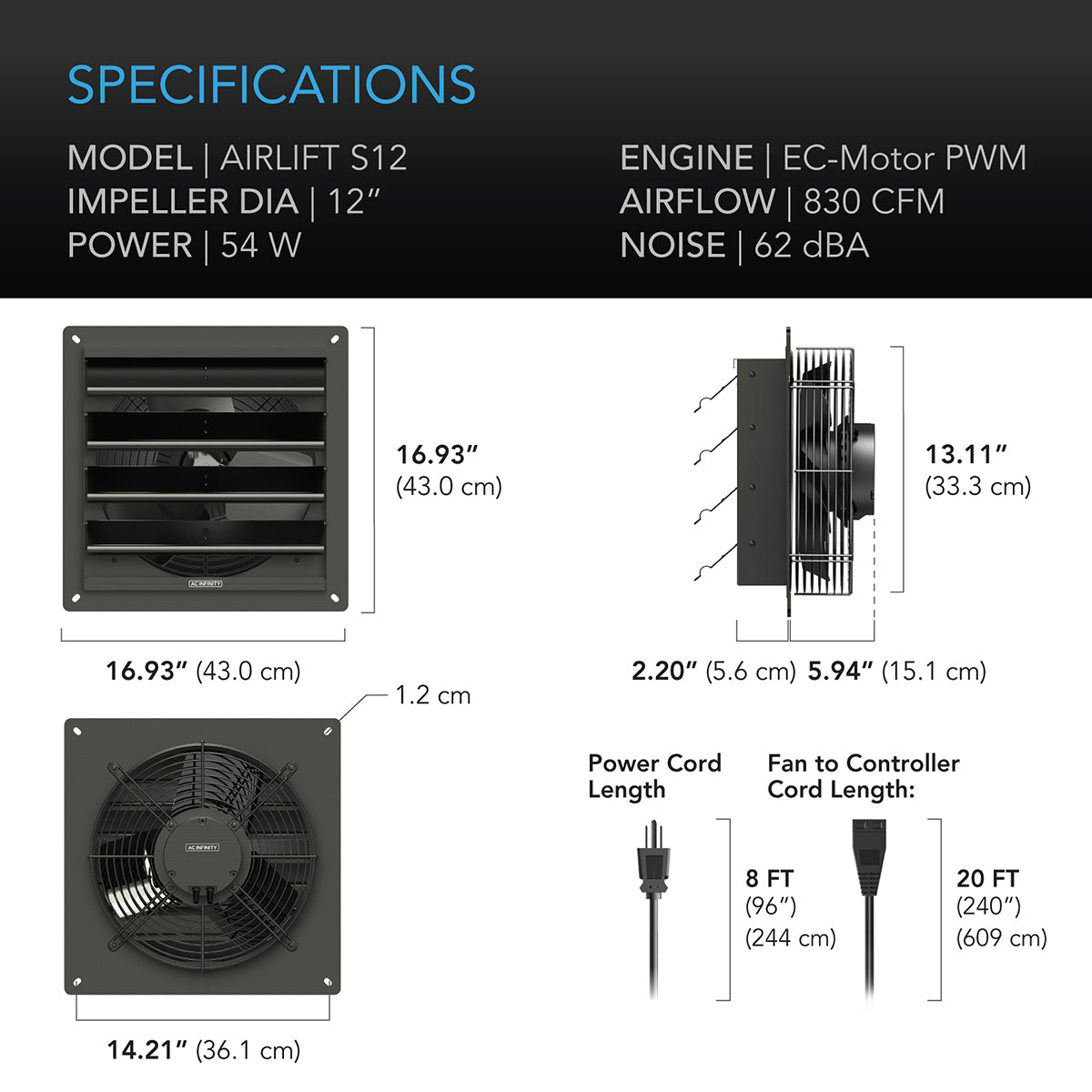

- Fan Size: 12-inch fan has overall dimensions of 15.75 x 15.75 x 6.42 inches.
- Airflow: Maximum airflow for these fans is 830 CFM.
- Required Mounting Hole: 13.54 x 13.54 inches.
- Controller Cord: The controller has a 20-foot cord for great versatility in placement.

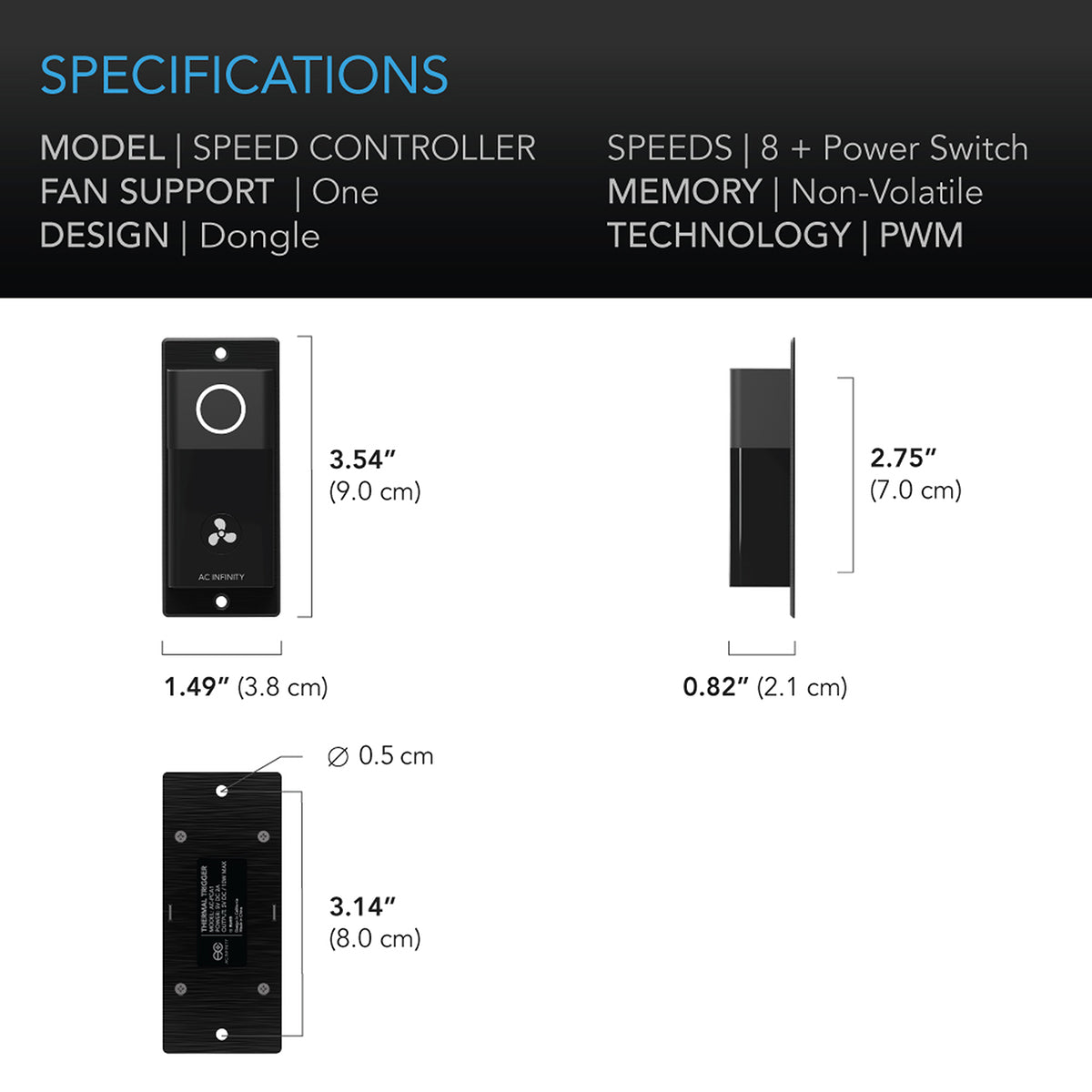

- Fan-Speed Controller Dimensions: 3.34 x 2.94 x 0.51 inches
- Temp/Humidity Controller Dimensions: 5.19 x 2.91 x 1.06 inches.
- Power Cord Length: 8-foot power cord for easy installation.
- Mounting: Can be mounted vertically or horizontally.
Summary
The AC Infinity AIRLIFT 12-inch Shutter Ventilation Fans are made from high-quality, durable materials, an EC-motor, and is available with either an 8-speed controller or programmable temperature & humidity controller.
-
Number of Speeds8
-
Sound Level (Sones) (sones)2.5
-
TypeShutter Exhaust Fan
-
ApplicationResidential, Garage/Workshop, Basement, Crawlspace, Commercial/Industrial, Attic
-
CertificationsCE
-
ColorBlack
-
ControlsElectronic
-
Housing MaterialSteel
-
Maximum Cubic Feet per Minute (CFM) (CFM)830.0
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.
-
Maximum Amperage (Amps)0.75
-
Power SupplyElectric
-
Voltage (V)110-120
-
Watts (W)54
-
Wiring StylePlug
-
Ceiling or Wall Cutout Length (in.)13.54
-
Ceiling or Wall Cutout Width (in.)13.54
-
Depth (in.)6.42
-
Height (in.)15.75
-
Shutter Fan Size (in.)12
-
Weight (lbs.)14
-
Width (in.)15.75
-
Manufacturer's Warranty2-Year Warranty
Key Specifications
General
Power
Dimensions
Warranty
Recommended Accessories
-
-
AC Infinity
Controller 63 Wireless Remote Fan Speed Controller
Regular price $29.99Unit priceUnavailable -
-
AC Infinity
Controller Sensor Probe Corded Climate Detector
Regular price $15.99Unit priceUnavailable
- CCrankinSteveReviewingAC Infinity AIRLIFT 12-Inch Shutter Exhaust FanI recommend this productRated 5 out of 5 stars3 years agoQuality in Every Way
Easily installed this into the ceiling of garage using very well written instructions. Power cable length of 8 feet is very helpful. Long cord on control module made placement of it easy. The unit is of very high quality. Since I just installed it I don't yet know how well it will do reducing the temperature in the garage, but I am optimistic. The only issue I had was that becuase I installed it horizontally in the ceiling the baffles would not close automatically after being fully open. I put two small rubber bumpers on one of the baffles that allowed it to open only about 98% which kept it from gettng stuck when the fan shut down. So, problem is 100% solved.
- RRichardVerified BuyerReviewingAC Infinity AIRLIFT 12-Inch Shutter Exhaust FanI recommend this productRated 5 out of 5 stars4 years agoSuperior quality
Great product. Easy installation and very quiet operation. Perfect for reducing high humidity and high temperature.
