Air-Care Bio Cart HEPA Mobile Dust Containment Kit
Air-Care Bio Cart HEPA Mobile Dust Containment Kit - 15 HEPA Premium is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Air-Care Bio Cart HEPA Mobile Dust Containment Kit 10 or 15
- HEPA Filter
- Electrostatic Pre-Filter
- UVC/UVGI Germicidal Lamp (Bio-Cart 15 Only)
- Portable Vacuum (Bio-Cart 15 Only)
- Camera Remote
- Bellows Remote Keyfob
- Door Locking Key
- Owner's Manual
Air-Care Bio Cart HEPA Mobile Dust Containment Kit
Description
Description
The Air-Care Bio Cart HEPA Mobile Dust Containment Kit is essential for maintaining a clean and healthy indoor environment when maintenance or installation is required. It is a solution for any facility and is designed for professionals who need to access space above ceilings without contaminating the room or the surrounding area. The mobile design offers flexibility and easy access for IT professionals or electrical contractors in hospitals, laboratories, medical centers, universities, and other facilities.

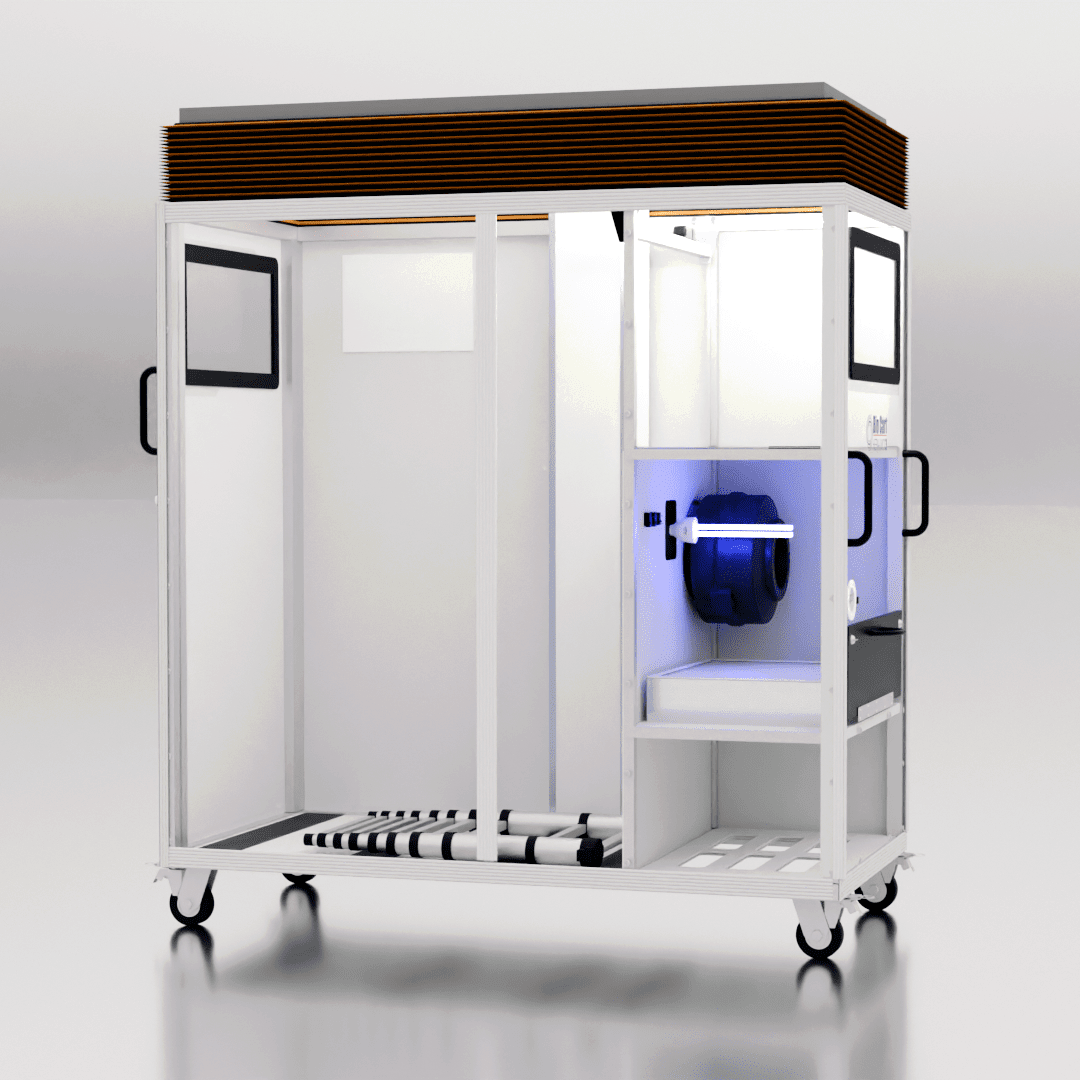

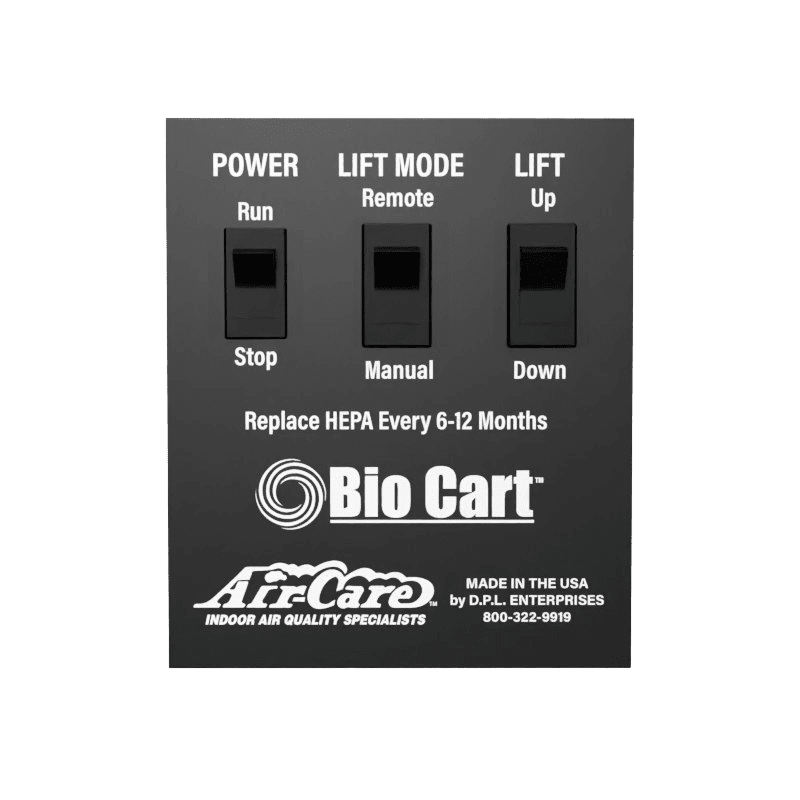

When the air scrubber is on and the fire-retardant bellows are extended, they maintain an environment with negative pressure at all heights without “billowing” into the cart. The control panel inside the cart operates the bellows by a power lift or a remote control, which works outside the cart.
- Air Scrubber Fan: Uses an 880 CFM fan with variable speed control capable of reaching up to six air changes per minute and only 62 dB at maximum speed.

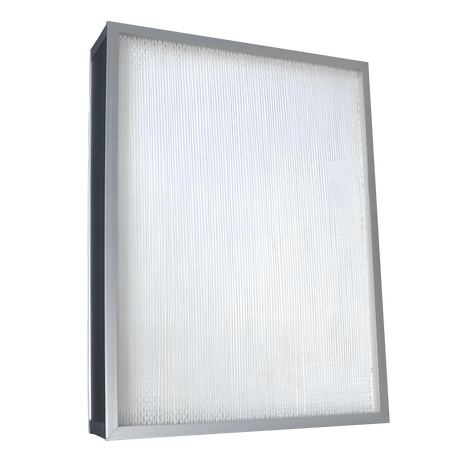

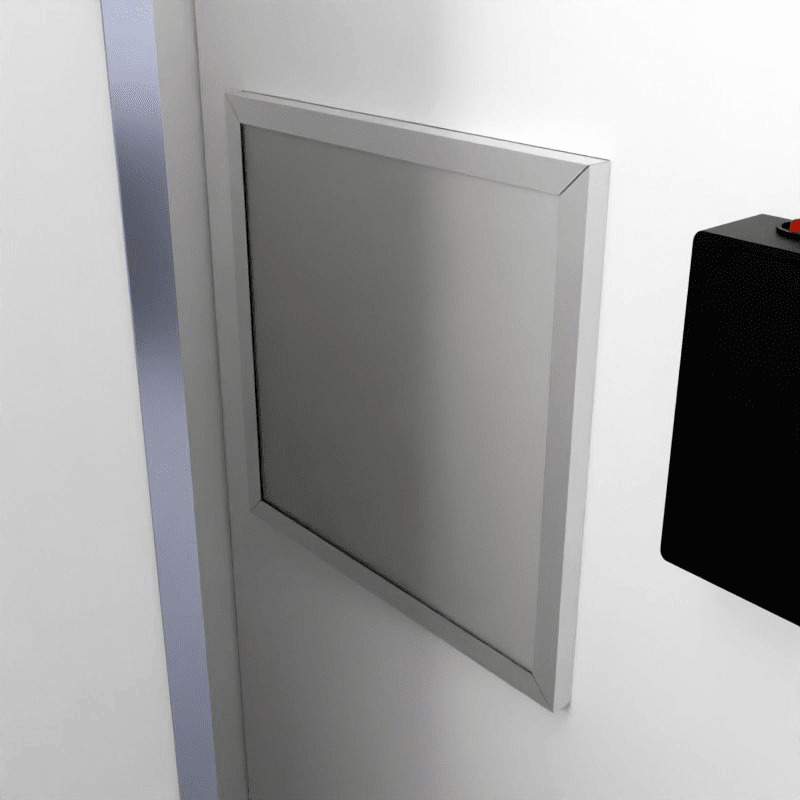

- Filtration System: Both Bio Carts include a replaceable electrostatic pre-filter and a HEPA filter, eliminating 99.97 percent of airborne particles as small as 0.3 microns.
- Caution Sign: When the cart operates, an “IN USE” LED sign illuminates to help maintain safety.
- Swivel Wheels: Four non-marking swivel wheels make it easy for anyone to navigate this cart through long halls or tight areas. Two wheels have swivel locks, and the other two have wheel brakes. Each wheel is 4 inches in diameter and 2 inches wide.
- Ideal for Various Jobs: Engineered for use in rooms where accessing the space above the ceiling risks the integrity of the room’s indoor air, this dust containment kit is typically utilized during IT cabling projects, electrical systems installation, plumbing installation, clean room alterations, HVAC maintenance, pneumatic tubing installation, light fixture relamping and ballast replacement, or asbestos inspection and activities.

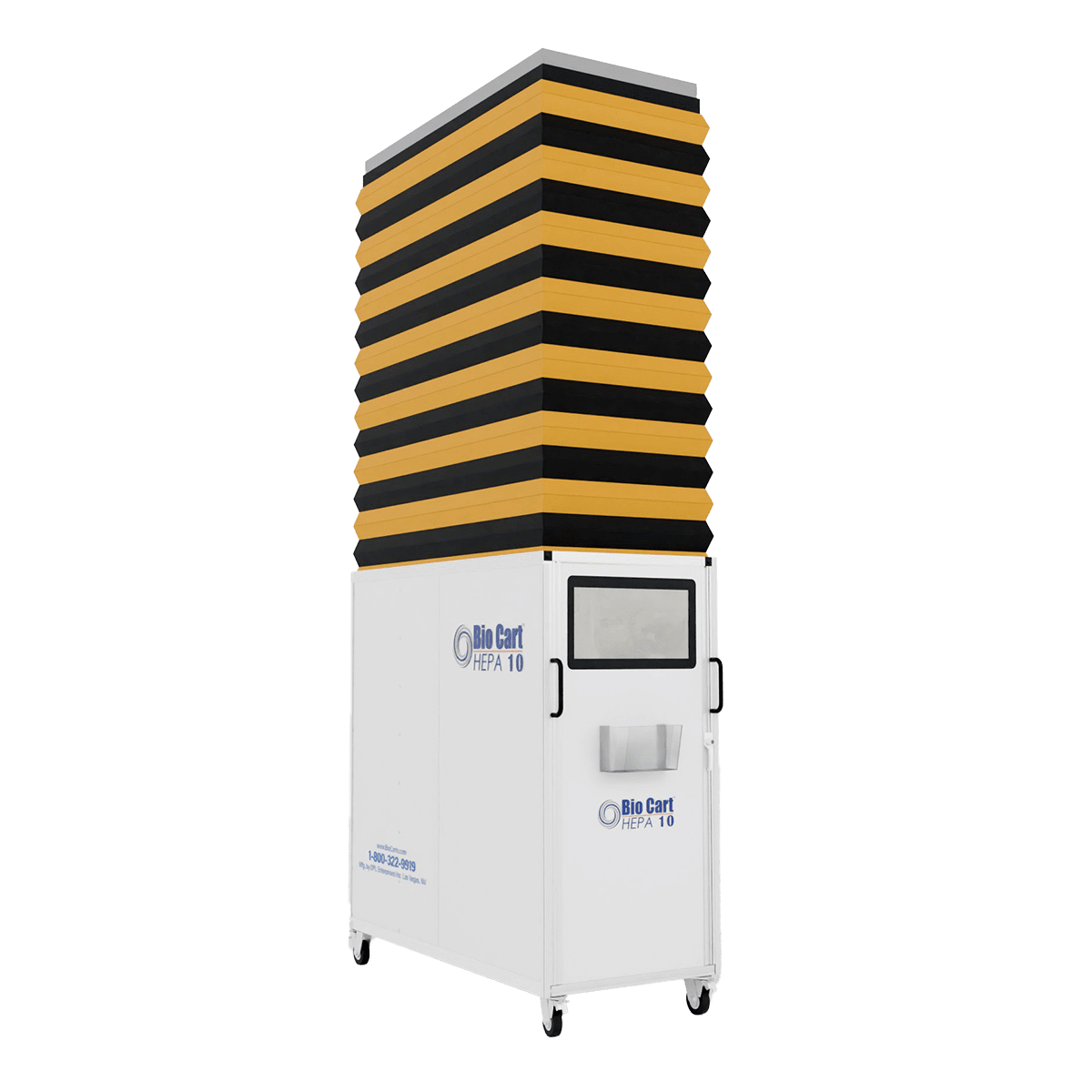

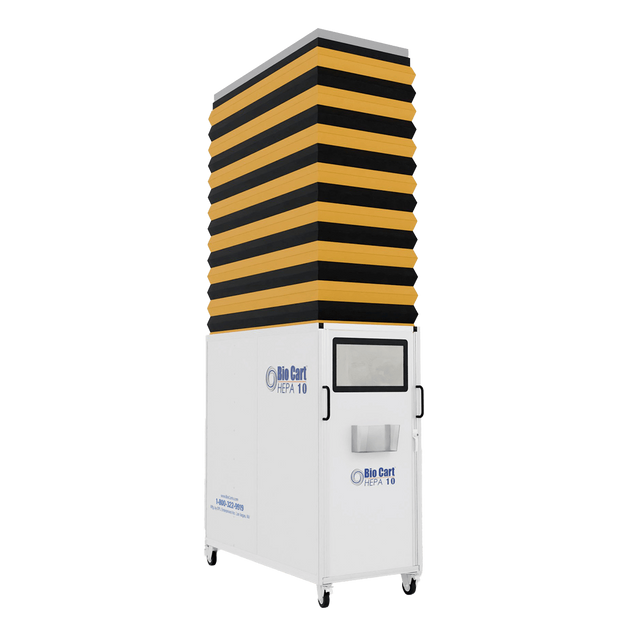

The Bio Cart 10

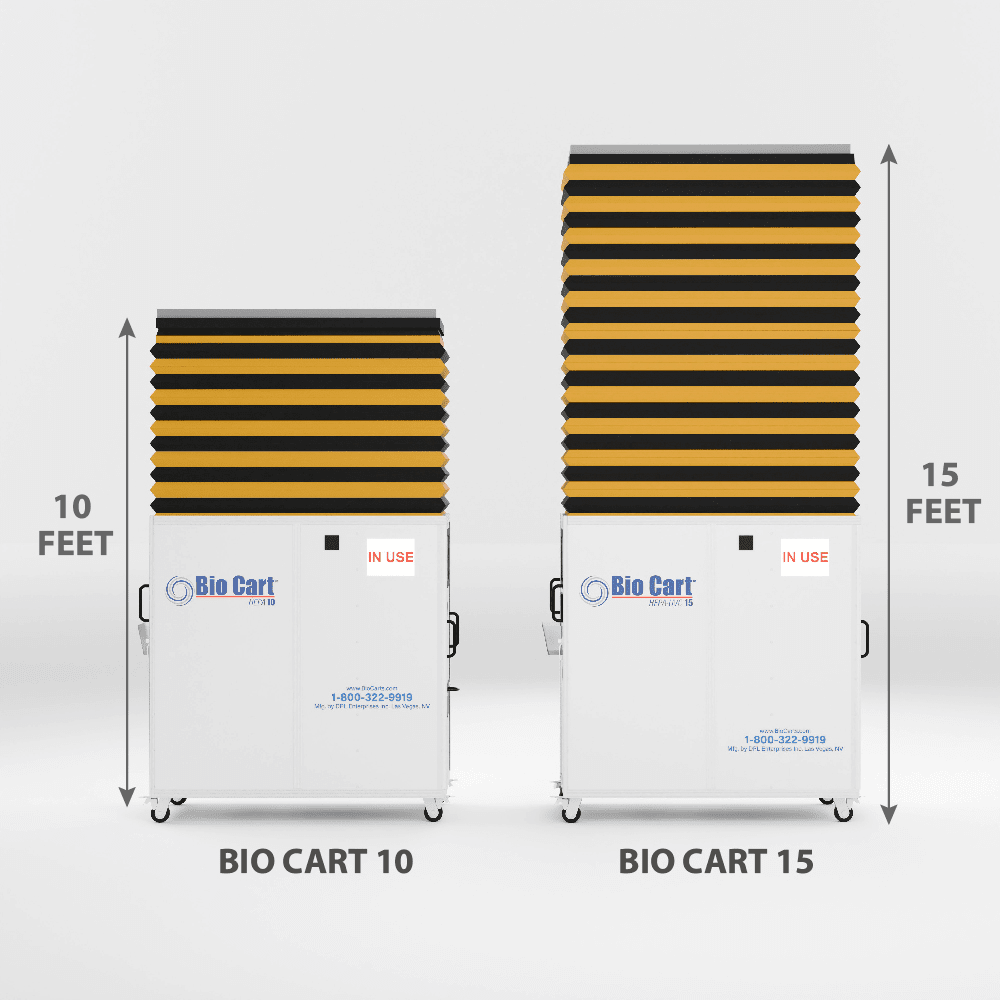

Perfect for most commercial or industrial building ceilings, the Air-Care Bio Cart 10 easily fits through most doors and elevators and measures 73 x 32 x 120 inches (L x W x H) when fully extended.

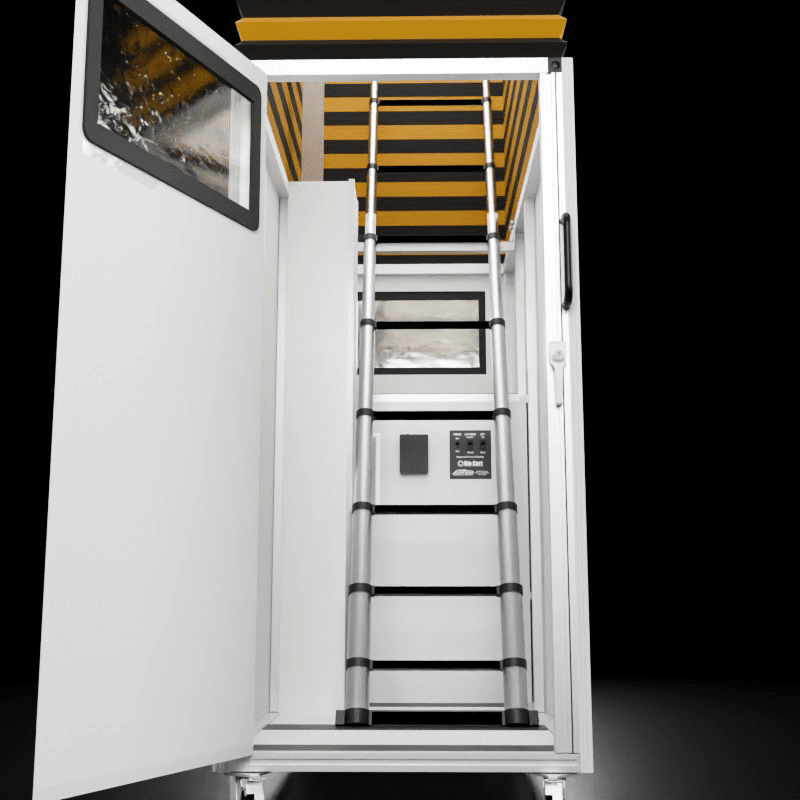

- Extension Ladder: The 12-foot telescoping aluminum ladder has a three-section extension design that is class A-rated for 300 pounds. It meets OSHA electrical safety requirements and can be transported on elevators and through doors without being removed from the cart.
- Top Lifting Mechanism: With a foam seal at the top, this power lift system can reach ceilings from 7 to 10.2 feet.

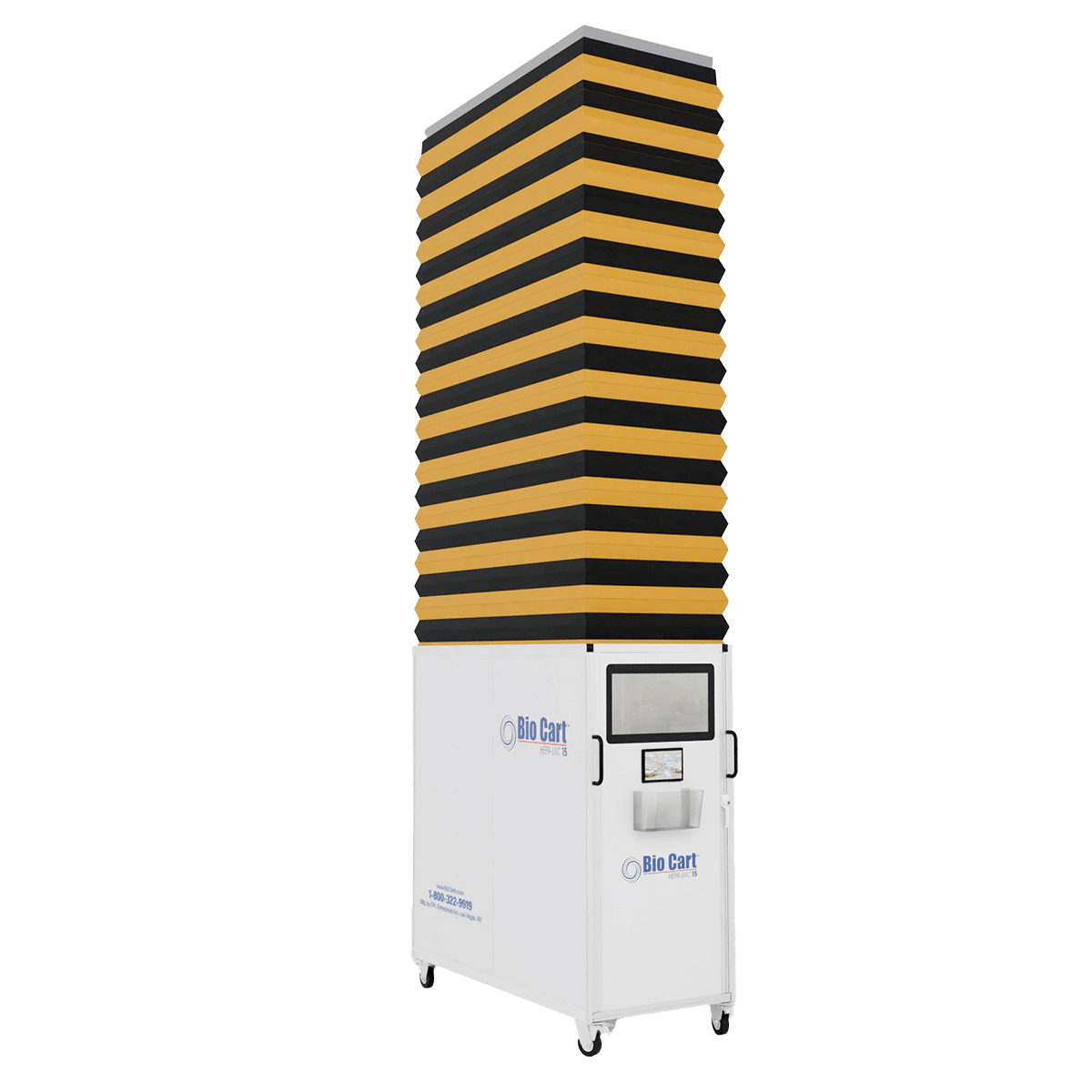

The Bio Cart 15
The Air-Care Bio Cart 15 is an upgraded containment kit for taller ceilings. When fully extended, it measures 73 x 32 x 182 inches (L x W x H). It also includes additional premium features:

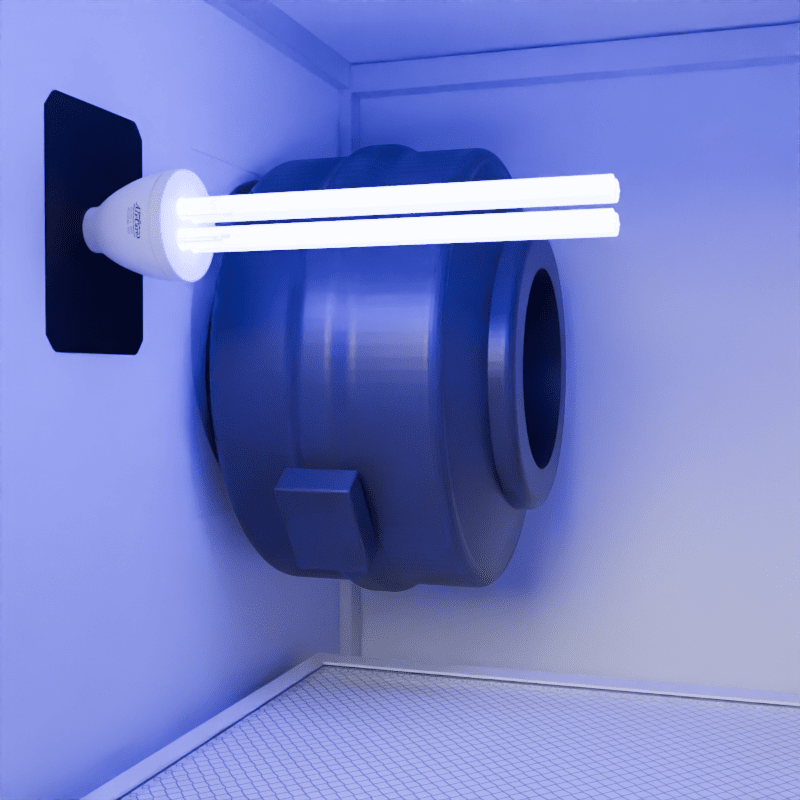

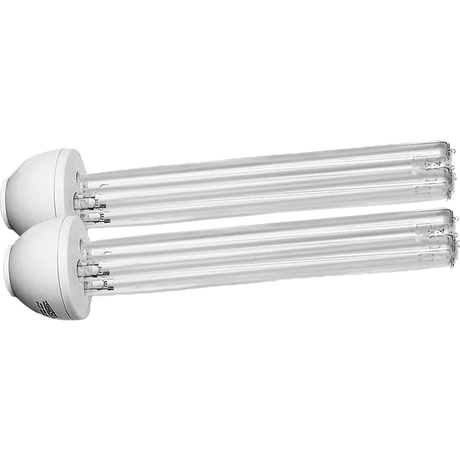

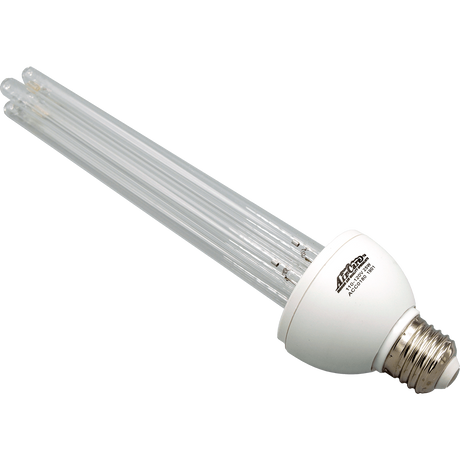

- Filtration: A UVC/UVGI germicidal lamp in the HEPA chamber adds another layer of protection against biological contaminants.
- Onboard Camera and Monitor: The rear-mounted 10-inch viewing monitor is connected to the front-mounted camera, allowing you to easily maneuver around corners and objects. The onboard battery provides up to 2 hours of operation on a full charge, and a remote control is included to operate the camera.
- Extension Ladder: The 15-foot telescoping aluminum ladder has a three-section extension design that meets OSHA electrical safety requirements. It is class A-rated for 300 pounds and can be transported on elevators and through doors without being removed from the cart.
- Top Lifting Mechanism: This multi-stage power lift has a foam seal at the top and can reach ceilings from 7 to 15.2 feet.

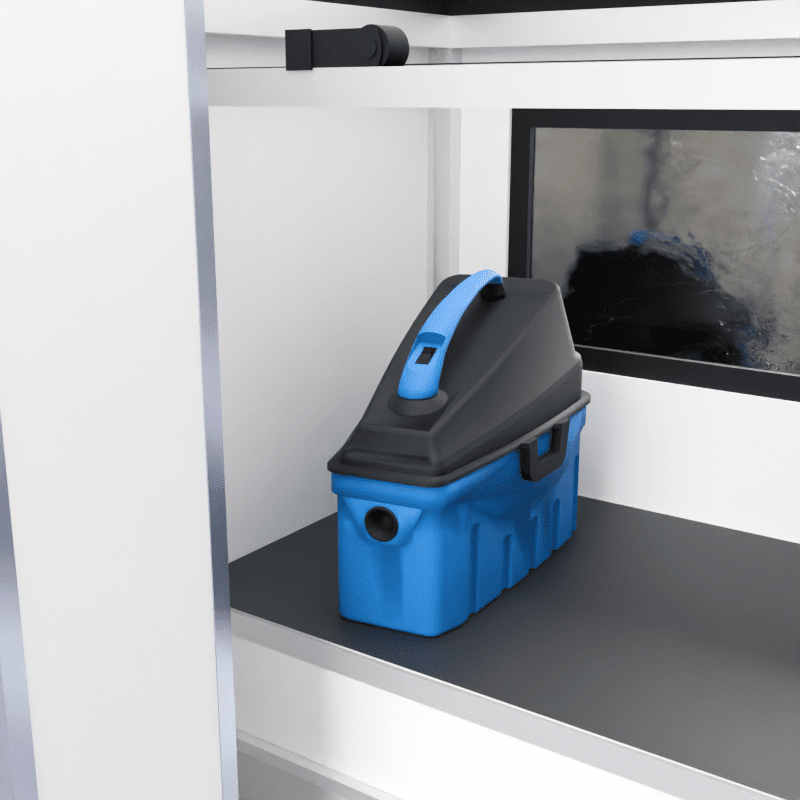

- Portable Vacuum: A portable 3 gallon wet/dry shop vac comes with the Bio Cart 15.
Additional Features

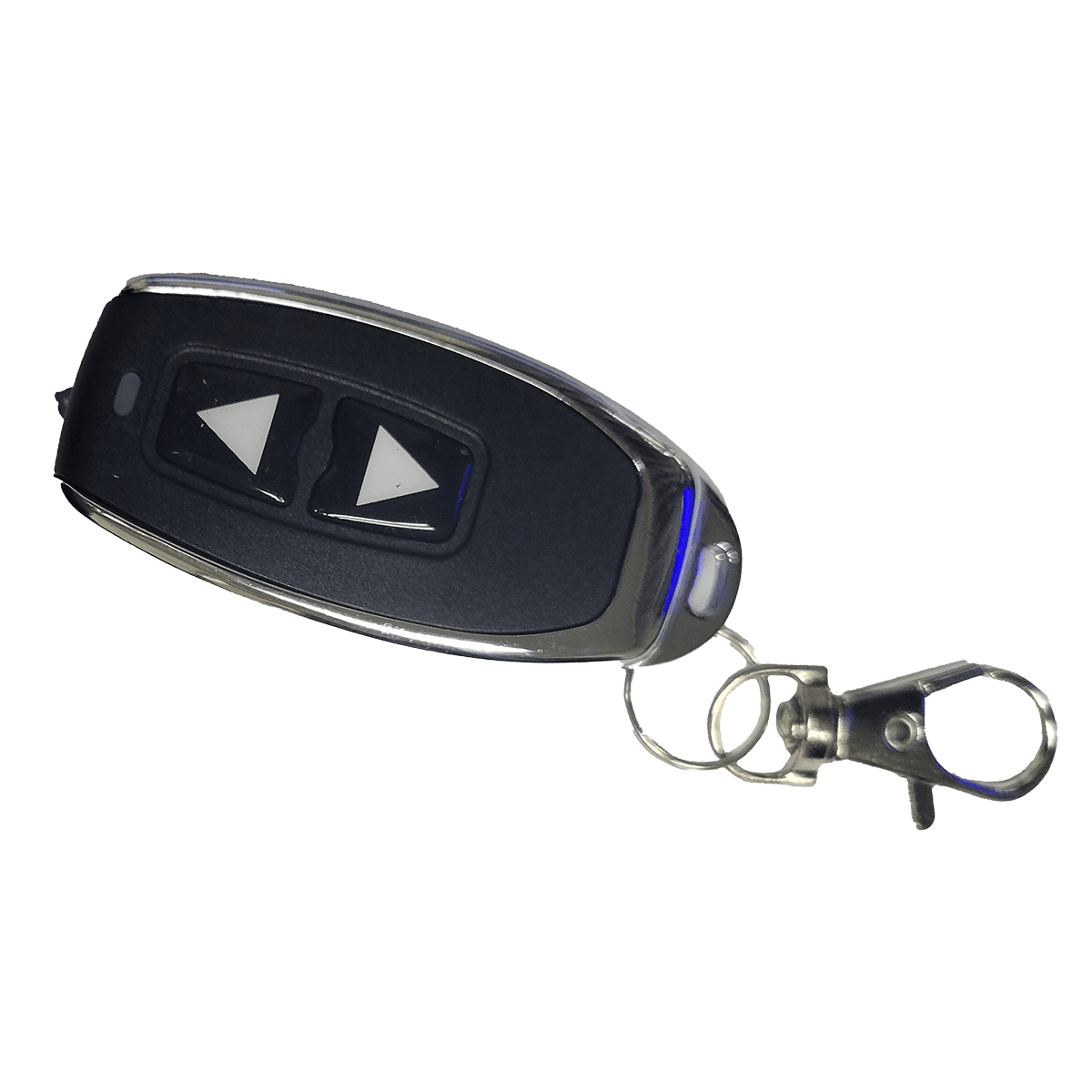

- Remote Control: When the control panel is switched to remote mode, you can operate the bellows' up and down positions with the remote control keyfob.
- Key: A key locks the door from the inside or outside.
- Document Holder: Display any necessary permit or other information with the convenient document holder on the door.
- Interior Lighting: There are bright white LED lights inside the cart.
- Power Outlets: If power tools are needed, a duplex power outlet is near the control panel for easy access.
- Windows: There are front and back windows on the cart.
- Power Cord: A 25-foot-long power cord has a grounded plug for optimum safety.
Sylvane's Expert Take
The Bio-Cart HEPA Mobile Dust Containment Kit from Air-Care provides containment for work on plumbing, electrical wiring, IT computer cables, and fiber optic lines above the ceiling while capturing contaminants and exhausting clean air into the room.
- Two Models: Click here to compare the features of the Bio Cart 10 and Bio Cart 15 Premium models.
- Compliance: With the contained negative pressure environment system, these Bio Carts comply with ICRA and CDC guidelines.

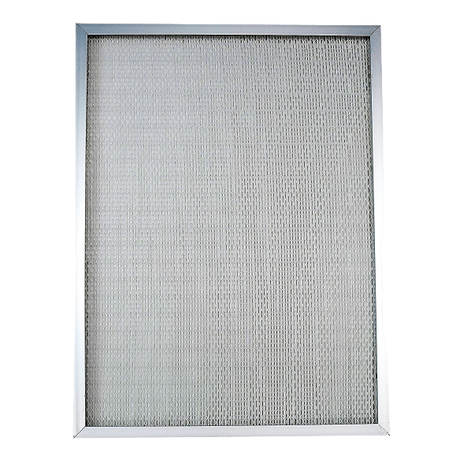

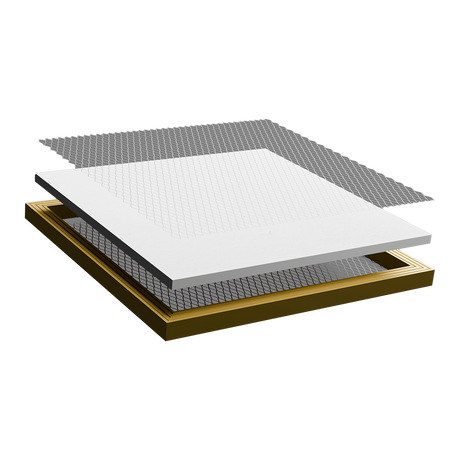

- Replacement Filters: Individual HEPA air purifier filters and packs of five pre-filters are available for purchase separately.
Specifications
Specifications
-
Filtration SystemPre-Filter, HEPA Filter
-
Number of SpeedsVariable
-
TypePortable, Air Scrubber
-
ColorWhite
-
ControlsManual
-
HEPA Filter TypeHEPA 99.97% at 0.3 micron
-
Maximum Cubic Feet per Minute (CFM) (CFM)880.0
-
Maximum Noise Level (dB)62
-
Number of Filters to Change2
-
Ozone EmissionNone
-
Pre-Filter TypeDisposable Electrostatic
-
Recommended ForCommercial/Industrial, Odor & Chemical, Virus & Bacteria
-
Type of Germ Treatment2 UVGI Germicidal LampsNone
-
XACTIMATE CodeNTR-BARR and NTR-NAFAB
-
Amperage (Amps)2.5
-
Maximum Wattage (W)300
-
Voltage (V)110-120
-
Depth (in.)73.0
-
Depth (with front cover) (in.)73.0
-
Height (in.)182.0120.0
-
Height (with front cover) (in.)182.0120.0
-
Weight (lbs.)480450
-
Width (in.)32.0
-
Width (with front cover) (in.)32.0
-
Additional FeaturesRemote Control, Casters
-
Manufacturer's Warranty
5-Year Limited Warranty
Bio Cart HEPA 10
1-Year Limited Warranty: Blow Motor and Bellows 90 Days: Linear Actuator, Lift Motor, and AssemblyBio Cart HEPA 15
1-Year Limited Warranty: Wiring, control panels, electrical components, bellows, camera, blower motor, ladder, LED lighting, lift motor assembly, and UV light assemblies
