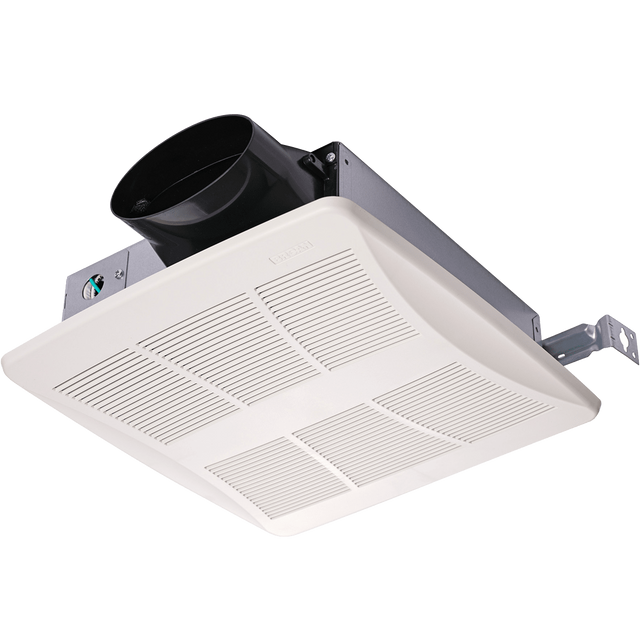

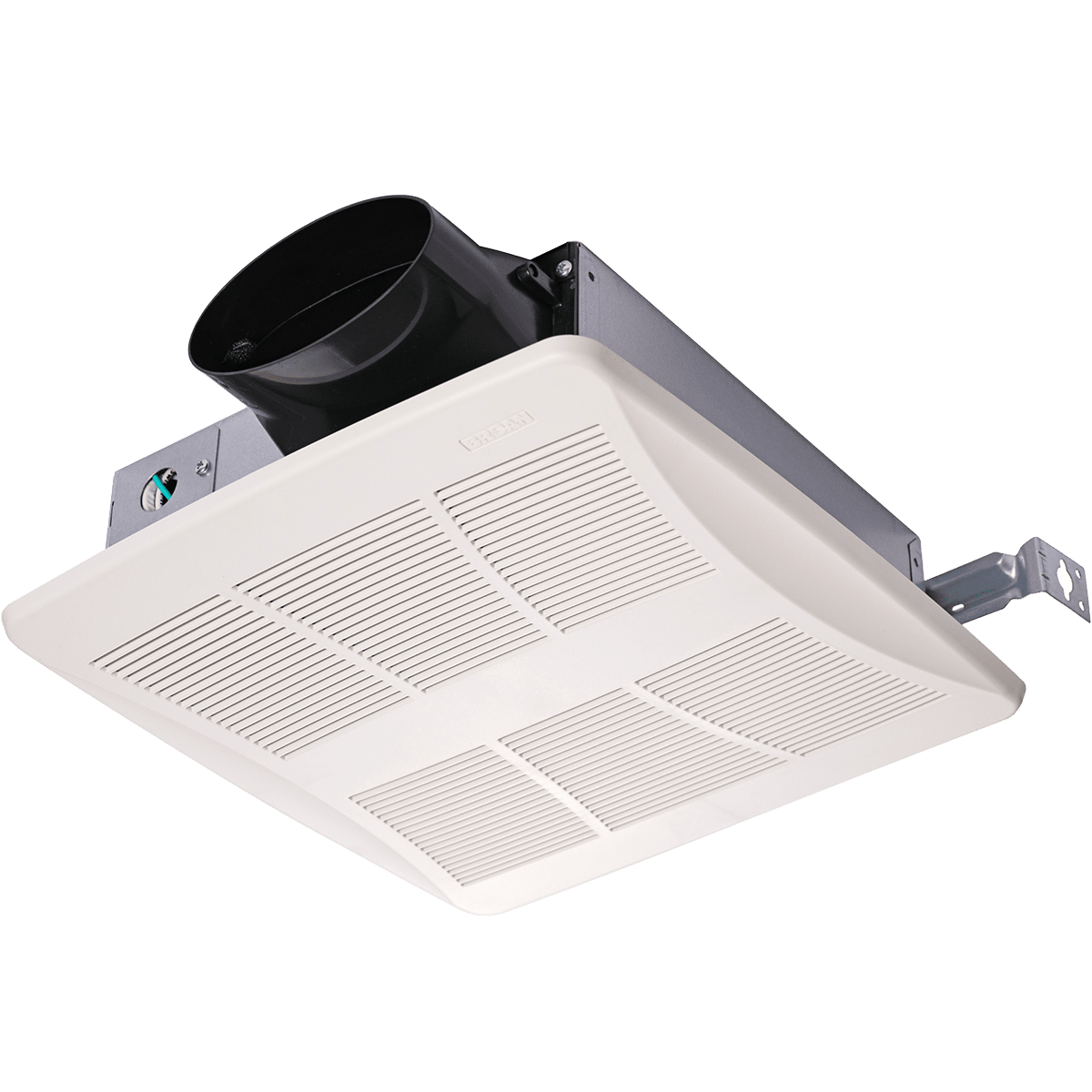

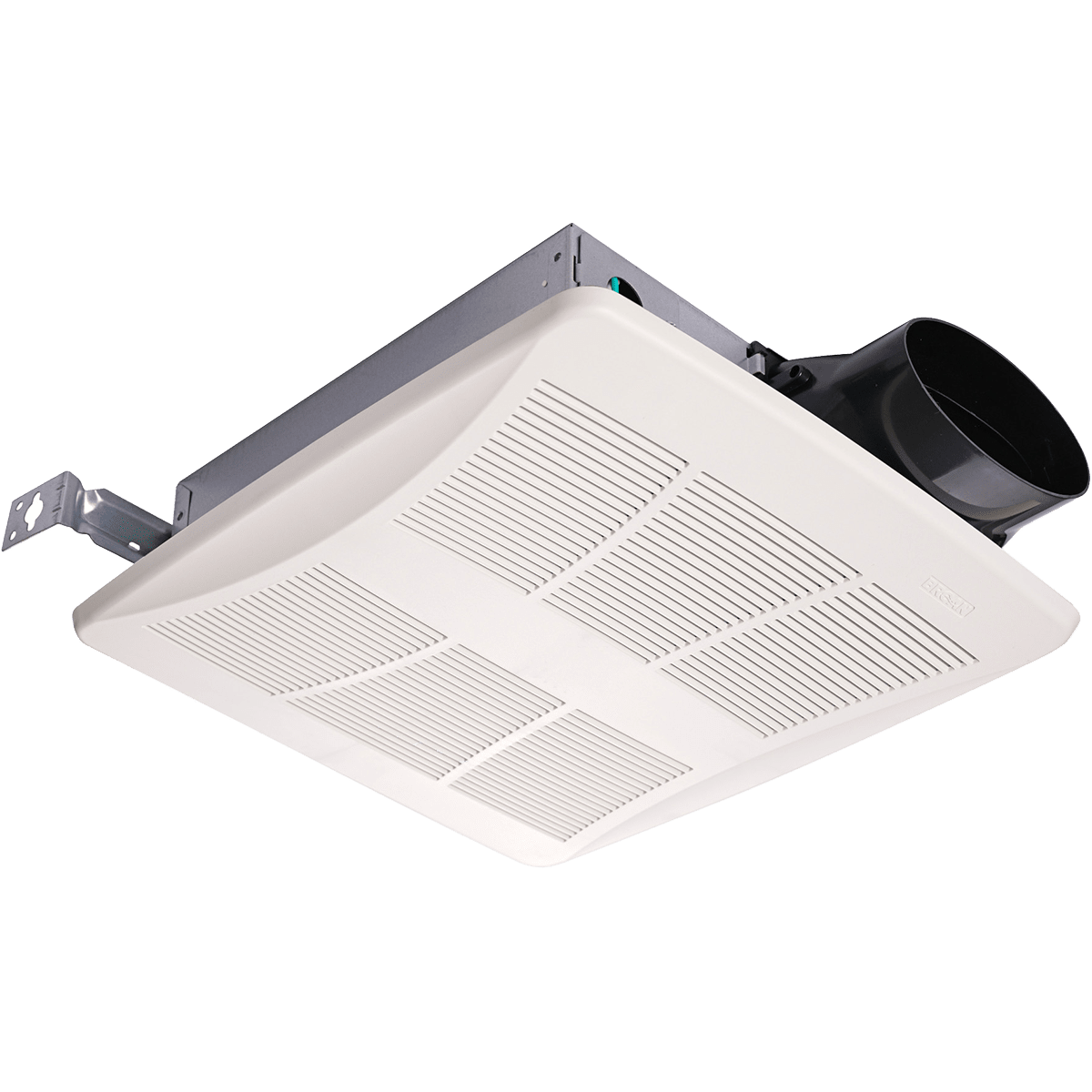

Broan LP510R Lo-Profile 50/80/100 Selectable CFM Bathroom Exhaust Fan
Broan LP510R Lo-Profile 50/80/100 Selectable CFM Bathroom Exhaust Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Broan LP510R Lo-Profile 50/80/100 Selectable CFM Bathroom Exhaust Fan
- Installation Guide & Owner's Manual
Info & Guides
Info & Guides
Broan LP510R Lo-Profile 50/80/100 Selectable CFM Bathroom Exhaust Fan
Description
Description

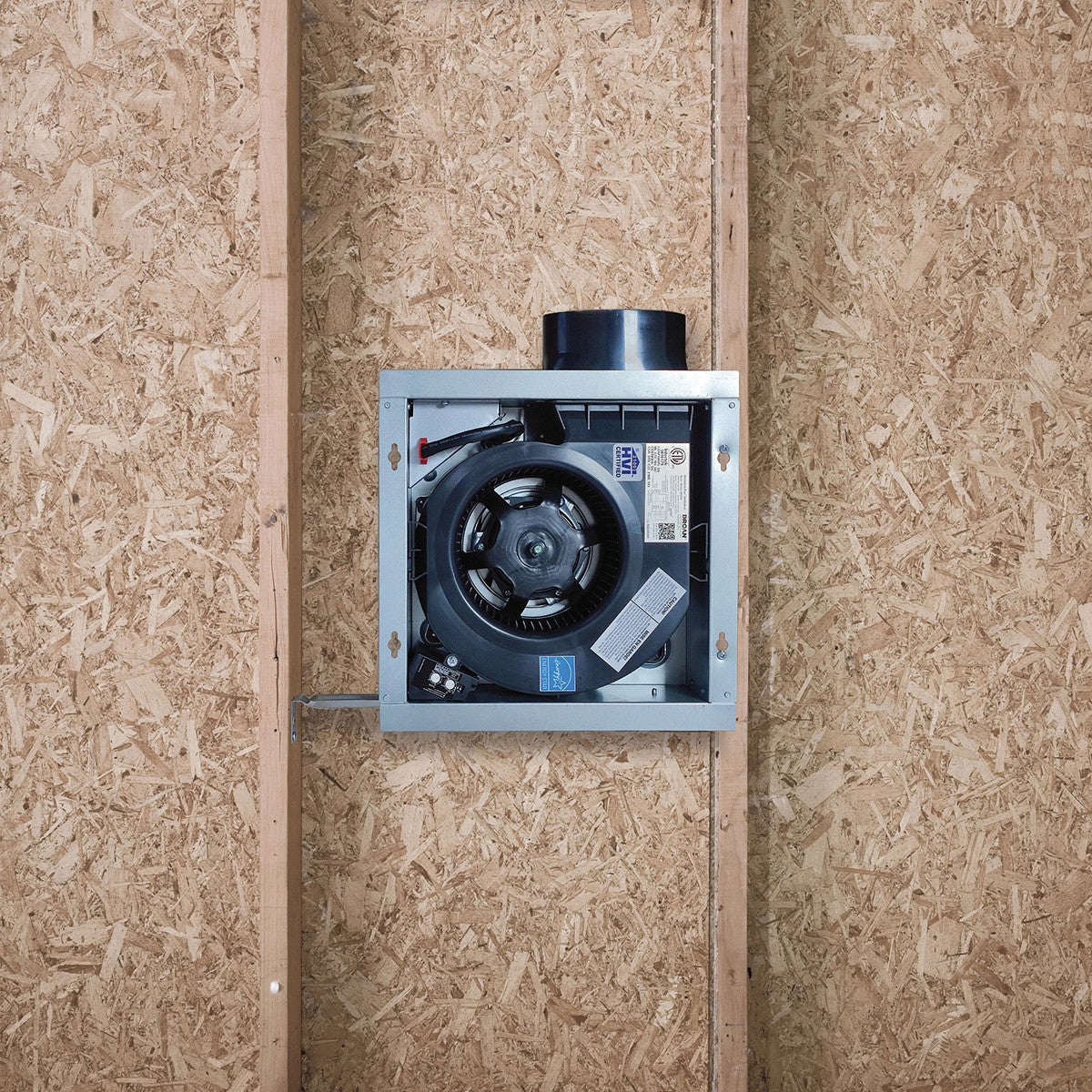

This low-profile fan from Broan features variable speeds with quiet operation for more effective ventilation to remove moisture and reduce the risk of mold or mildew. Its narrow design allows it to be installed between 2 x 4 studs.
The Energy Star Certified Broan Lo-Profile Bathroom Fan has selectable CFM 50/80/100, and pre-installed continuous run technology. Adjustable time delay sets how long the fan will run on high speed before returning to a continuous lower speed.
Featured Specifications
- Energy Star Certified: And also meets ASHRAE 62.2 standards, and is ASHRAE 90.1 compliant.
- TRUE CFM: The installed exhaust fan will not lower CFM performance even with complicated ducting.
- ETL Listed: Meets ETL standards for safe use over bathtubs and showers with a GFCI circuit (ceiling mount only).
- Powerful Ventilation: Effectively ventilates rooms up to 90 sq. ft.
- Quiet Operation: These fans run at an ultra-quiet 0.4-0.9-1.2 sones sound levels for low-medium-high fan speeds.
- Continuous Run Mode: Maintains airflow to reduce mold and mildew risk.
Summary

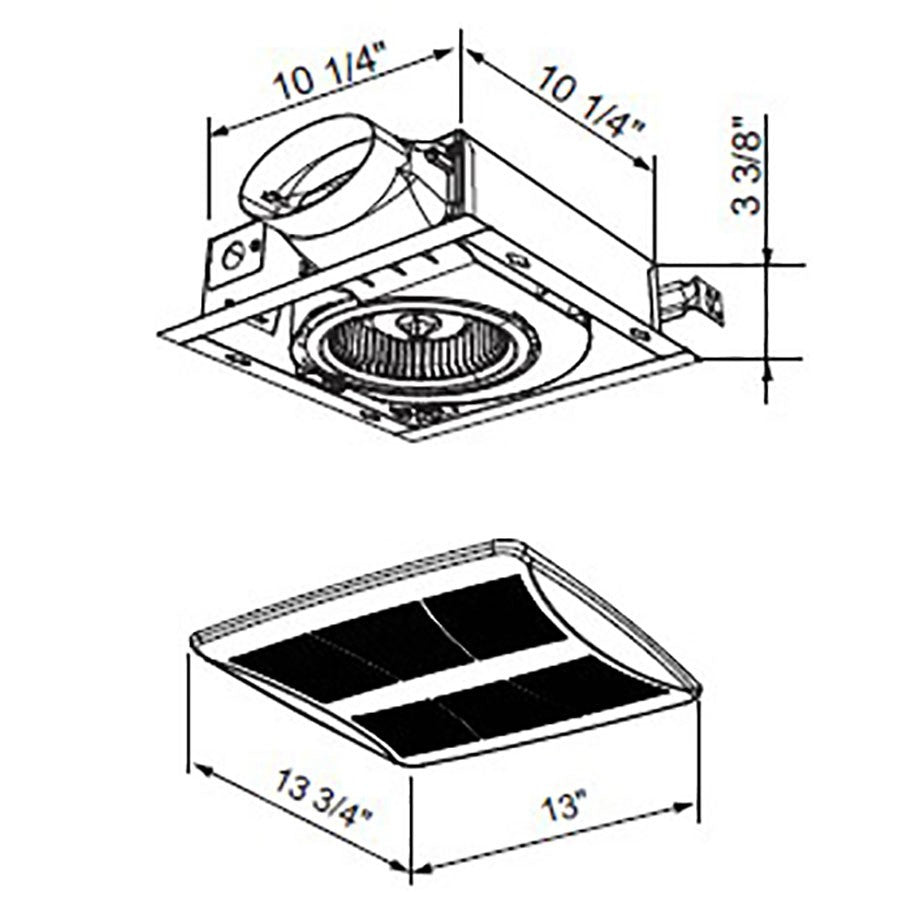

The Broan Lo-Profile LP510R Selectable CFM Bathroom Exhaust Fan is a highly-efficient Energy Star Certified fan with rugged, galvanized steel construction and an efficient DC motor.. It features three fan speeds (50/80/100 CFM), and a 3-3/8 inch height that allows for 2 in. x 4 in. wall or ceiling installation.
Specifications
Specifications
-
Manufacturer-Suggested Room Size (sq. ft.)90
-
Number of Speeds3
-
Sound Level (Sones) (sones)1.2
-
CertificationsUL
-
ColorWhite
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)110.0
-
Maximum Amperage (Amps).4
-
Maximum Wattage (W)11.1
-
Voltage (V)110-120
-
Depth (in.)13.0
-
Depth (with front cover) (in.)13.0
-
Duct Diameter (in.)4.0
-
Height (in.)4.0
-
Height (with front cover) (in.)4.0
-
Weight (lbs.)8.46
-
Width (in.)14.0
-
Width (with front cover) (in.)14.0
-
Additional FeaturesEnergy Star
-
Manufacturer's Warranty1-Year Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
