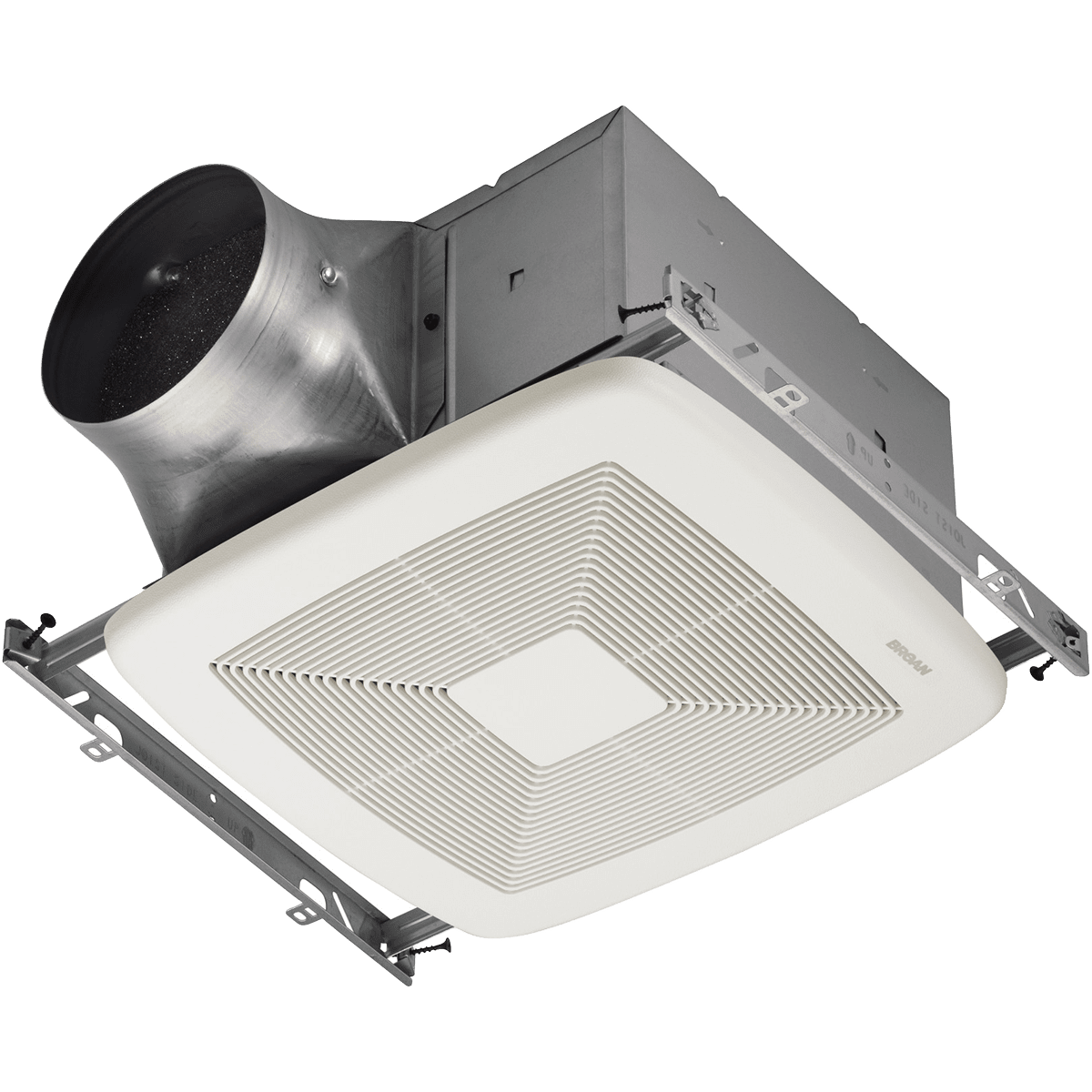

Broan ZB80 Ultra Energy Star Multi Speed Bathroom Exhaust Fan
Broan ZB80 Ultra Energy Star Multi Speed Bathroom Exhaust Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Broan ZB80 Ultra Green Ventilation Fan
- Installation Hardware
- Installation Guide & Owner's Manual
Info & Guides
Info & Guides
Broan ZB80 Ultra Energy Star Multi Speed Bathroom Exhaust Fan
Description
Description
The Broan Ultra Green ZB Series Bathroom Exhaust Fan features multi-speed operation and 80 CFM of airflow. This ventilation fan is ideal for remodels, retro-fit, or new construction in bathrooms, home work-out rooms, or other high-humidity environments.
These Energy Star certified fans are designed specifically to meet both spot and continuous ventilation requirements for various building codes and green building standards.
- Broan 80CFM ZB Series Fan: This 80 CFM model is designed for smaller bathrooms or spaces up to 75 sq. ft., offering ultra-quiet operation.
Featured Specifications
- Energy Star Certified: Both fans are equipped with a DC motor for efficiency well beyond Energy Star requirements.
- HVI Certified: This fixture complies with new testing technologies and procedures with static pressure of 0.1 in.
- UL Listed: Meets UL and cUL standards for safe use over bathtubs and showers with a GFCI circuit.
- Multi-Speed Control: This capability is ideal for meeting ASHRAE 62.2 and LEED for Homes requirements. These fans can also be used to comply with CA Title 24.
- Time Delay: Adjustable time delay sets how long the fan will run on high speed before returning a continuous low speed. They are rated for continuous operation.
- Simple Installation: A unique telescoping mounting frame fits through retrofit opening for easy room-side installation without attic access. Features mounting frame tabs for vertical positioning in new construction.
- Controls: These fans can use on/off switch, mechanical timer switch, or relay-switched controls. This includes the Broan Sensaire Humidity Sensing Wall Control (82W). Also compatible with Broan Overture Connected IAQ System.
Summary
The Broan Ultra Green ZB Series Bathroom Ventilation Fans are the energy-efficient, ultra-quiet way to eliminate unwanted moisture from high-humidity rooms. Featuring multi-speed control, time delay, simple installation, and certified to meet most Green building codes.
Specifications
Specifications
-
Manufacturer-Suggested Room Size (sq. ft.)75
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)3.0
-
CertificationsUL
-
ColorWhite
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)80.0
-
Maximum Amperage (Amps).3
-
Maximum Wattage (W)13.7
-
Voltage (V)110-120
-

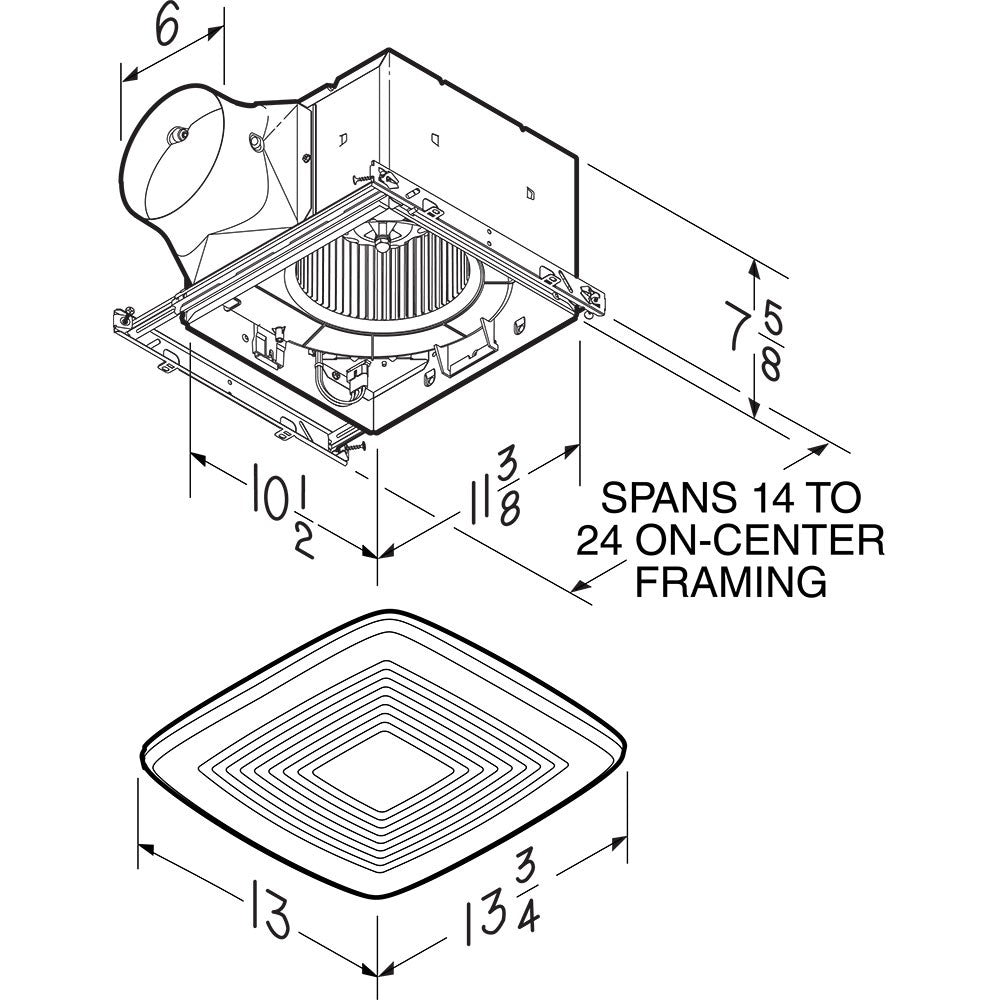

Depth (in.)13.0
-
Depth (with front cover) (in.)13.0
-
Duct Diameter (in.)6.0
-
Height (in.)7.6
-
Height (with front cover) (in.)7.6
-
Weight (lbs.)11
-
Width (in.)13.75
-
Width (with front cover) (in.)13.75
-
Additional FeaturesEnergy Star
-
Manufacturer's Warranty3-Year Warranty
