Canarm 18-in. SD Series Shutter Mounted Exhaust Fan
Canarm 18-in. SD Series Shutter Mounted Exhaust Fan - Variable is backordered and will ship as soon as it is back in stock.

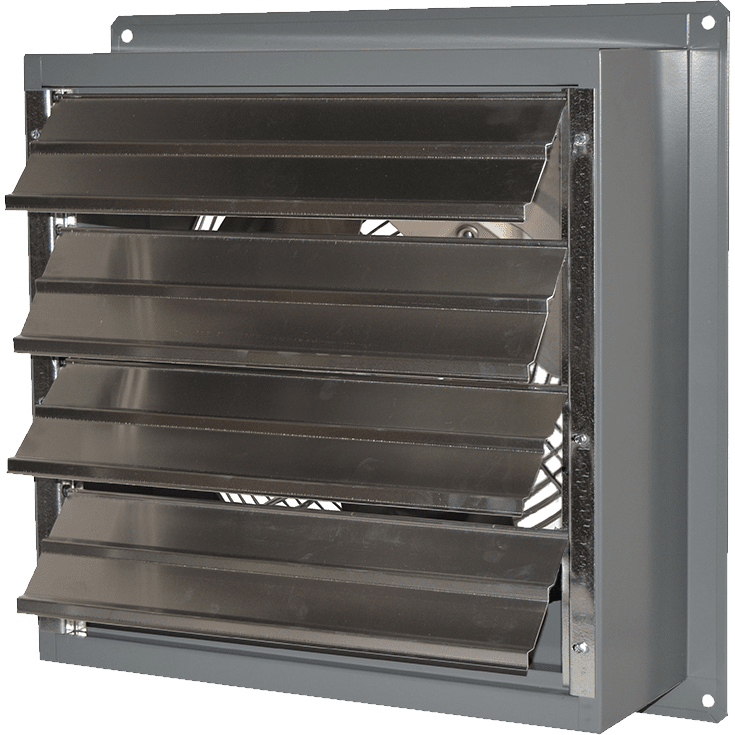

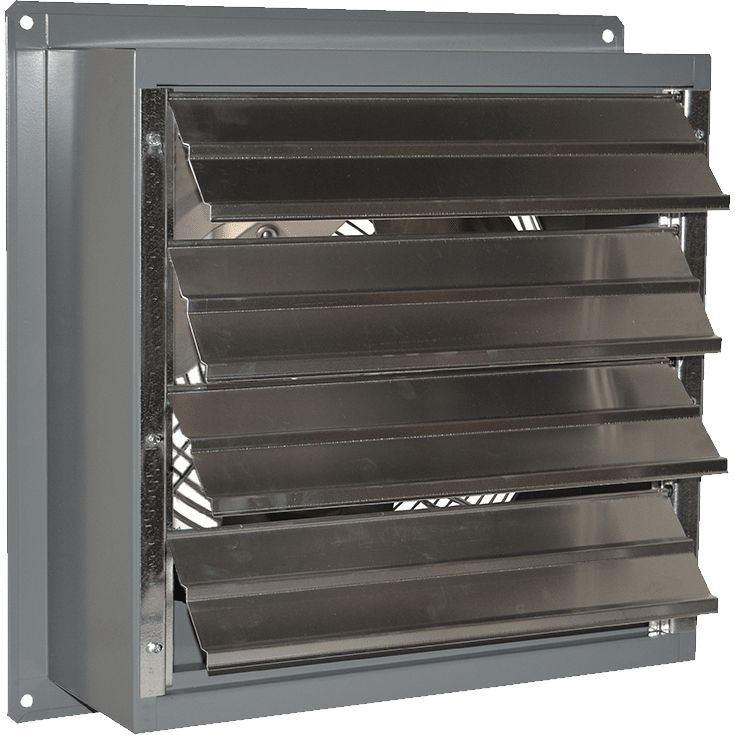

Canarm 18-inch Shutter Mounted Exhaust Fans feature a totally enclosed, thermally protected motor mounted on heavy-gauge steel rod motor mounts.
A rugged steel welded box housing is built to last and the aluminum shutters are supported by long-life nylon bushings and operate automatically when the fan is in use.
Fan Speed Options
Based on your specific needs, you can select the fan operation that best fits the situation. All fans arrive completely assembled. Choose single speed, two-speed, or variable speed model.
Installs Easily
Depending on which model you select, your motor will operate using the following voltage set-up. Full instructions are included to make installation fast and easy.
- Single Speed Fan: 120-volt only; requires a simple toggle switch.
- Two Speed Fan: 120-volt only; requires a 2-speed control or a 3-position toggle switch.
- Variable Speed Fan: Dual voltage, pre-wired at 240-volt but can be rewired for 120-volt; requires a variable-speed control.
Specification Highlights
- Durable steel construction has a gray powder coat finish that resists rust and corrosion.
- OSHA certified with a heavy wire chrome-plated guard.
- Framing Dimensions: 21-in. x 21-in.
- ETL Certified
-
Number of SpeedsVariable21
-
Sound Level (Sones) (sones)4.0
-
TypeShutter Exhaust Fan
-
ApplicationCommercial/Industrial, Garage/Workshop
-
CertificationsETL
-
ColorGray
-
ControlsManual
-
Housing MaterialPowder-Coated Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)3150.03200.03200.0
-
Maximum RPM162517251625
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.
-
Maximum Amperage (Amps)3.85.54.1
-
Power SupplyElectric
-
Voltage (V)220-240, 110-120110-120110-120
-
Watts (W)206
-
Wiring StyleHardwired
-
Ceiling or Wall Cutout Length (in.)20.75
-
Ceiling or Wall Cutout Width (in.)20.75
-
Depth (in.)6.0
-
Height (in.)23.25
-
Shutter Fan Size (in.)18
-
Weight (lbs.)454337
-
Width (in.)23.25
-
Additional FeaturesMeets OSHA Standards, Thermal Cutoff Protection, Applicable for Indoor GrowingMeets OSHA Standards, Thermal Cutoff ProtectionMeets OSHA Standards, Thermal Cutoff Protection
-
Manufacturer's Warranty1-Year Limited Warranty
