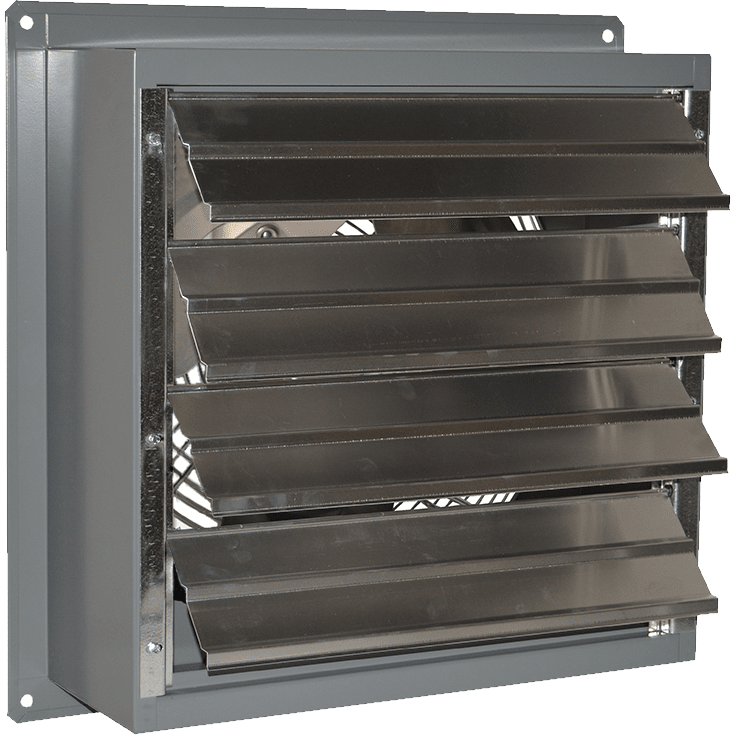

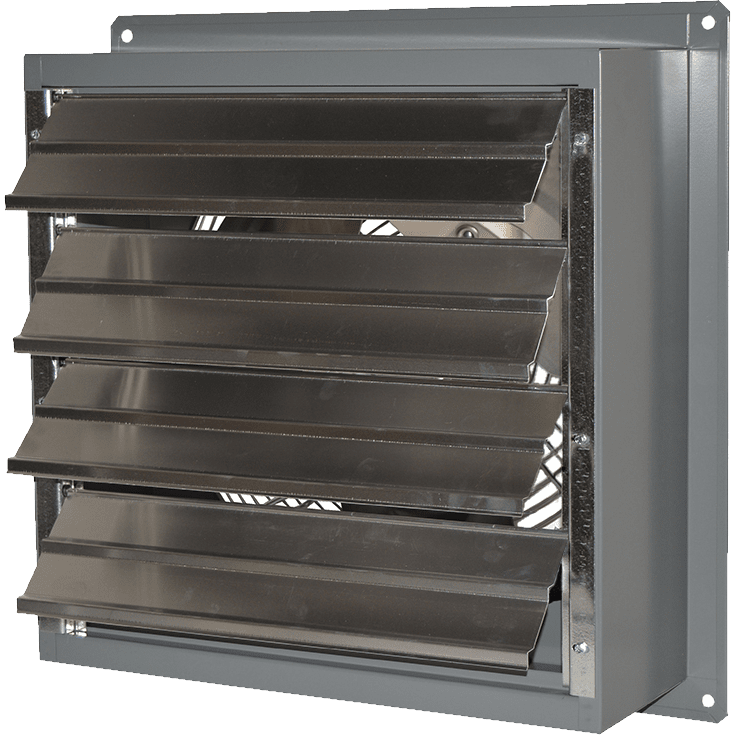

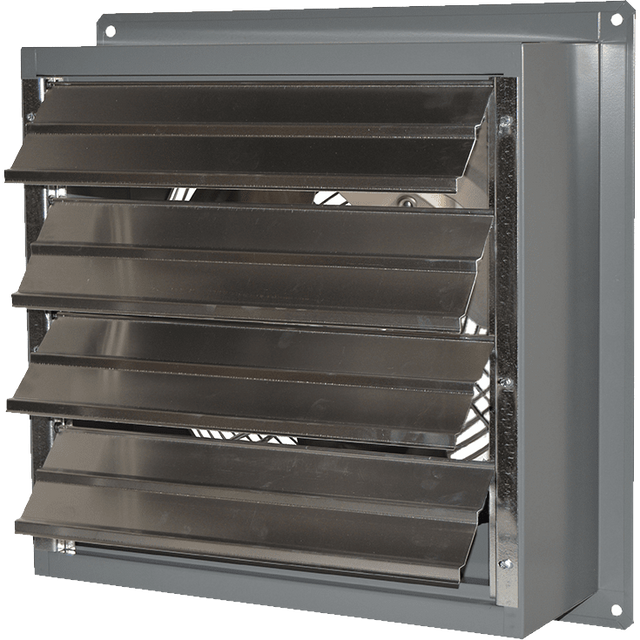

Canarm 18-in. Shutter Mounted Exhaust Fan

Name: Canarm 18-in. Shutter Mounted Exhaust Fan
Brand: Canarm
Price: 486.0 USD
Availability: InStock

SKU: ca10138 | Model: S18-FVD

$486.00

FREE shipping on orders over $45!

In Stock Usually ships in 5 business days.

Number of Speeds

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Limited Warranty

What's In The Box?

Canarm 18-inch Shutter Mounted Exhaust Fan
Owner's Manual

Info & Guides

Description

Canarm 18-inch Shutter Mounted Exhaust Fans feature a totally enclosed, thermally protected motor mounted on heavy-gauge steel rod motor mounts.

A rugged steel welded box housing is built to last and the aluminum shutters are supported by long-life nylon bushings and operate automatically when the fan is in use.

Fan Speed Options

Based on your specific needs, you can select the fan operation that best fits the situation. All fans arrive completely assembled. Choose single speed, two-speed, or variable speed model.

Installs Easily

Depending on which model you select, your motor will operate using the following voltage set-up. Full instructions are included to make installation fast and easy.

Single Speed Fan: 120-volt only; requires a simple toggle switch.
Two Speed Fan: 120-volt only; requires a 2-speed control or a 3-position toggle switch.
Variable Speed Fan: Dual voltage, pre-wired at 240-volt but can be rewired for 120-volt; requires a variable-speed control.

Specification Highlights

Durable steel construction has a gray powder coat finish that resists rust and corrosion.
OSHA certified with a heavy wire chrome-plated guard.
Framing Dimensions: 21-in. x 21-in.
ETL Certified

Specifications

Key Specifications

Number of Speeds

Variable: Variable

2: 2

1: 1
Sound Level (Sones) (sones)

4.0
Type

Shutter Exhaust Fan

General

Application

Commercial/Industrial, Garage/Workshop
California Residents

⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
Certifications

ETL
Color

Gray
Controls

Manual
Housing Material

Powder-Coated Steel
Maximum Cubic Feet per Minute (CFM) (CFM)

Variable: 3150.0

2: 3200.0

1: 3200.0
Maximum RPM

Variable: 1625

2: 1725

1: 1625

Power

Amperage (Amps)

Variable: 3.8

2: 5.5

1: 4.1
Power Supply

Hardwired
Voltage (V)

Variable: 220-240, 110-120

2: 110-120

1: 110-120
Watts (W)

206

Dimensions

Ceiling or Wall Cutout Length (in.)

20.75
Ceiling or Wall Cutout Width (in.)

20.75
Depth (in.)

6.0
Depth (with front cover) (in.)

6.0
Height (in.)

23.25
Height (with front cover) (in.)

23.25
Shutter Fan Size (in.)

Variable: 20

2: 18

1: 18
Weight (lbs.)

Variable: 45

2: 43

1: 37
Width (in.)

23.25
Width (with front cover) (in.)

23.25

Additional Features

Additional Features

Variable: Meets OSHA Standards, Thermal Cutoff Protection, Applicable for Indoor Growing

2: Meets OSHA Standards, Thermal Cutoff Protection

1: Meets OSHA Standards, Thermal Cutoff Protection

Warranty

Manufacturer's Warranty

1-Year Limited Warranty
