Canarm 20-in. XFS20 1/4 HP Two Speed Shutter Mounted Exhaust Fan
Canarm 20-in. XFS20 1/4 HP Two Speed Shutter Mounted Exhaust Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Canarm 20" XFS20 1/4 HP Two Speed Shutter Mounted Exhaust Fan
- Owner's Manual
- Installation Instructions
Info & Guides
Info & Guides
Canarm 20-in. XFS20 1/4 HP Two Speed Shutter Mounted Exhaust Fan
Description
Description

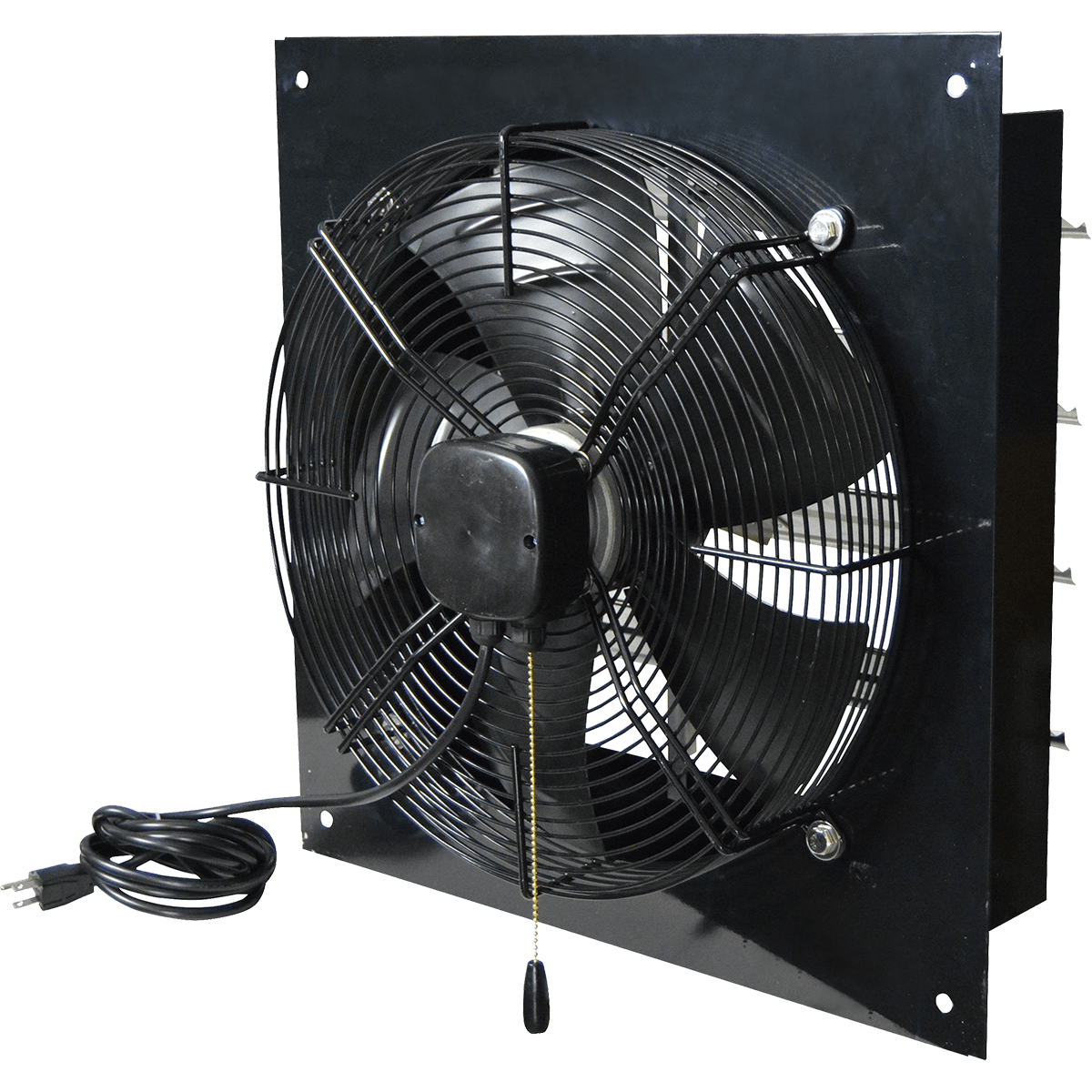

The Canarm 20-inch XFS20 1/4 HP Two Speed Shutter Mounted Exhaust Fan is designed and built to last, featuring a rugged steel welded box housing and a completely enclosed motor that is mounted on a heavy-gauge steel rod mount.
Speed Options
This dual-speed ventilation fan features a 9-foot 115-volt power cord. Full instructions are included to make installation fast and easy. It's able to provide the following airflow levels:
- Low: 2,900 CFM
- High: 3,300 CFM
Safe & Reliable Performance

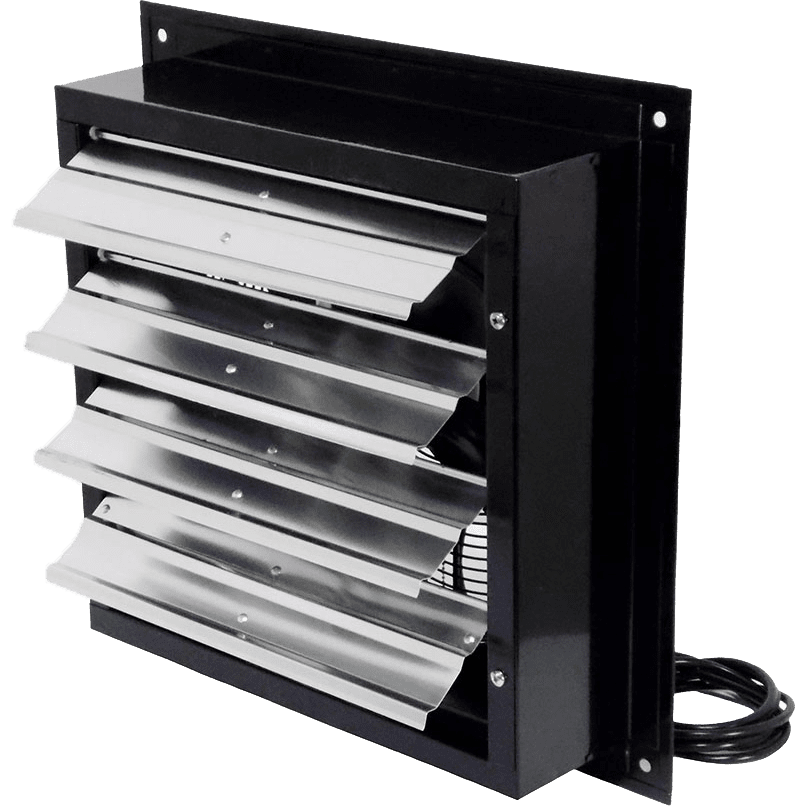

The Canarm 20-inch exhaust fan motor is thermally protected and ETL certified to ensure safe operation. The aluminum louvers feature a tie bar to maximize airflow, and all fans are shipped completely assembled and ready to install.
Additional Features
- Durable Design: Durable steel construction has a black powder coat finish that resists rust and corrosion.
- Safe to Use: Features strong powder-coated OSHA guarding inside.
- Framing Dimensions: 22-in. x 22-in.
- Added Certifications: This is an ETL Certified ventilating fan.
Summary
Deliver effective ventilation to commercial applications with the Canarm XFS20 Shutter Mounted Exhaust Fan.
Specifications
Specifications
-
Number of Speeds2
-
Sound Level (Sones) (sones)8.0
-
TypeShutter Exhaust Fan
-
ApplicationCommercial/Industrial
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsETL
-
ColorBlack
-
ControlsManual
-
Housing MaterialPowder-Coated Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)3300.0
-
Maximum RPM1140
-
Amperage (Amps)2.3
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)186
-
Ceiling or Wall Cutout Length (in.)21.5
-
Ceiling or Wall Cutout Width (in.)21.5
-
Depth (in.)28.0
-
Depth (with front cover) (in.)28.0
-
Height (in.)28.0
-
Height (with front cover) (in.)28.0
-
Shutter Fan Size (in.)20
-
Weight (lbs.)40
-
Width (in.)13.0
-
Width (with front cover) (in.)13.0
-
Additional FeaturesMeets OSHA Standards, Thermal Cutoff Protection
-
Manufacturer's Warranty1-Year Limited Warranty
