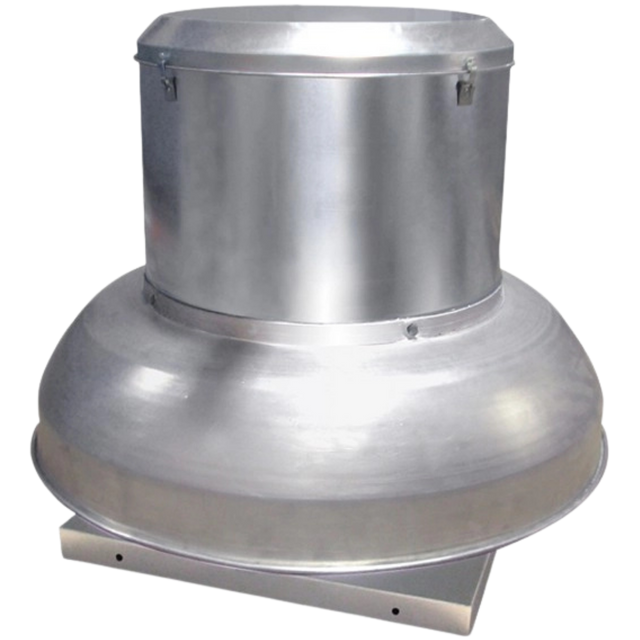

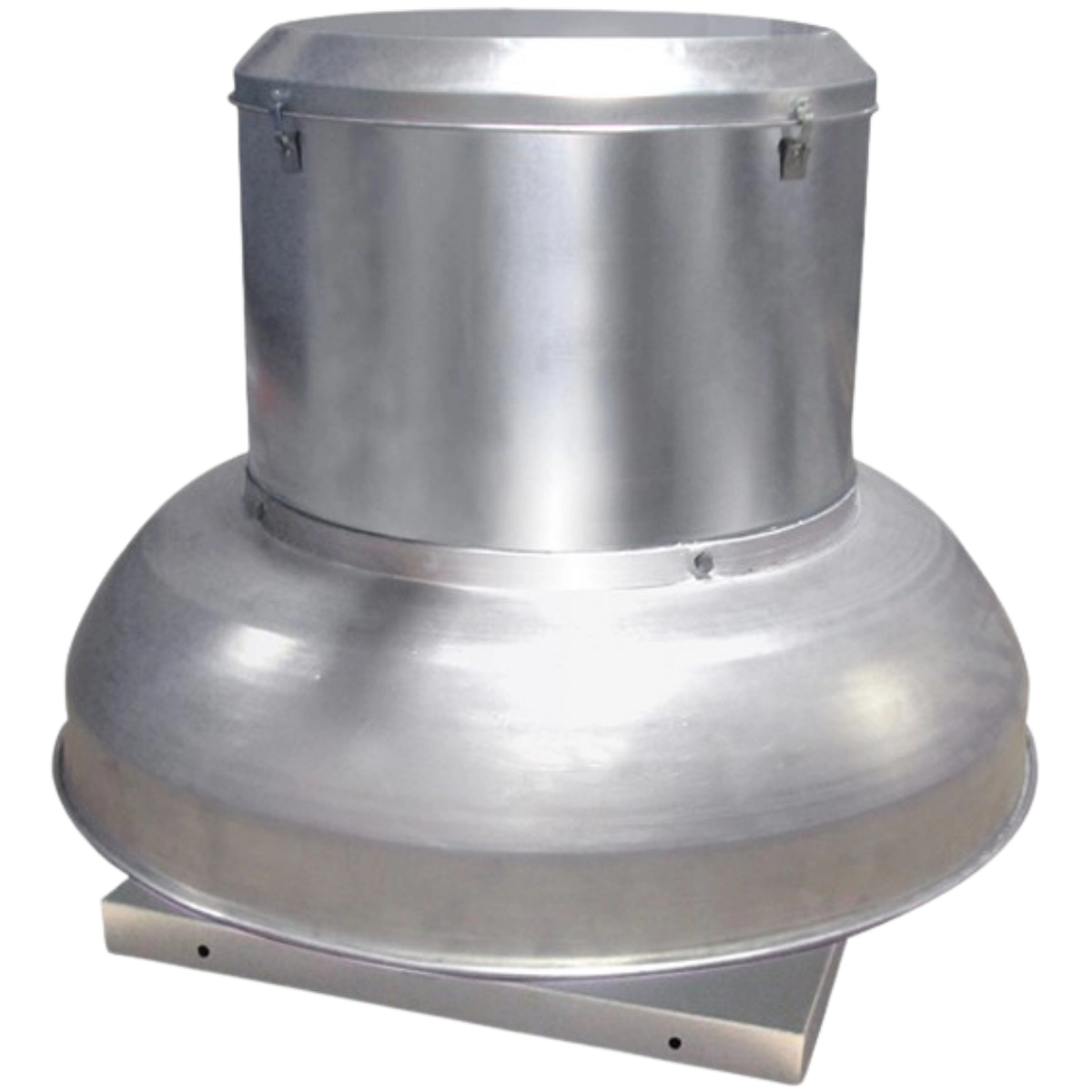

Canarm ALX135-DD075S 13.5 in. Spun Aluminum Direct Drive Single Speed 3/4 HP 120/240V Downblast Exhauster

SKU: ca18640  |  Model: ALX135-DD075S
$744.00

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Limted Warranty

What's In The Box?
  • Canarm ALX135-DD075S 13.5 in. Spun Aluminum Direct Drive Single Speed 3/4 HP 120/240V Downblast Exhauster
  • Bird Screen
  • Owner's Manual, Guides, and Other Documents

Info & Guides

Remove heat, fumes, and stale air from factories, offices, and warehouses with the Canarm ALX135-DD075S downblast direct drive exhauster. Designed for rooftop or wall installation, its durable design provides reliable ventilation in commercial or industrial environments.

The single-speed, 3/4-horsepower motor operates on either 120 or 240 volts, delivering consistent performance while keeping maintenance demands low. Its direct drive design eliminates the need for belt replacements, so you can count on reliable air movement year after year.

Key Features and Benefits of the Canarm ALX135-DD075S 13.5 in. Spun Aluminum Direct Drive Downblast Exhauster

  • 3/4 HP Exhaust Motor: The Canarm ALX135-DD075S has a 3/4 horsepower motor that is capable of outputting exhaust airflows of up to 2,134 CFM (at 0.0 inches w.g.) and has a max fan speed of 1,650 RPM.

  • Dual-Voltage Wiring: Connect to 120-volt or 240-volt power supplies at 50 or 60 Hz, offering flexibilty in building installations.

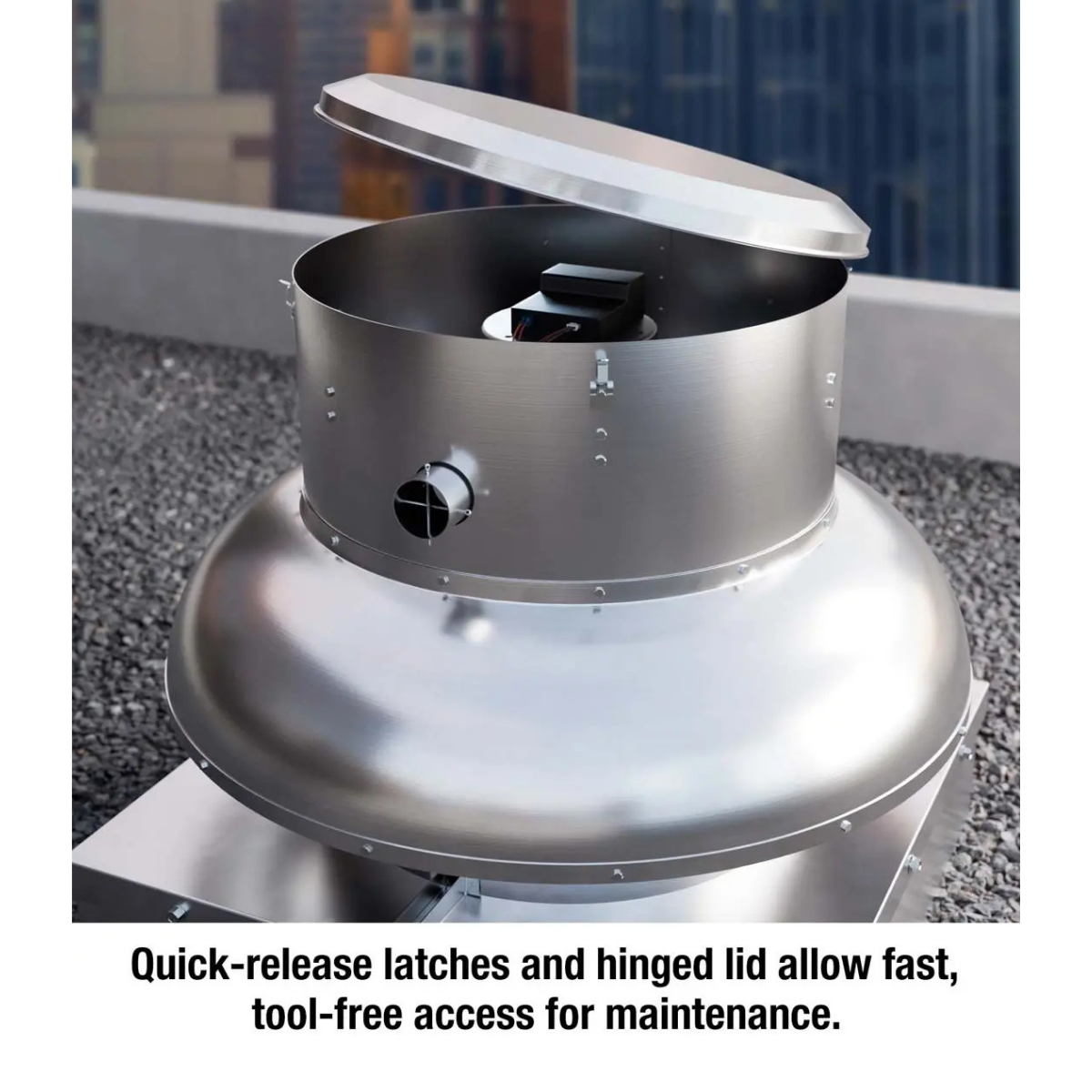

  • Tool-Free Access: Quick-release latches open the top for direct motor and wheel access, reducing downtime during inspection or cleaning. Includes a protective screen that keeps birds and debris out.

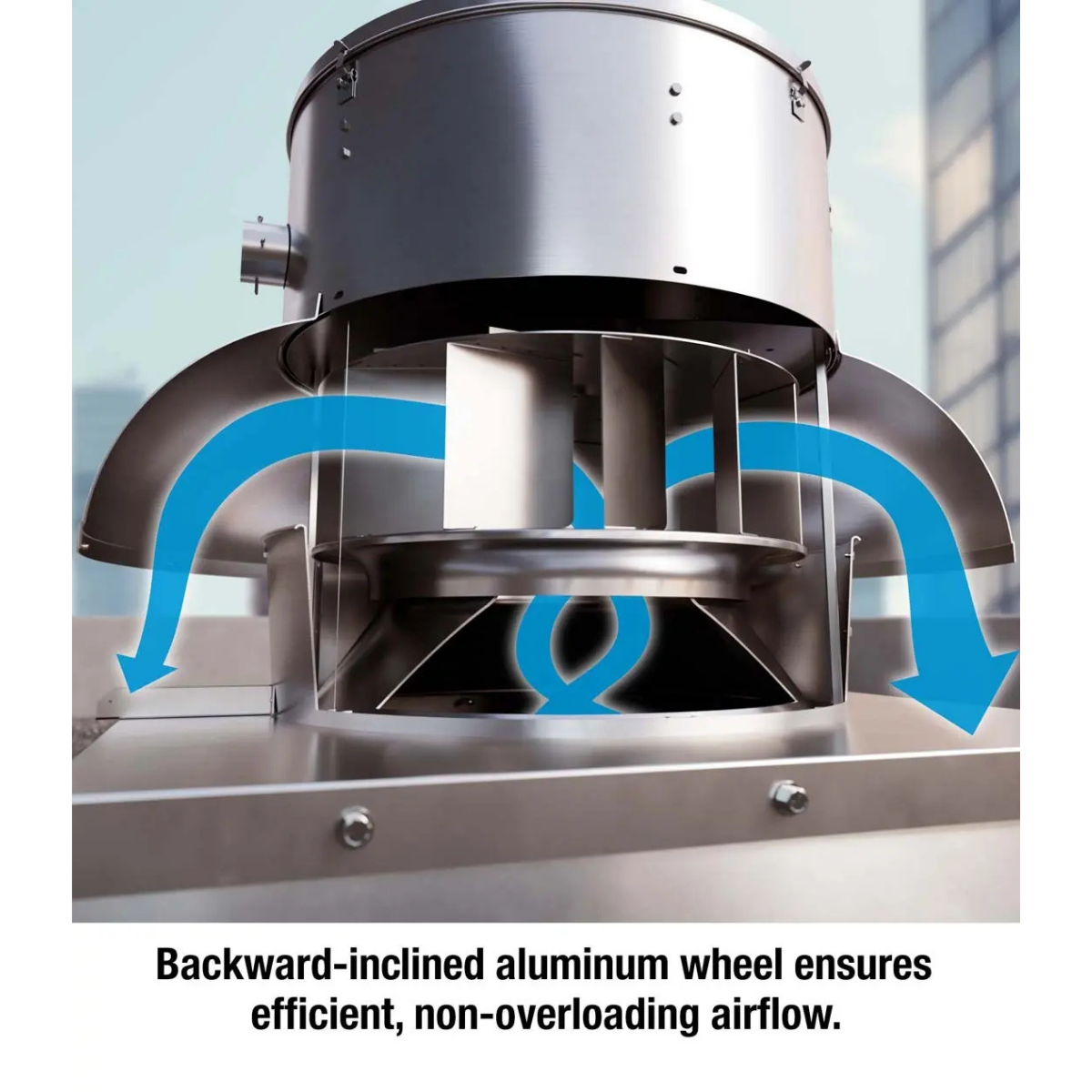

  • Dependable Output: The non-overloading, backward inclined wheel design prevents motor overloading even as pressure changes.

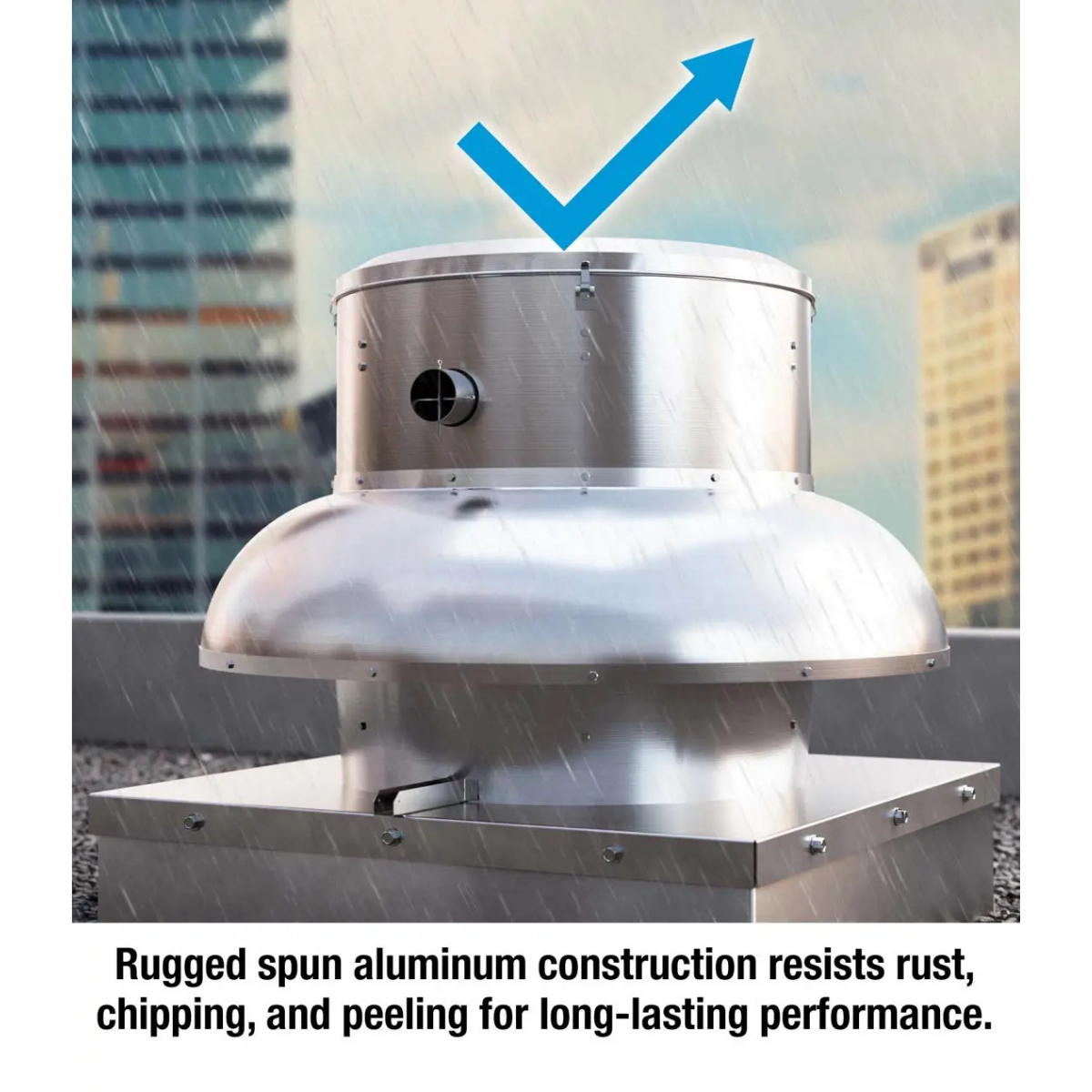

  • Durable Design: The corrosion-resistant spun-aluminum housing will not rust, chip, or peel in harsh rooftop conditions, reducing long-term maintenance.

  • Downblast Configuration: Exhausts air directly onto the roof surface, preventing rain ingestion while dispersing stale air away from wall openings.

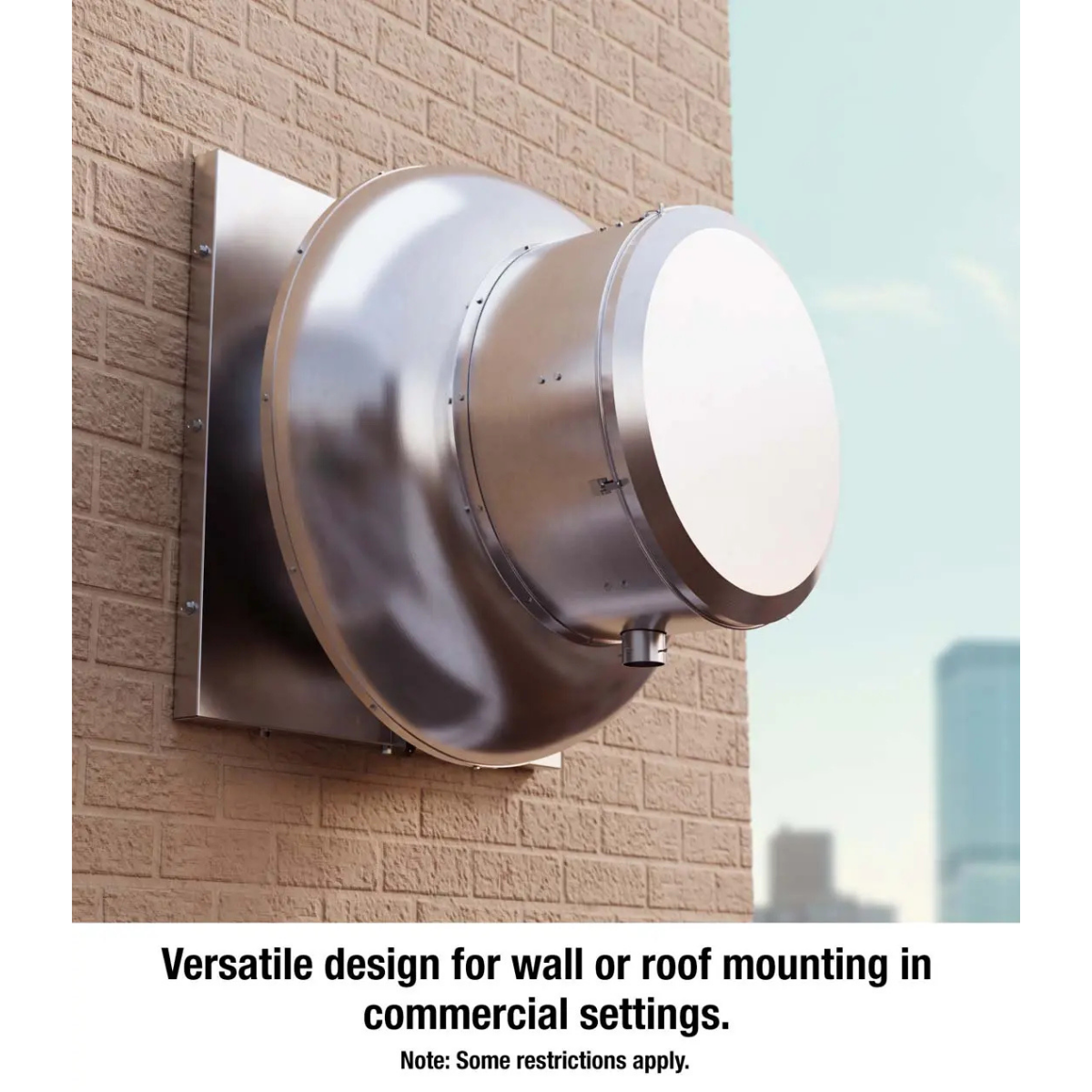

  • Roof or Wall Mounting: Use standard curbs, brackets, or sleeves to adapt the fan to rooftop decks, sidewalls, or curb caps. Includes a bird screen to keep debris and wildlife out of the fan cavity. It is designed to fit 17-inch roof openings.

Pressure-Rated Output

The ALX135-DD075S continues to supply 2,025 CFM at 0.25-inches w.g. static pressure and 1,593 CFM at 1.0-inches w.g. static pressure, helping you maintain target air changes even as resistance climbs. These AMCA Certified values simplify load calculations.

Sylvane’s Expert Take

For contractors and installers seeking a dependable, rooftop exhaust solution with verified performance, the Canarm ALX135-DD075S checks every box. Its corrosion-proof aluminum housing, direct drive simplicity, and AMCA-certified airflow make it a smart choice for new construction or retrofits.
