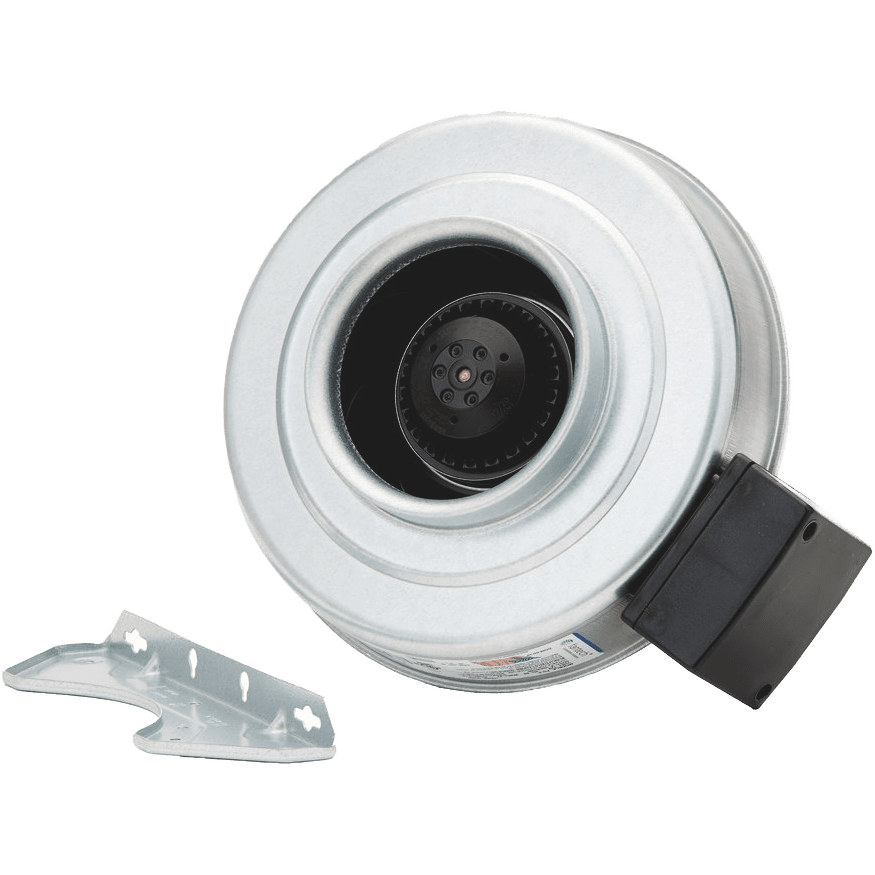

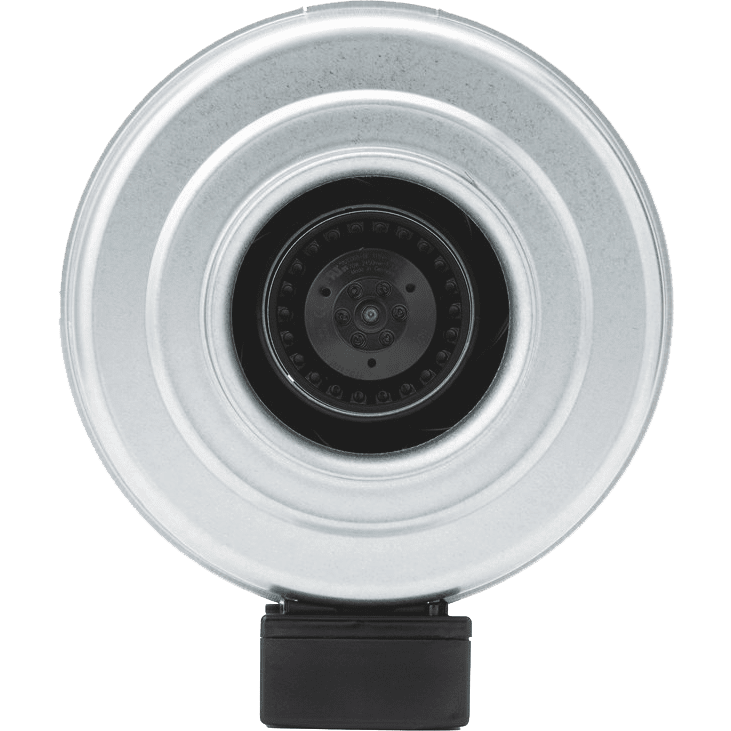

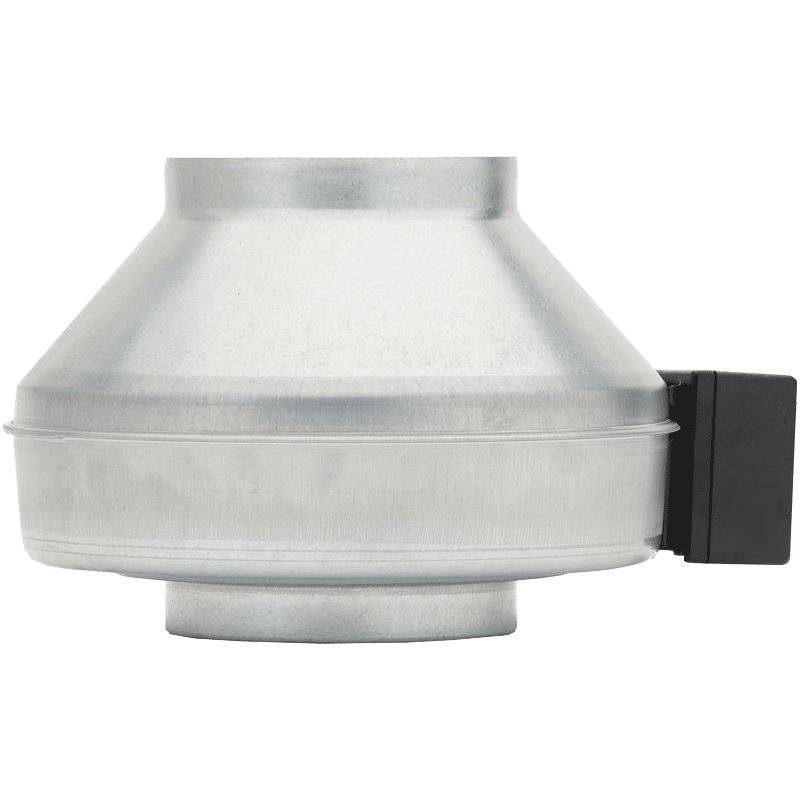

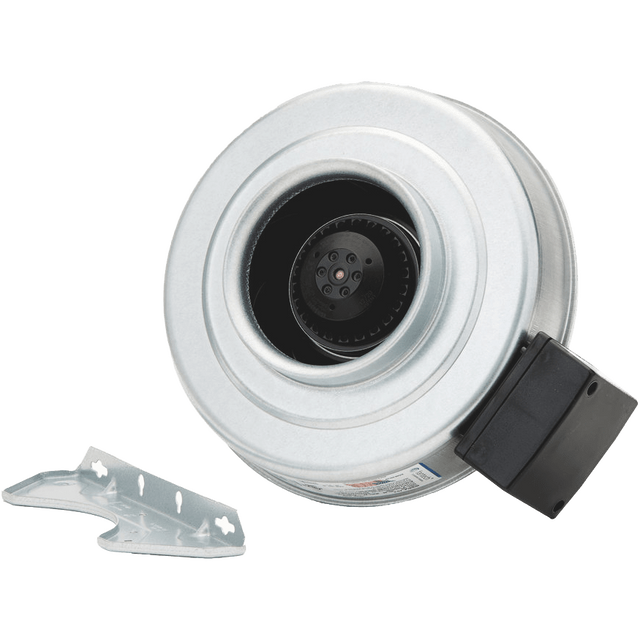

Fantech FG 6 6in. Inline Centrifugal Duct Fan

Name: Fantech FG 6 6in. Inline Centrifugal Duct Fan
Brand: Fantech
Price: 206.0 USD
Availability: InStock

SKU: fn12438 | Model: 40406

$206.00

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.

Option

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

Fantech FG 6 6-Inch Inline Centrifugal Duct Fan
Owner's Manual
Mounting Bracket and Hardware

Info & Guides

Description

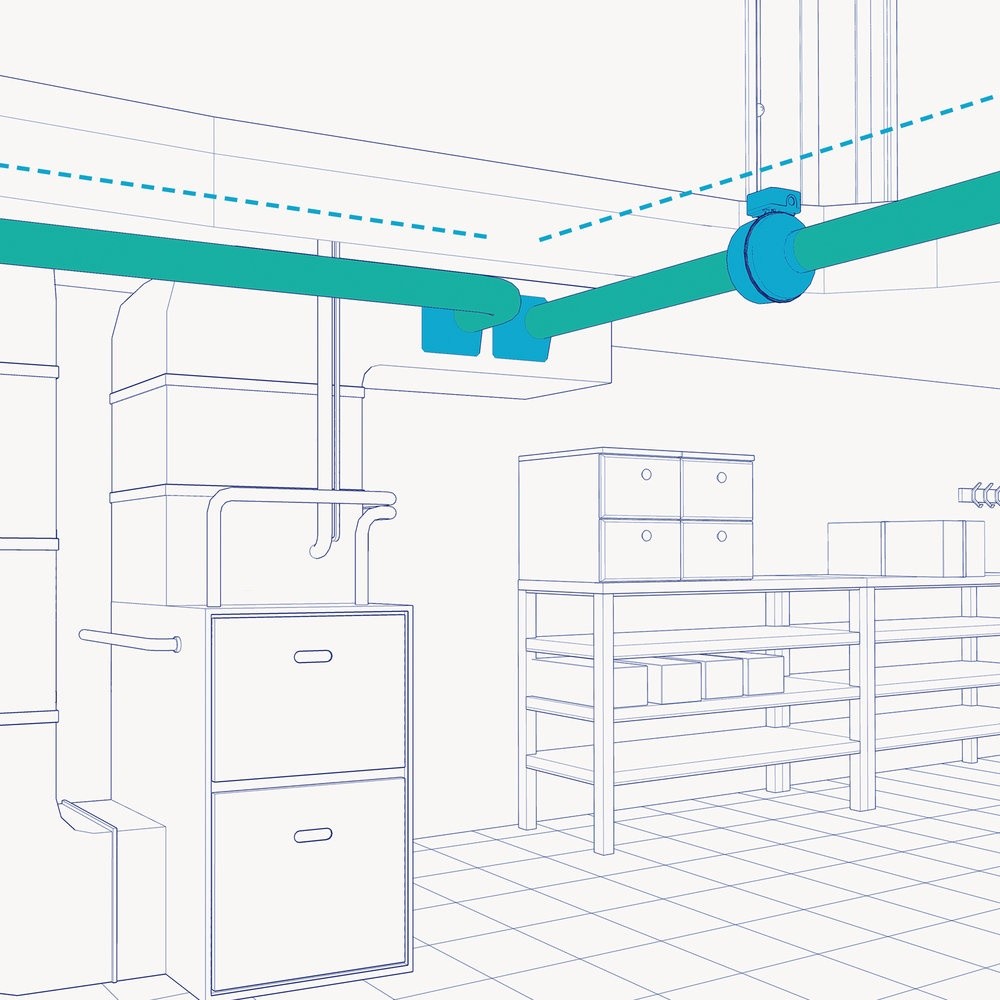

Delivering a long life and reliable performance thanks to an ebm-papst motor, the Fantech FG 6 6-Inch Inline Centrifugal Duct Fan is a virtually airtight ventilation solution. Featuring galvanized steel housing, it meets code requirements for both commercial and residential use. Installation is easy thanks to longer duct connection and its straight-through airflow allows this prewired fan to be installed at any angle and point along your ductwork.

It's available in three models.

Available Options

Select from three airflow options to find the right Fantech FG 6 ventilation fan for you.

Fantech FG 6: 291 CFM
Fantech FG 6M: 418 CFM
Fantech FG 6XL: 492 CFM

Key Features

Versatile Installation: Its airtight galvanized steel housing makes it effective for use in commercial and residential applications.
Heat Dissipation: Designed with an ebm-papst external rotor motorized impeller, the Fantech FG offers superior heat dissipation even at low RPM.
Maintenance Free Design: Features permanently lubricated sealed ball bearings for a maintenance-free performance.
Safe To Use: This fan is equipped with automatic thermal overload protection
Speed Control: This unit is 100% speed controllable.
Works In Extreme Temperatures: Use this fan in airstream temperatures as high as 140 degrees Fahrenheit.
Energy Star Rated: This Energy Star-listed fan delivers a superior performance without driving up your energy costs.
Long Warranty: Backed by a 5-year limited warranty.

Summary

With a reliable design and performance, the Fantech FG 6 6-Inch Inline Centrifugal Duct Fan is a reliable ventilation solution for commercial and residential spaces.

Specifications

Key Specifications

Number of Speeds

Variable
Sound Level (Sones) (sones)

0.0
Type

Classic Inline Duct Booster Fan

General

Application

Ducting
California Residents

⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
Certifications

UL
Color

Gray
Controls

Manual
Maximum Air Temperature (degrees F)

140
Maximum Cubic Feet per Minute (CFM) (CFM)

FG 6XL - 492 CFM: 492.0

FG 6 - 291 CFM: 291.0

FG 6M - 418 CFM: 418.0

Power

Amperage (Amps)

FG 6XL - 492 CFM: 1.31

FG 6 - 291 CFM: 0.58

FG 6M - 418 CFM: 1.02
Power Supply

Hardwired
Voltage (V)

110-120
Watts (W)

FG 6XL - 492 CFM: 150

FG 6 - 291 CFM: 70

FG 6M - 418 CFM: 120

Dimensions

Depth (in.)

FG 6XL - 492 CFM: 7.0

FG 6 - 291 CFM: 6.25

FG 6M - 418 CFM: 7.0
Depth (with front cover) (in.)

FG 6XL - 492 CFM: 7.0

FG 6 - 291 CFM: 6.25

FG 6M - 418 CFM: 7.0
Duct Diameter (in.)

6.0
Height (in.)

FG 6XL - 492 CFM: 13.125

FG 6 - 291 CFM: 11.375

FG 6M - 418 CFM: 13.125
Height (with front cover) (in.)

FG 6XL - 492 CFM: 13.125

FG 6 - 291 CFM: 11.375

FG 6M - 418 CFM: 13.125
Weight (lbs.)

FG 6XL - 492 CFM: 9.1

FG 6 - 291 CFM: 7.1

FG 6M - 418 CFM: 8.2
Width (in.)

6.0
Width (with front cover) (in.)

6.0
