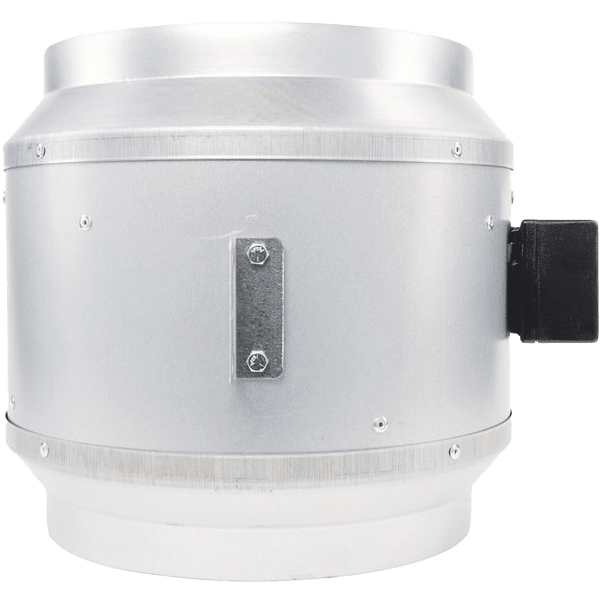

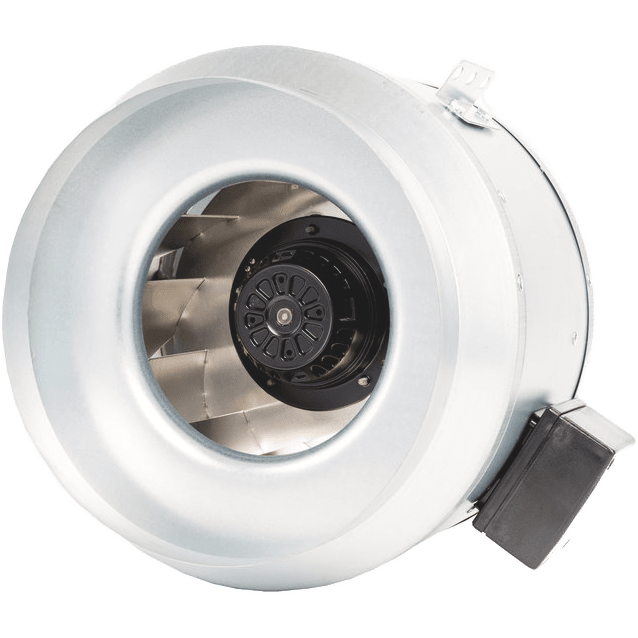

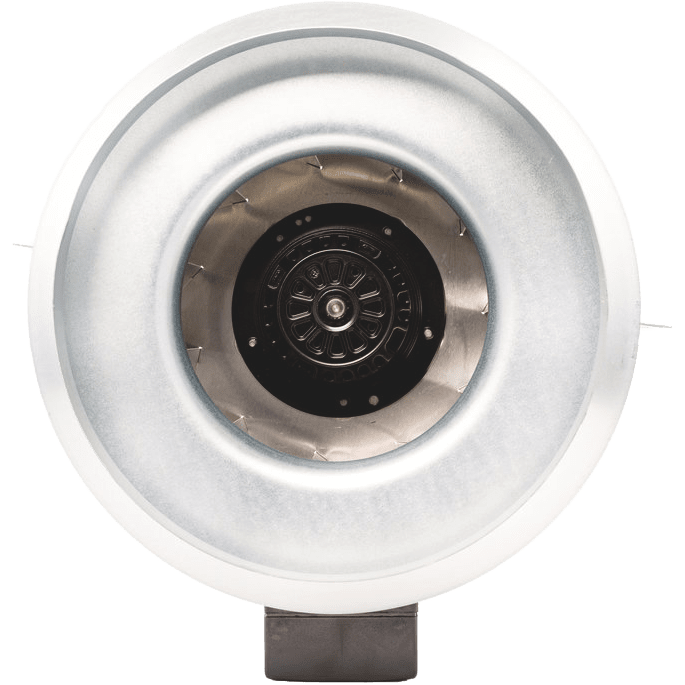

Fantech FKD 12 12in. Mixed Flow Inline Duct Fan
Fantech FKD 12 12in. Mixed Flow Inline Duct Fan - FKD 12 - 120V is backordered and will ship as soon as it is back in stock.
Save! Shop this product Open-Box & Used
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech FKD 12 12-Inch Mixed Flow Inline Duct Fan
- Owner's Manual
Info & Guides
Info & Guides
Fantech FKD 12 12in. Mixed Flow Inline Duct Fan
Description
Description

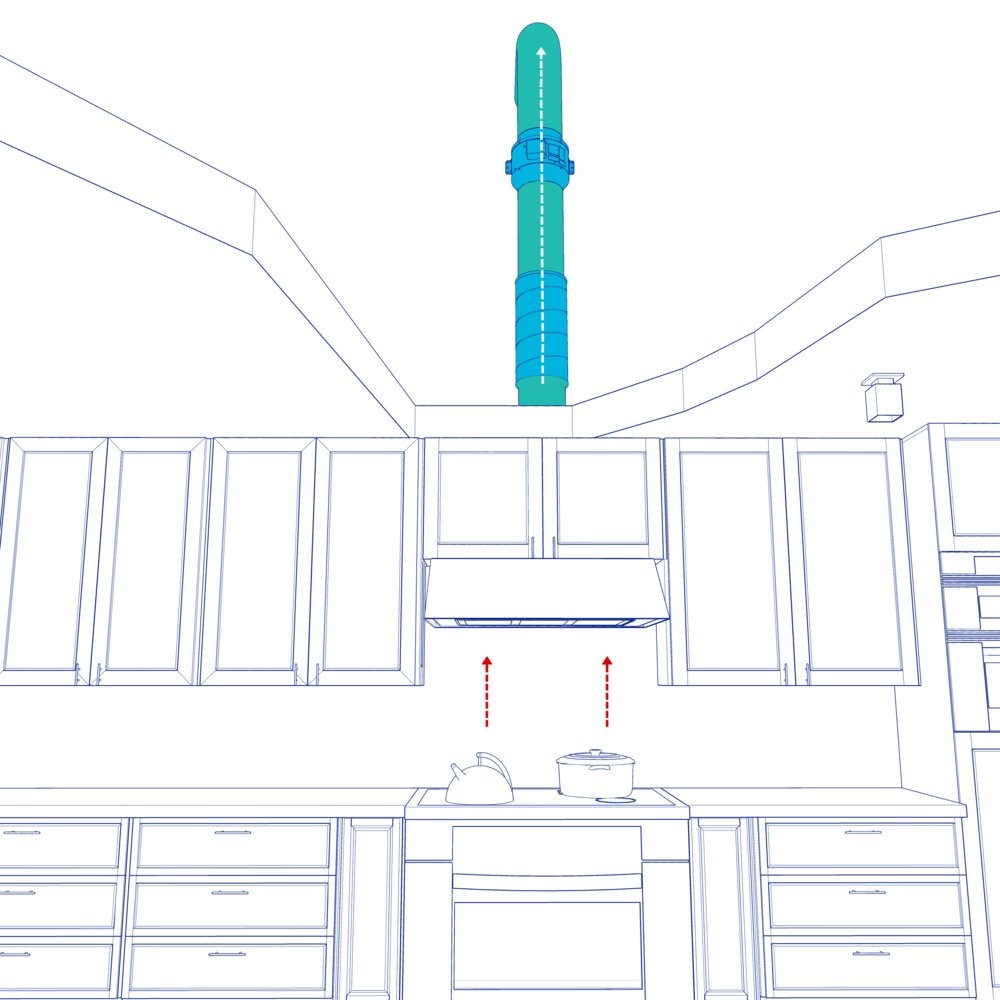

Delivering an airflow of up to 2,013 CFM, the Fantech FKD 12 12-Inch Mixed Flow Inline Duct Fan is an effective and efficient ventilation solution for a variety of commercial and residential applications. Useful in offices, medical facilities, and salons, it's equally effective in your home kitchen. Combining the performance of axial fans with the overloading protection of backward curved impellers, it's the premier option for achieving the best of both worlds.
Multiple Fans To Choose From
The Fantech FKD 12 Series offers four fan options for any space.
- Fantech FKD 12 120V: 1,305 CFM Airflow
- Fantech FKD 12 230V: 1,290 CFM Airflow
- Fantech FKD 12 XL 120V: 2,013 CFM Airflow
- Fantech FKD 12 XL 230V: 1,945 CFM Airflow
Key Features
- For Commercial and Residential Use: With airtight galvanized steel housing, this duct fan is rated for both commercial and residential applications.
- External Motor: Featuring an external rotor motor with built-in thermal overload protection.
- Low Maintenance Solution: Permanently lubricated sealed ball bearings deliver a maintenance-free performance.
- Maximum Heat Dissipation: This fan offers maximum heat dissipation even at low RPM.
- Speed Controllable: This fan is 100% speed controllable.
- Prewired: Has a terminal box with a prewired electrical strip.
- Air Stream Temperatures: The Fantech FKD 12 Series Fan is rated for air stream temperatures up to 140 degrees Fahrenheit.
Summary
Delivering an airflow of up to 2,013 CFM, the Fantech FKD 12 12-Inch Mixed Flow Inline Duct Fan is an effective and efficient ventilation solution for a variety of commercial and residential applications.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)23.020.418.725.0
-
TypeMixed Flow Inline Duct Fan
-
ApplicationDucting
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)1305.01945.02013.01290.0
-
Amperage (Amps)4.862.44.72.1
-
Power SupplyHardwired
-
Voltage (V)110-120220-240110-120220-240
-
Watts (W)484547467497
-
Depth (in.)14.018.87518.87514.0
-
Depth (with front cover) (in.)14.018.87518.87514.0
-
Duct Diameter (in.)12.0
-
Height (in.)15.62520.37520.37515.625
-
Height (with front cover) (in.)15.62520.37520.37515.625
-
Weight (lbs.)19.942.742.219.9
-
Width (in.)12.0
-
Width (with front cover) (in.)12.0
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty
3-Year Limited Warranty
