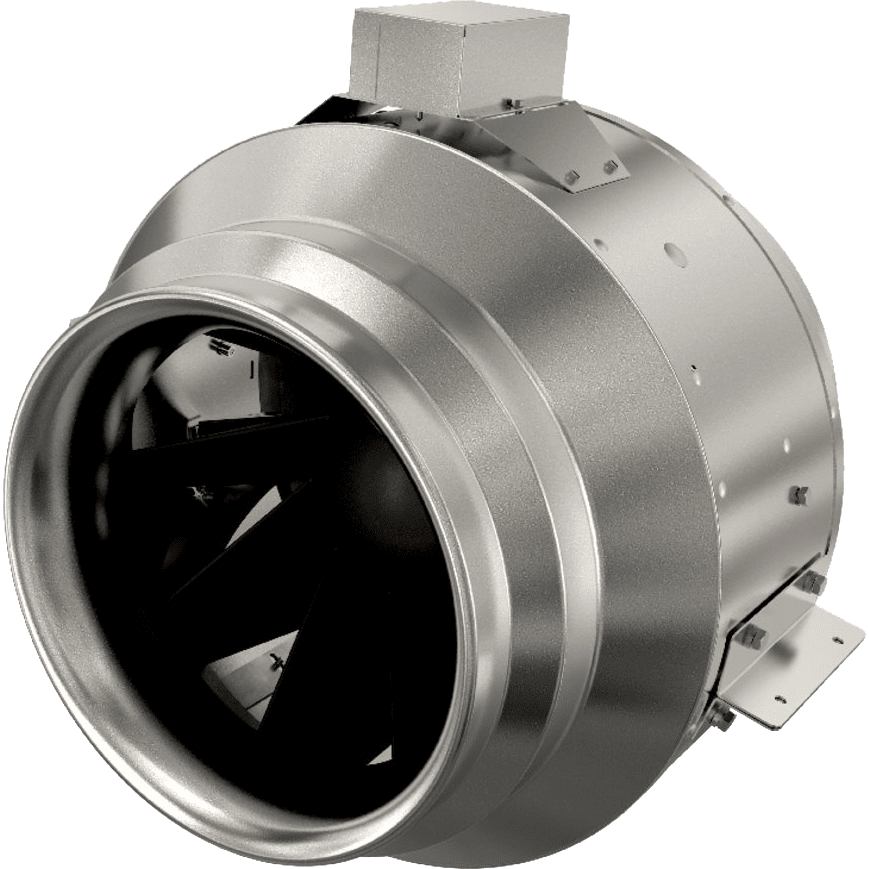

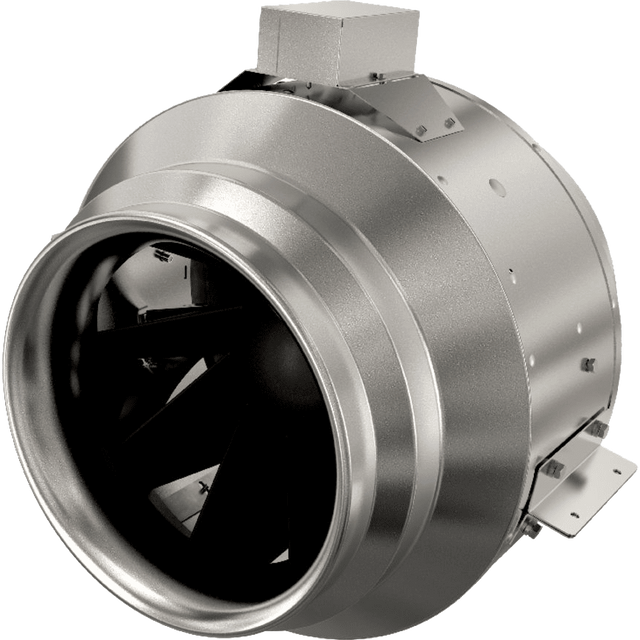

Fantech FKD 16 EC 16-in. Mixed Flow Inline Duct Fan w/ EC Motor
Fantech FKD 16 EC 16-in. Mixed Flow Inline Duct Fan w/ EC Motor is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech FKD 16 EC 16-Inch Mixed Flow Inline Duct Fan w/ EC Motor
- Owner's Manual
- Mounting Bracket and Hardware
Info & Guides
Info & Guides
Description
Description
Available in 4200 CFM airflow capacity, the Fantech FKD 16 EC 16-Inch Mixed Flow Inline Duct Fan with EC Motor is an efficient ventilation solution for offices, medical facilities, salons, and even residential settings like venting range hoods. The mixed-flow impeller design enables the fan to overcome high static pressures, making it suitable for applications where airflow resistance is a concern.
Key Features
- Reliable Design: Featuring galvanized steel housings, the Fantech FKD 16 EC is built for reliable performance and quiet operation.
- Space-Saving Design: Its external EC motor reduces the external dimensions of the fan.
- Speed Control: The fan motor's speed is controlled via a 0-10Vdc signal. The motor provides a +10V reference that can be used by a remotely-mounted potentiometer.
- Smart HVAC Integration: This Fantech duct fan can be integrated into smart HVAC systems.
- Air Stream Temperatures: This unit works in airstream temperatures up to 140 degrees Fahrenheit.
- Installation Materials Provided: An included mounting bracket makes set up quick and easy.
- Long Warranty: It's backed by an industry-leading 5-year limited warranty.
Summary
Available in 4200 CFM airflow capacity, the Fantech FKD 16 EC 16-Inch Mixed Flow Inline Duct Fan with EC Motor is an efficient ventilation solution for offices, medical facilities, salons, and even residential settings like venting range hoods.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)18.0
-
TypeMixed Flow Inline Duct Fan
-
ApplicationDucting
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)4200.0
-
Amperage (Amps)5.2
-
Power SupplyHardwired
-
Voltage (V)220-240
-
Watts (W)1082
-
Depth (in.)18.75
-
Depth (with front cover) (in.)18.75
-
Duct Diameter (in.)16.0
-
Height (in.)22.125
-
Height (with front cover) (in.)22.125
-
Weight (lbs.)109
-
Width (in.)16.0
-
Width (with front cover) (in.)16.0
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty5-Year Limited Warranty
