Fantech FKD 18 18in. Mixed Flow Inline Duct Fan
Fantech FKD 18 18in. Mixed Flow Inline Duct Fan - FKD 18XL - 230V-460V is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech FKD 18 18-Inch Mixed Flow Inline Duct Fan
- Owner's Manual
Info & Guides
Info & Guides

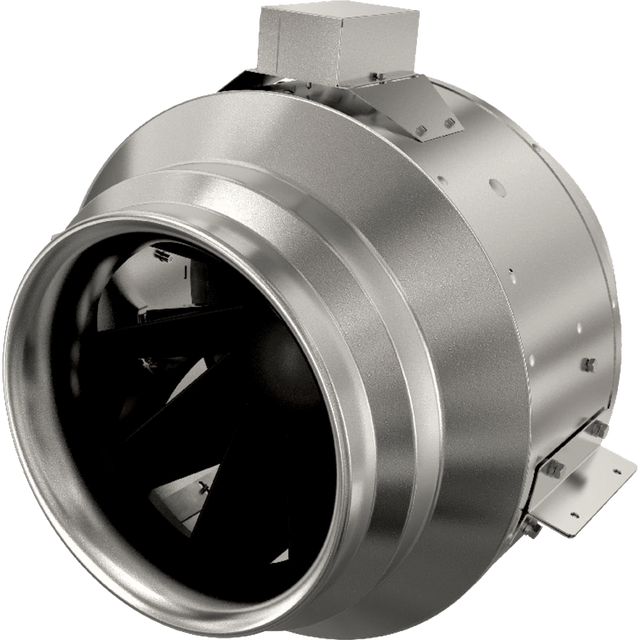

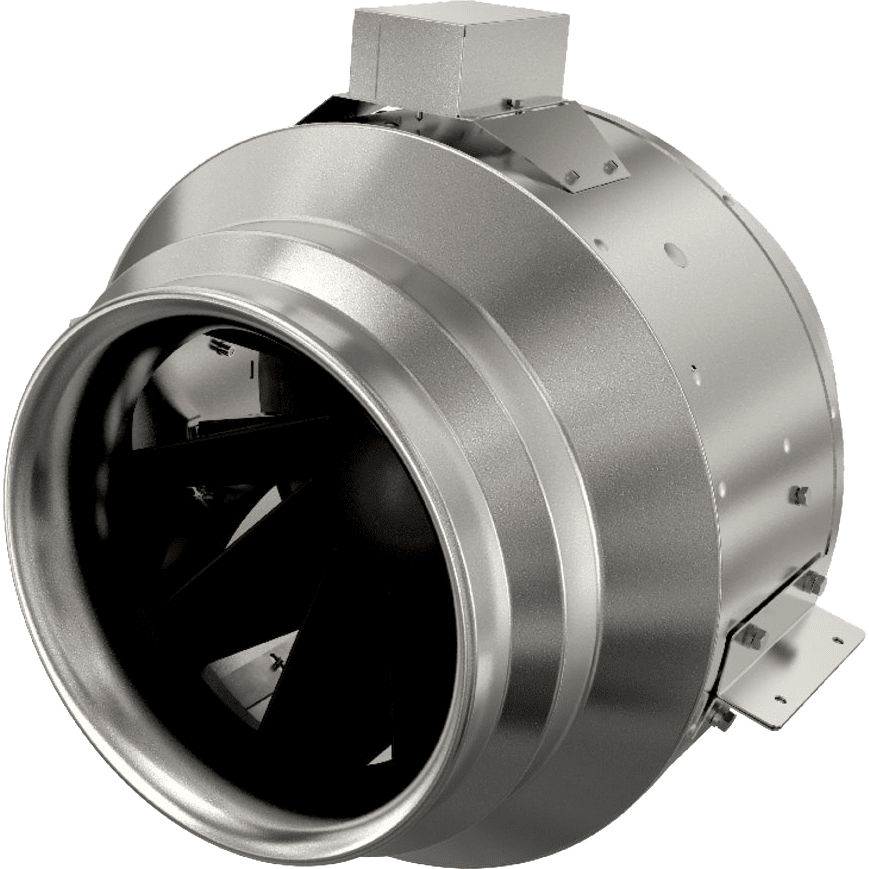

Fantech FKD 18 18in. Mixed Flow Inline Duct Fan
Description
Description
Get the high airflow performance of an axial fan with the reliability of a backward curved impeller when you install the Fantech FKD 18 18-Inch Mixed Flow Inline Duct Fan in your office, kitchen, or other space. Designed to work in commercial and residential applications, this mixed flow fan is built to deliver a quiet performance and is easy to set up and use.
It's available in three configurations.
Three Fan Models To Choose From
Select the perfect Fantech FKD 18 Series based on your needs and voltage requirements:
- Fantech FKD 18 120V: 4,448 CFM Airflow
- Fantech FKD 18 230-460V: 4,490 CFM Airflow
- Fantech FKD 18 XL 230-460V: 6,225 CFM Airflow
Key Features
- For Commercial and Residential Use: With airtight galvanized steel housing, this duct fan is rated for both commercial and residential applications.
- Overload Protection: It's designed with an external rotor motor with built-in thermal protection.
- Low Maintenance Solution: Permanently lubricated sealed ball bearings deliver a maintenance-free performance.
- Works At Low RPM: This fan has superior heat dissipation even at lower RPM.
- Speed Controllable: This fan is 100% speed controllable.
- Easy to Install: Features a terminal box with a prewired electrical strip.
- Air Stream Temperatures: The Fantech FKD 18 Series Fan is rated for air stream temperatures up to 140 degrees Fahrenheit.
Summary
Designed to work in commercial and residential applications, this mixed flow fan is built to deliver a quiet performance and is easy to set up and use.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)32.025.924.0
-
TypeMixed Flow Inline Duct Fan
-
ApplicationDucting
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)6225.04490.04448.0
-
Amperage (Amps)7.74.512.8
-
Power SupplyHardwired
-
Voltage (V)220-240220-240110-120
-
Watts (W)233014501305
-
Depth (in.)27.2521.7521.75
-
Depth (with front cover) (in.)27.2521.7521.75
-
Duct Diameter (in.)18.0
-
Height (in.)28.524.524.5
-
Height (with front cover) (in.)28.524.524.5
-
Weight (lbs.)149127132
-
Width (in.)17.625
-
Width (with front cover) (in.)17.625
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty3-Year Limited Warranty
