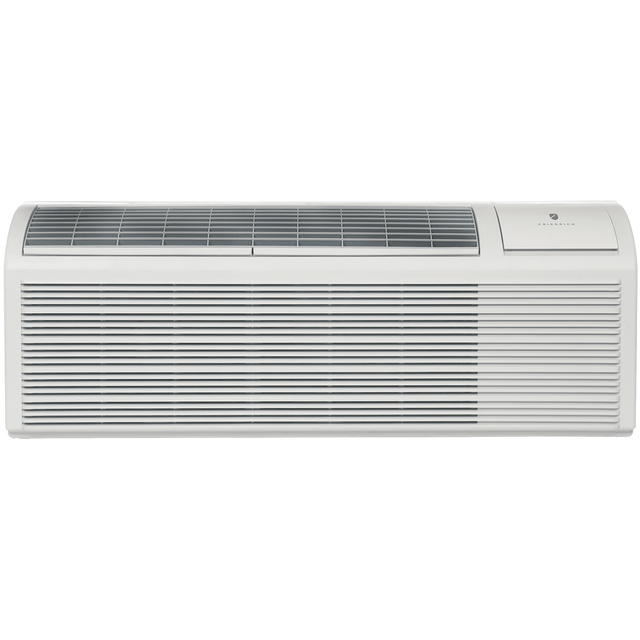

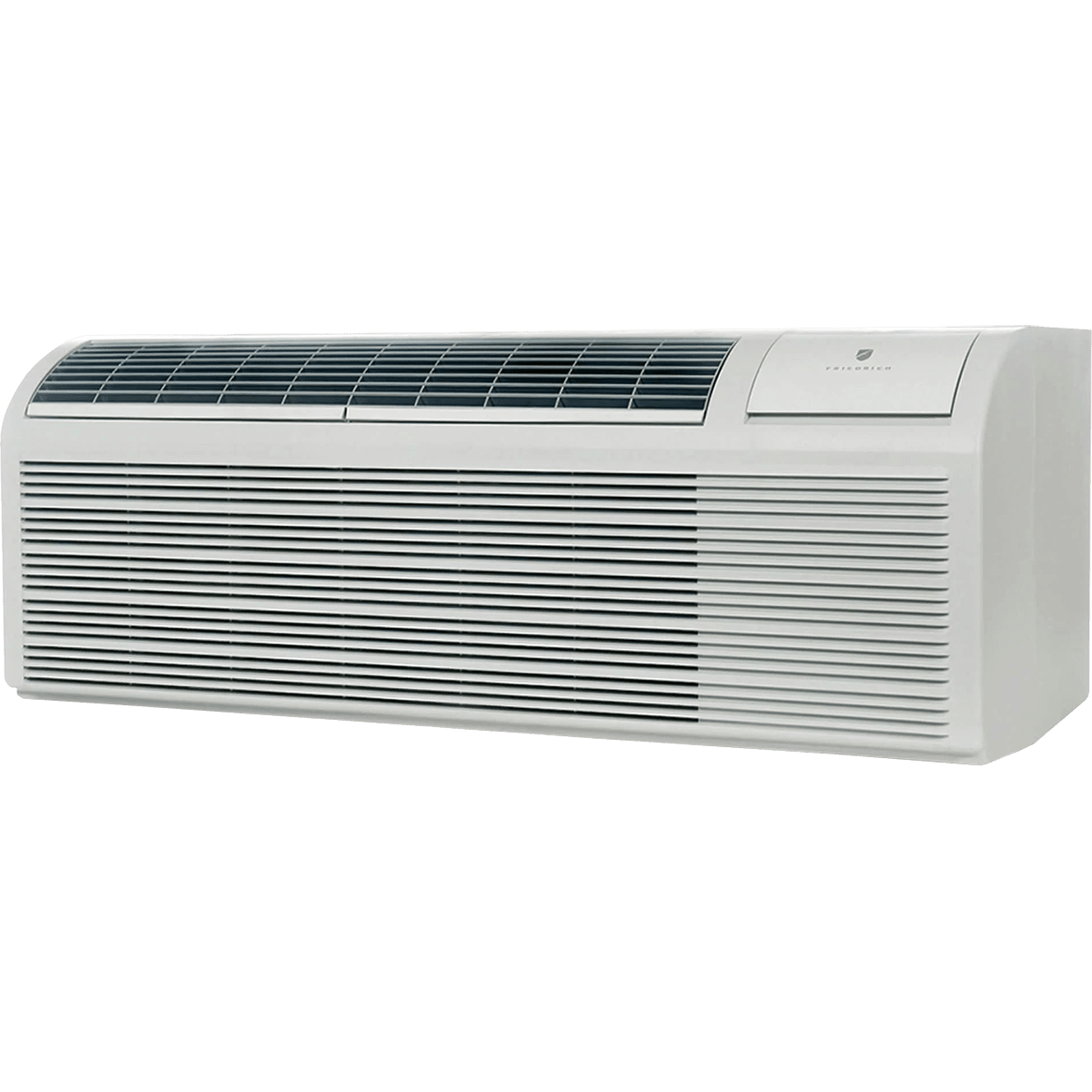

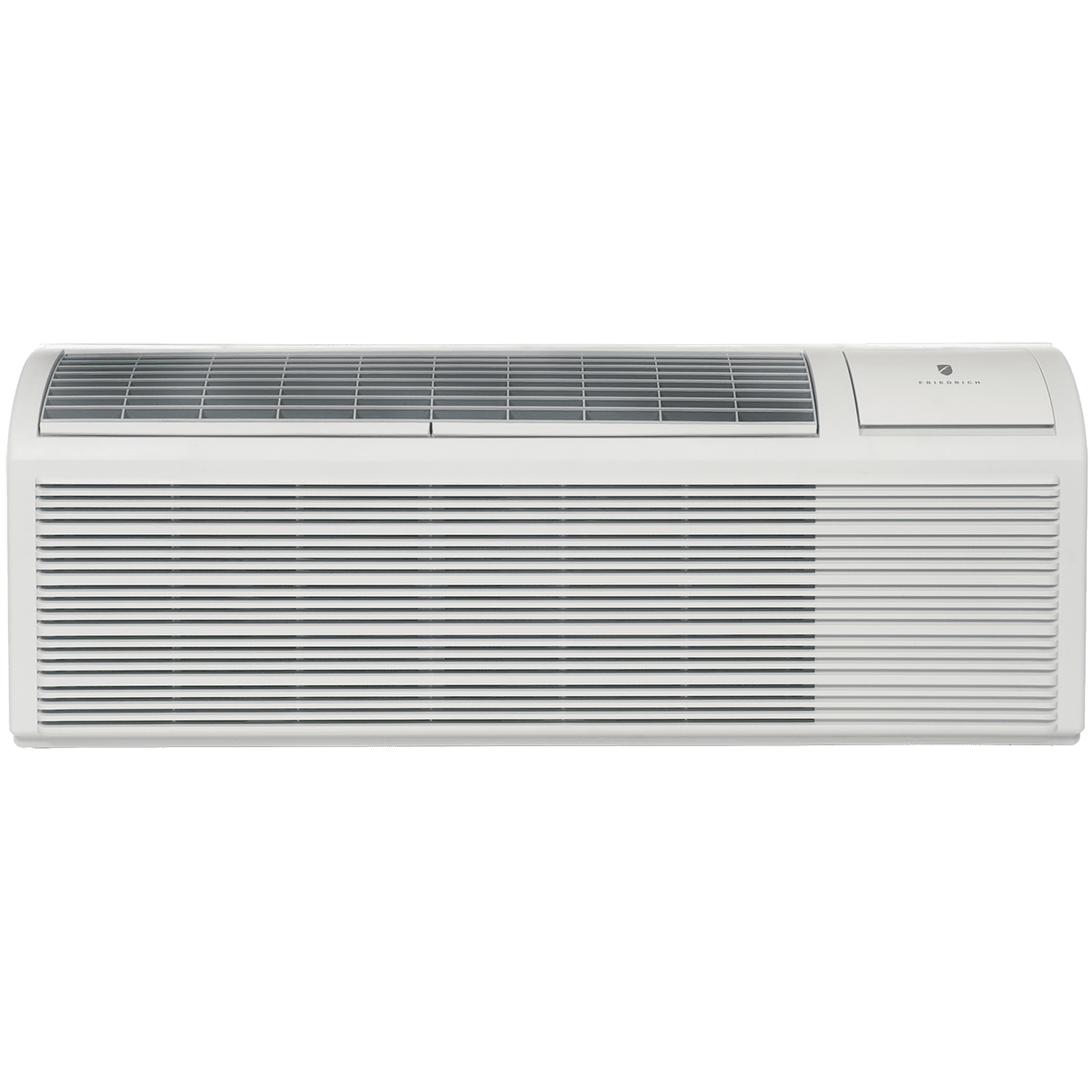

Friedrich 9,600 BTU ZoneAire Select PTAC w/ Heat Pump
Description
Description
The Friedrich 9,600 BTU ZoneAire Select PTAC with Heat Pump provides the ultimate comfort for every day of the year. Its powerful AC and heat pump provides reliable cooling and heating in spaces up to 450 square feet with an airflow of 390 CFM. Designed to fit standard Friedrich wall sleeves, grills, and thermostats, this Energy Management-compatible PTAC makes installation and user operation simple.
- Energy Management: Connect with an Exceptional Energy Management Thermostat to integrate multiple PTACs into a central control system.
- Simple Controls: Adjust the temperature, mode (heat, cool, and constant fan), and fan speed (high, low, and auto) easily with the easy-to-use button controls
- Maintenance-Friendly: The modular design ensures easy access to the internal parts for quick maintenance, repairs, and cleaning.
Available Models
Choose the Friedrich ZoneAire Select PTAC model that works best for your space. It is available in two configurations based on voltage range to help find a powerful PTAC system ideal for your needs
- 208-230V: This Friedrich ZoneAire Select PTAC model provides 9,200 BTU of cooling power and up to 8,000 BTU of heating power while reaching an 11.4 EER. (PZH09K3SC)
- 265V: This Friedrich ZoneAire Select PTAC model provides 9,000 BTU of cooling power and up to 8,200 BTU of heating power while maintaining an 11.5 EER. (PZH09R3SC)
Ultra-Quiet and Durable Design
Friedrich PTACs use high-quality materials and an ultra-efficient design to reduce sound levels and increase durability for 24/7 temperature control.
- Even Air Distribution: The tangential blower wheel provides a wide airflow path, quietly and evenly distributing it throughout the room.
- Durable Construction: The galvanized zinc-coated steel wall sleeve and steel base pan are powder-coated with a polyester finish for durability and sound reduction.
- Corrosion Protection: The indoor and outdoor coils are coated in Diamonblue Advanced corrosion protection, and the outdoor coils are encased in aluminum endplates to withstand harsh outdoor environments.
- Dual Motors: Features two permanently lubricated fan motors, one inside and one outside, so the indoor motor can run slower. This reduces sound levels without lowering performance.
- Quick Start and Stop: The two permanently lubricated fans are delayed to prevent starting or stopping at the same time as the compressor, ensuring quiet operation.
- High-Efficiency Rotary Compressor: This rotary compressor maximizes the durability and efficiency of the Friedrich 9,600 BTU PTAC as the heat is running.
- Vibration Isolators: The rotary compressor is mounted with vibration isolators to ensure quiet and smooth operation of the compressor.
Powerful and Efficient Heating
This Friedrich PTAC‘s reliable heat pump uses less energy than traditional heaters, by transferring warm air rather than creating it. Its backup 3.6 kW electric heater provides heat when temperatures reach below 40 degrees Fahrenheit and the heat pump can’t operate.
- Instant Heat Mode: Quickly heat a room to the desired temperature with the 3.6 kW electric heater and then maintain that temperature with the heat pump for increased comfort.
- Temperature Monitoring: This PTAC will test the room temperature every nine minutes to maintain the desired temperature.
- Temperature Limiting: Set a high and low-temperature limit range to reduce energy usage.
- Thermostat Capable: Its pop-out wiring module makes connecting it to a thermostat quick and easy.
- Electronic Defrost Control: The electric heater can provide additional heat to increase the heat pump efficiency.
- Freeze Protection: When set to auto heating, if an unoccupied room temperature reaches below 50 degrees Fahrenheit, the electric heater will automatically start, preventing the heat pump from freezing.
- Friedrich PTAC Universal Heater Cord: To increase the power of the electric heater for colder environments, upgrade to a 5 kW backup electric heater with the Friedrich 5 kW Heater Cord.
Additional Features
- R-32 Refrigerant: This PTAC uses a refrigerant with a low global warming potential.
- LED Display: Easily view the set point or actual room temperature, mode, and fan speed with the digital control display.
- Standard Sizing: This PTAC measures an industry-standard 42-inch width, making it simple to replace old PTACs.
- Internal Diagnostic Program: This self-diagnosing program runs factory tests to reduce problems by alerting maintenance of component or operating problems.
- Air filters: The washable filters prevent airborne particles from reaching the internal components and extend the machine's life expectancy.
- Dehumidification: Remove between 1.1 to 1.37 pints of moisture in an hour to reduce humidity.
- Fresh Air Damper: Open this damper to bring in fresh, filtered outdoor air.
- Reversible Air Louvers: Adjust the indoor louvers to control the airflow direction.
Note: For new installations, a standard Friedrich grille and standard Friedrich PTAC sleeves should be purchased separately.
Sylvane's Expert Take

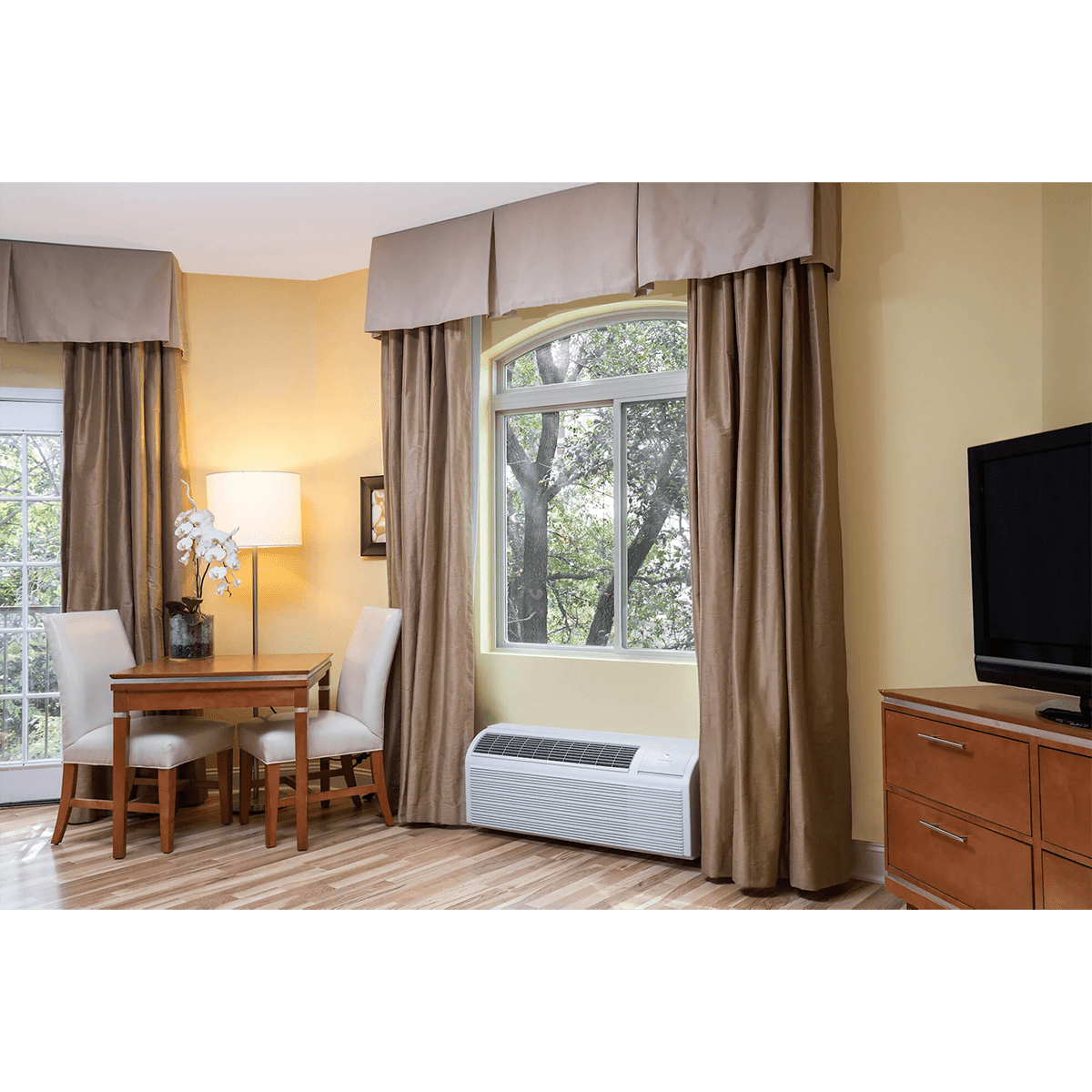

The Friedrich 9,600 BTU ZoneAire Select PTAC w/ Heat Pump is a high-power and eco-conscious heating and cooling solution for spaces up to 450 square feet. With its durable materials, ultra-quiet design, and thermostat compatibility, it is ideal for hotel rooms and other multi-unit facilities.
- Easy Access Design: Its modular design allow easy access to the internal components. This makes cleaning the washable filters, repairs, and servicing quick and simple.
- Energy Efficient: This PTAC was designed with an energy-saving design to reach an 11.4 EER. It features efficient materials, refrigerant, and a heat pump, all compatible with energy-efficient accessories.
- Required Voltage: Before purchase, ensure your property is wired to handle this 230/208-volt (PZH09K3SC) or 265-volt (PZH09R3SC) air conditioner. It uses a NEMA 6-20P plug face.
Specifications
Specifications
-
Energy Efficiency Ratio (EER)11.411.5
-
Number of Speeds2
-
California Residents⚠ WARNING: Cancer and Reproductive Harm www.p65warnings.ca.gov.
-
CertificationscETLus
-
ColorWhite
-
ControlsElectronic
-
Electric Heat BTU's (BTUs)12000
-
Heater TypeHeat Pump
-
Heating BTUs (BTUs)80008200
-
Maximum Cubic Feet per Minute (CFM) (CFM)390.0
-
Maximum Noise Level (dB)5251
-
Maximum Operating Temperature (degrees F)114
-
Minimum Operating Temperature (degrees F)53
-
Moisture Removal per Hour (pints)1.71.1
-
Recommended Coverage Area (sq. ft.)450
-
Refrigerant TypeR-32
-
Sensible Heat Ratio0.85.86
-
Branch Circuit Fuse (amps)20
-
Electric Heat Max Amps (Amps)15.913.8
-
Electric Heat Max Wattage (W)3650
-
Maximum Cooling Amperage (Amps)3.63.1
-
Maximum Cooling Wattage (W)805780
-
Maximum Heating Amperage (Amps)3.33.1
-
Maximum Heating Wattage (W)690685
-
Plug Face Type6-20P7-20P
-
Power Cord Length (ft.)6
-
Voltage (V)208-230260-280
-
Cut Out Dimensions (H x W) (in.)16.25 x 42.25
-
Depth (in.)21.5
-
Depth (with front cover) (in.)21.5
-
Height (in.)16.0
-
Height (with front cover) (in.)16.0
-
Weight (lbs.)9594
-
Width (in.)42.0
-
Width (with front cover) (in.)42.0
-
Additional FeaturesAdjustable Louvers, Fan-Only Mode
-
Manufacturer's Warranty2-Year Limited Parts and Labor Warranty, 5-Year Limited Sealed Refrigeration System Warranty
