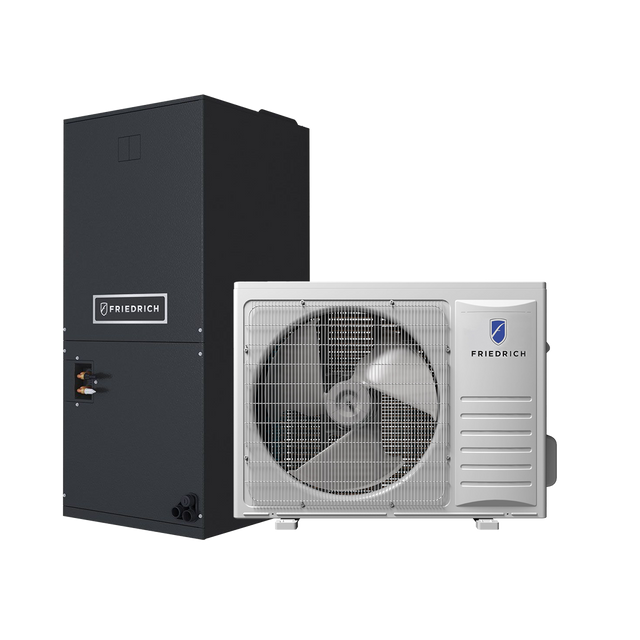

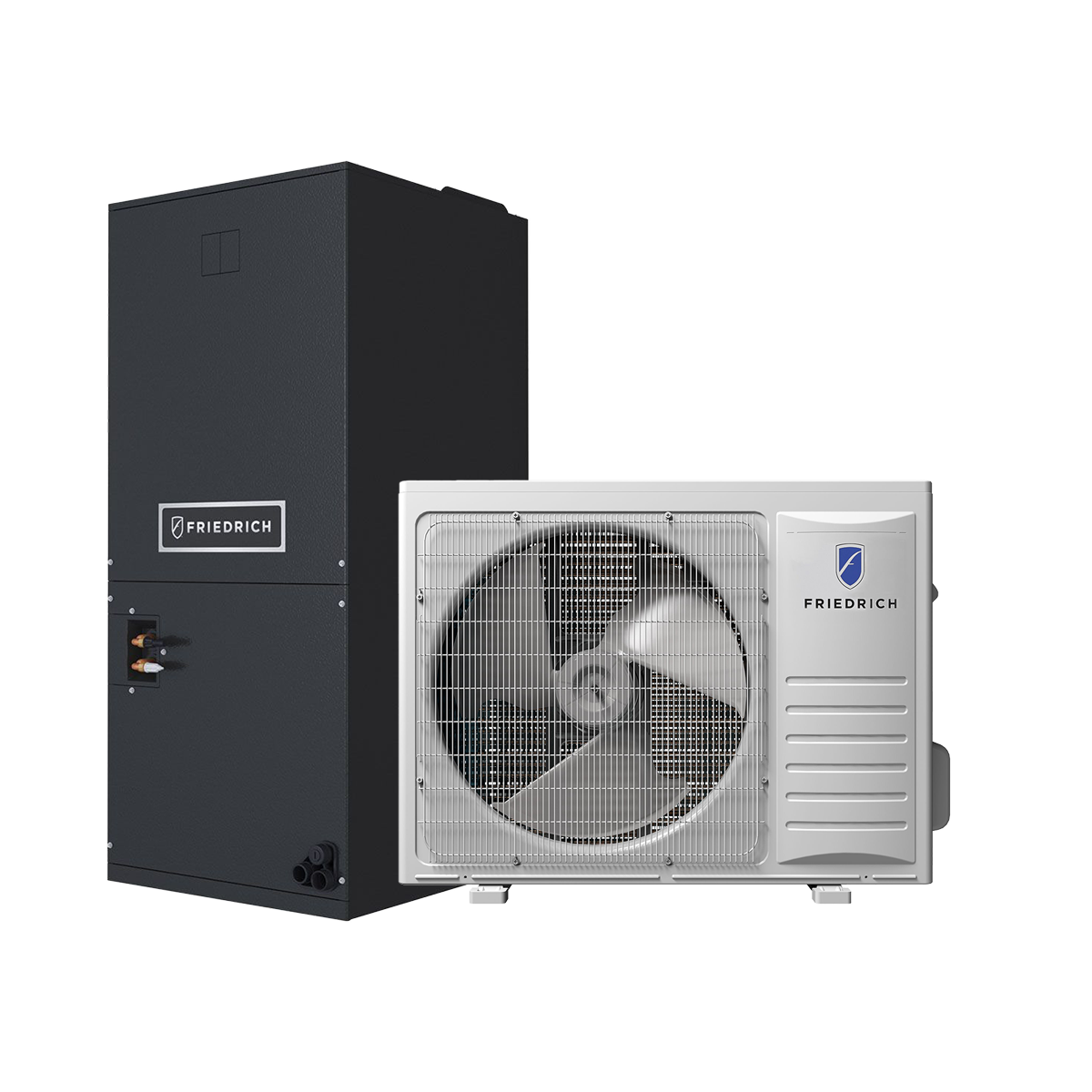

Friedrich 24,000 BTU 1.8 Ton Breeze Central Ducted Heat Pump Split System
Friedrich 24,000 BTU 1.8 Ton Breeze Central Ducted Heat Pump Split System is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?

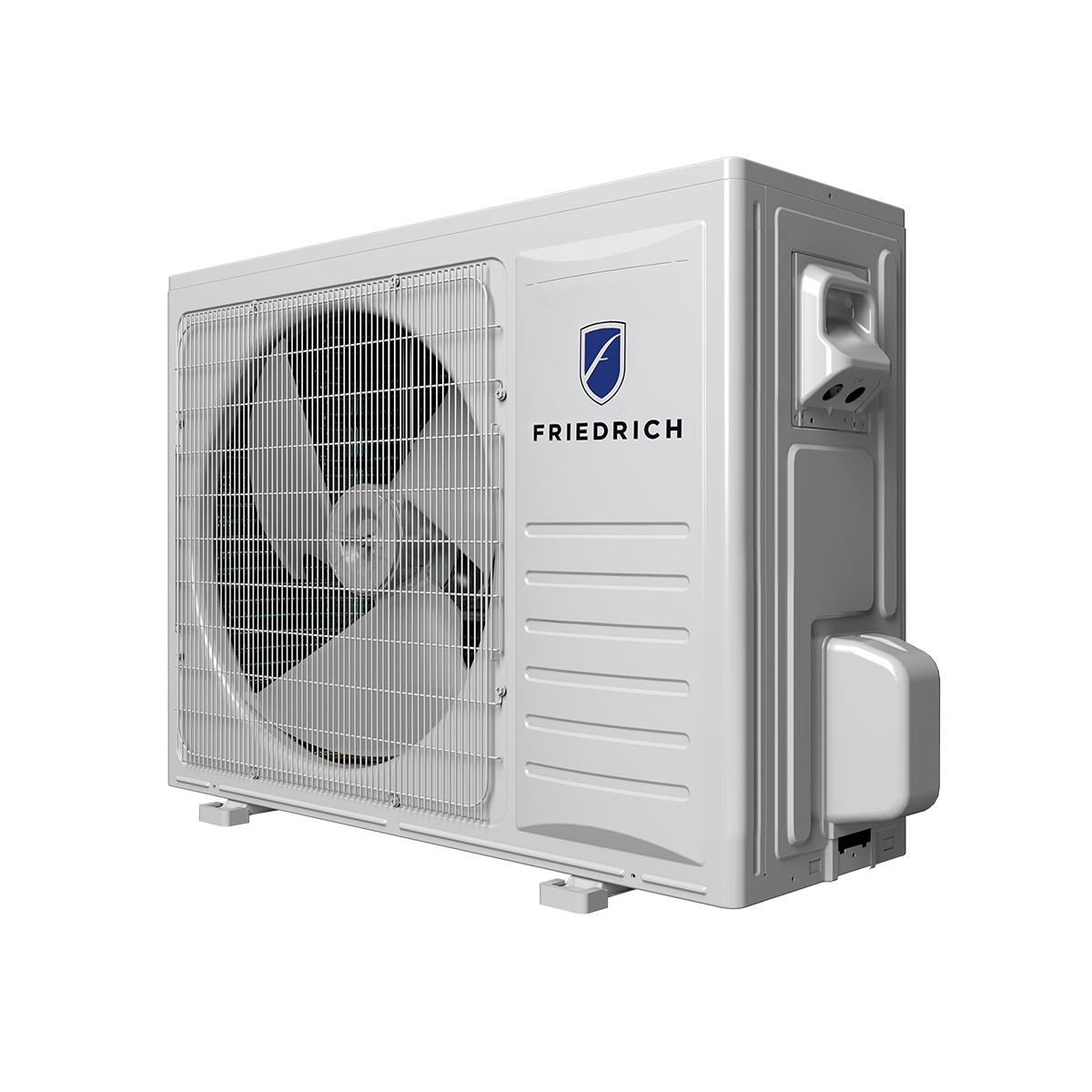

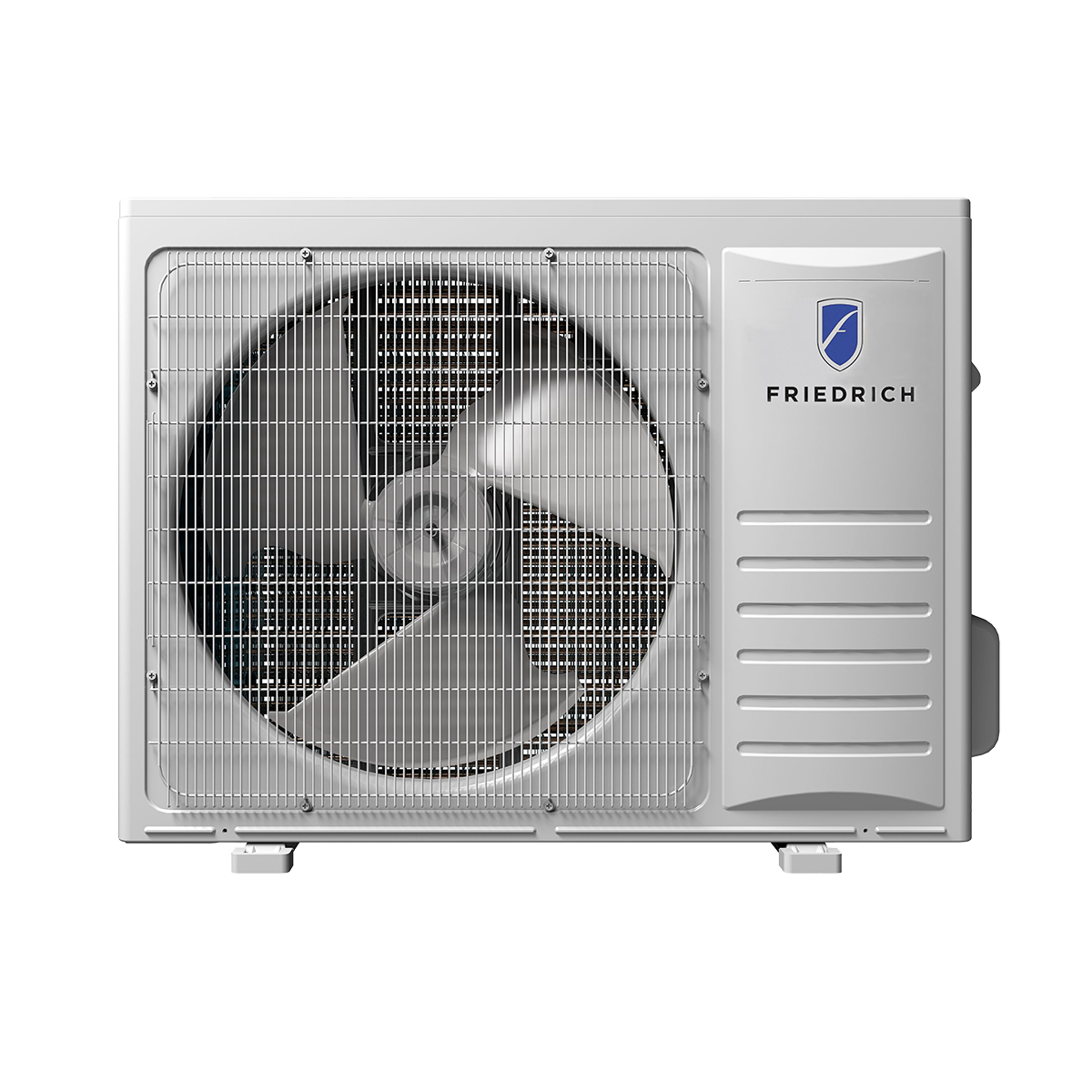

- Friedrich 24K BTU Breeze Outdoor Compressor Unit (WFPU17Z243D)

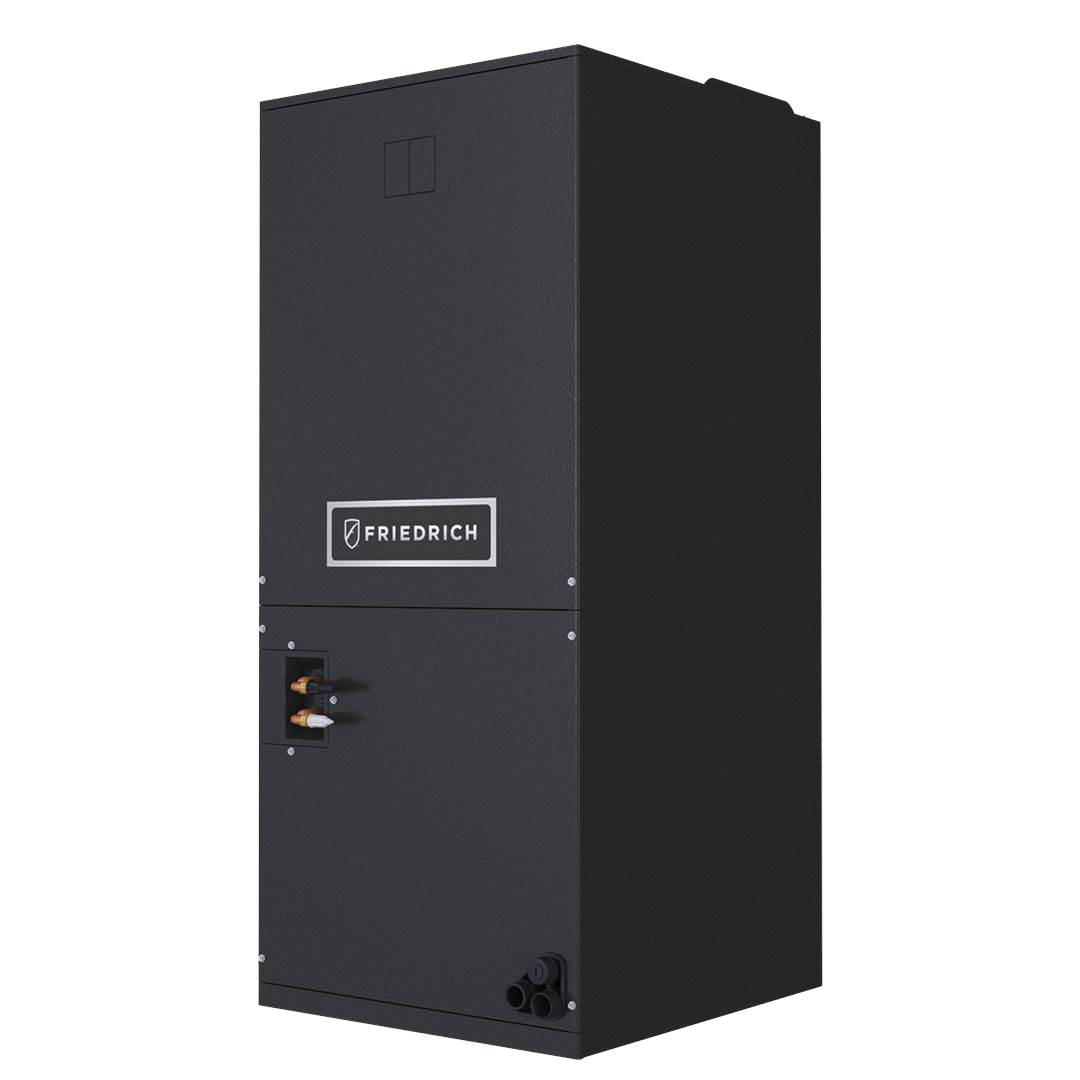

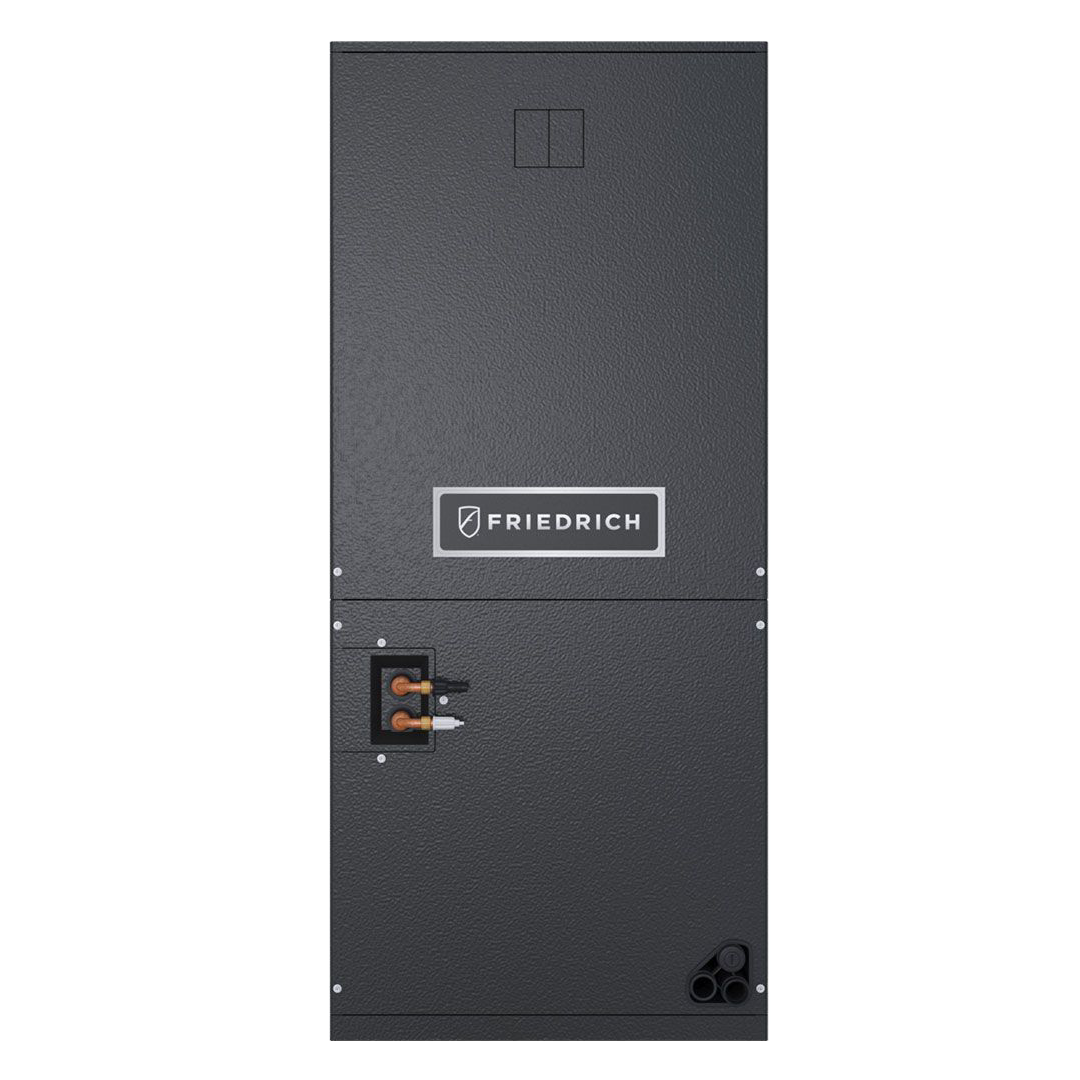

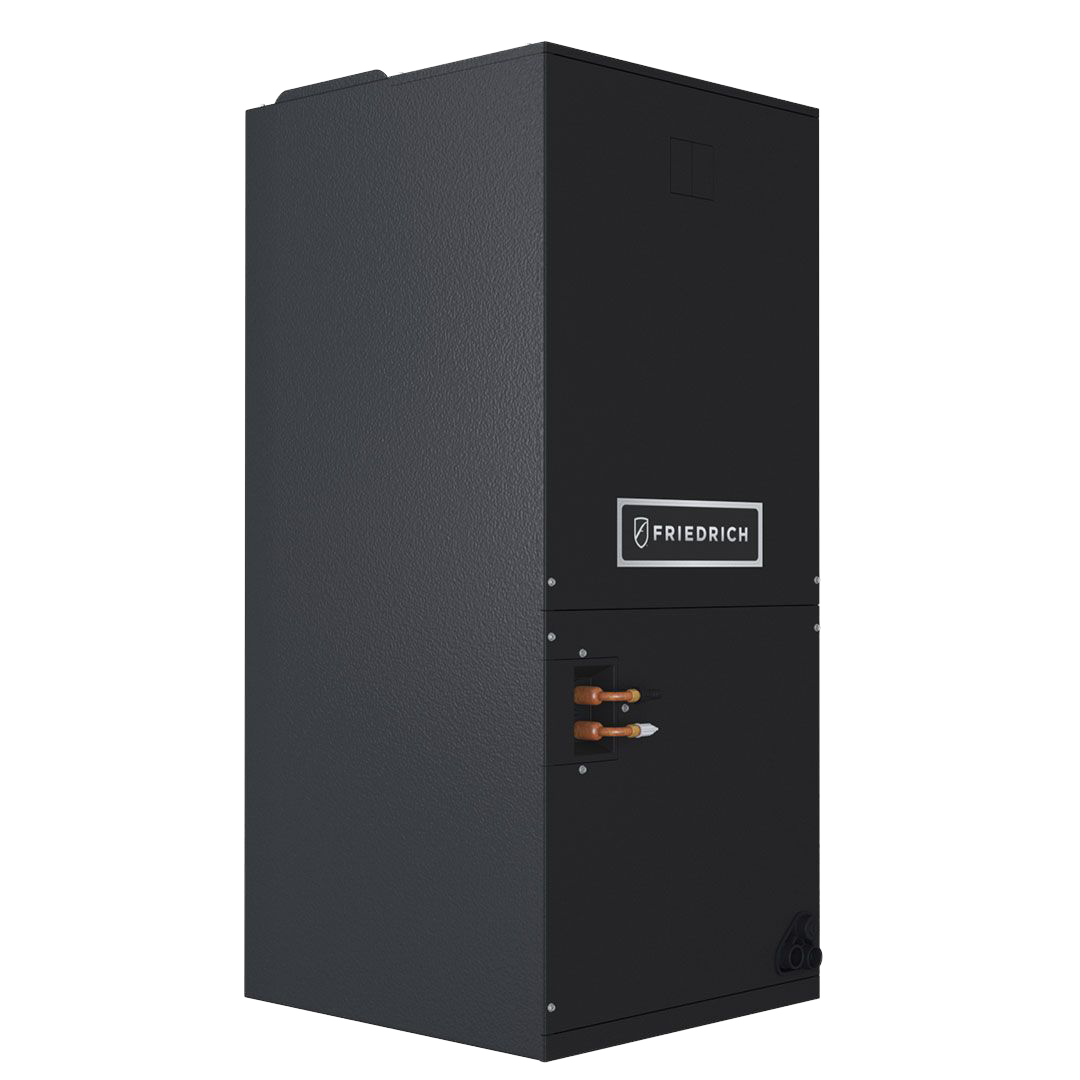

- Friedrich 22K BTU Breeze Indoor Air Handler Unit (WFH24Z193D)
- Owner’s Manual
Description
Description
The Friedrich 24K BTU Breeze System delivers powerful and precision climate control in large spaces like homes, offices, and other professional settings.
Designed with unique inverter technology, this split-duct AC system ensures consistent temperature regulation while optimizing energy consumption. Its universal compatibility allows integration with most 24V thermostats and existing HVAC components, minimizing installation complexity.
With Energy Star certification and cold-climate capabilities, this 2-ton system performs reliably in extreme heat and subzero temperatures.
Note: This unit requires professional installation.
Top Features
- Cold-Climate Performance: Certified to operate efficiently in temperatures as low as -13 degrees F, with a heating output of 70 percent at 4 degrees F.
- High Airflow: The indoor airflow from this model is rated at 800 CFM for effective temperature distribution.

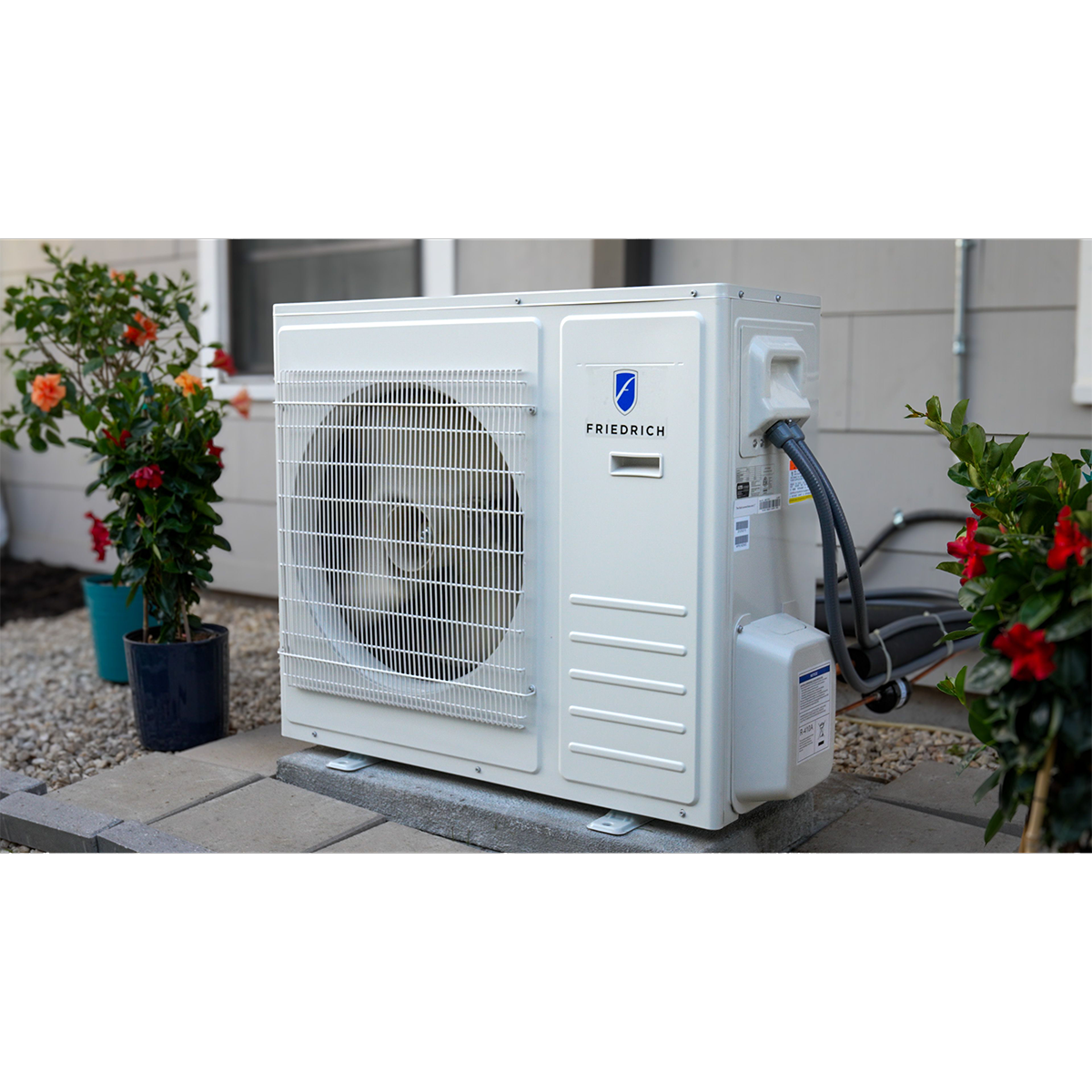

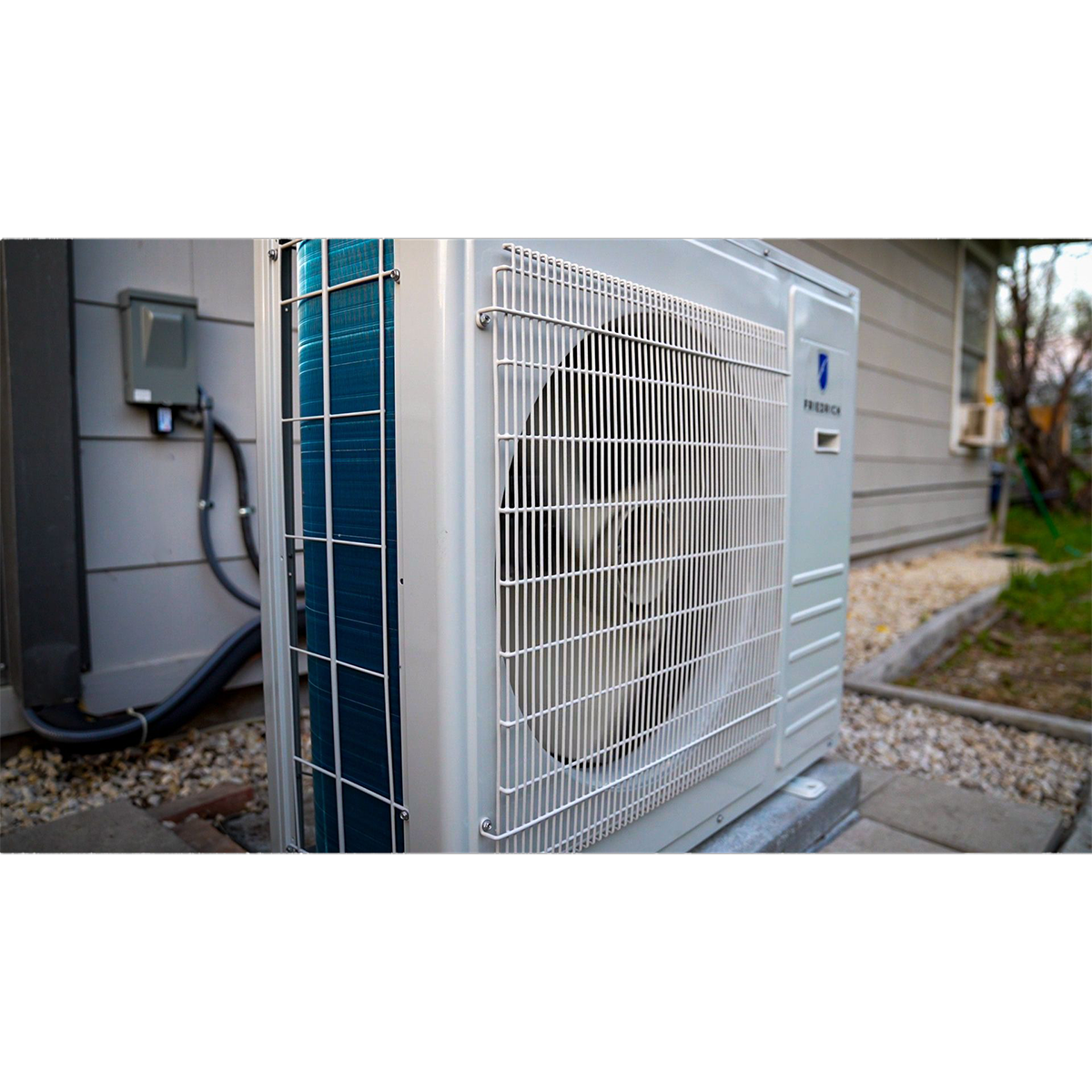

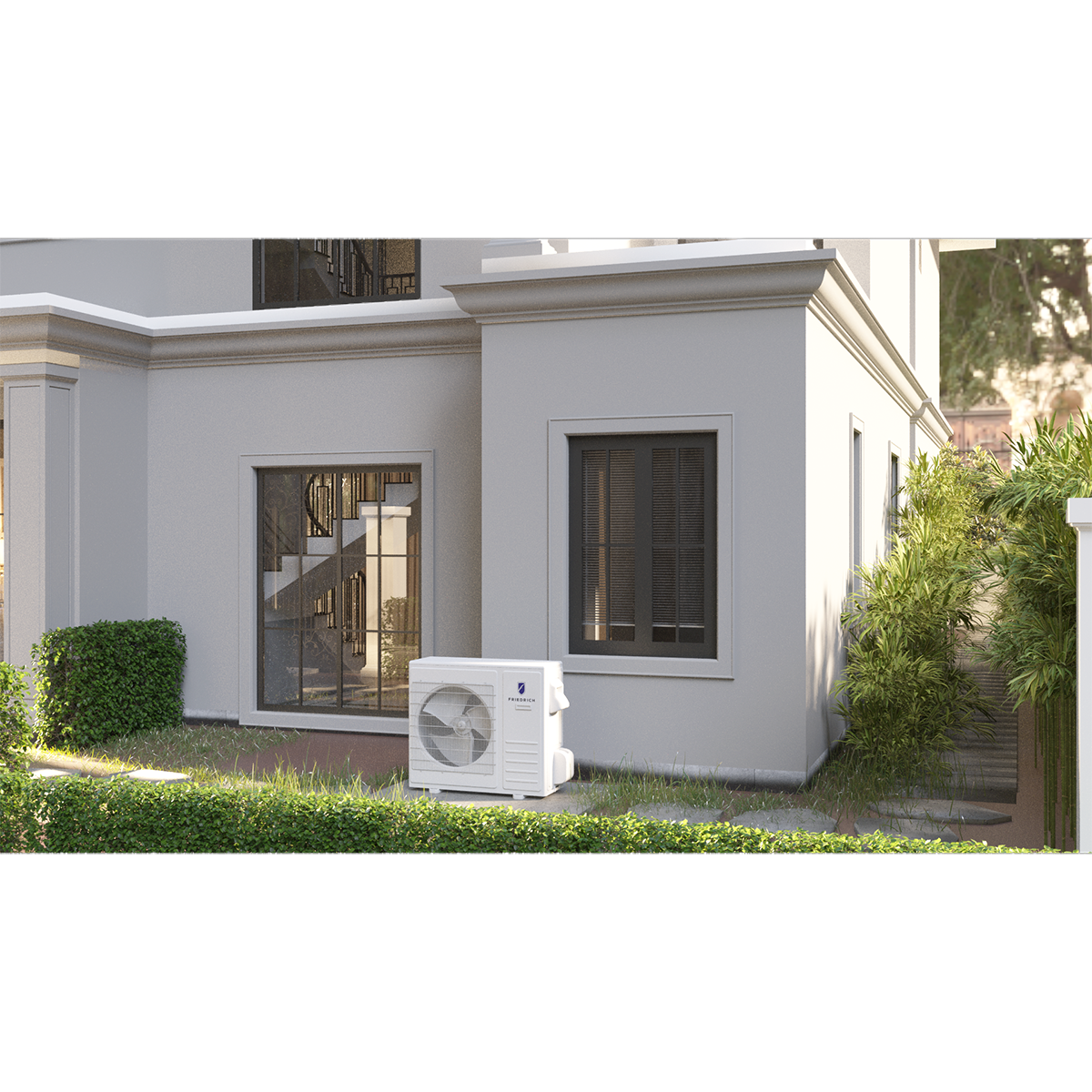

- Space-Saving Design: The outdoor unit has a 40 percent smaller footprint than traditional models, optimizing installation areas.
- Quiet Operation: Operates with noise levels as low as 55 dB indoors and 54 dB outdoors.
Precision Inverter Technology
The unique precision inverter technology allows this Friedrich Split AC to achieve Energy Star-rated efficiency, up to 18 SEER2 and 10 EER2, while maintaining consistent temperature and reducing power consumption. The compressor ramps up slowly and smoothly to avoid temperature swings and maintain precise control over the set temperature.
Additional Features

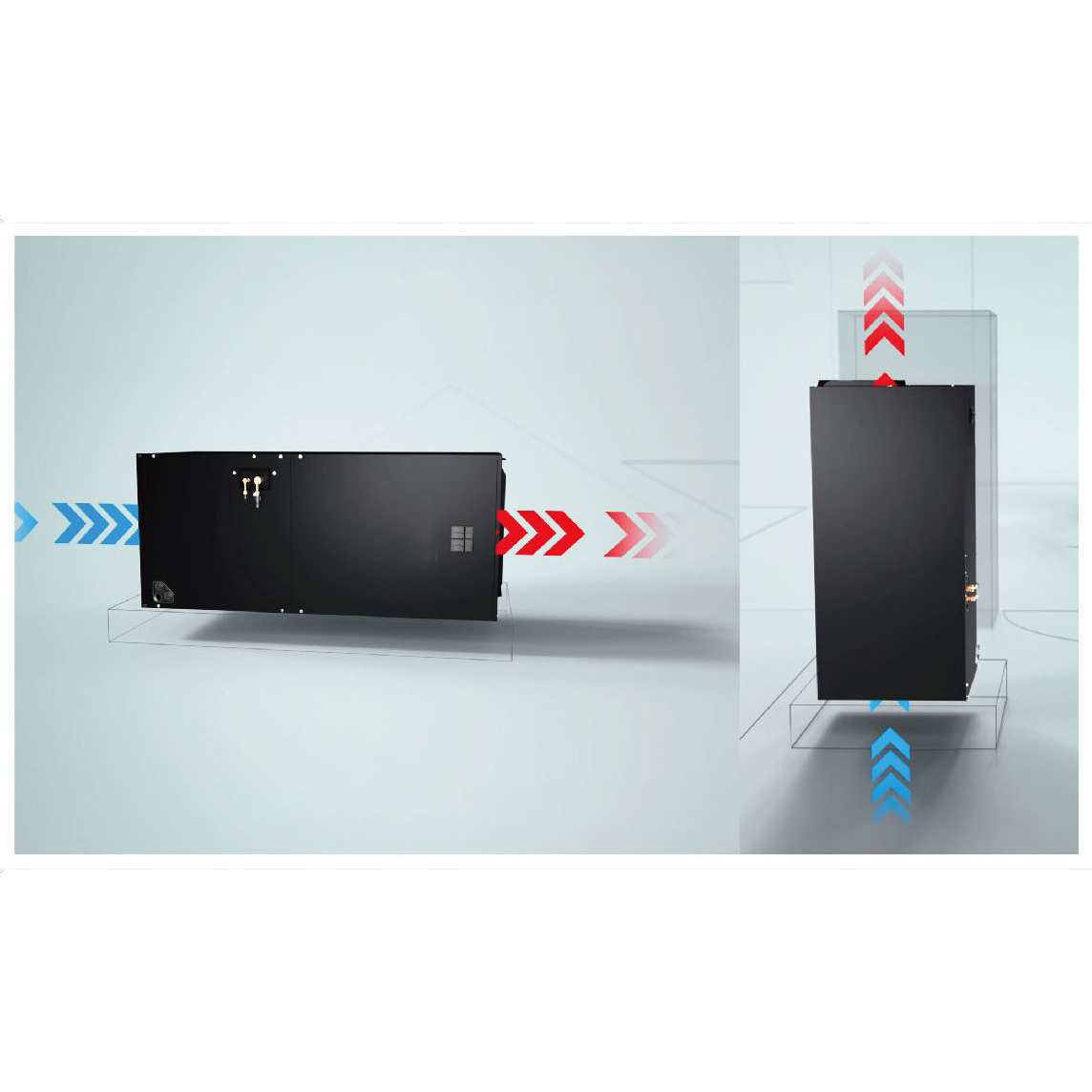

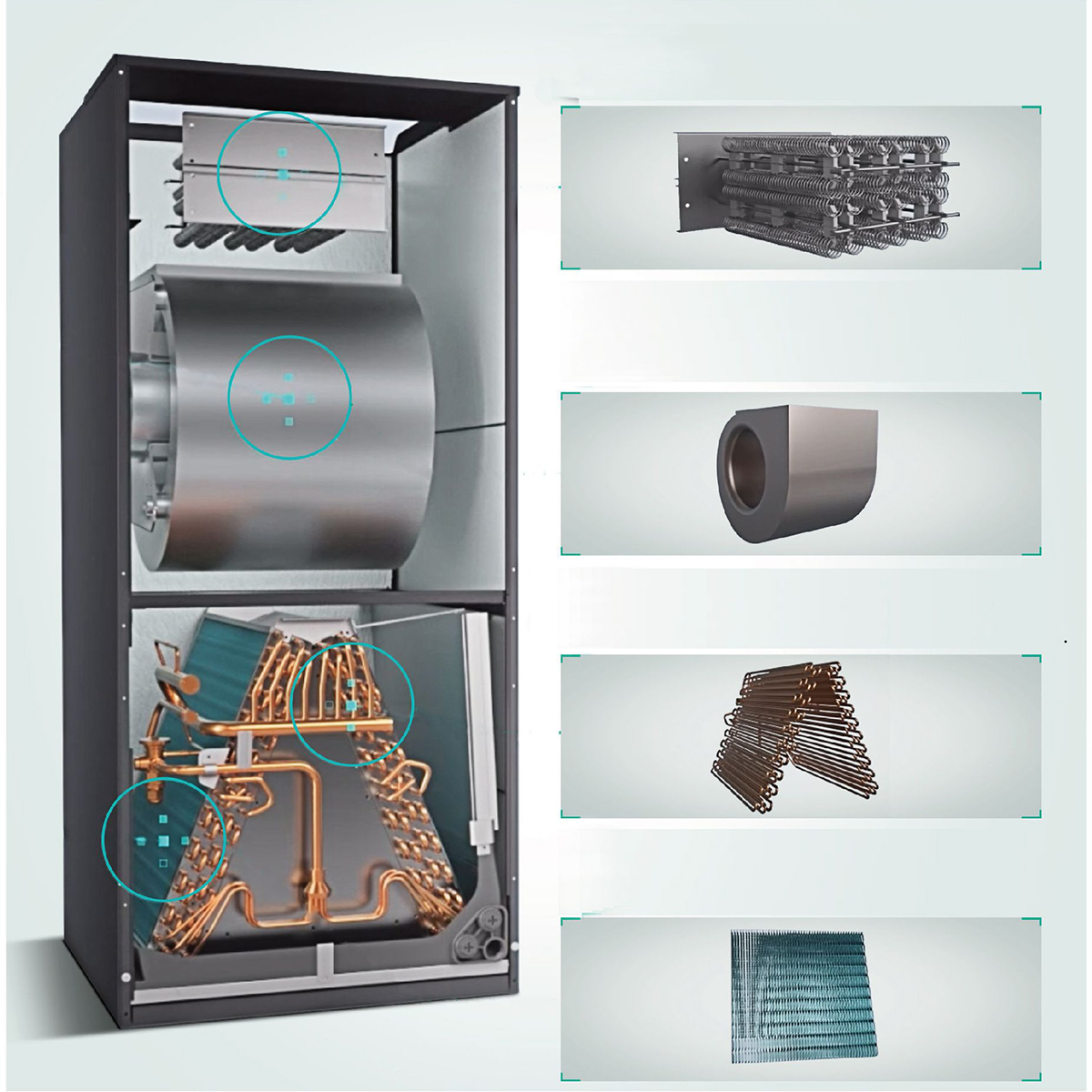

- Horizontal or Vertical: This Friedrich AC air handler can be installed vertically or horizontally for greater flexibility in attics, crawlspaces, or closets.
- Accommodates Long Linesets: The Breeze’s high-capacity compressor accommodates linesets up to 246 feet and height differentials up to 98 feet.

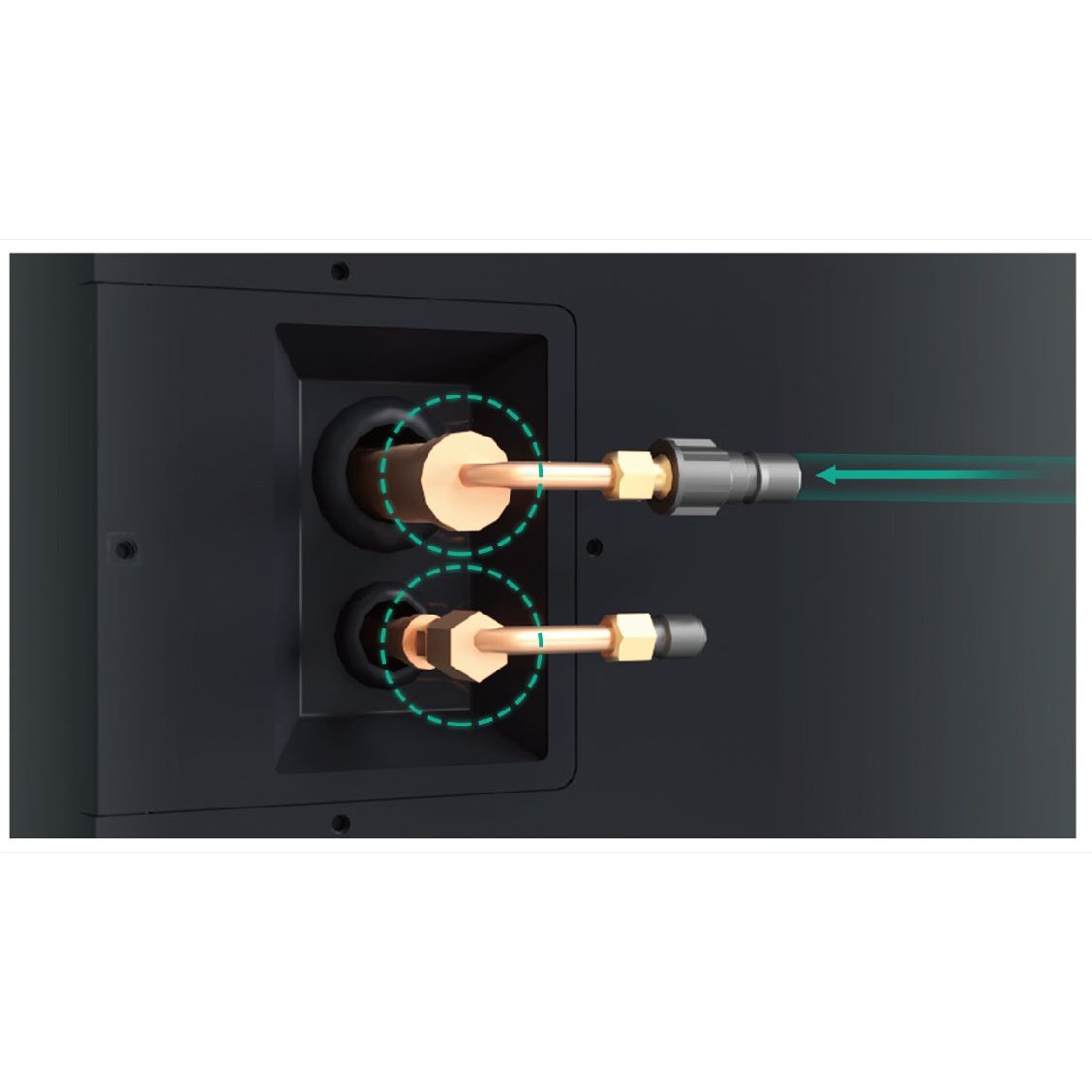

- Leak Detection: A nitrogen charge and factory-installed leakage indicator provide users with a warning against leaks, offering lasting peace of mind.
Note: This product does not include a lineset.
Sylvane's Expert Take
The Friedrich 24K BTU Breeze System outperforms many air conditioner systems with its inverter heat pump technology, delivering consistent temperatures and Energy-Star-rated efficiency. Unlike traditional central air systems, its universal compatibility allows seamless integration with most existing systems, simplifying installation and offering greater versatility.
- Superior Cold-Climate Performance: This model continues to operate efficiently in temperatures as low as -13 degrees F, exceeding the capabilities of many competitors in extreme conditions.
- Compact Outdoor Unit: This model features an outdoor compressor unit with a 40 percent smaller footprint than traditional models, providing more flexibility in placement without sacrificing power.
Specifications
Specifications
-
Energy Efficiency Ratio 2 (EER2)10
-
Mounting TypeFloor
-
Number of Speeds4
-
Seasonal Energy Efficiency Ratio 2 (SEER2)18
-
Total Cooling Capacity (BTUs)24000
-
Total Heating Capacity (BTUs)23000
-
TypeCentral Split
-
Auxiliary HeatNone
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
-
CertificationscETLus, AHRI
-
ColorWhite, Black
-
Compressor TypeInverter Rotary
-
Heat ModeYes
-
Heating Seasonal Performance Factor 2 (HSPF2)9
-
Installation TypeProfessional Installation
-
Maximum Cubic Feet per Minute (CFM) (CFM)1825.0
-
Maximum Indoor Noise Level (dB)55
-
Maximum Operating Temperature - Cooling (degrees F)122
-
Maximum Operating Temperature - Heating (degrees F)75
-
Minimum Operating Temperature - Cooling (degrees F)5
-
Minimum Operating Temperature - Heating (degrees F)-13
-
Number of Tons2
-
Refrigerant TypeR-454B
-
Voltage (V)208-230
-
Indoor Unit Depth (in.)25.375
-
Indoor Unit Height (in.)49.625
-
Indoor Unit Weight (lbs.)135.5
-
Indoor Unit Width (in.)22.5
-
Maximum Line Length (ft.)164
-
Outdoor Unit Depth (in.)17.75
-
Outdoor Unit Height (in.)28.75
-
Outdoor Unit Weight (lbs.)112.4
-
Outdoor Unit Width (in.)39
-
Additional FeaturesEnergy Star
-
Manufacturer's Warranty10 Year Compressor Warranty, 7 Year Parts Warranty (10 Years with Warranty Registration)
