Friedrich Breeze 2 Ton Breeze Central Ducted Heat Pump Split System

Name: Friedrich Breeze 2 Ton Breeze Central Ducted Heat Pump Split System
Brand: Friedrich
Price: 4299.0 USD
Availability: InStock

SKU: fr18960 | Model: BREEZE24BUNDLE

Includes a Free Trade Pro Surge Protector, $300 value!

$4,299⁰⁰

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

10-Year Compressor Limited Warranty, 7-Year Parts Limited Warranty (10-Year Parts Limited Warranty with Registration)

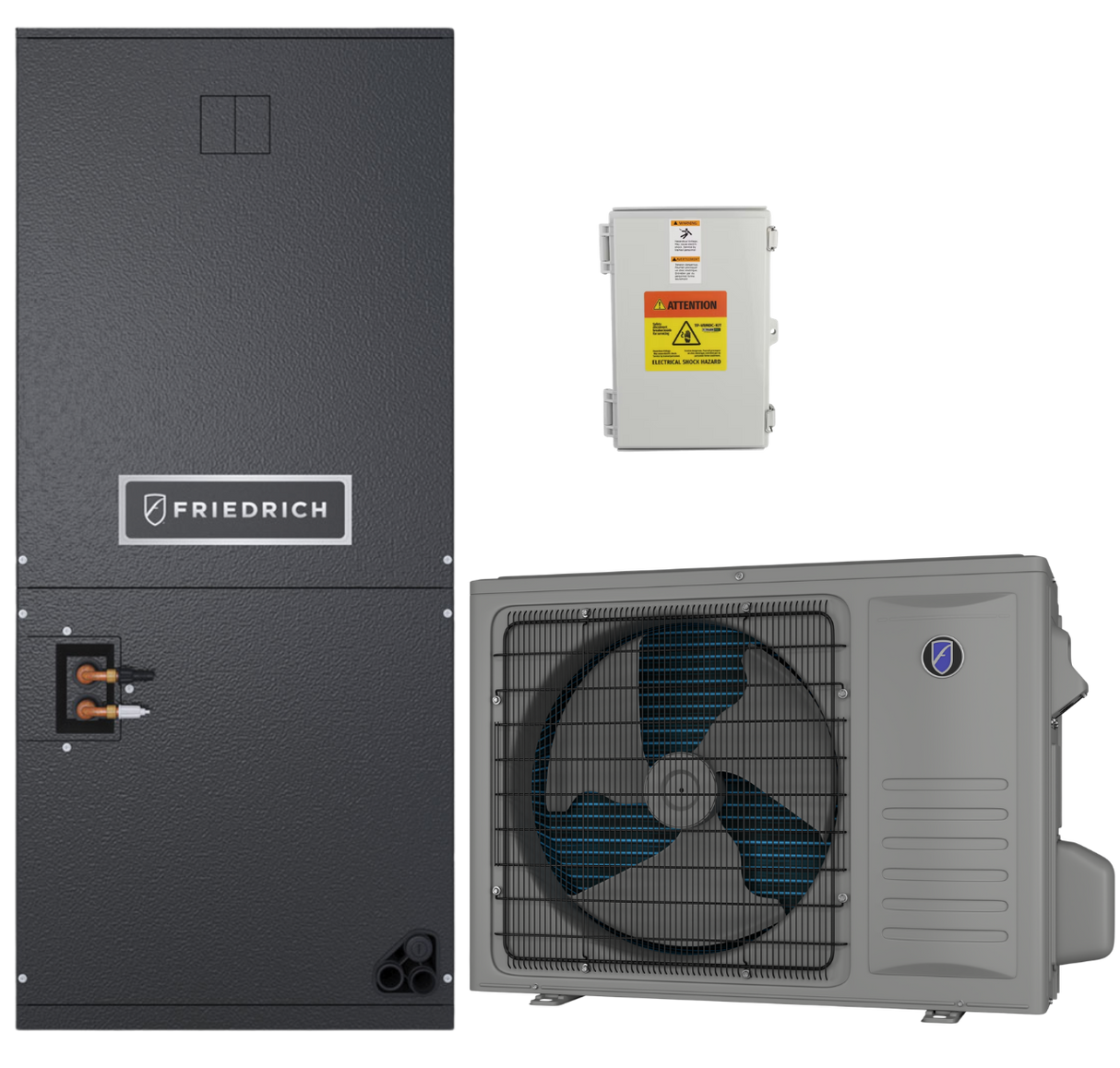

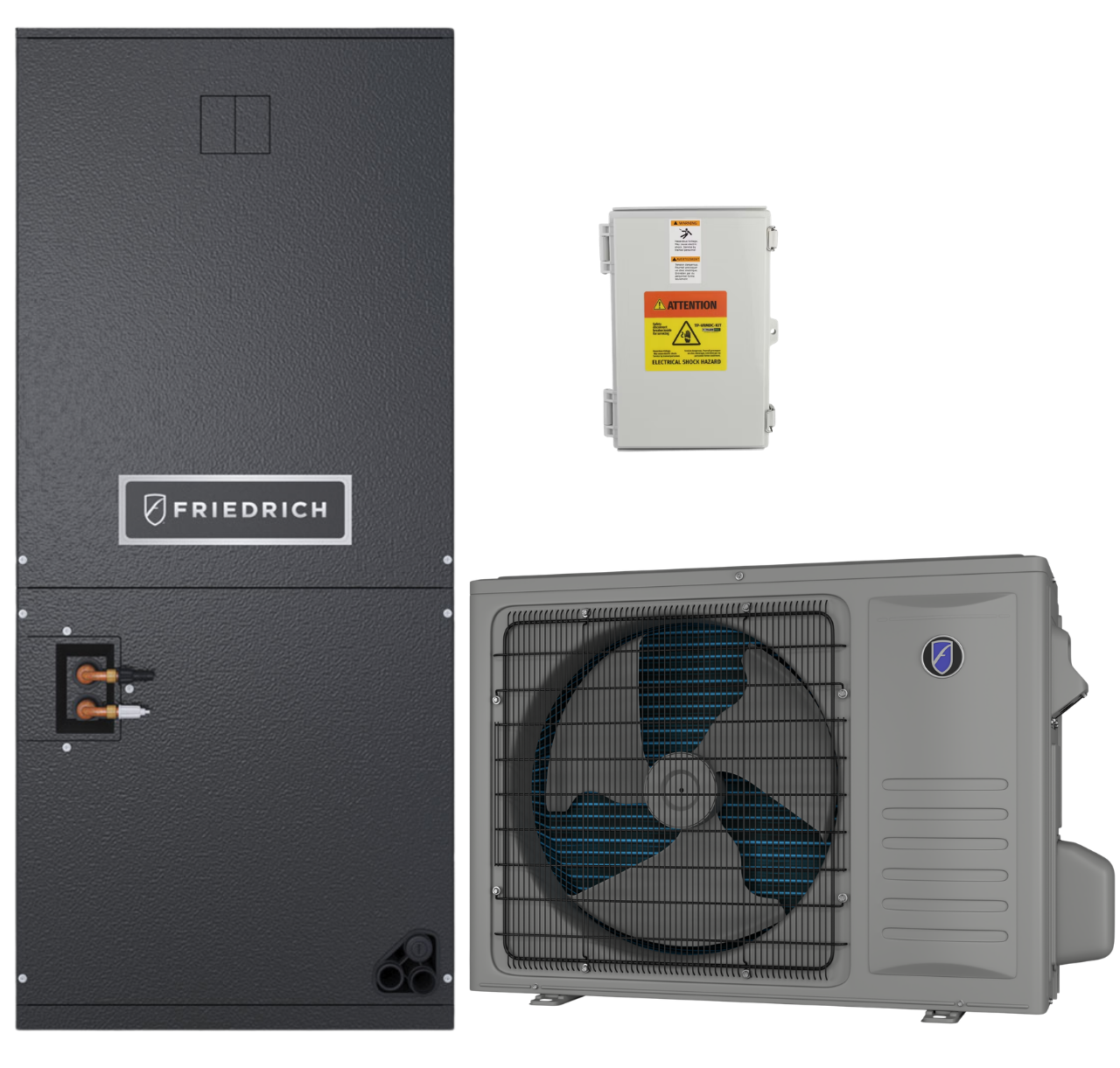

What's In The Box?

Friedrich Breeze 2 Ton Breeze Indoor Air Handler WFPU17Y243D

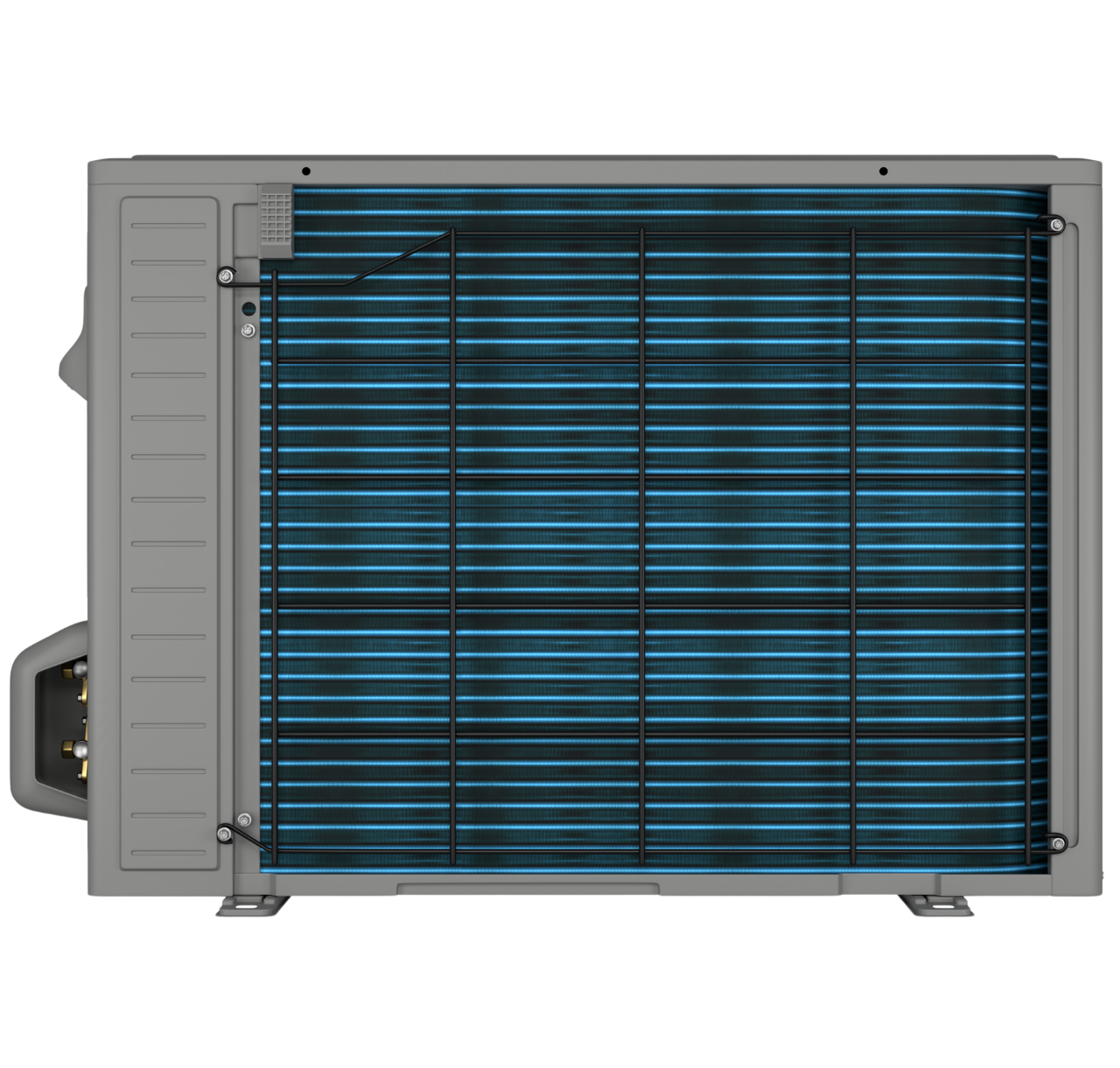

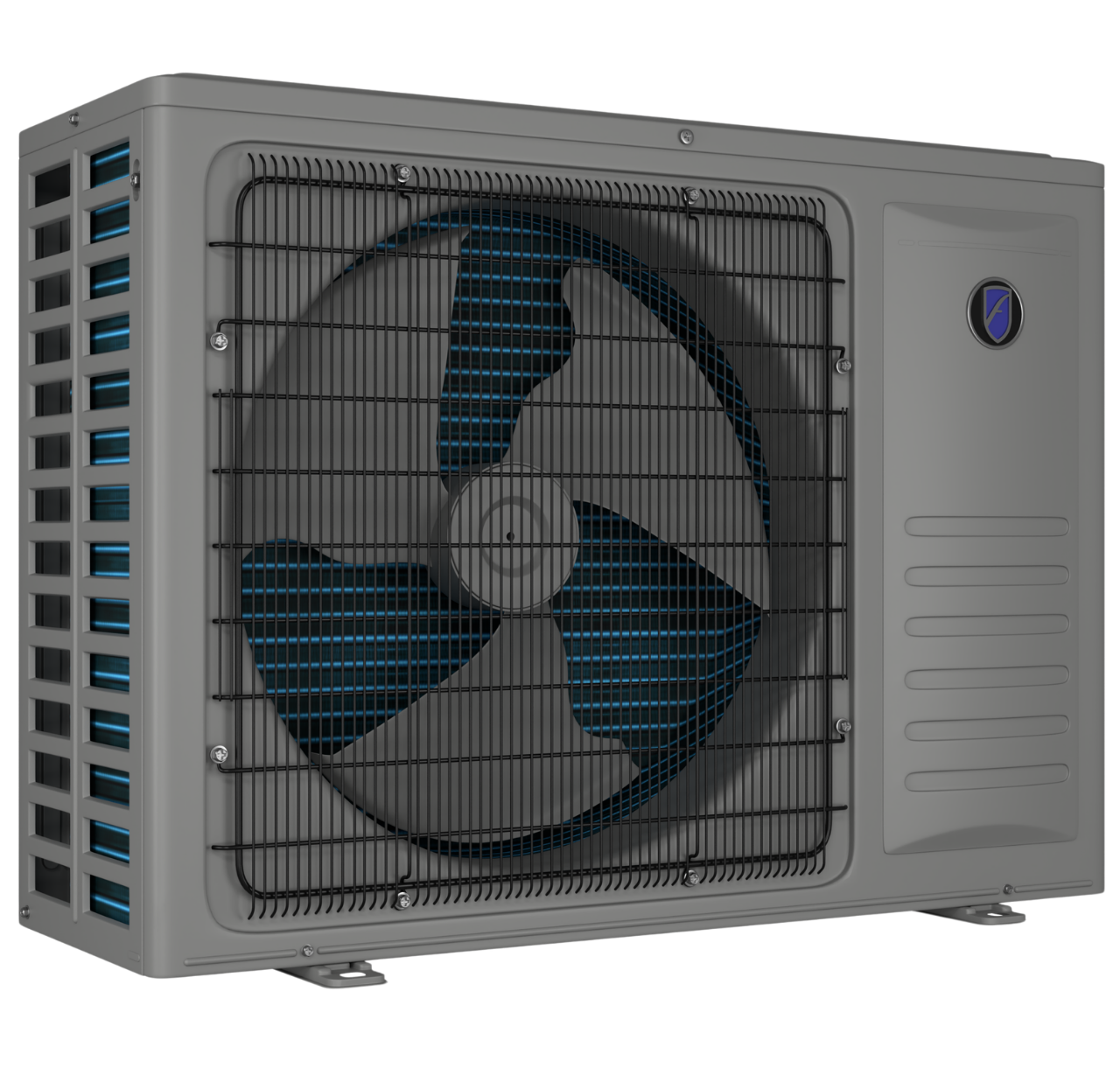

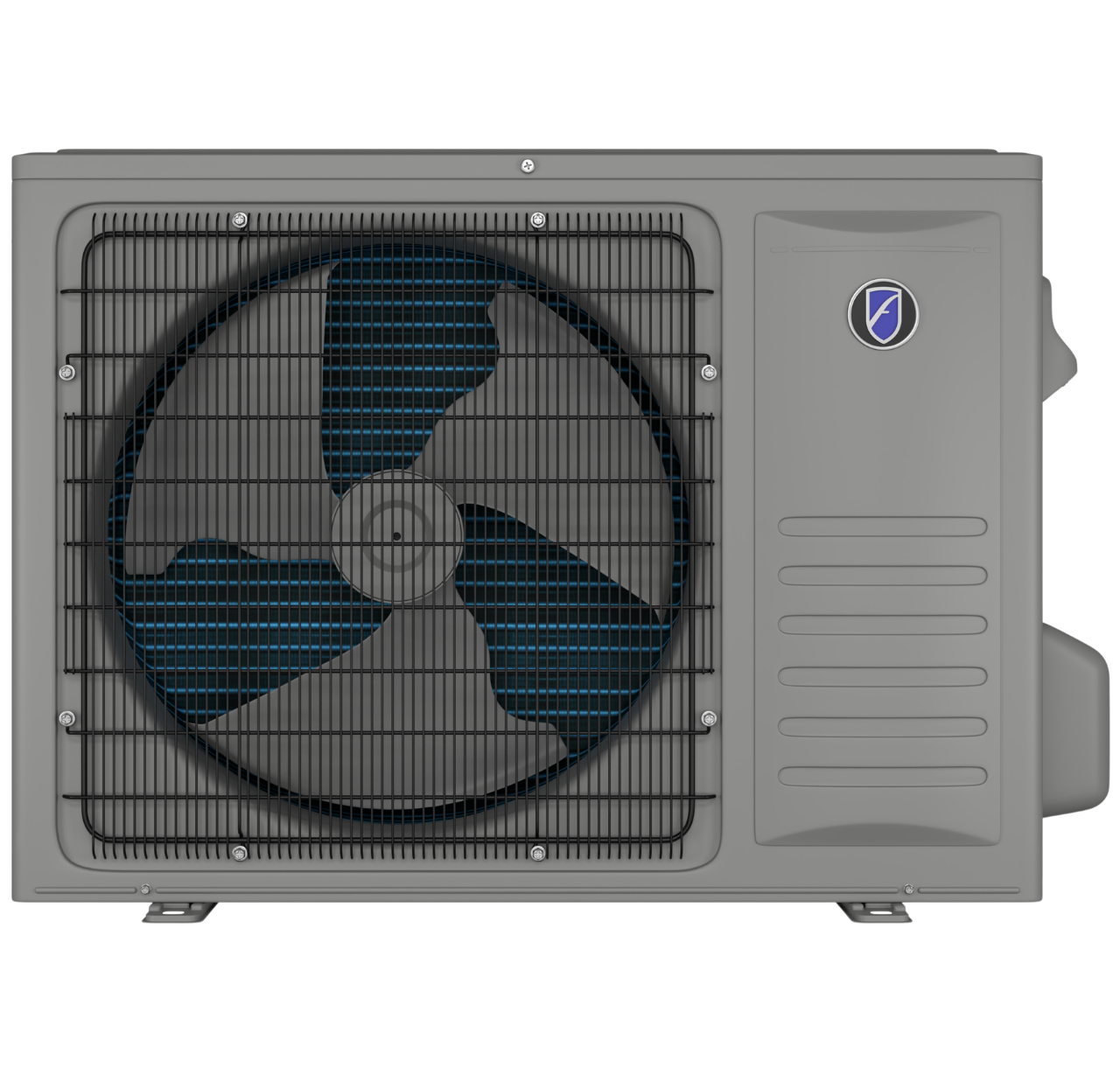

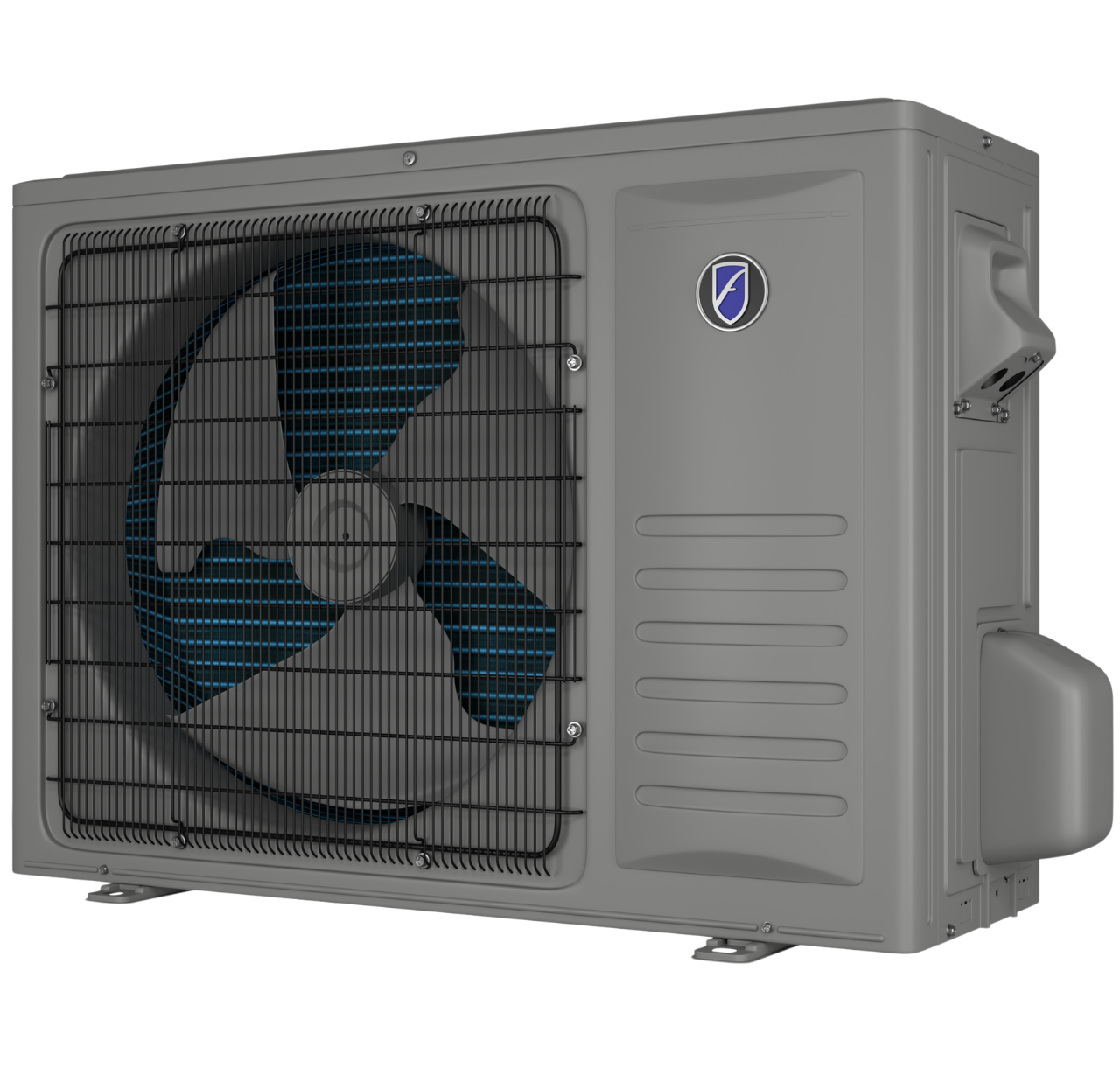

Friedrich Breeze 2 Ton Breeze Outdoor Condenser WFH24Y193D
Surge Protector TP-VRMDC-KIT
Owner's Manual, Guides, and Other Documents

Info & Guides

The Friedrich Breeze 2 Ton Central Ducted Heat Pump Split System features a rotary inverter compressor that delivers 24,000 BTU of both cooling and heating capacity, keeping your home comfortable year-round while reducing energy waste.

Built to handle wide temperature swings, this heat pump operates from -4 to 115 degrees F and uses low-global warming potential R-454B refrigerant, keeping your home efficient and eco-friendly while delivering consistent performance across that range.

Note: This model requires professional installation and does not include a 3/8 x 5/8-inch line set.

Key Features and Benefits of the Friedrich Breeze 2 Ton Central Ducted Heat Pump Split System with Surge Protector

Inverter Compressor: The Precision Inverter rotary compressor ramps output up and down to match your set temperature precisely, eliminating the energy spikes and temperature swings of traditional on/off cycling.
Energy Efficiency: Rated at 18.0 SEER2 and 10.0 EER2, this system helps lower your monthly energy costs and may qualify for federal tax credits.
Cold-Climate Heating: Heating mode operates down to -4 degrees F. This system carries Energy Star Cold Climate certification for reliable performance through harsh winters.
Variable Speed: Variable-speed operation delivers up to 3,150 CFM, automatically adjusting airflow to maintain even temperatures throughout your home instead of cycling between extremes.
Quiet Performance: Sound levels start as low as 35 dB, with a maximum indoor noise level of 55 dB, so the system runs quietly enough to avoid disrupting conversation or sleep.
Flexible Installation: Supports line set runs up to 100 feet and height differentials up to 66 feet, giving your installer flexibility to position the outdoor condenser where it works best.
Surge Protection: The bundled TP-VRMDC-KIT surge protector shields the system's electronics against power spikes, helping you avoid unexpected repair costs from voltage irregularities. The kit includes the TP-VRM-60A, TP-SPD-50, and 60A disconnect breaker in a NEMA 3R enclosure.
Certified Performance: AHRI certified, cETLus listed, and Energy Star certified, meeting recognized safety and efficiency benchmarks.

Planning Your Breeze Installation

This 2-ton split system requires professional installation and runs on 208-230V power, so confirm that your electrical panel can support the circuit before scheduling work. The indoor air handler measures 46.12 x 19.62 x 21.62 inches (H x W x D) and weighs 130.5 pounds, meaning you'll need adequate closet or utility room clearance for a floor-mount setup. The system does not include the required 3/8 x 5/8 line set, so your contractor will need to install one based on the actual run distance between your indoor and outdoor equipment.

Sylvane's Expert Take

If you're a contractor specifying a replacement condenser that needs to work with existing indoor equipment, the Friedrich Breeze simplifies the job. The -4 degrees F heating capacity means you can confidently position this system as a primary heat source through cold snaps without recommending supplemental backup, making your proposals more competitive and keeping your customers' ongoing energy costs predictable.

Key Specifications

Energy Efficiency Ratio 2 (EER2)

10.0
Mounting Type

Floor
Number of Speeds

Variable
Seasonal Energy Efficiency Ratio 2 (SEER2)

18.0
Total Cooling Capacity (BTUs)

24000
Total Heating Capacity (BTUs)

24000
Type

Central Split

General

Auxiliary Heat

None
Certifications

AHRI, cETLus
Color

Black, Gray
Compressor Type

Inverter Rotary
Heat Mode

Yes
Installation Type

Professional Installation
Line Length Option

No Line Set
Maximum Cubic Feet per Minute (CFM) (CFM)

3150.0
Maximum Indoor Noise Level (dB)

55.0
Maximum Operating Temperature - Cooling (degrees F)

115.0
Maximum Operating Temperature - Heating (degrees F)

75.0
Minimum Operating Temperature - Cooling (degrees F)

5
Minimum Operating Temperature - Heating (degrees F)

-4.0
Number of Tons

2.0
Refrigerant Type

R-454B
