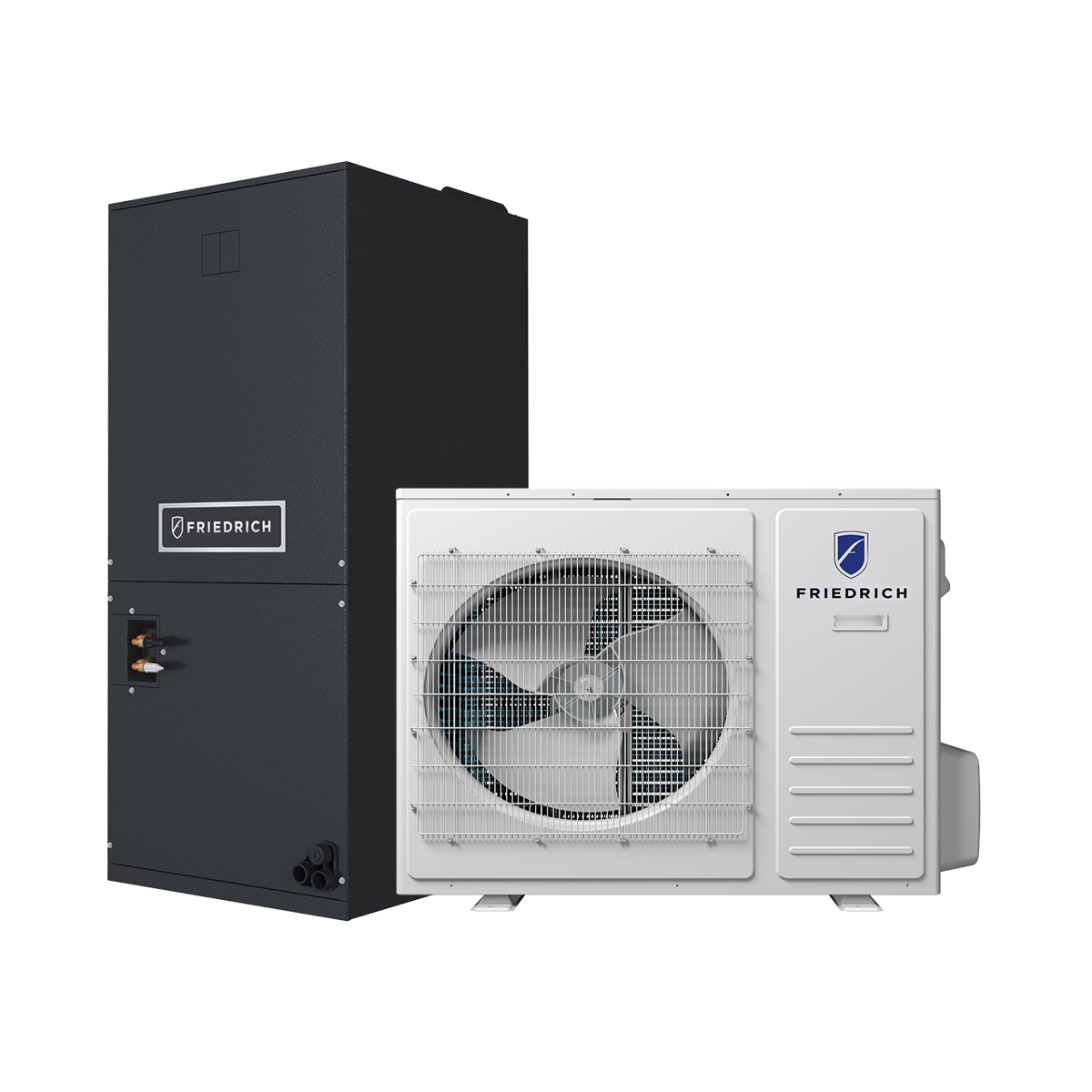

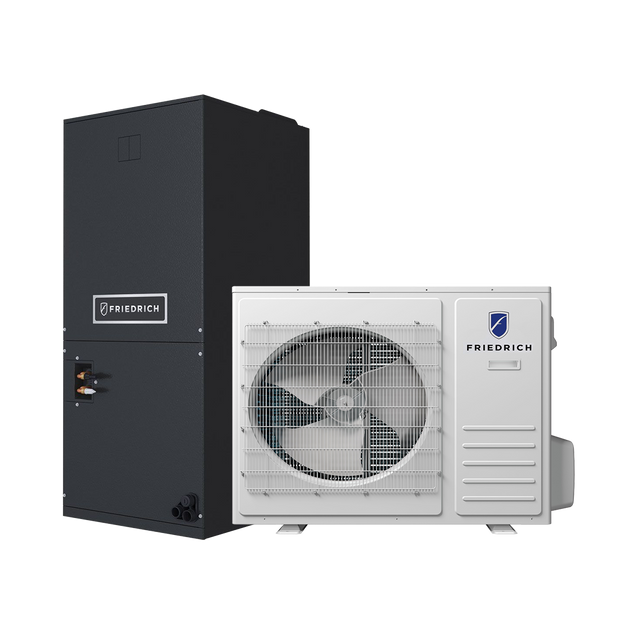

Friedrich 36,000 BTU 3 Ton Breeze Central Ducted Heat Pump Split System

SKU: fr16131k  |  Model: WFH36Z193D/WFPU18Z363D
$4,199.00 $4,299.00

FREE shipping on orders over $45!

This item is currently Out of Stock.

Add extended protection plan. (Select one)

learn more

A 2-year commercial-grade repair warranty for products less than $5,000.

learn more

A 4-year commercial-grade repair warranty for products less than $5,000.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

10 Year Compressor Warranty, 7 Year Parts Warranty (10 Years with Warranty Registration)

What's In The Box?

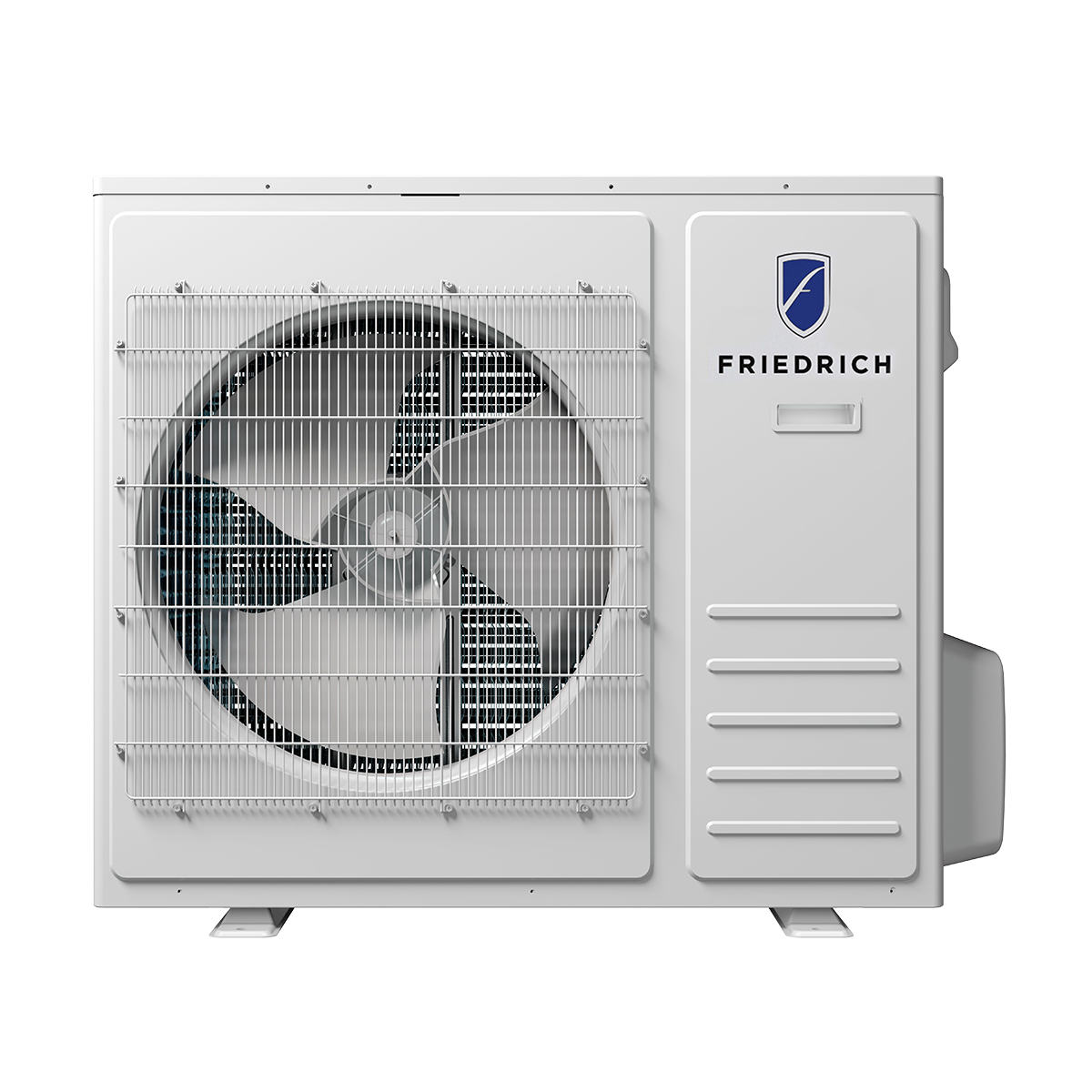

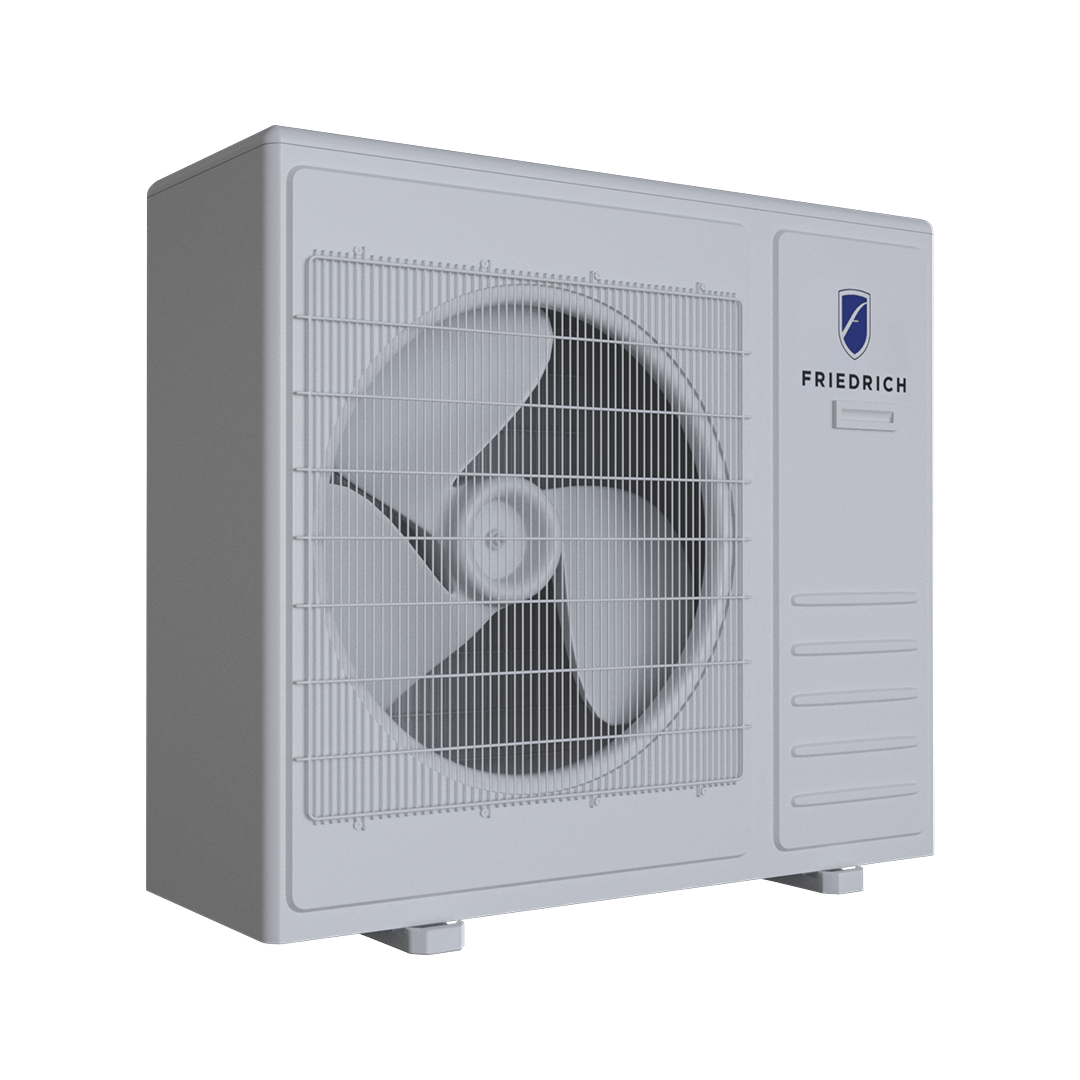

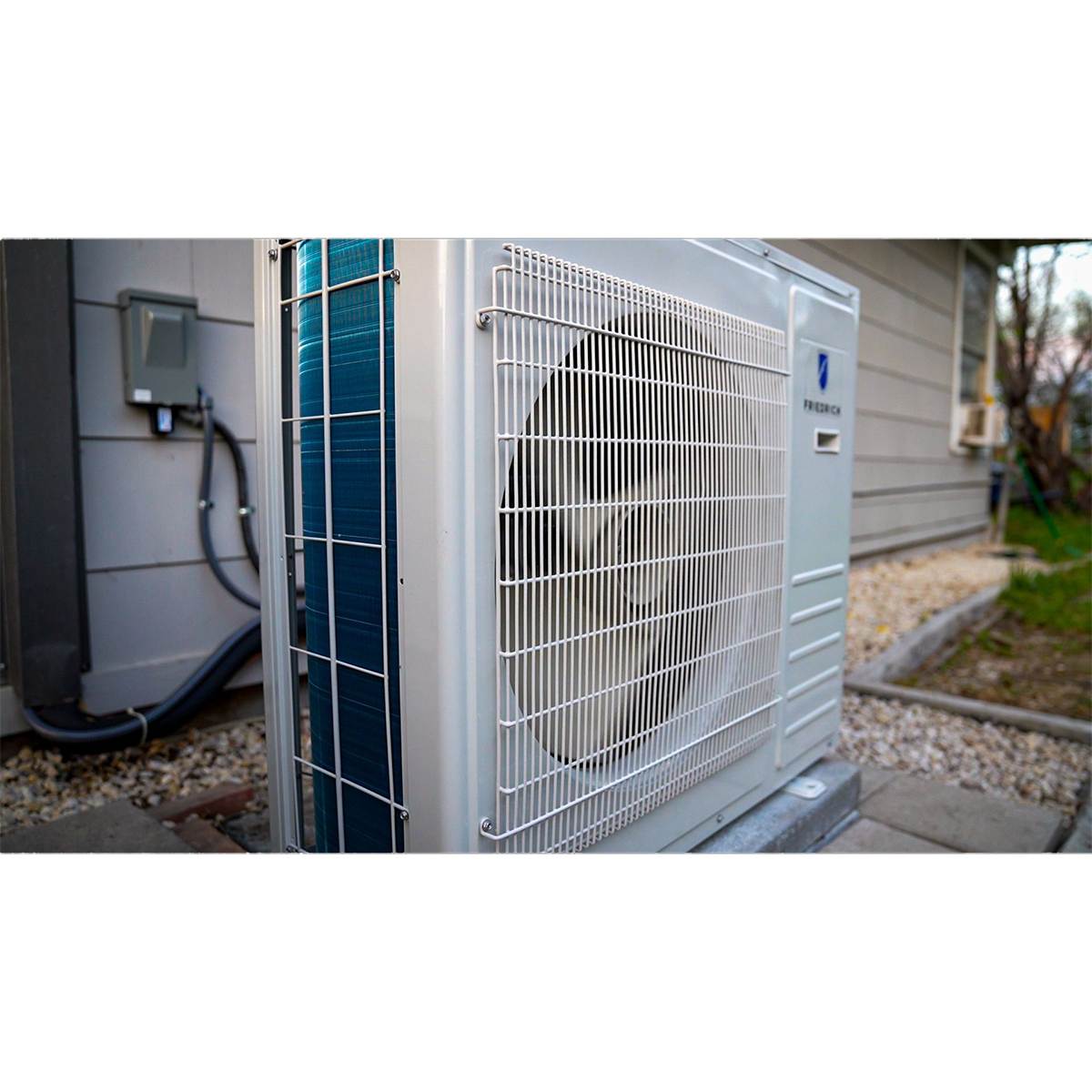

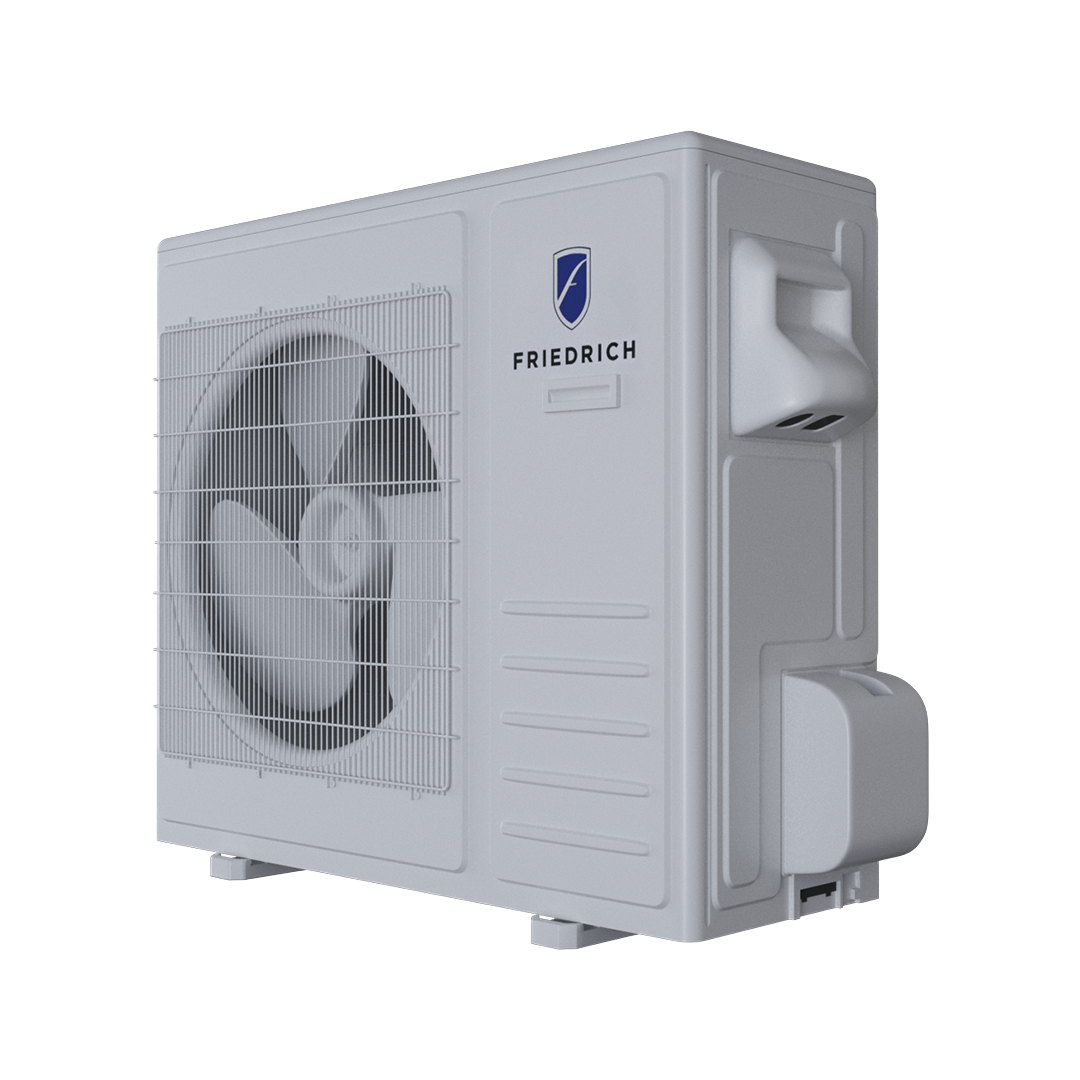

  • Friedrich 36K BTU Breeze Outdoor Compressor Unit (WFPU17Y363D)

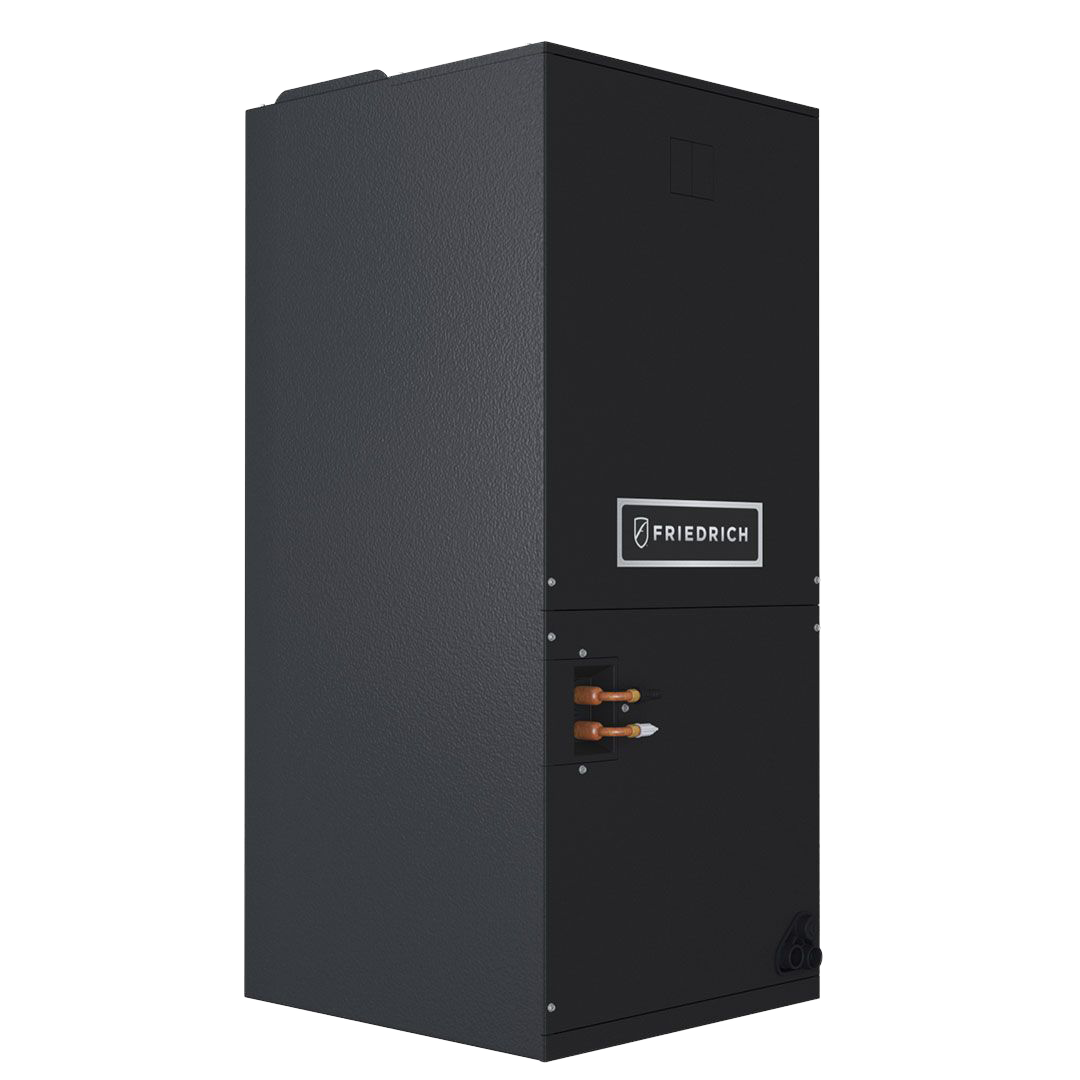

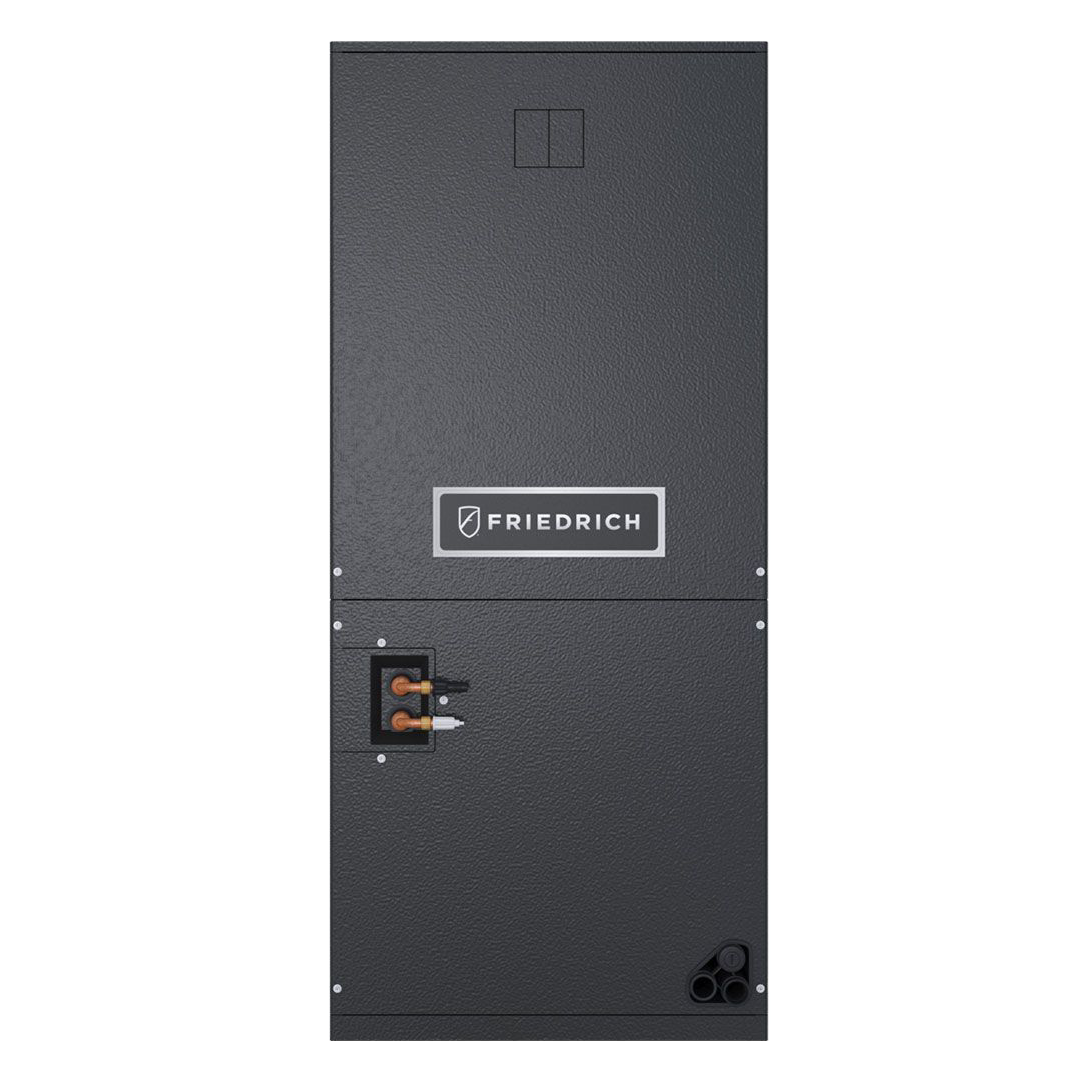

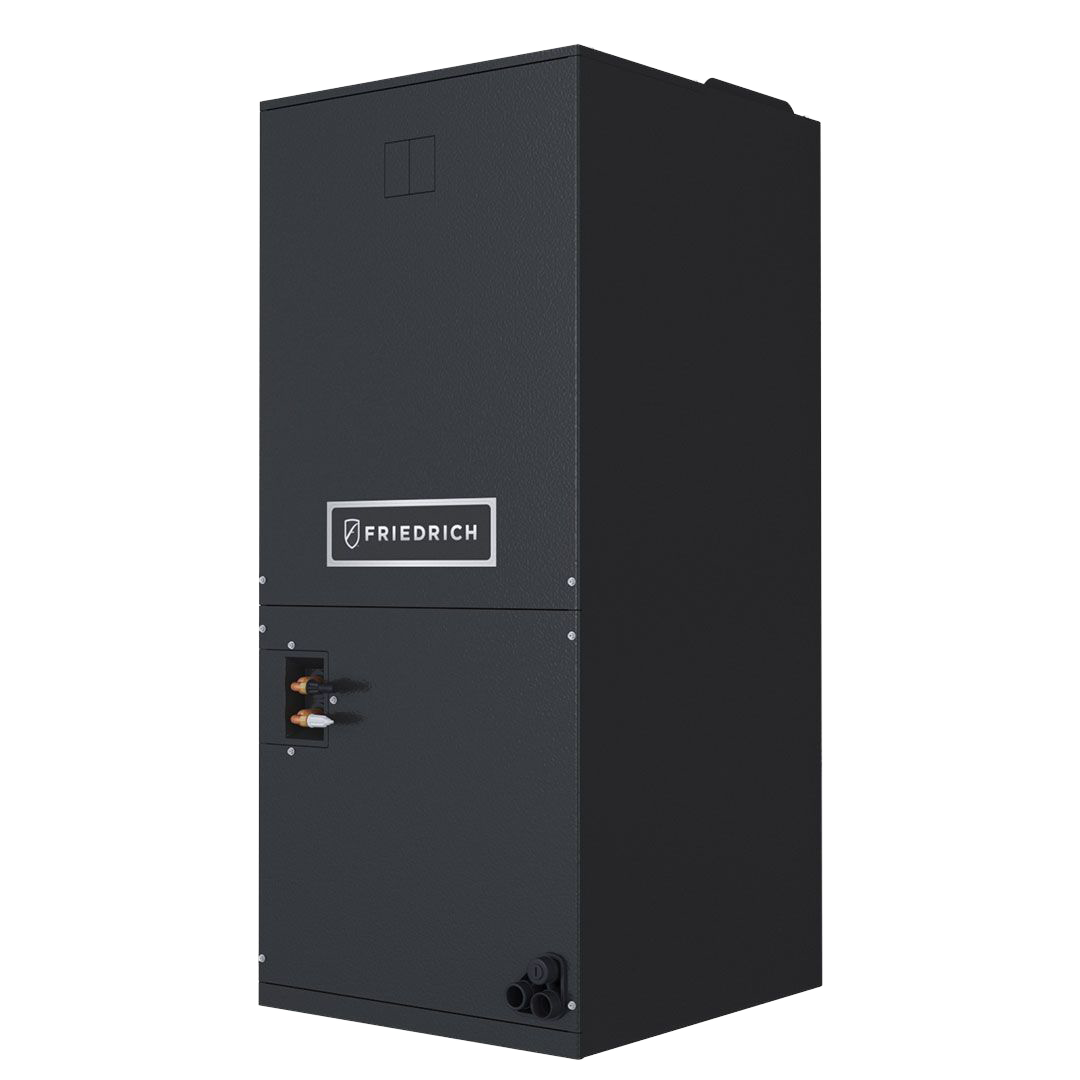

  • Friedrich 36K BTU Breeze Indoor Air Handler Unit (WFH36Y193D)
  • Owner’s Manual


Info & Guides

Description

The Friedrich 36K BTU Breeze System provides advanced climate control in large spaces, such as homes, offices, and other professional settings.


Using Friedrich’s unique inverter heat pump technology, this split-duct AC system ensures consistent temperature regulation while optimizing energy consumption. It features universal compatibility, allowing integration with most 24V thermostats and existing HVAC components, thereby minimizing installation complexity.
With an Energy Star certification and cold-climate capabilities, this 3-ton system performs reliably in extreme heat and subzero temperatures.
Note: This unit requires professional installation.

Top Features

  • Compact Design: The outdoor unit has a 40 percent smaller footprint than traditional models, optimizing installation areas.

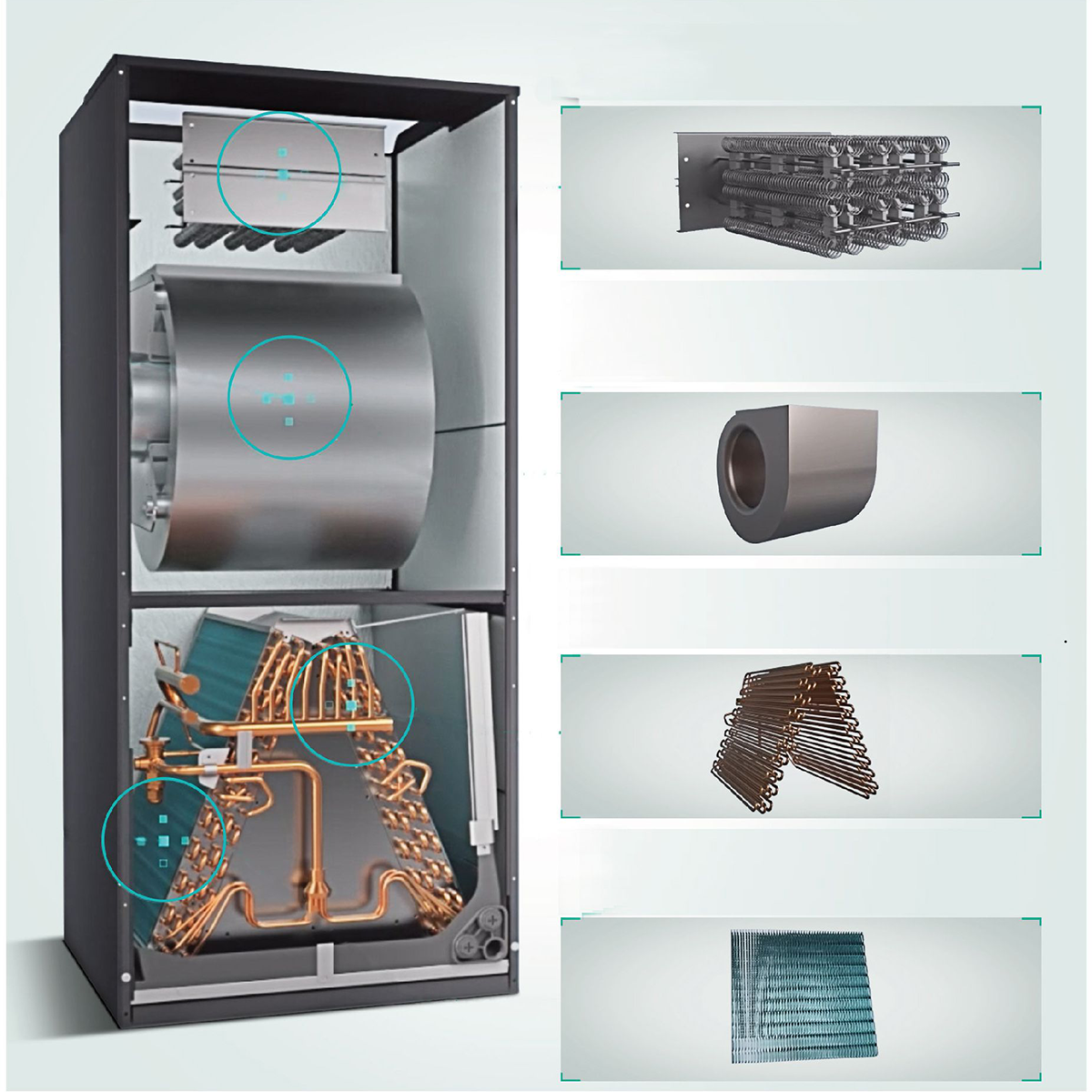

  • Powerful Airflow: This model's indoor airflow is rated at 1,120 CFM, ensuring effective temperature distribution.
  • Silent Operation: Operates with noise levels as low as 57 dB.
  • Low-Temperature Performance: Certified to operate efficiently in temperatures as low as -13 degrees F.

Precision Inverter Technology

The unique precision inverter technology allows this Friedrich Split AC to achieve Energy Star-rated efficiency, up to 17.5 SEER2 and 10 EER2, while maintaining consistent temperature and reducing power consumption. The compressor ramps up slowly and smoothly to avoid temperature swings and maintain precise control over the set temperature.

Additional Features

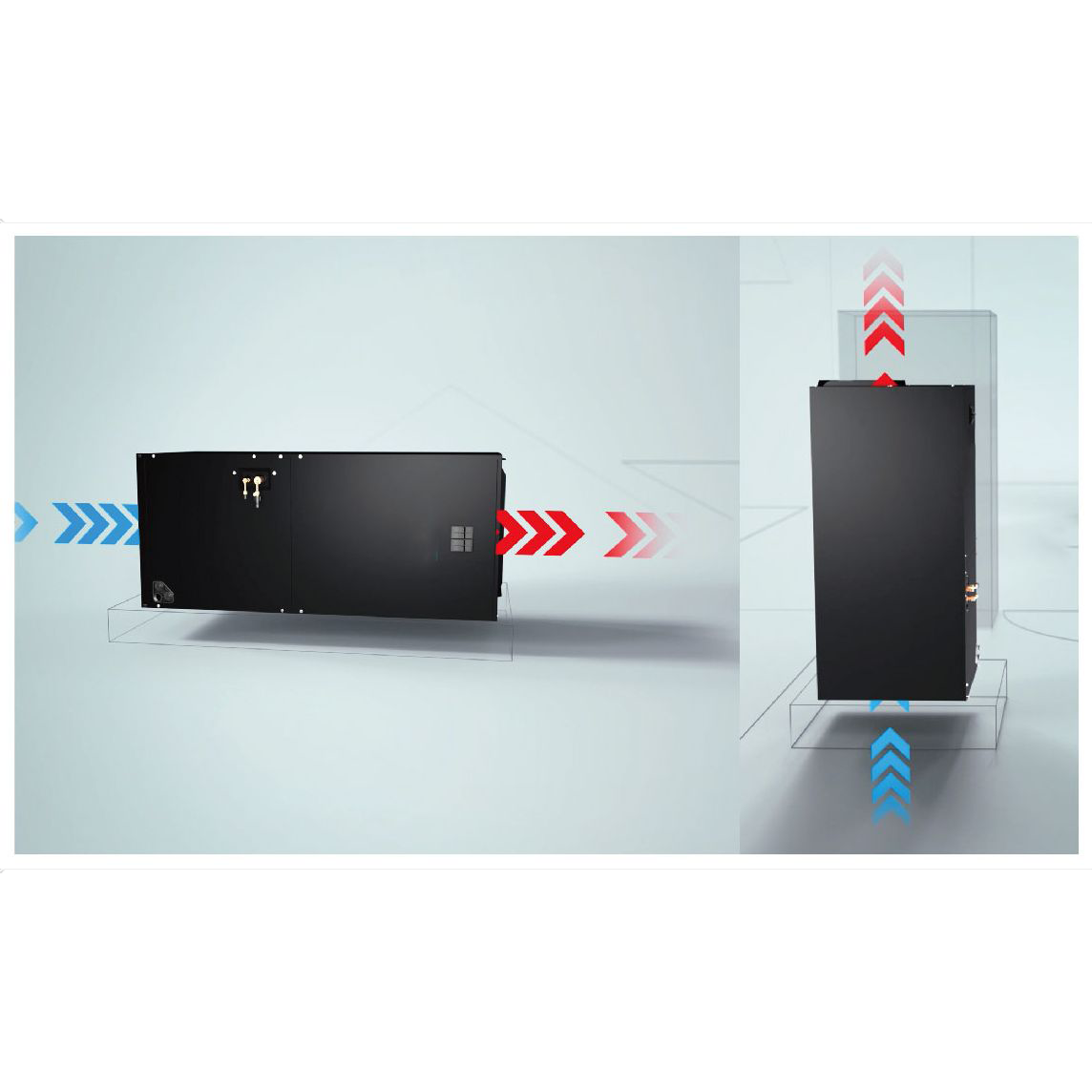

  • Vertical or Horizontal: This Friedrich AC air handler can be installed vertically or horizontally for greater flexibility in attics, crawlspaces, or closets.
  • Long Linesets: The Breeze’s high-capacity compressor accommodates line sets up to 246 feet in length and height differentials of up to 98 feet.

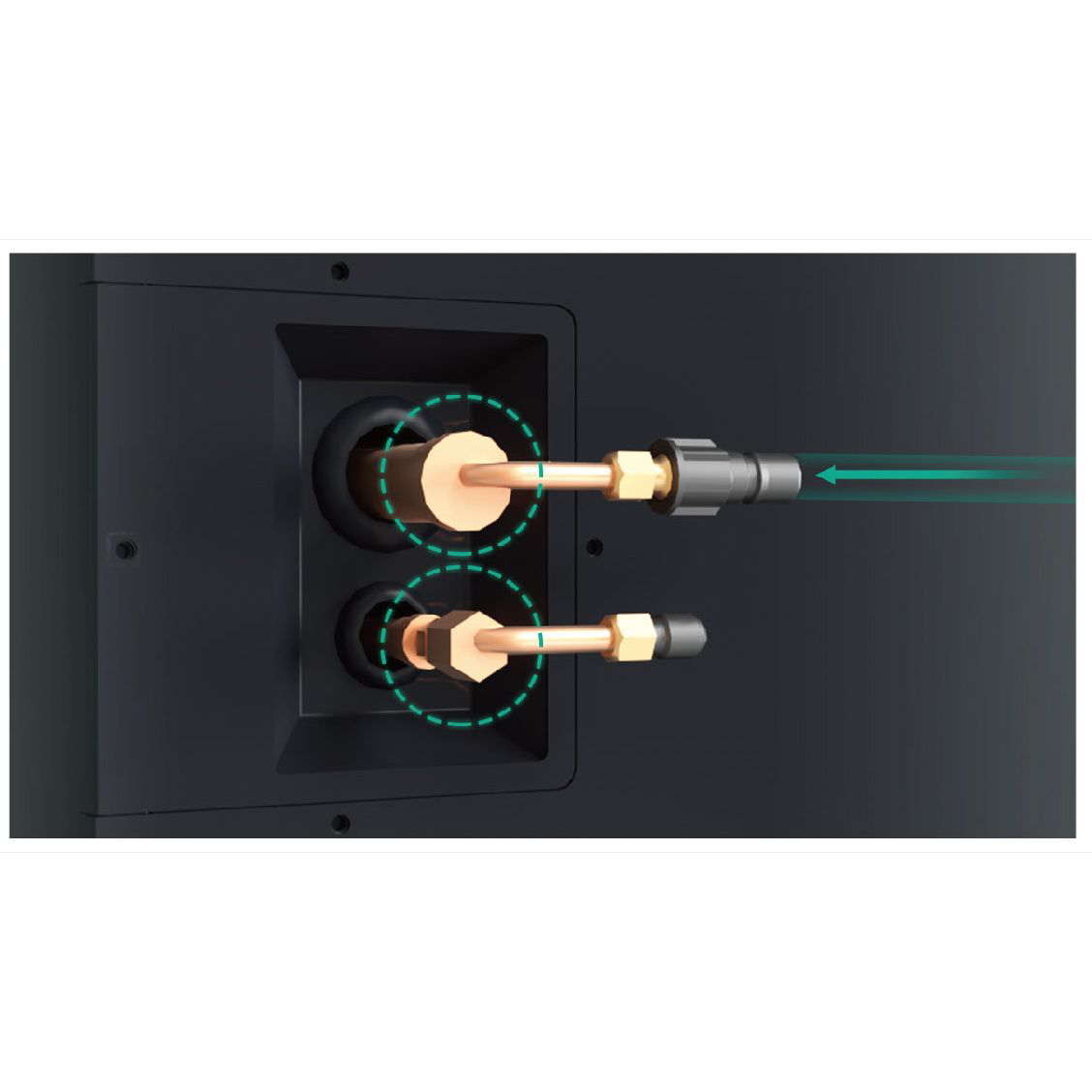

  • Integrated Leak Detectors: A nitrogen charge and factory-installed leakage indicator warn users against leaks, offering lasting peace of mind.



Note: This product does not include a lineset.

Sylvane's Expert Take

Thanks to its unique inverter technology, the Friedrich 36K BTU Breeze System is a standout heating and cooling system, delivering consistent temperatures and Energy-Star-rated efficiency. Unlike traditional central air systems, it can integrate seamlessly with most existing systems, simplifying installation and offering greater versatility.

  • Cold-Weather Capable: This model continues to operate efficiently in temperatures as low as -13 degrees F, exceeding the capabilities of many competitors in extreme conditions.

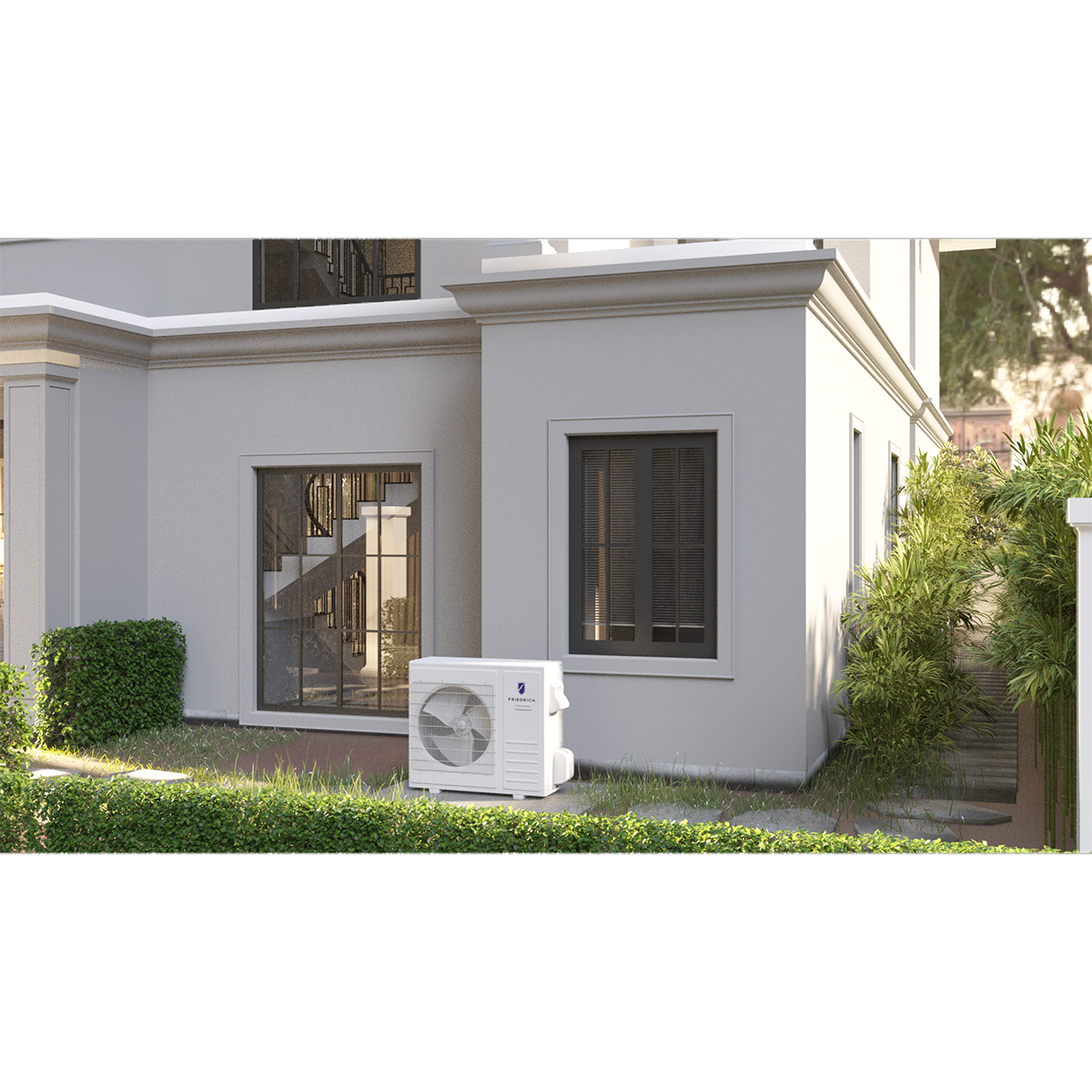

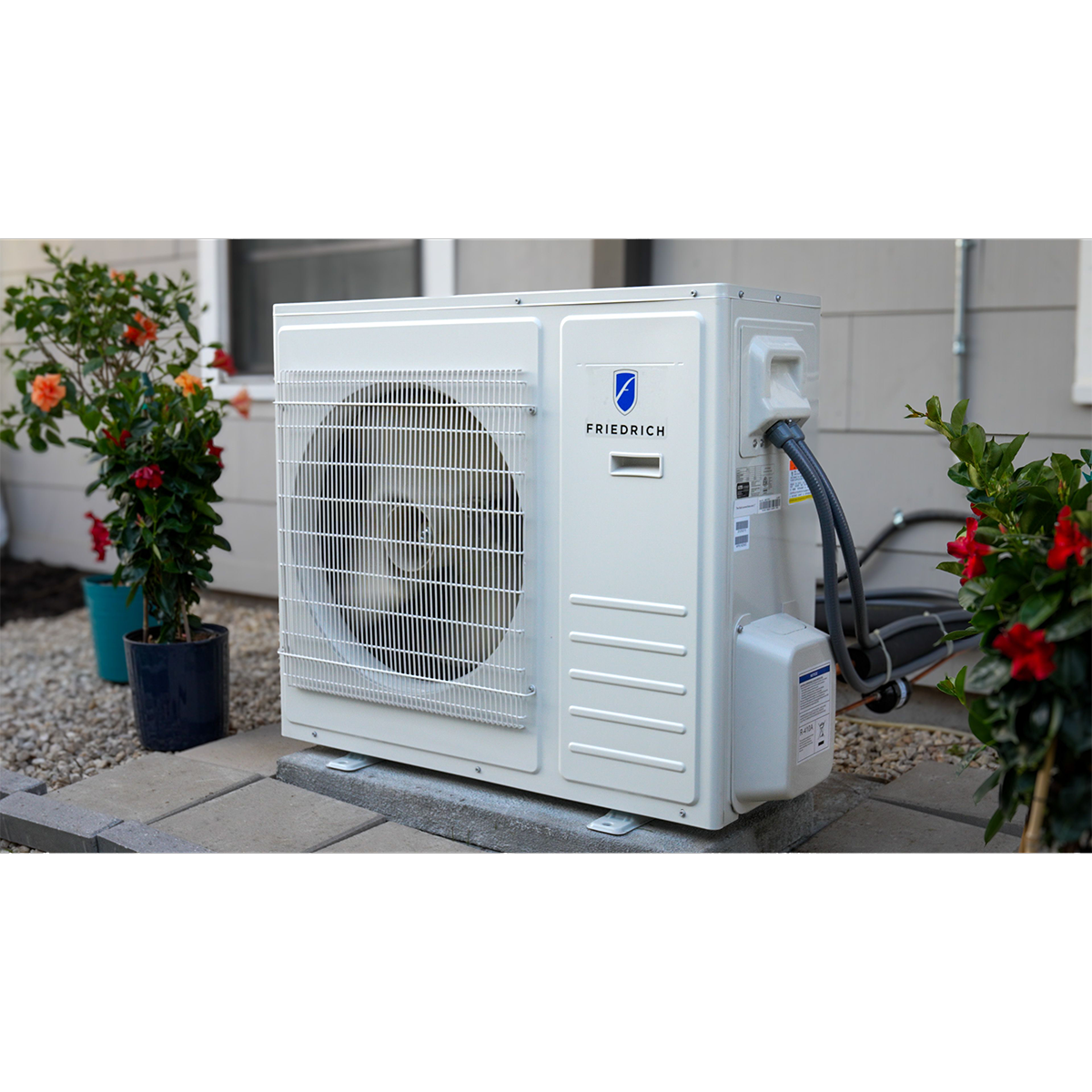

  • Compact Compressor Unit: This model features an outdoor compressor unit with a 40 percent smaller footprint than traditional models, providing more flexibility in placement without sacrificing power.

Specifications

    Key Specifications

    • Energy Efficiency Ratio 2 (EER2)
      10.1
    • Mounting Type
      Floor
    • Number of Speeds
      4
    • Seasonal Energy Efficiency Ratio 2 (SEER2)
      18
    • Total Cooling Capacity (BTUs)
      36000
    • Total Heating Capacity (BTUs)
      35000
    • Type
      Central Split

    General

    • Auxiliary Heat
      None
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
    • Certifications
      cETLus, AHRI
    • Color
      White, Black
    • Compressor Type
      Inverter Rotary
    • Heat Mode
      Yes
    • Heating Seasonal Performance Factor 2 (HSPF2)
      9.5
    • Installation Type
      Professional Installation
    • Line Length Option
      None
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      2350.0
    • Maximum Indoor Noise Level (dB)
      57
    • Maximum Operating Temperature - Cooling (degrees F)
      122
    • Maximum Operating Temperature - Heating (degrees F)
      75
    • Minimum Operating Temperature - Cooling (degrees F)
      5
    • Minimum Operating Temperature - Heating (degrees F)
      -13
    • Number of Tons
      3
    • Refrigerant Type
      R-454B

    Power

    • Voltage (V)
      208-230

    Dimensions

    • Indoor Unit Depth (in.)
      25.375
    • Indoor Unit Height (in.)
      49.625
    • Indoor Unit Weight (lbs.)
      140
    • Indoor Unit Width (in.)
      22.5
    • Maximum Line Length (ft.)
      246
    • Outdoor Unit Depth (in.)
      18.125
    • Outdoor Unit Height (in.)
      36.25
    • Outdoor Unit Weight (lbs.)
      147.7
    • Outdoor Unit Width (in.)
      43.75

    Additional Features

    • Additional Features
      Energy Star

    Warranty

    • Manufacturer's Warranty
      10 Year Compressor Warranty, 7 Year Parts Warranty (10 Years with Warranty Registration)
