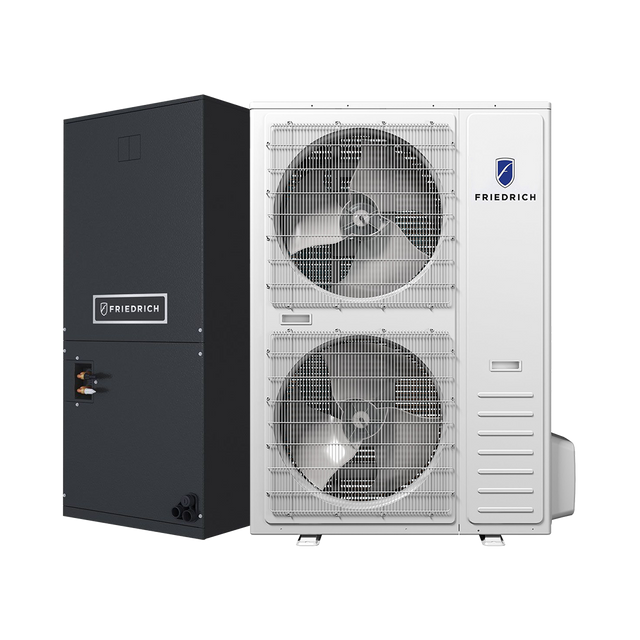

Friedrich 60,000 BTU 4.5 Ton Breeze Select Central Ducted Heat Pump Split System

SKU: fr16137k  |  Model: WFH60Y223D/ WFPU17Y603D
$5,899.00 $5,999.00

FREE shipping on orders over $45!

This item is currently Out of Stock.

Add extended protection plan. (Select one)

learn more

A 2-year commercial-grade repair warranty for products less than $7,500.
learn more

A 4-year commercial-grade repair warranty for products less than $7,500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

10 Year Compressor Warranty, 7 Year Parts Warranty (10 Years with Warranty Registration)

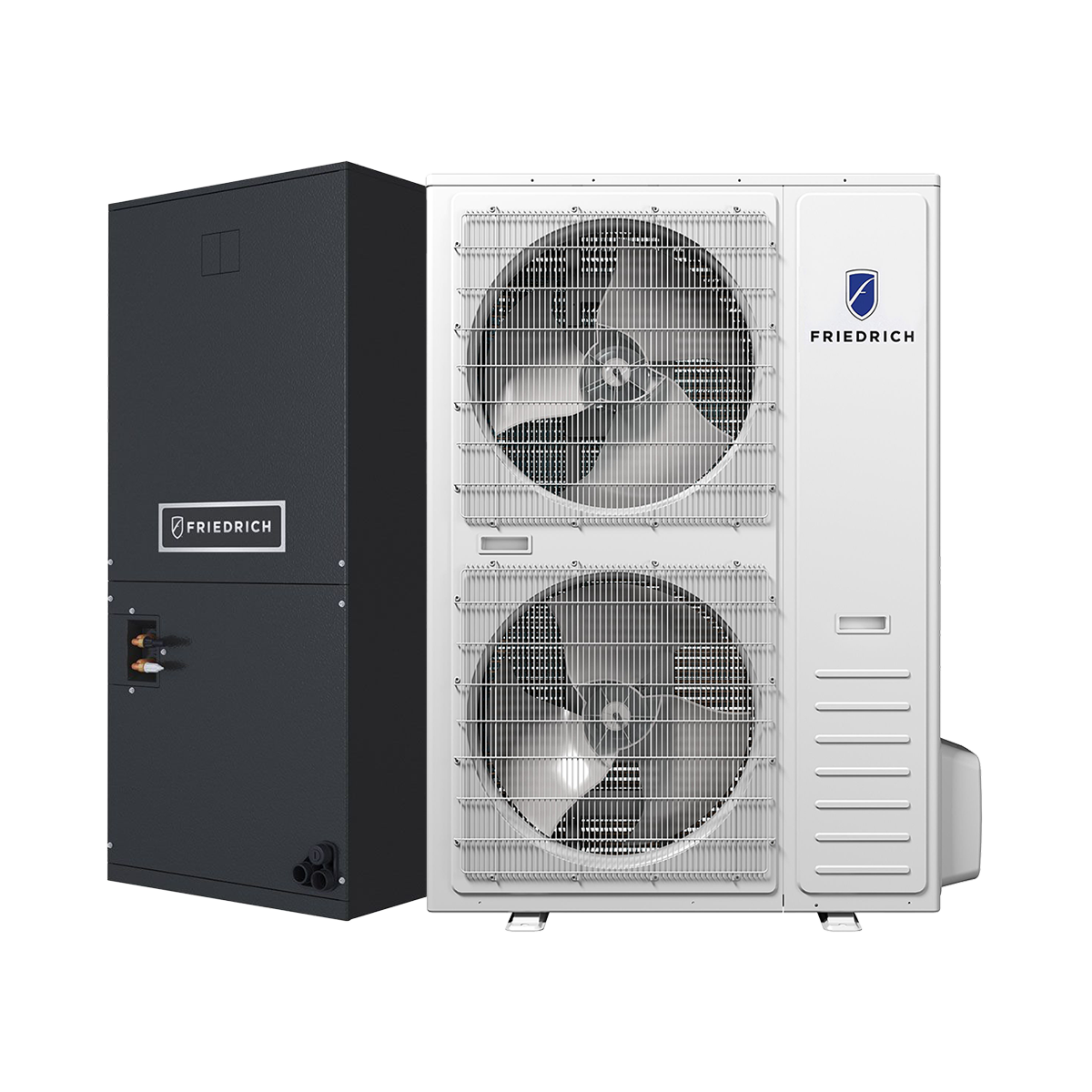

What's In The Box?

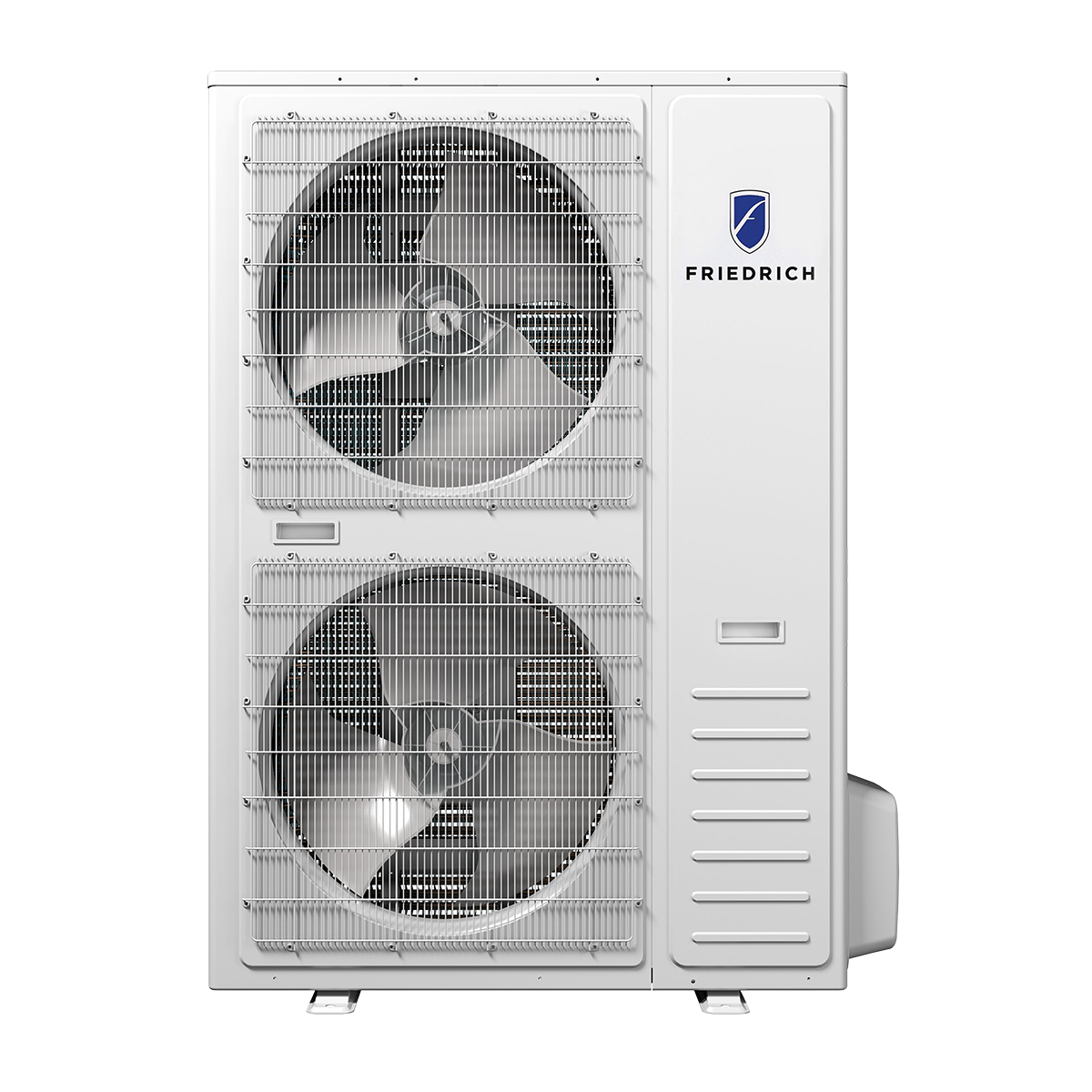

  • Friedrich 54K BTU Breeze Outdoor Compressor Unit (WFPU17Y603D)

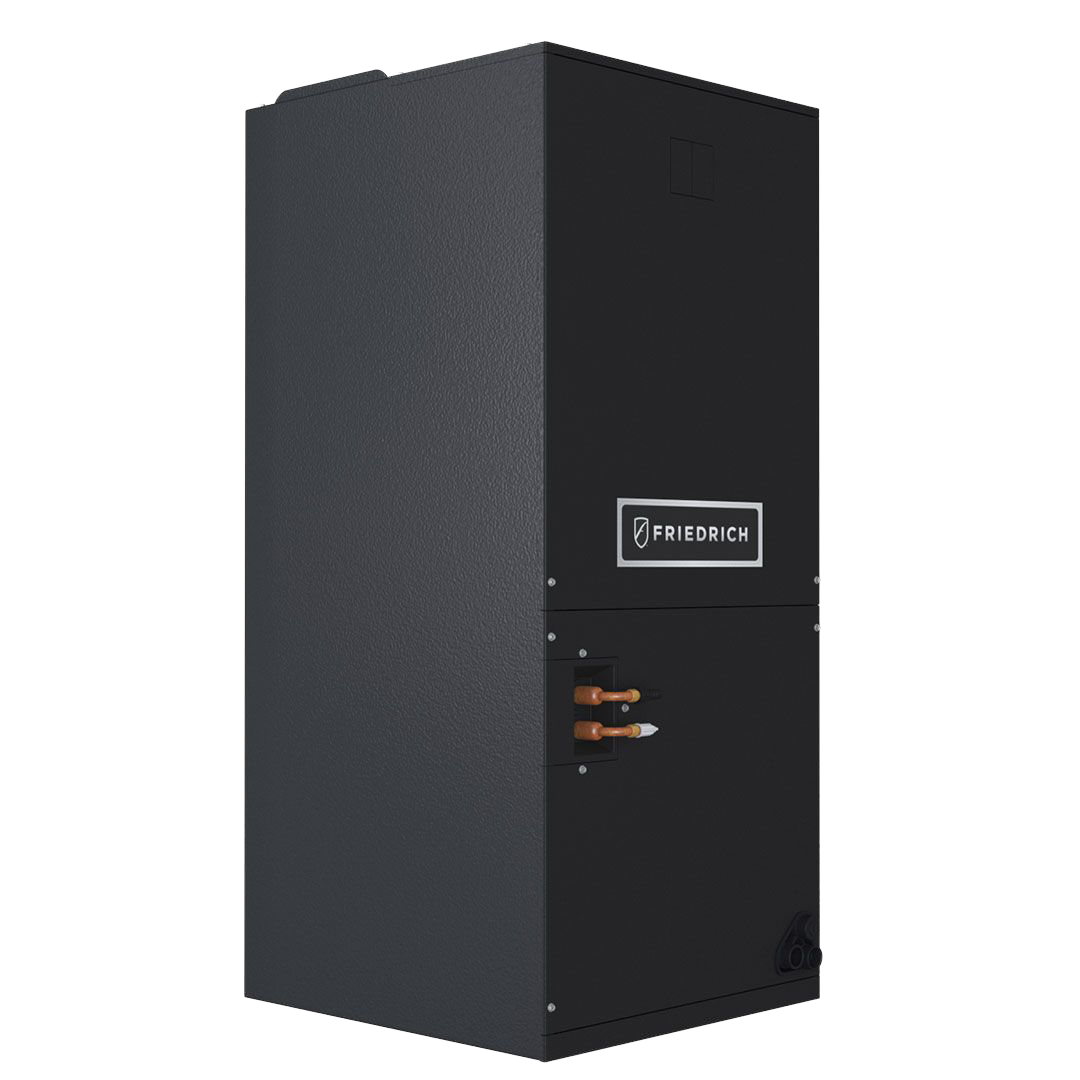

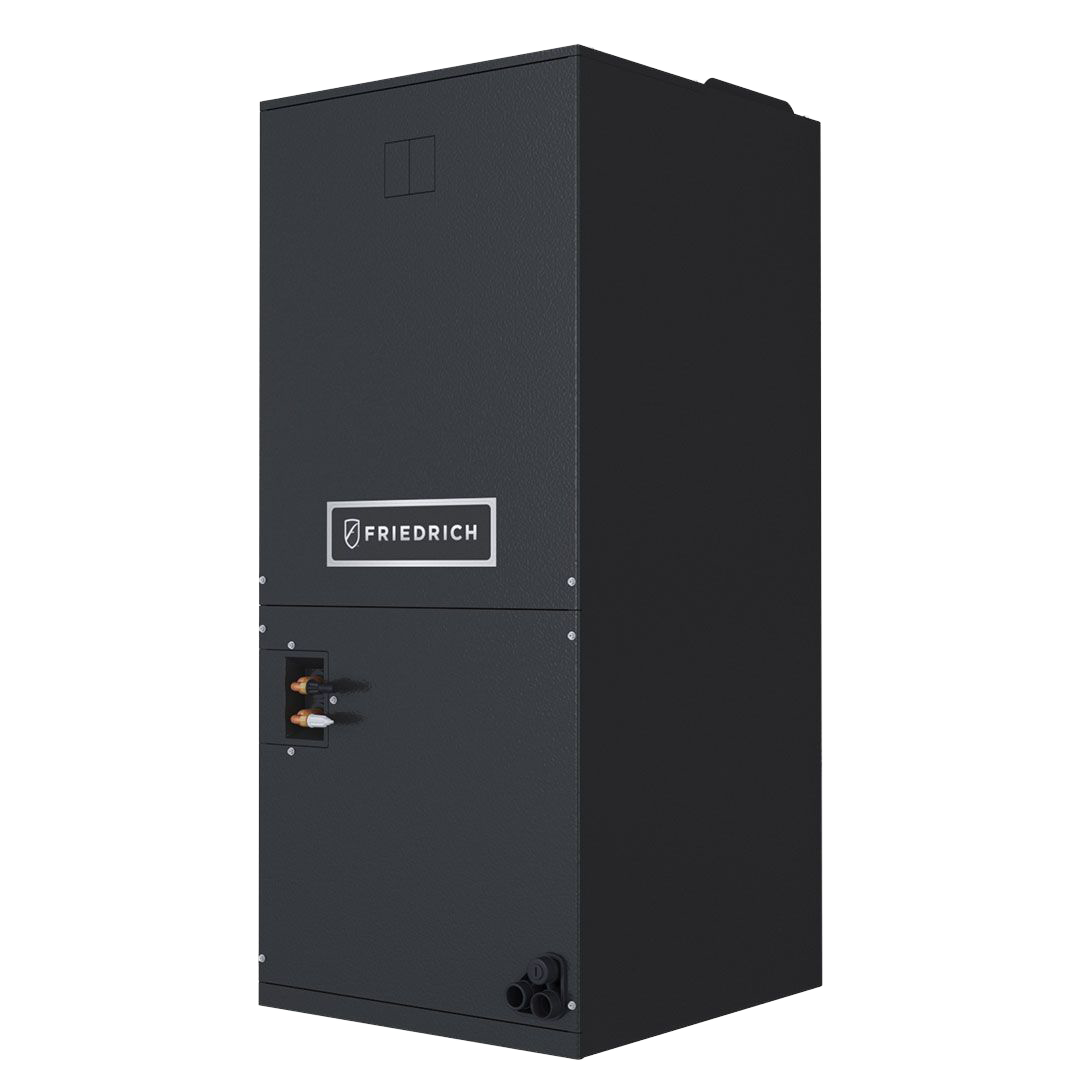

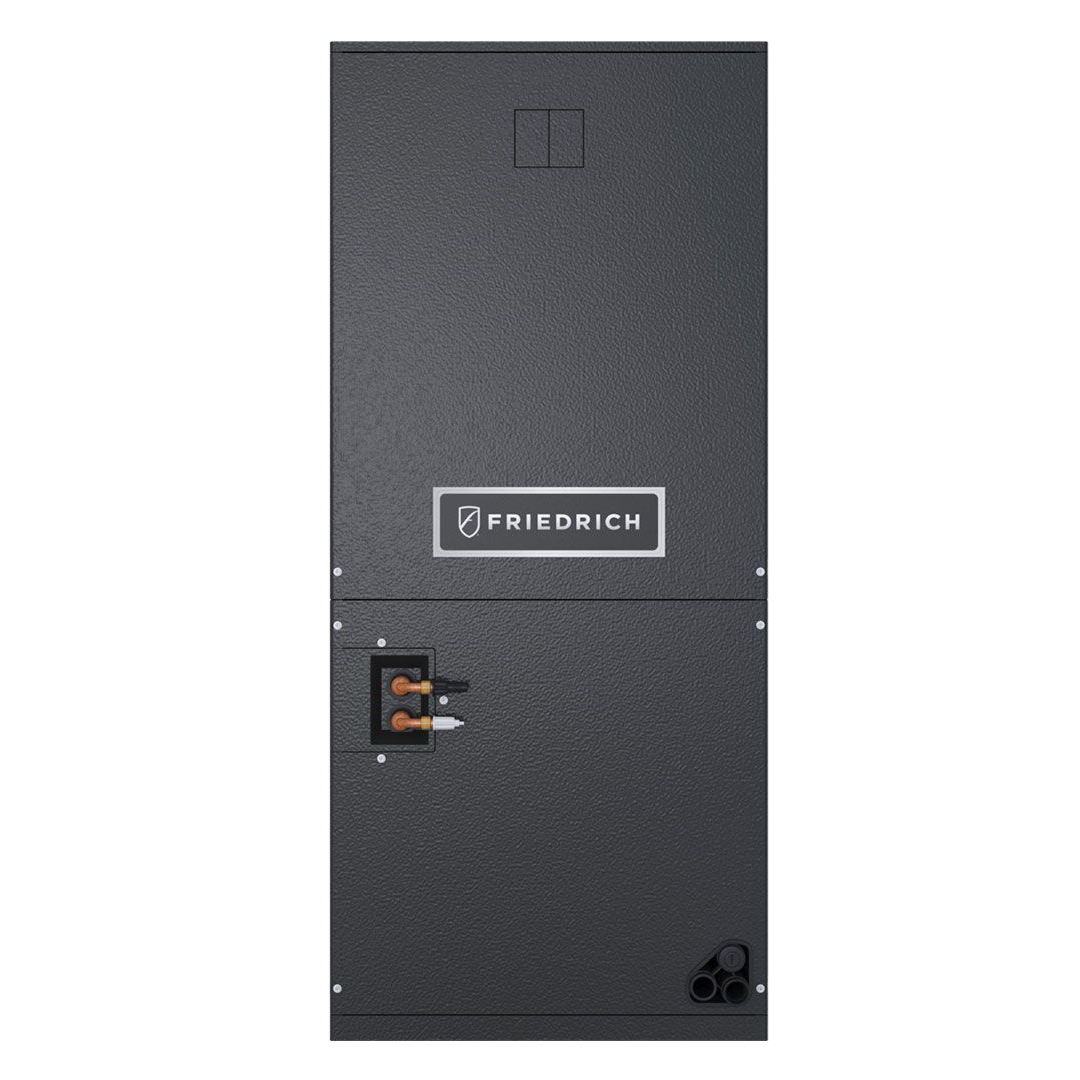

  • Friedrich 60K BTU Breeze Indoor Air Handler Unit (WFH60Y223D)
  • Owner’s Manual


Info & Guides

Description

The Friedrich 54K BTU Breeze System provides advanced climate control in large spaces, such as homes, offices, and other professional settings.



This split-duct AC system features unique inverter heat pump technology, ensuring consistent temperature regulation while optimizing energy consumption. The universal system compatibility integrates with most 24V thermostats and existing HVAC components, minimizing installation complexity.

With efficient operation and cold-climate capabilities, this 5-ton system performs reliably in extreme heat and subzero temperatures. It is available with or without a heat pump for comfort all year.

Note: This unit requires professional installation.

Top Features

  • Cold-Climate Operation: Operates efficiently in temperatures as low as -13 degrees F.
  • Robust Airflow: The indoor airflow from this model is rated at 1,706 CFM for effective temperature distribution.

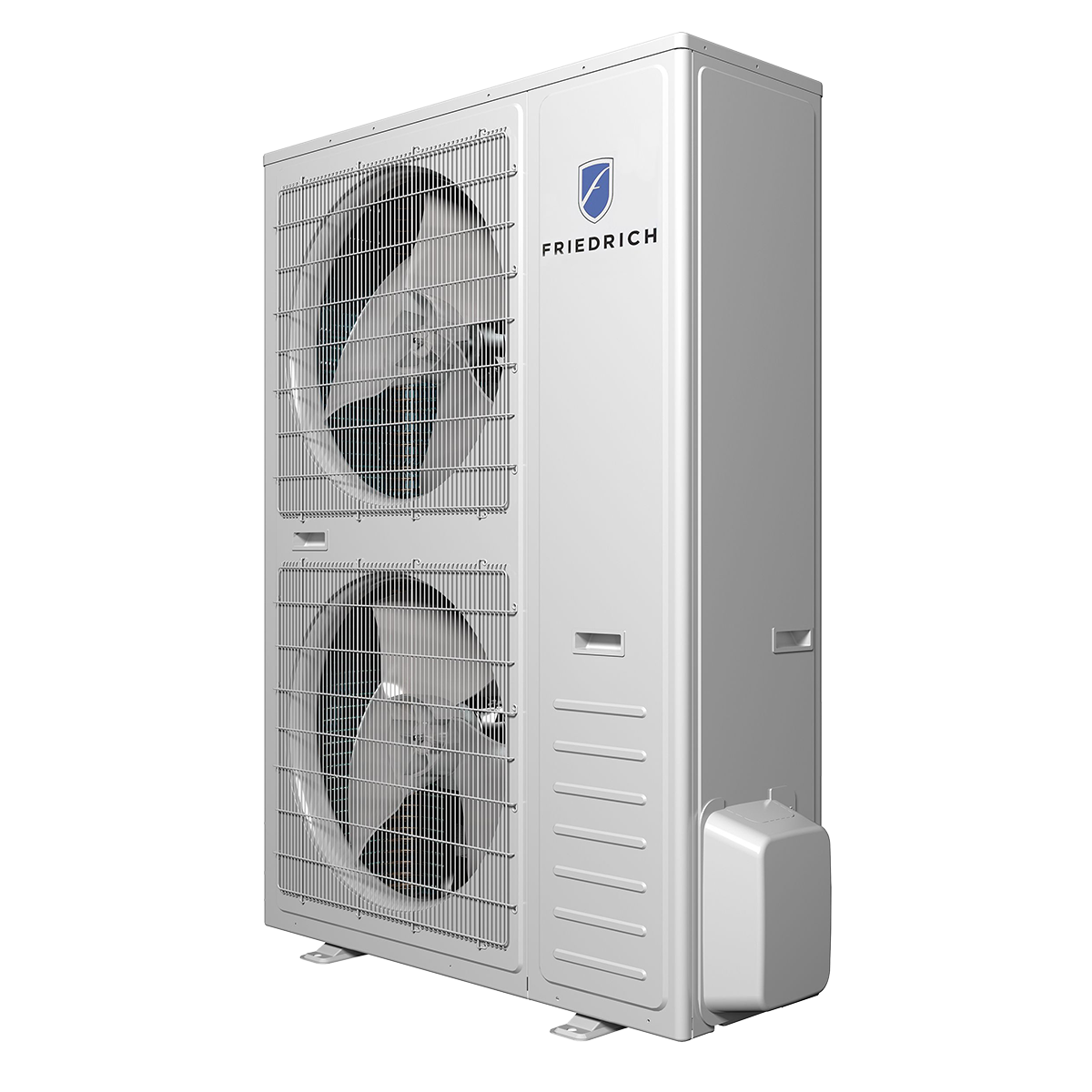

  • Optimized Design: The outdoor unit features a 40% smaller footprint than traditional models, optimizing installation areas.
  • Quiet Comfort: Operates with noise levels as low as 60 dB inside and 65 dB outside.

Precision Inverter Technology

The Friedrich Split AC’s unique precision inverter technology allows it to achieve energy efficiencies up to 17 SEER2 and 8.25 EER2 while maintaining consistent temperature and reducing power consumption. The compressor ramps up slowly and smoothly to avoid temperature swings and maintain precise control over the set temperature.

Additional Features

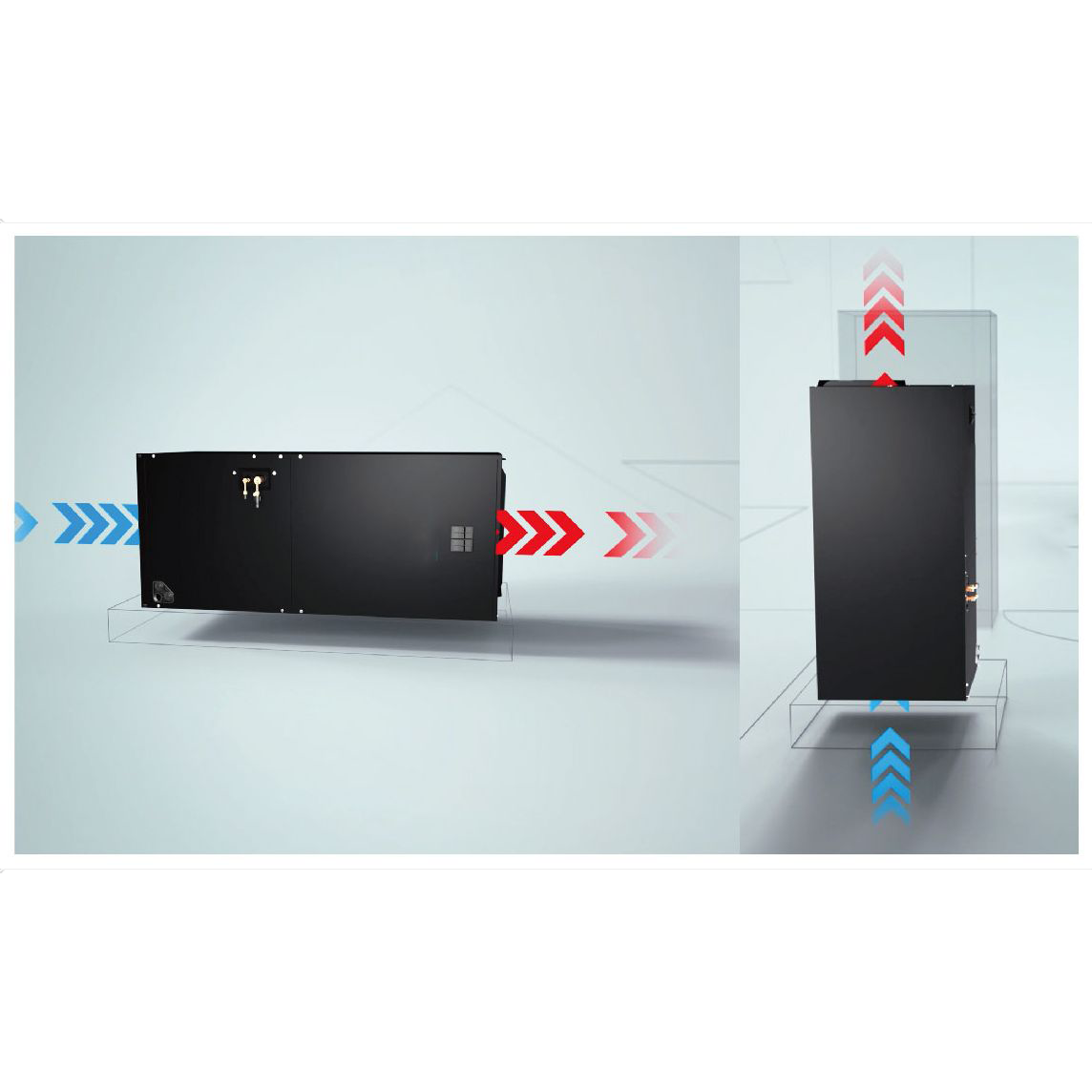

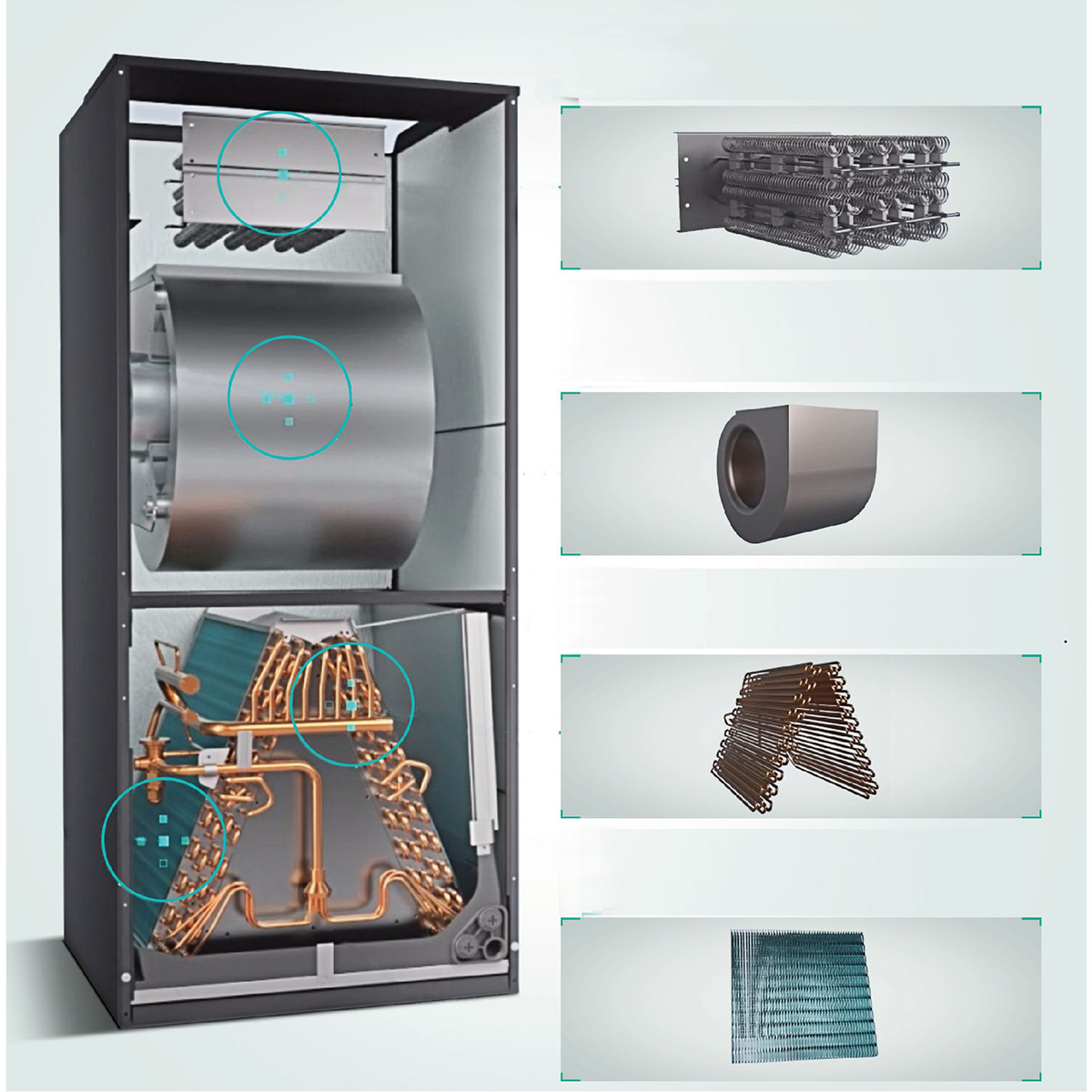

  • Vertical or Horizontal Installation: This Friedrich AC air handler can be installed vertically or horizontally for greater flexibility in attics, crawlspaces, or closets.
  • Long Line Set Compatible: The Breeze’s high-capacity compressor accommodates line sets up to 246 feet in length and height differentials of up to 98 feet.

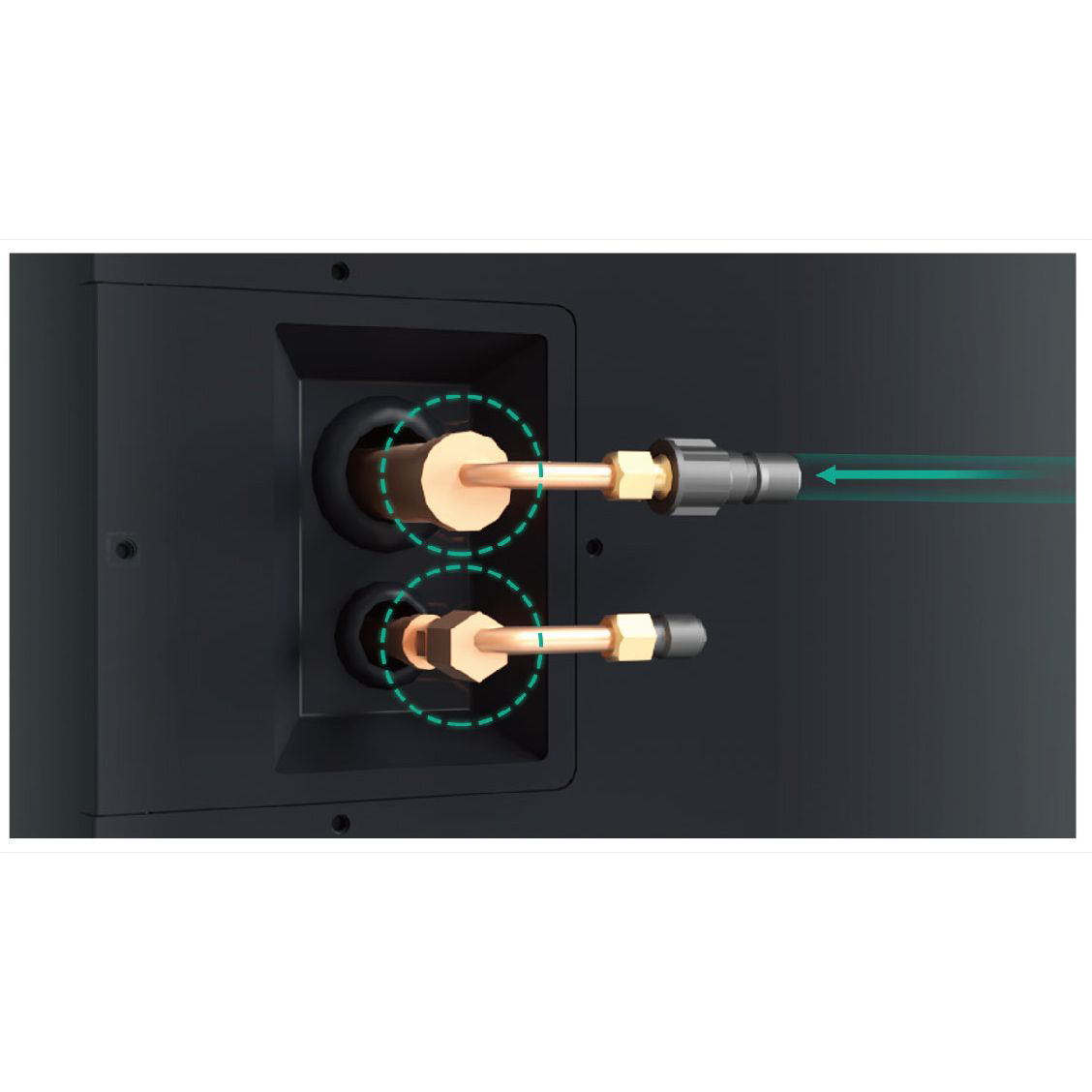

  • Leak Detectors: A nitrogen charge and factory-installed leakage indicator provide users with a warning against leaks, offering lasting peace of mind.

Note: This product does not include a lineset.

Sylvane's Expert Take

The inverter technology of the Friedrich 54K BTU Breeze System allows this system to outperform many air conditioners on the market today, delivering consistent temperatures and energy-efficient operation. Unlike many HVAC systems, this system’s universal compatibility allows seamless integration with most existing systems, simplifying installation and offering greater versatility.

  • Low-Temperature Operation: This model continues to operate efficiently in temperatures as low as -13 degrees F, exceeding the capabilities of many competitors in extreme conditions.
  • Compact Outdoor Footprint: This model features an outdoor compressor unit with a 40 percent smaller footprint than traditional models, providing more flexibility in placement without sacrificing power.

Specifications

    Key Specifications

    • Energy Efficiency Ratio 2 (EER2)
      8.8
    • Mounting Type
      Floor
    • Number of Speeds
      4
    • Seasonal Energy Efficiency Ratio 2 (SEER2)
      17
    • Total Cooling Capacity (BTUs)
      54000
    • Total Heating Capacity (BTUs)
      54000
    • Type
      Central Split

    General

    • Auxiliary Heat
      None
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
    • Certifications
      cETLus, AHRI
    • Color
      White, Gray
    • Compressor Type
      Inverter Rotary
    • Heat Mode
      Yes
    • Heating Seasonal Performance Factor 2 (HSPF2)
      8.5
    • Installation Type
      Professional Installation
    • Line Length Option
      None
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      3525.0
    • Maximum Indoor Noise Level (dB)
      65
    • Maximum Operating Temperature - Cooling (degrees F)
      122
    • Maximum Operating Temperature - Heating (degrees F)
      75
    • Minimum Operating Temperature - Cooling (degrees F)
      5
    • Minimum Operating Temperature - Heating (degrees F)
      -13
    • Number of Tons
      4.5
    • Refrigerant Type
      R-454B

    Power

    • Voltage (V)
      208-230

    Dimensions

    • Indoor Unit Depth (in.)
      24
    • Indoor Unit Height (in.)
      53.88
    • Indoor Unit Weight (lbs.)
      180.6
    • Indoor Unit Width (in.)
      22
    • Maximum Line Length (ft.)
      246
    • Outdoor Unit Depth (in.)
      17.8
    • Outdoor Unit Height (in.)
      34.5
    • Outdoor Unit Weight (lbs.)
      185.2
    • Outdoor Unit Width (in.)
      43.25

    Warranty

    • Manufacturer's Warranty
      10 Year Compressor Warranty, 7 Year Parts Warranty (10 Years with Warranty Registration)
