Frigidaire 12,000 BTU Through-the-Wall Air Conditioner
Frigidaire 12,000 BTU Through-the-Wall Air Conditioner is backordered and will ship as soon as it is back in stock.
The Frigidaire 12,000 BTU 230V TTW Air Conditioner is a convenient cooling and supplemental heating solution that ensures your space will remain comfortable regardless of the season.
The Frigidaire’s sleek white design integrates seamlessly into any room with a modern look and is tailored for optimal comfort and energy savings. It features various operating modes and programmable features, including a multi-speed fan and a 24-hour on/off timer.
Note: Professional installation is required for this air conditioning unit.
Top Features
-
Multi-Speed Fan: Easily control air circulation with three adjustable fan speeds.
-
Programmable Timer: Set your unit to turn on and off at specific times for enhanced comfort and efficiency.
-
Fast Heat and Cool: Rapidly bring your room to an ideal temperature with enhanced speed settings.
-
Energy Saver Mode: Economically maintains the set room temperature, reducing energy consumption.
-
Efficiency: This unit has a 9.5 CEER (Combined Energy Efficiency Ratio) rating and an estimated yearly energy cost of $123 for most homes.
Supplemental Heating
This air conditioner’s built-in 10,600 BTU heating element provides supplemental heating to small spaces. Optional sleep and energy-saving modes regulate the heating element at different intervals to keep your space comfortable and reduce energy consumption while heating.
Installation and Maintenance
This through-the-wall air conditioner requires professional installation on a wall no thicker than 18 inches. Refer to the installation kit and user’s manual for specific installation instructions. Manufacturers suggest inspecting the unit’s washable air filter monthly.
Summary

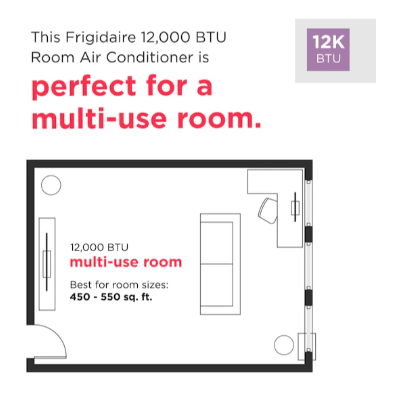

The Frigidaire 12,000 BTU 230V TTW air conditioner is perfect for cooling small spaces up to 550 square feet. It features a 10,600 BTU supplemental heater, multiple operating modes, and programable features.
-
ASHRAE Cooling Power (BTUs)12000
-
Energy Efficiency Ratio (EER)9.5
-
Number of Speeds3
-
CertificationsCE
-
Chassis TypeFixed
-
Circuit Breaker Rating250V-20A
-
ColorWhite
-
Estimated Yearly Operating Cost123
-
Heat ModeYes
-
Heating BTUs (BTUs)10600
-
Maximum Cubic Feet per Minute (CFM) (CFM)273.0
-
Maximum Noise Level (dB)61
-
Minimum Noise Level (dB)58
-
Moisture Removal per Hour (pints)3.5
-
Recommended Coverage Area (sq. ft.)550
-
Refrigerant TypeR-32
-
California Residents⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
-
Maximum Cooling Amperage (Amps)6.5
-
Maximum Cooling Wattage (W)1180
-
Maximum Heating Amperage (Amps)150
-
Maximum Heating Wattage (W)3450
-
Plug Face Type6-20P
-
Power Cord Length (ft.)5.5
-
Voltage (V)208-230
-
Depth (in.)21.5
-
Height (in.)14.5
-
Through-Wall Finished Depth (in)21.5
-
Through-Wall Finished Height (in)15.5
-
Through-Wall Finished Width (in)26.0
-
Weight (lbs.)75
-
Width (in.)24.0
-
Additional FeaturesProgrammable Timer, Remote Control, Fan-Only Mode, Dehumidifier Mode, Sleep Mode
-
Manufacturer's Warranty1-Year Limited Labor and Parts Warranty
