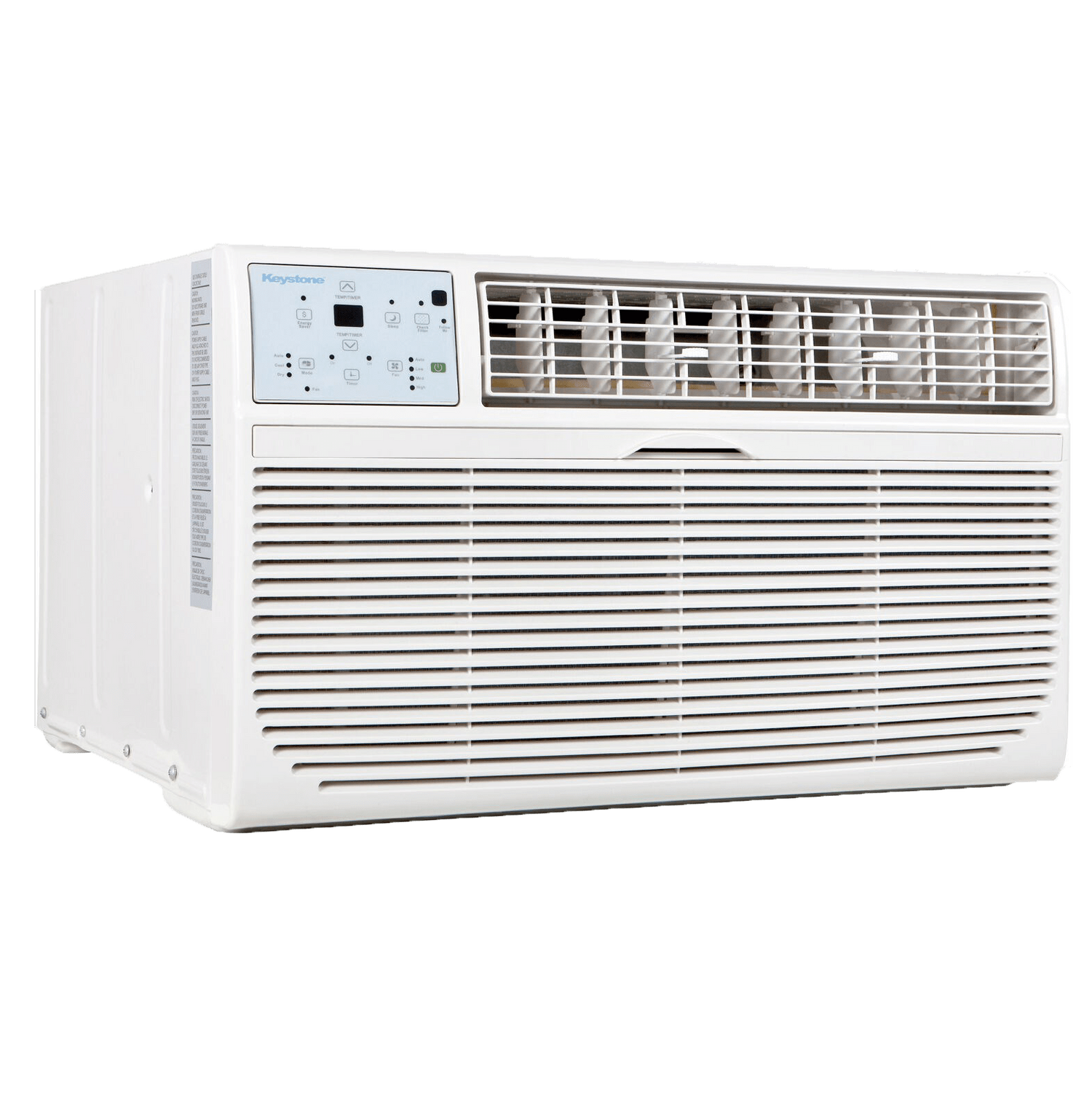

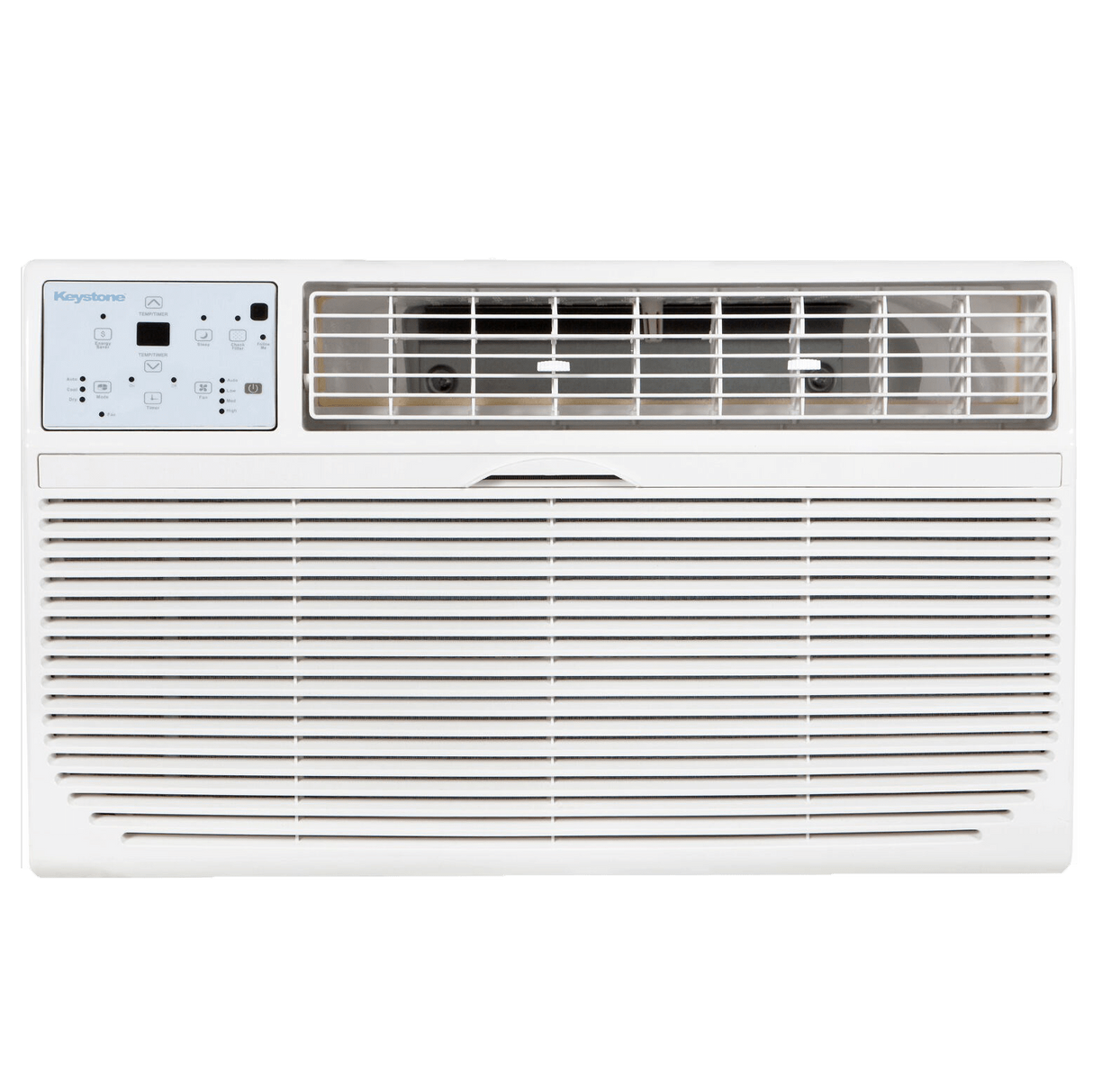

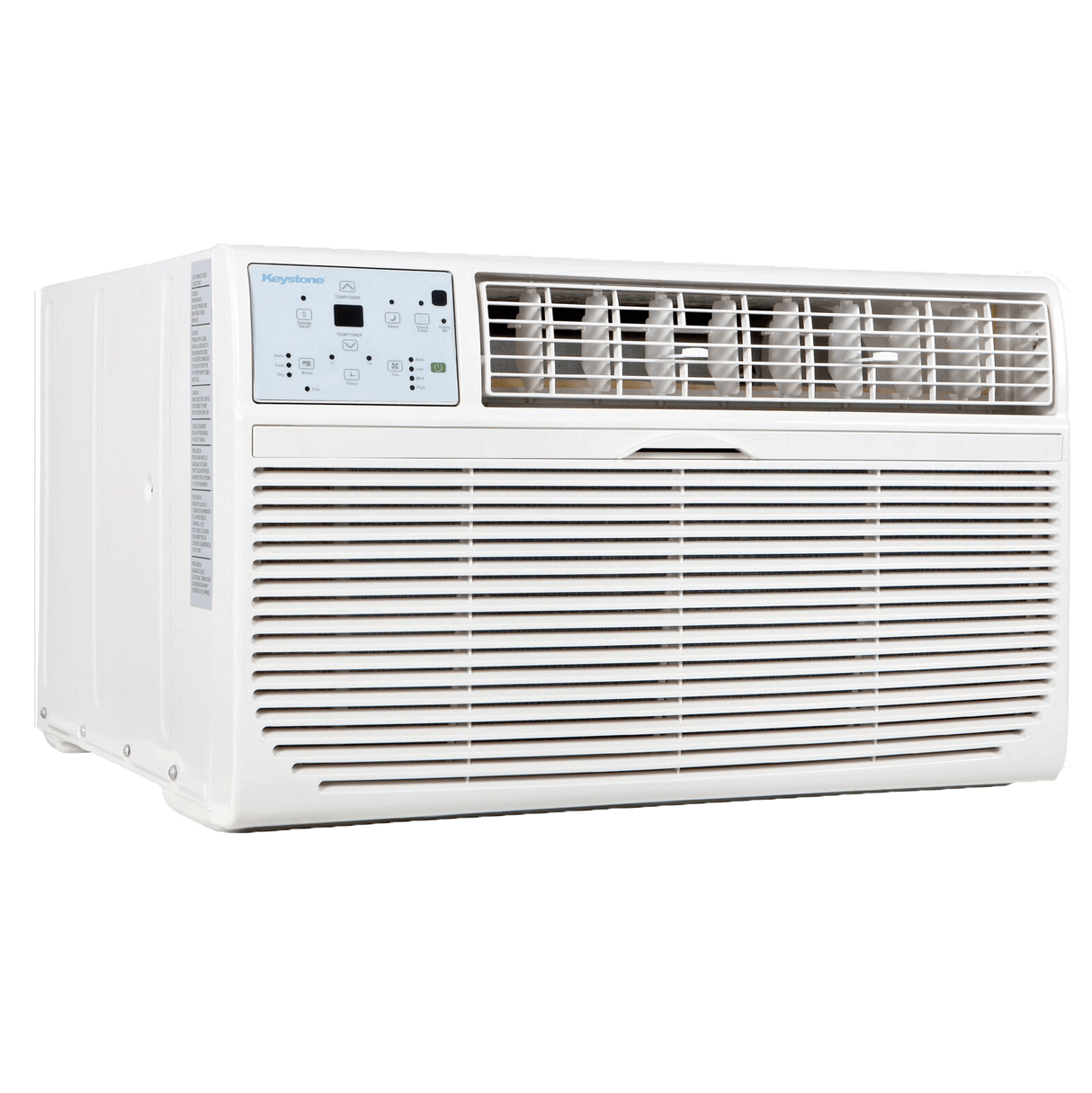

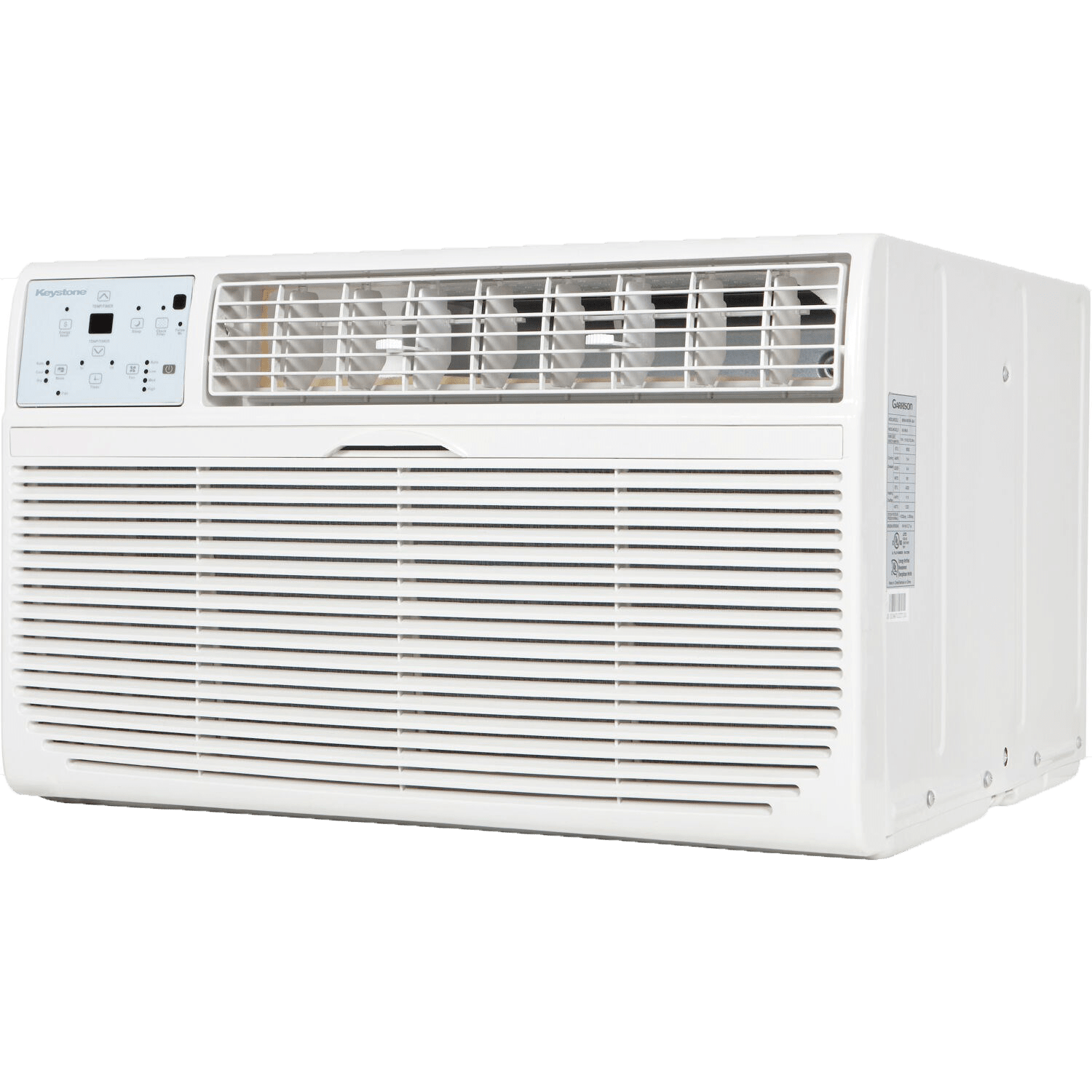

Keystone 12,000 BTU Through-The Wall Air Conditioner

SKU: ke15184  |  Model: KSTAT12-1D
$599.99 $649.99

FREE shipping on orders over $45!

This item is currently Out of Stock.

Add extended protection plan. (Select one)

learn more

A 2-year major appliance warranty for products less than $1,500.

learn more

A 4-year major appliance warranty for products less than $1,500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

  • Keystone 12,000 BTU Thru-The Wall 115V Air Conditioner

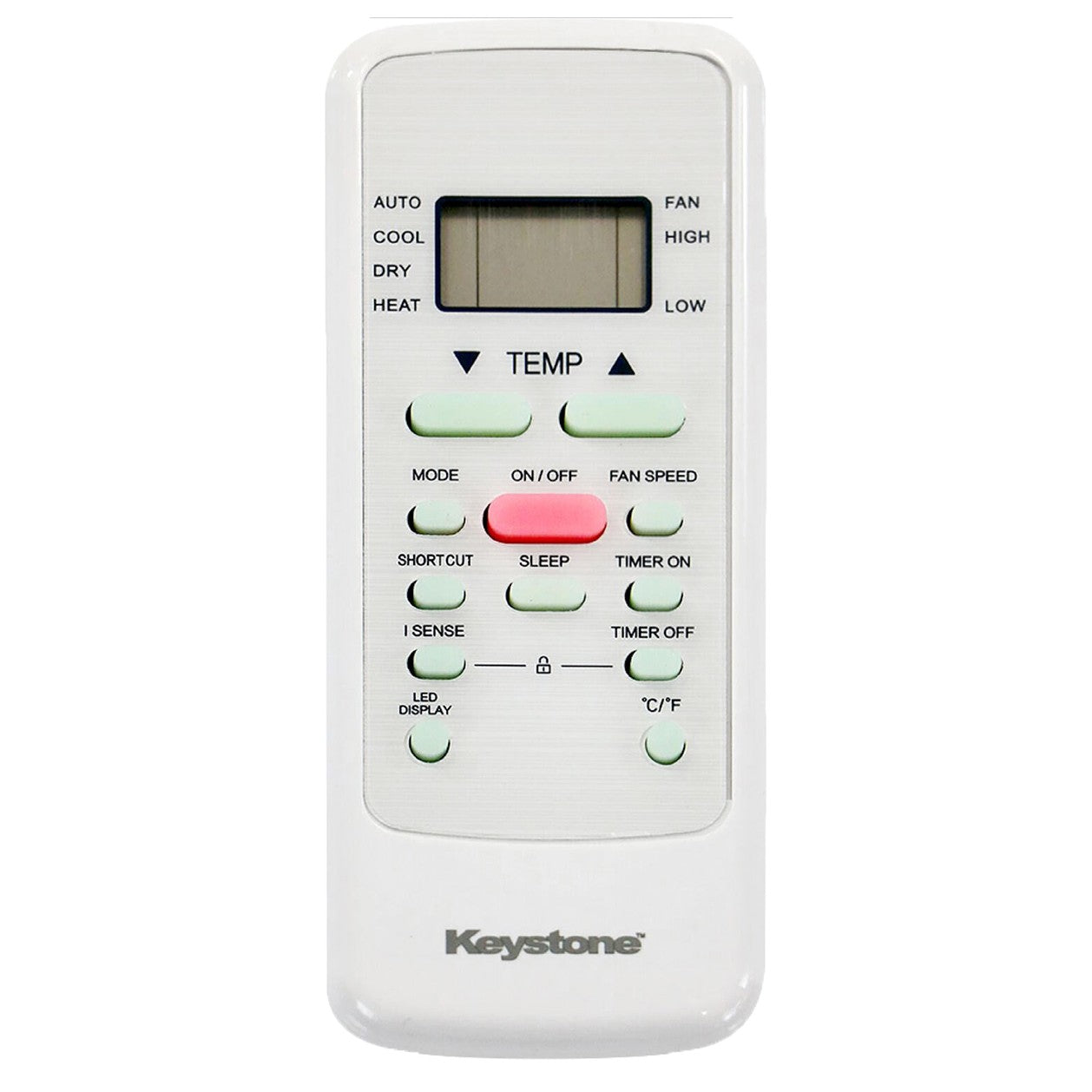

  • Remote Control
  • Installation and Window Trim Kit
  • Owner’s Manual

Info & Guides

Description

The Keystone 12,000 BTU Thru-The-Wall 115V air conditioner effectively cools medium—to large-sized rooms up to 550 square feet. It features simple controls, energy efficiency, and multiple operating modes.

  • Noise Level: About 60 dB, similar to a normal conversation

  • Cooling Range: 60 to 90 degrees F

  • Filter: Package includes washable mesh filter

  • Remote Control: The “Follow me” function senses temperatures remotely

Functionality

Thanks to the Keystone 12,000 BTU's simple operating modes and features, users can quickly and effectively control their local indoor climate. The unit can be controlled through an LED display or with the included wireless remote control.

  • Timer Mode: The 24-hour programable timer can be set to cool on your schedule.

  • Multiple Fan Speeds: This product features adjustable louvers and three cooling and fan-only speeds.

  • Sleep Mode: Gradually increases the room temperature as users sleep.

  • Dry Mode: Dehumidifies a space and removes up to 2.5 pints of moisture per hour.

  • Auto Restart: Automatically saves and restores unit settings during a power outage.

  • Eco Mode: Conserves energy by automatically shutting the unit down when it reaches a desired temperature.

Energy-Star Efficiency

This Energy Star-rated air conditioner effectively cools with efficiency and an estimated yearly energy cost similar to many other comparable air conditioner models. However, estimated energy costs are based on a national average electricity cost and may not be correct for all households.

  • Combined Energy Efficiency Ratio: 10.5

  • Estimated Yearly Energy Cost: $111

Easy Installation

Install this air conditioner unit directly through a wall, using either an existing or new wall sleeve and the included installation materials. Detailed instructions for installing the Keystone unit in different situations and information on trim frame fitting, care, and maintenance are included.

  • Power Requirements: This air conditioner uses a standard 115V electrical outlet.

  • Plug Type: NEMA 5-15P plug and 7-foot LCDI power cord

  • Installation Kit: The installation kit includes all hardware, trim, dividers, seals, and instructions needed for installation. Note: The unit requires a wall sleeve, which is sold separately.

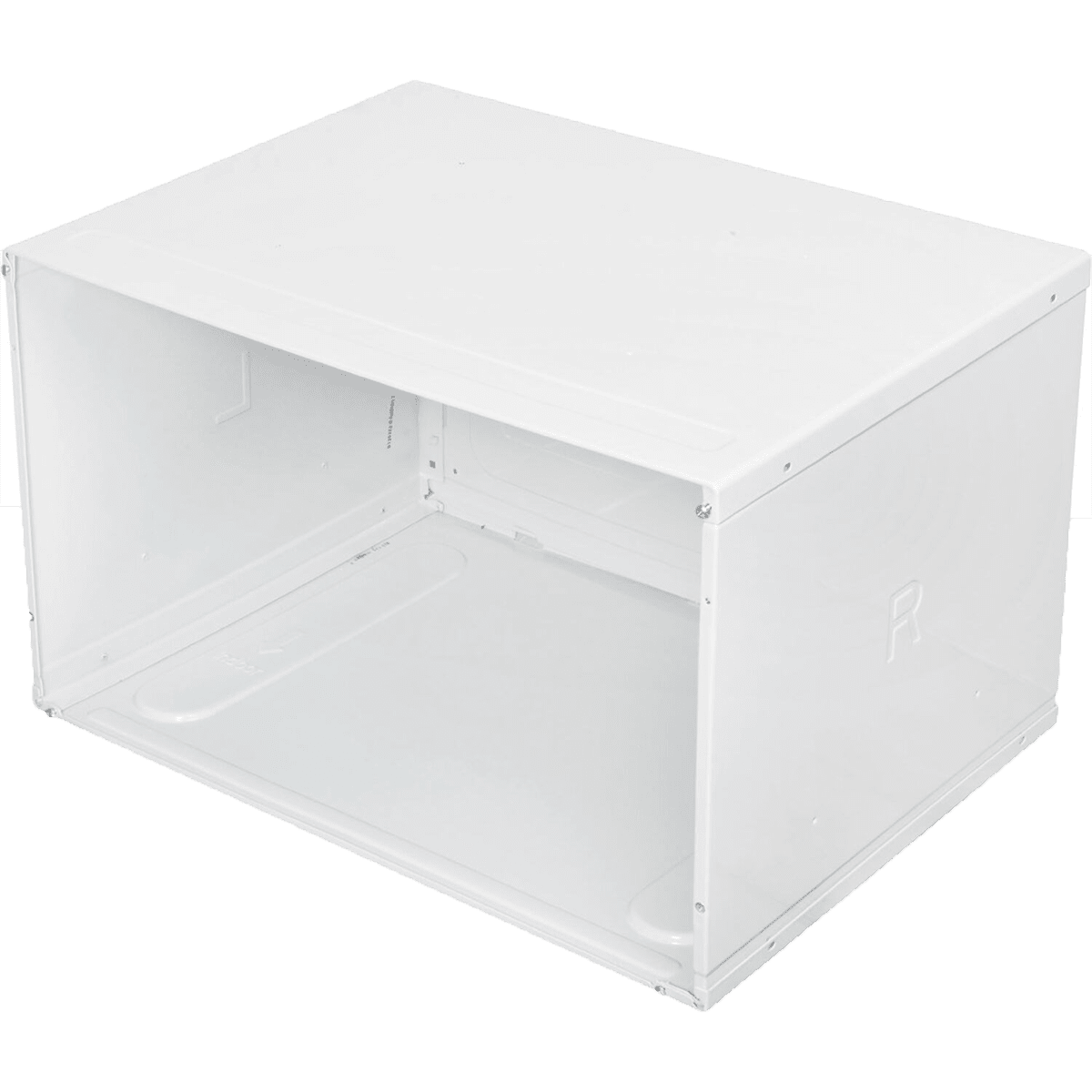

  • Wall Sleeve Required: This model’s sliding chassis fits Keystone Wall Sleeve KSTSLV1 (which measures 25.5 inches by 17.5 inches by 15.25 inches).

Summary

This 12,000 BTU through-the-wall air conditioner cools spaces up to 550 square feet with powerful efficiency, easy-to-use operating modes, and a simple design.

Specifications

    Key Specifications

    • ASHRAE Cooling Power (BTUs)
      [12000]
    • Energy Efficiency Ratio (EER)
      10.5
    • Number of Speeds
      3

    General

    • California Residents
      ⚠ WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
    • Certifications
      UL
    • Chassis Type
      Slide-Out
    • Circuit Breaker Rating
      115V-15A
    • Color
      White
    • Estimated Yearly Operating Cost
      111
    • Heat Mode
      No
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      286.0
    • Maximum Noise Level (dB)
      60.5
    • Minimum Noise Level (dB)
      56.5
    • Moisture Removal per Hour (pints)
      2.5
    • Recommended Coverage Area (sq. ft.)
      550
    • Refrigerant Type
      R-32

    Power

    • Maximum Cooling Amperage (Amps)
      10
    • Maximum Cooling Wattage (W)
      1142
    • Plug Face Type
      5-15P
    • Power Cord Length (ft.)
      7
    • Voltage (V)
      110-120

    Dimensions

    • Depth (in.)
      20.3
    • Depth (with front cover) (in.)
      20.3
    • Height (in.)
      14.5
    • Height (with front cover) (in.)
      14.5
    • Through-Wall Finished Depth (in)
      17.5
    • Through-Wall Finished Height (in)
      15.25
    • Through-Wall Finished Width (in)
      25.5
    • Weight (lbs.)
      76
    • Width (in.)
      24.2
    • Width (with front cover) (in.)
      24.2

    Additional Features

    • Additional Features
      Programmable Timer, Remote Control, Fan-Only Mode, Dehumidifier Mode, Sleep Mode

    Warranty

    • Manufacturer's Warranty
      5-Year Limited Warranty
