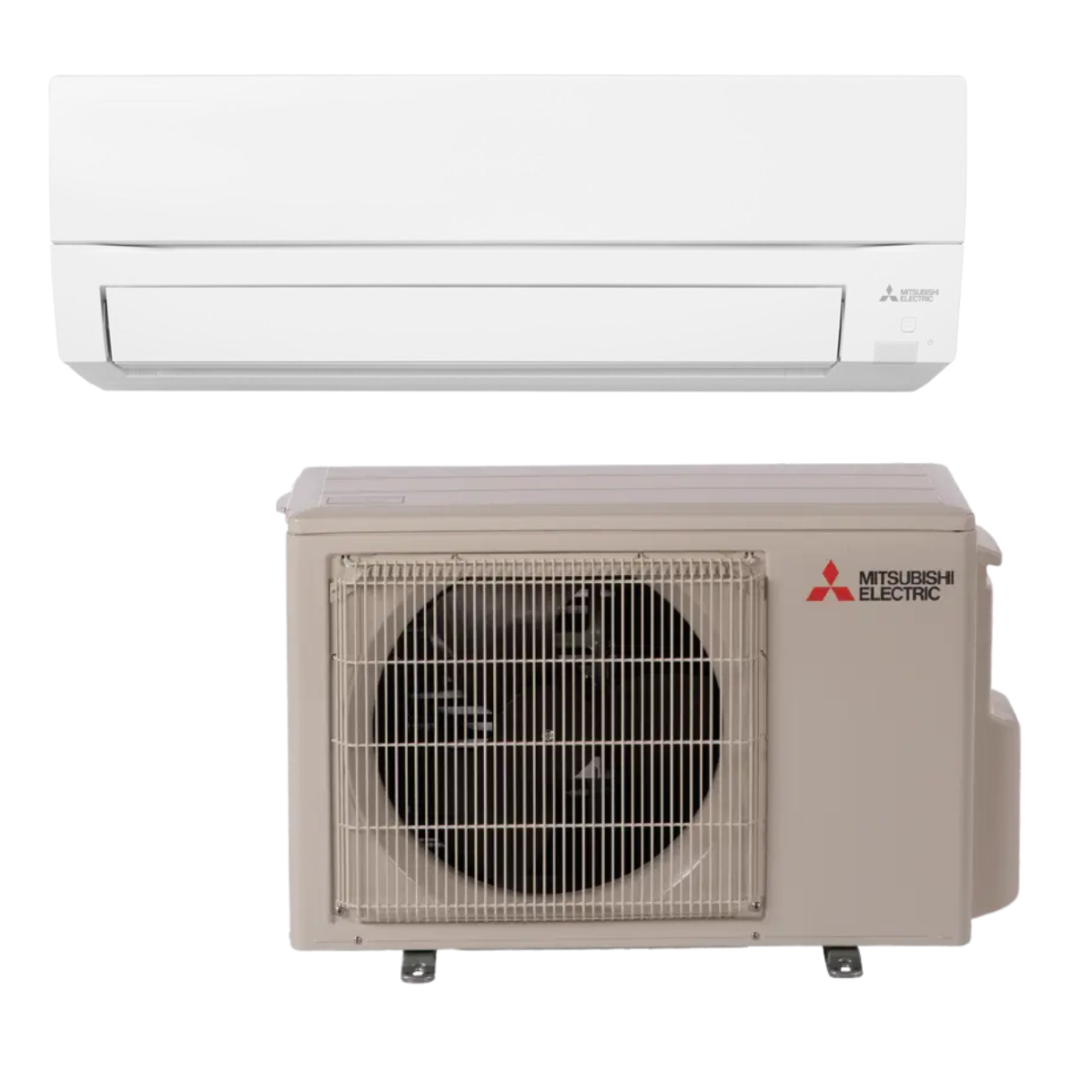

Mitsubishi HX Series 9000 BTU Ductless Mini Split

SKU: mi16900k  |  Model: HX09NL
$1,699.00 $1,799.00

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.



Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

10-year warranty when installed by a licensed contractor and registered within 90 days of installation.

What's In The Box?

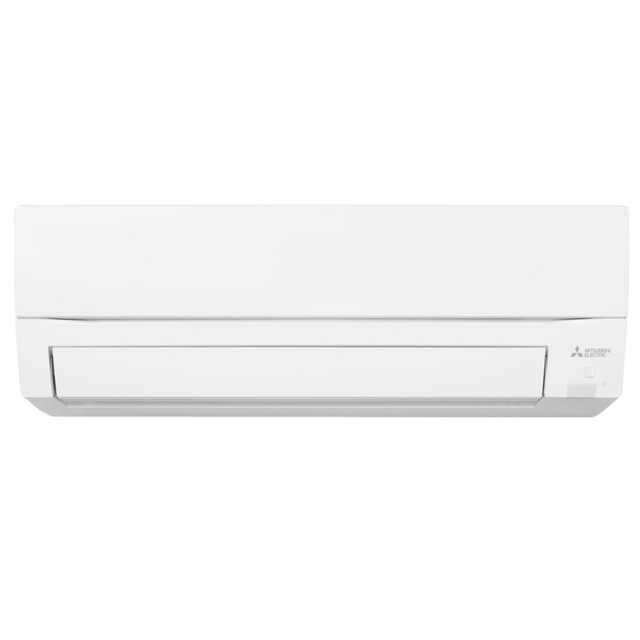

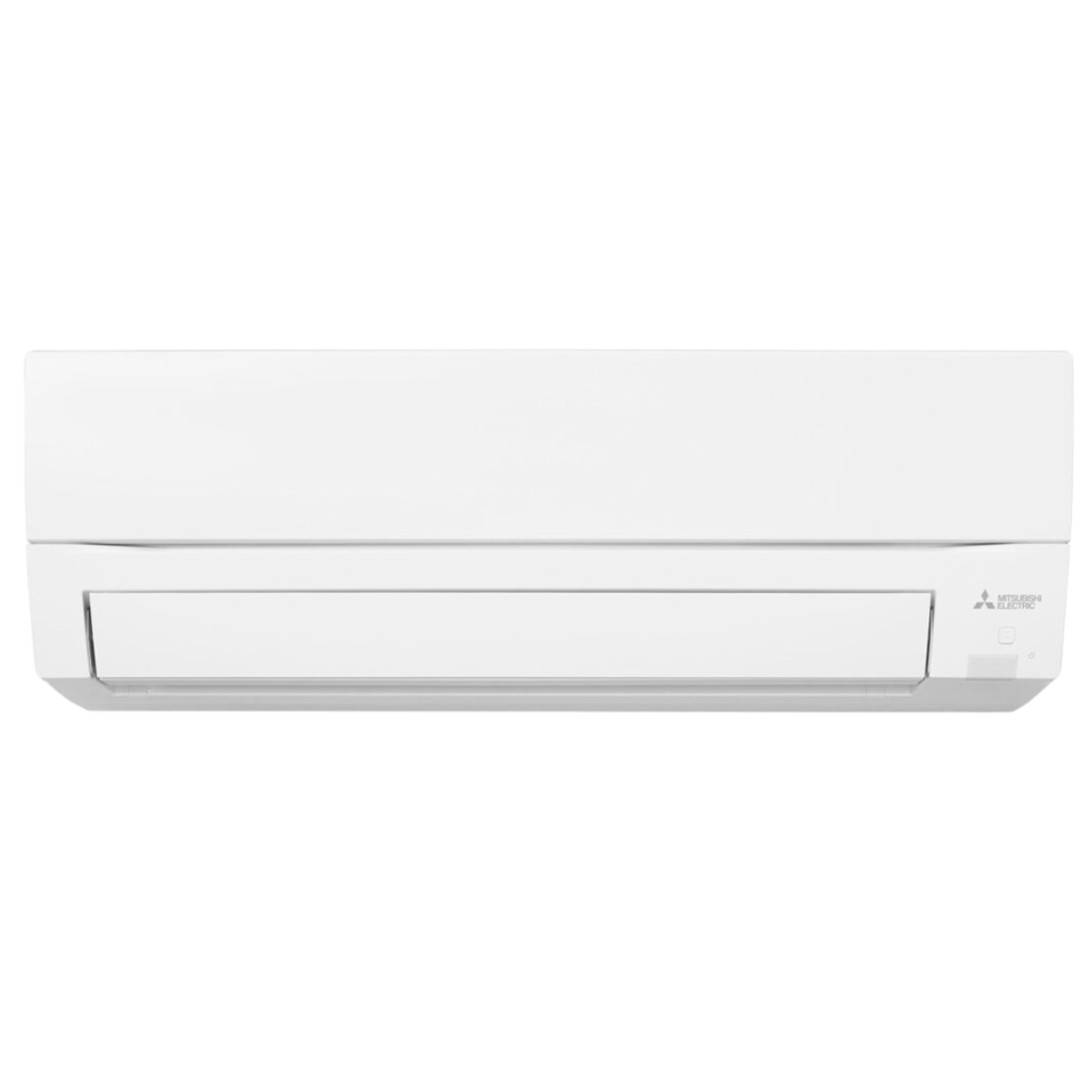

  • Mitsubishi 9,000 BTU HX Series Ductless Mini Split Air Handler MSZ-HX09NL

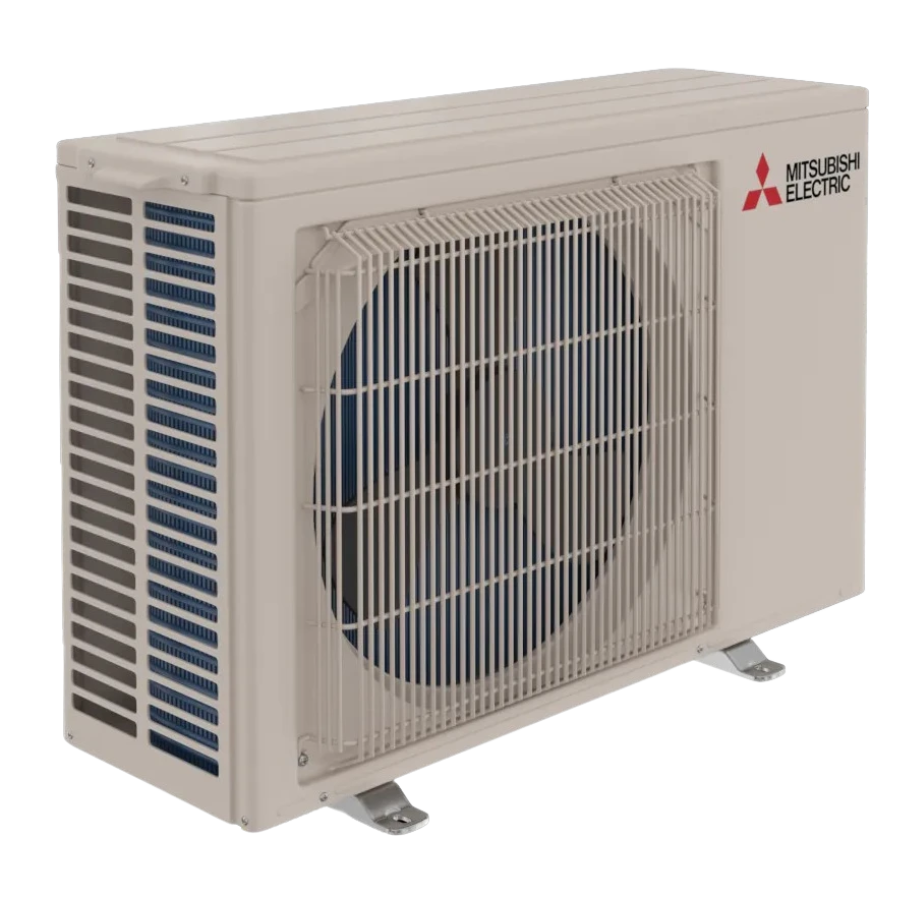

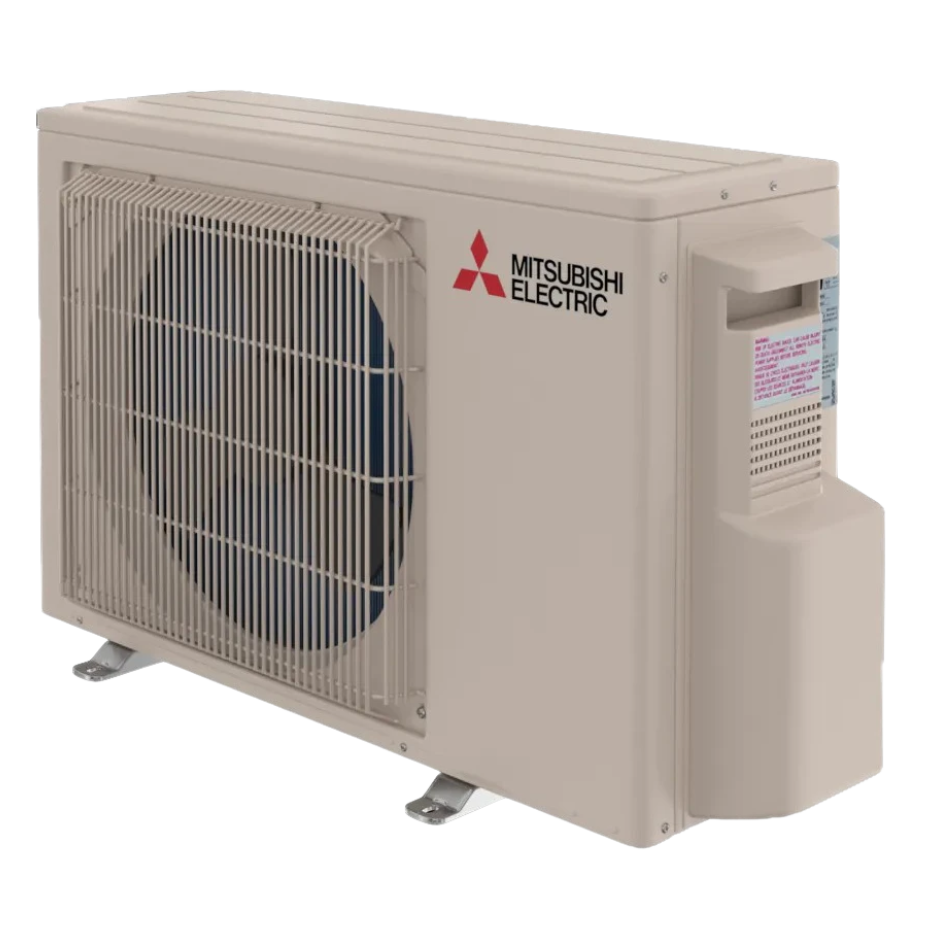

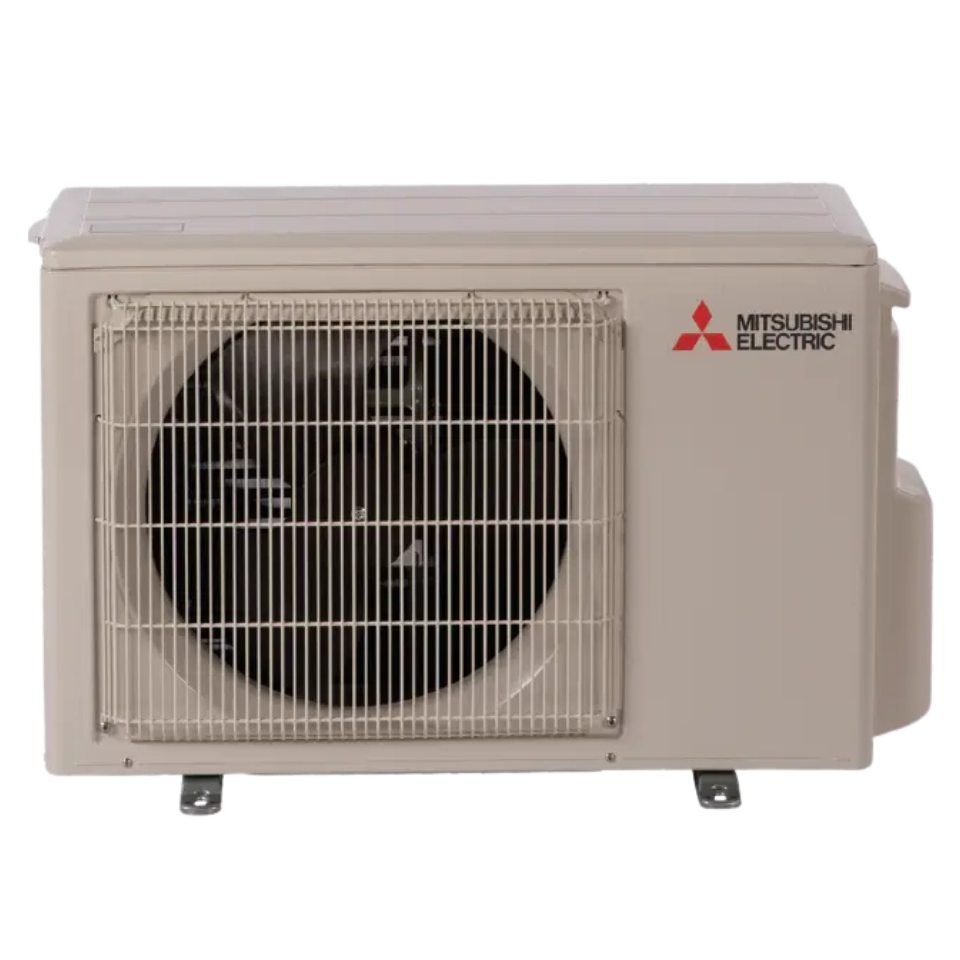

  • Mitsubishi 9,000 BTU HX Series Ductless Mini Split Condenser MUZ-HX09NL
  • Remote Control
  • Installation and Owner’s Manual


Description

Keep your space perfectly comfortable year-round with the Mitsubishi HX Series 9,000 BTU Ductless Mini-Split. Whether you're seeking efficient cooling during the hot summer months or reliable supplemental heating during winter chills, this wall-mounted mini-split delivers superior comfort with state-of-the-art inverter technology.

Ideal for single-zone applications, such as bedrooms or offices, the Mitsubishi HX Mini-Split Heat Pump combines elegant design, quiet operation, and impressive energy efficiency.

Key Features and Benefits of the Mitsubishi HX Series 9,000 BTU Ductless Mini-Split

  • Efficient Cooling and Heating: With a rated cooling capacity of 9,000 BTUs and heating capacity of up to 10,900 BTUs, this ductless mini-split heat pump effortlessly maintains ideal indoor climates in spaces up to approximately 400 square feet.
  • Advanced Inverter Technology: The inverter-driven compressor adjusts capacity precisely to maintain your set temperature, significantly improving energy efficiency and reducing operational costs. The unit achieves a SEER2 rating of 20 and an HSPF2 rating of 10, proudly carrying the Energy Star certification.
  • R-454B Refrigerant: This model uses the eco-friendly R-454B Refrigerant, which has a lower global warming potential than other refrigerant formulas.
  • Dual Barrier Coating: Mitsubishi’s patented Dual Barrier Coating prevents the mini-split from collecting buildups of dust, fibers, smoke, and oil on the inner surface of the heat pump. This helps the unit maintain an optimal airflow and decreases maintenance.
  • Enhanced Air Quality: Equipped with an Electrostatic Enzyme Filter, this Mitsubishi Wall Mounted Mini-Split captures airborne particles like dust, allergens, and smoke, promoting a healthier indoor environment.
  • Quiet and Comfortable Operation: Operating at a noise level as low as 22 dB, it is whisper-quiet, making it perfect for bedrooms or offices.
  • Dry Mode: The Smart Dry Mode provides additional humidity control during hot months, removing up to 1.6 pints of moisture per hour from indoor spaces.
  • Robust and Reliable: The outdoor unit features a Blue Fin anti-corrosion coating, designed specifically to withstand harsh weather conditions, including coastal and industrial environments, extending the lifespan of your investment.

Note: This model does not include a line set, which is required for installation. This model is compatible with a  1/4 X 3/8 Line Set

Flexible Control for Your Convenience

Enjoy unmatched flexibility with multiple control options. The Mitsubishi HX Series 9,000 BTU Ductless Mini-Split includes a convenient handheld remote, compatibility with the Comfort App, and options for both wired and wireless thermostats. Whether at home or on the go, achieving your perfect comfort setting has never been easier.

Sylvane's Expert Take

The Mitsubishi 9,000 BTU Mini-Split stands out for its blend of efficiency, versatility, and user-friendly operation. Its inverter technology ensures not only superior performance but also significant energy savings, making it an excellent choice for eco-conscious homeowners.

The enhanced filtration and quiet operation also make this unit an excellent solution for those who are sensitive to air quality and noise. If you're looking for a dependable, efficient, and flexible mini-split heat pump to reliably heat and cool your space, the Mitsubishi HX Series 9,000 BTU Ductless Mini-Split is a top-tier choice.


Specifications

    Key Specifications

    • Energy Efficiency Ratio 2 (EER2)
      12.5
    • Mounting Type
      Wall
    • Number of Speeds
      4
    • Seasonal Energy Efficiency Ratio 2 (SEER2)
      20
    • Total Cooling Capacity (BTUs)
      9000
    • Total Heating Capacity (BTUs)
      10900

    General

    • Certifications
      cETLus, AHRI
    • Color
      White
    • Compressor Type
      Inverter
    • Heat Mode
      Yes
    • Installation Type
      Professional Installation
    • Line Length Option
      No Line Set
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      1196.0
    • Maximum Indoor Noise Level (dB)
      50
    • Maximum Operating Temperature - Cooling (degrees F)
      115
    • Maximum Operating Temperature - Heating (degrees F)
      75
    • Minimum Operating Temperature - Cooling (degrees F)
      14
    • Minimum Operating Temperature - Heating (degrees F)
      -5
    • Number of Zones
      1
    • Recommended Coverage Area (sq. ft.)
      400
    • Refrigerant Type
      R-454B
    • Zone Cooling Capacity (BTUs)
      9000
    • Zone Heating Capacity (BTUs)
      10900

    Power

    • Maximum Cooling Amperage (Amps)
      4.8
    • Maximum Cooling Wattage (W)
      1100
    • Maximum Heating Amperage (Amps)
      6.1
    • Maximum Heating Wattage (W)
      1400
    • Voltage (V)
      208-230

    Dimensions

    • Indoor Unit Depth (in.)
      9.25
    • Indoor Unit Height (in.)
      11.03
    • Indoor Unit Weight (lbs.)
      20
    • Indoor Unit Width (in.)
      33
    • Maximum Line Length (ft.)
      65
    • Outdoor Unit Depth (in.)
      11.25
    • Outdoor Unit Height (in.)
      21.63
    • Outdoor Unit Weight (lbs.)
      65
    • Outdoor Unit Width (in.)
      31.5

    Additional Features

    • Additional Features
      Remote Control, Energy Star, Applicable for Indoor Growing, Pre-charged Refrigerant

    Warranty

    • Manufacturer's Warranty
      10-year warranty when installed by a licensed contractor and registered within 90 days of installation.
