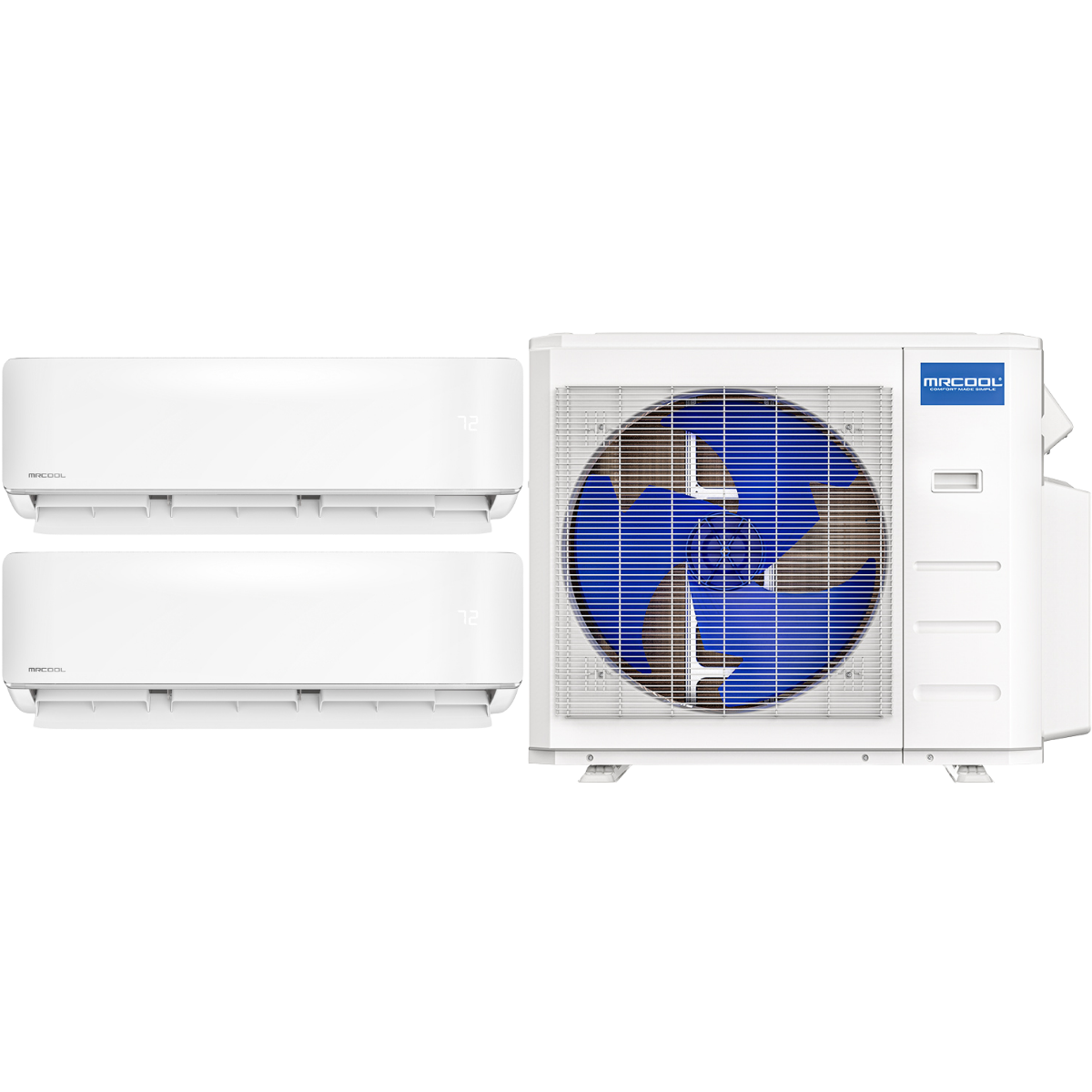

MRCOOL DIY 5th Gen 27,000 BTU Dual Zone Mini Split 12k+12k

Name: MRCOOL DIY 5th Gen 27,000 BTU Dual Zone Mini Split 12k+12k
Brand: MRCOOL
Price: 3478.0 USD
Availability: InStock

SKU: mr17207k | Model: DIYM227HPW04D

$3,478.00 ~~$3,599.00~~

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5 Year Parts Warranty, 7 Year Compressor Warranty, Extended Limited Lifetime Warranty

What's In The Box?

MRCOOL DIY 5th Gen 12,000 BTU Air Handler DIY-12-HP-WMAH-230D25-O (2)
MRCOOL DIY 5th Gen 27,000 BTU Condenser DIY-MULTI4-27HP230D-O (1)
Remote Control
Smart HVAC Module
Owner’s Manual and Installation Guide

Info & Guides

Description

The MRCOOL DIY 5th Gen 27,000 BTU Dual Zone Mini Split makes it simple to give two rooms personalized, energy-efficient heating and cooling, no professional required.

Ideal for homeowners who want the flexibility of a mini-split AC heat pump without the expense of hiring an HVAC installer, this dual-zone system delivers year-round comfort while keeping installation and operating costs in check.

Key Features and Benefits of the MRCOOL Dual-Zone DIY 5th Gen Mini Split

Two Independent Zones: Place each 12,000 BTU air handler where it matters most, bedrooms, offices, or living spaces, and set individual temperatures for personalized comfort.
High Efficiency: The DC inverter technology adjusts output in real time, lowering energy use while keeping rooms consistently comfortable in both cooling and heating modes. It cools with a 23 SEER2 rating and a 12 EER2 rating. It heats with a 9.5 HSPF2-4 rating and a 7.0 HSPF2-5 rating.
Superior Heat Pump Performance: Low-ambient heating and cooling keep spaces comfortable even in extreme weather down to -13 degrees F, making it a practical mini-split heat pump for four-season climates.
Smartphone and Voice Control: Use the MRCOOL app, Amazon Alexa, or Google Assistant to change settings, set schedules, and monitor performance from anywhere.
Gold Fin Protection: The outdoor condenser's protective coating resists salt and moisture, extending system life in coastal or damp environments.
Smart Alerts: Built-in sensors alert you to refrigerant loss and automatically resume operation after a power outage, protecting both comfort and equipment.
Follow Me Sensor: The handheld remote checks the temperature where you are, not just at the wall unit, eliminating hot and cold spots.

Note: This system requires two MRCOOL DIY 5th Generation 1/4 x 3/8 Line Sets (Not Included).

Faster Comfort, Lower Costs

Traditional air conditioners often require specialized tools, vacuum pumps, and licensed installers, but the MRCOOL 5th Gen DIY series removes those hurdles. Most customers finish the job in a single weekend, avoiding scheduling delays and installation fees that can equal half the system's price. Because the required linesets are matched and pre-charged at the factory, you also gain confidence that the system will run at peak efficiency from day one.

Sylvane's Expert Take

This MRCOOL 5th Gen system hits the sweet spot for do-it-yourselfers who want dependable, year-round climate control without professional installation costs. This model's high SEER2 rating, Energy Star label, and tax-credit eligibility make it a budget-wise upgrade, while Wi-Fi control and Follow Me sensing add everyday convenience. If you need a mini-split system that can swiftly serve two separate spaces, this kit is one of the most user-friendly options on the market.

Specifications

Key Specifications

Energy Efficiency Ratio 2 (EER2)

12
Mounting Type

Wall
Number of Speeds

5
Seasonal Energy Efficiency Ratio 2 (SEER2)

23
Total Cooling Capacity (BTUs)

26000
Total Heating Capacity (BTUs)

26000

General

California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
Certifications

AHRI, ETL, UL
Color

White
Compressor Type

Rotary
Heat Mode

Yes
Installation Type

Do-It-Yourself (DIY)
Line Length Option

25 ft
Maximum Indoor Noise Level (dB)

61
Maximum Operating Temperature - Cooling (degrees F)

122
Maximum Operating Temperature - Heating (degrees F)

75
Minimum Operating Temperature - Cooling (degrees F)

-22
Minimum Operating Temperature - Heating (degrees F)

-22
Number of Zones

2
Recommended Coverage Area (sq. ft.)

1125
Refrigerant Type

R-454B
Zone Cooling Capacity (BTUs)

12000
Zone Heating Capacity (BTUs)

12000
