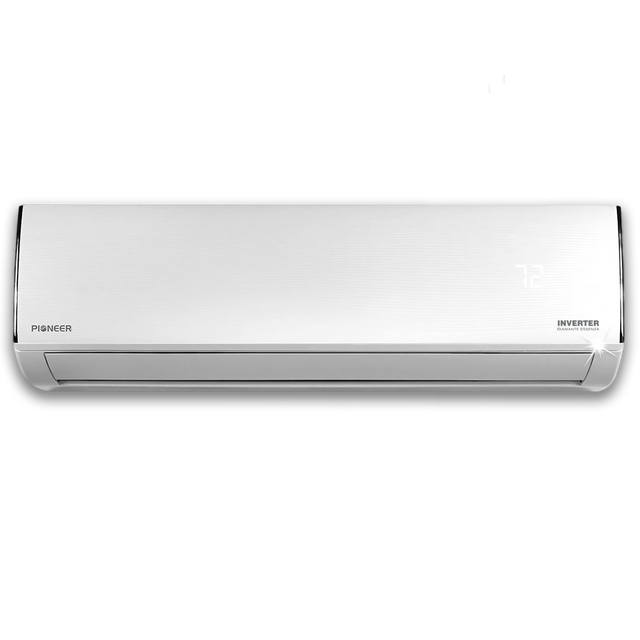

Pioneer Diamante Essenza 35,000 BTU Ductless Mini Split

Name: Pioneer Diamante Essenza 35,000 BTU Ductless Mini Split
Brand: Pioneer
Price: 1888.0 USD
Availability: InStock

SKU: pi17024k | Model: WYT036GLUI17RL

$1,888.00 $2,499.00

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Parts and Compressor Warranty (With Registration)

What's In The Box?

Pioneer Diamante Essenza 35,000 BTU Air Handler WT036GLUI17HLD
Pioneer Diamante Essenza 35,000 BTU Outdoor Condenser YN036GLUI17RPD
16-Foot Line Set
Wireless Remote Control
Remote Control Wall Holder
Remote Control Batteries
10-Foot Drain
Wall Passage Sleeve
Installation Hardware
Owner's Manual, Guides, and Other Documents

Info & Guides

The Pioneer Diamante Essenza 35,000 BTU Ductless Mini Split Heat Pump offers year-round comfort with its 230V system.

This efficient ductless air conditioner combines powerful heating and cooling with cutting-edge inverter technology, ensuring precise temperature control and minimal energy consumption. Ideal for spaces up to 1,400 square feet, its sleek, modern design and intuitive controls make it a perfect choice.

Key Features and Benefits of the Pioneer Diamante Essenza 35,000 BTU Ductless Mini Split Heat Pump

Inverter Technology: This model automatically adjusts compressor speed to meet heating and cooling demands, consistently maintaining your desired climate while reducing energy consumption.
Eco-Friendly Refrigerant: Utilizes R-32 refrigerant, offering a lower global warming potential than traditional refrigerants.
Ultra-Quiet Operation: Operates with minimal noise, making it suitable for quiet spaces such as bedrooms, offices, and living areas.
Efficiency: It delivers substantial energy savings with a 17 SEER2 rating for cooling and an 8.5 HSPF2 rating for heating.
Wireless Control: You can adjust comfort settings remotely using a convenient smartphone app.
Advanced Operating Modes: The Diamante Essenza features ECO, Sleep, and Turbo Modes, a timer, self-clean cycle, memory function for favorite settings, and an IFEEL setting for precise temperature adjustments based on room conditions.
Line Set Included: A 16-foot 1/4 x 5/8" line set is included.

Note: This mini-split air conditioner requires professional installation.

Enhanced Comfort with Whisper-Quiet Performance

The Pioneer Diamante Essenza-Mini Split Heat Pump system offers exceptionally quiet operation. Its dynamically balanced cross-flow blower and ball-bearing motors significantly reduce noise.

This design allows for a maximum indoor noise level of 55 dB and an outdoor level of 63 dB. You can enjoy a comfortable indoor environment in the summer or winter, without the common disruptions associated with other ductless air conditioning systems.

Sylvane’s Expert Take

The Pioneer Diamante Essenza 35,000 BTU 230V Ductless Mini-Split Heat Pump is an energy-efficient AC system designed for reliable, year-round performance. This mini-split prioritizes comfort, convenience, and sustainability, featuring quiet operation, easy installation, advanced control features, and an environmentally friendly refrigerant.

Key Specifications

Energy Efficiency Ratio 2 (EER2)

9.5
Mounting Type

Wall
Number of Speeds

Variable
Seasonal Energy Efficiency Ratio 2 (SEER2)

17
Total Cooling Capacity (BTUs)

35000
Total Heating Capacity (BTUs)

35400

General

California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
Certifications

AHRI, cETLus
Color

White
Compressor Type

Inverter
Heat Mode

Yes
Installation Type

Professional Installation
Line Length Option

16 ft
Maximum Cubic Feet per Minute (CFM) (CFM)

882.0
Maximum Indoor Noise Level (dB)

63
Maximum Operating Temperature - Cooling (degrees F)

122
Maximum Operating Temperature - Heating (degrees F)

86
Minimum Operating Temperature - Cooling (degrees F)

54
Minimum Operating Temperature - Heating (degrees F)

5
Number of Zones

1
Recommended Coverage Area (sq. ft.)

2500
Refrigerant Type

R-32
Zone Cooling Capacity (BTUs)

35000
Zone Heating Capacity (BTUs)

35400
