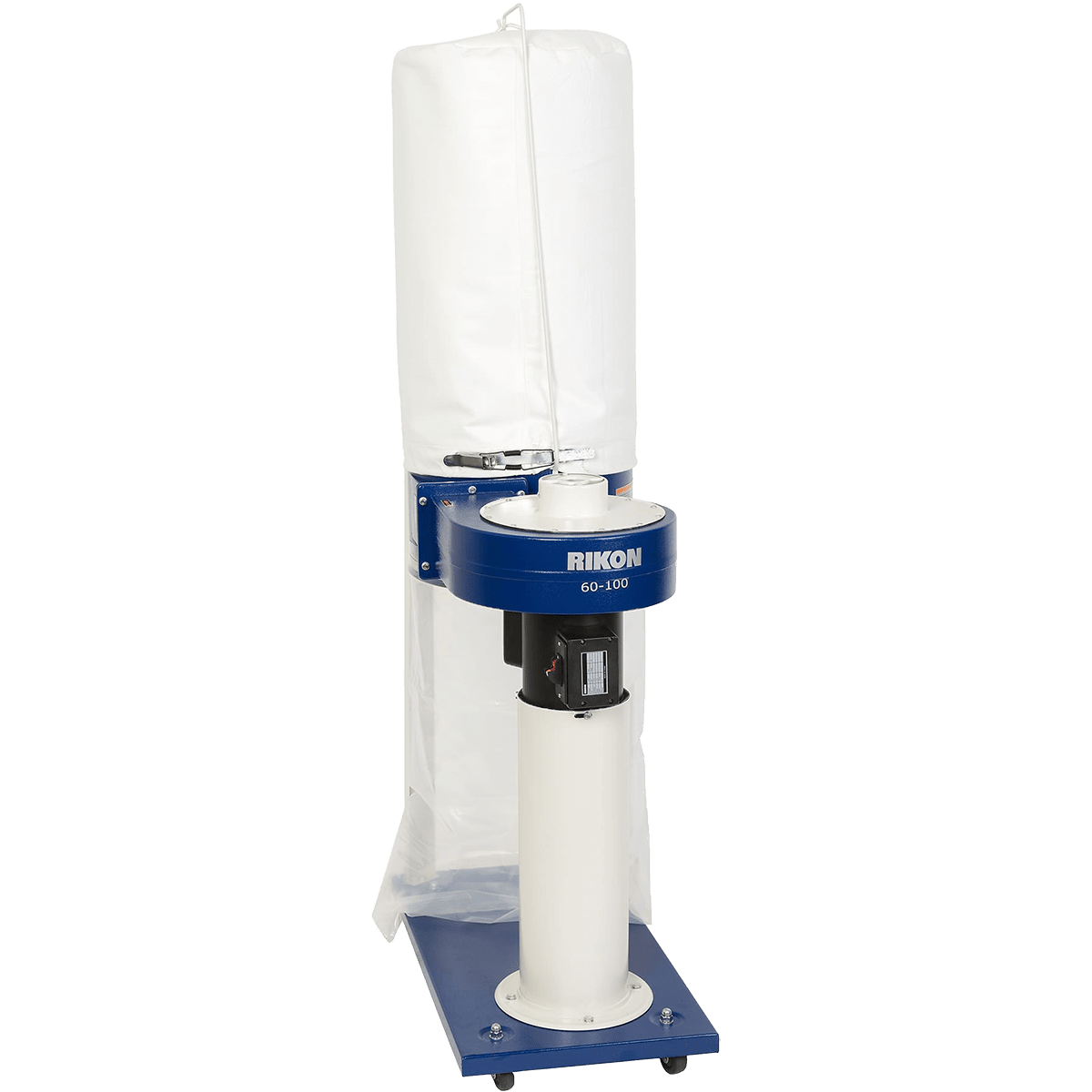

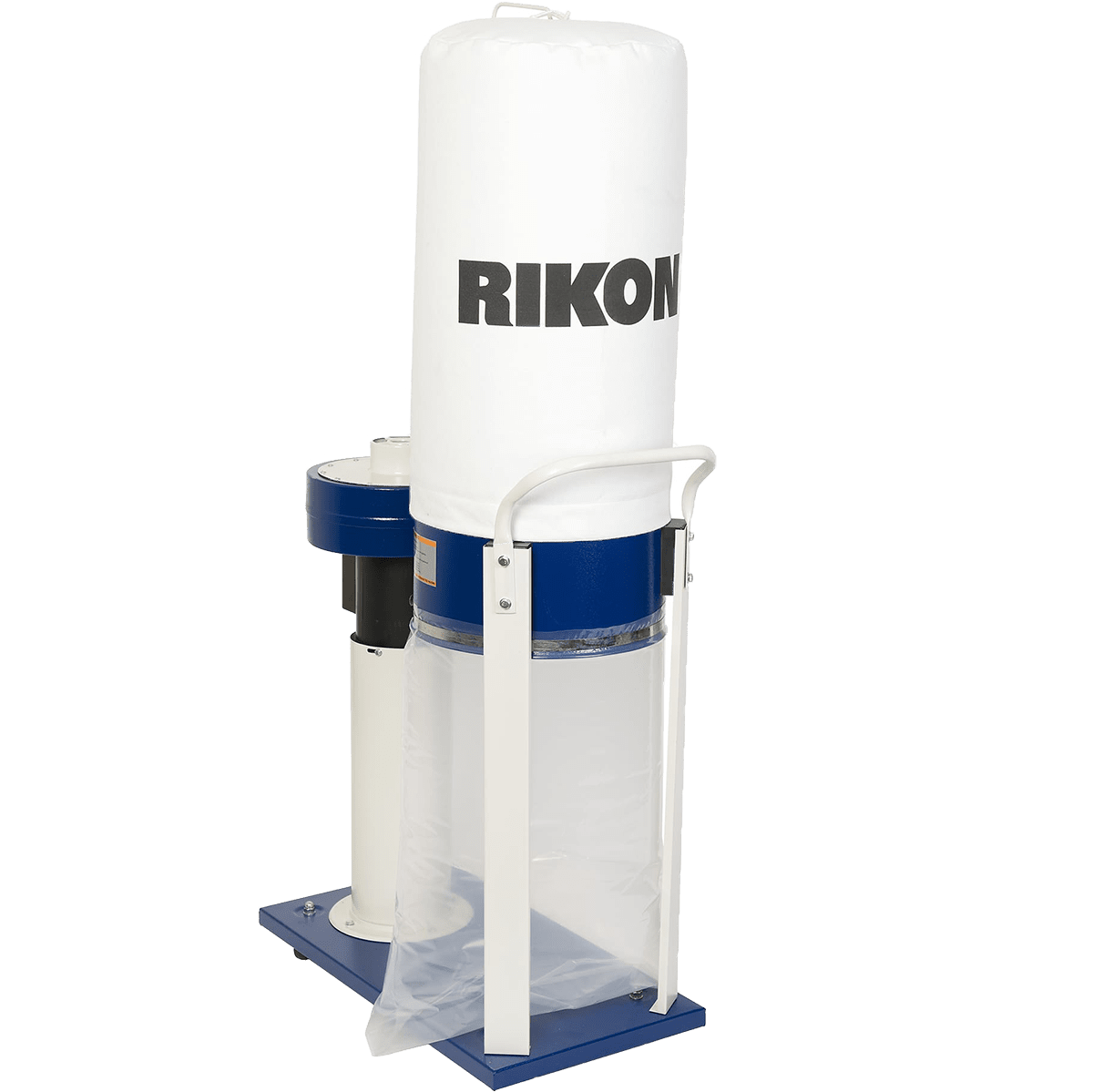

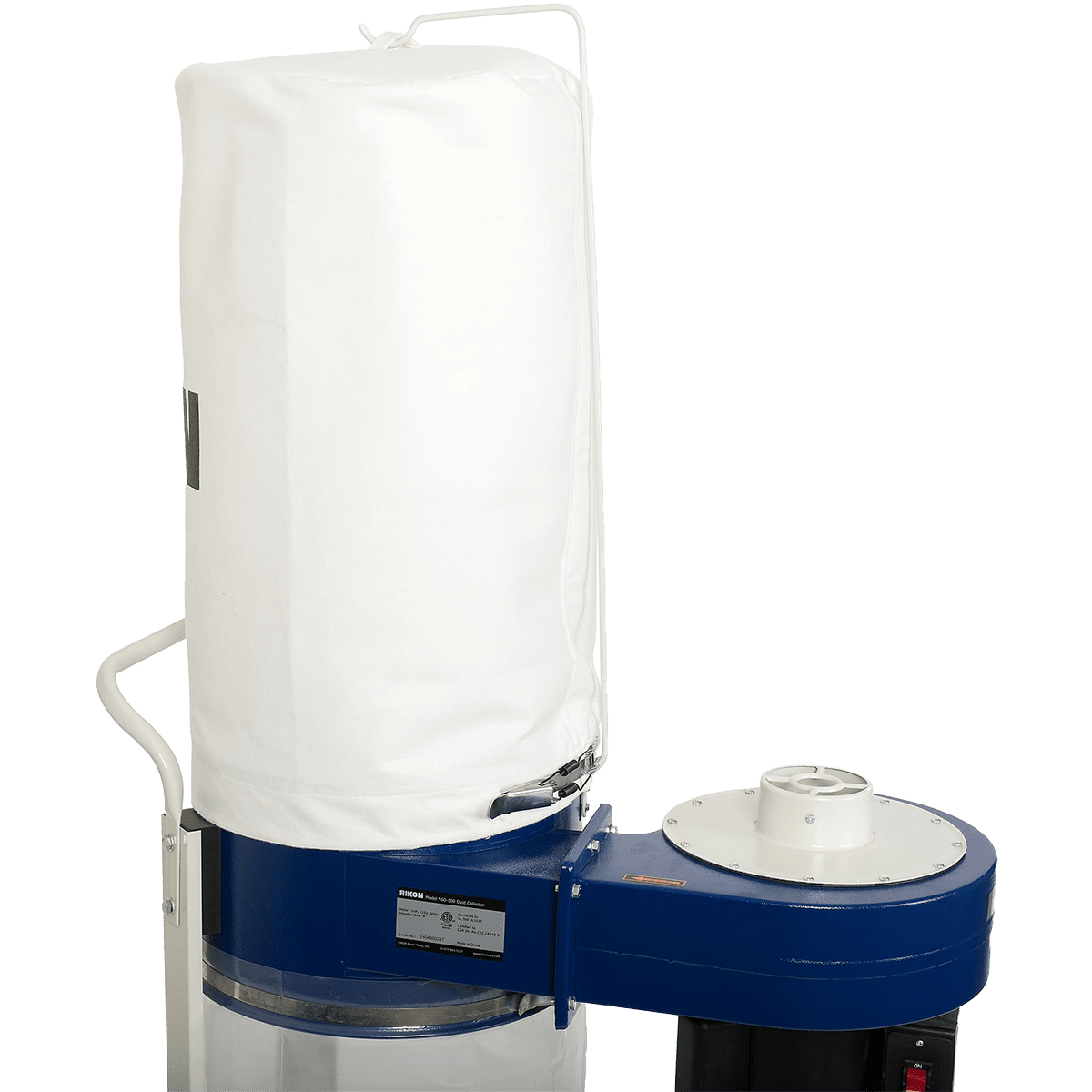

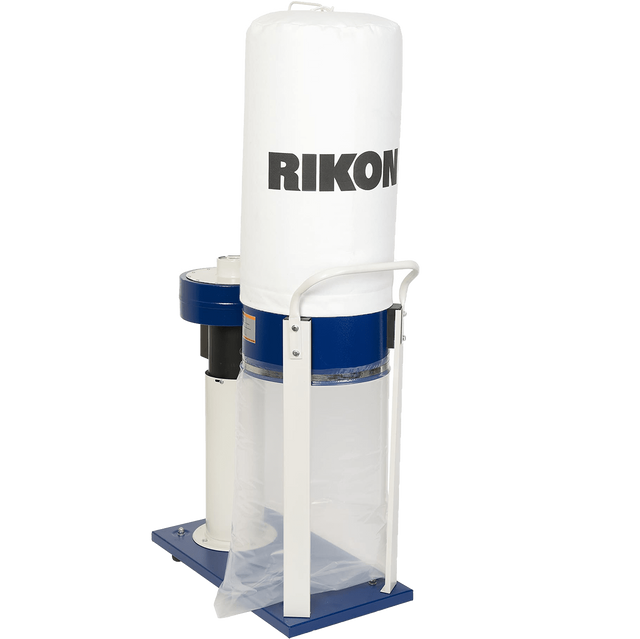

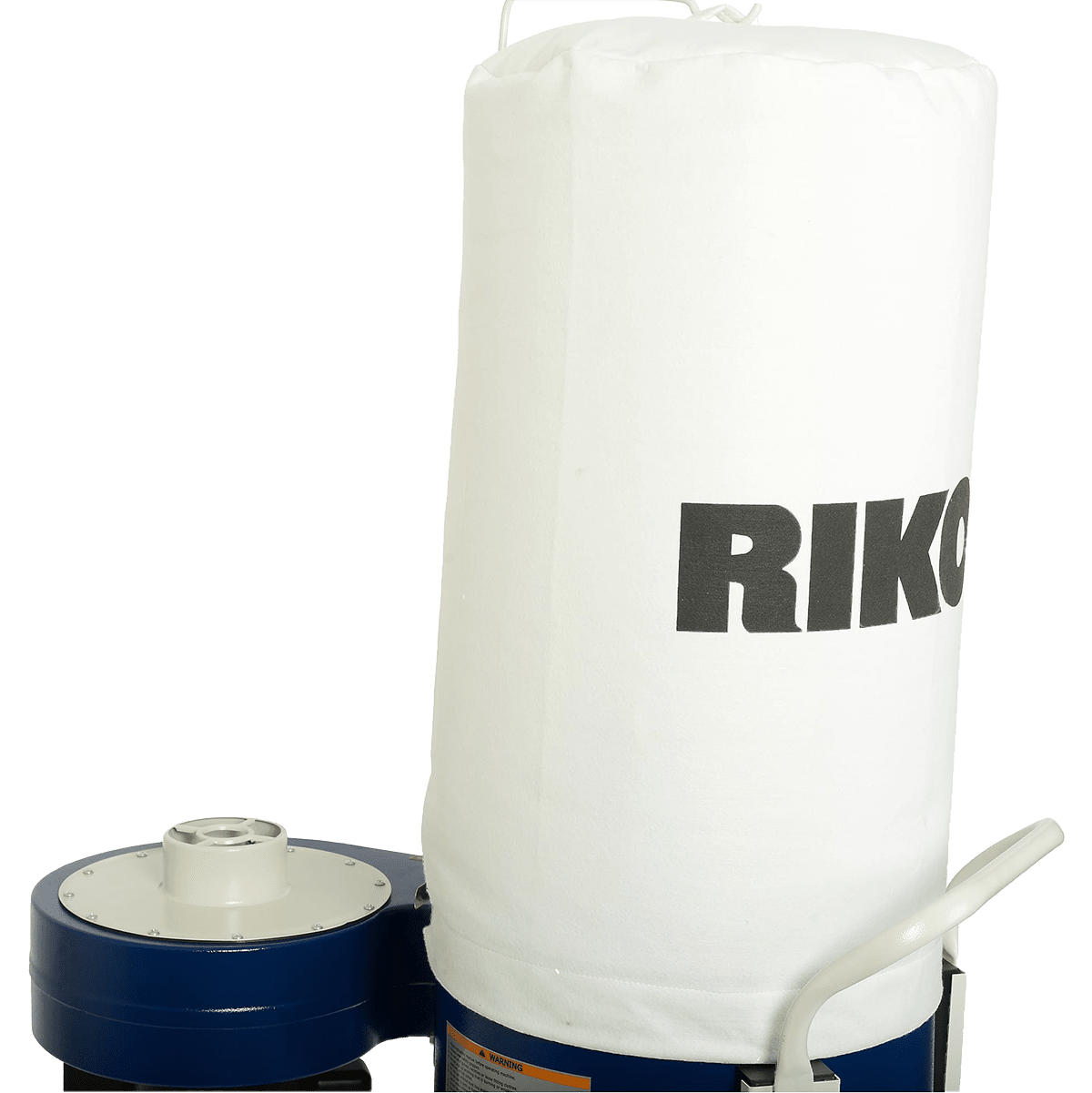

Rikon 60-100 1HP Dust Collector

SKU: ri15237  |  Model: 60-100
$399.99

Add extended protection plan. (Select one)

learn more

A 1-year replacement warranty plan for commercial or residential use items under $500.

learn more

A 2-year replacement warranty plan for commercial or residential use items under $500.


Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Manufacturer's Warranty

What's In The Box?

  • Rikon 60-100 1 HP Dust Collector

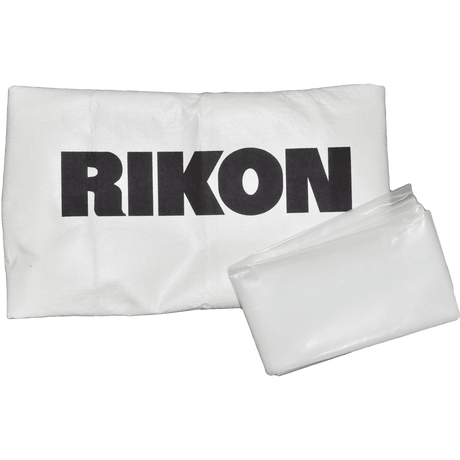

  • Top Cloth Filter Bag
  • Lower Disposable Chip Bag
  • Quick-Release Band Clamps
  • Owner's Manual

Info & Guides

Description

The Rikon 60-100 Dust Collector easily handles chips and dust from woodworking machines like jointers and planers, helping to keep woodworking spaces relatively dust-free.

  • Steel Construction: The base, frame, and blower wheel are all made of durable steel.
  • Powerful Motor: Equipped with a 1 horsepower motor, it runs at 3,450 rpm, producing 624 cfm.
  • Safety Switch: The power toggle switch requires a center key for operation.
  • Large Capacity: The plastic collection bag has a 2.1 cubic foot capacity.

Safety Features

  • Grounding: Full instructions for grounding are included to prevent static discharge from igniting fine dust particles. Grounding should be installed for both flexible and rigid plastic and metal ductwork.

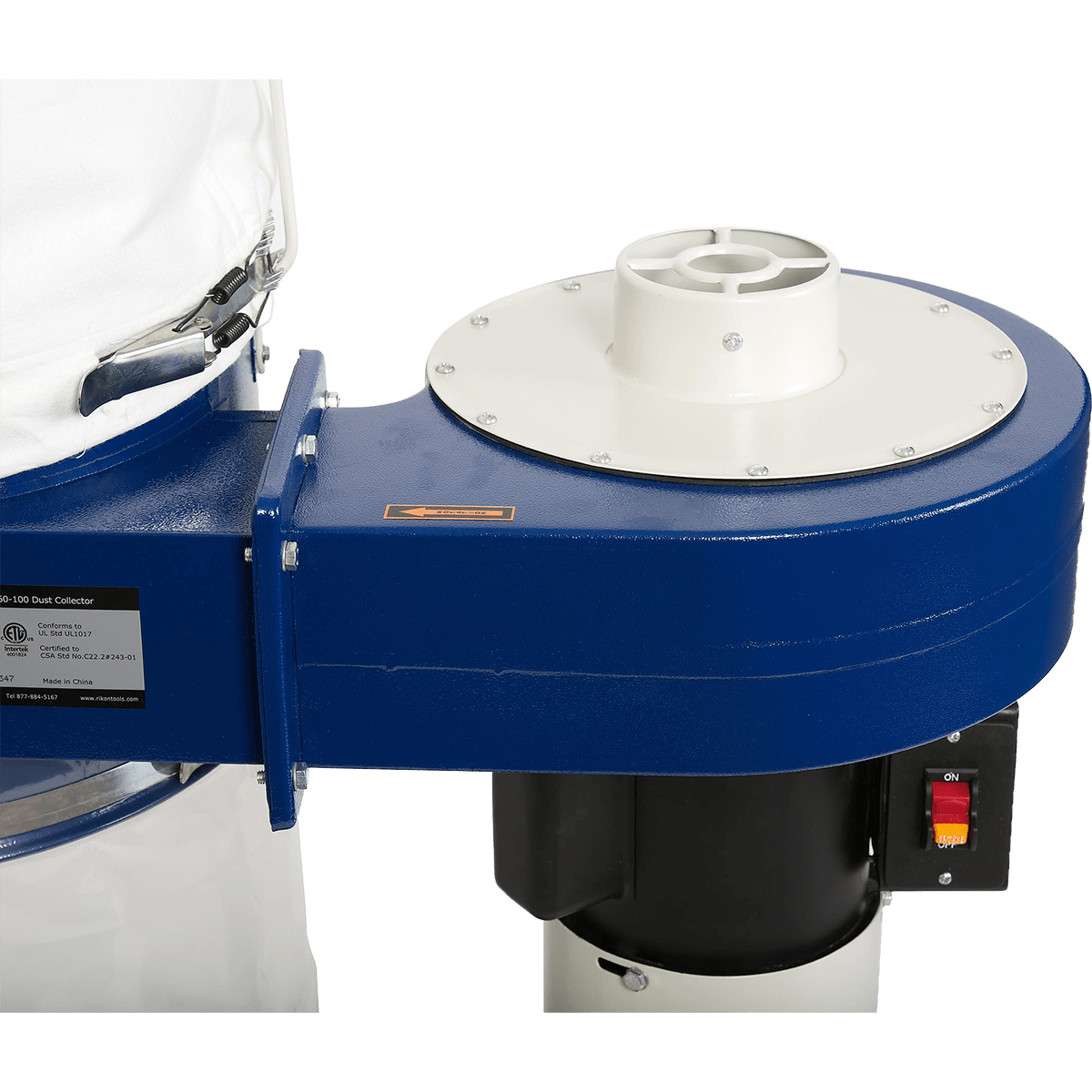

  • Locking Switch: The on/off locking toggle switch has a center key which can be used to prevent unauthorized use of the dust collector. It must be inserted before the machine can be used.

Filtration

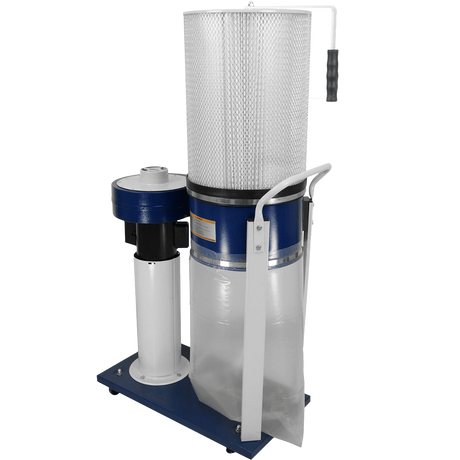

The Rikon 60-100 upper container can be equipped with an optional pleated cartridge filter and effectively captures fine wood dust in a 5-micron filtration bag.

Additional Specifications

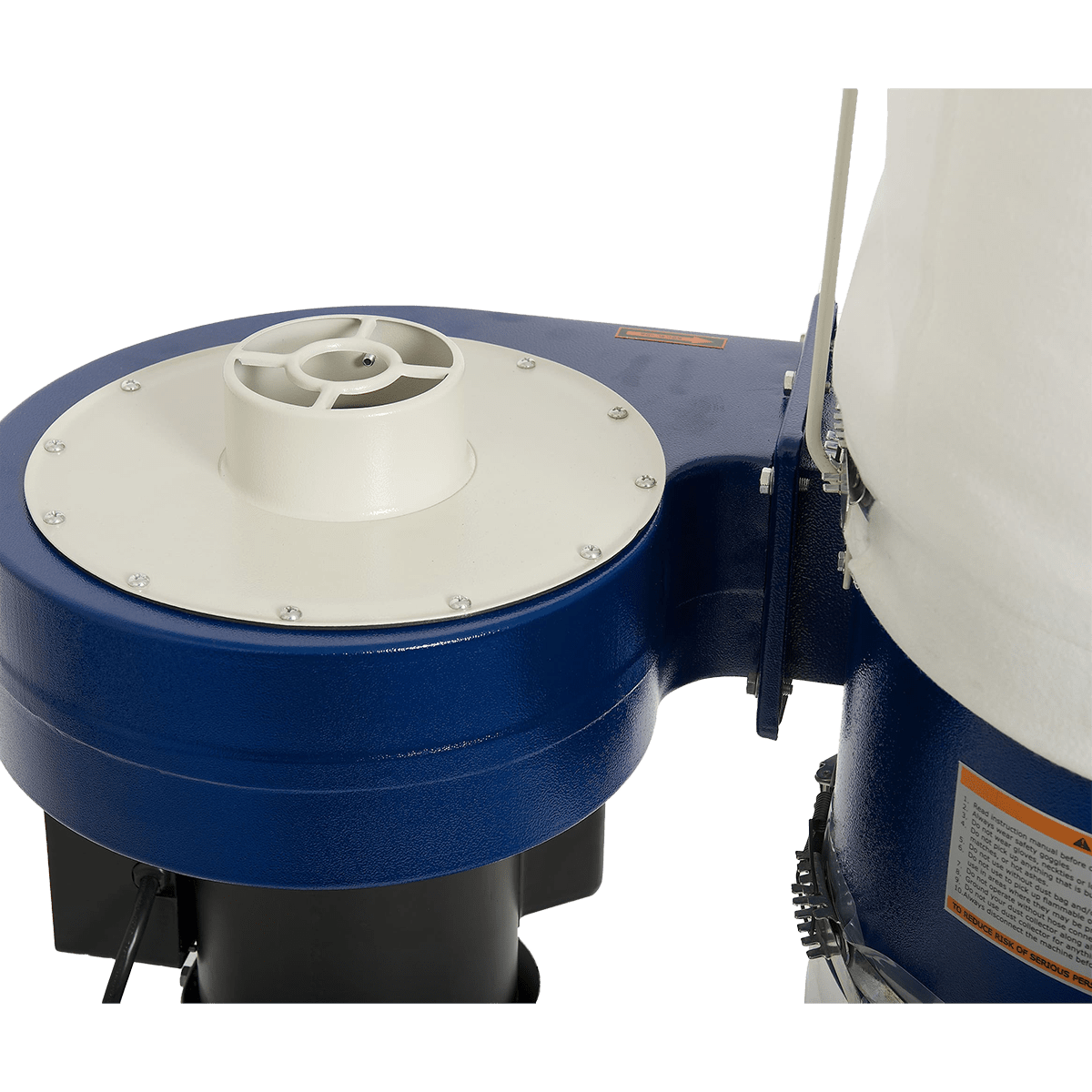

  • Hose Inlet: 4-inch diameter
  • Motor: 1 horsepower
  • RPM: 3,450 rpm
  • Amps: 7 A
  • Airflow: 624 cfm at 4-inch diameter
  • Sound: 78 dB at 3 ft.
  • Static Pressure (Water Column): 3.25 in. w.c.
  • Blower Wheel Diameter: 9 inches

Sylvane's Expert Take

Use the Rikon 60-100 dust collector to safely capture wood dust and chips. It has a powerful 1 hp motor and casters and a sturdy handle for easy placement and storage.

Specifications

    Key Specifications

    • Filtration System
      Pre-Filter
    • Number of Speeds
      1
    • Type
      Portable, Air Scrubber

    General

    • California Residents
      ⚠ WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles. For more information go to www.P65Warnings.ca.gov/wood.www.p65warnings.ca.gov.
    • Color
      White
    • Controls
      Toggle Switch
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      624.0
    • Maximum Noise Level (dB)
      78
    • Number of Filters to Change
      1
    • Ozone Emission
      None
    • Pre-Filter Type
      5 Microns Bag Filter
    • Recommended For
      Commercial/Industrial, Woodworking

    Power

    • Amperage (Amps)
      7
    • Voltage (V)
      110-120

    Dimensions

    • Depth (in.)
      32.25
    • Depth (with front cover) (in.)
      32.25
    • Height (in.)
      60.0
    • Height (with front cover) (in.)
      60.0
    • Weight (lbs.)
      60
    • Width (in.)
      15.0
    • Width (with front cover) (in.)
      15.0

    Additional Features

    • Additional Features
      Casters

    Warranty

    • Manufacturer's Warranty
      5-Year Manufacturer's Warranty
