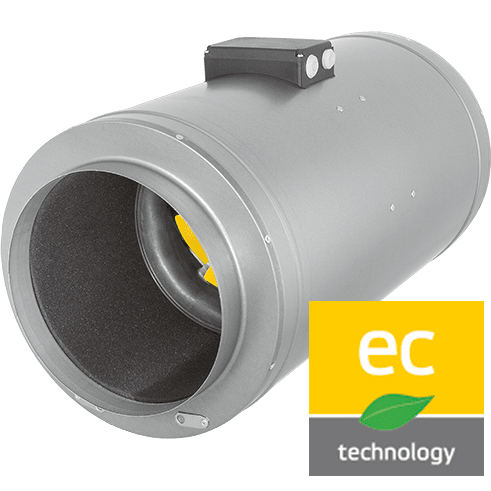

Ruck Air Movement 10-In. S-Prime EVO EC 1271 CFM Mixed Flow Inline Duct Fan
Ruck Air Movement 10-In. S-Prime EVO EC 1271 CFM Mixed Flow Inline Duct Fan is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Ruck Air Movement 10-in S-Prime EVO EC Mixed Flow Inline Duct Fan
- Owner’s Manual
Info & Guides
Info & Guides
Ruck Air Movement 10-In. S-Prime EVO EC 1271 CFM Mixed Flow Inline ...
Ruck Air Movement 10-In. S-Prime EVO EC 1271 CFM Mixed Flow Inline Duct Fan is backordered and will ship as soon as it is back in stock.
The Ruck Air Movement 10-in S-Prime EVO EC Mixed Flow Inline Duct Fan offers high-efficiency airflow in a sound-insulated casing, which makes it a great ventilation fan for kitchens, bathrooms, and more. With a convenient step-less speed control, this inline duct fan is an ideal choice in ventilation applications.
Features & Highlights
- 10-inch Duct Fan
- Infinitely Controllable with any 0-10V Controller
- Galvanized Steel Casing
- Sound Insulated
- Step-less Speed Control
- Minimum Operating Temperature of -22 degrees Fahrenheit (-30° C)
- Maximum Operating Temperature of 104 degrees Fahrenheit (40° C)
- Made in Germany
Summary
The Ruck Air Movement Inline Duct Fan is also available in 6-inch, 8-inch, 12-inch, and 14-inch duct sizes, also equipped with an EC motor.
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)34.0
-
TypeLow Noise Inline Duct Fan
-
ApplicationDucting
-
California Residents⚠ WARNING: Cancer and birth defects or other reproductive harm. www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationsUL, CSA
-
ColorGray
-
ControlsManual
-
Maximum Air Temperature (degrees F)104
-
Maximum Cubic Feet per Minute (CFM) (CFM)1271.0
-
Amperage (Amps)3.5
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)298
-
Depth (in.)27.17
-
Depth (with front cover) (in.)27.17
-
Duct Diameter (in.)10.0
-
Height (in.)13.58
-
Height (with front cover) (in.)13.58
-
Weight (lbs.)23.1
-
Width (in.)12.6
-
Width (with front cover) (in.)12.6
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty3-Year Limited
