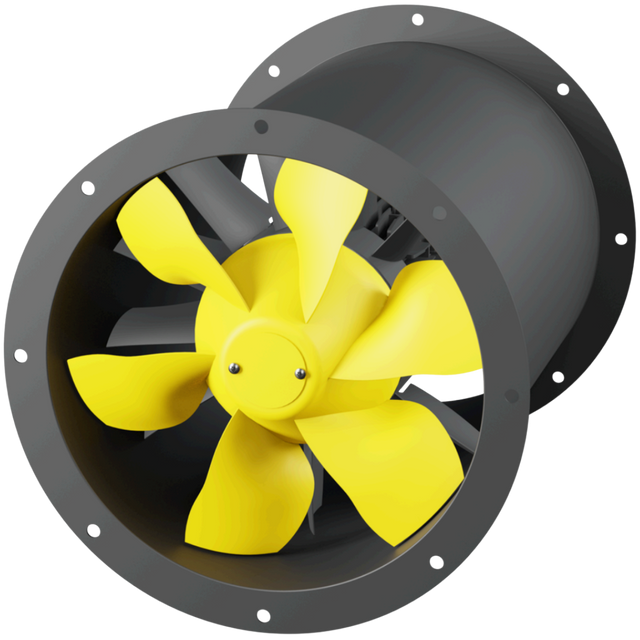

Ruck Air Movement 12 inch EC 3031 CFM Axialine Tubeaxial Fan
Ruck Air Movement 12 inch EC 3031 CFM Axialine Tubeaxial Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Ruck Air Movement 12-inch Axialine EC 3031 CFM Tubeaxial Fan (AL 315 EC 01)
- Owner’s Manual
Info & Guides
Info & Guides
Ruck Air Movement 12 inch EC 3031 CFM Axialine Tubeaxial Fan
Description
Description
Powerful airflow meets precision efficiency in the Ruck Air Movement 12-inch Axialine EC 3031 CFM Tubeaxial Fan, a high-efficiency fan built for serious ventilation demands.

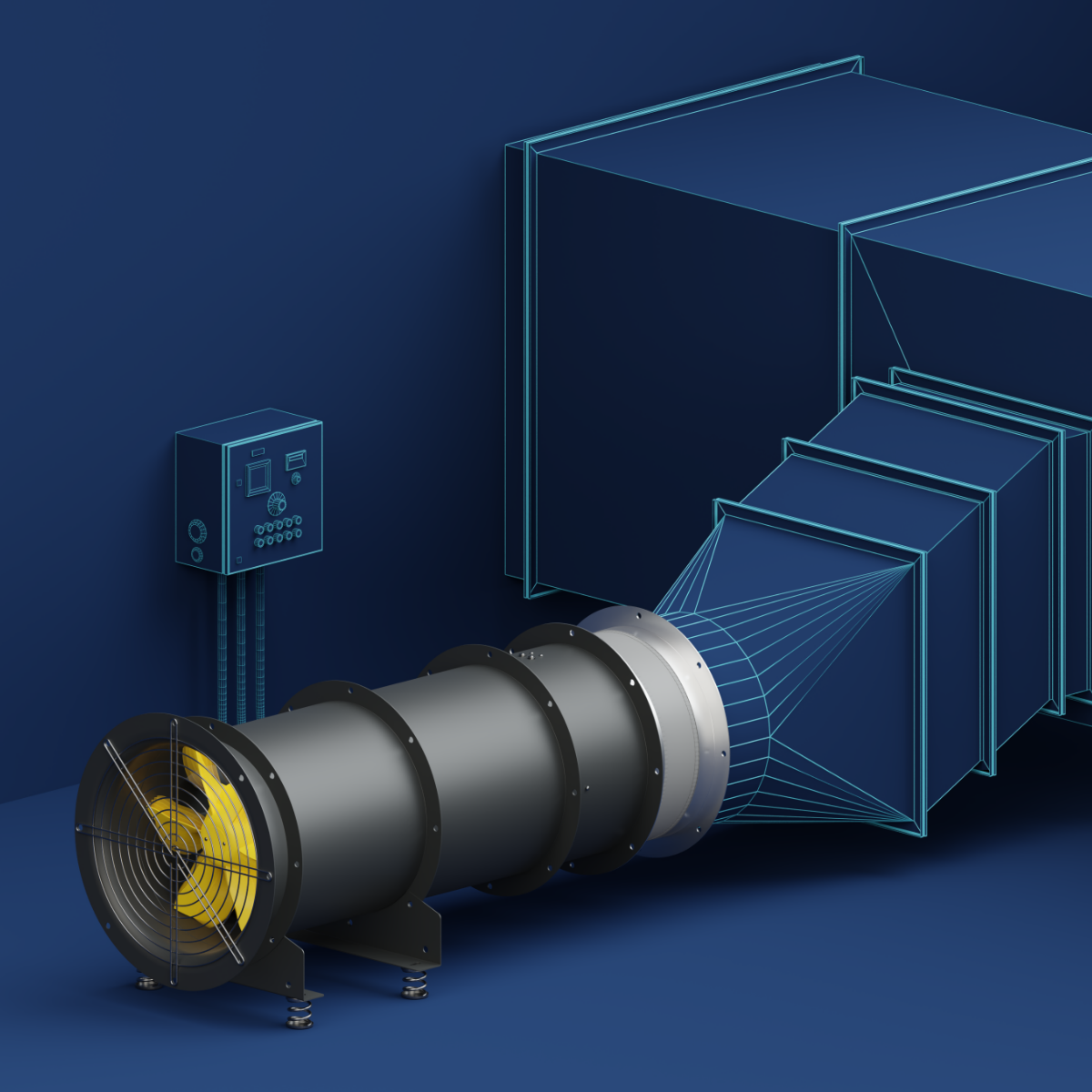

Designed for exhausting heat from a production floor, ventilating a parking garage, or supplying fresh air to a warehouse, this high-performance axial fan delivers dependable airflow with stepless control. The advanced EC motor and CFD-optimized design give you highly efficient airflow.
Key Features and Benefits of the Ruck 12-Inch Axialine EC Tubeaxial Fan
- High-Efficiency EC Motor: The IE5 electronically commutated technology slashes energy use while delivering full-torque performance.
- Large Airflow Output: The 3,031 CFM airflow capacity moves large volumes of air through long or restrictive duct runs with up to 390 Pa Static Pressure, making it ideal for commercial exhaust, make-up air, and process ventilation.
- Stepless Speed Control: Dial in exact airflow from startup to maximum RPM without motor hum or wasted power, making it great for variable air volume systems and demand-based ventilation.
- Optimized Steel Impeller: Computer-modeled blade geometry boosts efficiency up to 15 percent compared to similar fan models.
- Powder-Coated Housing: The coated-steel shell and IP55 protection shrug off dust, light water spray, and daily wear for years of low-maintenance service.
- Wide Operating Range: This model offers dependable performance in hot production areas up to 140 degrees F, cold storage spaces down to -4 degrees F, or anywhere in between.
- DN315 Quick-Fit Connection: The 12-inch flanges integrate seamlessly with ducting.
Smarter EC Technology

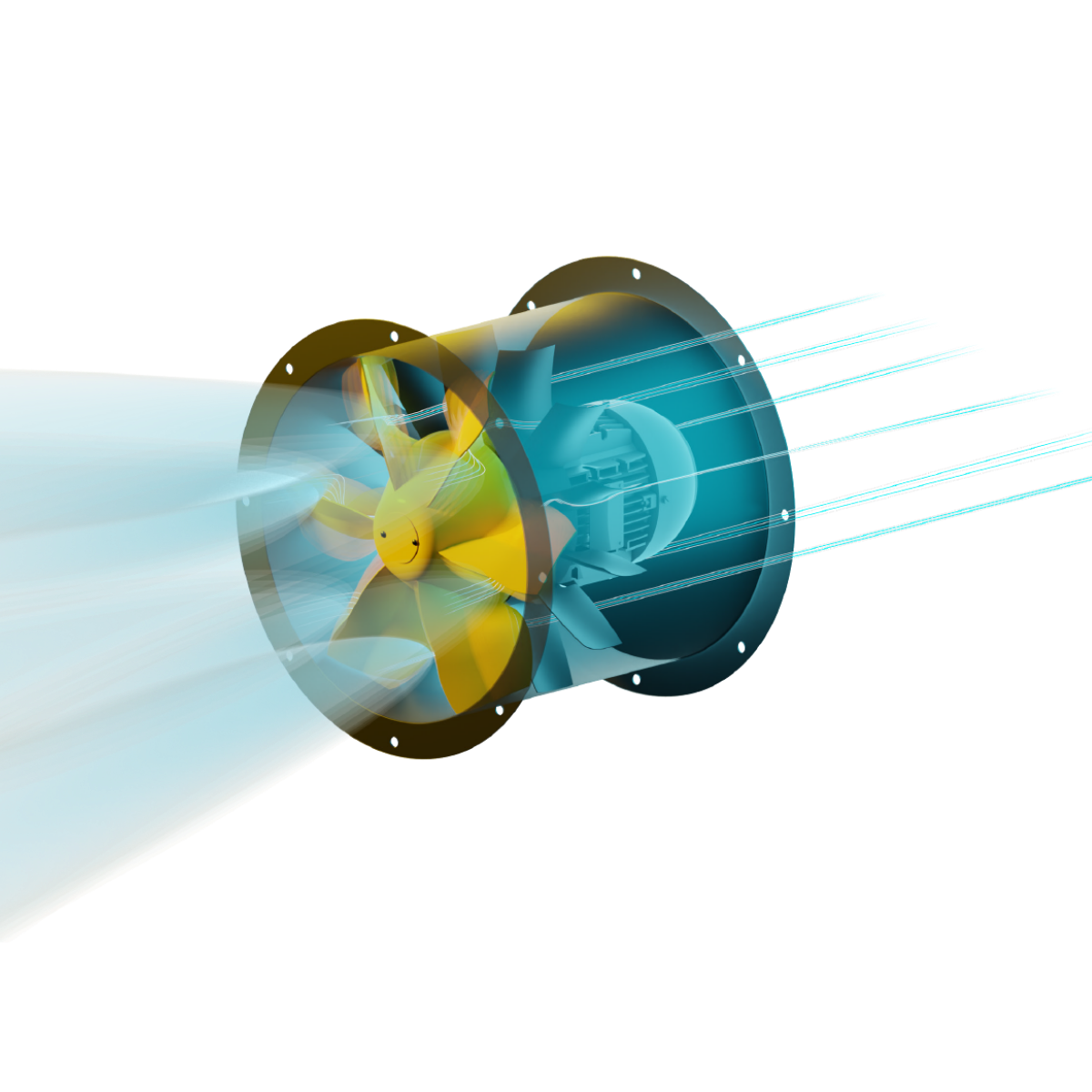

Traditional AC motors waste energy by running at fixed speeds or require bulky variable-frequency drives that add cost and complexity. The integrated EC motor in this tubeaxial fan uses permanent magnets and onboard electronics to convert power with exceptional efficiency.
That means instant speed adjustments from soft-start operation that protect the electrical network, and dramatically reduce heat output inside the air stream. Over a single cooling season, facilities often see double-digit energy savings compared to comparable AC fans, translating to a rapid return on investment.
Sylvane's Expert Take
For installers and facility managers who need serious airflow in a compact package, this 12-inch EC tubeaxial fan checks every box.
It couples impressive 3,031 CFM performance with energy-saving EC motor tech, rolls in IP55 resilience for tough environments, and mounts effortlessly into a standard 12-inch duct. Add stepless speed control and premium efficiency, and you have a future-ready solution that pays for itself in lower operating costs and dependable uptime.
Specifications
Specifications
-
Number of SpeedsVariable
-
TypeTubeaxial
-
ApplicationDucting, Industrial
-
CertificationsCE
-
ColorBlack, Yellow
-
ControlsElectronic
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)3031.0
-
Amperage (Amps)5
-
Power SupplyHardwired
-
Voltage (V)208-230
-
Watts (W)900
-
Depth (in.)15.0
-
Depth (with front cover) (in.)15.0
-
Duct Diameter (in.)12.4
-
Height (in.)15.0
-
Height (with front cover) (in.)15.0
-
Weight (lbs.)38
-
Width (in.)12.4
-
Width (with front cover) (in.)12.4
-
Additional FeaturesThermal Cutoff Protection
-
Manufacturer's Warranty3-Year Limited Warranty
