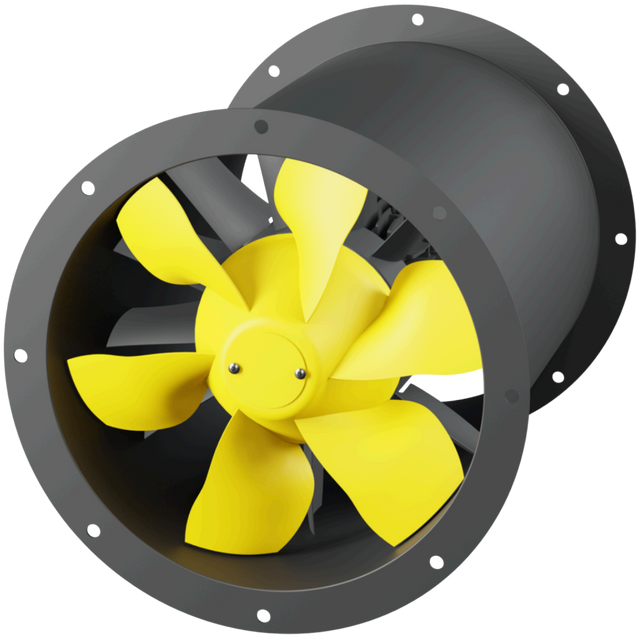

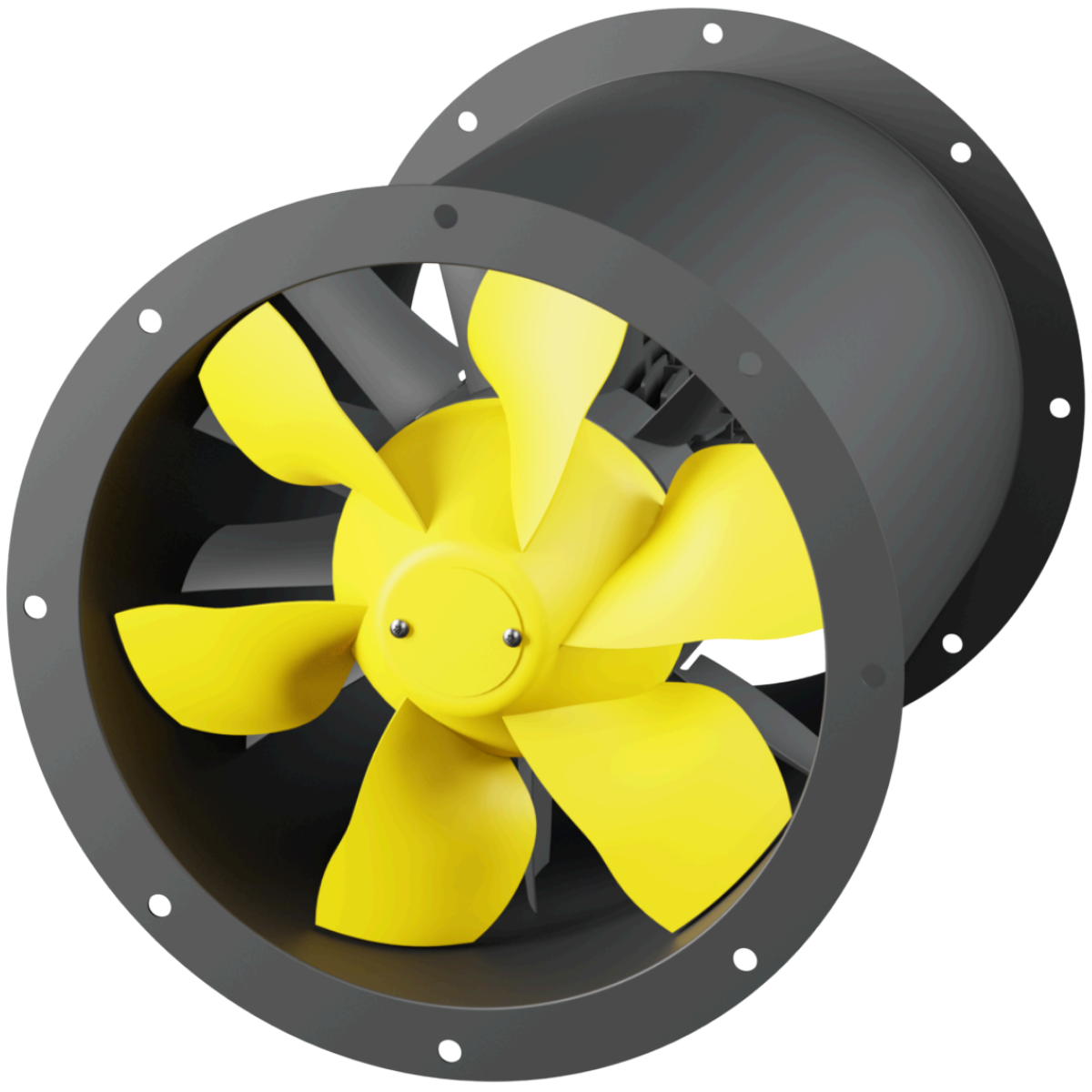

Ruck Air Movement 14 inch 2866 CFM Axialine Tubeaxial Fan
Ruck Air Movement 14 inch 2866 CFM Axialine Tubeaxial Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Ruck Air Movement 14-inch Axialine 2866 CFM Tubeaxial Fan (AL 355 D4 01)
- Owner’s Manual
Info & Guides
Info & Guides
Ruck Air Movement 14 inch 2866 CFM Axialine Tubeaxial Fan
Description
Description
Move large volumes of air efficiently with this Ruck Air Movement 14-inch Axialine industrial Tubeaxial Fan.
Engineered for warehouses, factories, parking garages, and other high-demand spaces, it delivers up to 2,866 CFM while keeping energy use in check. Pairing aerodynamic blade design with an IE3-rated motor, the Ruck AL 355 D4 01 is a dependable, easy-to-install solution for spot cooling, ducted ventilation, or make-up air systems.
Key Features and Benefits of the Ruck 14-Inch Axialine Tubeaxial Fan
- High Airflow: This model moves an airflow of up to 2,866 CFM through a 14-inch (DN355) duct, giving you powerful ventilation.
- Energy-Efficient IE3 Motor: Three-phase AC motor meets efficient IE3 standards, helping reduce operating costs and satisfy energy-management goals.
- Frequency-Control Ready: Works seamlessly with a VFD, so you can fine-tune speed and performance.
- CFD-Optimized Blade Geometry: Computer-modeled aerodynamic blades minimize turbulence and improve overall airflow of the fan.
- Powder-Coated Housing: Weight-optimized steel housing resists corrosion and everyday wear, extending service life in harsh industrial environments.
- Wide Temperature Operating Range: Reliable performance from ‑4 to 140 degrees F lets you ventilate unheated spaces like garages and warehouses, or high-temperature production areas.
- Protection You Can Trust: The entire unit is rated IPX4, while the terminal box boasts IP55 protection for added electrical safety when moisture or dust is present.
Engineered for Demanding Airflow Applications
Each Axialine fan is built around a precisely balanced aluminum impeller set at variable blade angles. This flexibility allows installers to match performance to static pressure requirements.
When paired with a variable-frequency drive, you gain an even wider control band, making it possible to ramp down during off-shift hours or ramp up when production peaks. The result is a ventilation solution that not only keeps machinery and occupants comfortable but also supports sustainability targets through smarter energy use.
Sylvane's Expert Take
Ruck’s 14-inch Axialine Fan hits the sweet spot between airflow and energy efficiency. Its CFD-driven blade design, IE3 motor, and VFD compatibility give facility managers the control they need, while the durable housing and IP ratings stand up to real-world conditions.
For anyone upgrading an existing duct run or designing a new industrial ventilation system, this fan offers reliable performance today with headroom for tomorrow’s efficiency standards.
Specifications
Specifications
-
Number of SpeedsVariable
-
TypeTubeaxial
-
ApplicationDucting, Industrial
-
CertificationsCE
-
ColorBlack, Yellow
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)2866.0
-
Amperage (Amps)0.8
-
Power SupplyHardwired
-
Watts (W)575
-
Depth (in.)15.0
-
Depth (with front cover) (in.)15.0
-
Duct Diameter (in.)14.0
-
Height (in.)16.5
-
Height (with front cover) (in.)16.5
-
Weight (lbs.)44.8
-
Width (in.)14.0
-
Width (with front cover) (in.)14.0
-
Manufacturer's Warranty3-Year Limited Warranty
