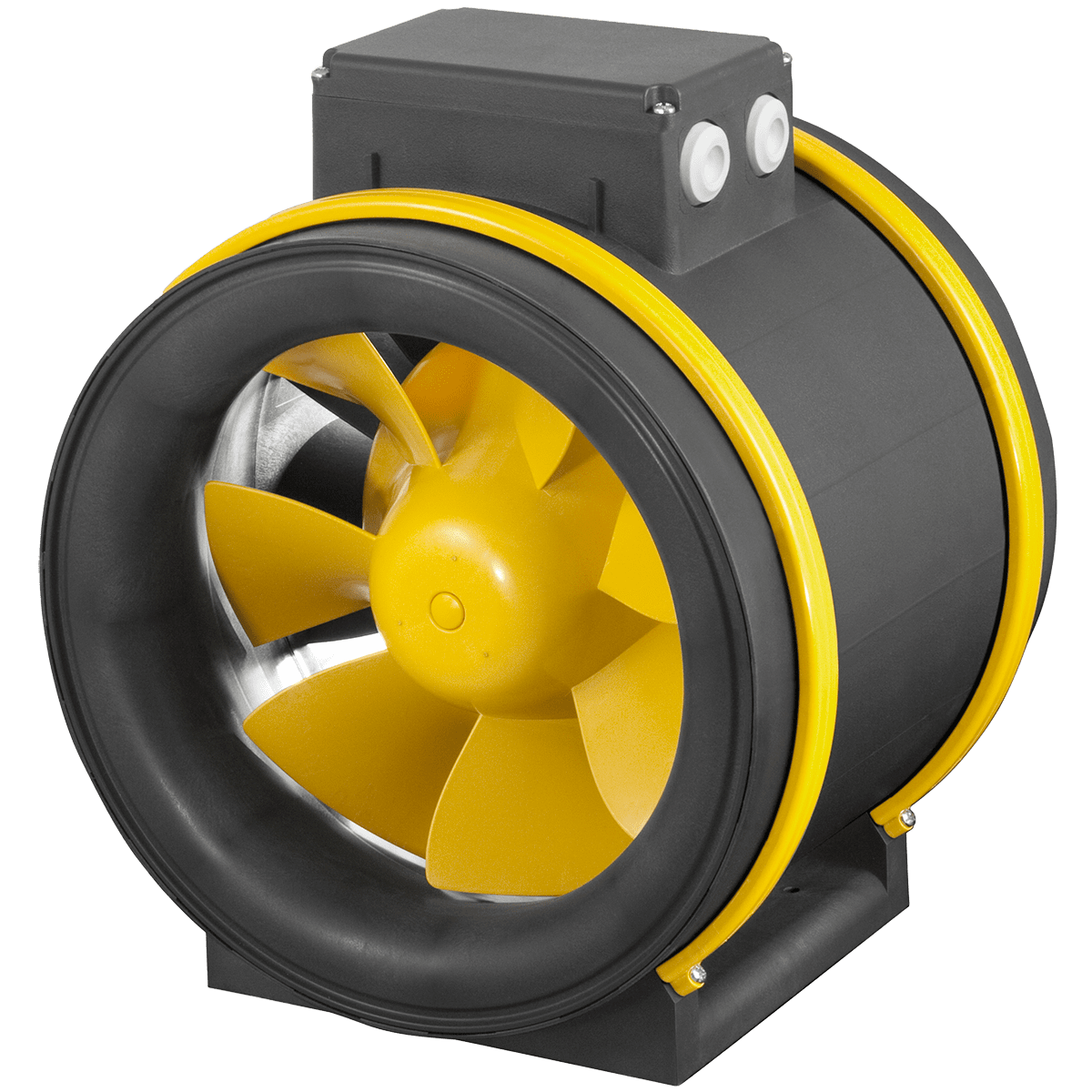

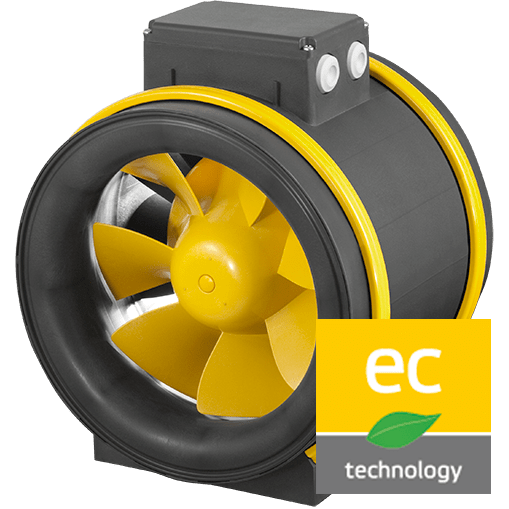

Ruck Air Movement 14-In. Prime EVO EC Mixed Flow Inline Duct Fan

SKU: ru14530  |  Model: 147743
$1,226.00

FREE shipping on orders over $45!

In Stock Usually ships in 3 business days.



Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

3-Year Warranty

What's In The Box?

  • Ruck Air Movement 14-inch Prime EVO EC or Prime EVO EC HO Mixed Flow Inline Duct Fan
  • Mounting Bracket
  • Owner's Manual

Info & Guides

Description

The Ruck 14-inch Prime EVO EC Mixed Flow Inline Duct Fans are designed with 3D shaped impeller blades for top aerodynamic operation.

Manufactured in Germany, these fans are ETL-listed and cost less to operate than traditional centrifugal fans.

Efficient Ventilation

These efficient fans pull very few amps while producing high airflow. You can select the model that best suits your needs.

  • 14-inch Prime EVO EC: 1930.5 CFM at 3.1 Amps; this unit has an IPX4 rating
  • 14-inch Prime EVO EC HO: 2819 CFM at 3.4 Amps; this unit has an IP20 rated motor

Features & Highlights

  • 14-inch Duct Fan
  • 3D Shaped Impeller Blades
  • Corrosion Resistant Plastic Housing
  • 0-10V Speed Control
  • Minimum Operating Temperature of -13° Fahrenheit (-30° C)
  • EVO EC: Maximum Operating Temperature of 104° Fahrenheit (40° C)
  • EVO EC HO: Maximum Operating Temperature of 140° Fahrenheit (60° C)
  • Included Mounting Bracket
  • Motor is protected in the Hub

Summary

The Ruck Air Movement Prime EVO EC Mixed Flow Inline Duct Fan is available in this 14-inch duct size. Equipped with corrosion-resistant housing, 0-10V speed control, and carries an IPX4 rating for humid environments. Also available in 6-inch, 8-inch, 10-inch, 12-inch, and 16-inch duct sizes.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      Prime EVO EC HO: 80.0
      Prime EVO EC: 52.0
    • Type
      Low Noise Inline Duct Fan

    General

    • Application
      Ducting
    • Certifications
      UL, CSA
    • Color
      Black
    • Controls
      Manual
    • Maximum Air Temperature (degrees F)
      Prime EVO EC HO: 140
      Prime EVO EC: 104
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      Prime EVO EC HO: 2819.0
      Prime EVO EC: 1930.0

    Power

    • Amperage (Amps)
      Prime EVO EC HO: 3.4
      Prime EVO EC: 3.1
    • Power Supply
      Hardwired
    • Voltage (V)
      Prime EVO EC HO: 220-240
      Prime EVO EC: 110-120
    • Watts (W)
      Prime EVO EC HO: 731
      Prime EVO EC: 258

    Dimensions

    • Depth (in.)
      13.5
    • Depth (with front cover) (in.)
      13.5
    • Duct Diameter (in.)
      14.0
    • Height (in.)
      16.5
    • Height (with front cover) (in.)
      16.5
    • Weight (lbs.)
      Prime EVO EC HO: 21.5
      Prime EVO EC: 16.1
    • Width (in.)
      16.1
    • Width (with front cover) (in.)
      16.1

    Additional Features

    • Additional Features
      Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      3-Year Warranty
